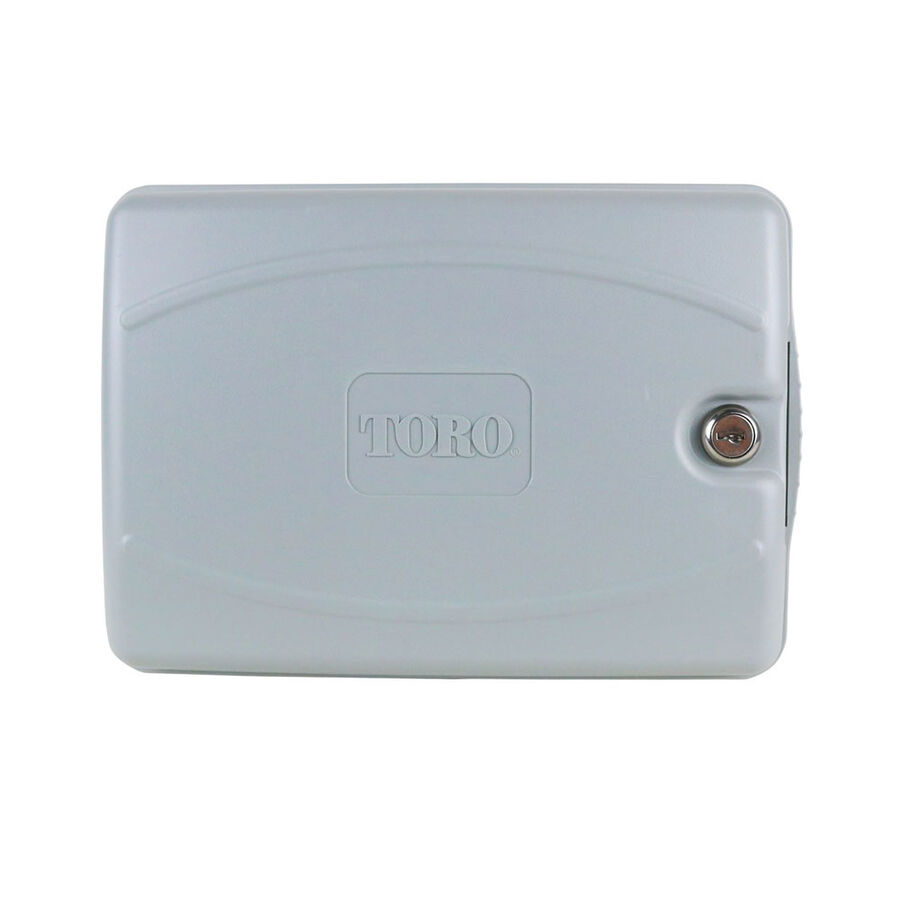

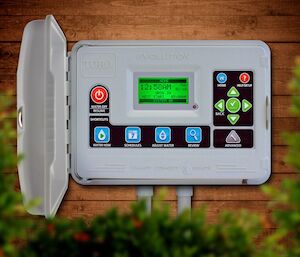

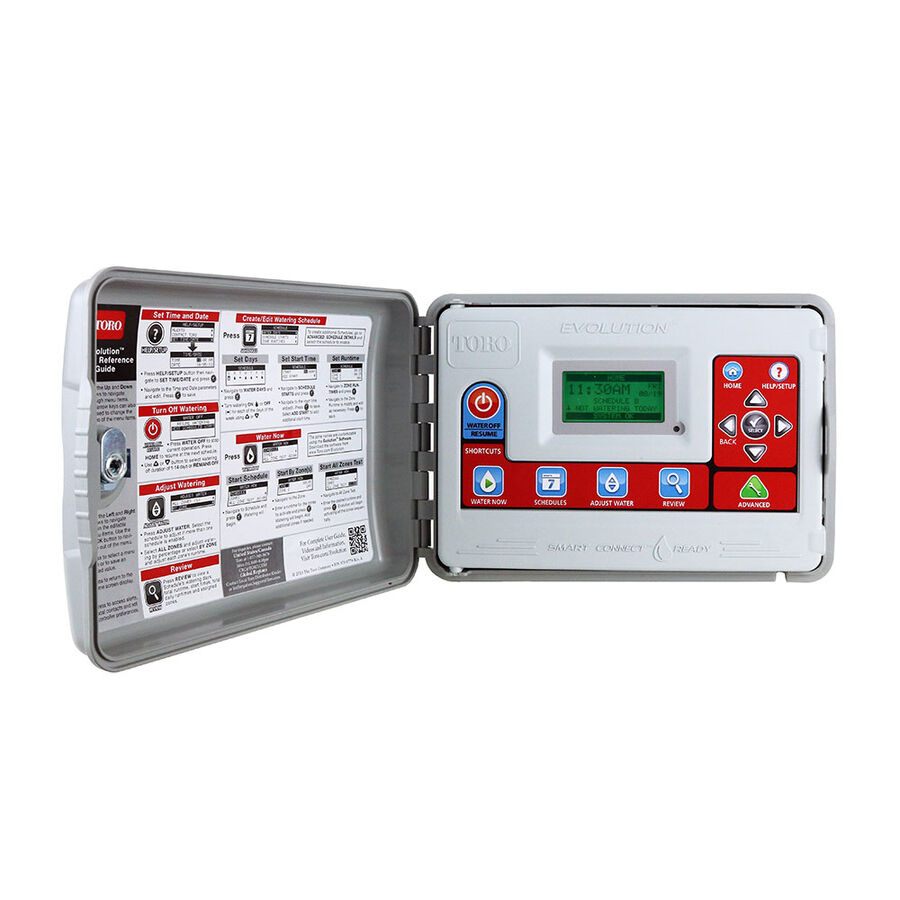

Evolution® AG Series Controller

Irrigation and Fertigation Controller For Agriculture & Horticulture
  • Model: EVO-4AG
  • UPC/EAN: 108256003230
  • Program valve runtime from 1 second to 24 hours
  • Operate up to 4 valves at one time
  • Manage 2 Fertilizer pumps
  • Wireless Valve Remote Control with 1,000 ft. range

Overview

Introducing a simple, intuitive and economical controller that gives agricultural and horticultural growers the features they need now! The EVOLUTION® AG, built on the award-winning Evolution platform, allows for modular expansion, fertilizer injection, pulse irrigation, propagation and misting schedules, along with the freedom to program valves to your specific needs: from 1 second to 24 hours. Full Toro Support for programming questions: Please Call 877-345-8676 or email Tech.Support@toro.comLearn more at www.toro.com/evolution

Features

Evolution® AG Series Controller
Program valve runtime from 1 second to 24 hours
Program valve runtime from 1 second to 24 hours
AG Series Controller
Operate up to 4 valves at one time
Operate up to 4 valves at one time
Greenhouse-Tomatoes

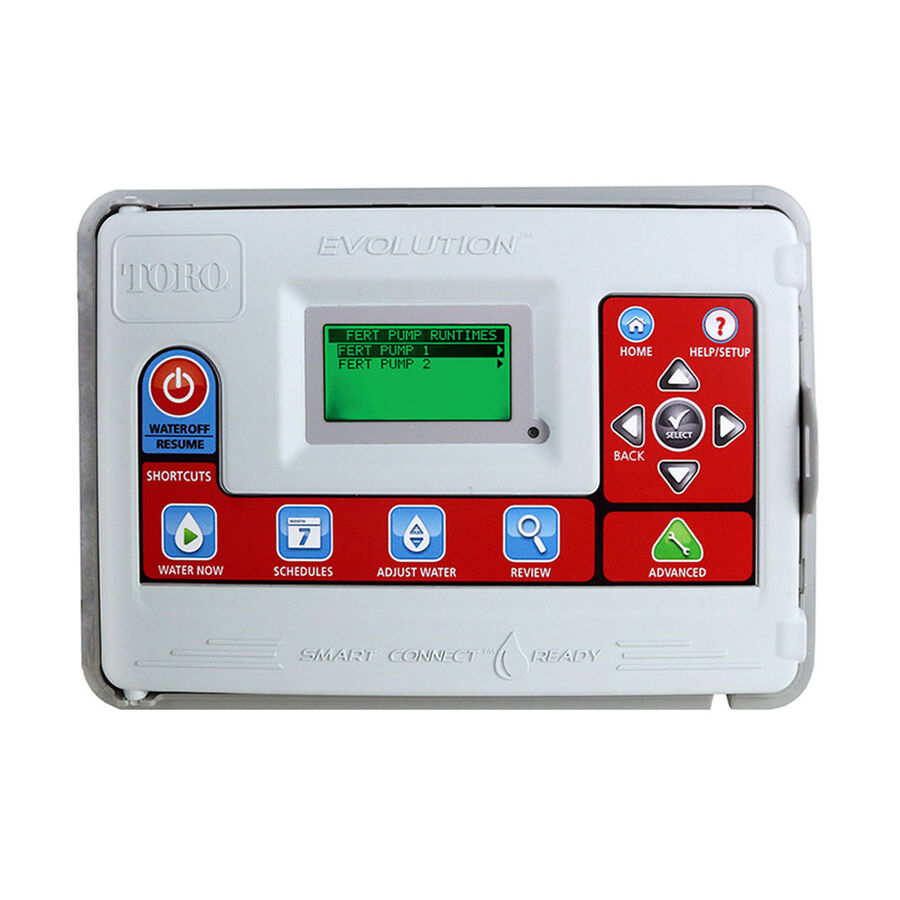

Manage 2 Fertilizer pumps
Manage 2 Fertilizer pumps
Evolution® AG Series Controller
Wireless Valve Remote Control with 1,000 ft. range
Wireless Valve Remote Control with 1,000 ft. range

Specifications

Battery Type 9V
Dimensions 11 1/4 in. W x 7 3/4 in. H x 4 1/4 in. D
Electrical Input Power 120 VAC
Number of Batteries Included 1
Number of Batteries Required 1
Number of Programs 3

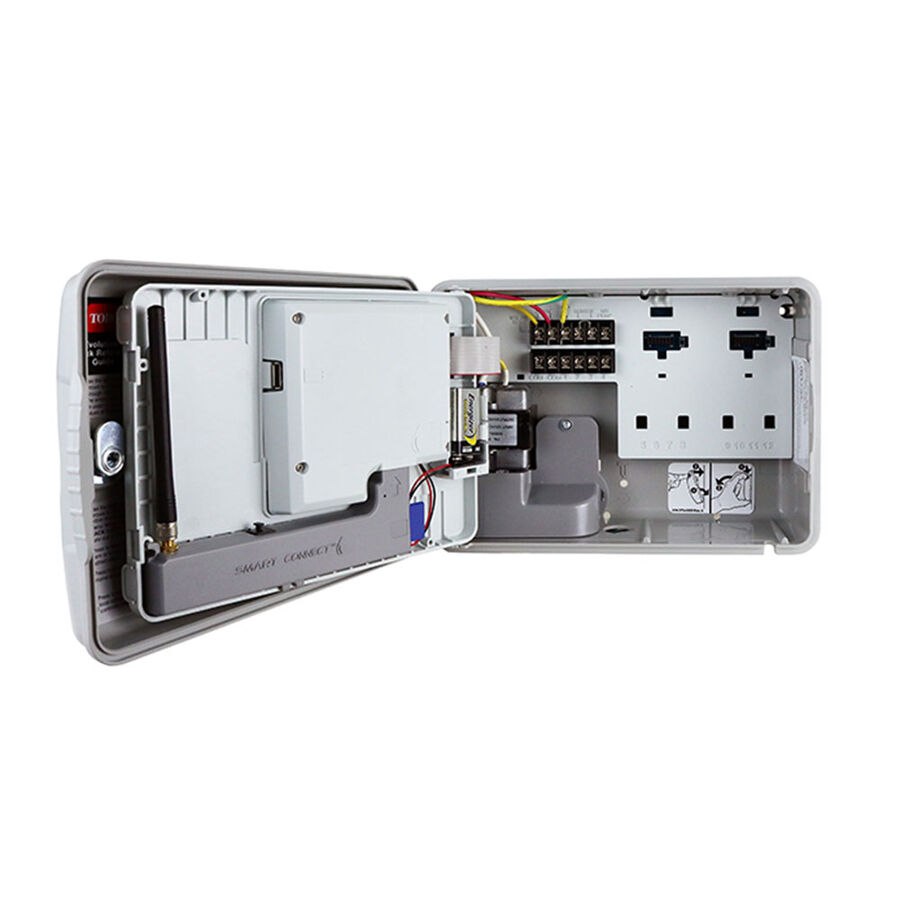

Number of Stations 4 to 16 stations with 4- and 12-station hot-swappable modules
Output Power 24 VAC; 1.0 amps total load
Run Time Up to 24 hours (1 second increments)
Weight 4.5 lbs (2 kg)

Documents

Title Documents
ALT274 RowCrop Irrigation Systems ENG 17 compressed.pdf PDF - Owner's Manual-en-us
Drip Irrigation Systems for Greenhouses PDF - Brochure-en-us
Evolution Accessories PDF - Replacement Part List-en-us
EVOLUTION AG Brochure PDF - Brochure-en-us
Evolution AG Flyer PDF - Sellsheet-en-us
Evolution AG User's Guide (English and Spanish) PDF - Owner's Manual-en-us
Quick Start HOW TO for Evolution AG v110 PDF - Owner's Manual-en-us
Sistemas de Riego por Goteo para Cultivos en Hileras PDF - Brochure-en-us
Sistemas de Riego Por Goteo Para Invernaderos PDF - Brochure-en-us



Warranty

5-Year

**See dealer for Warranty details.
