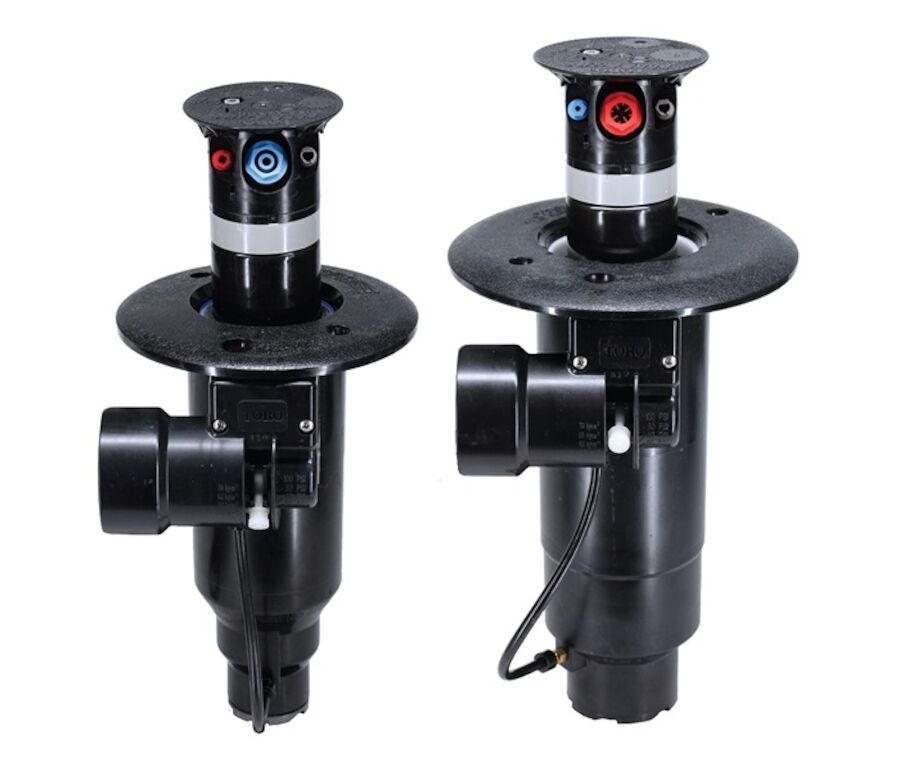

FLEX800™ 35-6/55-6 Series Golf Rotors

Model: FLEX800™ 35-6/55-6 Series Golf Rotors

Tailored for golf course irrigation, withstands harsh debris, high pressures, and heavy traffic. Patented X-Flow technology prevents water loss. Built-in shutoff device ensures water conservation. Perfect for bunkers, small tee boxes, and clubhouse areas.
Ratcheting Riser
Industry's largest nozzle selection for precise watering.
Back Nozzle Capable
Stainless steel seat molded to the body, it's a standard on all Toro Golf rotors.

Top

Overview

With the industry’s largest selection of high performance nozzles and TruJectory™ adjustment the New FLEX800™ 35-6/55-6 Series allows you to put water precisely where you want it for maximum distribution uniformity. And the part/full circle drive allows you to simply and economically adjust the area of coverage to match your seasonal watering needs or meet water rationing mandates in seconds with no disassembly or additional parts required.

Features

Effluent Water Models Available

Models are available with lavender marking to identify the use of non-potable water.

Check Valve Standard

Prevents low head drainage, puddling and soil erosion

Ratcheting Riser

Define the arc of the sprinkler with a simple hand gesture.

Industry Largest and Most Flexible Nozzle Selection

Nozzles from 42’ to 100’ (12,8m - 30,5m) radius plus a wide assortment of back nozzles lets you put the precise amount of water exactly where you need it. All nozzles threaded in from the front.

Back Nozzle Capable

Allows watering directly behind a part circle sprinkler

Indestructible Stainless Steel Valve Seat

Our stainless steel valve seat eliminates body damage from rocks and debris. It's molded to the body and virtually eliminates body replacements due to seat damage.

Spike Guard™ Solenoid

With its 20,000 volt lightning rating, the industries highest, the Spike Guard™ solenoid has virtually eliminated the need for solenoid replacement in high lightning environments. And with 1/2 the amperage draw of traditional solenoids you can run twice as many sprinklers simultaneously, reduce the cost of wiring during initial installation or increase the distance from controller to sprinkler.

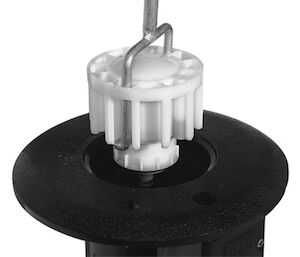

Slow closing piston valve eliminates pressure surges

Slow closing piston valve eliminates the high pressure surges that can damage the sprinkler, valves and piping systems.

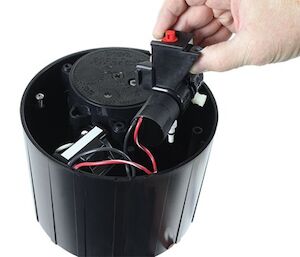

Selectable pilot valve

Allows pressure regulation adjustment at the sprinkler to 50, 65, 80 or 100 psi (3.4, 4.5, 5.5 or 6.9 bar).

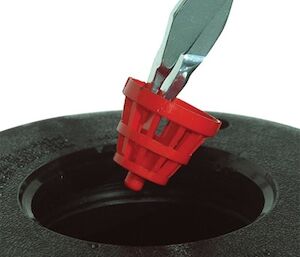

Removable rock screen

Allows you to flush debris out of the piping system from the top of the sprinkler

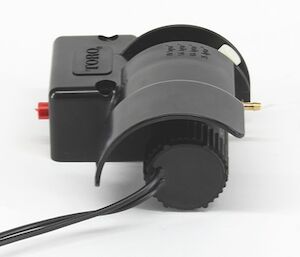

Electric Valve-In-Head Solenoid-835/855

Electric Valve-in-head solenoid 24V ac, 50/60 Hz

Specifications

Body Diameter	FLX35-6: 6 1/2" (16.5); 855S: 7 1/2" (19.1 cm)
Body Height	FLX35-6: 10" (25.4 cm); 855S: 11 3/8" (28.9 cm)
Flow	7.1-61.1 GPM (27 - 231 LPM)
Holding	60 Hz, 0.10 Amps
Inlet	1" (2.5 cm) and 1 1/2" (3.8 cm) NPT, BSP, Acme
Inrush	60 Hz, 0.12 Amps
Minimum Operating Pressure	40 PSI (2.8BAR)
Pop-up Height	3 1/4" (8.3 cm)
Precipitation Rate	FLX35-6: Min = .37"/hr (.9 cm); Max = .53"/hr (1.3 cm) FLX55-6: Min = .43"/hr (1.1 cm); Max = .60"/hr (1.5 cm)
Radius	42'-100' (12.8 - 30.5 m)
Recommended Operating Pressure	65 - 100 PSI
Trajectory	7-30 deg / 25 degrees & 15 degrees
Weight	FLX35-6: 2.98 lbs. (1.4 kg); 855S: 3.70 lbs. (1.7 kg)

Warranty

For complete product warranty information contact Toro Customer Service

**See dealer for Warranty details.
