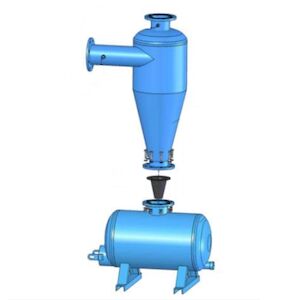

SentryCyclone Hydrocyclone Separators

Sand separator for well water applications, rivers, and canals with moderate to high levels of sand and silt

Model: HYDROCYCLONE SAND SEPARATOR

Tapered shape of the body maintains high velocity of the water and particles during the separation process forcing the particles to the bottom of the hydrocyclone
Underdrain – The shape changes the direction of the particles causing them to settle in the chamber, while the valve on the lower chamber allows for easy periodic flushing of the accumulated particles
Rubber cone increases the efficiency of the separator by extending the shape of the hydrocyclone down into the lower chamber, and provides protection to the lower neck of the hydrocyclone
Multiple Unit Manifolding - The tapered shape of the hydrocyclone allows for close spacing on a manifold, ideal for applications where a number of smaller units are required

Top

Overview

Toro's SentryCyclone hydrocyclone separators are designed for the most challenging of agricultural, greenhouse and nursery applications. These manual filter units are ideal for removing large volumes of suspended material such as sand or other heavy debris. Water enters via the inlet creating a spiral flow. Centrifugal force separates the dirt particles from the water and pushes them towards the walls of the separator. Particles gravitate downwards and into the debris collector, while water moves upwards and exits via the outlet. The debris collector is drained simply by opening a flush valve for a few seconds. Available from 1” to 8” inlet/outlet configurations.

Features

Tapered Shape Body

Tapered shape of the body maintains high velocity of the water and particles during the separation process forcing the particles to the bottom of the hydrocyclone

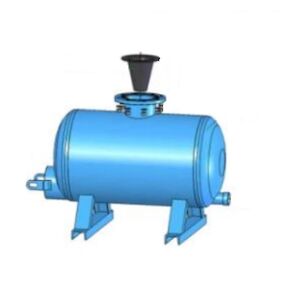

Underdrain

Underdrain – The shape changes the direction of the particles causing them to settle in the chamber, while the valve on the lower chamber allows for easy periodic flushing of the accumulated particles

Separator Efficiency

Rubber cone increases the efficiency of the separator by extending the shape of the hydrocyclone down into the lower chamber, and provides protection to the lower neck of the hydrocyclone

Multiple Unit Manifolding

Multiple Unit Manifolding - The tapered shape of the hydrocyclone allows for close spacing on a manifold, ideal for applications where a number of smaller units are required

Specifications

Connection Size	3/4 in.
Connection Type	NPT
Diameter	3"
Flow Rate GPM (CVL)	11-17 GPM
Material	Carbon Steel
Tank Size	0.4 Gal

Documents

Title	Documents
ALT274 RowCrop Irrigation Systems ENG 17 compressed.pdf	PDF - Owner's Manual-en-us
ALT313_SENTRY_Filters_Brochure ENG web 2-25.pdf	PDF - Product Literature-en-us
ALT337_Sentry_Filters_Family_Brochure_SPA 2-25.pdf	PDF - Brochure-en-us

Warranty

For complete product warranty information contact Toro Customer Service

**See dealer for Warranty details.
