INFINITY® 34/54 Series Golf Rotors

  • Model: INFINITY® 34/54 Series Golf Rotors
  • Industry's largest nozzle selection for precise watering.
  • Hot Spot Watering
  • Access to critical components easily and upgrade to the sprinkler system without digging.
  • 2-wire path to communicate to buried control units, it's easy to install and expand.
  • Simply turn the sprinkler on and off at the top.
  • Protected wire splices and accessible from the top
  • Stainless steel seat molded to the body, it's a standard on all Toro Golf rotors.
  • One sprinkler for every location on the course. These unique sprinklers can be a full circle today and a part circle tomorrow, allowing you to simply and economically adjust the area of coverage to match your seasonal needs or meet water rationing mandates in seconds with no disassembly or additional parts required.
  • Accessible from the top allows for LSM module retrieval, system troubleshooting and system repairs without digging!
  • Compartment provides room to grow. Whatever the future holds, this sprinkler will be ready. Getting smarter without digging!
  • Hot spot watering has never been easier, simply turn in either direction, hold and shoot to put down as much water as needed, exactly where you want it. Standard on all part circle models.
  • The protective enclosure isolates wire splices from the soil and potential shorts to ground. Provides access for system troubleshooting and repairs without digging!

Overview

The INFINITY® 34/54 is Toro’s Premium full-circle golf sprinkler series with SMART ACCESS®. The dual trajectory main nozzle provides exceptional nozzle performance at the 25° standard angle position and great performance in windy applications at the 15° low angle position. And the consistency of the constant velocity full circle drive ensures even water application across the coverage area every time you water.

Features

FLEX800 34/54 Series
Industry Largest and Most Flexible Nozzle Selection
Nozzles from 42’ to 100’ (12,8m - 30,5m) radius plus a wide assortment of back nozzles lets you put the precise amount of water exactly where you need it. All nozzles threaded in from the front.
FLEX800 34/54 Series
Nozzle Base Clutching
Hot spot watering has never been easier, simply turn in either direction, hold and shoot to put down as much water as needed, exactly where you want it. Standard on all part circle models.
FLEX800 34/54 Series
Future-Proof Your Investment
Compartment provides room to grow. Whatever the future holds, this sprinkler will be ready. Getting smarter without digging!
FLEX800 34/54 Series
2-Wire Module
Accessible from the top allows for LSM module retrieval, system troubleshooting and system repairs without digging!
FLEX800 34/54 Series
Pilot Valve Accessible
Toro’s patented CHECK FLOW™ feature facilitates troubleshooting, pressure adjustments, solenoid and pilot valve servicing without turning the water off or digging!
Wire splices protected and accessible from the top
Wire splices protected and accessible from the top
The protective enclosure isolates wire splices from the soil and potential shorts to ground. Provides access for system troubleshooting and repairs without digging!

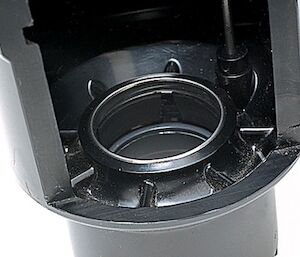

Indestructible Stainless Steel Valve Seat
Indestructible Stainless Steel Valve Seat
Our stainless steel valve seat eliminates body damage from rocks and debris. It's molded to the body and virtually eliminates body replacements due to seat damage.
Arc adjustment—40°-330° and true full-circle in one
Arc adjustment—40°-330° and true full-circle in one
One sprinkler for every location on the course. These unique sprinklers can be a full circle today and a part circle tomorrow, allowing you to simply and economically adjust the area of coverage to match your seasonal needs or meet water rationing mandates in seconds with no disassembly or additional parts required.
2-wire module
2-wire module
Accessible from the top allows for LSM module retrieval, system troubleshooting and system repairs without digging!
Future-Proof Your Investment
Future-Proof Your Investment
Compartment provides room to grow. Whatever the future holds, this sprinkler will be ready. Getting smarter without digging!
Nozzle Base Clutching
Nozzle Base Clutching
Hot spot watering has never been easier, simply turn in either direction, hold and shoot to put down as much water as needed, exactly where you want it. Standard on all part circle models.
Wire splices protected and accessible from the top
Wire splices protected and accessible from the top
The protective enclosure isolates wire splices from the soil and potential shorts to ground. Provides access for system troubleshooting and repairs without digging!

Specifications

Body Height INF34: 10"
INF54: 11 3/8"
Cap Diameter SMART ACCESS® cover and compartment
INF34: 7 5/8"
INF54: 7 5/8"
Flow INF34: 13.0 - 46.9 GPM
INF54: 13.2 - 61.8 GPM
Holding 60 Hz, 0.10 Amps
Inlet 1" (2.5 cm) and 1 1/2" (3.8 cm) NPT, BSP, Acme
Inrush 60 Hz, 0.12 Amps
Minimum Operating Pressure 40 PSI
Pop-up Height 3 1/4"
Precipitation Rate INF34: Min = .33"/hr; Max = .55"/hr
INF54: Min = .33"/hr; Max = .61"/hr
Radius INF34: 52' - 91'
INF54: 52' - 99'
Recommended Operating Pressure 65 - 100 PSI
Trajectory 25 Degrees & 15 Degrees
Weight INF34: 4.22 lbs.
INF54: 5.04 lbs.



Warranty

For complete product warranty information contact Toro Customer Service

**See dealer for Warranty details.
