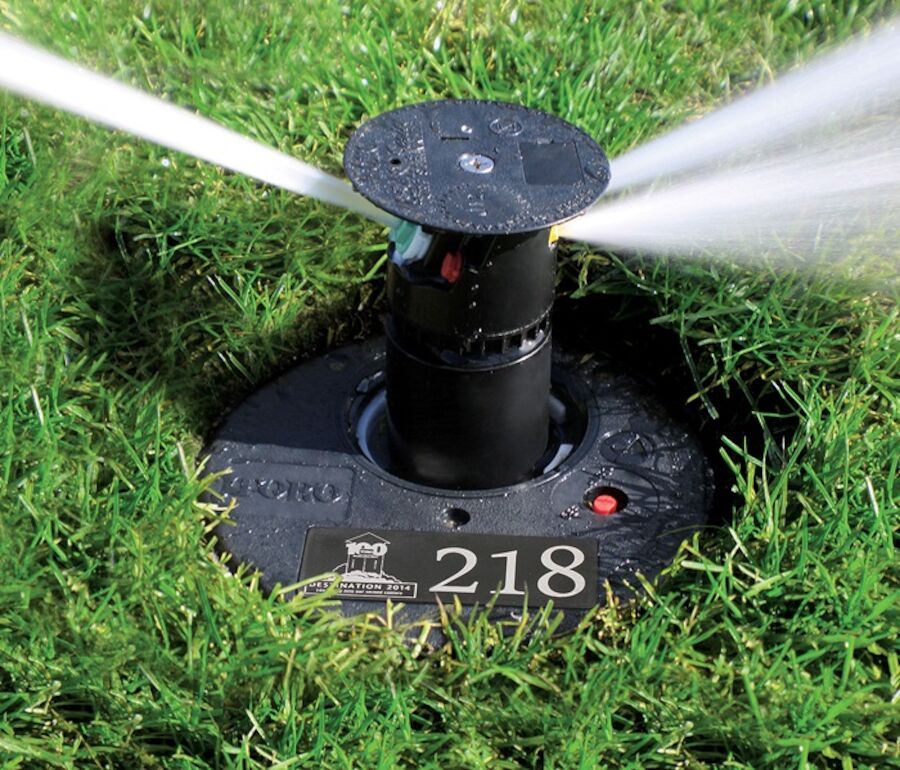

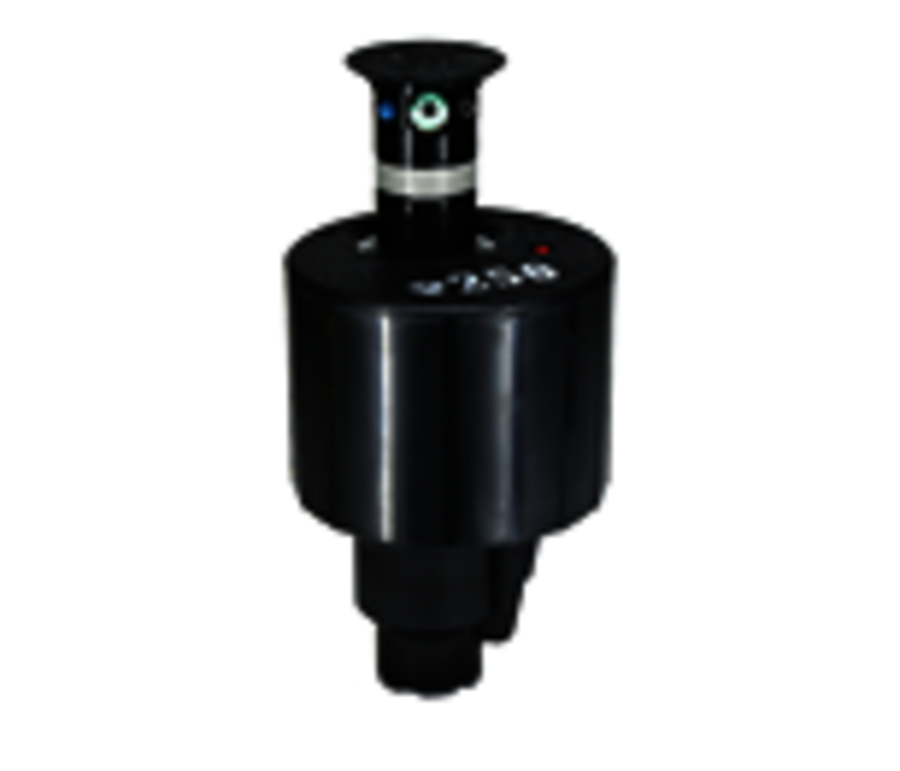

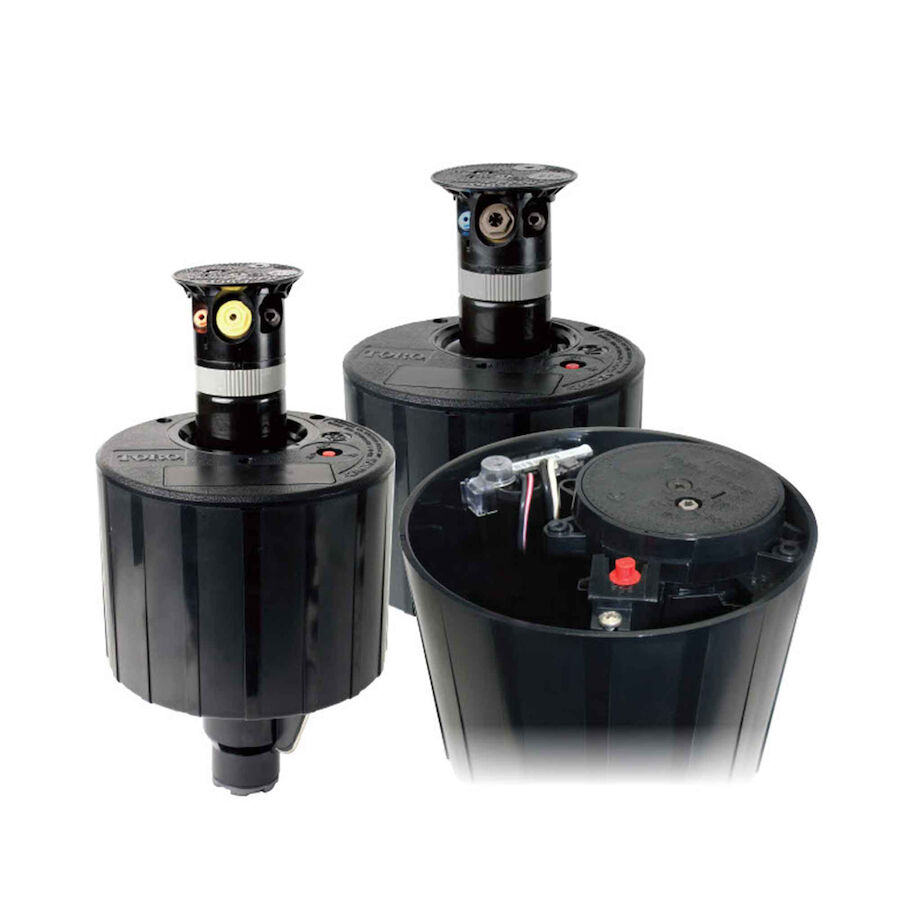

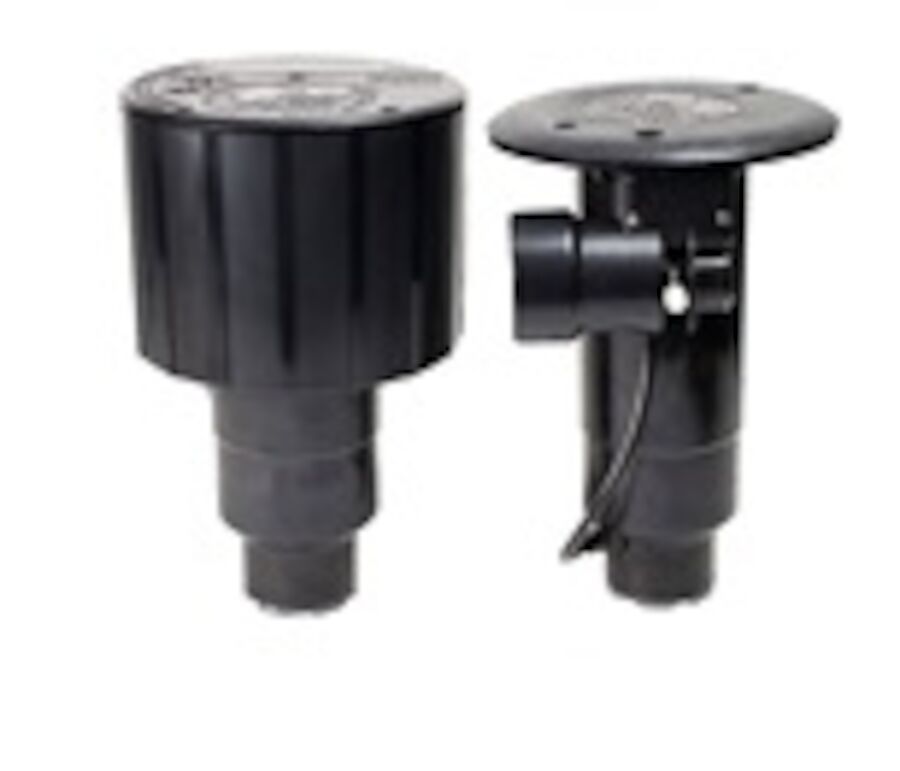

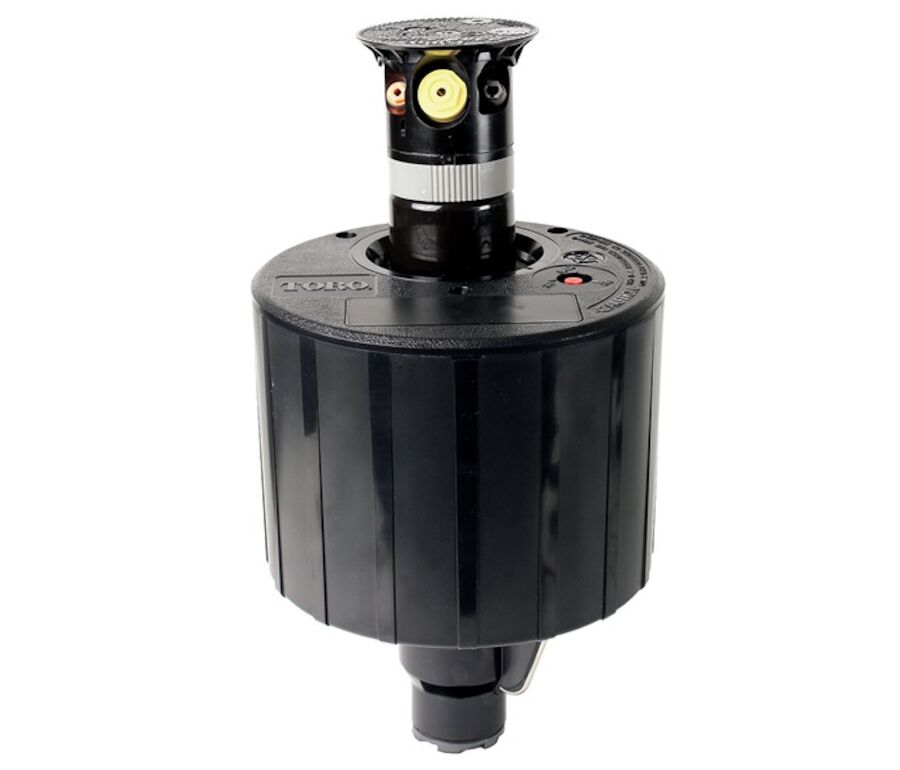

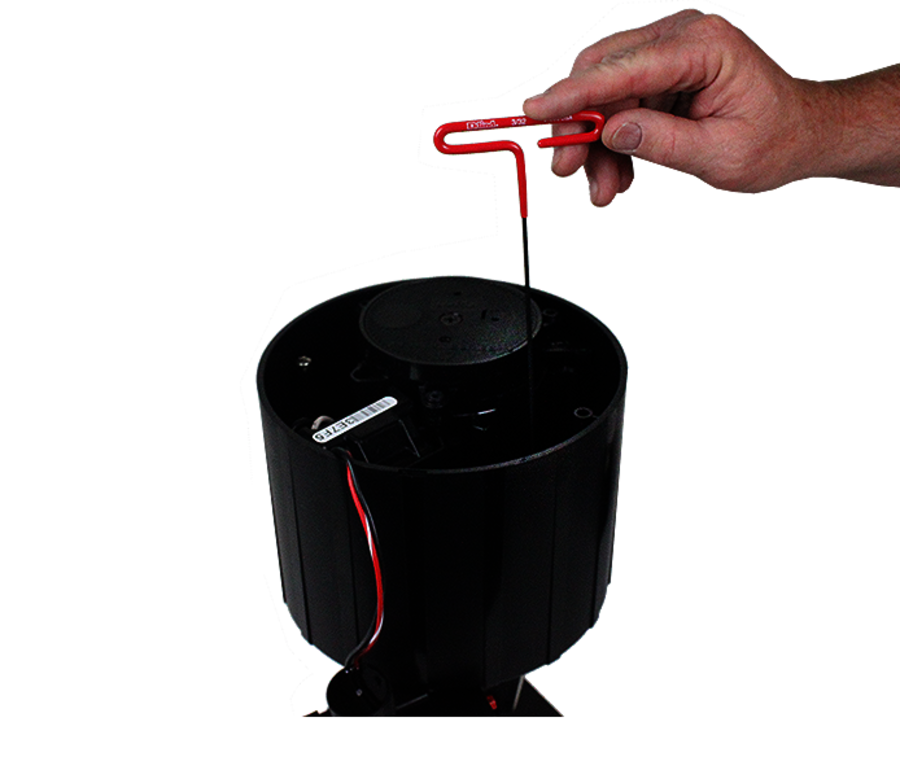

INFINITY® 35-6/55-6 Series Golf Rotors

  • Model: INFINITY 35-6 55-6 Series Golf Rotors
  • Industry's largest nozzle selection for precise watering.
  • Hot Spot Watering
  • 2-wire path to communicate to buried control units, it's easy to install and expand.
  • Simply turn the sprinkler on and off at the top.
  • Ratcheting Riser
  • Durable stainless steel, engineering plastic and brass construction for reliable performance in the most demanding environments
  • Access to critical components easily and upgrade to the sprinkler system without digging.
  • TruJectory™ Adjustment of the main nozzle—24 positions from 7°-30°
  • True Part and Full-Circle in One – (40° - 330° part circle)
  • One sprinkler for every location on the course. These unique sprinklers can be a full circle today and a part circle tomorrow, allowing you to simply and economically adjust the area of coverage to match your seasonal needs or meet water rationing mandates in seconds with no disassembly or additional parts required.
  • Accessible from the top allows for LSM module retrieval, system troubleshooting and system repairs without digging!
  • Compartment provides room to grow. Whatever the future holds, this sprinkler will be ready. Getting smarter without digging!
  • Hot spot watering has never been easier, simply turn in either direction, hold and shoot to put down as much water as needed, exactly where you want it. Standard on all part circle models.
  • The protective enclosure isolates wire splices from the soil and potential shorts to ground. Provides access for system troubleshooting and repairs without digging!

Overview

With the industry’s largest selection of high performance nozzles and Trujectory® adjustment INFINITY® 35-6/55-6 Series Sprinklers with SMART ACCESS® allows you to put water precisely where you want it for maximum distribution uniformity. And the part/full circle drive allows you to simply and economically adjust the area of coverage to match your seasonal watering needs or meet water rationing mandates in seconds with no disassembly or additional parts required.

Features

FLEX800 34/54 Series
Industry Largest and Most Flexible Nozzle Selection
Nozzles from 42’ to 100’ (12,8m - 30,5m) radius plus a wide assortment of back nozzles lets you put the precise amount of water exactly where you need it. All nozzles threaded in from the front.
FLEX800 34/54 Series
Nozzle Base Clutching
Hot spot watering has never been easier, simply turn in either direction, hold and shoot to put down as much water as needed, exactly where you want it. Standard on all part circle models.
FLEX800 34/54 Series
2-Wire Module
Accessible from the top allows for LSM module retrieval, system troubleshooting and system repairs without digging!
FLEX800 34/54 Series

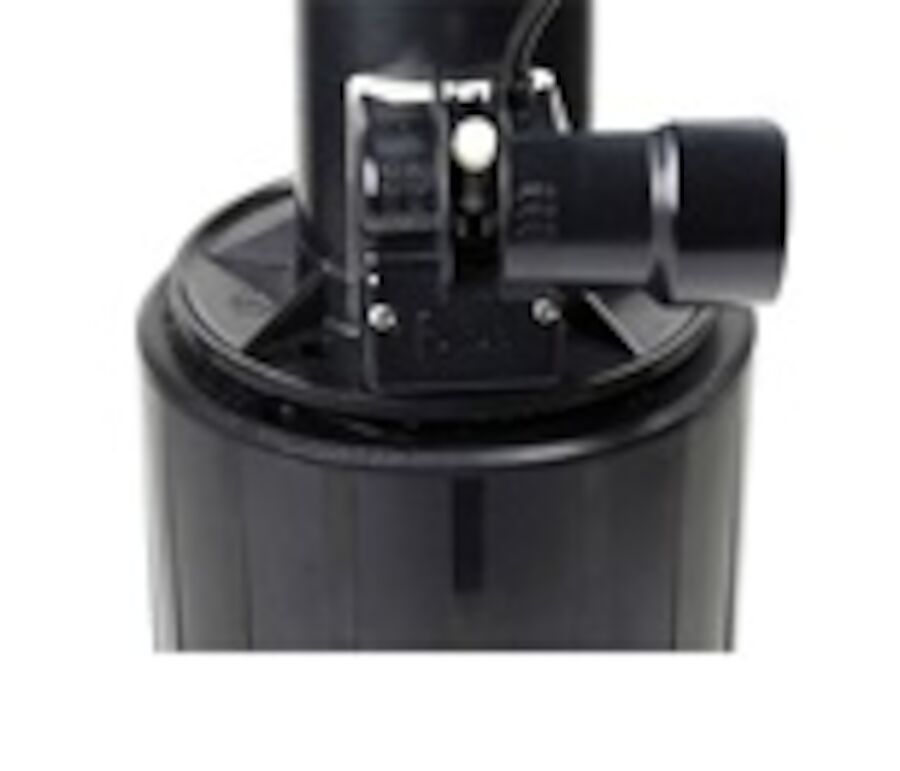

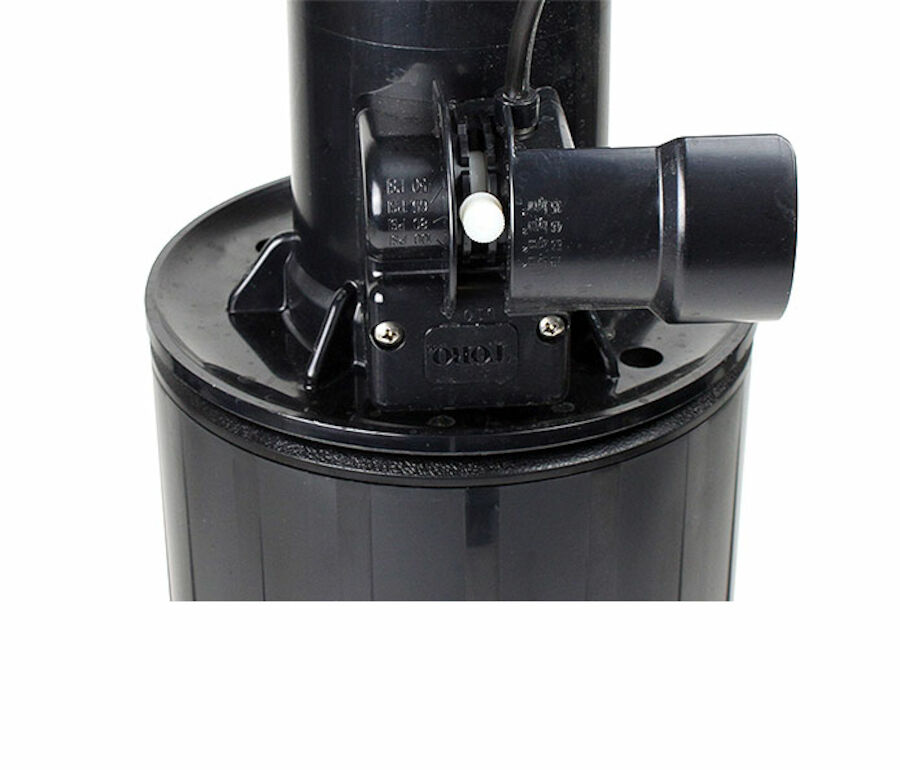

Pilot Valve Accessible
Toro’s patented CHECK FLOW™ feature facilitates troubleshooting, pressure adjustments, solenoid and pilot valve servicing without turning the water off or digging!
FLEX800 34/54 Series
Ratcheting Riser
Define the arc of the sprinkler with a simple hand gesture.
FLEX800 34/54 Series
Stainless Steel, Engineering Plastic and Brass Construction
Provide dependable performance in the most demanding environments.
FLEX800 34/54 Series
Future-Proof Your Investment
Compartment provides room to grow. Whatever the future holds, this sprinkler will be ready. Getting smarter without digging!
FLEX800 34/54 Series

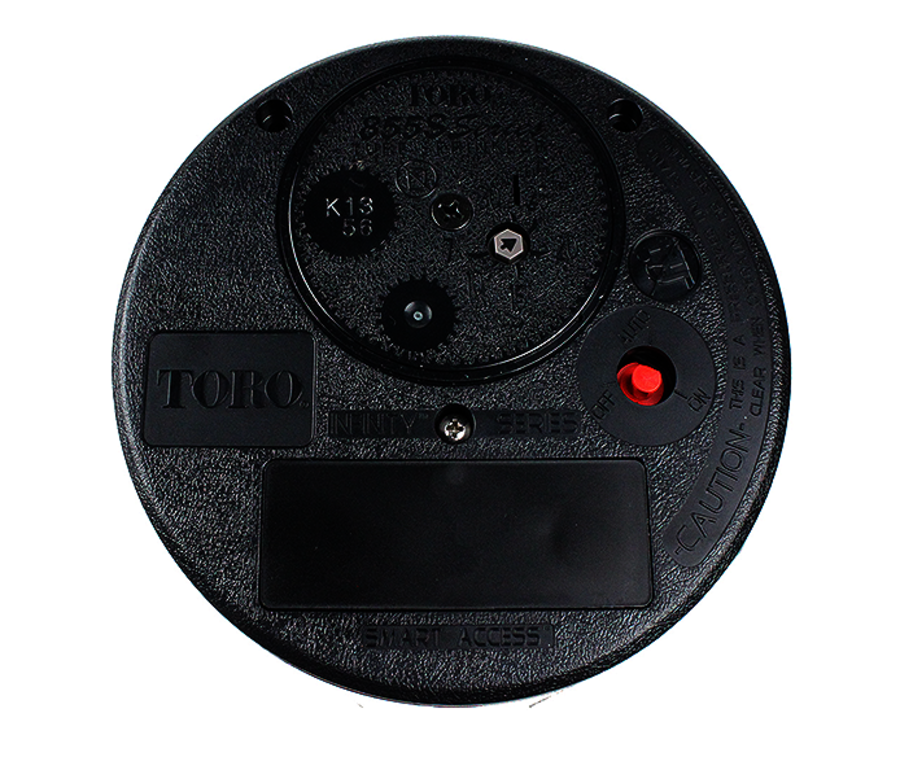

TruJectory™ Adjustment of the main nozzle—24 positions from 7°-30°
From 7-30 degrees this patented feature in 1 degree increments puts water where you want it for maximum distribution uniformity. Adjust from the top of the sprinkler in seconds, wet or dry. This flexibility lets you tackle every obstacle on the course; wind, trees, bunkers, mounds and more.
FLEX800 34/54 Series

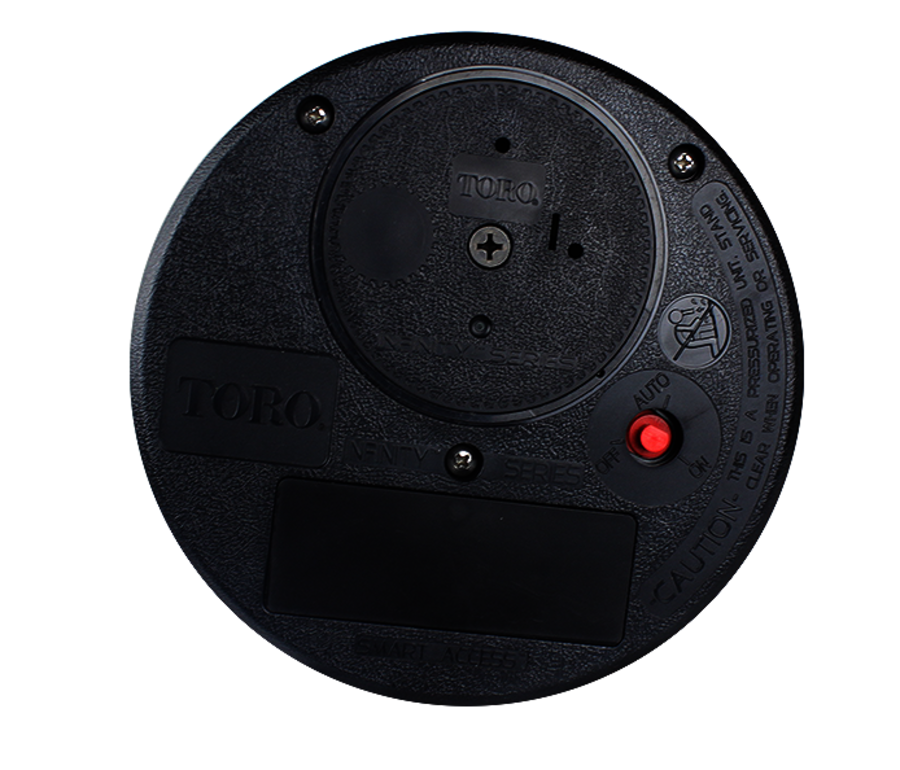

Arc adjustment—40°-330° and true full-circle in one
These unique sprinklers can be a full circle today and a part circle tomorrow, allowing you to simply and economically adjust the area of coverage to match your needs in seconds with no disassembly or additional parts required.
Arc adjustment—40°-330° and true full-circle in one
Arc adjustment—40°-330° and true full-circle in one
One sprinkler for every location on the course. These unique sprinklers can be a full circle today and a part circle tomorrow, allowing you to simply and economically adjust the area of coverage to match your seasonal needs or meet water rationing mandates in seconds with no disassembly or additional parts required.

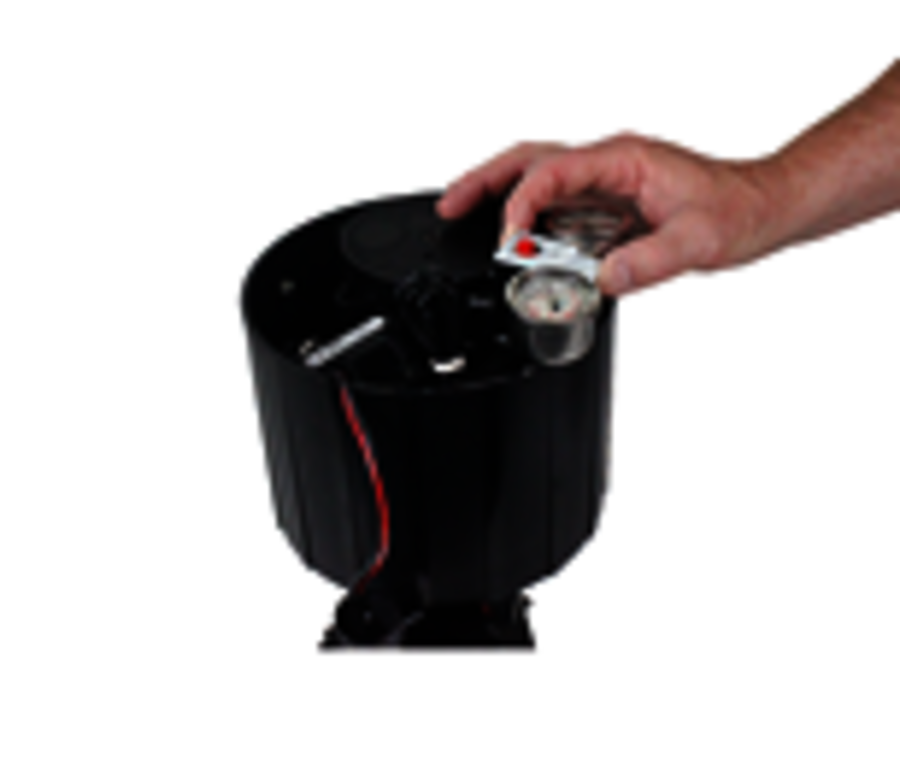

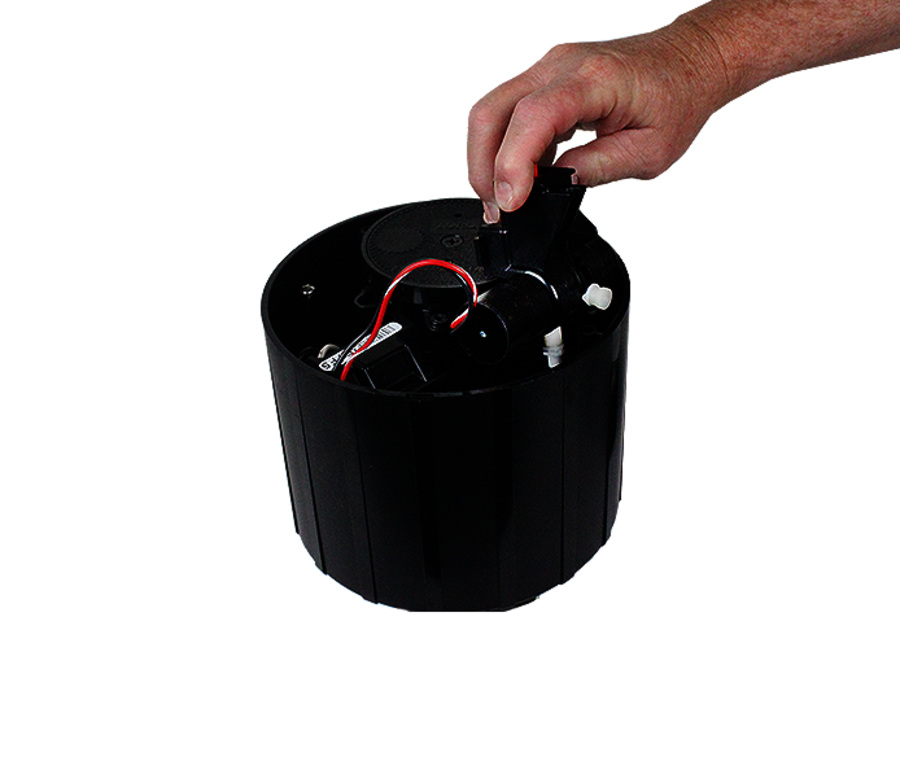

2-wire module
2-wire module
Accessible from the top allows for LSM module retrieval, system troubleshooting and system repairs without digging!

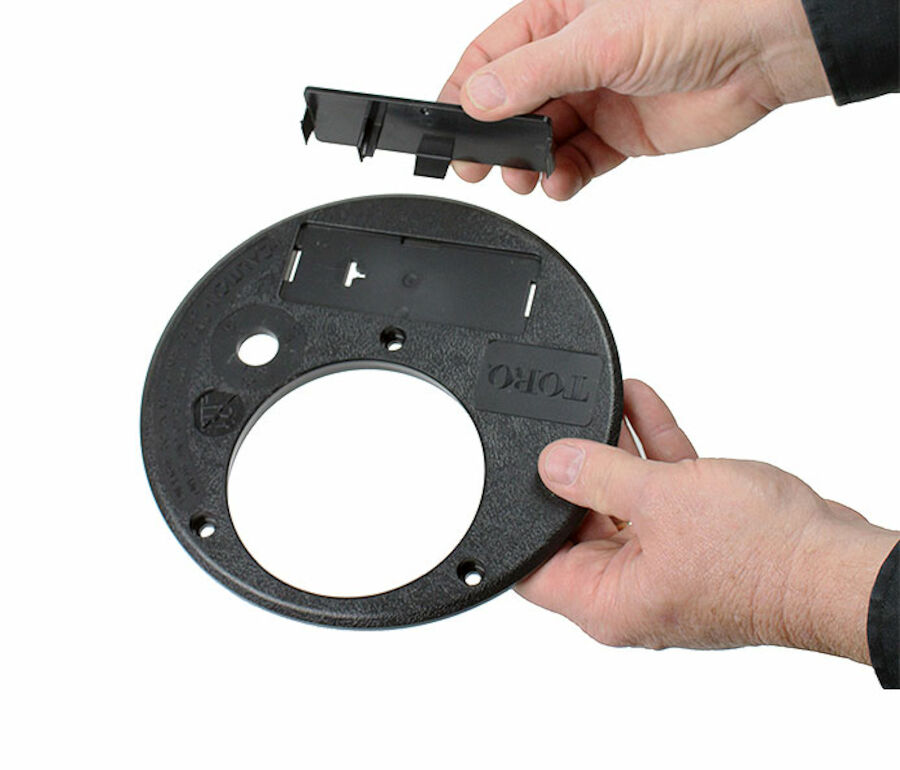

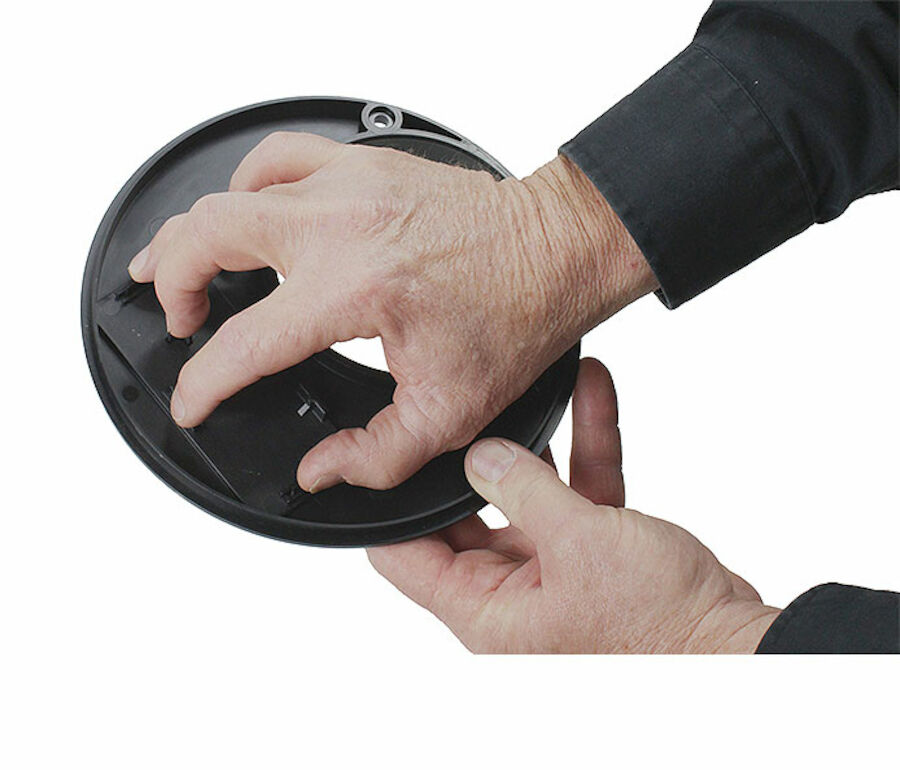

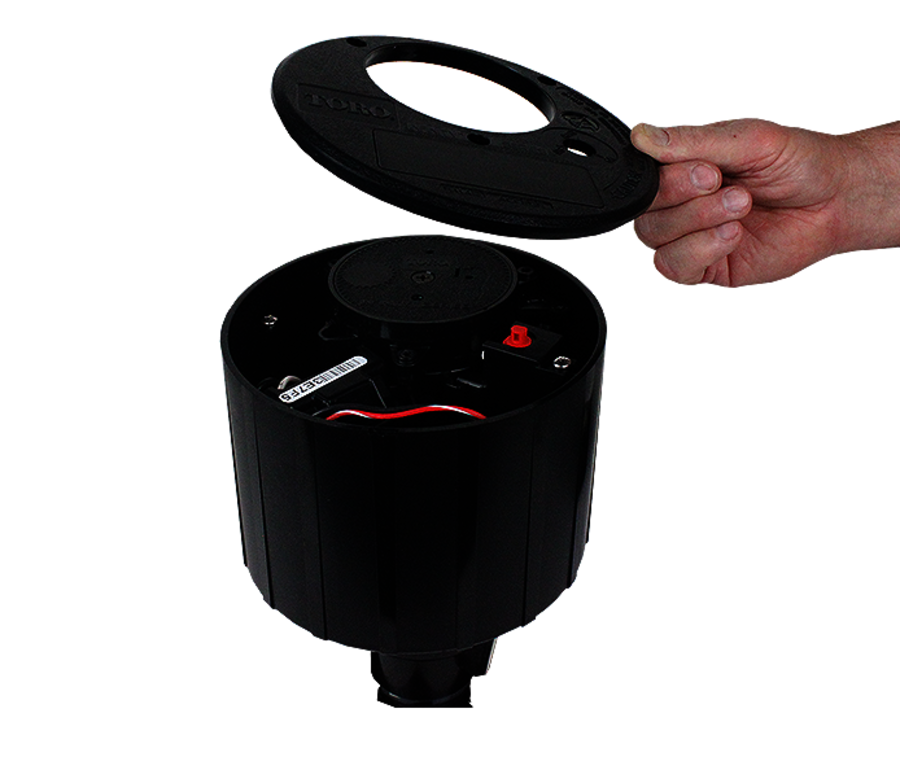

Future-Proof Your Investment
Future-Proof Your Investment
Compartment provides room to grow. Whatever the future holds, this sprinkler will be ready. Getting smarter without digging!
Nozzle Base Clutching
Nozzle Base Clutching
Hot spot watering has never been easier, simply turn in either direction, hold and shoot to put down as much water as needed, exactly where you want it. Standard on all part circle models.

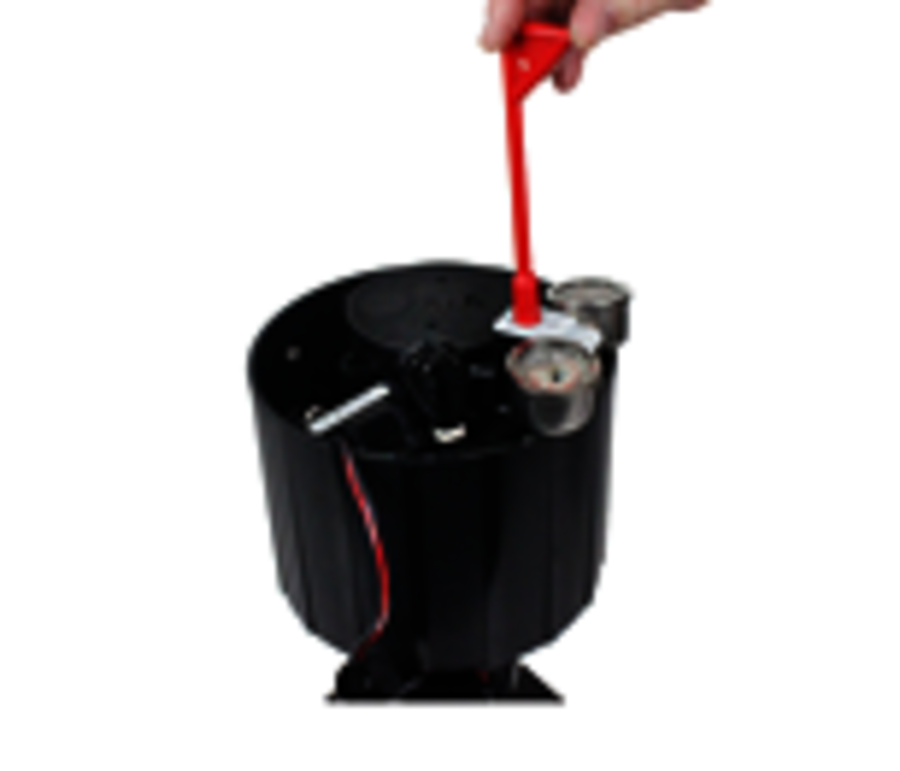

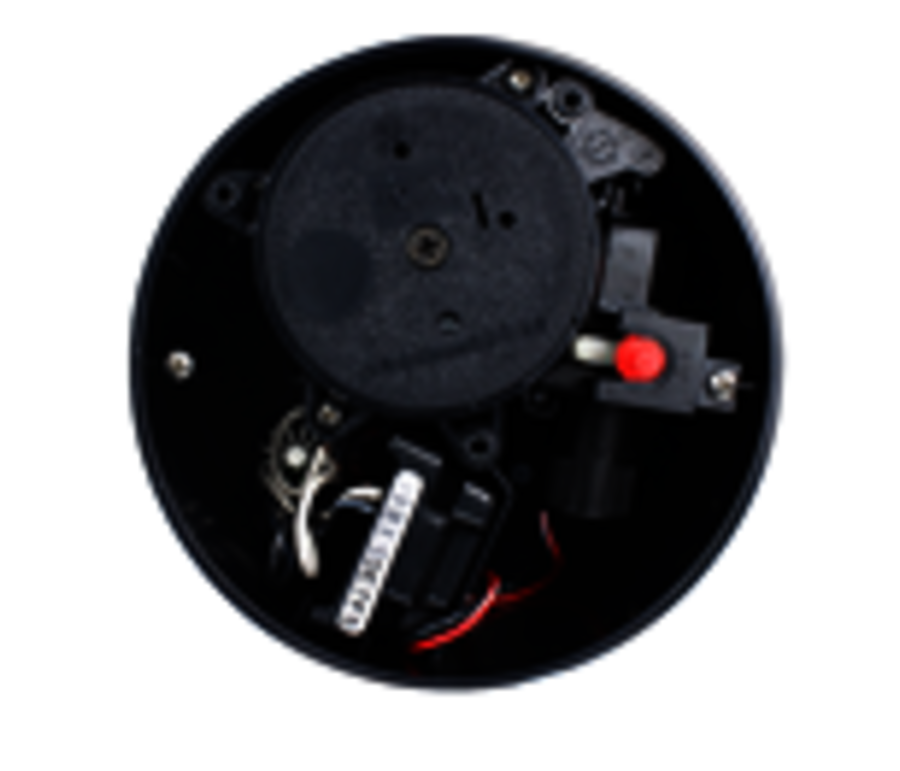

Wire splices protected and accessible from the top
Wire splices protected and accessible from the top
The protective enclosure isolates wire splices from the soil and potential shorts to ground. Provides access for system troubleshooting and repairs without digging!

Specifications

Body Height INF35-6: 10"
INF55-6: 11 3/8"
Cap Diameter SMART ACCESS cover and compartment
INF35-6: 7 5/8
INF55-6: 7 5/8
Flow INF35-6: 7.1 - 45.3 GPM
INF55-6: 13.9 - 61.1 GPM
Holding 60 Hz, 0.10 Amps
Inlet 1" (2.5 cm) and 1 1/2" (3.8 cm) NPT, BSP, Acme
Inrush 60 Hz, 0.12 Amps
Minimum Operating Pressure 40 PSI
Pop-up Height INF55-6: 3 1/4", 5.13 lbs
Precipitation Rate INF35-6: Min = .37"/hr; Max = .53"/hr
INF55-6: Min = .43"/hr; Max = .60"/hr
Radius INF35-6: 42' - 92'
INF55-6: 52' - 100'
Recommended Operating Pressure 40 PSI (2.8BAR)
Trajectory 24 position from 7° - 30° in 1° increments
Weight INF35-6: 4.31 lbs
INF55-6; 5.13 lbs



Warranty

For complete product warranty information contact Toro Customer Service

**See dealer for Warranty details.
