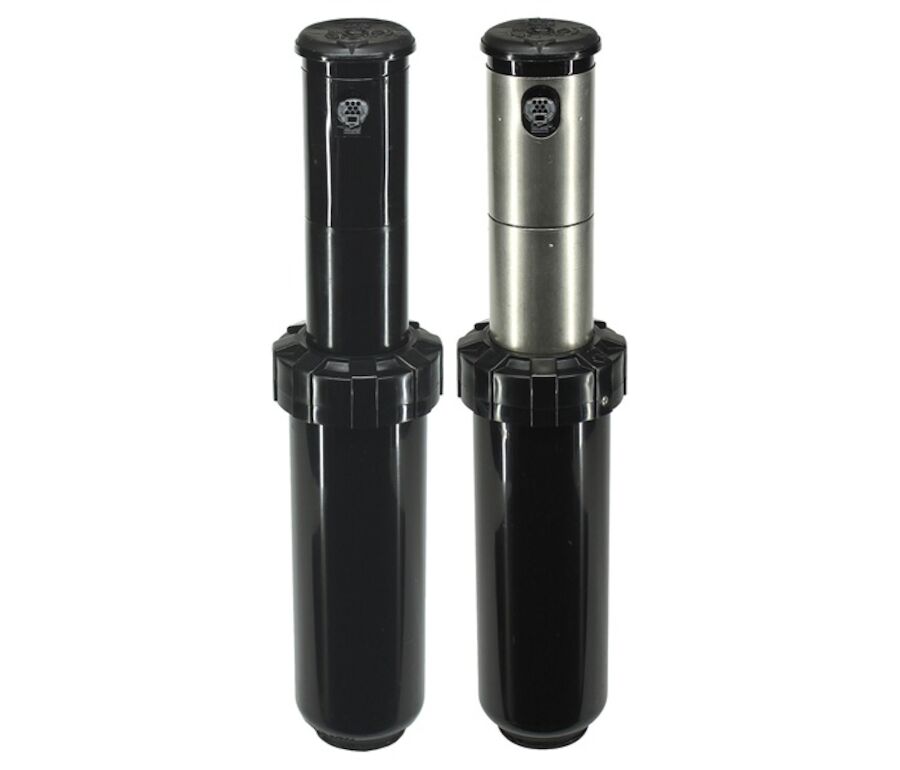

T7 Series Rotors

  • Model: T7 Series Rotors
  • Vandal and Abuse Resistance
  • High Efficiency Nozzles
  • Top Arc Indication

Overview

The Toro® T7 Rotor is built rugged to withstand the harsh conditions and vandalism present in municipal/government, sports fields, golf and commercial rotor applications. It has been designed and tested to ensure the high reliability demanded by the market today. Its extensive customer identified features including a full 5 ¾” pop-up height and large radius make it ideal for sportsfields, parks and other large turf applications. Further enhancing its versatility, the T7 is now also Low-Flow Versions, for smaller radius and lower flow applications, such as baseball infields.

Features

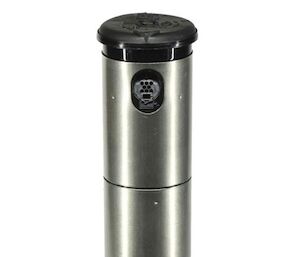

Vandal and Abuse Resistance
Vandal and Abuse Resistance
The Smart Arc memory safely returns the sprinkler to previously set arc even when turned beyond arc borders.

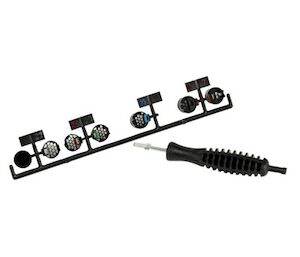

High Efficiency Nozzles
High Efficiency Nozzles
Single port design ensures water is evenly distributed across the pattern without putting too much water near the head, which prevents seed from washing away.
Design Solutions and Safety
Design Solutions and Safety
Standard check valve to prevent low head drainage. Small exposed diameter reduces possibility of injury on play areas. Stainless steel riser and nozzle base stands up to the toughest of abuse.

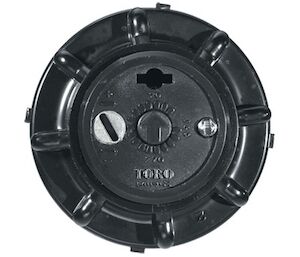

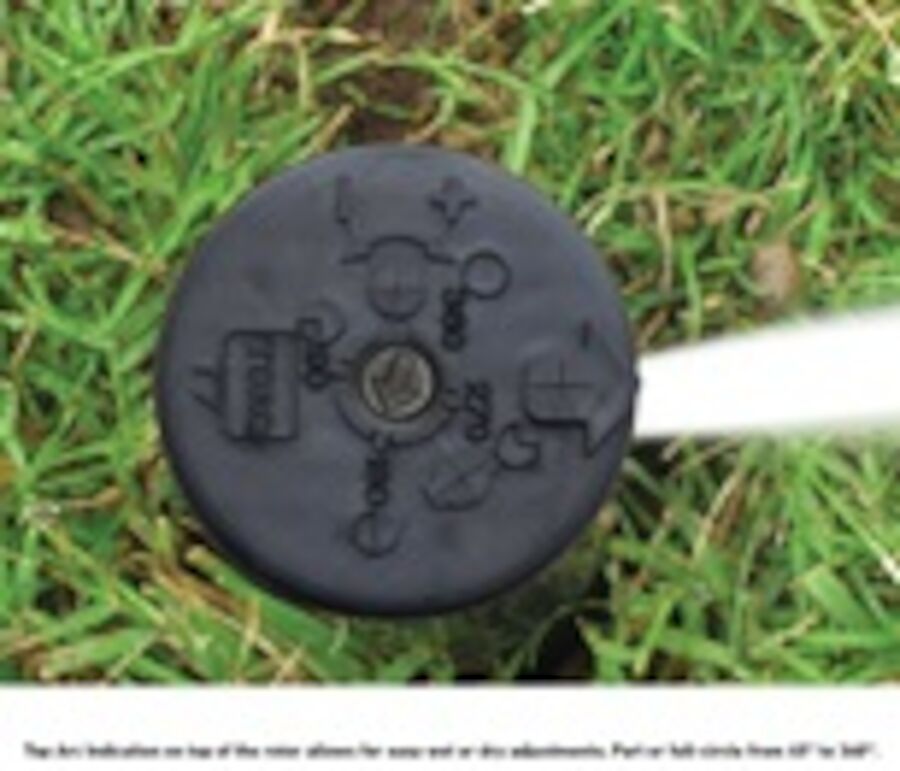

Top Arc Indication
Top Arc Indication
Ensures easy adjustments from 40° to 360° with visual feedback of arc change by reading the scale.
Versatility
Versatility
The innovative design allows for quick deck changes and removal for servicing. In addition, the optional hand held hose provides even more versatility to use the machine for debris clean-up in tight areas.

Specifications

Body Height 8.8" (224 mm)
Cap Diameter 2.2" (56 mm)
Flow Low-flow models: 1.7-13.0 gpm (6,4-49, 2 lpm); High-flow models: 6.8-30.5 gpm (25,4-116 lpm)
Inlet 1" (2.5 cm)
Pop-up Height 5" (127 mm)
Radius Low-flow models: 38'-53' (11,6 - 16,2m); High-flow models: 46'-83' (14,0 - 25,0m)
Trajectory 25 deg.

Documents

Title Documents
T7-Series-Rotors-SSL.pdf PDF - Sellsheet-en-us
User’s Guide - 373-0559revD_T7.pdf PDF - Owner's Manual-en-us



Warranty

For complete product warranty information contact Toro Customer Service

**See dealer for Warranty details.
