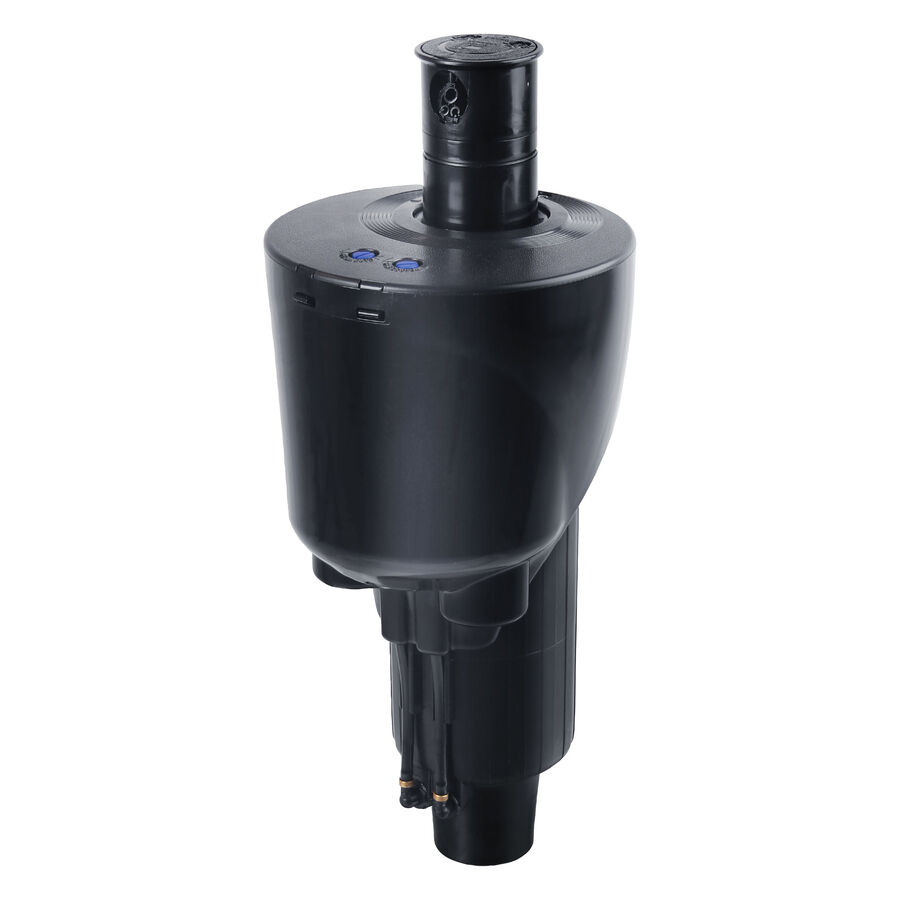

TS80 Series Gear Driven Rotor

  • Model: TS80 Series Gear Driven Rotor
The Toro® TS80 Rotor Series is a gear driven pop-up rotor that is the ideal choice for large turf areas like sports fields, public parks, large green areas and recreational spaces, equestrian applications and open parklands. Available in both block style (with check) and valve-in-head (VIH) models, the compact and fully adjustable TS80 offers Pressure Control at the head between 45 and 115 PSI, adjustable rotation speed, independent left and right arc setting, and is completely top-serviceable. With a radius of up to 82 feet and a flow rate range to 45 GPM, the TS80 Rotor Series provides ultimate flexibility to meet the precise application needs of any large turf environment.

Overview

The Toro® TS80 Rotor Series is a gear driven pop-up rotor that is the ideal choice for large turf areas like sports fields, public parks, large green areas and recreational spaces, equestrian applications and open parklands. Available in both block style (with check) and valve-in-head (VIH) models, the compact and fully adjustable TS80 offers Pressure Control at the head between 45 and 115 PSI, adjustable rotation speed, independent left and right arc setting, and is completely top-serviceable. With a radius of up to 82 feet and a flow rate range to 45 GPM, the TS80 Rotor Series provides ultimate flexibility to meet the precise application needs of any large turf environment.

Specifications

Accessory Type Rotors
Activation Type Standard
Arc Full Circle
Check Valve Yes
Inlet Size 1 in.
Minimum Operating Pressure 60 - 100 PSI (4.1 - 6.9 BAR)
Nozzle Size 1.7-30.6
Pressure Regulation 100 psi
Radius 47 - 67 ft (14.3 - 21m)
Trajectory 25 deg.

Documents

Title Documents
23-1205-IRC-TS80-Series-Gear-Driven-Rotor-SS.pdf PDF - Brochure-en-us



Warranty

For complete product warranty information contact Toro Customer Service

**See dealer for Warranty details.
