SentryScreen Automatic Screen Filters

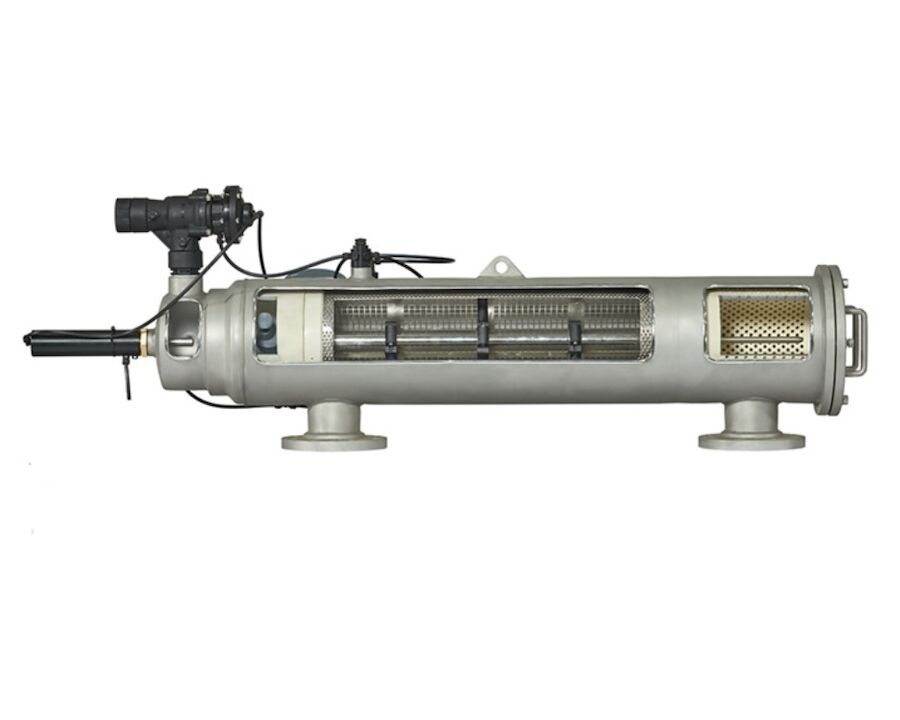

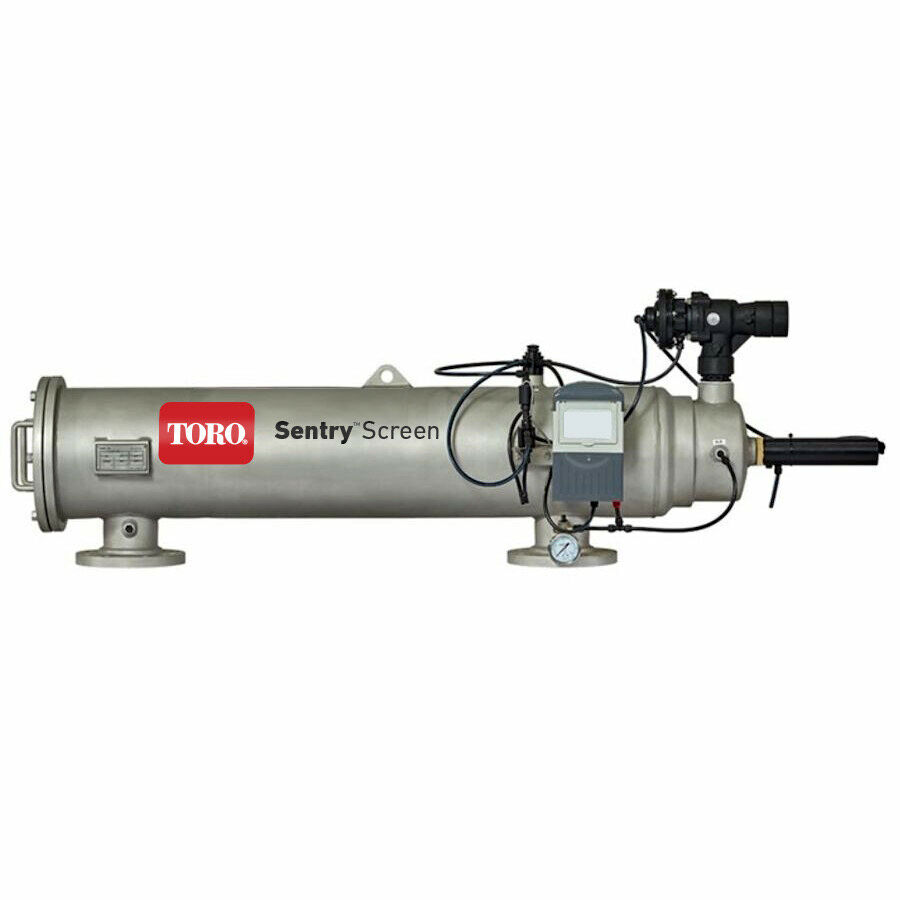

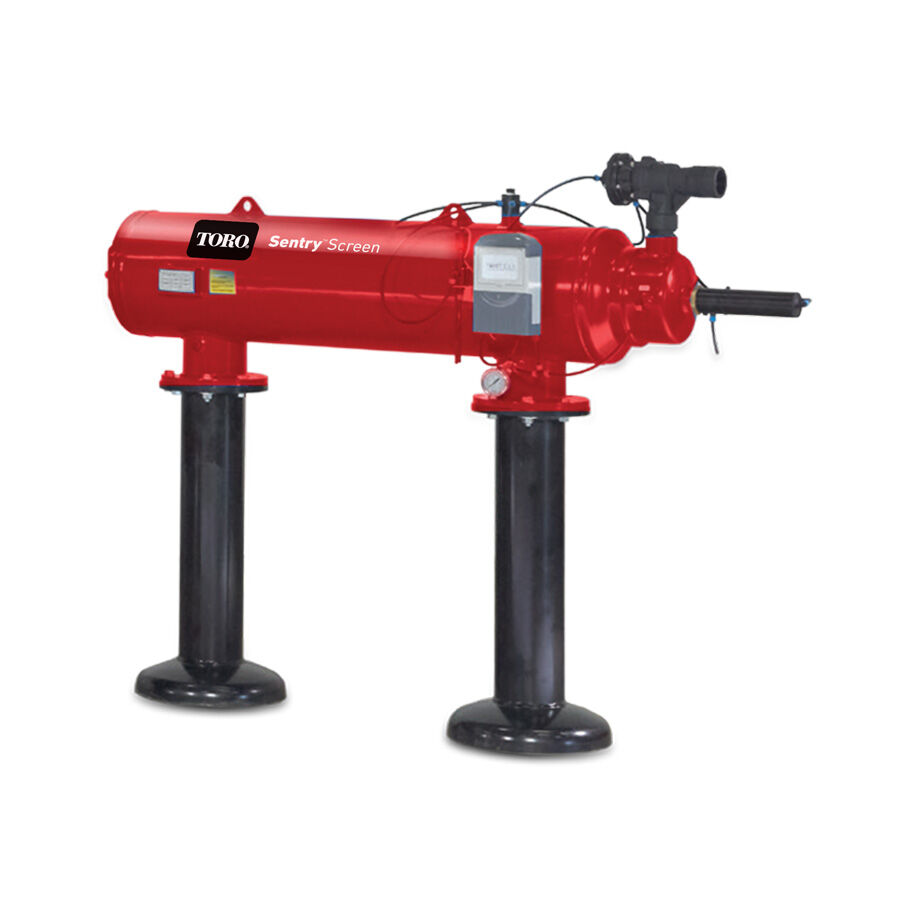

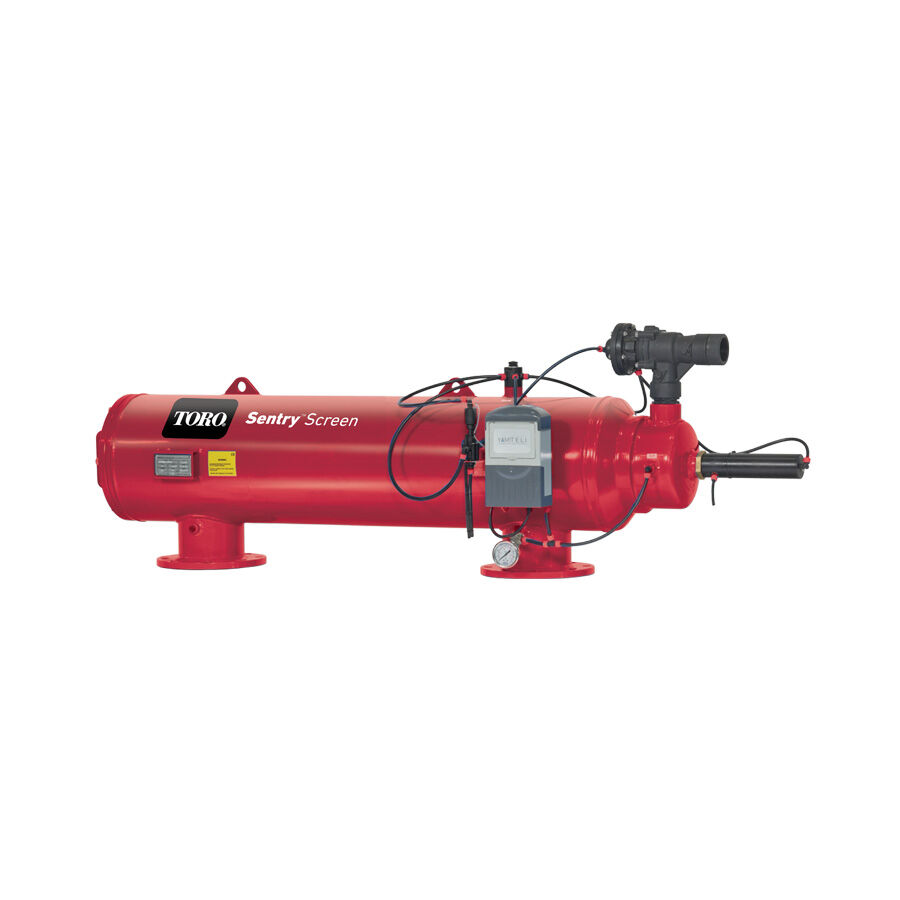

AF800 Automatic Hydraulic Screen Filter
  • Model: YF808-02-10-SL2AS0
  • Three layer floating screen, allowing for greater open area through screen, and mild resistance to water hammer
  • Highly efficient cleaning nozzles are close to the screen for optimal performance
  • Reliable external back flush valve is easy to service
  • Special manifolds for multiple filters systems for high flow rates

Overview

The SentryScreen AF800 automatic hydraulic screen filters are ideal for the most demanding of agricultural and greenhouse irrigation applications. They can also be used as back up filtration at the control valves in the field. Operating hydraulically, the AF800 Series delivers high quality filtration from a wide range of water sources including treated wastewater, reservoirs, rivers and lakes. The filter is equipped with a coarse screen protecting the finer screen from stones and larger debris. Once the pressure loss reaches a pre-set level, the filter will auto-clean in just 10 seconds, ensuring a continuous supply of clean filtered water is maintained. Available in parallel or angle configurations with single filter screen areas up to 1,815 in² and maximum flow rates up to 2,642 gpm.

Features

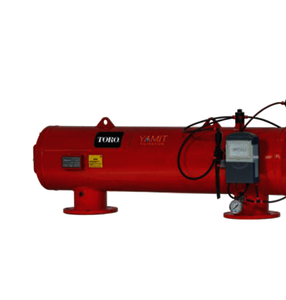

External Back Flush
External Back Flush
Reliable external back flush valve is easy to service

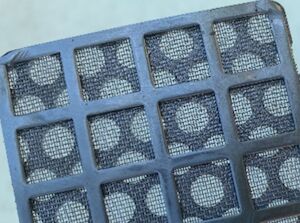

Three Layer Floating Screen
Three Layer Floating Screen
Three layer floating screen, allowing for greater open area through screen, and mild resistance to water hammer

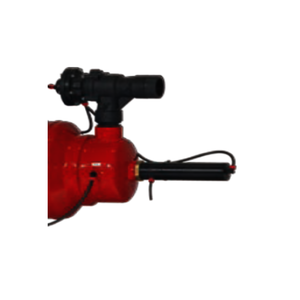

Optimal Performance
Optimal Performance
Highly efficient cleaning nozzles are close to the screen for optimal performance
High Flow Rates
High Flow Rates
Special manifolds for multiple filters systems for high flow rates

Specifications

Body Parallel
Connection Size 10 in.
Connection Type Flange
Filtration Area (CVL) 100 Micron/150 Mesh
Flow Rate GPM (CVL) 2,200 GPM
Material Carbon Steel
Screen 2,600 (In2)

Documents

Title Documents
ALT274 RowCrop Irrigation Systems ENG 17 compressed.pdf PDF - Owner's Manual-en-us
ALT313_SENTRY_Filters_Brochure ENG web 2-25.pdf PDF - Product Literature-en-us
ALT337_Sentry_Filters_Family_Brochure_SPA 2-25.pdf PDF - Brochure-en-us
Hydraulic Automatic Screen Filter Series PDF - Sellsheet-en-us
Sistemas de Riego por Goteo para Cultivos en Hileras PDF - Brochure-en-us
What is Passivation? PDF - Owner's Manual-en-us



Warranty

For complete product warranty information contact Toro Customer Service

**See dealer for Warranty details.
