11-Blade Cutting Unit

Model: 03486

Top

Overview

Designed for mowing on lower heights of cut.

Accessories

Weight Kit, Reelmaster 3550, 3555, or 5010, Series Cutting Units with (Part # 03417)

Weight Kit for 8-Blade or 11-Blade DPA Cutting Unit with 5in Reel, Ree (Part # 03484)

Rear Roller Brush Kit, Reelmaster 3550 Series 18-inch Cutting Unit wit (Part # 03657)

Universal Groomer Drive Kit, Reelmaster 3550, 3555, 5010, and 5010-H S (Part # 03763)

Grooming Brush, Reelmaster 3550 Series 18-inch Cutting Units with Univ (Part # 03766)

Universal Groomer Cartridge, Reelmaster 3550 Series 18-inch Edge Serie (Part # 03771)

Rear Roller Brush Kit, Reelmaster 3550 Series 18-inch Cutting Unit (Part # 03916)

Rear Roller Brush Kit, Reelmaster 3550 Series 18-inch and 22-inch Cutt (Part # 03918)

Flex Grass Basket Kit (Part # 03923)

Catch grass clippings for easy cleanup and a better look overall.

Extended Flex Grass Basket Kit (Part # 03924)

Catch more grass clippings for easy cleanup and a better look overall with the extended version.

Collar Kit (Part # 104-8215)

Contains 100-4959 @ 2, 104-1835 @ 2

Gauge Bar Assembly (Part # 108-6715)

Toro OEM Gauge Bar Assembly.

18.00 Inch Plastic Shoulder Roller Assembly (Part # 112-1733)

Toro 18.00 Inch OEM Plastic Shoulder Roller Assembly. This roller has a 3.00 inch diameter. This Assembly comes with the roller tube, roller shaft, oil seals, stainless steel bearings, seals, lock nuts, grease fittings, grease & the roller rebuild kit. A Wiehle roller has groves built into the roller. This roller is molded out of an aluminum core, with a plastic molding on the outside. A shoulder roller groves get smaller closer to the edges, where as a standard Wiehle has evenly spaced from one end to the other. Toro OEMs are created to keep your equipment up and running with the highest quality parts. To verify that this fits your Toro equipment, please do a model & serial number search.

Roller Rebuild Kit (Part # 114-5430)

Contains 114-3717 @ 2, 112-5290 @ 2, 112-7494 @ 4, 114-5411 @ 2

Roller Seal Tool Kit (Part # 115-0803)

Kickstand (Part # 119-8010-03)

RM Hd Dpa MVP Kit (Part # 120-7230)

Contains 120-5118 @ 2, 120-5116 @ 2, 106-5344 @ 4, 108-0015 @ 2, 3296-33 @ 2, 137-6130 @ 2, 119-4155 @ 2, 120-5120 @ 2, 119-4039 @ 2

18-inch Rear Roller Scraper Kit, Reelmaster 3550 Series Cutting Units (Part # 120-9986)

18.19 Inch Fairway Cut Standard Bedknife (Part # 121-3166)

Toro 18.19 Inch OEM Fairawy Cut Standard Bedknife. You can count on the quality and reliability of this replacement Fairway Cut bedknife. Be sure to verify the make and serial number to ensure correct part.

18.19 Inch Low Cut Standard Bedknife (Part # 121-3167)

Toro 18.19 Inch OEM Low Cut Standard Bedknife. You can count on the quality and reliability of this replacement Low Cut bedknife. Be sure to verify the make and serial number to ensure correct part.

18.00 Inch Wiehle Roller Scraper (Part # 121-3182-03)

Toro 18.00 Inch OEM Wide Wiehle Roller Scraper. This is a solid mounted roller brush created to control grass build up and keep you cutting longer. A Wiehle roller has built in groves, this rides in those groves to remove build up. To insure you are getting the correct part for your equipment, please use our model and serial number search to verify that this will fit your machine.

18.00 Inch Hight Height of Cut Roller Brush (Part # 121-3199)

Toro 18.00 Inch OEM High Height of Cut Roller Brush. This roller has a 3.50 inch diameter. This is a powered roller brush created to control grass build up and keep you cutting longer. To insure you are getting the correct part for your equipment, please use our model and serial number search to verify that this will fit your machine.

SCRAPER-SHOULDER ROLLER (18") (Part # 121-6970-03)

Comb/Scraper Kit, Reelmaster 3550 Series Cutting Units (Part # 121-6995)

SCRAPER-FRONT FULL ROLLER (18") (Part # 121-6996-03)

Rear Roller Adjustment Kit, Reelmaster DPA Reel Mowers (Part # 125-0570)

Paper Reel (Part # 125-5610)

Toro OEM Paper-Reel, Toro (10 Pack).

BEDBAR-18" AGRESSIVE (MACH) (Part # 131-3222-0P)

GROOMER/RRB SEAL KIT (Part # 131-3233)

GROOMER ROD KIT (18IN) (Part # 131-6823)

Angle Indicator (Part # 131-6828)

Toro OEM Angle Indicator

Angle Indicator Mount (Part # 131-6829)

Toro OEM Angle Indicator Mount

Broomer Kit, Reelmaster 3550 Series 18-inch Cutting Units with Univers (Part # 132-7115)

RM3550 MVP Kit (Part # 133-0152)

Contains 3230-4 @ 2, 132-0734-03 @ 2, 104-8300 @ 2, 104-1843 @ 1, 322-16 @ 4, 94-6936 @ 4, 120-5148 @ 1, 127-7143 @ 1, 108-4480 @ 2, 104-8300 @ 4, 108-4172 @ 2, 107-8844 @ 1, 131-6869 @ 1, 108-4491 @ 1, 112-6957 @ 2, 131-1890 @ 1, 121-4600 @ 1, 131-3233 @ 1, 131-1863-03 @ 1, 131-1884 @ 9, 131-1848 @ 1, 131-1847 @ 1, 127-8633 @ 1, 131-1859 @ 1, 131-1861-03 @ 1, 131-3226 @ 1, 131-6881 @ 1, 131-1880 @ 1, 132-7145 @ 1, 131-1846 @ 1, 132-7124 @ 1, 132-7144-03 @ 1, 86-5350 @ 2, 3274-65 @ 4, 104-7201 @ 4, 3256-22 @ 4, 3-6803 @ 2, 121-7885-03 @ 1, 86-5350 @ 2, 3274-65 @ 4, 104-7201 @ 6, 32105-15 @ 2, 3256-22 @ 4

RM3550 MVP Kit (Part # 133-0155)

Contains 237-68 @ 1, 121-6960-03 @ 1, 240-7 @ 1, 3274-7 @ 2, 104-1843 @ 1, 125-2788 @ 1, 125-2787 @ 1, 322-16 @ 2, 94-6936 @ 4, 120-5148 @ 1, 108-4480 @ 1, 104-8300 @ 4, 108-4172 @ 2, 120-5142 @ 1, 120-9955 @ 1, 125-2789 @ 1, 125-2790 @ 1, 120-9979 @ 1, 112-6957 @ 2, 115-0821 @ 1, 104-8301 @ 1, 121-6958 @ 1, 3274-8 @ 2, 3230-7 @ 2, 107-8844 @ 1, 95-0707 @ 1, 106-8530 @ 2, 3230-23 @ 1, 112-6950 @ 4, 120-7231-03 @ 1, 321-3 @ 2, 3256-45 @ 4, 3296-47 @ 6, 115-0834 @ 1, 115-0826 @ 1, 115-0839 @ 1, 5-4460 @ 1, 115-0894 @ 1, 114-9397 @ 1, 120-9956-03 @ 1, 104-8300 @ 3, 27-0411 @ 1, 110-5050 @ 1, 121-3162 @ 1, 108-4477 @ 1, 108-0989 @ 2, 114-5446 @ 1, 132-7143-03 @ 1. 86-5350 @ 2, 3274-65 @ 4, 104-7201 @ 4, 3256-22 @ 4, 3-6803 @ 2, 121-7885-03 @ 1, 86-5350 @ 2, 3274-65 @ 4, 104-7201 @ 4, 32105-15 @ 2, 3256-22 @ 2

18.19 Inch Low Cut EdgeMax™ Bedknife (Part # 137-0830)

Toro 18.19 Inch OEM Low Cut EdgeMax™ Bedknife. The EdgeMax™ is a tougher medal crafted with precision to give you an amazing cut every time. You can count on the quality and reliability of this replacement Low Cut bedknife. Be sure to verify the make and serial number to ensure correct part.

18.19 Inch Fairway Cut EdgeMax™ Bedknife (Part # 137-0831)

Toro 18.19 Inch OEM Fairway Cut EdgeMax™ Bedknife. The EdgeMax™ is a tougher metal crafted with precision to give you an amazing cut every time. You can count on the quality and reliability of this replacement Fairway Cut bedknife. Be sure to verify the make and serial number to ensure correct part.

HD BRUSH-REAR ROLLER, 18IN (Part # 137-0843)

High Height-of-Cut Kit, Reelmaster 3000 or 5000 Series DPA Cutting Uni (Part # 137-0890)

GROOMER ROD KIT 18IN FULL FRONT ROLLE (Part # 137-0900)

TOOL-HAND TAP 7/8-16 (RM DPA REEL) (Part # 137-0924)

TOOL-HAND TAP 7/8-16, LH (RM DPA REEL) (Part # 137-0925)

18.00 Inch Long Rear Roller Assembly (Part # 137-6101)

Toro 18.00 Inch OEM Long Rear Roller Assembly. This roller has a 2.50 inch diameter. This Assembly comes with the roller tube, roller shaft, oil seals, stainless steel bearings, seals, lock nuts, grease fittings, grease & the roller rebuild kit. This roller is smooth, unlike the Wiehle roller that has groves built in. Toro OEMs are created to keep your equipment up and running with the highest quality parts. To verify that this fits your Toro equipment, please do a model & serial number search.

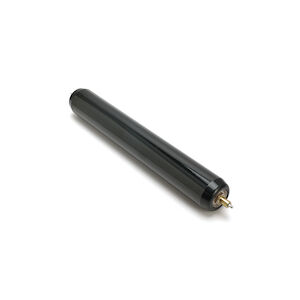

18.00 Inch Full Front Roller Assembly (Part # 137-6116)

Toro 18.00 Inch OEM Full Front Roller Assembly. This roller has a 3.00 inch diameter. This Assembly comes with the roller tube, roller shaft, oil seals, stainless steal bearings, seals, lock nuts, grease fittings, grease & the roller rebuild kit. This roller is smooth, unlike the Wiehle roller that has groves built in. Toro OEMs are created to keep your equipment up and running with the highest quality parts. To verify that this fits your Toro equipment, please do a model & serial number search.

11 Blade EdgeSeries (ES) Reels+™ 18 Inch (Part # 137-8407)

Toro 11 Blade 18 Inch OEM EdgeSeries (ES) Reels+™. The EdgeSeries (ES) Reels+™ is an upgraded version of the Standard Reels+™ with stronger steel, longer lasting & more durable. You can count on the quality and reliability of this replacement EdgeSeries (ES) Reels+™. Be sure to verify the make and serial number to ensure correct part.

Toro Reel Shim (Part # 140-5531)

Check reel to bedknife contact

Universal Groomer Drive MVP Kit, Reelmaster 18-inch or 22-inch EdgeSer (Part # 140-5605)

ADAPTER-DRIVE, REEL (Part # TOR4112)

Parts & Manuals

Select your model year from the options below to view parts & manuals.

03486 Serial #
408000000-999999999
405600000-407999999
405130001-405599999
403450001-405130000
401370001-403450000
400000000-401370000
316000001-316999999
315000001-315999999

Warranty

For complete product warranty information contact Toro Customer Service

**See dealer for Warranty details.
