Discontinued

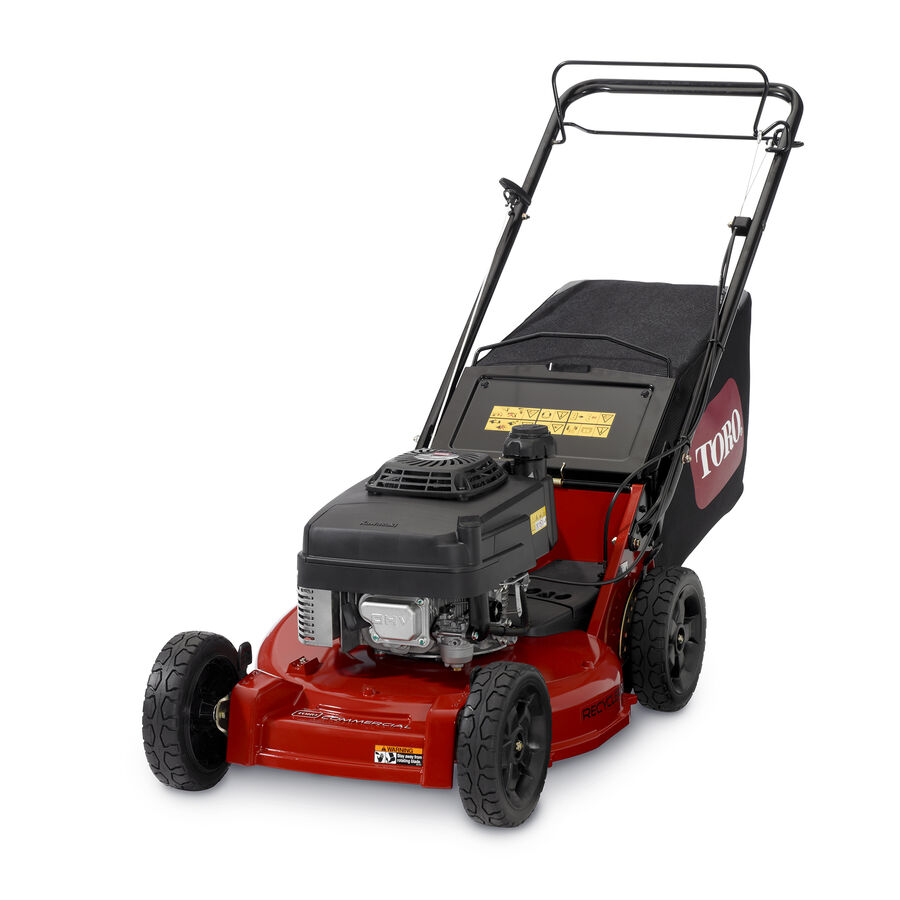

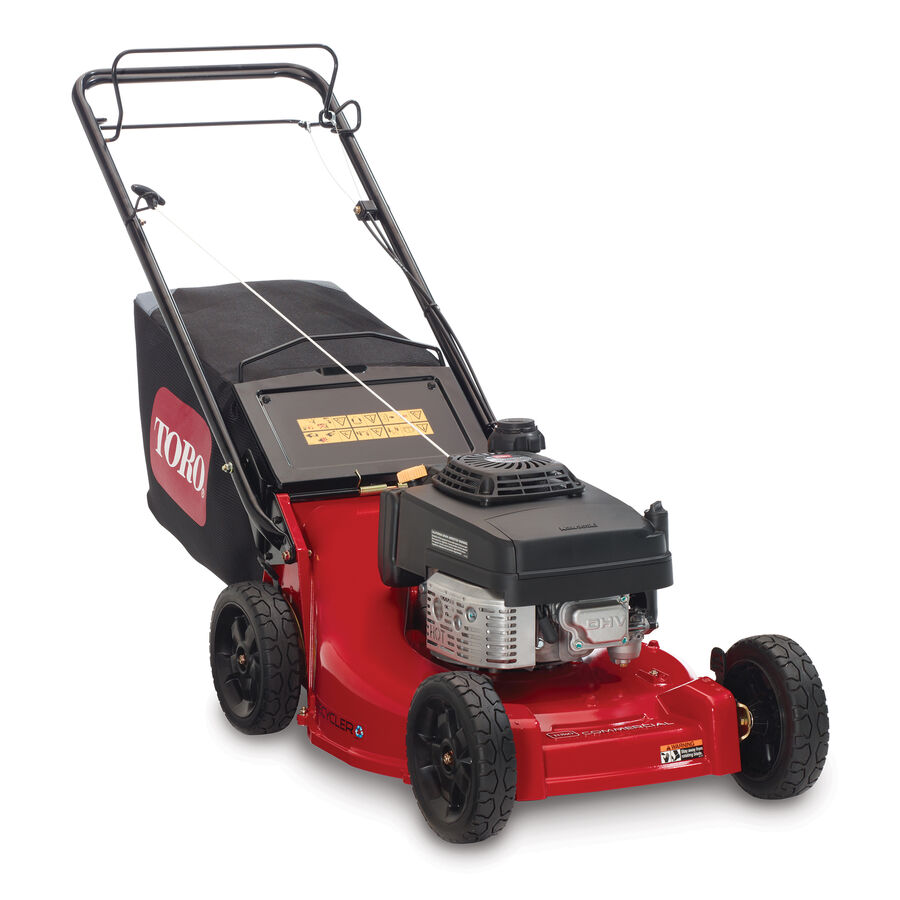

21" (53 cm) Heavy Duty Variable Speed Zone Start Kawasaki 2-Bail.

  • Model: 22290
  • UPC/EAN: 21038222905
  • Powered by a Kawasaki FJ180V engine
  • Cut in more conditions with heights ranging from 1 in. to 4.5 in.
  • Large 9 in. x 2 in. lightweight co-polymer wheels provide a light footprint that is easy on turf
  • The large 2.1 bushel bag features an easy-empty design, making quick work of clipping disposal.
  • The wide opening and ramped profile of the tunnel maximize bag fill.
  • Recycler® Cutting System - optimized for exceptional mulching and bagging performance
  • Designed for durability with steel cable routing guards that keep cables protected from debris and trailering damage

Overview

This Toro 21" (53 cm) self propel, heavy duty walk behind mower features a premium commercial-grade Kawasaki ZS FJ180V engine with zone start and a sealed, maintenance-free transmission. The 2-bail control system makes it easy to vary the speed where you need it. For the best productivity, it has a Recycler cutting deck and the large, easy-empty bagging system. The deck is made of corrosion-resistant aluminum alloy and cables are also protected with steel cable guards mounted to the handle bar. It's everything you want in a heavy-duty walk behind.

Features

Commercial-Grade Kawasaki FJ180V engine
Commercial-grade Kawasaki Engine
Powered by a commercial-grade Kawasaki FJ180V engine featuring a sealed, maintenance-free transmission and .5 gallon fuel tank.
4-Point Height-of-Cut
4-Point Height of Cut
The robust design provides maximum life and durability. Front spring arms are contained within the wheels for ultimate protection. Cut in more conditions with heights ranging from 1in. to 4.5 in.
Commercial Grade Wheel
Commercial-Grade Wheels
Tough co-polymer wheels feature precision ball bearings for long life with less downtime and lower replacement costs. These large 9 in. x 2 in. wheels also provide a light footprint that is easy on the turf.
Easy Empty Bag
Easy Empty Bag
The large 2.1 bushel bag features an easy-empty design, making quick work of clipping disposal.
Rear Bagging System
Rear Bagging System
The wide opening and ramped profile of the tunnel maximize bag fill.
Recycler Cutting System
Recycler® Cutting System
This patented cutting system cuts and recuts grass clippings into fine mulch and directs them deep into the turf to provide a "just bagged" appearance.
Designed for Durability
Designed for Durability
Designed for durability with steel cable routing guards that keep cables protected from debris and trailering damage

Specifications

Bagger Capacity 2.1 bushels
Blade Design 0.135 in. / 0.343 cm Thick Steel
Blade Engagement Zone Start
Blade Tip Speed 18,000 ft/min / 5,486 m/min
CARB Compliant CARB Compliant
Crankshaft 1" (25 mm) w/Steel Protector
Deck Design Recycler Cutting System / Rear Bagging System
Deck Material Die Cast Aluminum Alloy
Deck Size 21 in / 53 cm
Drive System Self-Propel
Engine Kawasaki FJ180V
Engine Brand Kawasaki
Forward Ground/Transport Speed Up to 4.2 mph / 6.7 kph
Fuel Type Gasoline
Height of Cut 1.0 - 4.5 in. / 2.5 - 11.4 cm
Lubrication Splash Lubrication
Mulch, Bag, Side Discharge Bag standard, Mulch standard
Number of Blades 1
Self Propel System Variable Speed
Start Type Pull Cord
Steering Controls 2-Bail
Transmission Variable Speed Rear Wheel Drive

Disclaimer

*See your Toro dealer for warranty details.

Parts & Manuals

Select your model year from the options below to view parts & manuals.

22290 Serial #
410000000-999999999
405200000-409999999
404320000-405199999
402020000-404319999
400000000-402019999
316000001-316999999
315000001-315999999
314000001-314999999



Warranty

1-Year Limited Unit, 3-Year Limited Engine

**See dealer for Warranty details.
