Turf Pro 84 with 7-Blade Cutting Units

Image Not Found

Product Information

  • Model #: 03537
  • Serial #: 00001 - 09999
  • Product Type: Riding Products

Assembly Drawings

Search for a part within assembly drawings:

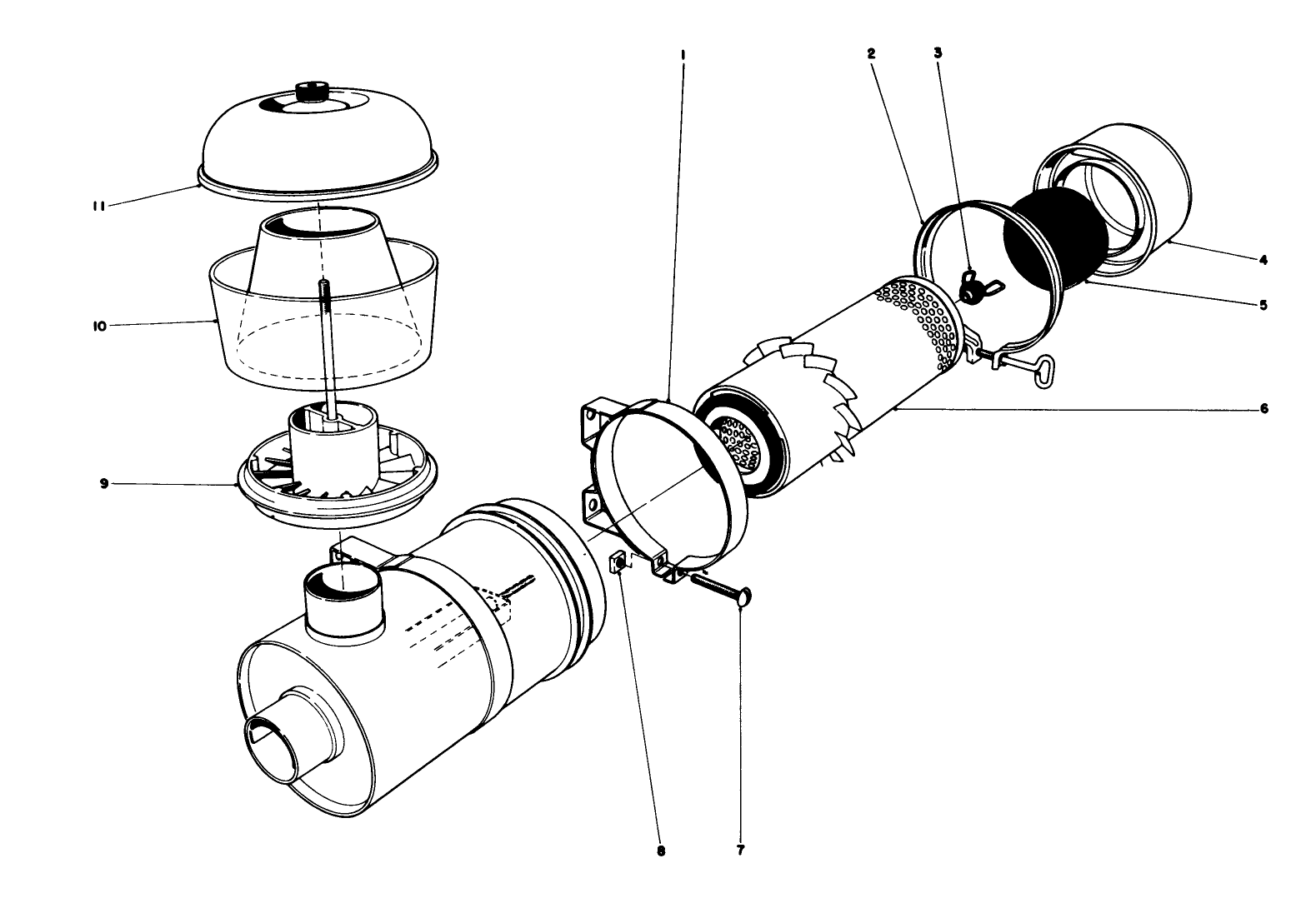

Air Cleaner Assembly No. 8-2329
Air Cleaner Assembly No. 8-2329
Alignment Tool Assembly No. 20-0120
Alignment Tool Assembly No. 20-0120
Backlapping Brush Assembly No. 29-9100
Backlapping Brush Assembly No. 29-9100

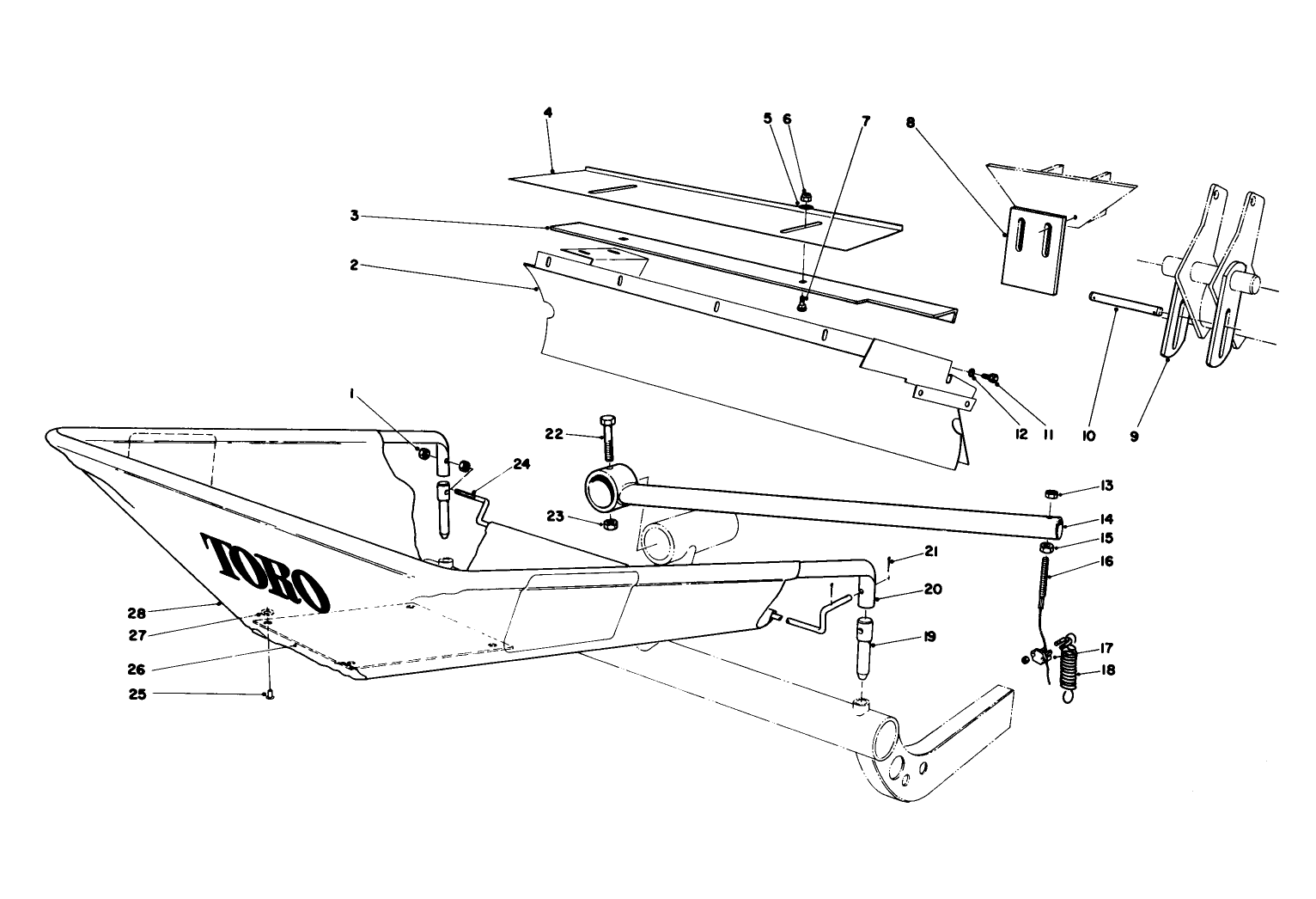

Basket Kit No. 03572 (optional)
Basket Kit No. 03572 (optional)
Bed Knife Screw Tool No. 51-0880
Bed Knife Screw Tool No. 51-0880

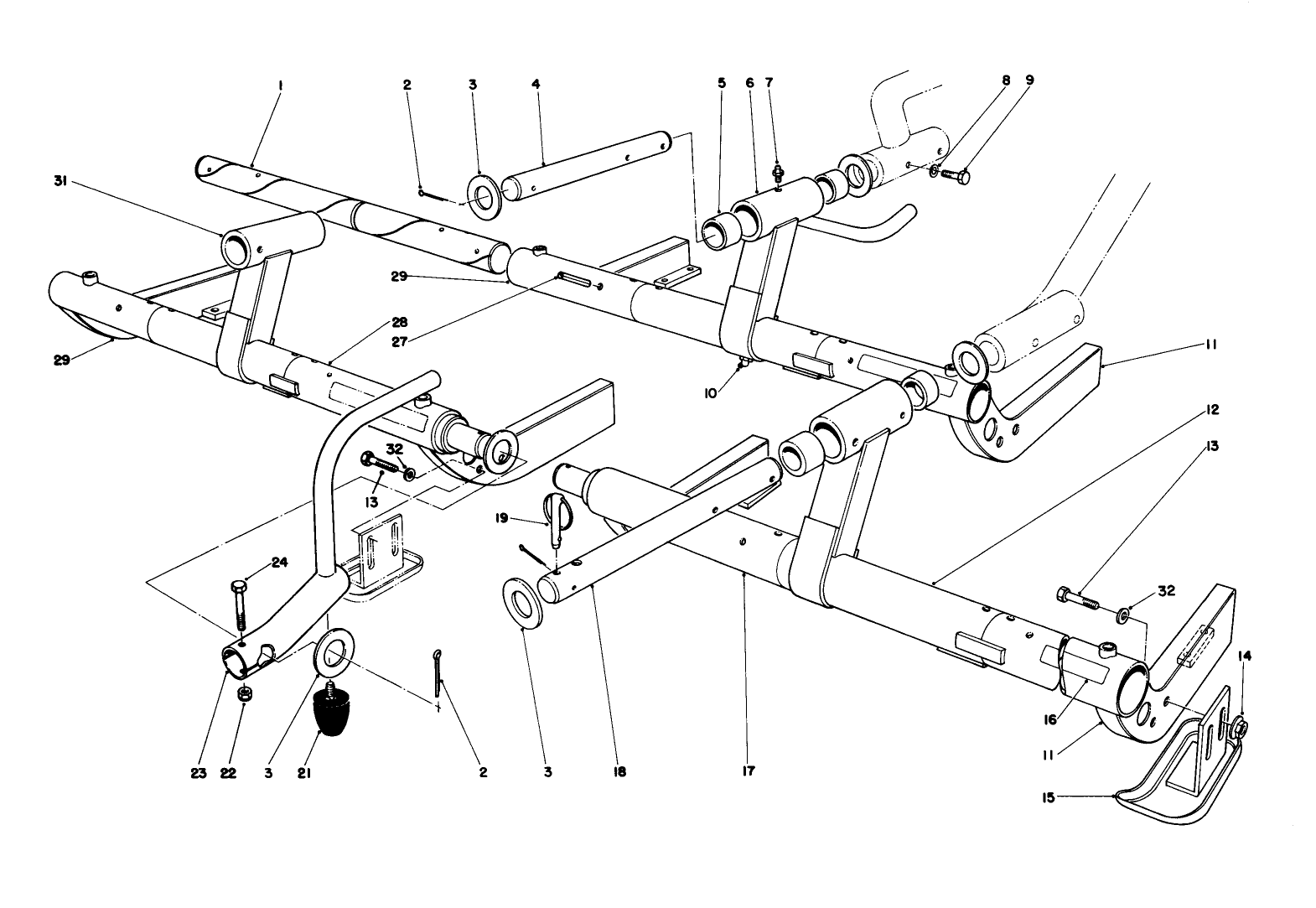

Carrier Frame Assembly
Carrier Frame Assembly

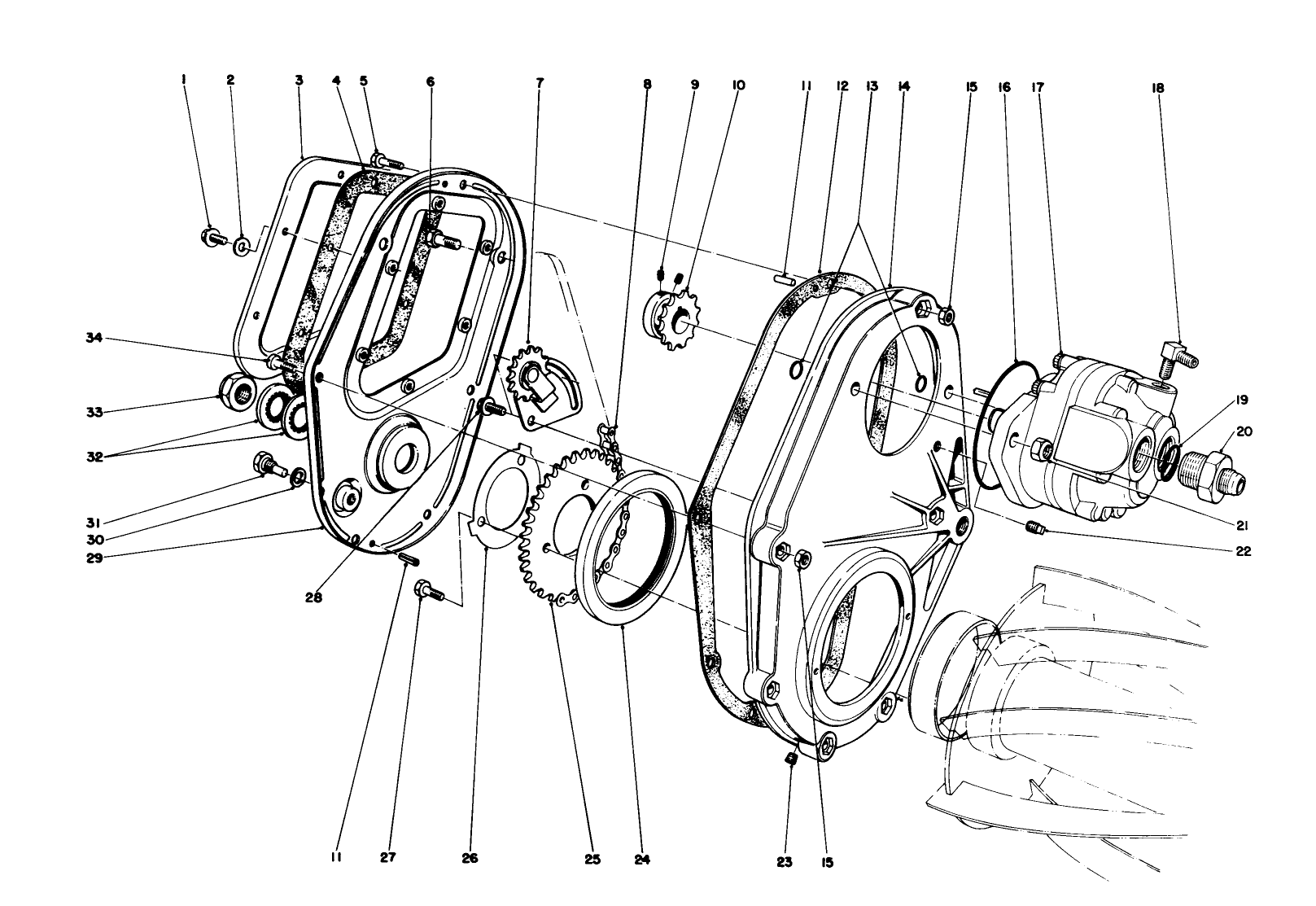

Chain Case And Gear Motor Assembly
Chain Case And Gear Motor Assembly

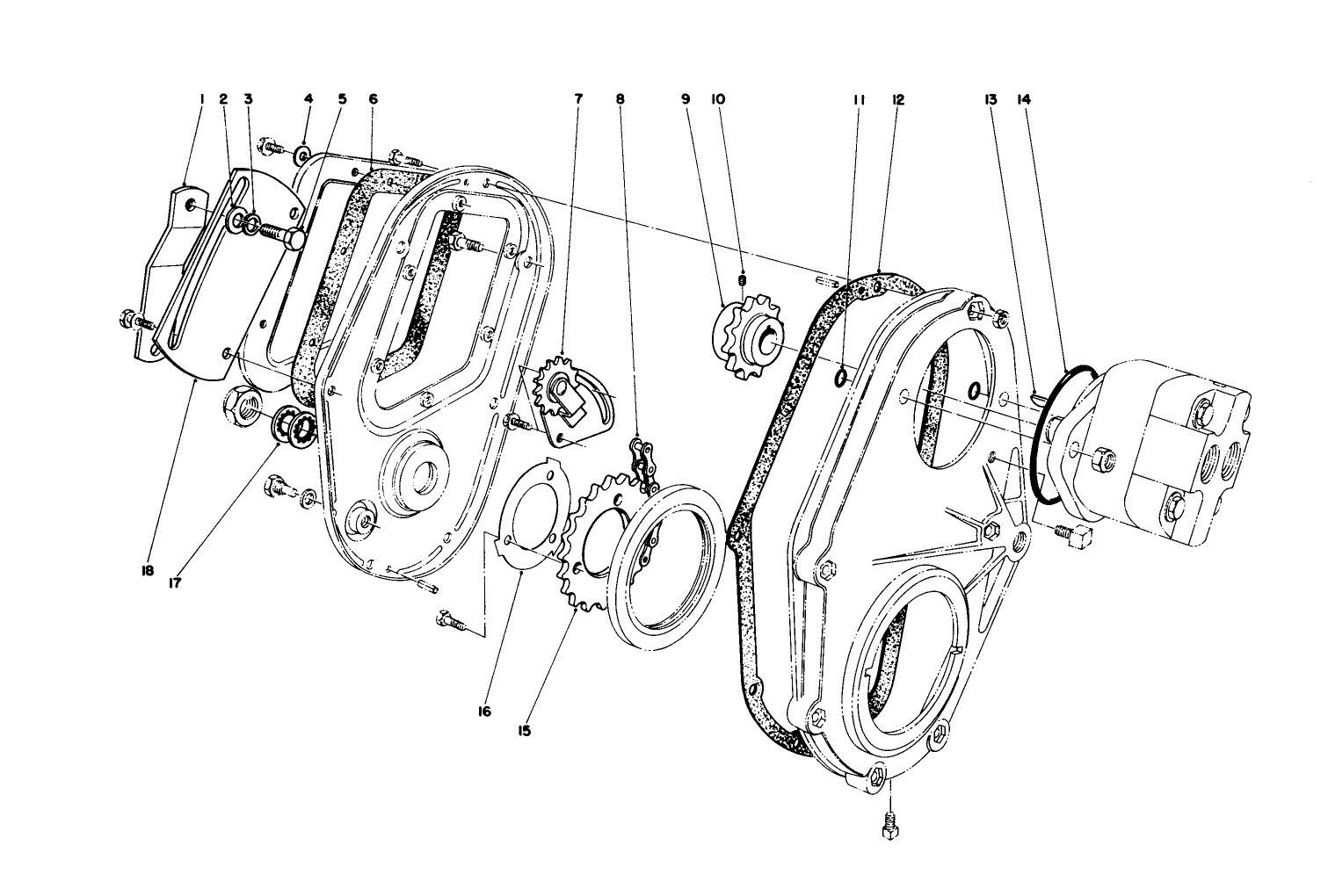

Clip Kit No. 49-7200 (optional)
Clip Kit No. 49-7200 (optional)

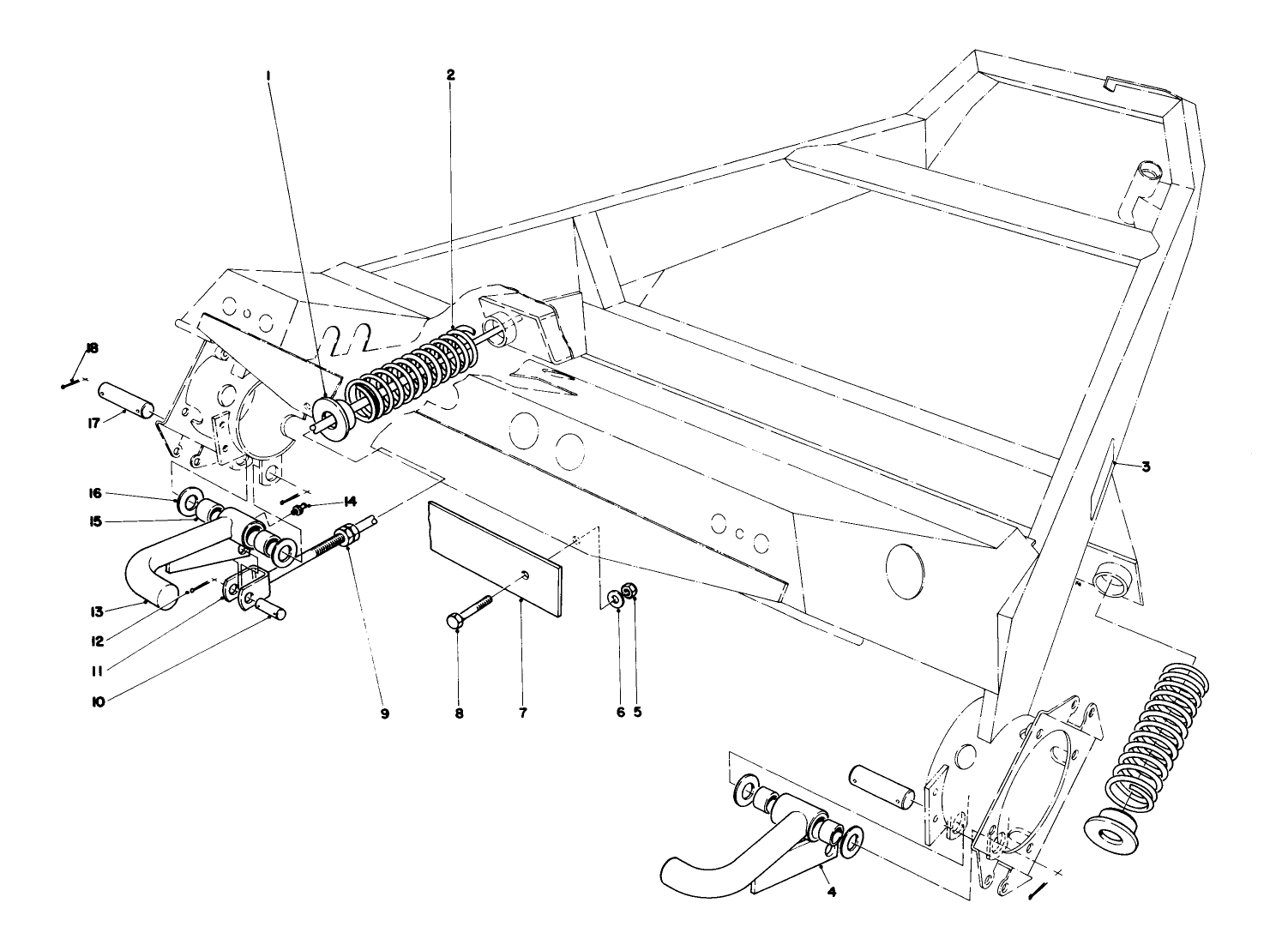

Counterbalance Assembly
Counterbalance Assembly

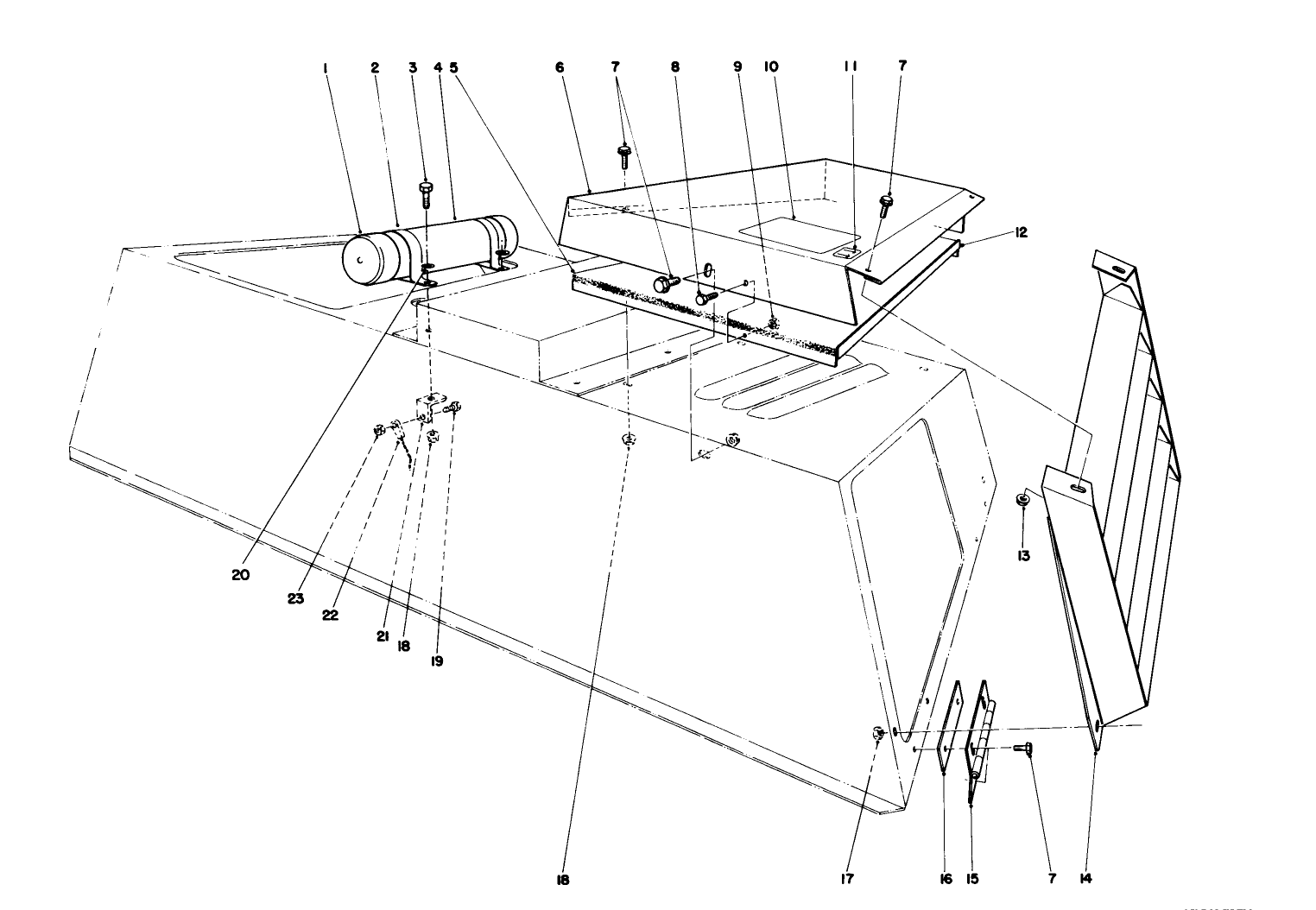

Cover, Top Outlet And Discharge Louver
Cover, Top Outlet And Discharge Louver

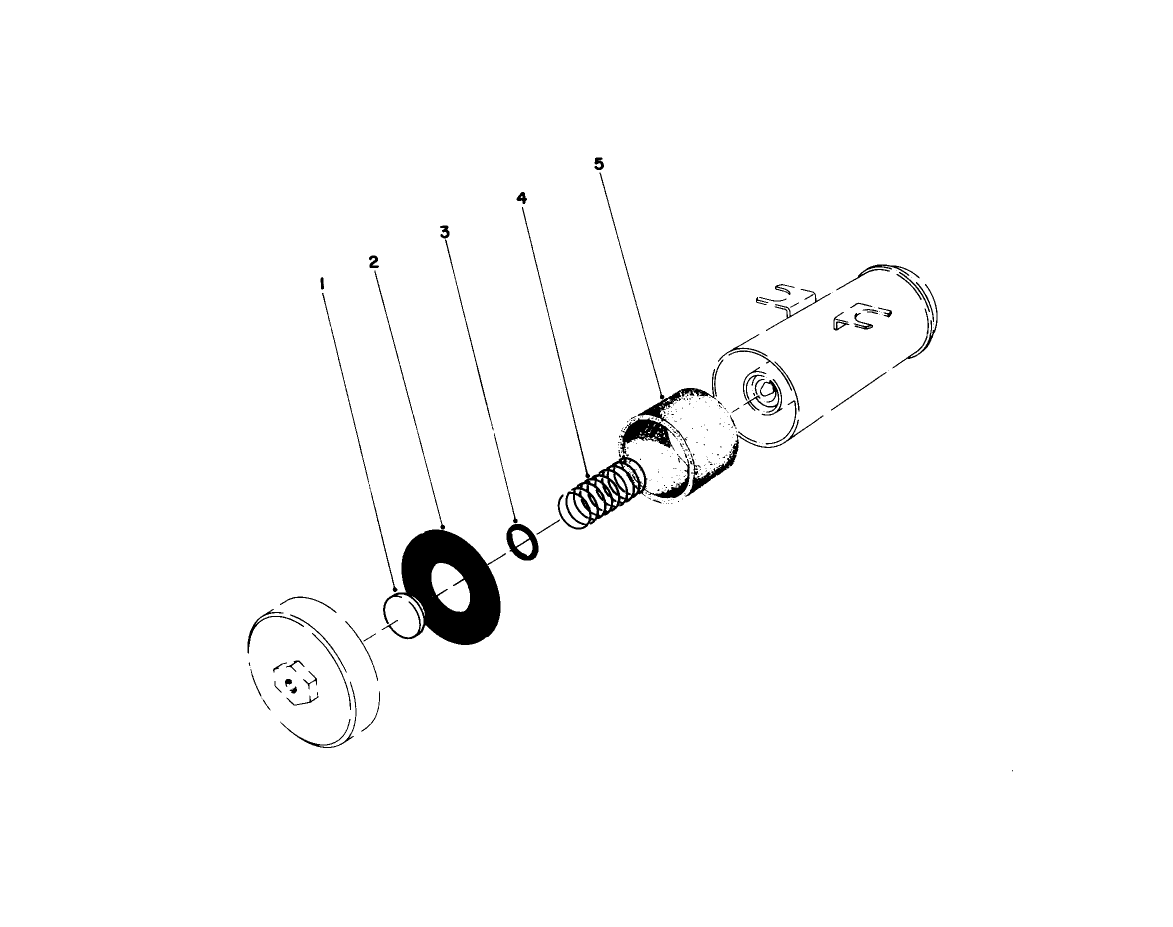

Electric Fuel Pump No. 44-7790
Electric Fuel Pump No. 44-7790

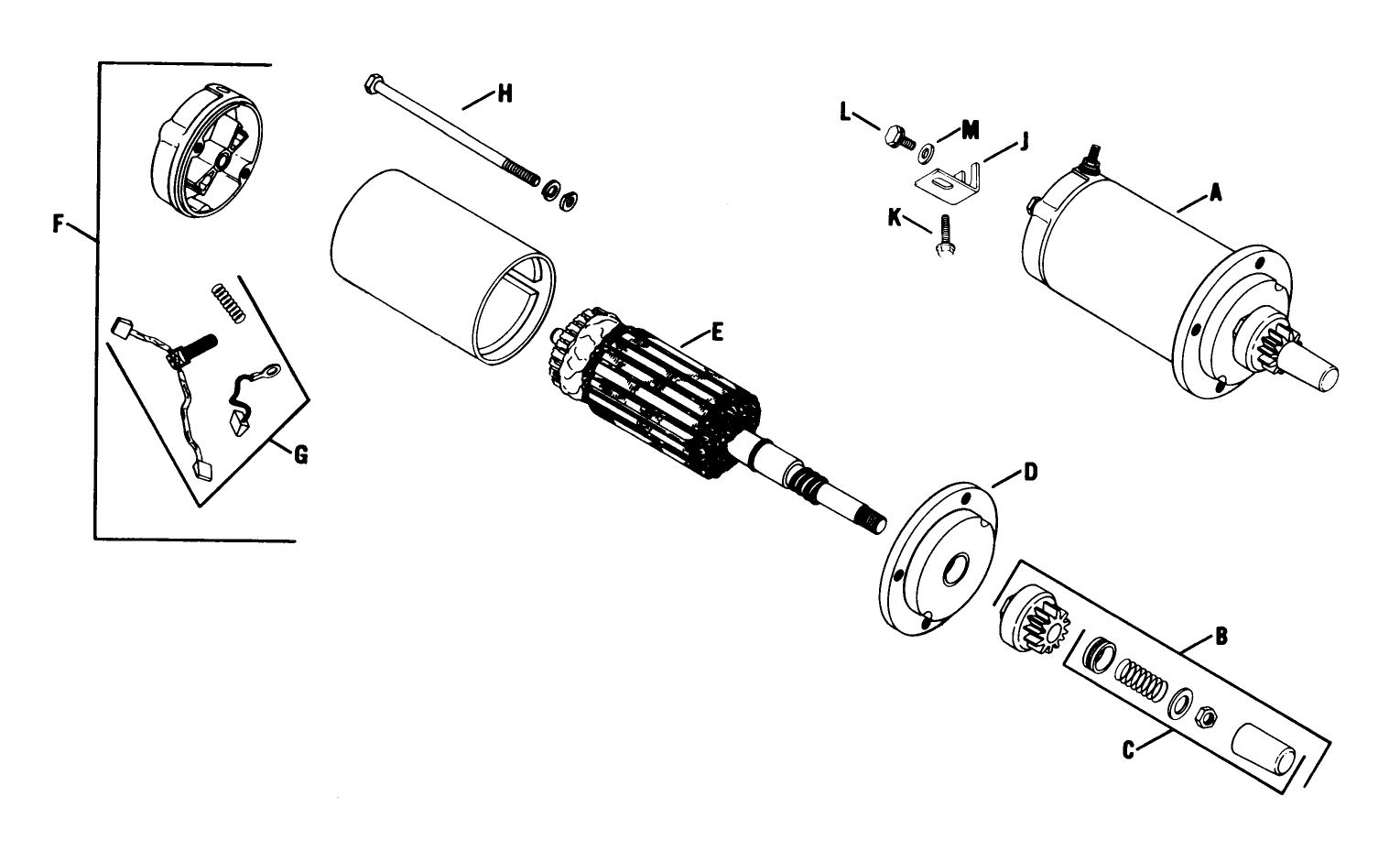

Electric Starter Assembly Engine Model No. K582qs Type Ho. Ps-36315 (continued)
Electric Starter Assembly Engine Model No. K582qs Type Ho. Ps-36315 (continued)

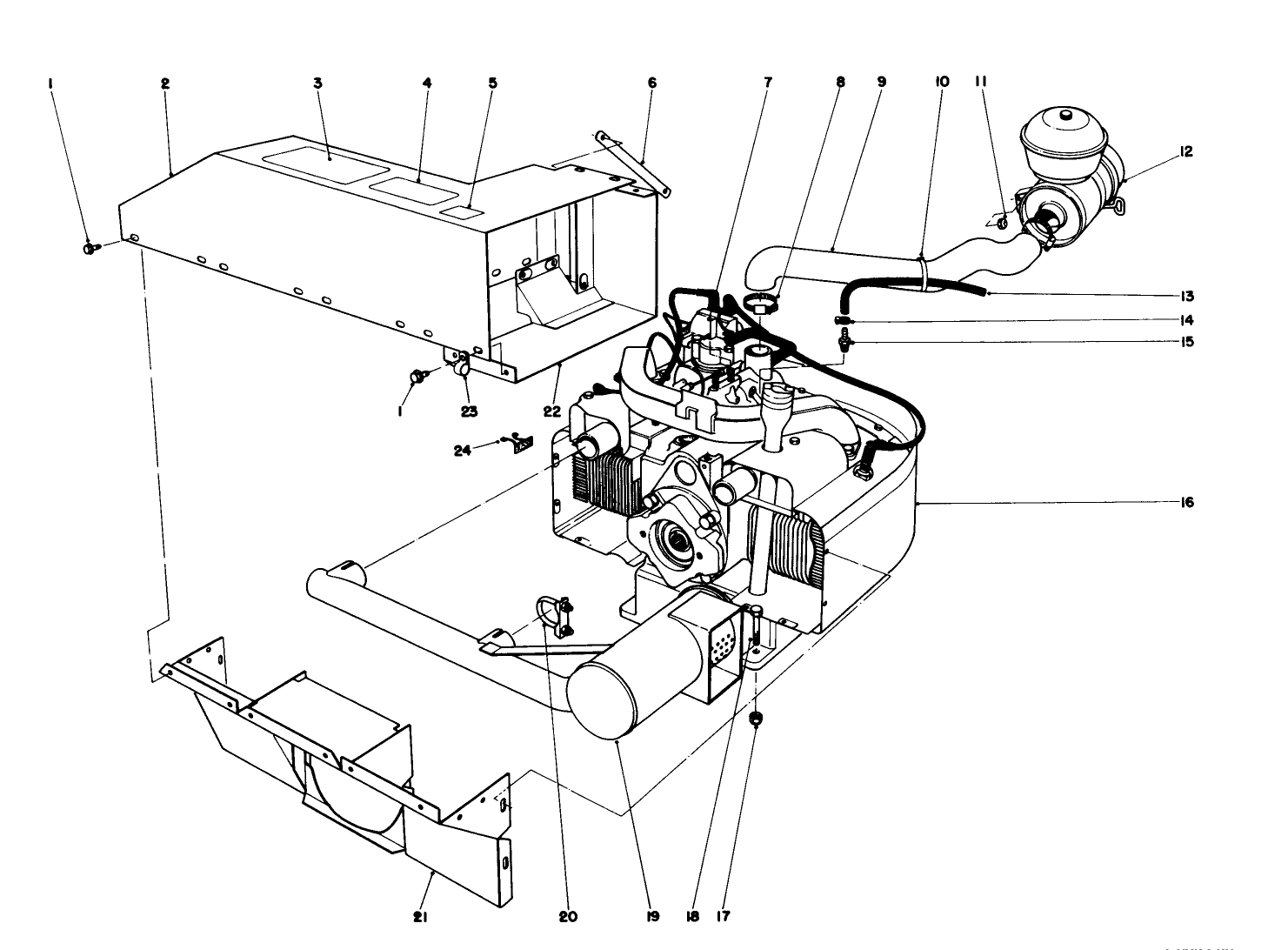

Engine Assembly
Engine Assembly

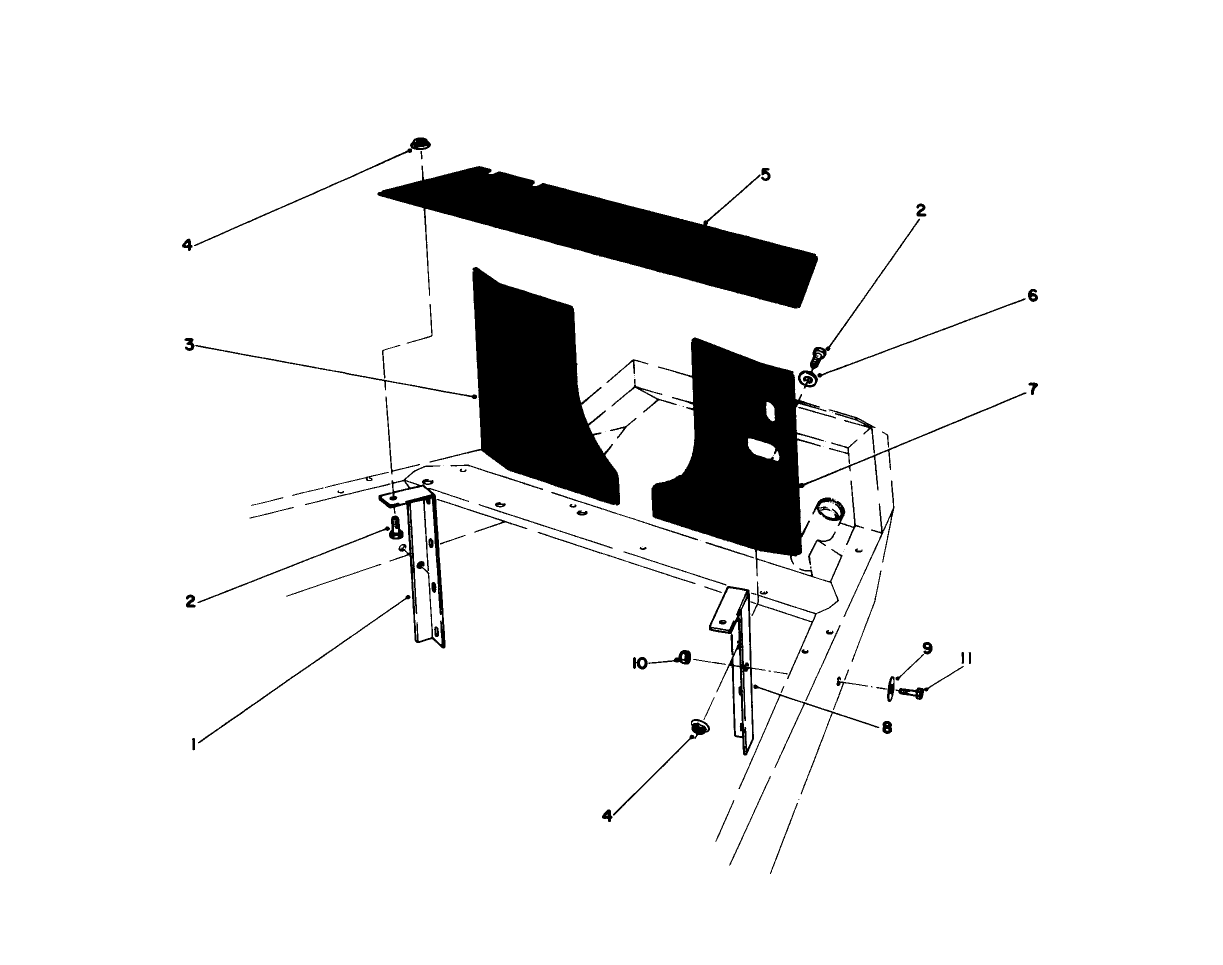

Engine Compartment Seals
Engine Compartment Seals
Engine Model No. K582qs Type No. Ps-36315 (continued) Flywheel-Group 13
Engine Model No. K582qs Type No. Ps-36315 (continued) Flywheel-Group 13
Engine Model No. K582qs Type No. Ps-36315 (continued) Fuel Pump-Group 14
Engine Model No. K582qs Type No. Ps-36315 (continued) Fuel Pump-Group 14
Engine Model No. K582qs Type No. Ps-36315 (continued) Gear Cover-Group 26
Engine Model No. K582qs Type No. Ps-36315 (continued) Gear Cover-Group 26

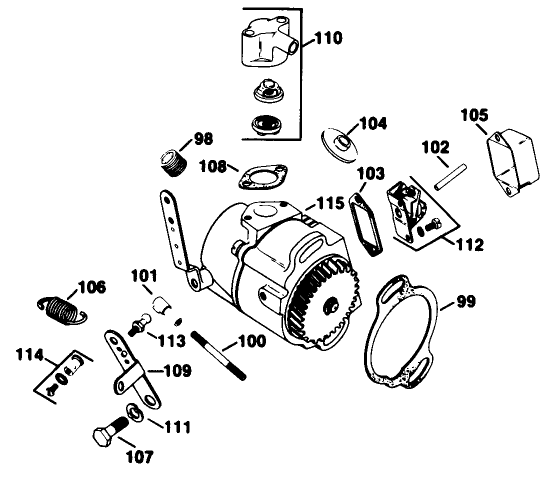

Engine Model No. K582qs Type No. Ps-36315 (continued) Governor-Group 17
Engine Model No. K582qs Type No. Ps-36315 (continued) Governor-Group 17
Engine Model No. K582qs Type No. Ps-36315 (continued) Ignition-Group 18
Engine Model No. K582qs Type No. Ps-36315 (continued) Ignition-Group 18
Engine Model No. K582qs Type No. Ps-36315 (continued) Intakes & Exhaust Manifolds-Group 12
Engine Model No. K582qs Type No. Ps-36315 (continued) Intakes & Exhaust Manifolds-Group 12
Engine Model No. K582qs Type No. Ps-36315 (continued) Oil Filter-Group 29
Engine Model No. K582qs Type No. Ps-36315 (continued) Oil Filter-Group 29
Engine Model No. K582qs Type No. Ps-36315 (continued) Oil Pan-Group 21
Engine Model No. K582qs Type No. Ps-36315 (continued) Oil Pan-Group 21
Engine Model No. K582qs Type No. Ps-36315 (continued) Oil Pump-Group 25
Engine Model No. K582qs Type No. Ps-36315 (continued) Oil Pump-Group 25
Engine Model No. K582qs Type No. Ps-36315 (continued) Piston & Rod-Group22
Engine Model No. K582qs Type No. Ps-36315 (continued) Piston & Rod-Group22
Engine Model No. K582qs Type No. Ps-36315 Air Intake-Group 1
Engine Model No. K582qs Type No. Ps-36315 Air Intake-Group 1

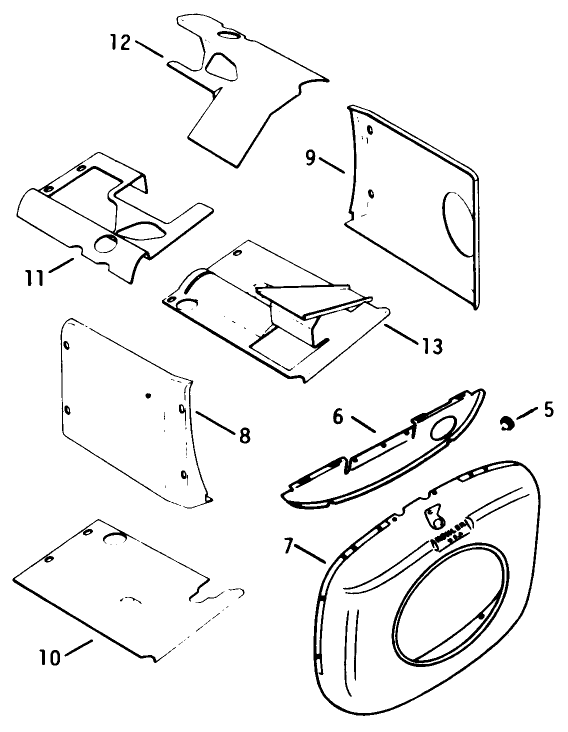

Engine Model No. K582qs Type No. Ps-36315 Baffles & Shroud-Group 2
Engine Model No. K582qs Type No. Ps-36315 Baffles & Shroud-Group 2
Engine Model No. K582qs Type No. Ps-36315 Breather & Vent-Group 3
Engine Model No. K582qs Type No. Ps-36315 Breather & Vent-Group 3
Engine Model No. K582qs Type No. Ps-36315 Carburetor-Group 5
Engine Model No. K582qs Type No. Ps-36315 Carburetor-Group 5

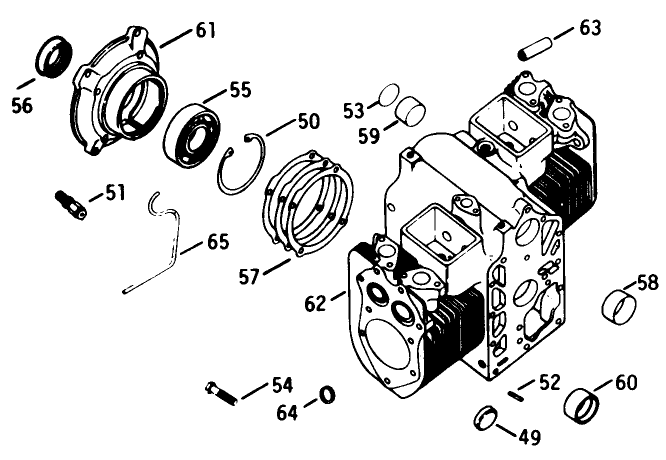

Engine Model No. K582qs Type No. Ps-36315 Crankcase-Group 7
Engine Model No. K582qs Type No. Ps-36315 Crankcase-Group 7
Engine Model No. K582qs Type No. Ps-36315 Crankshaft-Group 8
Engine Model No. K582qs Type No. Ps-36315 Crankshaft-Group 8
Engine Model No. K582qs Type No. Ps-36315 Cylinder Head-Group 9
Engine Model No. K582qs Type No. Ps-36315 Cylinder Head-Group 9
Engine Model No. K582qs Type No. Ps-36315 Dipstick-Group 10
Engine Model No. K582qs Type No. Ps-36315 Dipstick-Group 10
Engine Model No. K582qs Type No. Ps-36315 Electric Start-Group 11
Engine Model No. K582qs Type No. Ps-36315 Electric Start-Group 11
Engineno. K582qs Type No. Ps-36315 Camshaft & Valves-Group 4
Engineno. K582qs Type No. Ps-36315 Camshaft & Valves-Group 4

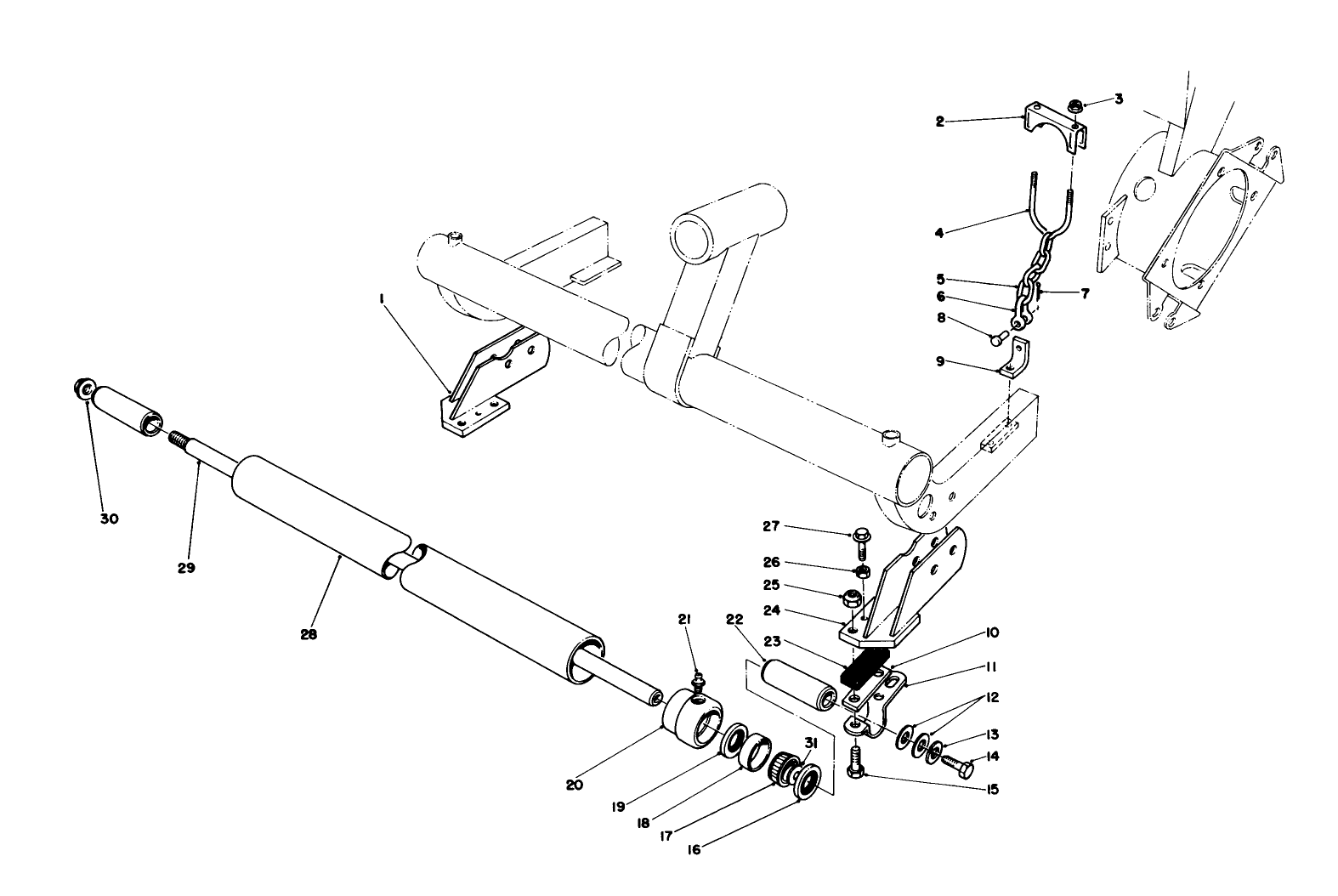

Front Roller Kit Model No. 03588 (optional)
Front Roller Kit Model No. 03588 (optional)

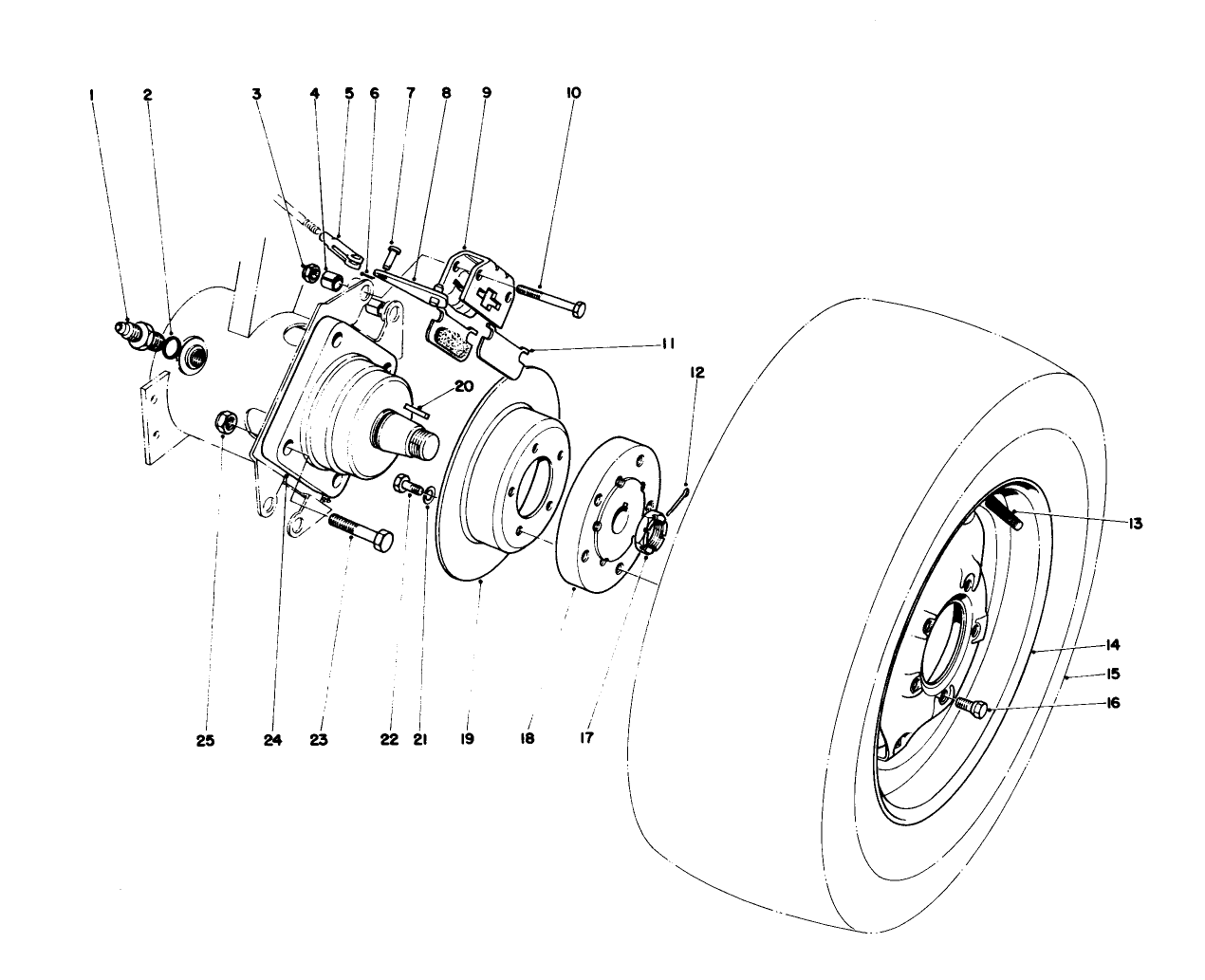

Front Wheel Assembly
Front Wheel Assembly

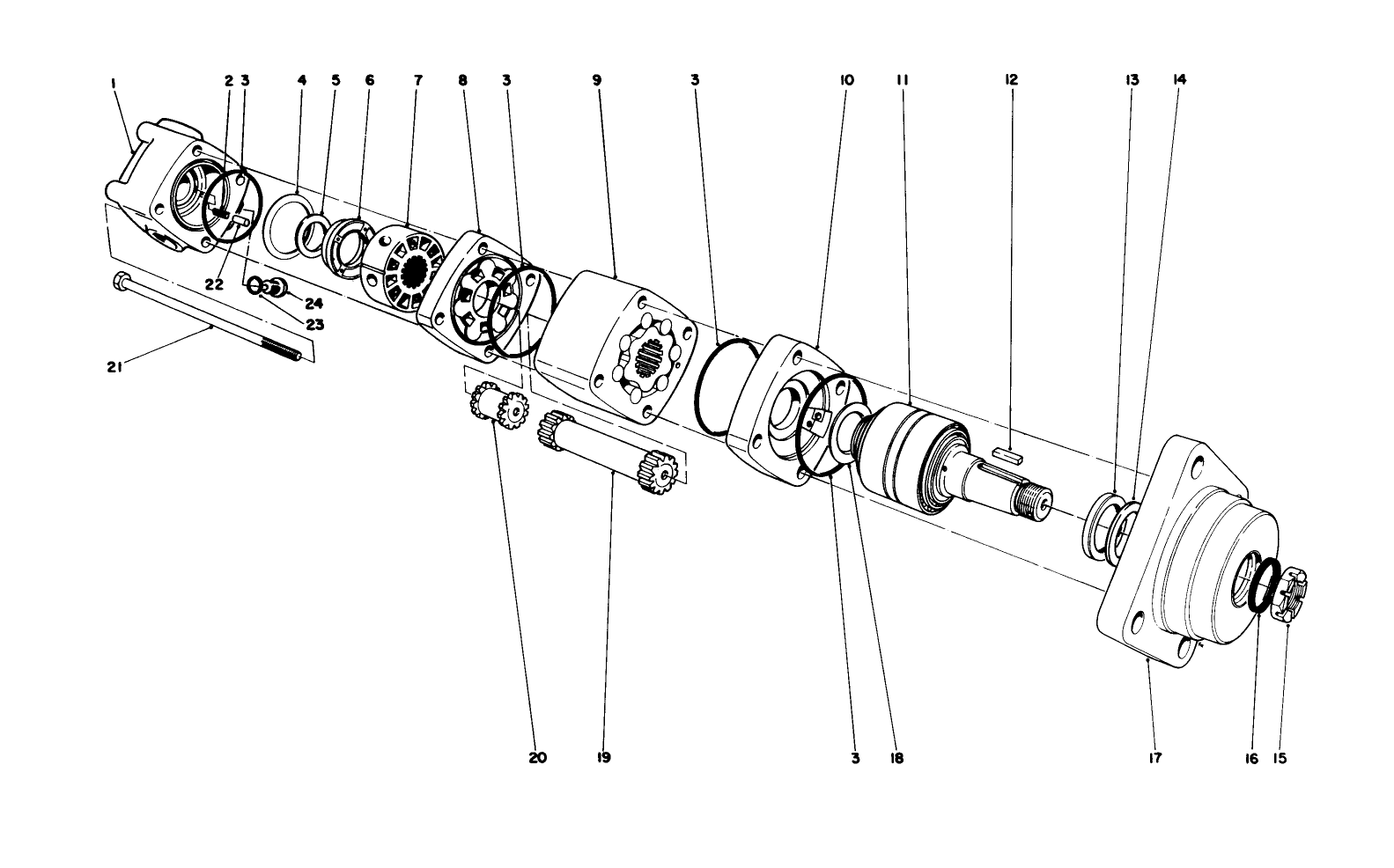

Front Wheel Motor No. 56-6800
Front Wheel Motor No. 56-6800

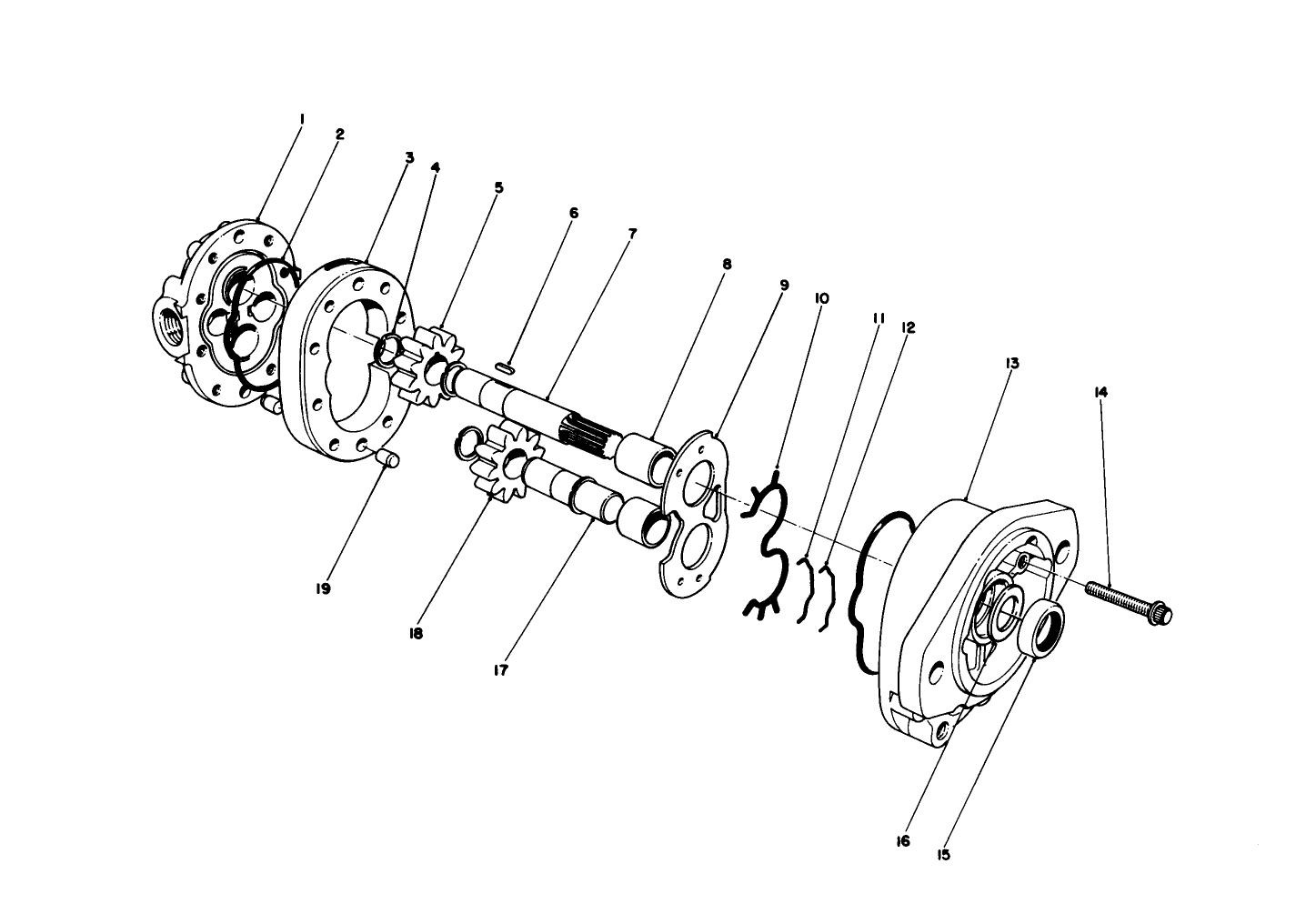

Gear Pump No. 49-2430
Gear Pump No. 49-2430

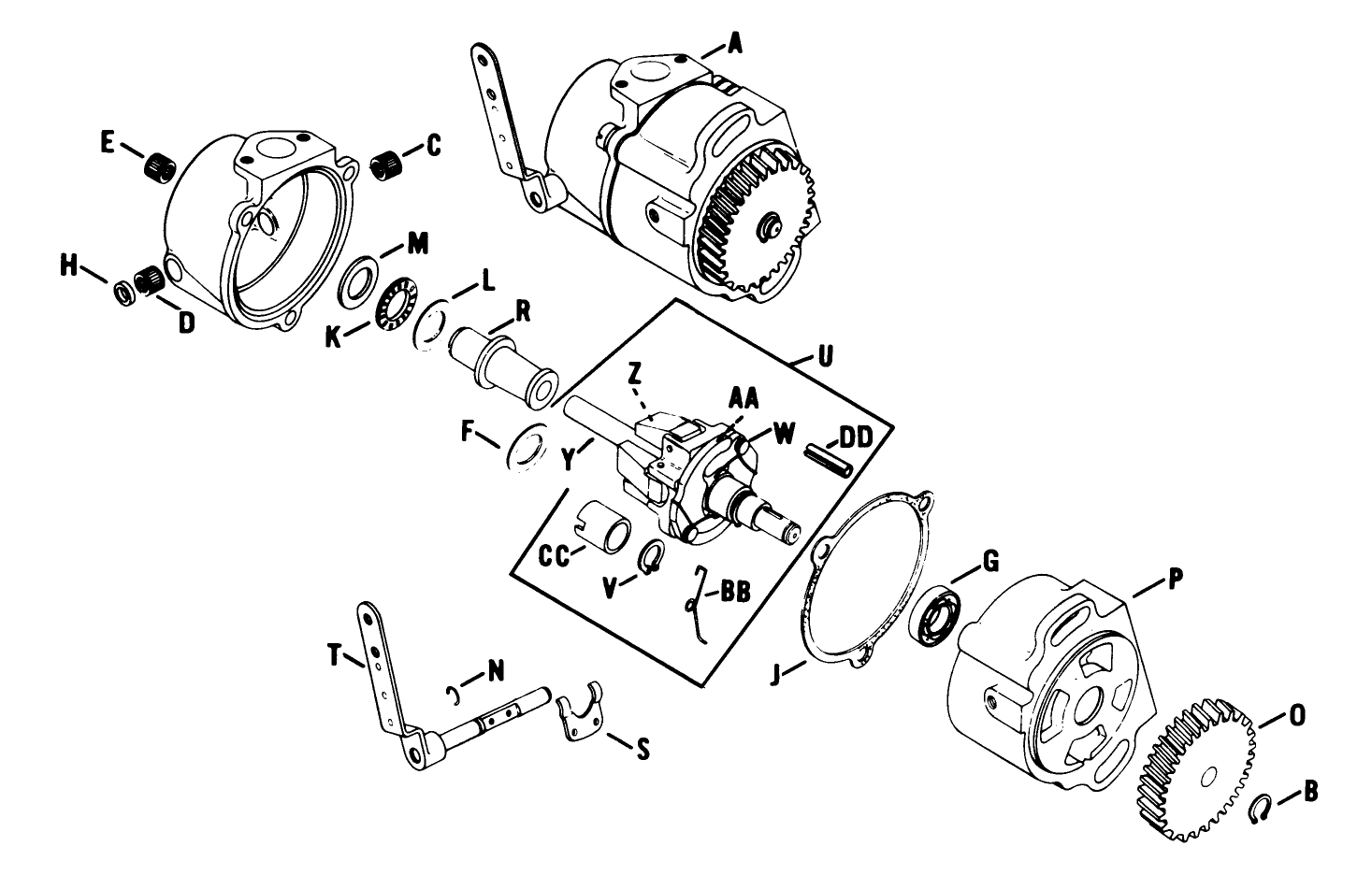

Governor Assembly Engine Model No. K582qs Type No. Ps-36315 (continued)
Governor Assembly Engine Model No. K582qs Type No. Ps-36315 (continued)

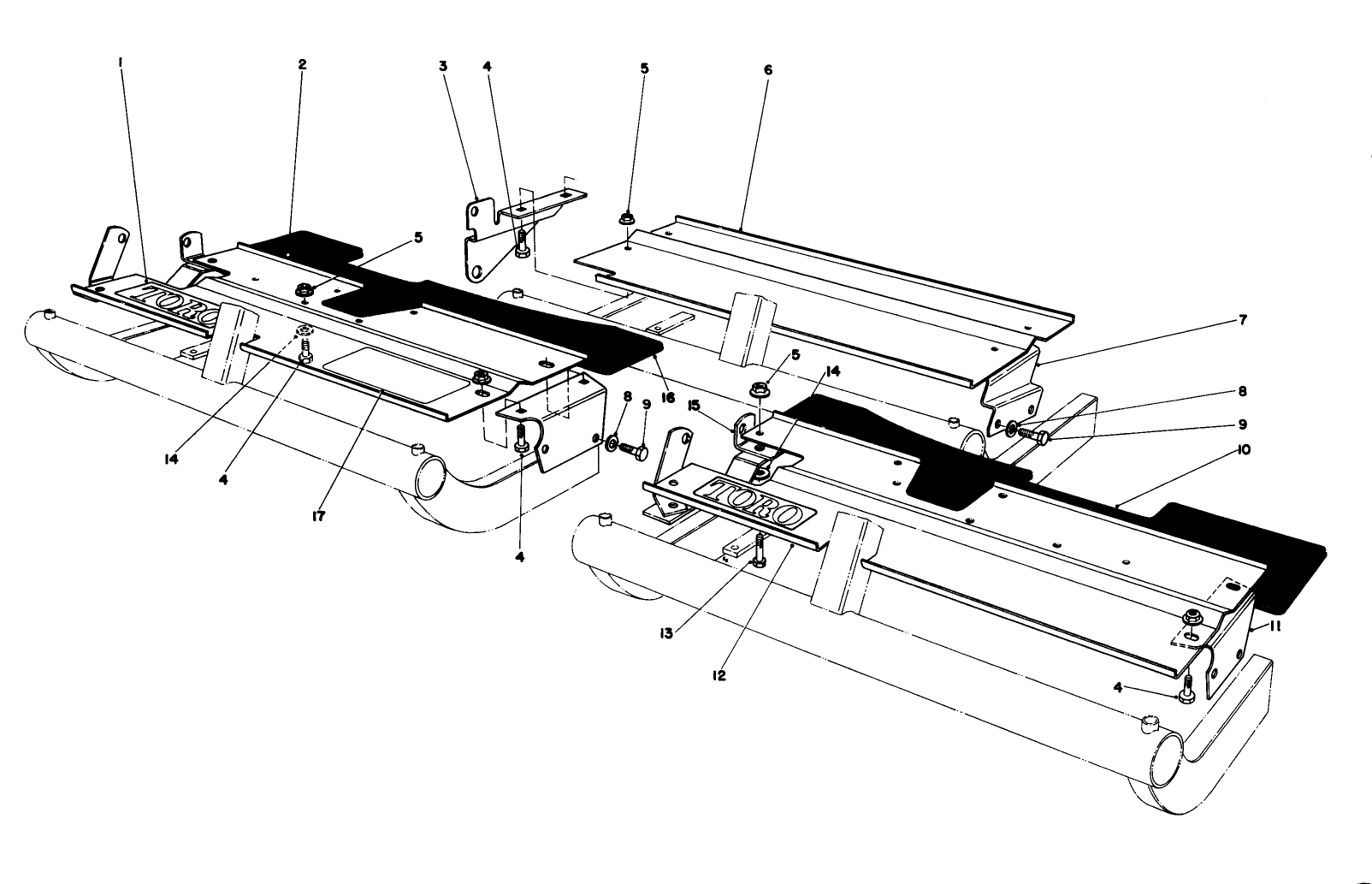

Grass Shield Assembly
Grass Shield Assembly

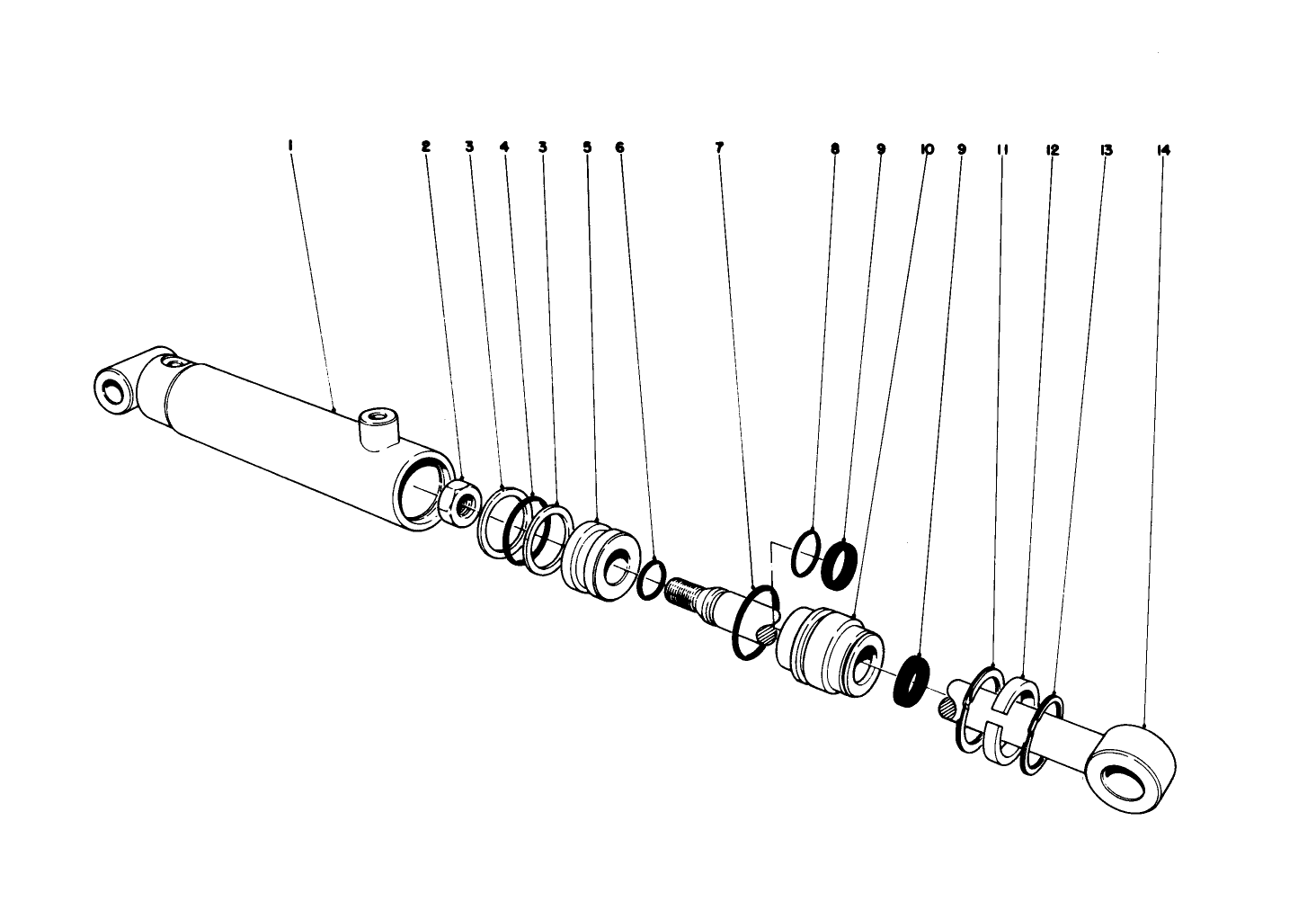

Hydraulic Cylinder No. 29-2700
Hydraulic Cylinder No. 29-2700

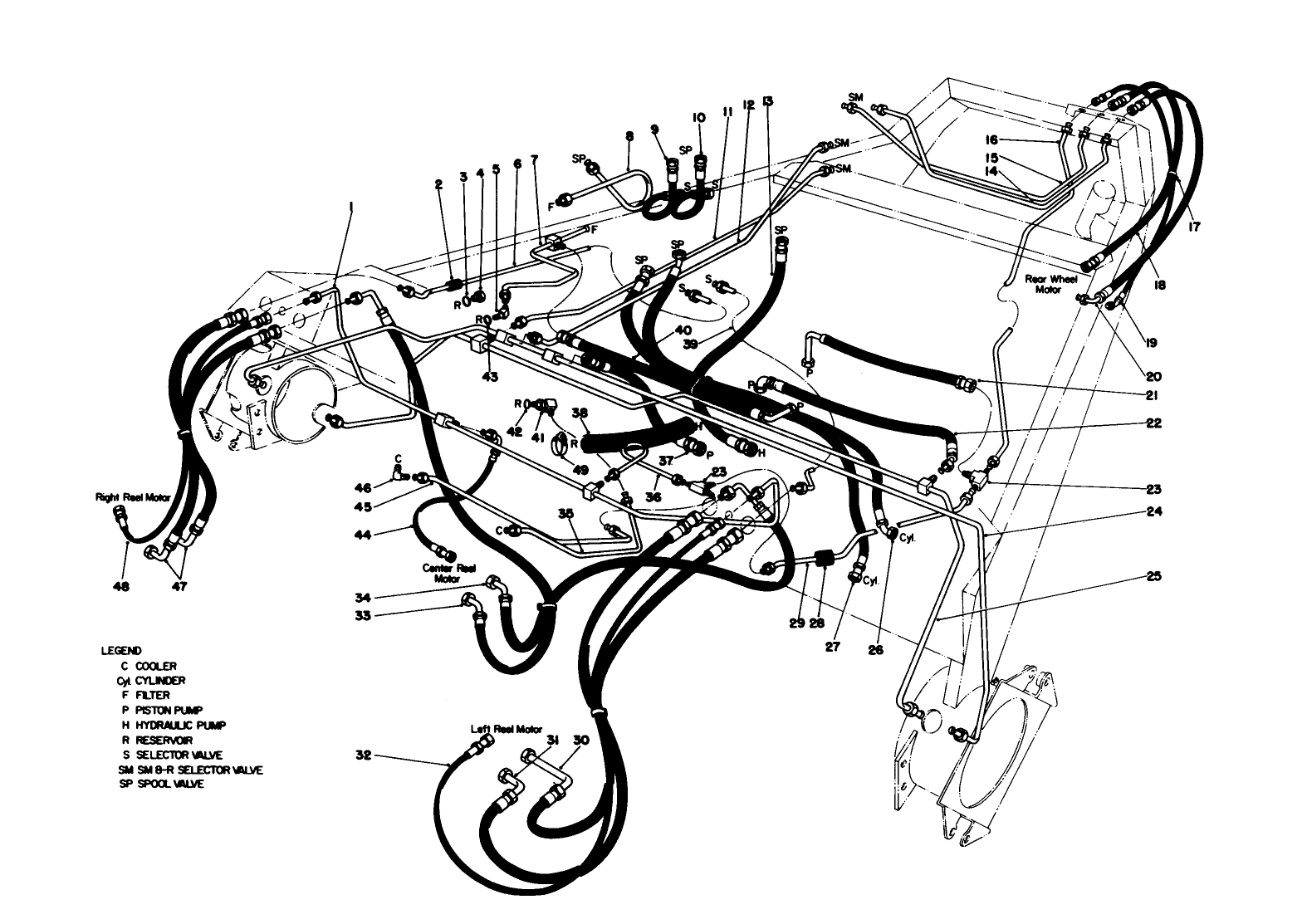

Hydraulic Diagram
Hydraulic Diagram

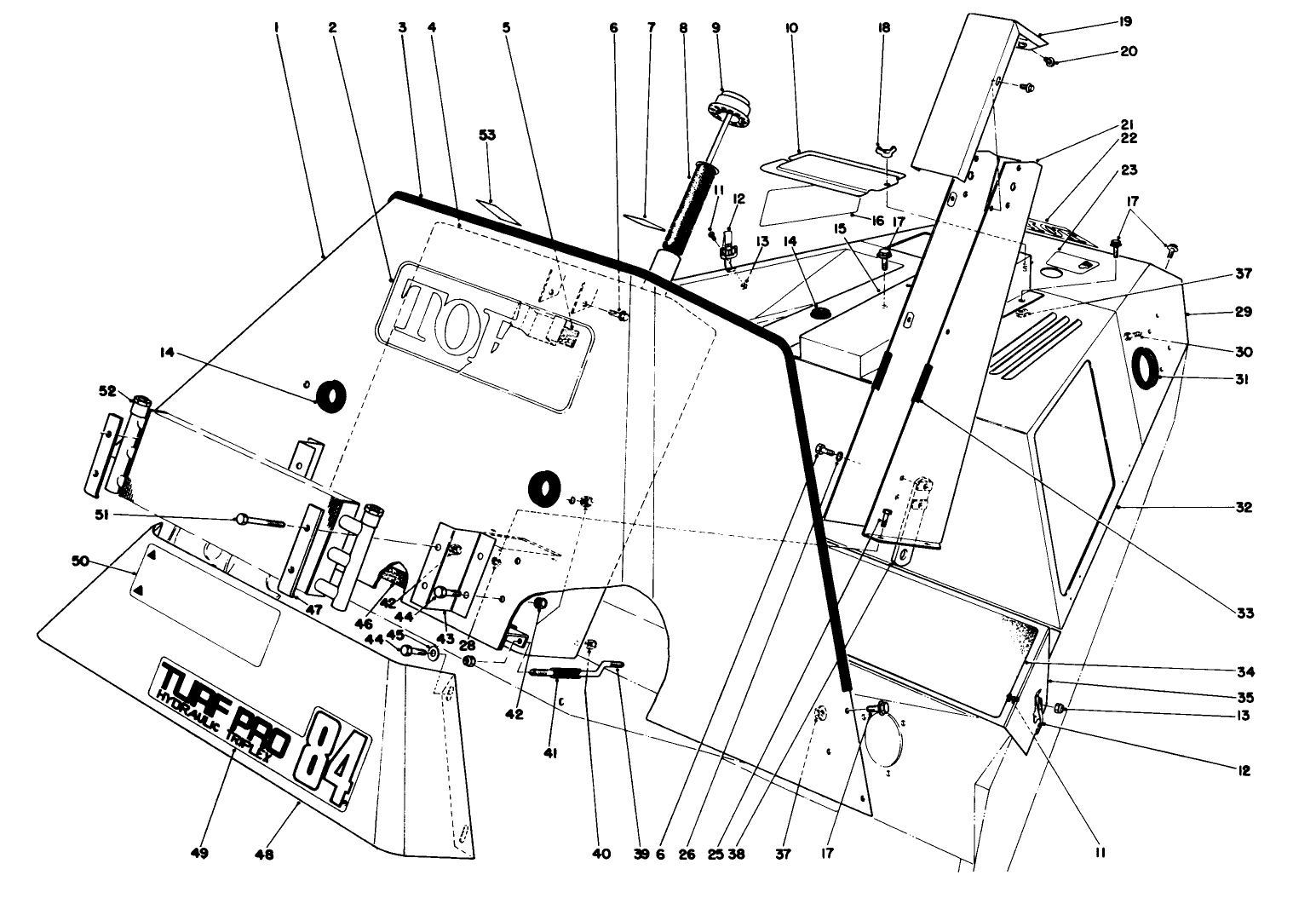

Hydraulic Reservoir And Front Shroud
Hydraulic Reservoir And Front Shroud

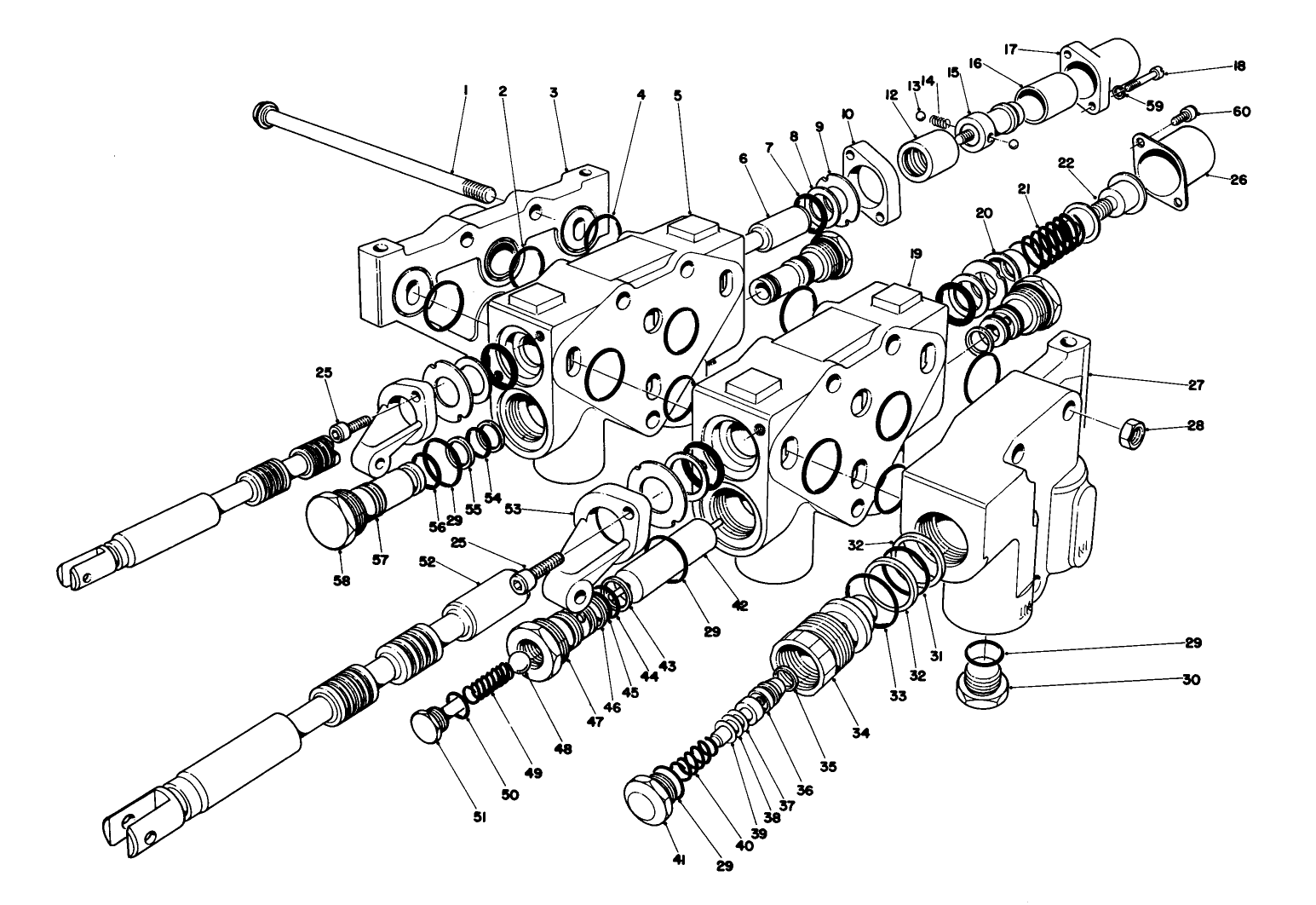

Hydraulic Valve No. 44-5230
Hydraulic Valve No. 44-5230

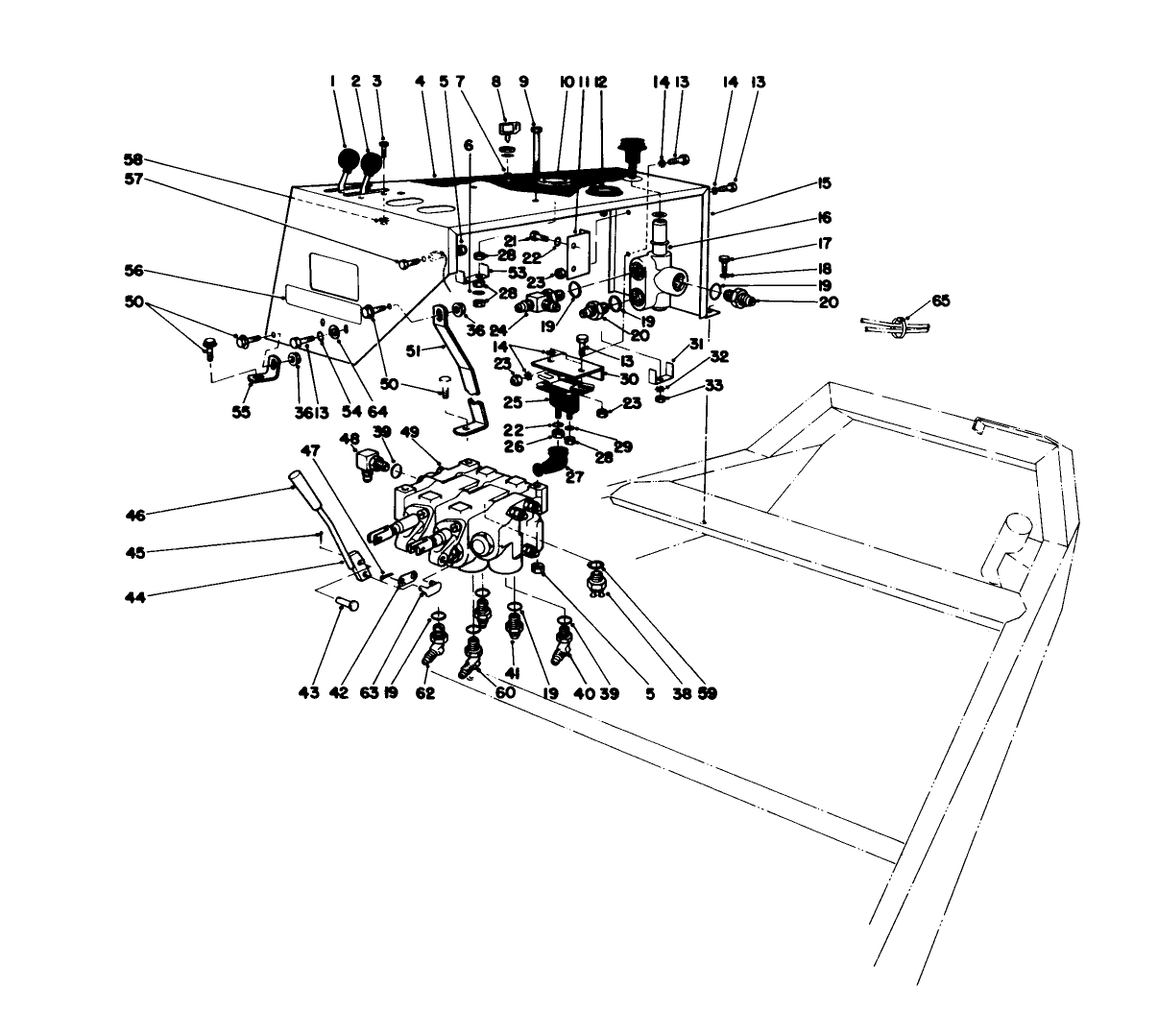

Instrument Panel And Hydraulic Valves
Instrument Panel And Hydraulic Valves

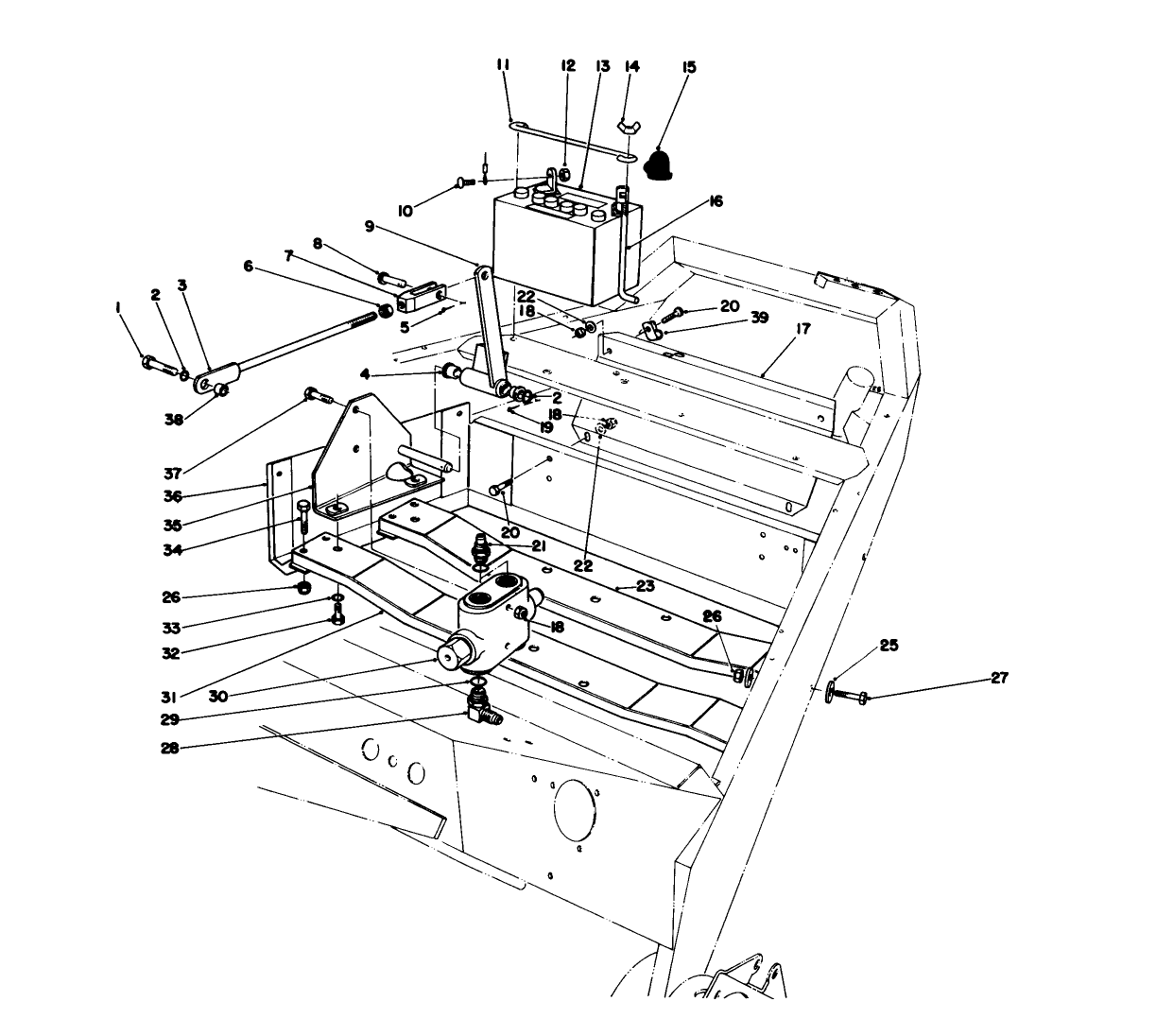

Motor Mounts And Battery Assembly
Motor Mounts And Battery Assembly

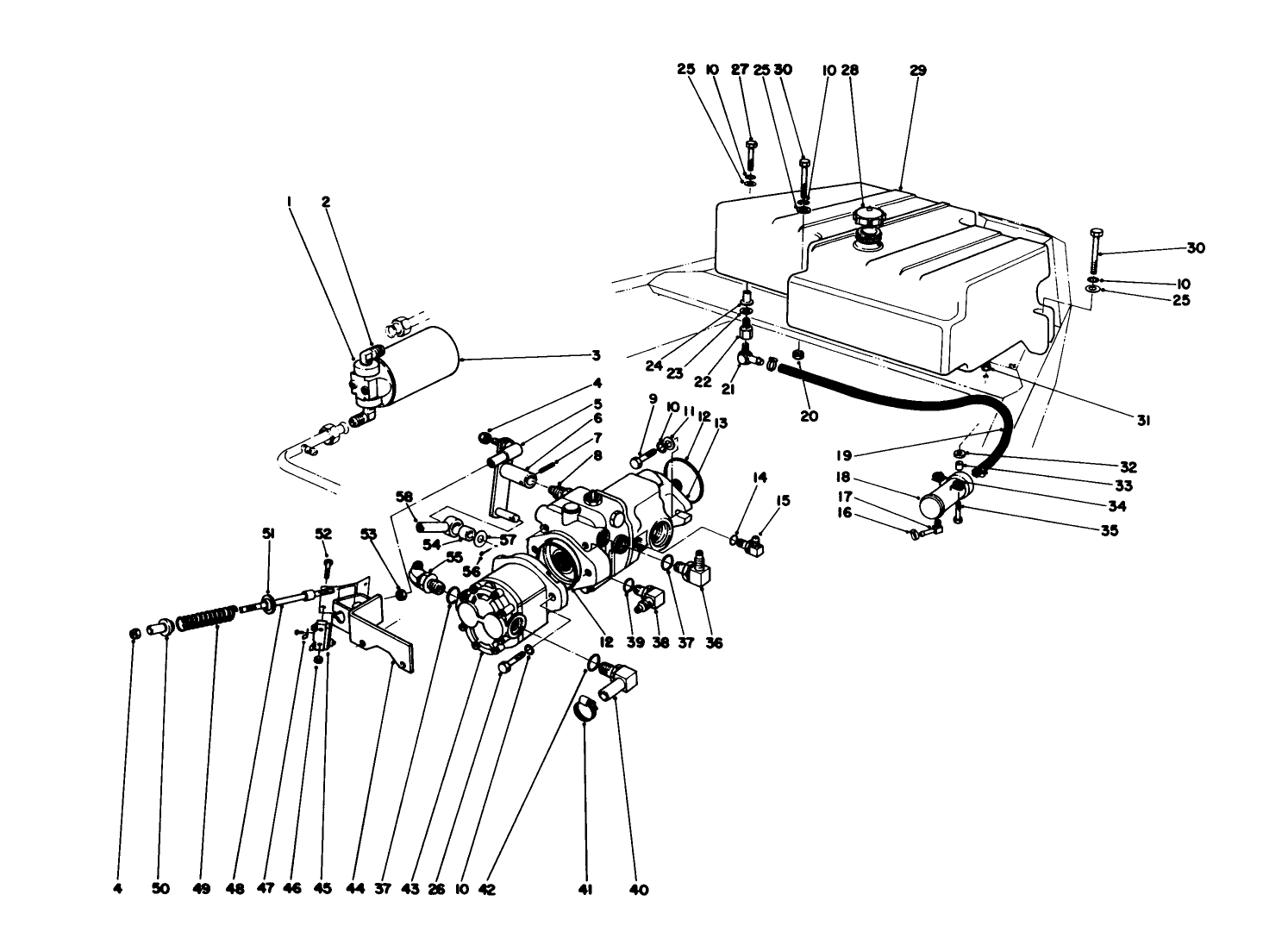

Piston Pump And Gas Tank Assembly
Piston Pump And Gas Tank Assembly

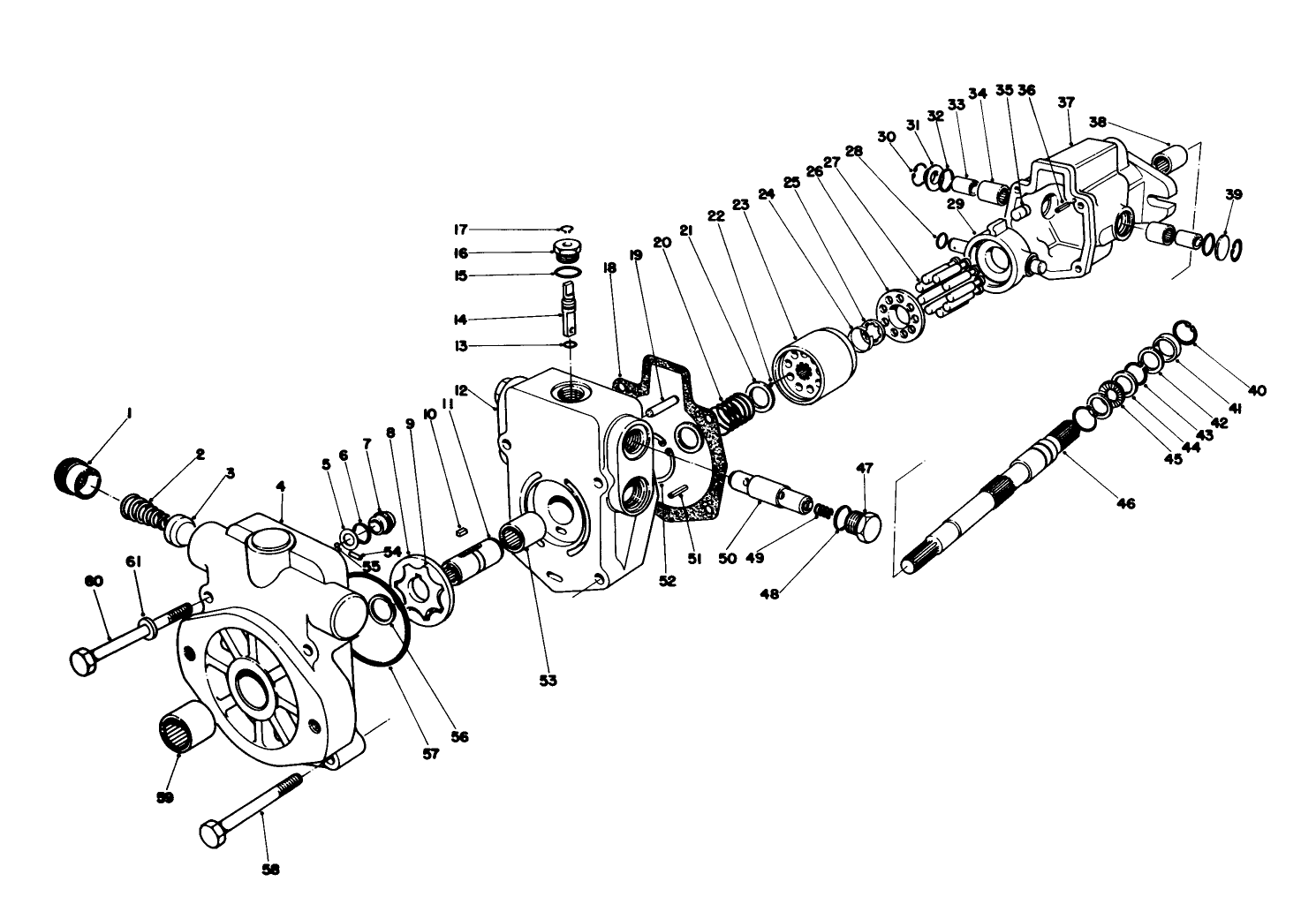

Piston Pump No. 38-6010
Piston Pump No. 38-6010

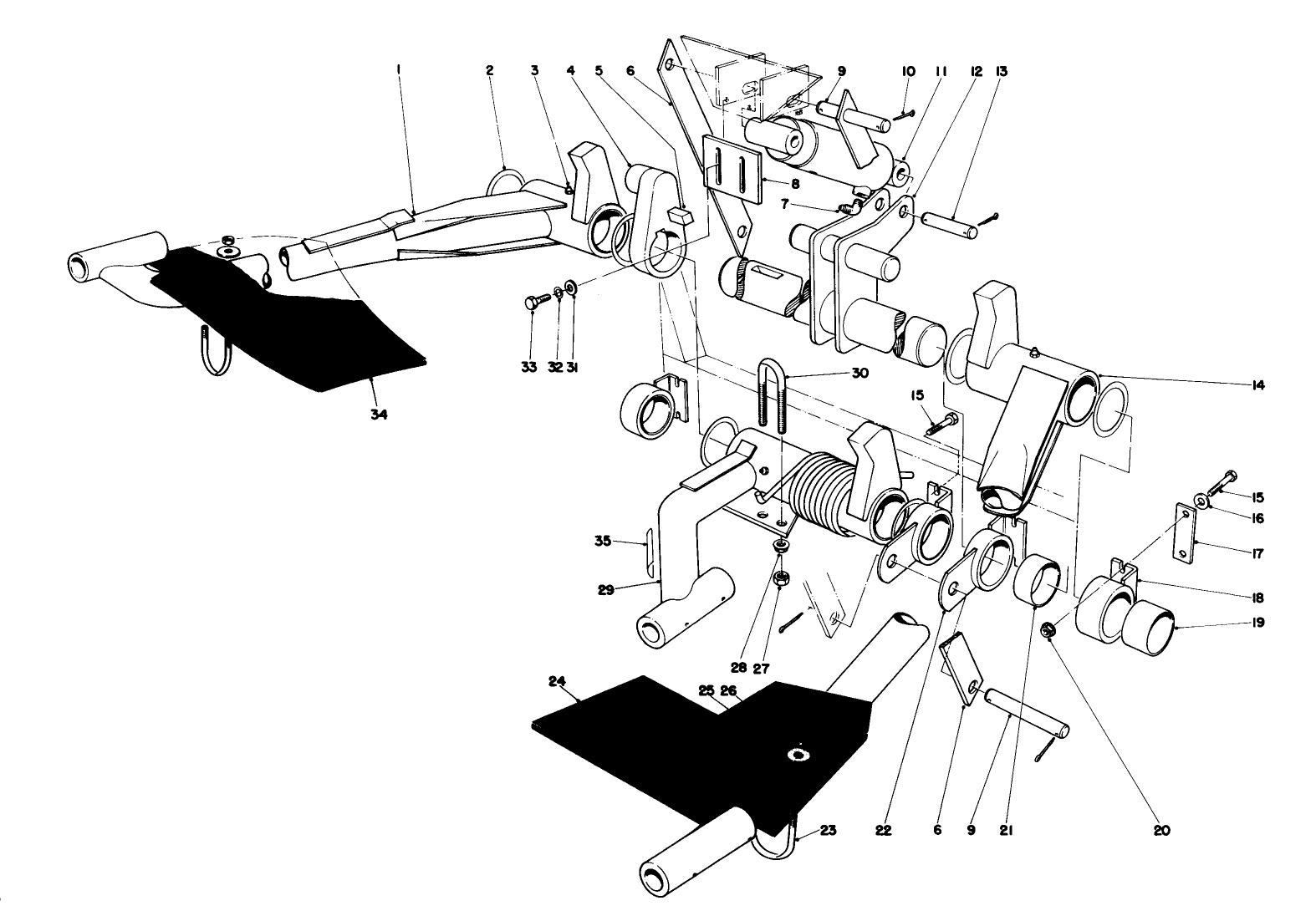

Push Arm Assembly
Push Arm Assembly

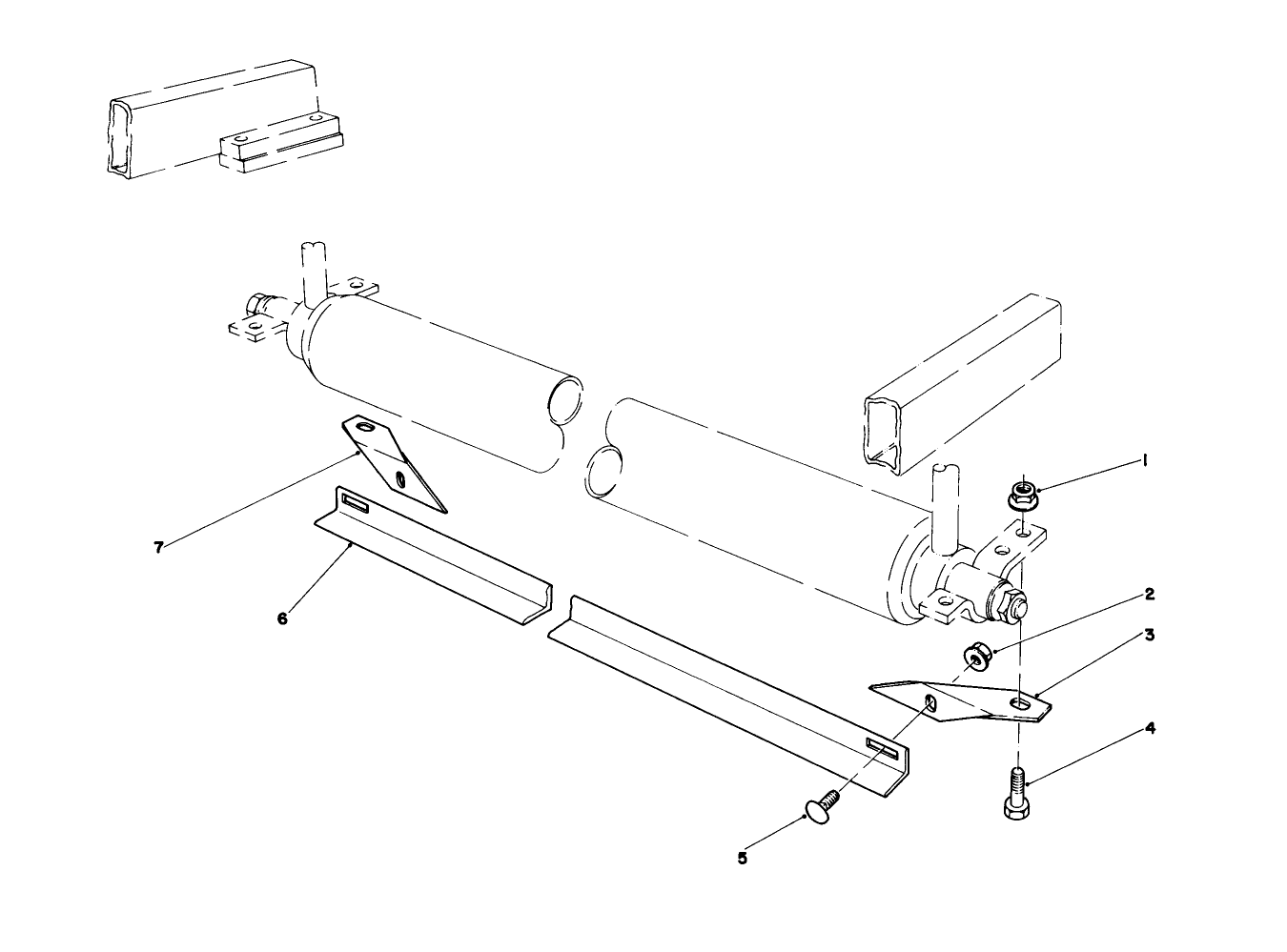

Rear Roller Scraper Kit Now 49-7400 (optional)
Rear Roller Scraper Kit Now 49-7400 (optional)

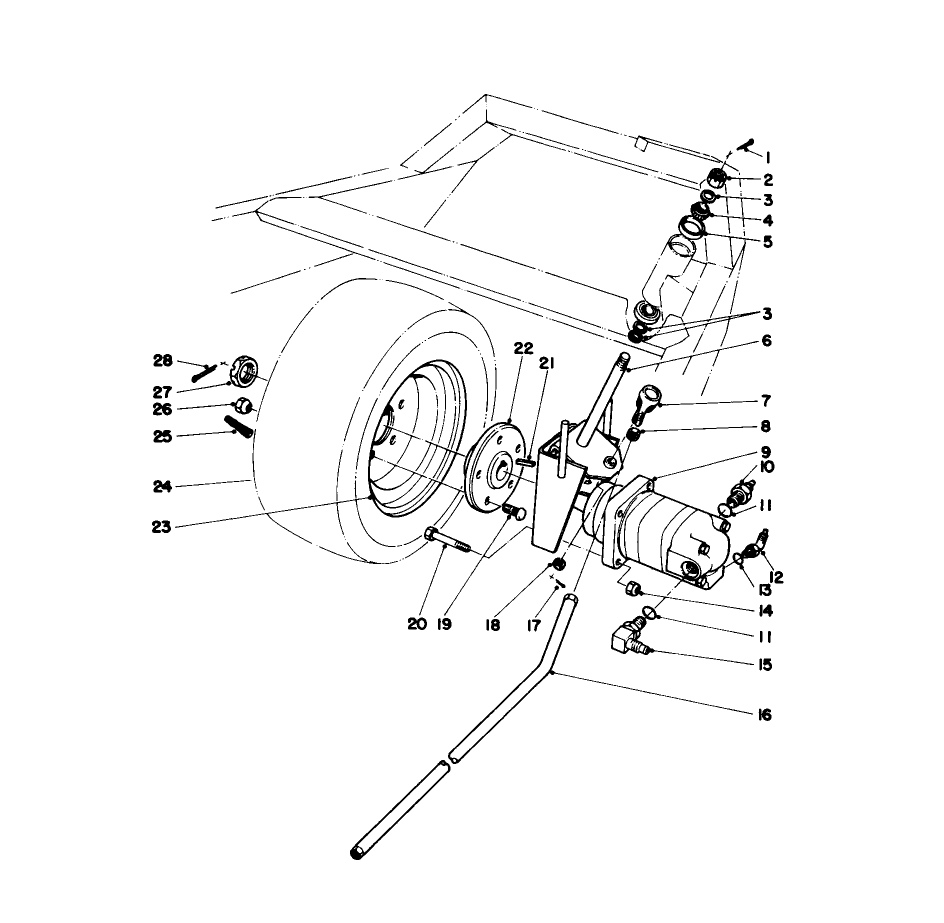

Rear Wheel And Motor Assembly
Rear Wheel And Motor Assembly

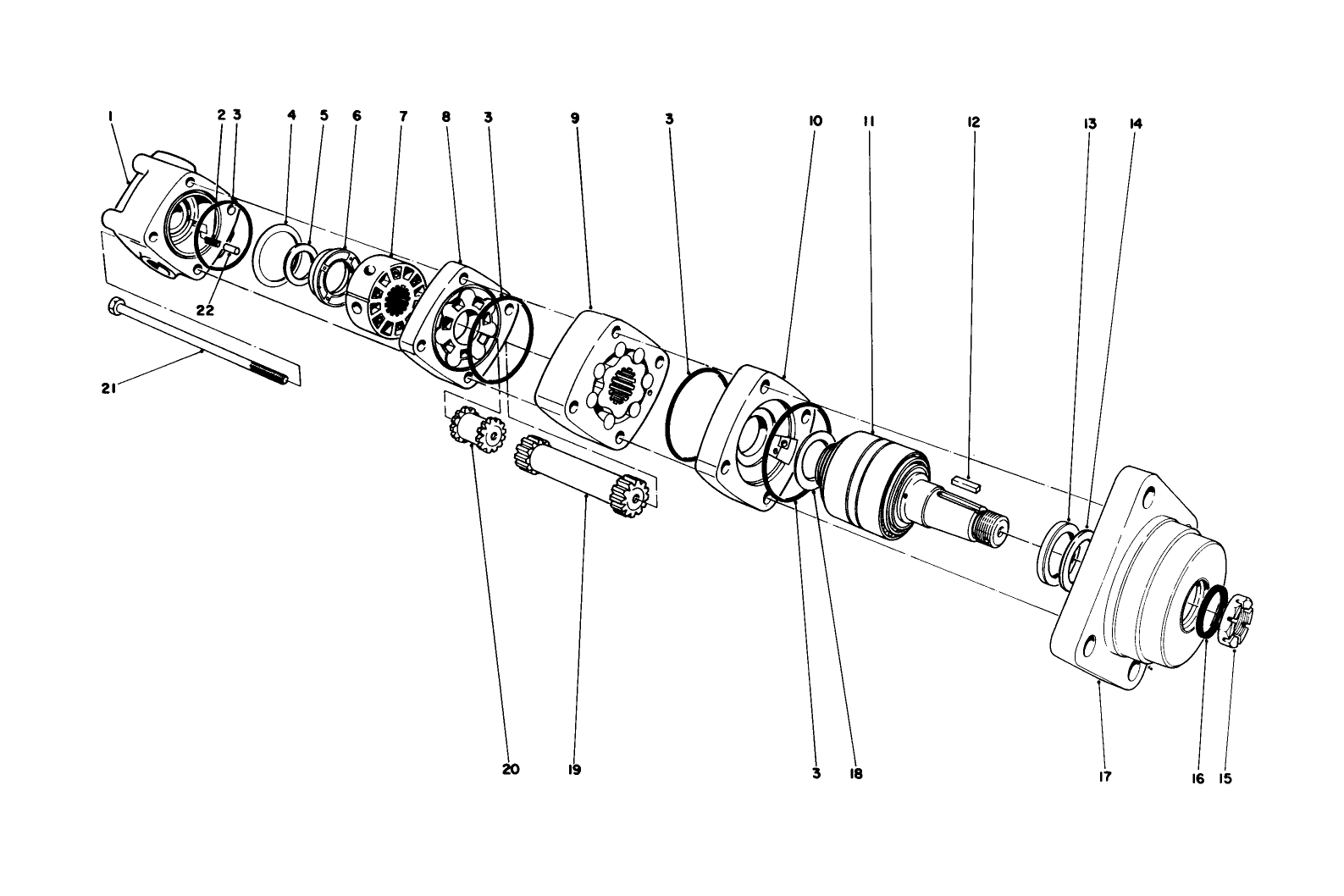

Rear Wheel Motor No. 56-6900
Rear Wheel Motor No. 56-6900
Reel Adjusting Wrench No. 42-3330
Reel Adjusting Wrench No. 42-3330

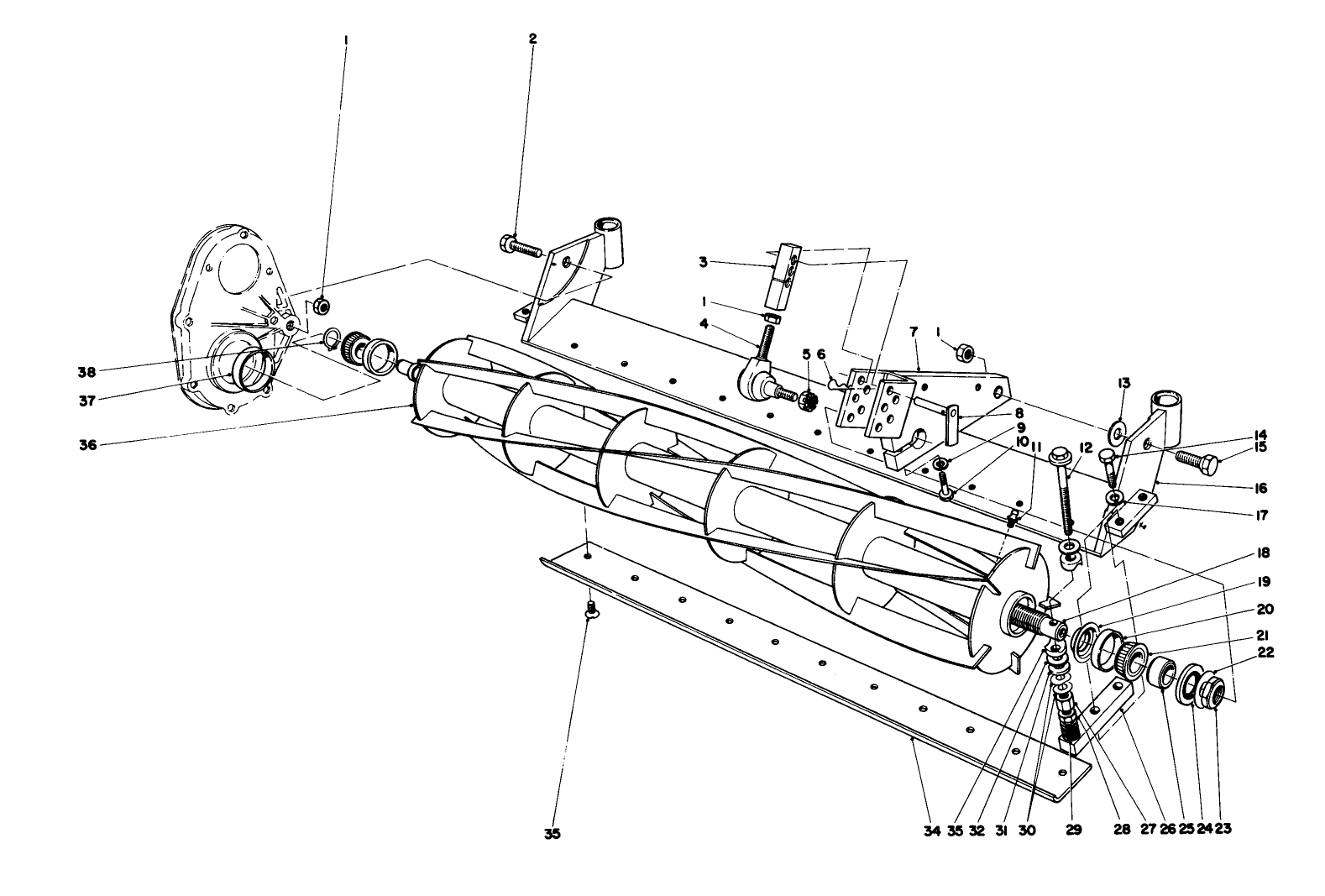

Reel And Bed Bar Assembly
Reel And Bed Bar Assembly

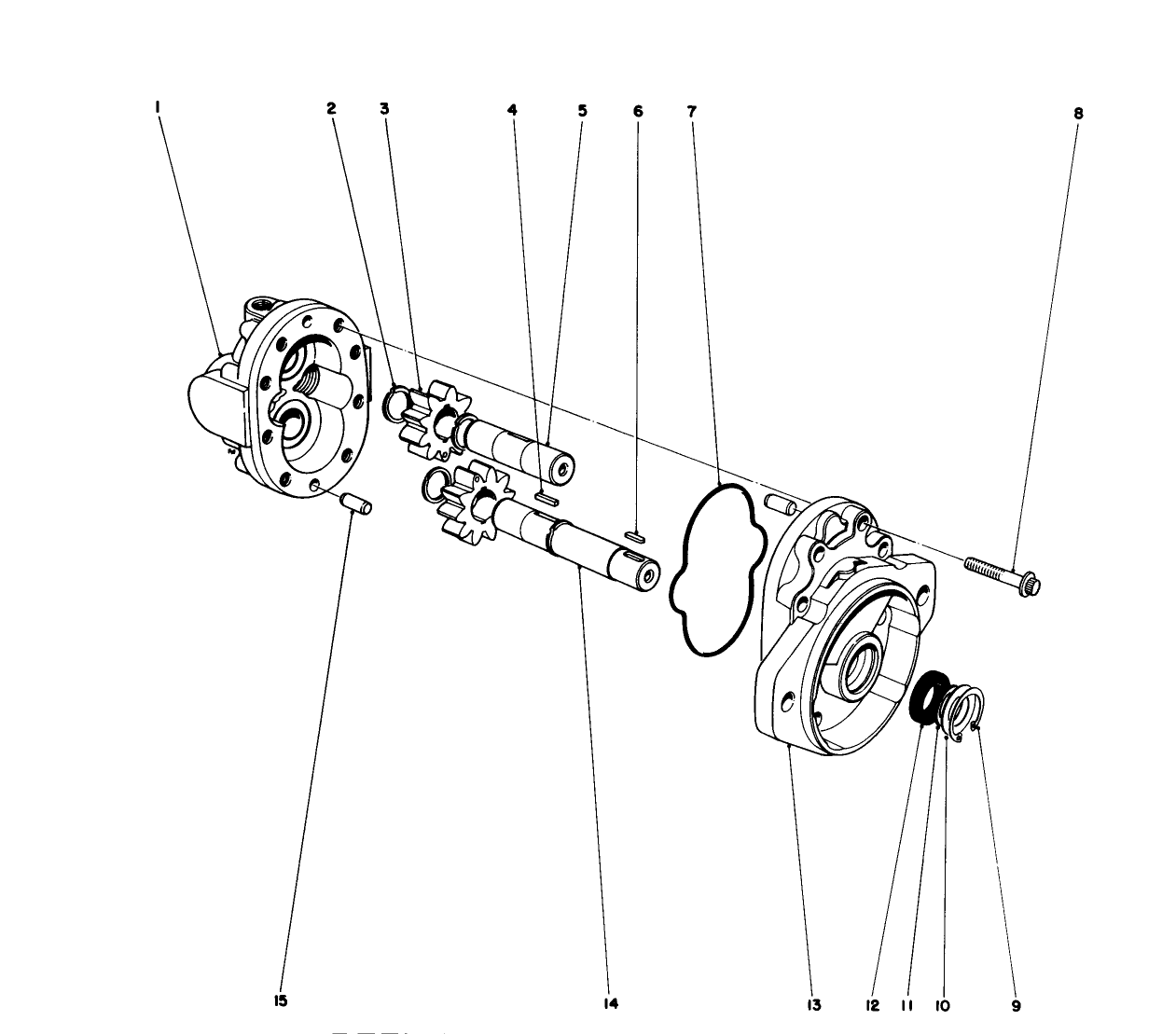

Reel Gear Motor No. 39-7710
Reel Gear Motor No. 39-7710
Reel Motor Seal Installation Tools
Reel Motor Seal Installation Tools

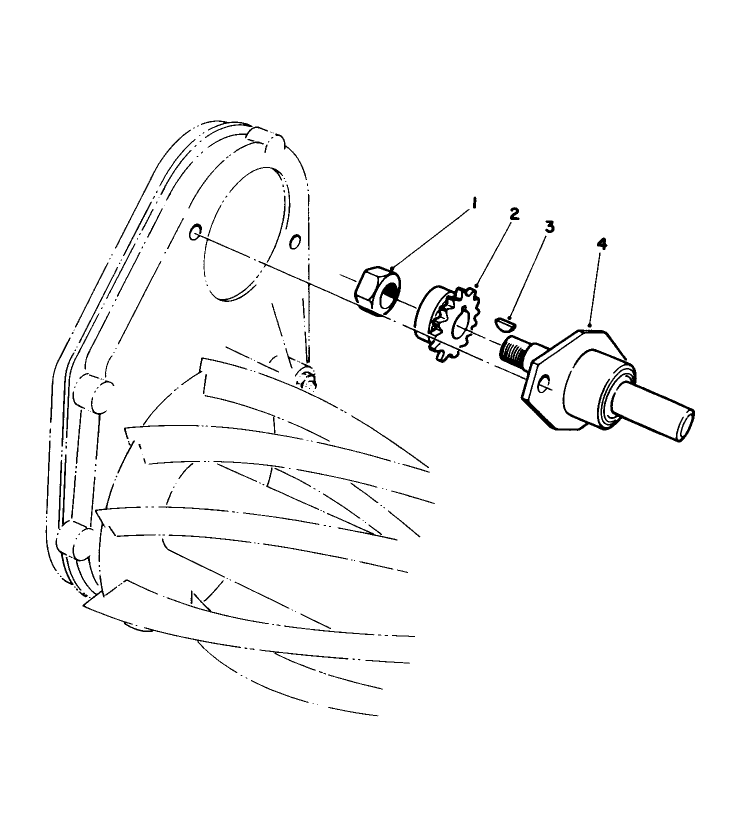

Remote Backlapping Tool Kit No. 36-3060
Remote Backlapping Tool Kit No. 36-3060

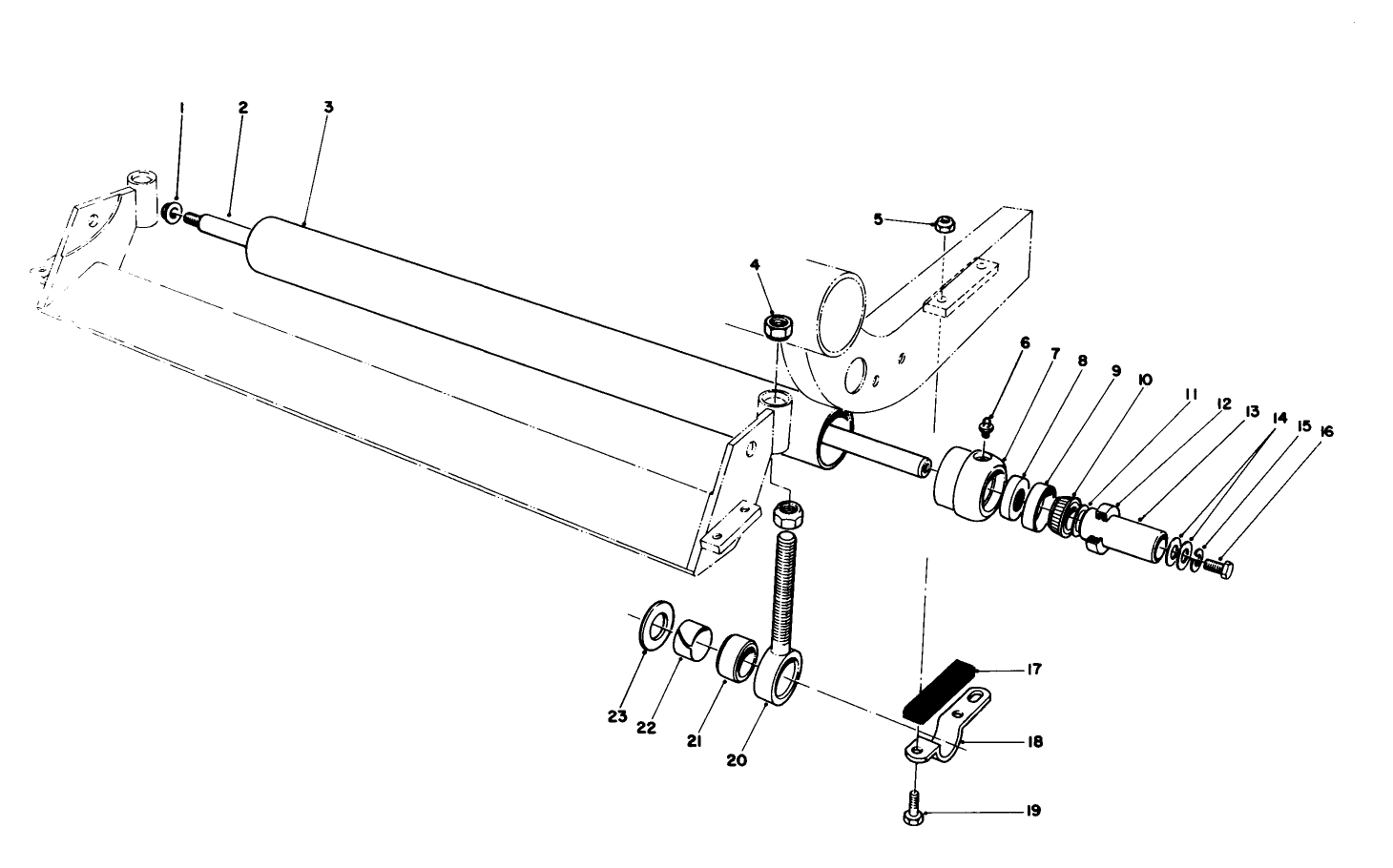

Roller Assembly
Roller Assembly

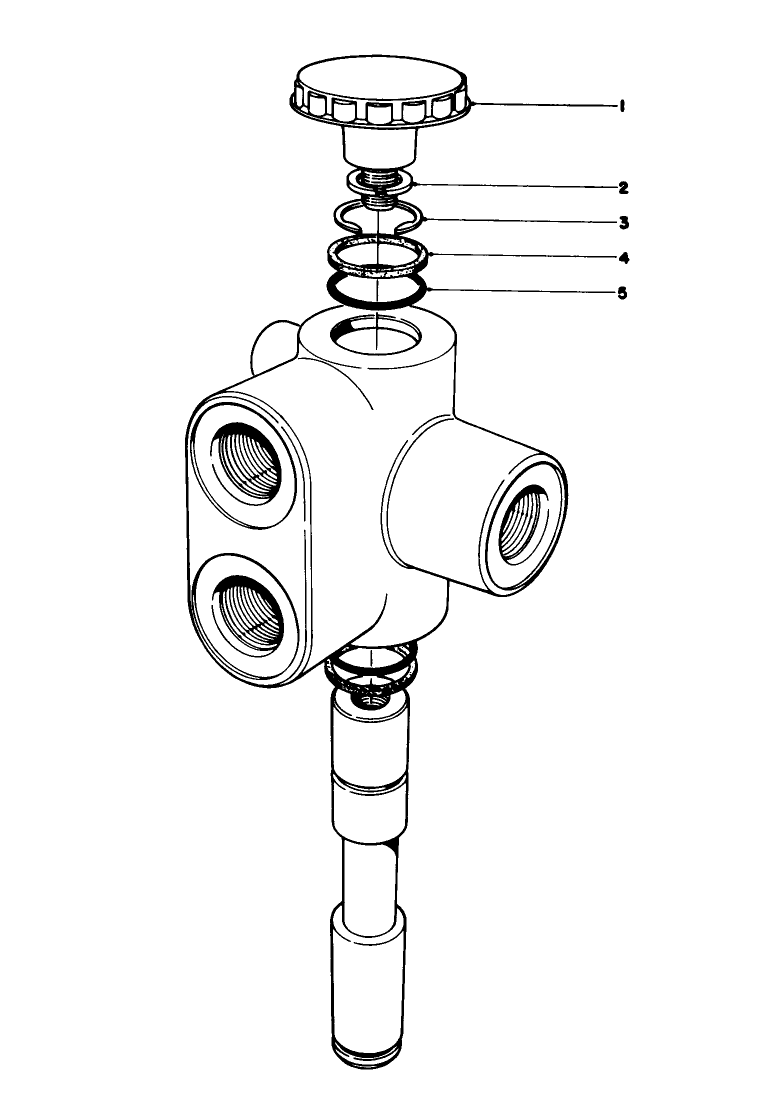

Selector Valve No. 29-1420
Selector Valve No. 29-1420

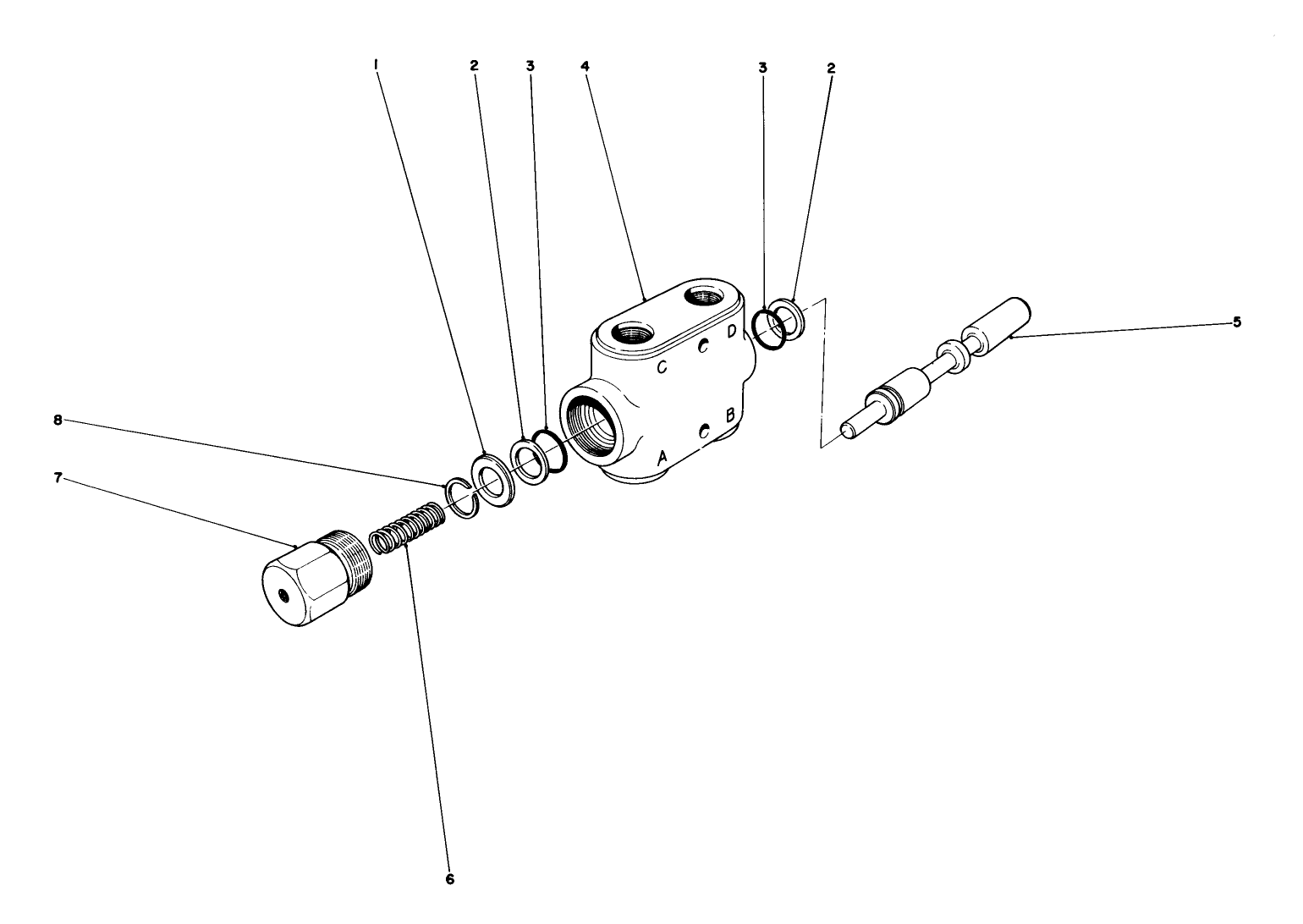

Selector Valve No. 38-3730
Selector Valve No. 38-3730

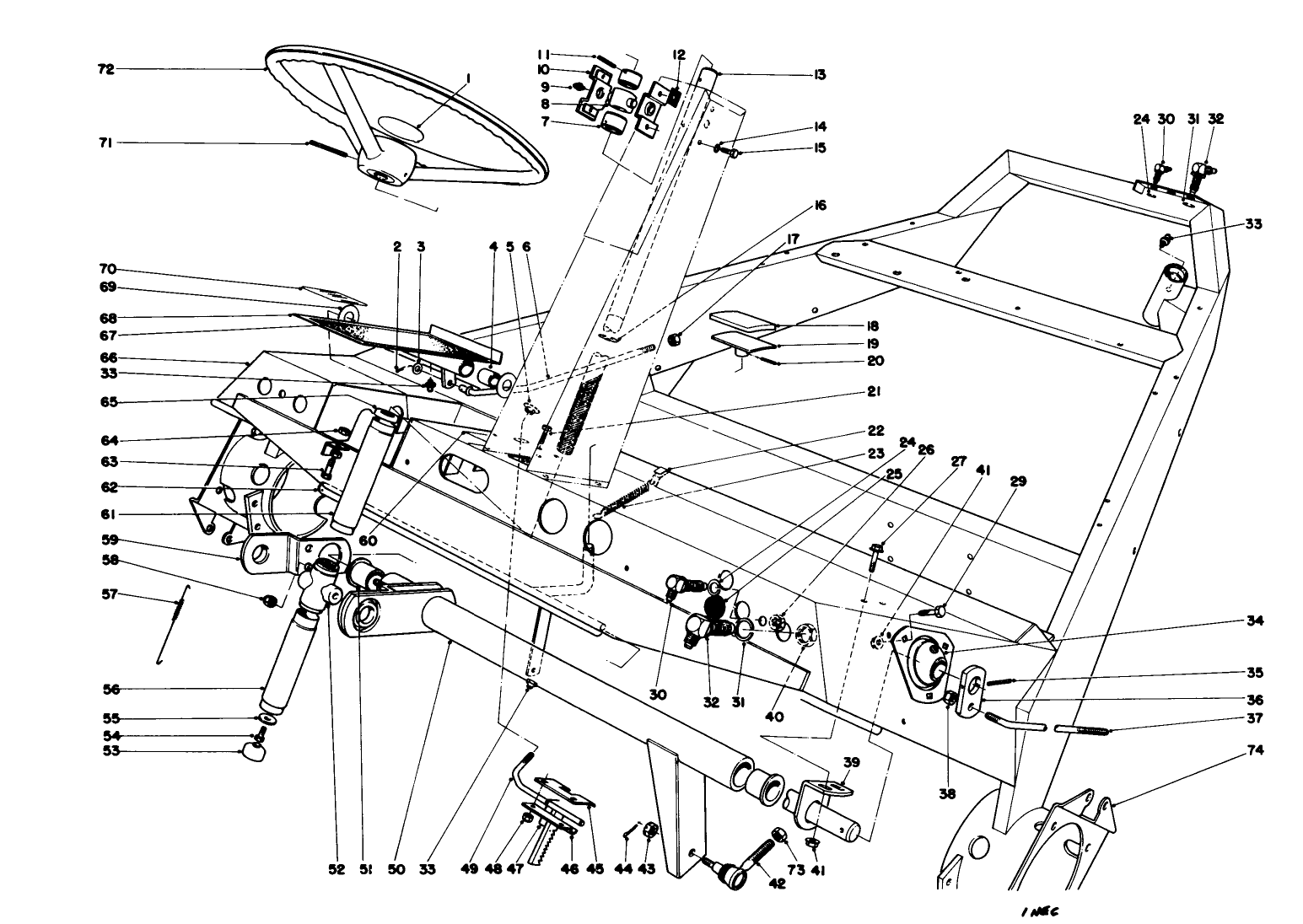

Steering Wheel And Transfer Assembly
Steering Wheel And Transfer Assembly

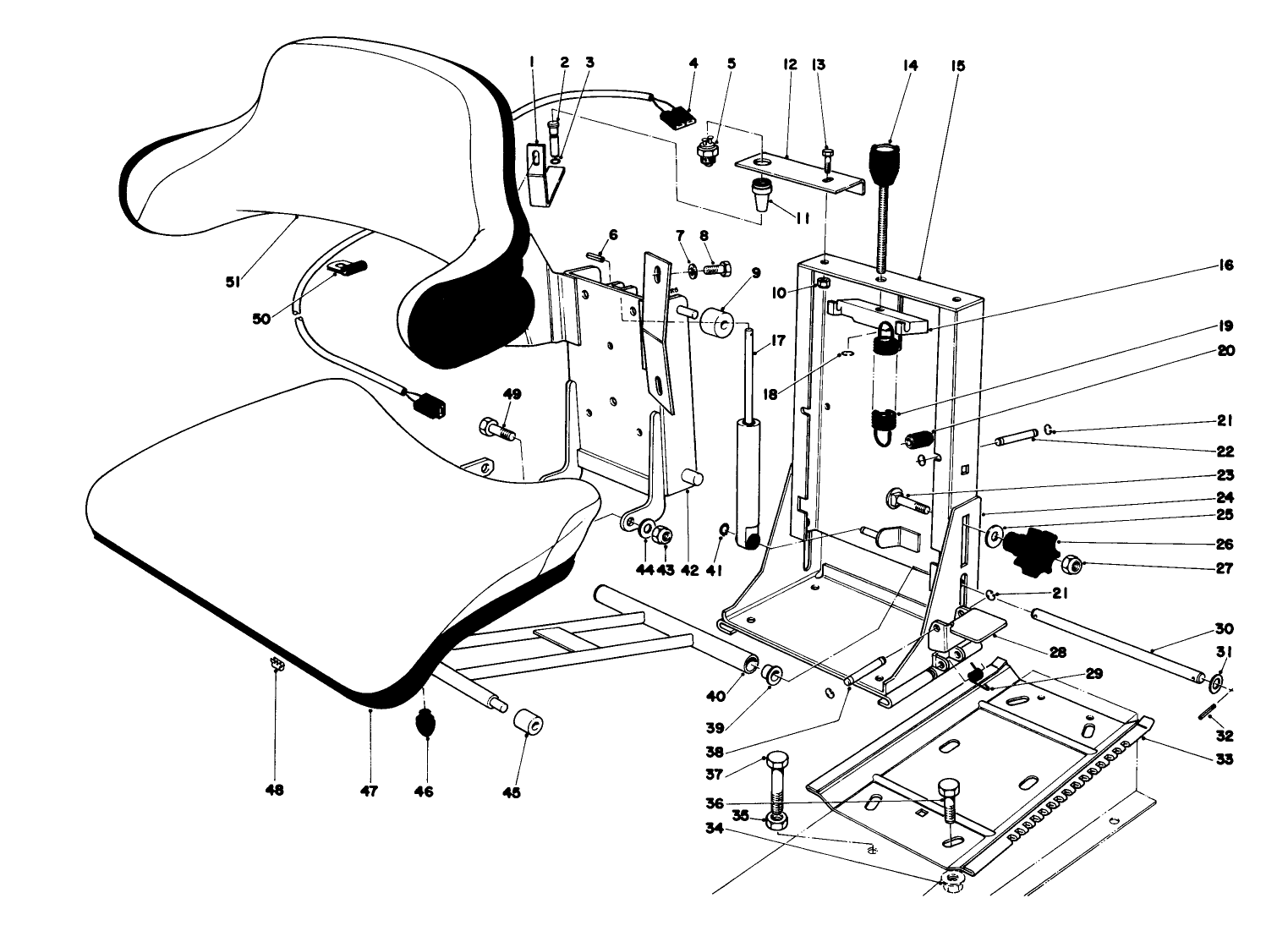

Suspension Seat Kit Model No. 03542 (optional)
Suspension Seat Kit Model No. 03542 (optional)
Wear Ring/seal Installation Tool No. 49-1440
Wear Ring/seal Installation Tool No. 49-1440

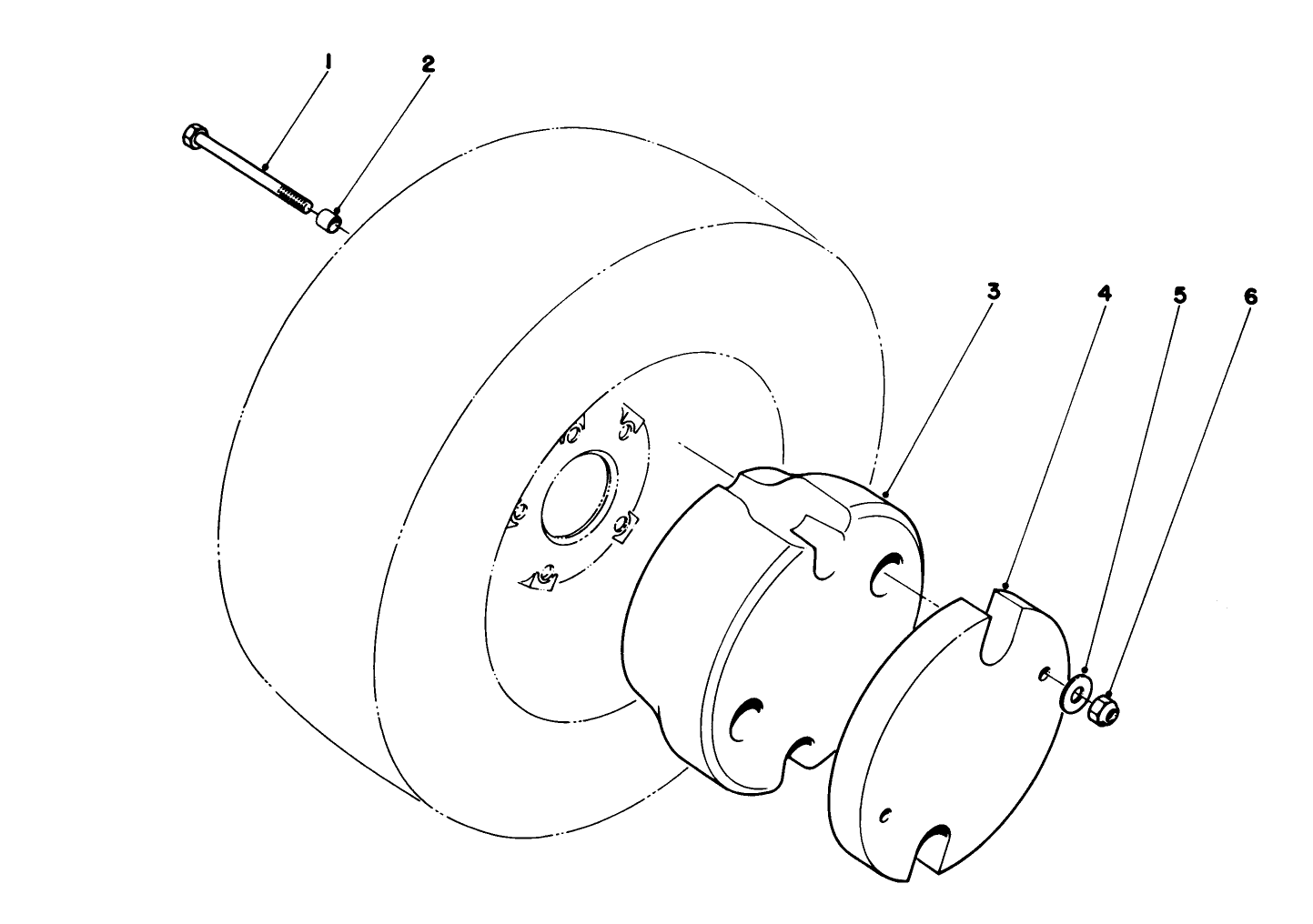

Wheel Weight Kit (kit No. 1: 37-4400) (kit No. 2: 37-4500) (optional)
Wheel Weight Kit (kit No. 1: 37-4400) (kit No. 2: 37-4500) (optional)

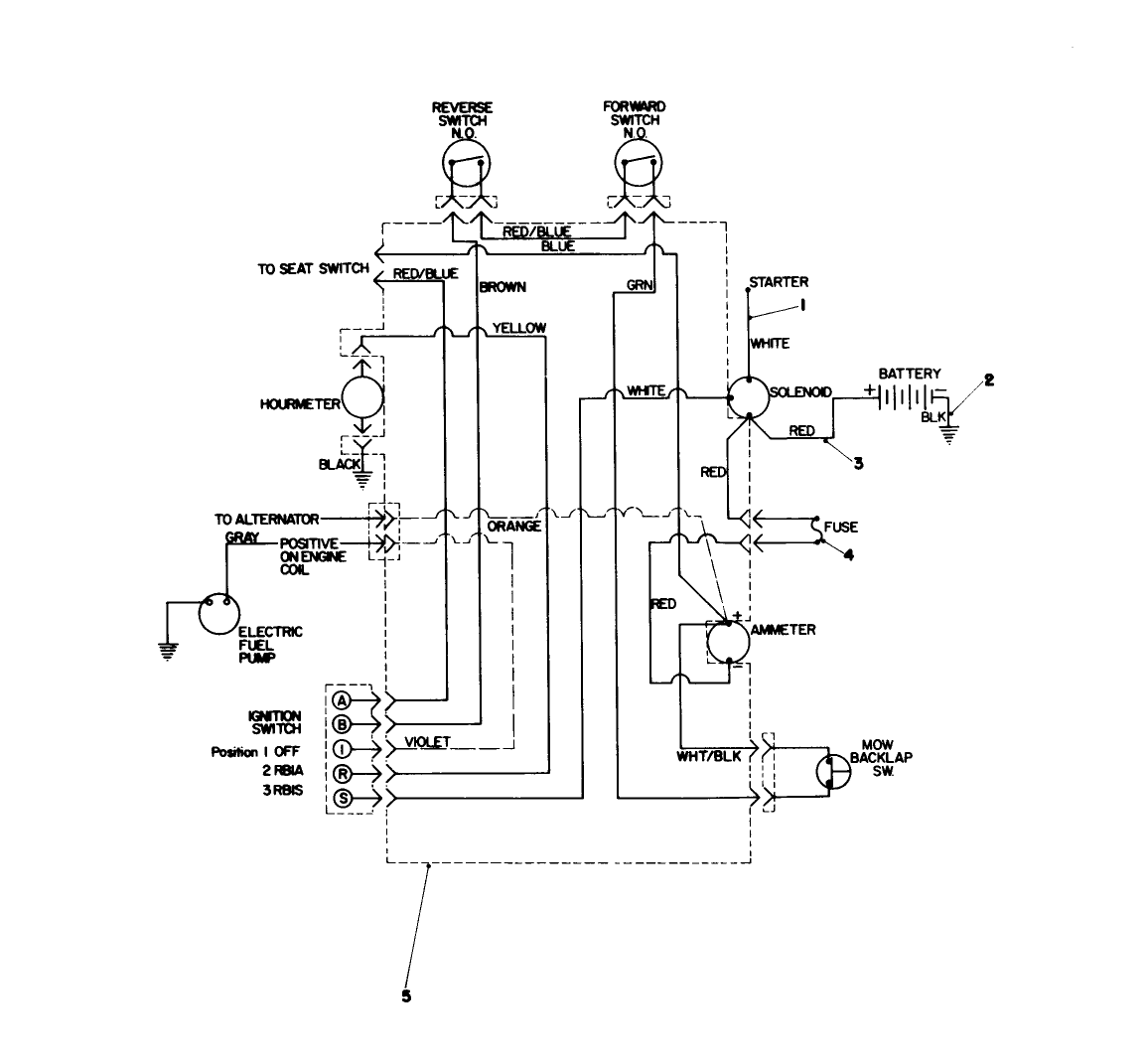

Wire Schematic
Wire Schematic
Download Parts Catalog

  • Model #
    03537
  • Serial #
    00001 - 09999
  • Product Name
    Turf Pro 84 with 7-Blade Cutting Units
  • Product Brand
    Toro
  • Product Type
    Riding Products
  • Product Series
    Turf Pro 84 Series
