Product Information

Model #: 30230
Serial #: 70001 - 79999
Product Type: Riding Products

No.	Description

Parts

Assembly Drawings

Search for a part within assembly drawings:

Showing Results

Drawing Title	Part Number	Description
Title

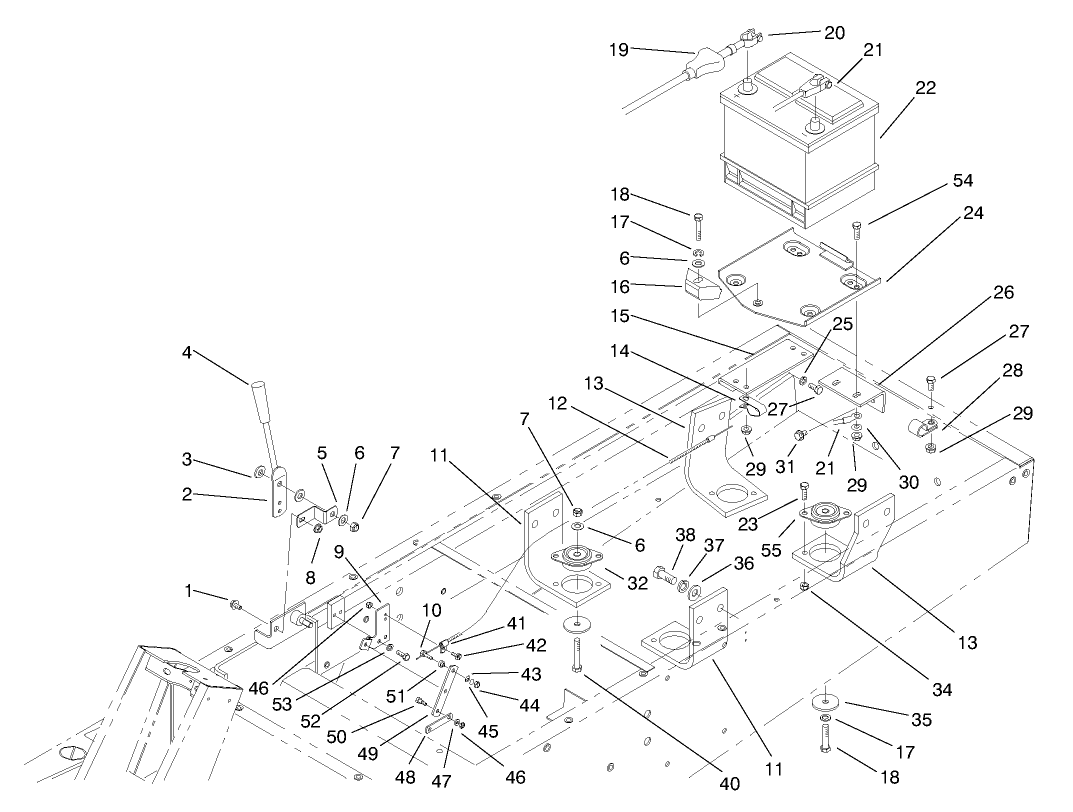

Battery & Engine Mount Assembly

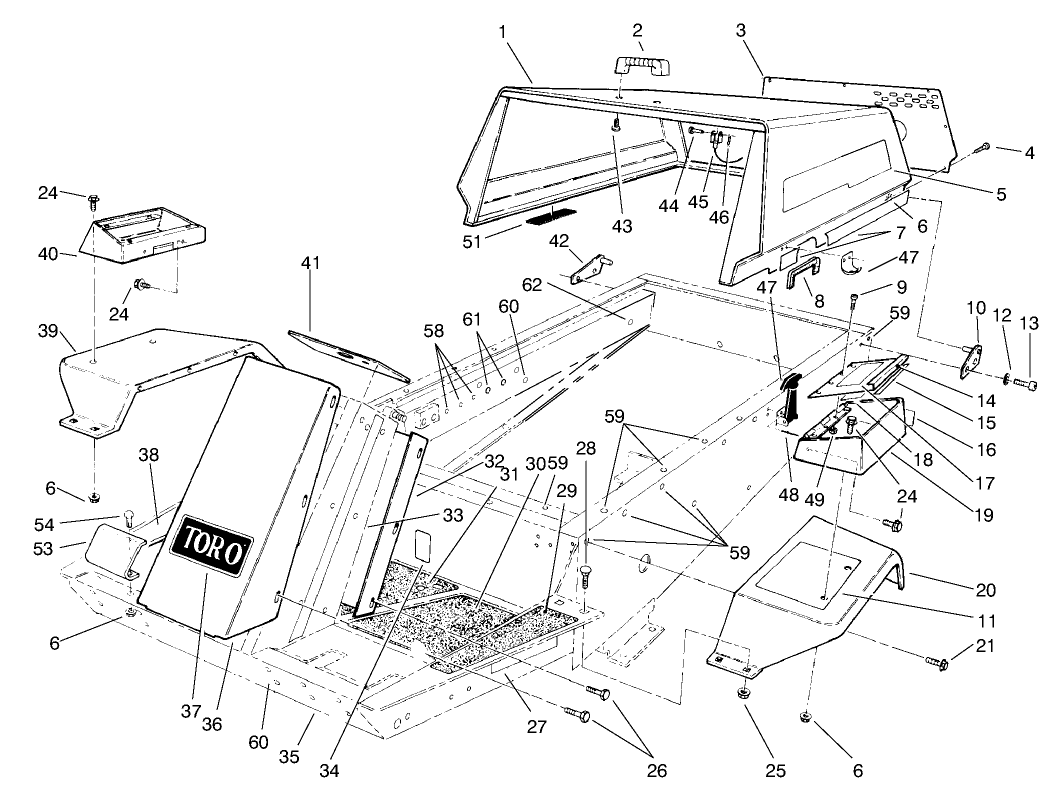

Body Assembly

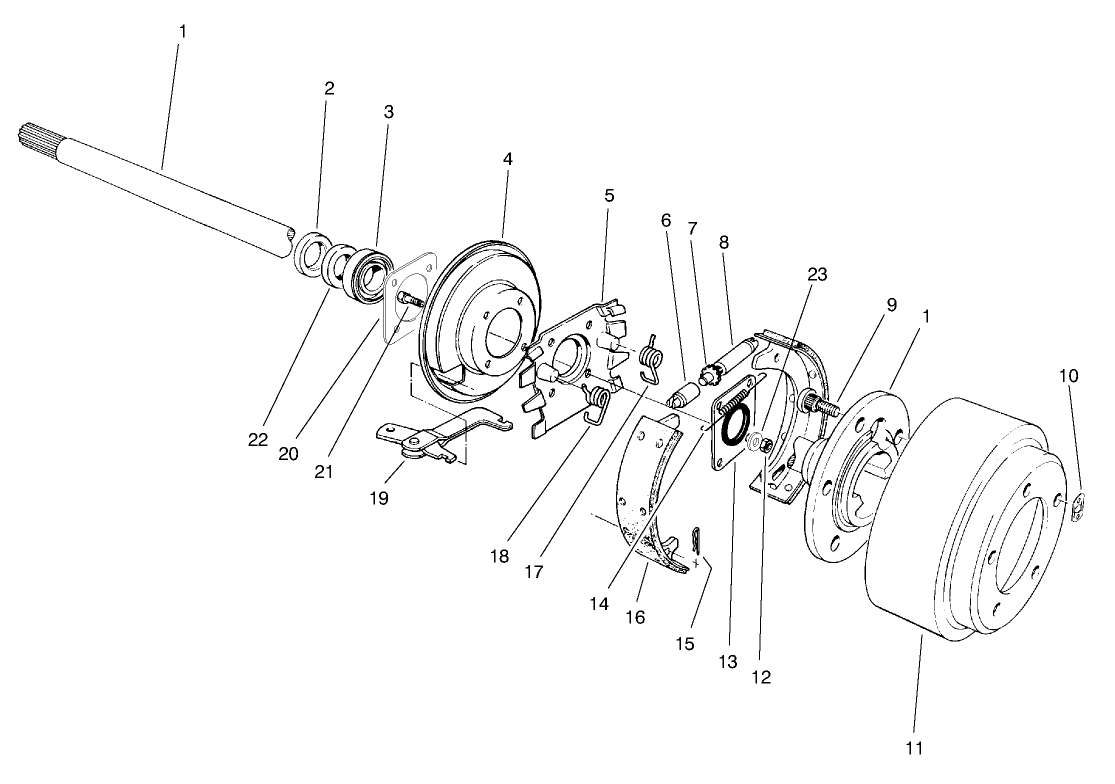

Brake Assembly

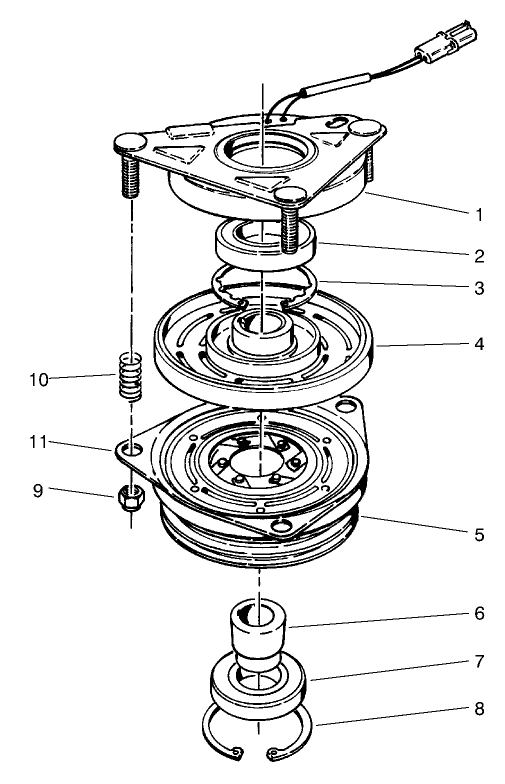

Clutch Assembly No. 63-6050

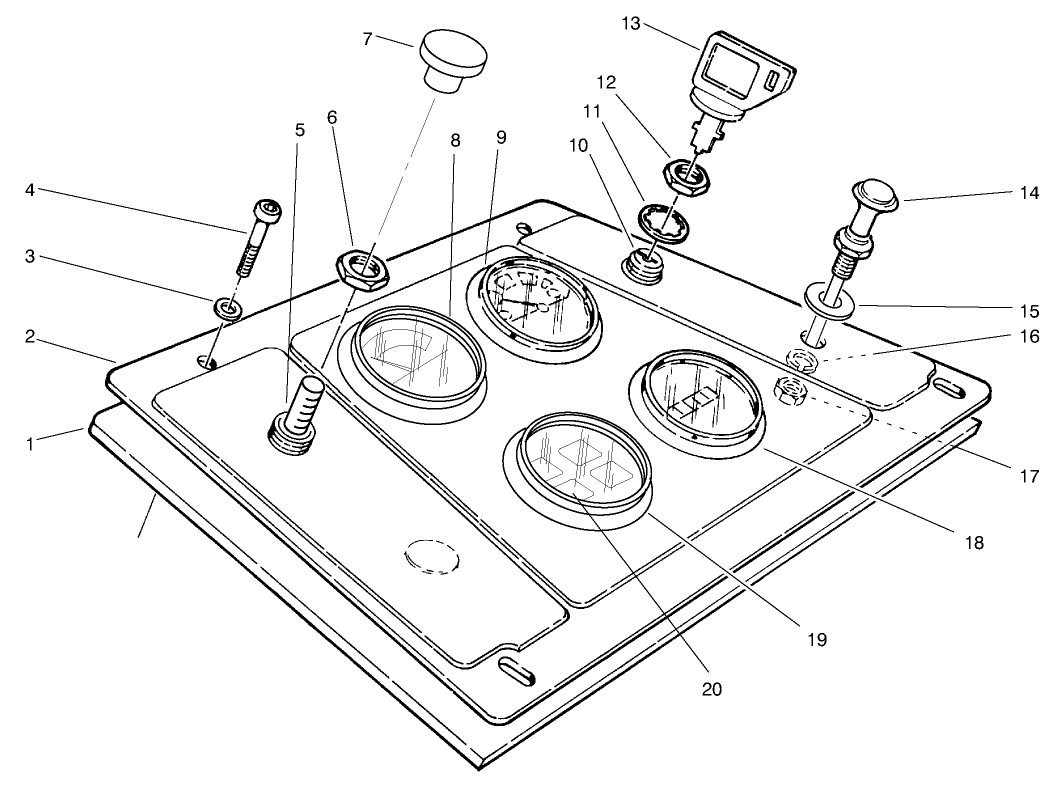

Control Panel Assembly

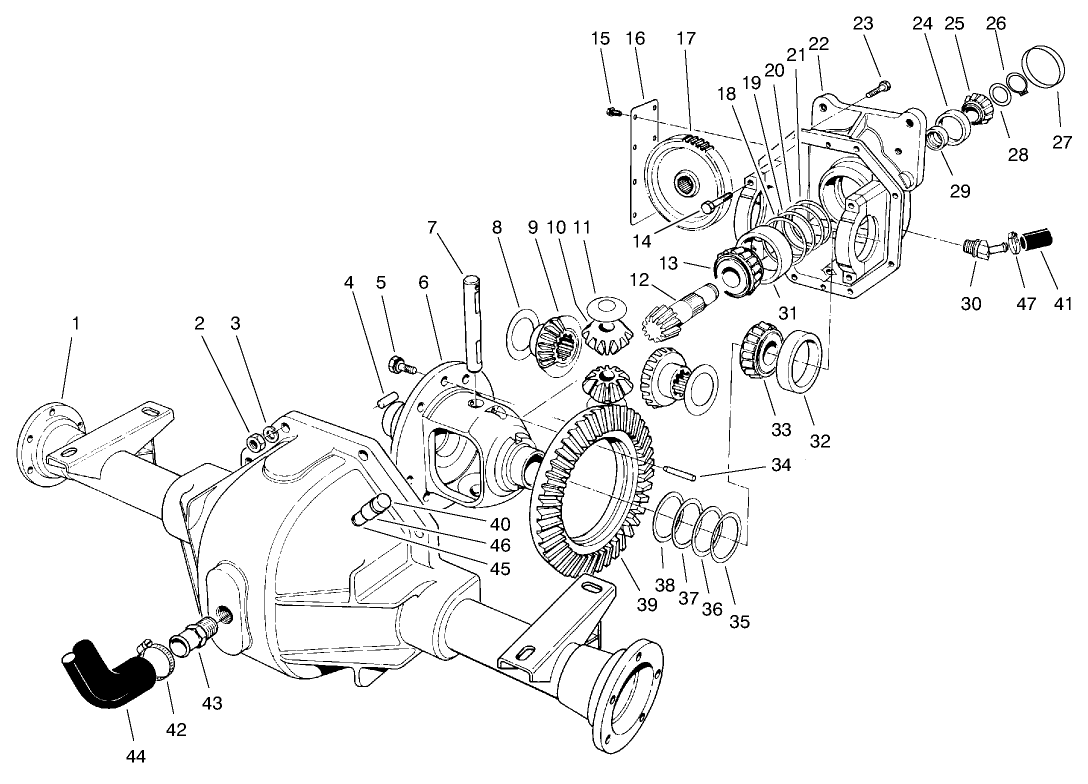

Differential Assembly (continued)

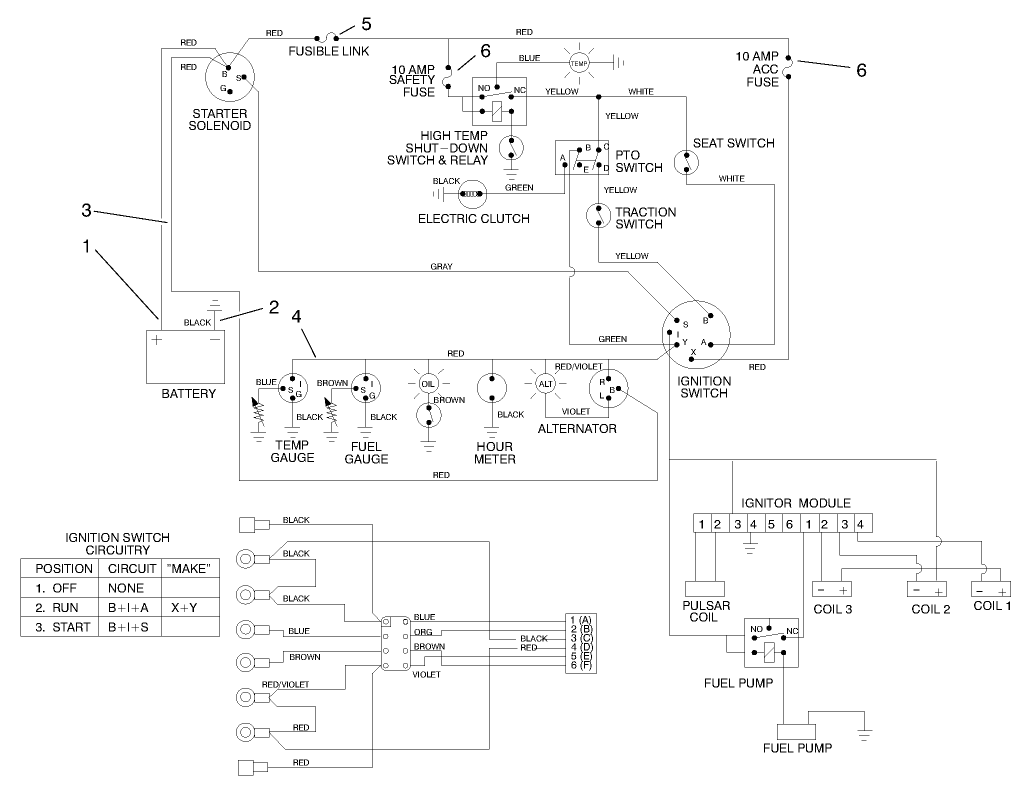

Electrical Schematic

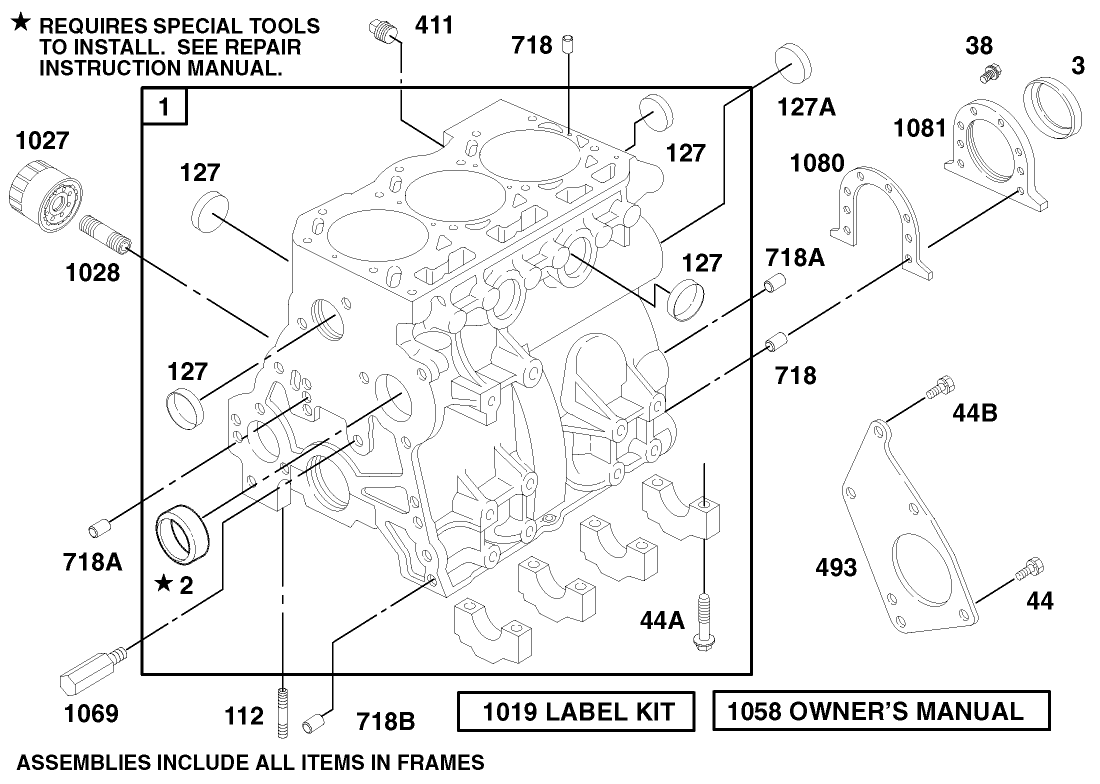

Engine Assembly Model 580447 Type 0112-A1

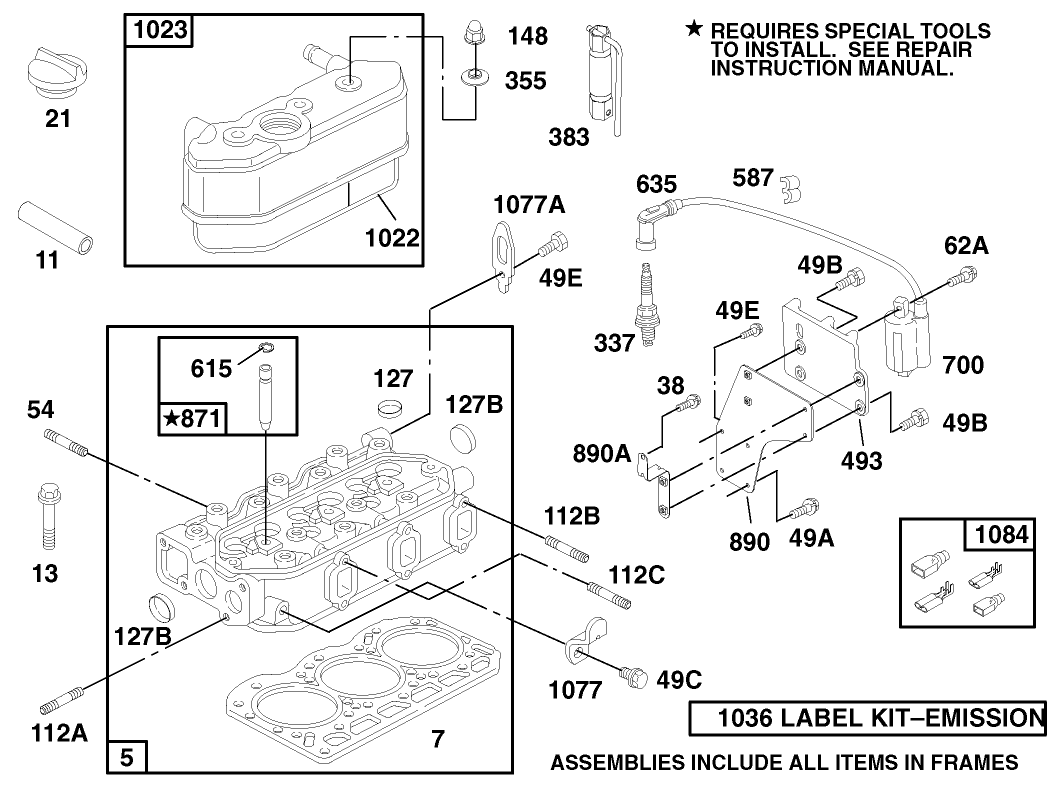

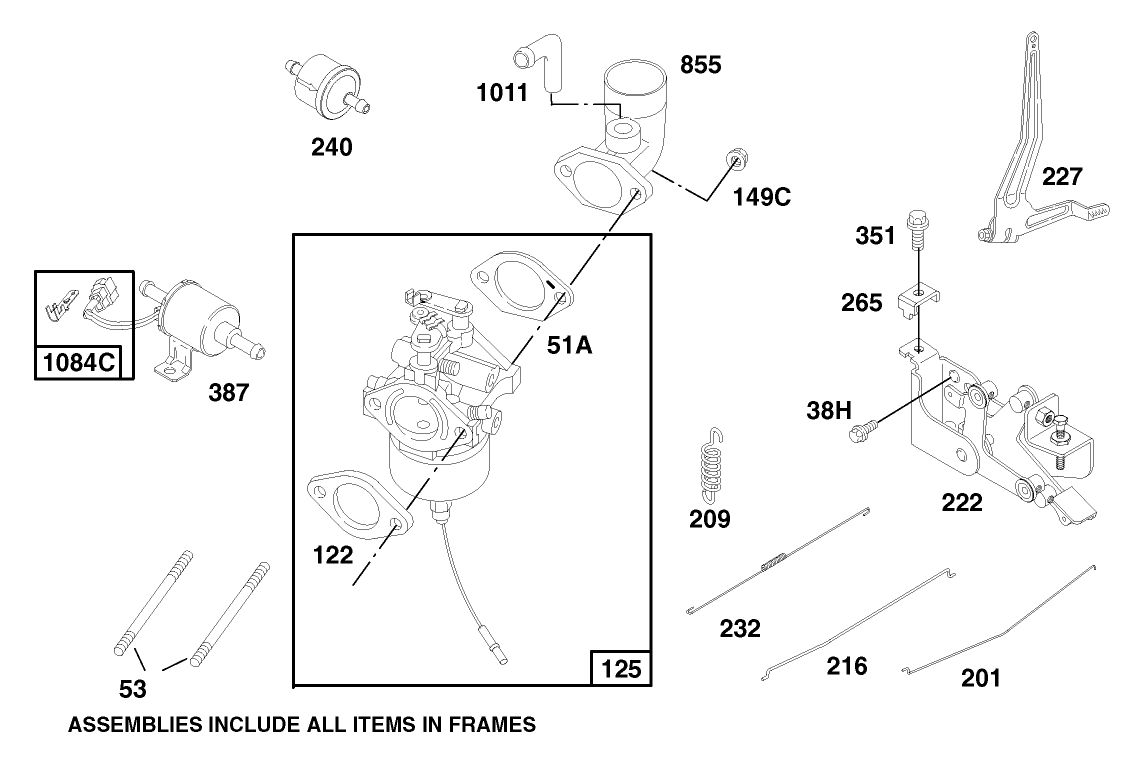

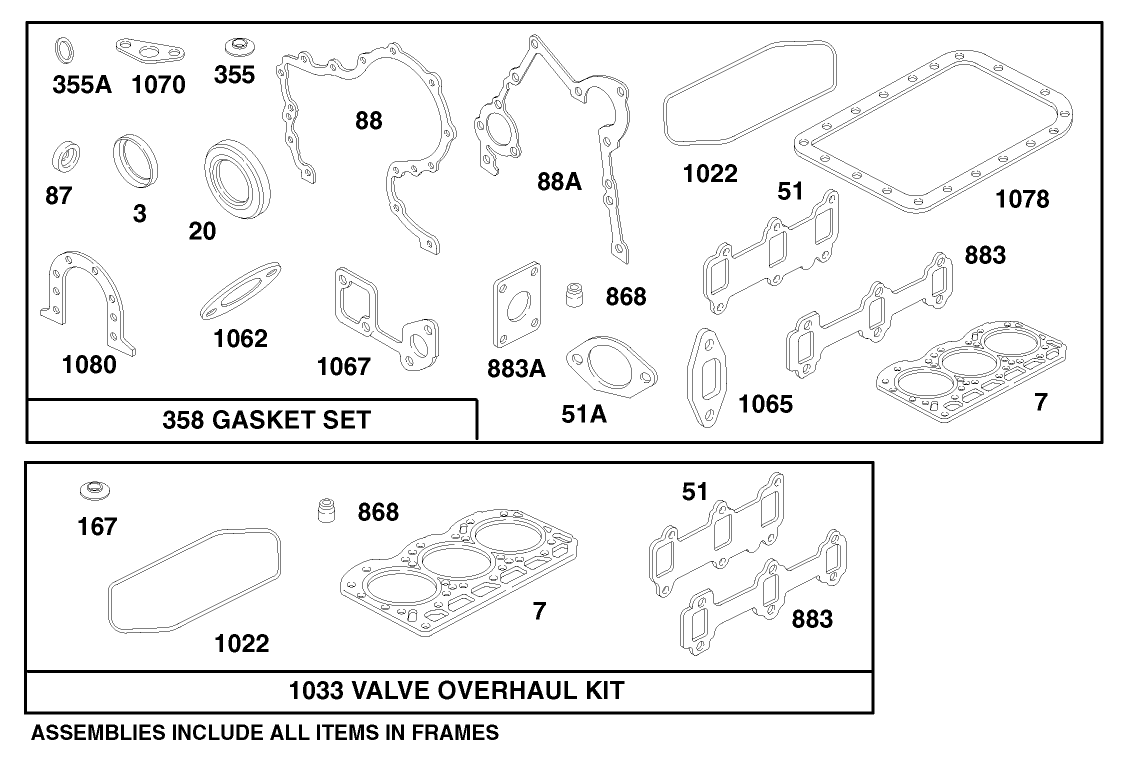

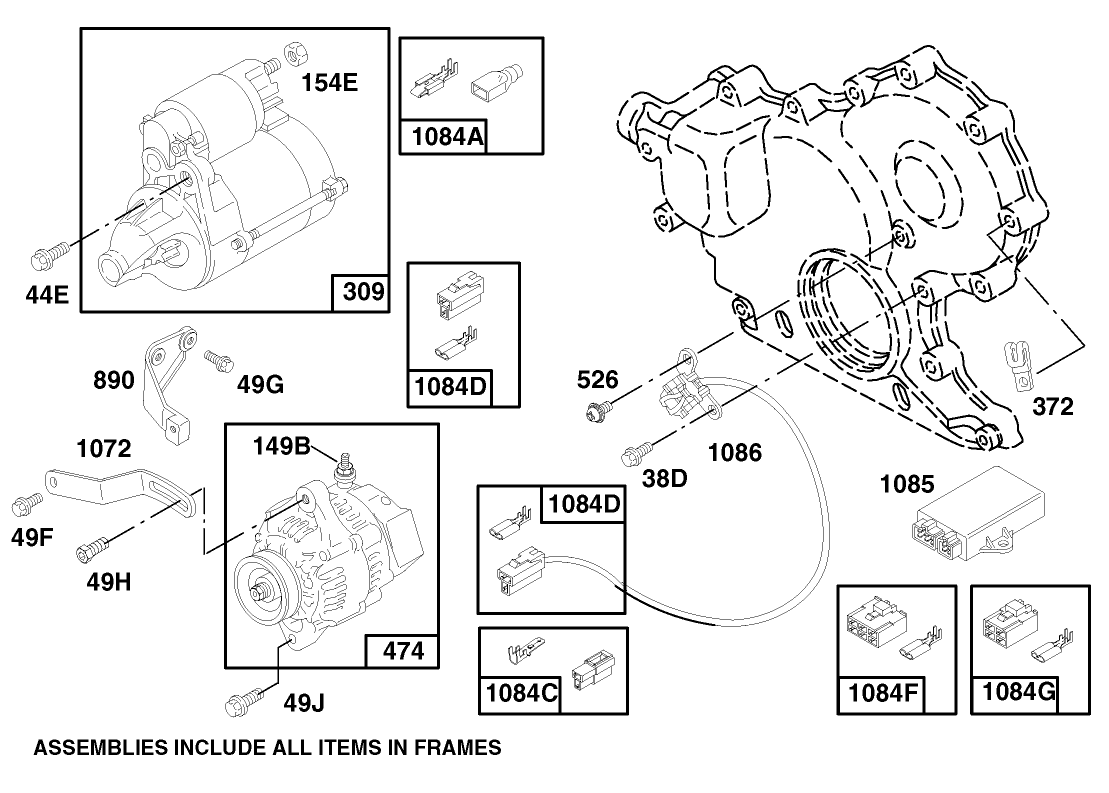

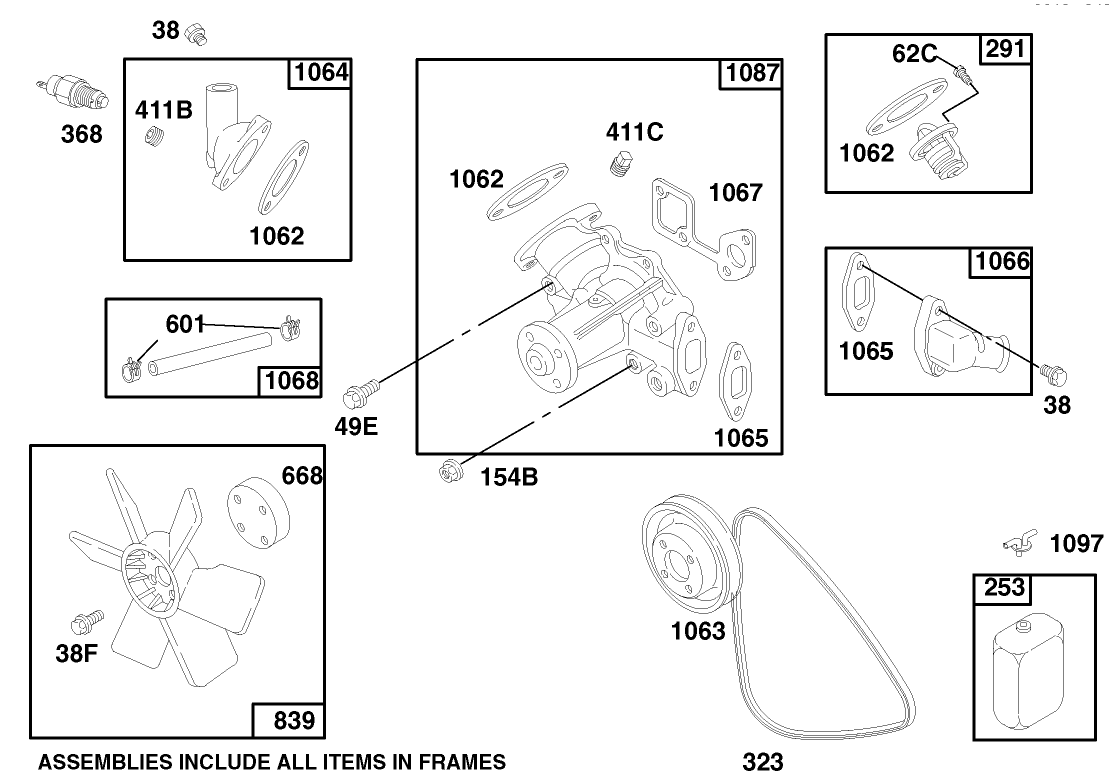

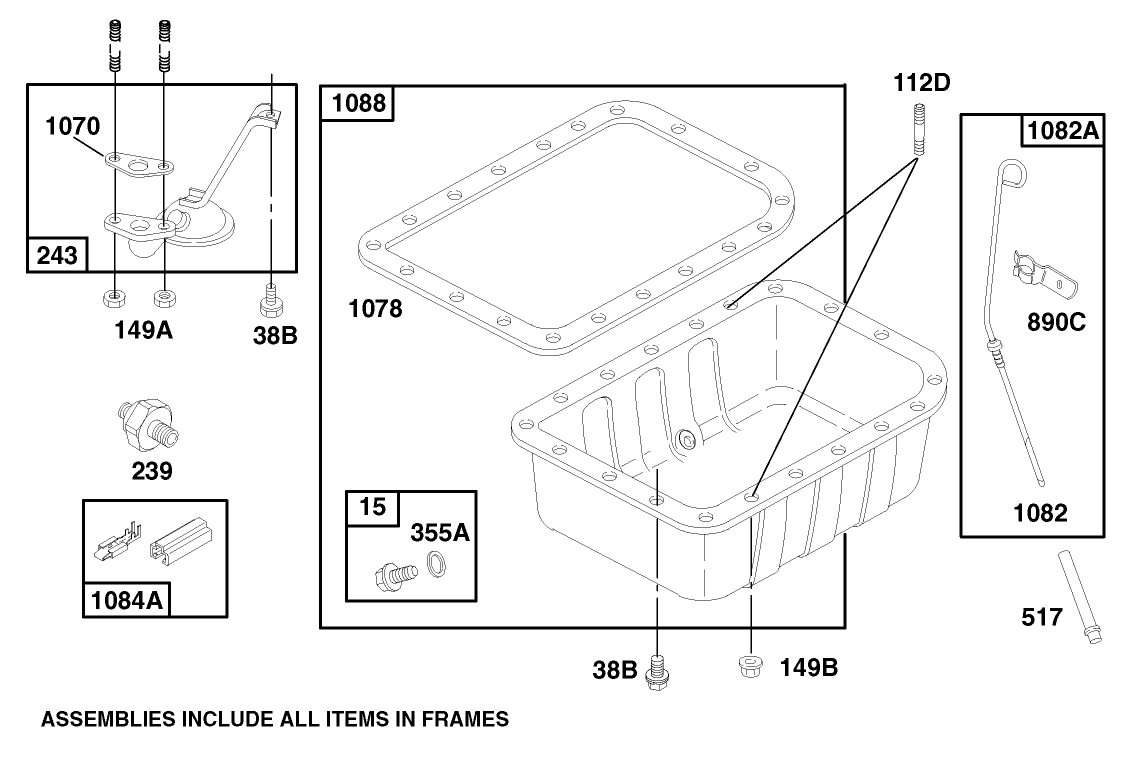

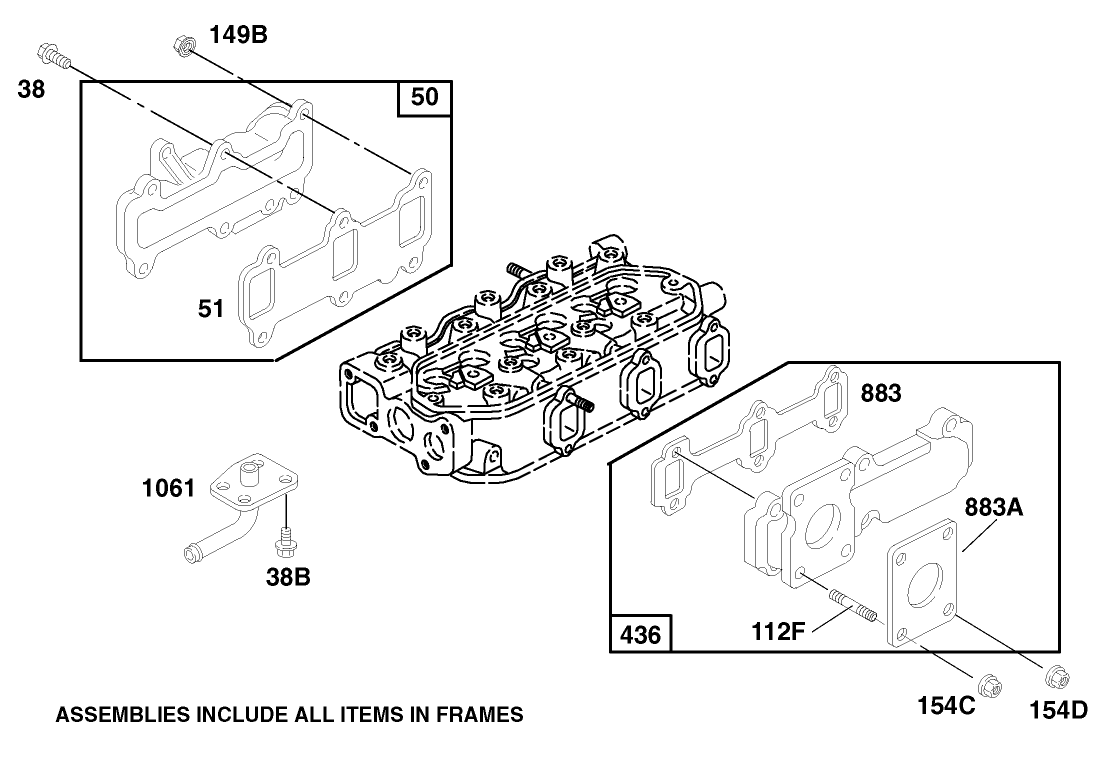

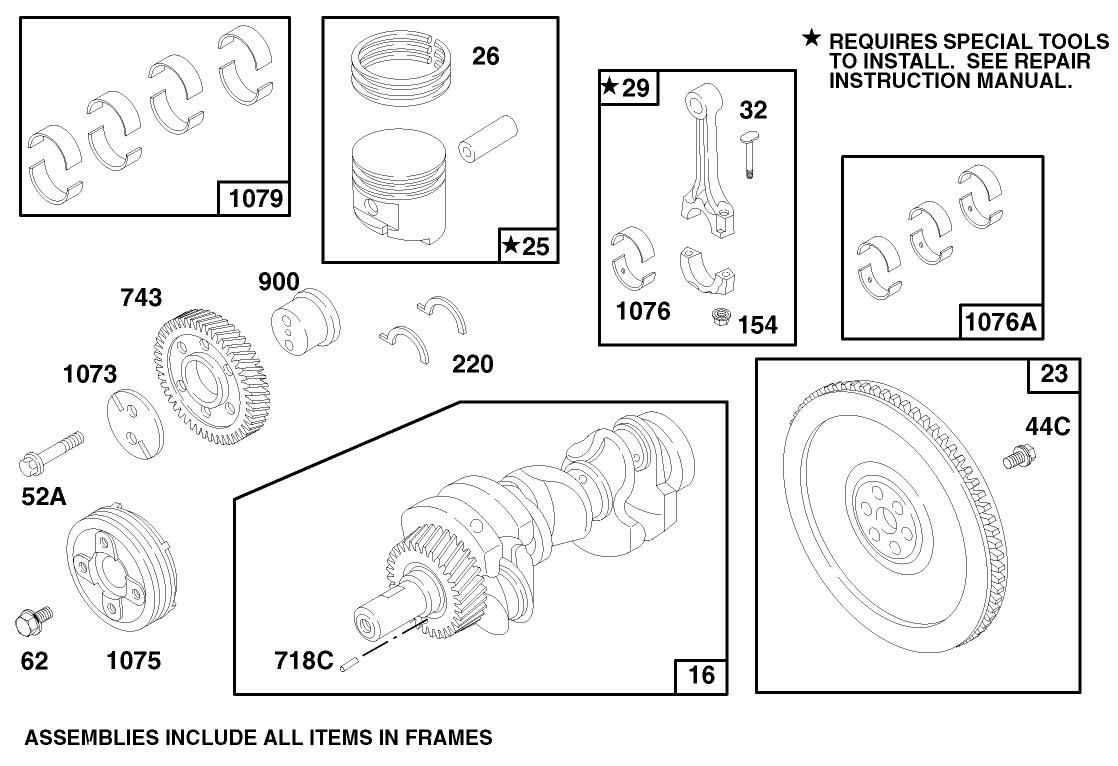

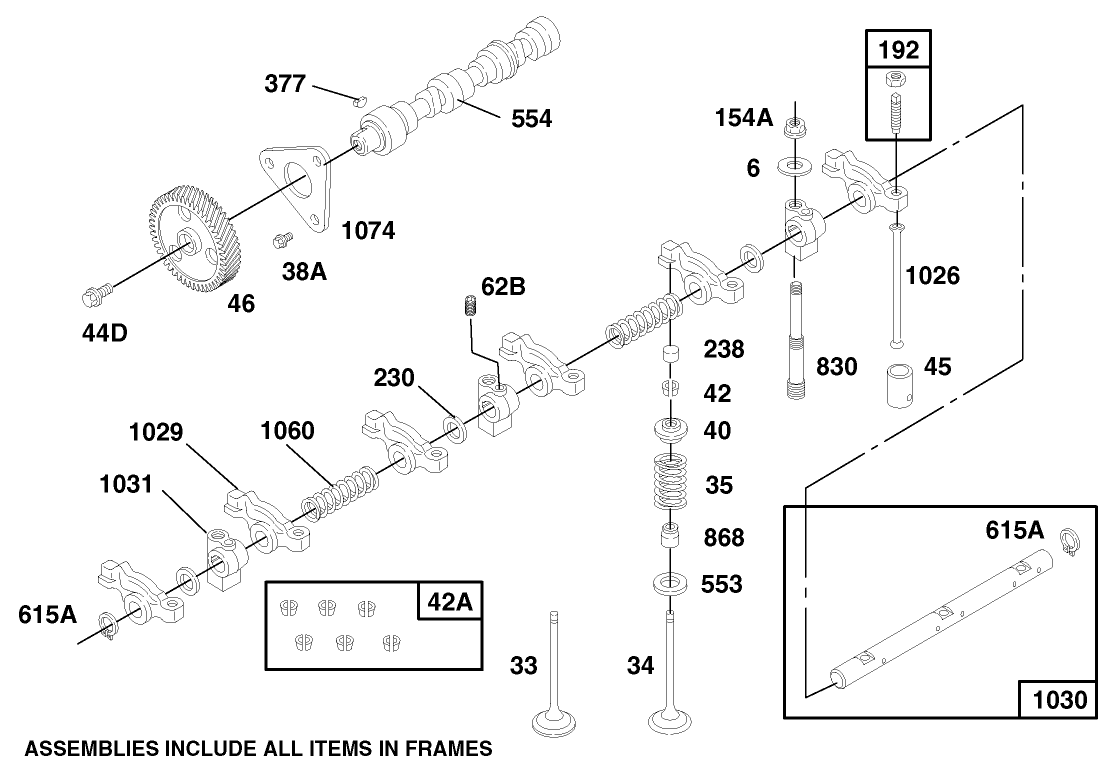

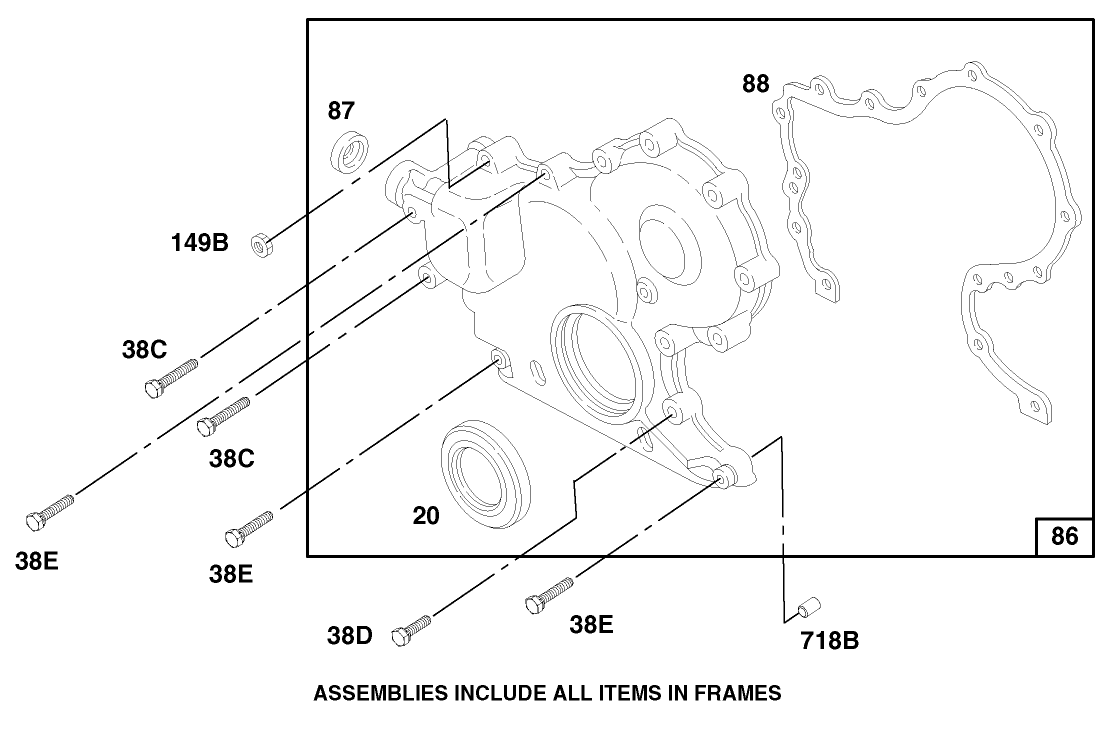

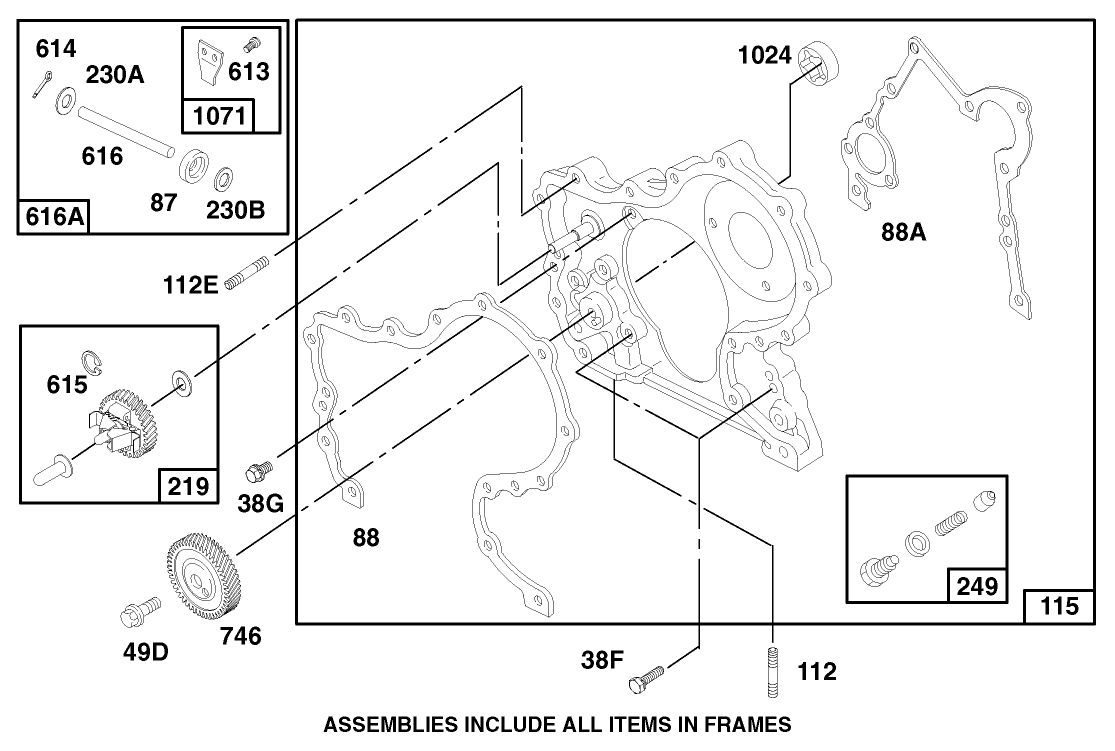

Engine Assembly Model 580447 Type 0112-A1 (continued)

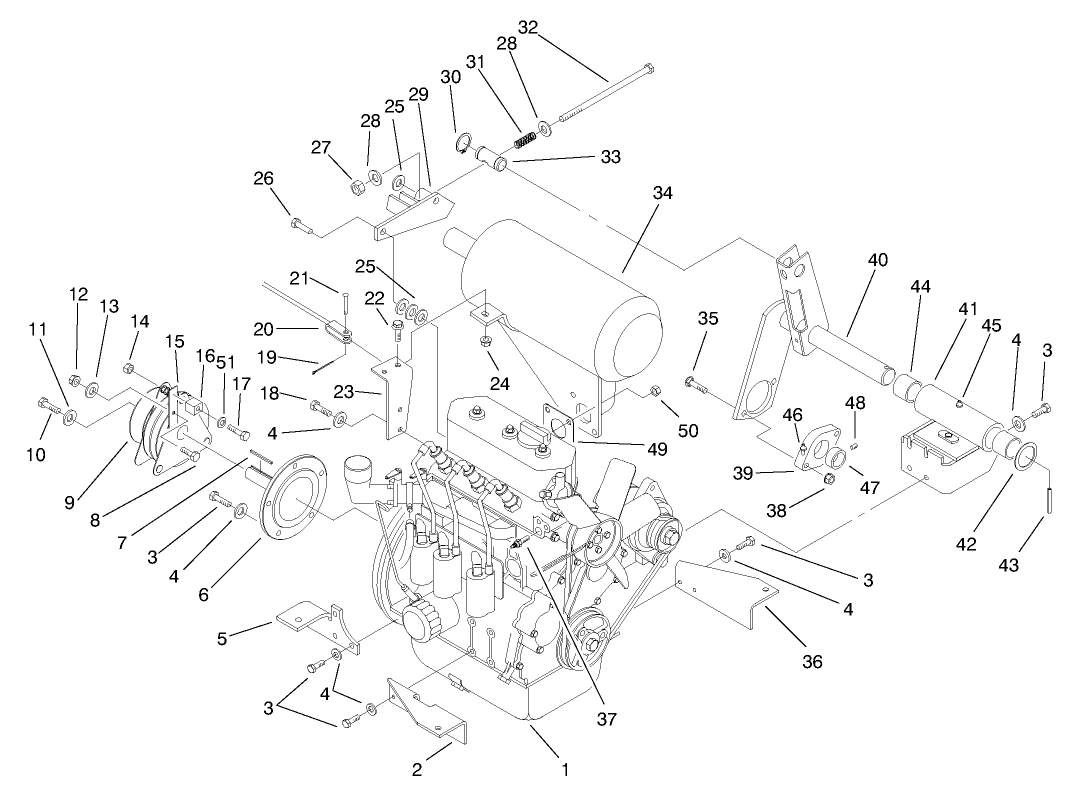

Engine Installaton Assembly

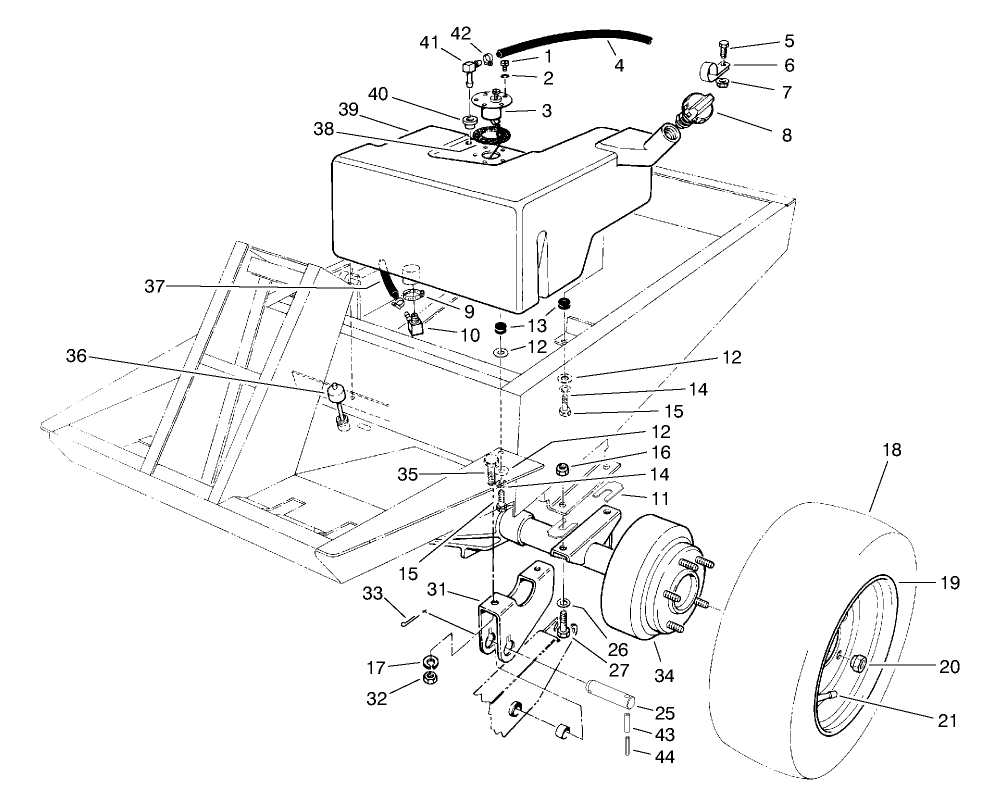

Fuel Tank And Axle Assembly

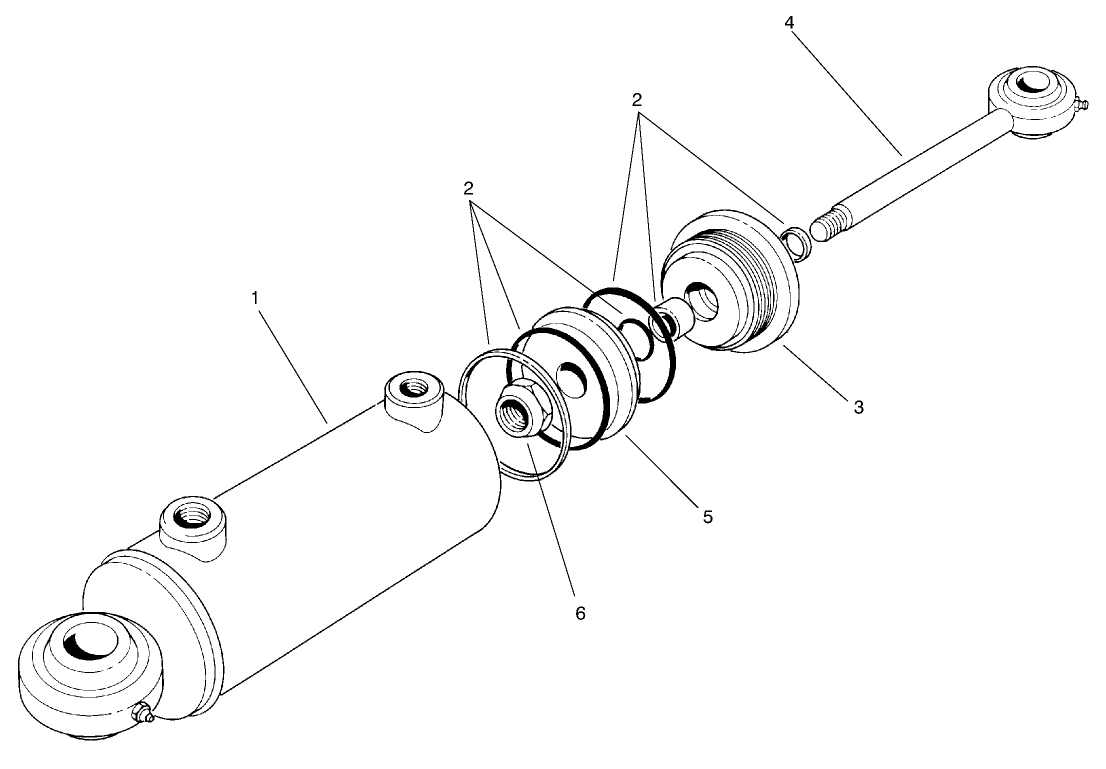

Hydraulic Cylinder No. 76-2070

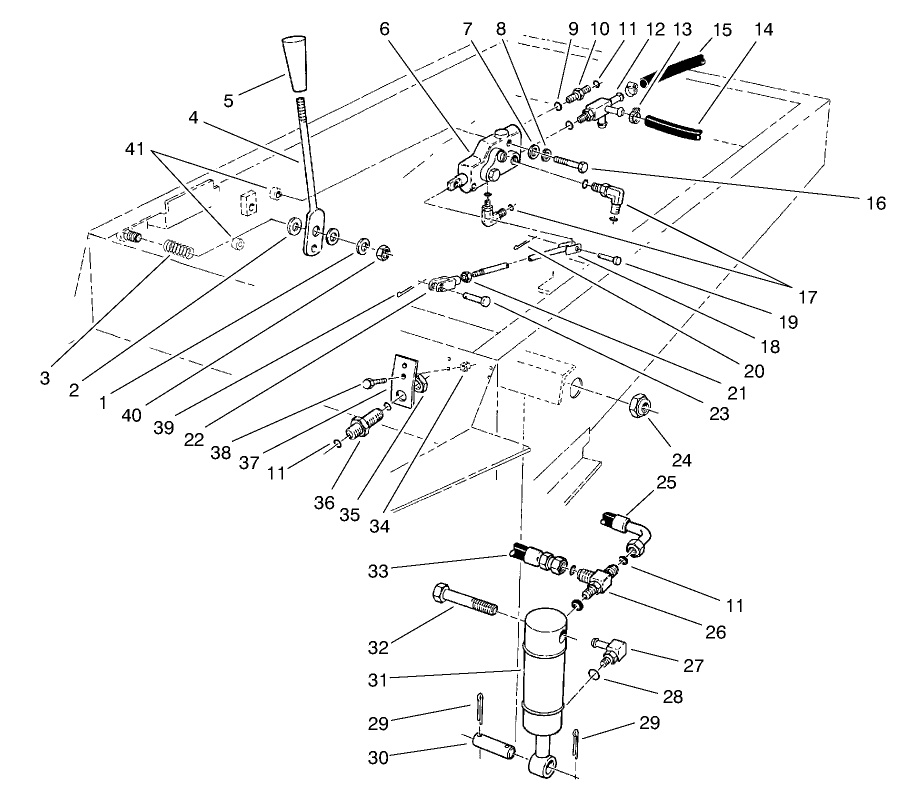

Hydraulic Lift System Assembly

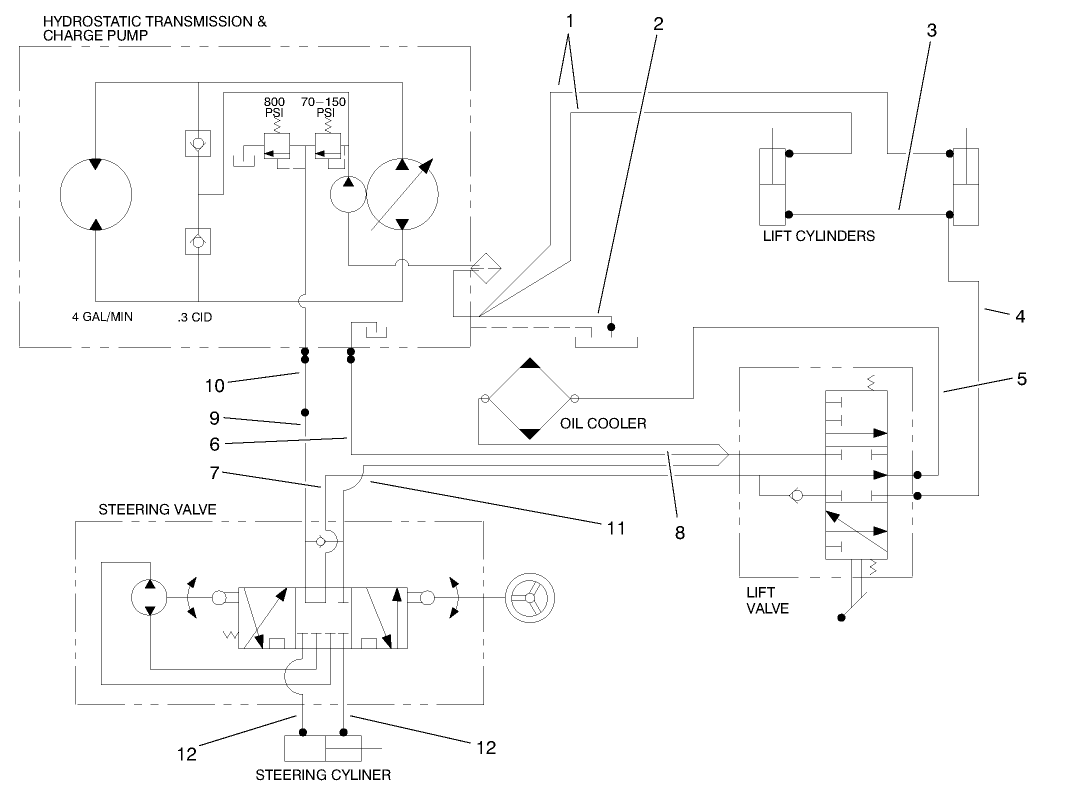

Hydraulic Schematic

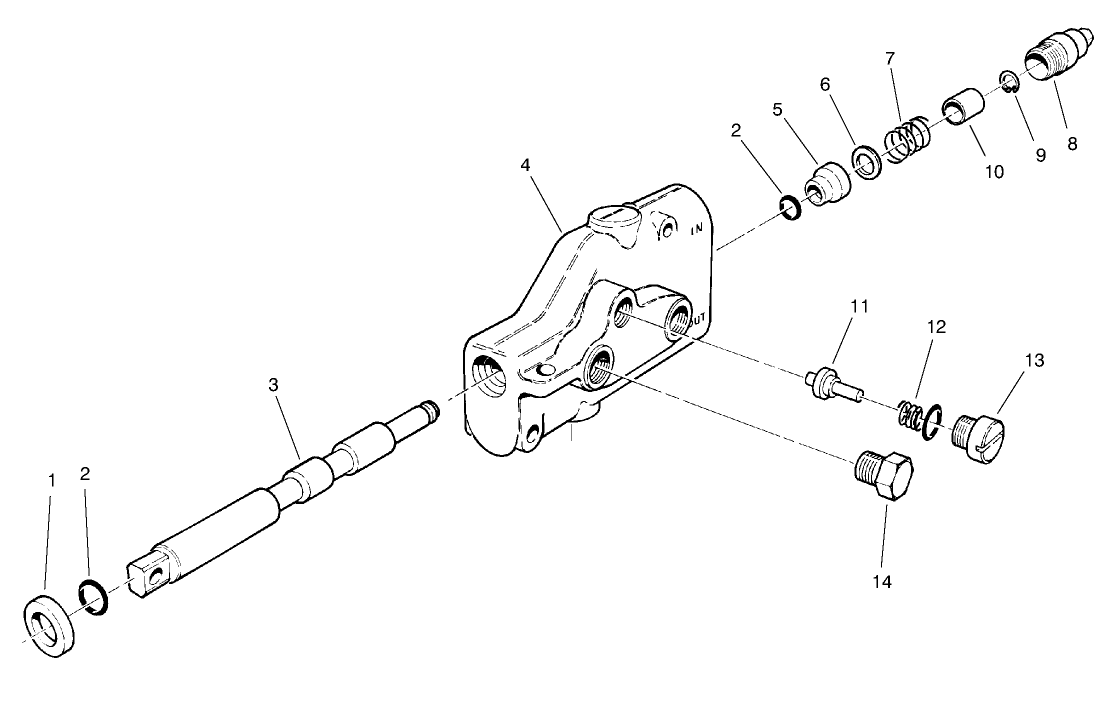

Lift Valve Assembly No. 63-7960

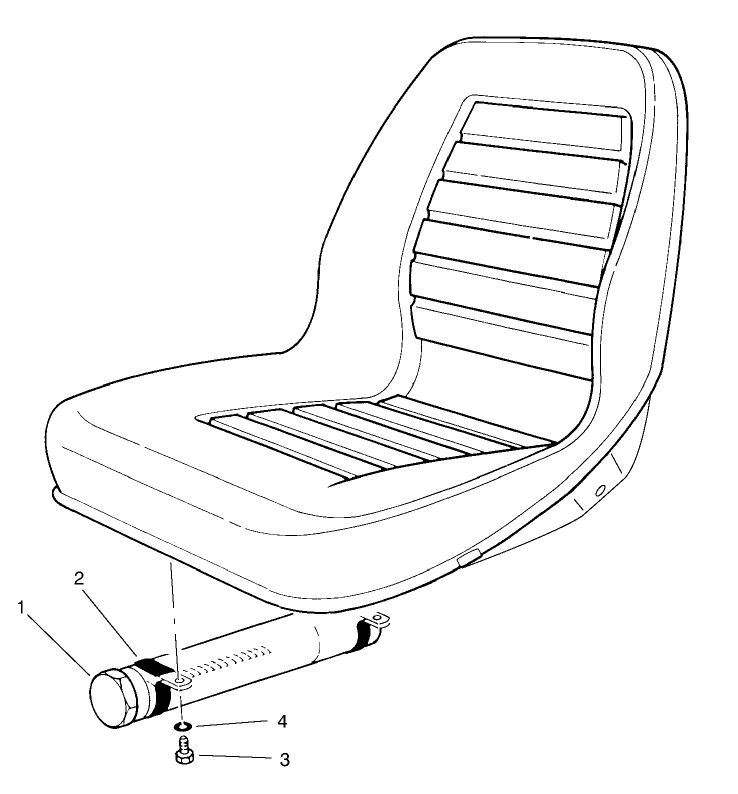

Manual Storage Assembly

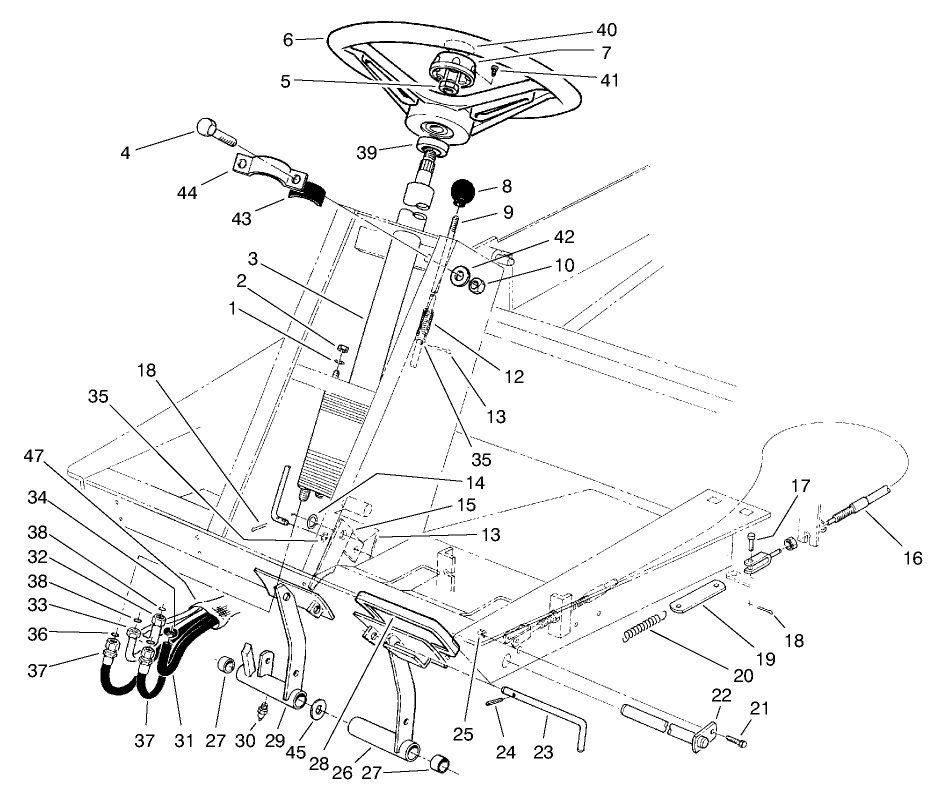

Power Steering & Brake Pedal

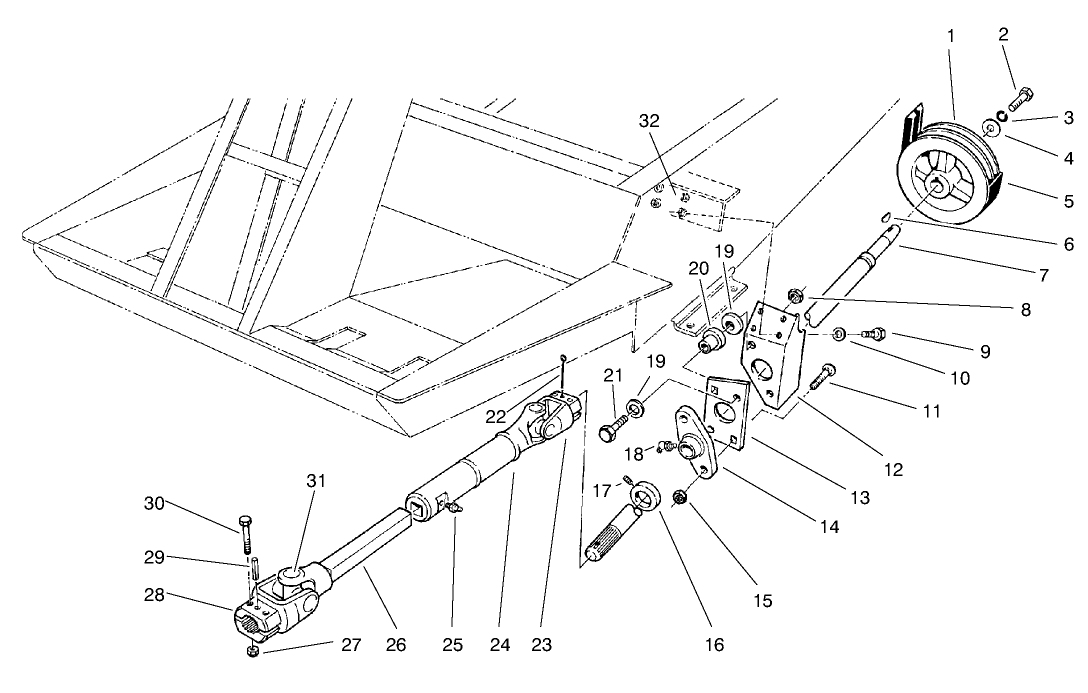

Power Take-Off & Shaft Assembly

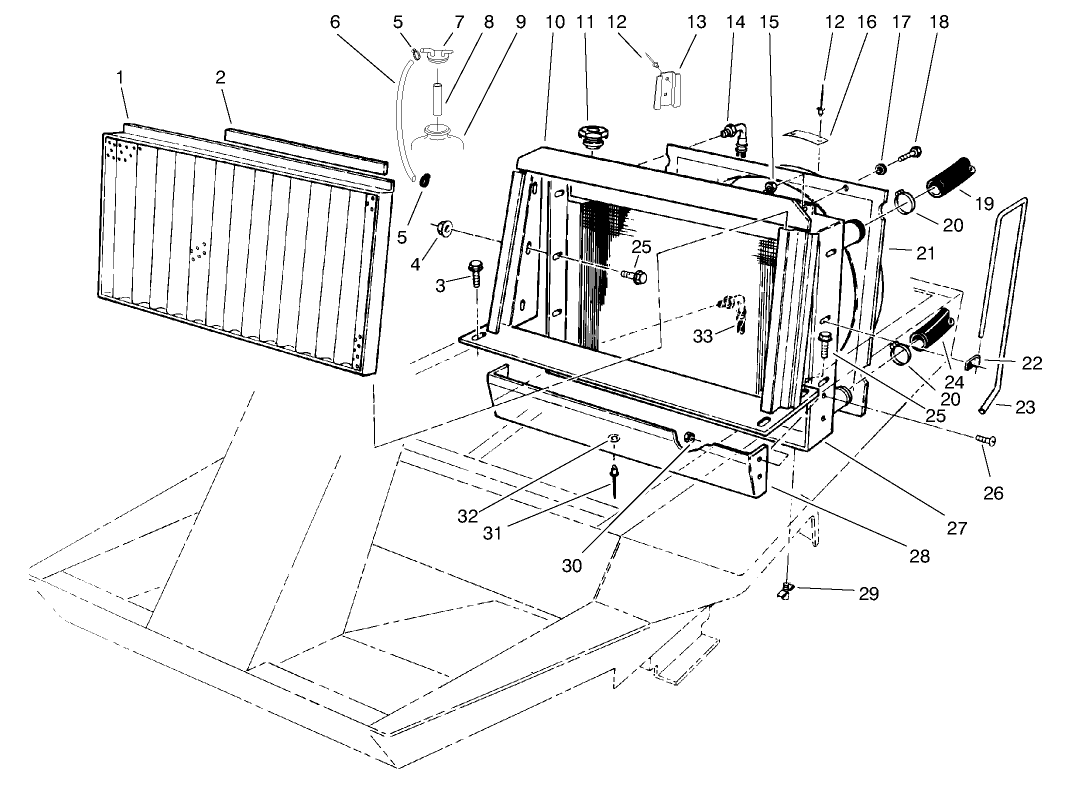

Radiator Assembly

Rear Axle Assembly

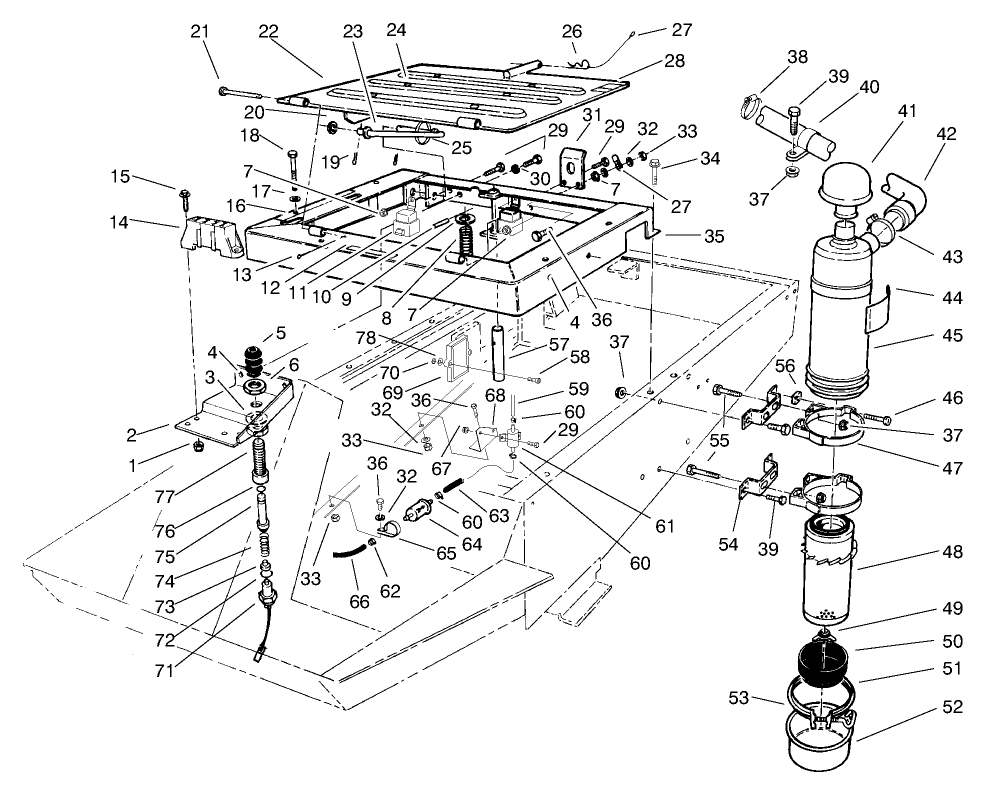

Seat Frae & Air Cleaner Assembly (continued)

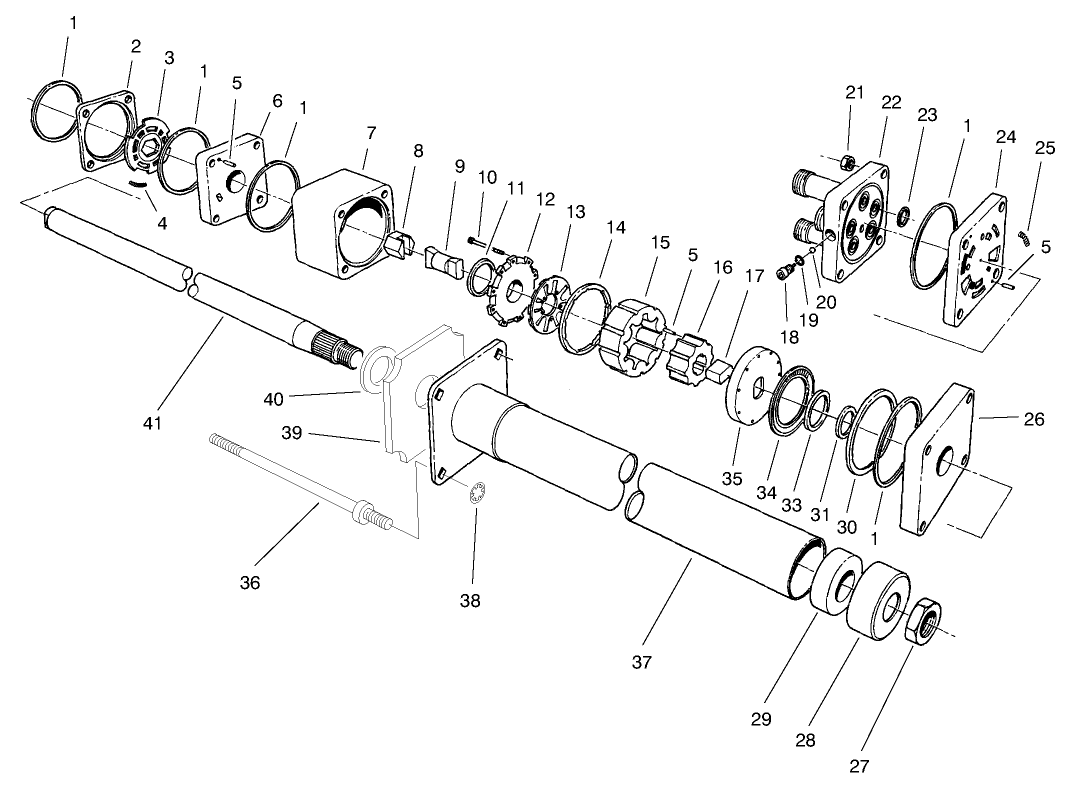

Steering Valve Assembly No. 92-7308

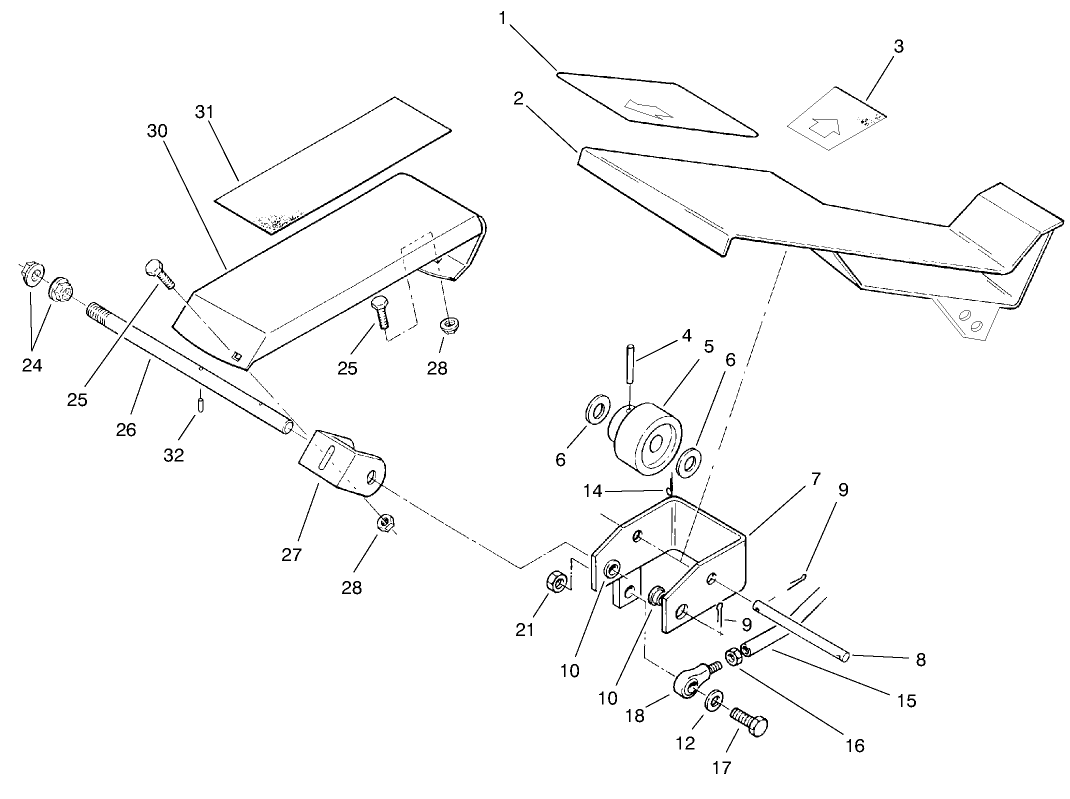

Traction Pedal Assembly

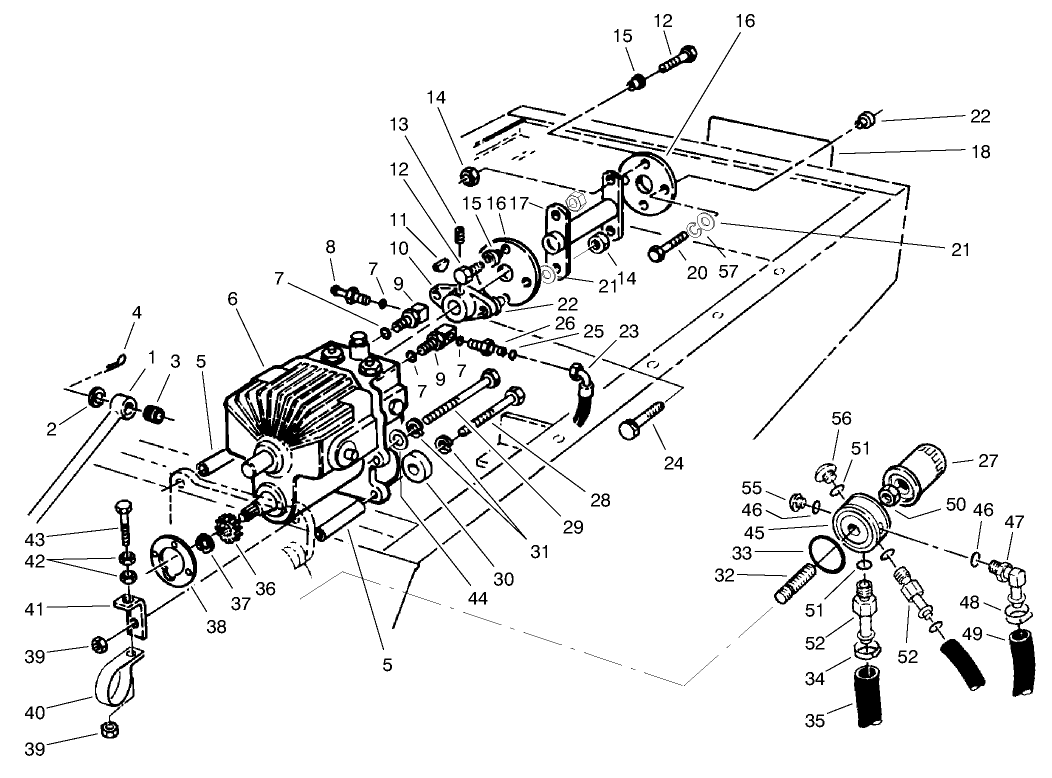

Transission & Drive Coupling Assembly

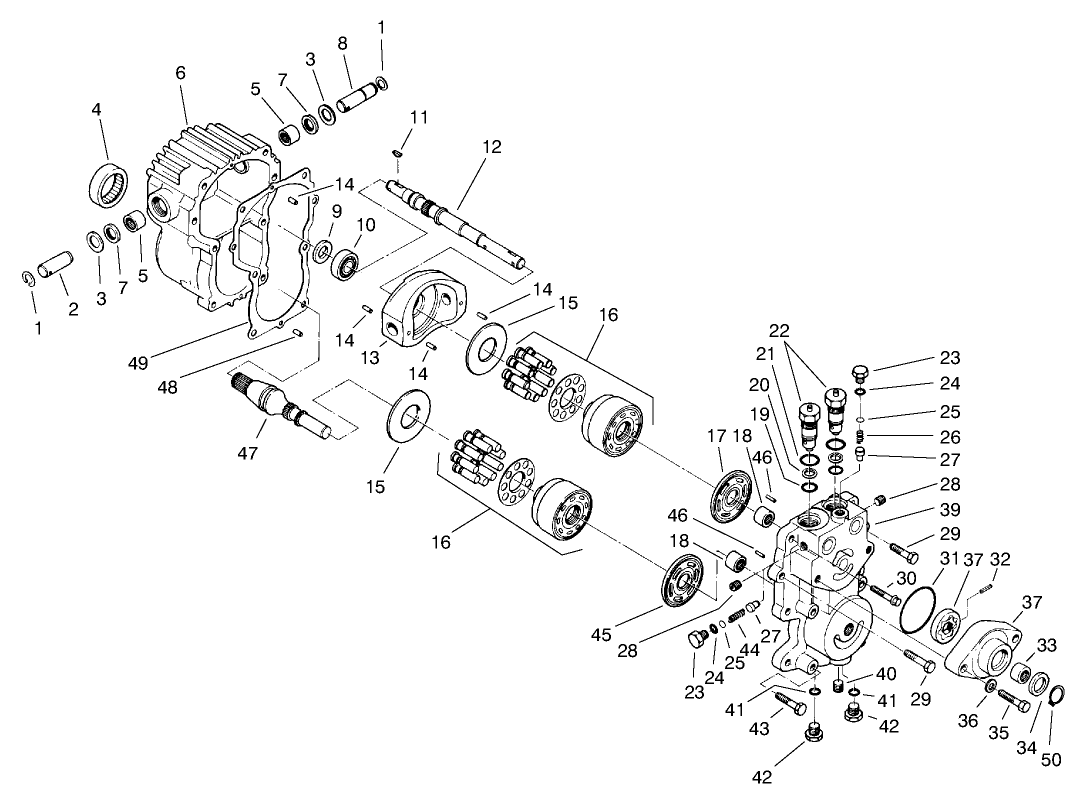

Transmission Assembly No. 92-5513

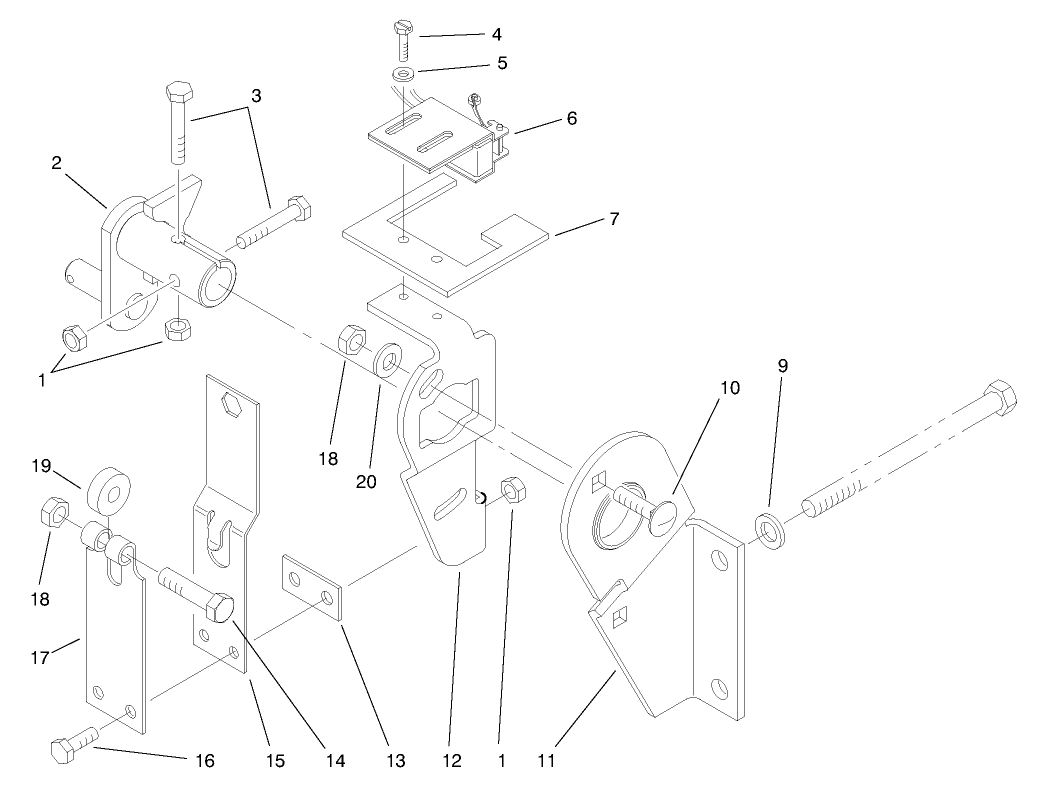

Transmission Interlock Assembly

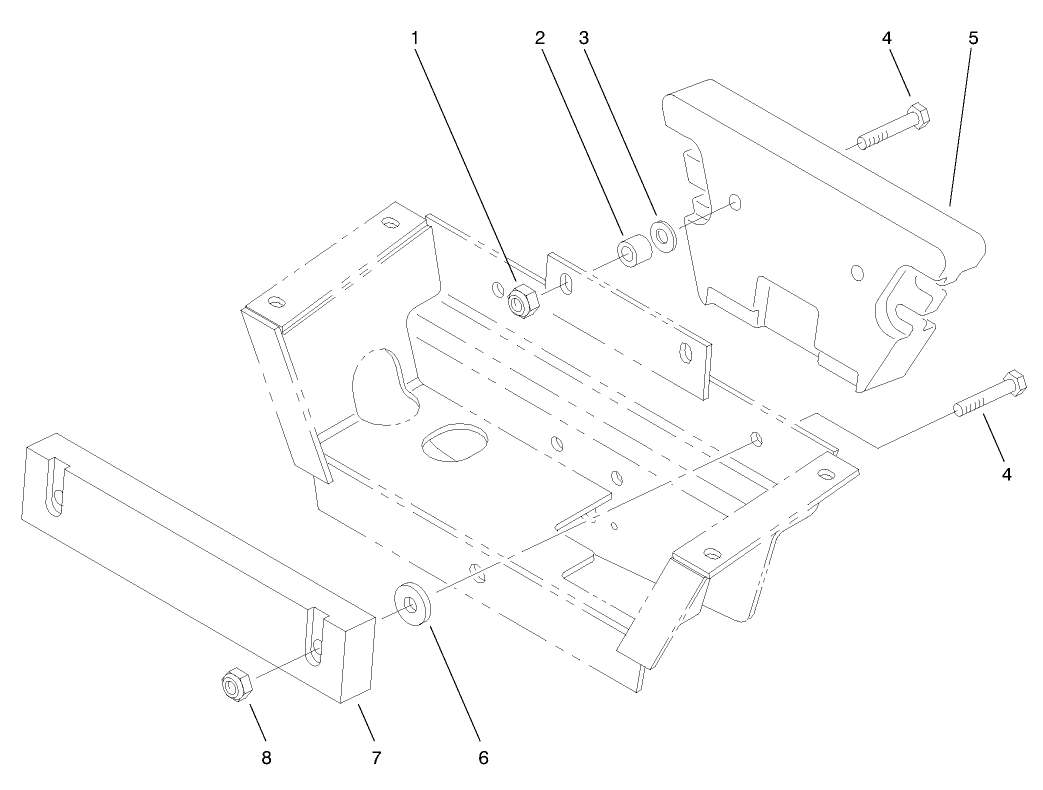

Weight Assembly

Download Parts Catalog
