824 Power Shift Snowthrower

Image Not Found

Product Information

  • Model #: 38543
  • Serial #: 8000001 - 8999999
  • Product Type: Snowthrowers

  • Model #
    38543
  • Serial #
    8000001 - 8999999
  • Product Name
    824 Power Shift Snowthrower
  • Product Brand
    Toro
  • Product Type
    Snowthrowers
  • Product Series
    Snowthrower, Two Stage Power Shift
  • Chassis Type
    Two Stage
  • Swath
    24 inch
  • Discharge
    Two Stage
  • Engine/Motor Manufacturer
    Tecumseh
  • Engine/Motor Size
    8 hp
  • Engine/Motor Type
    4 Cycle

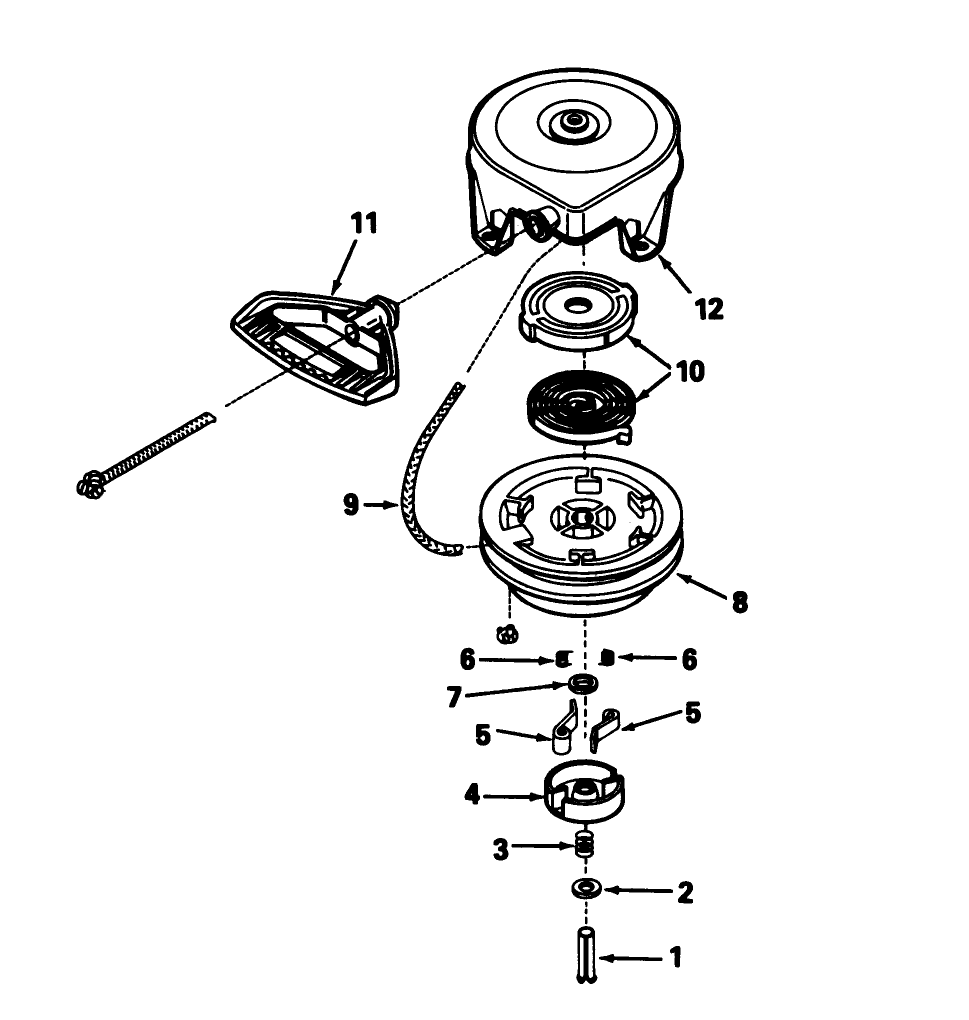

  • Engine Starter
    Recoil

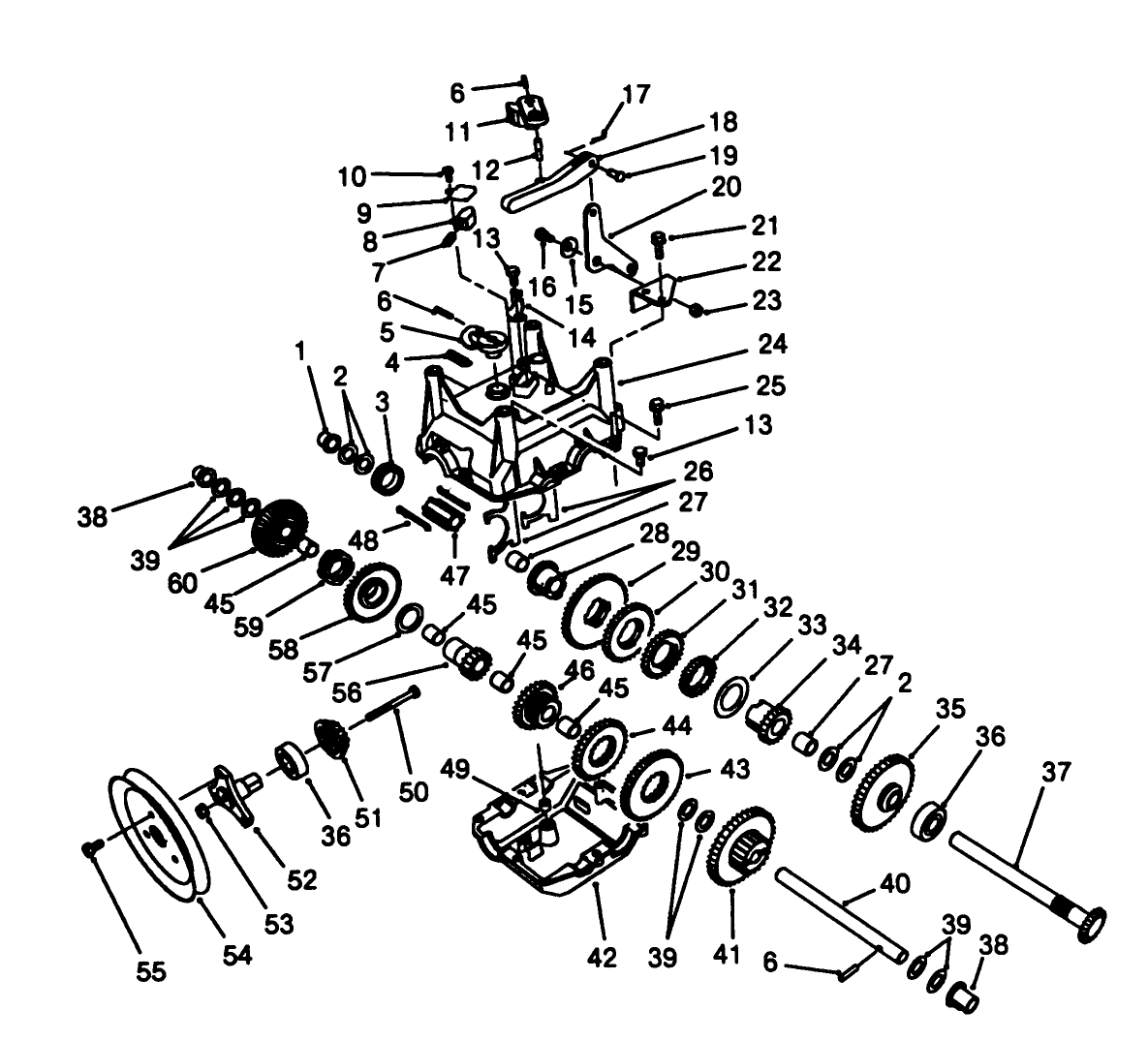

  • Transmission Type
    Gear

  • Chassis: Tire Pressure
    7-15 PSI / .5-1kg sq. cm
  • Drive System: Gearbox Lubricant
    4.5 oz. (133ml) SAE 90 GL5 or higher
  • Drive System: Ground Speed
    Fwd. .6 / 1.3 / 2.0 / 2.9 Rev. 1.3 / 2.0 mph
  • Engine: Engine Oil Type
    24 oz. (.7l) 5w-30 or 10w / API SH or higher
  • Engine: Engine Speed
    High 3300, Low 2000±150 RPM
  • Engine: Ignition Coil Air Gap
    .013" / .33mm
  • Engine: Spark Plug
    Champion RJ19LM
  • Engine: Spark Plug Gap
    .030"/ .76mm
  • Drive System: Gearbox Lubricant
    Auger 4.5 oz. (133ml) SAE 90 Gl-5 or 6 / Trans. 14.5 oz. (411.8 gm) Lubriplate Mag 1
