Super Recycler Lawn Mower
Product Information
- Model #: 20382
- Serial #: 315000001 - 315999999
- Product Type: Walk Behind Mowers
Loading...

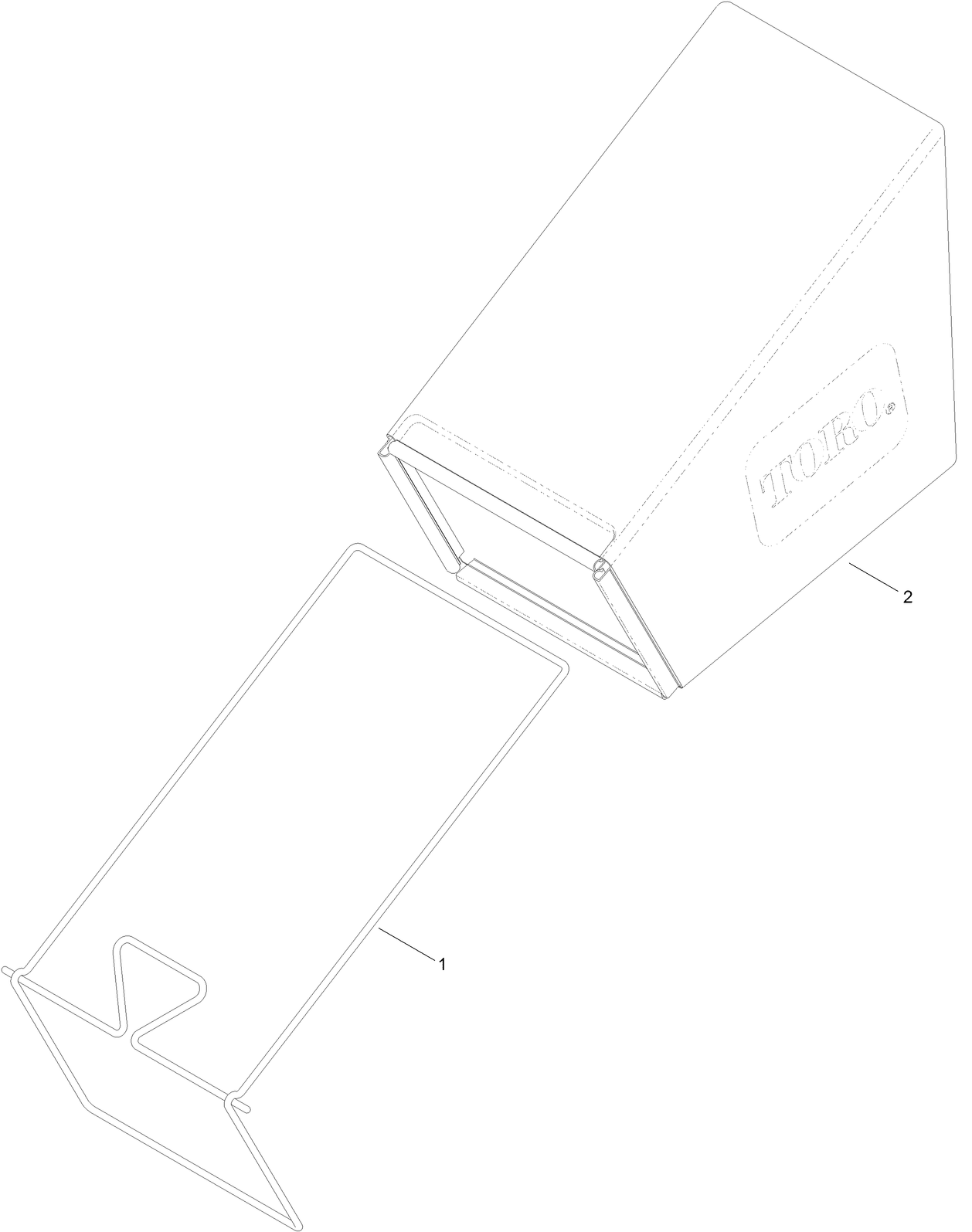

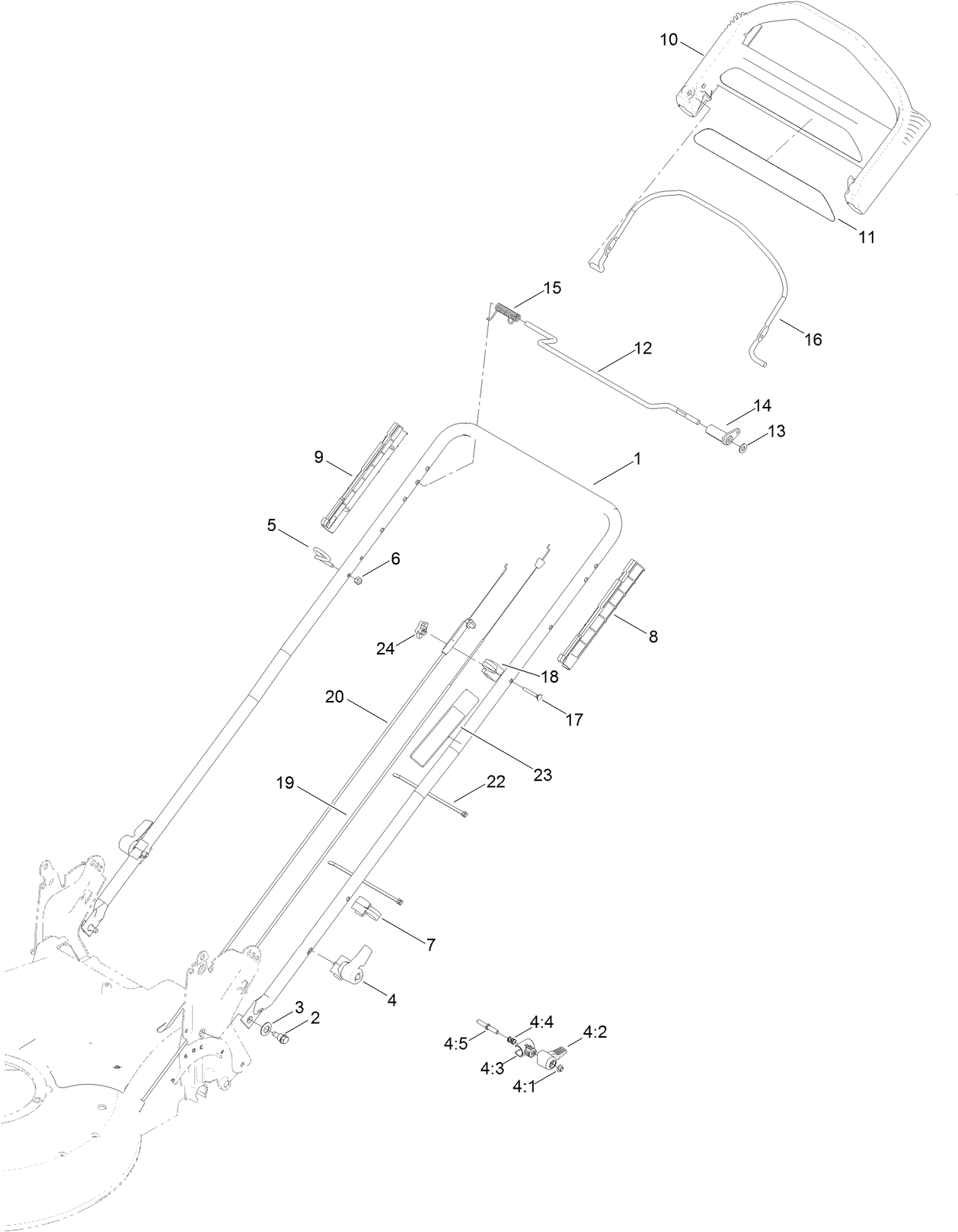

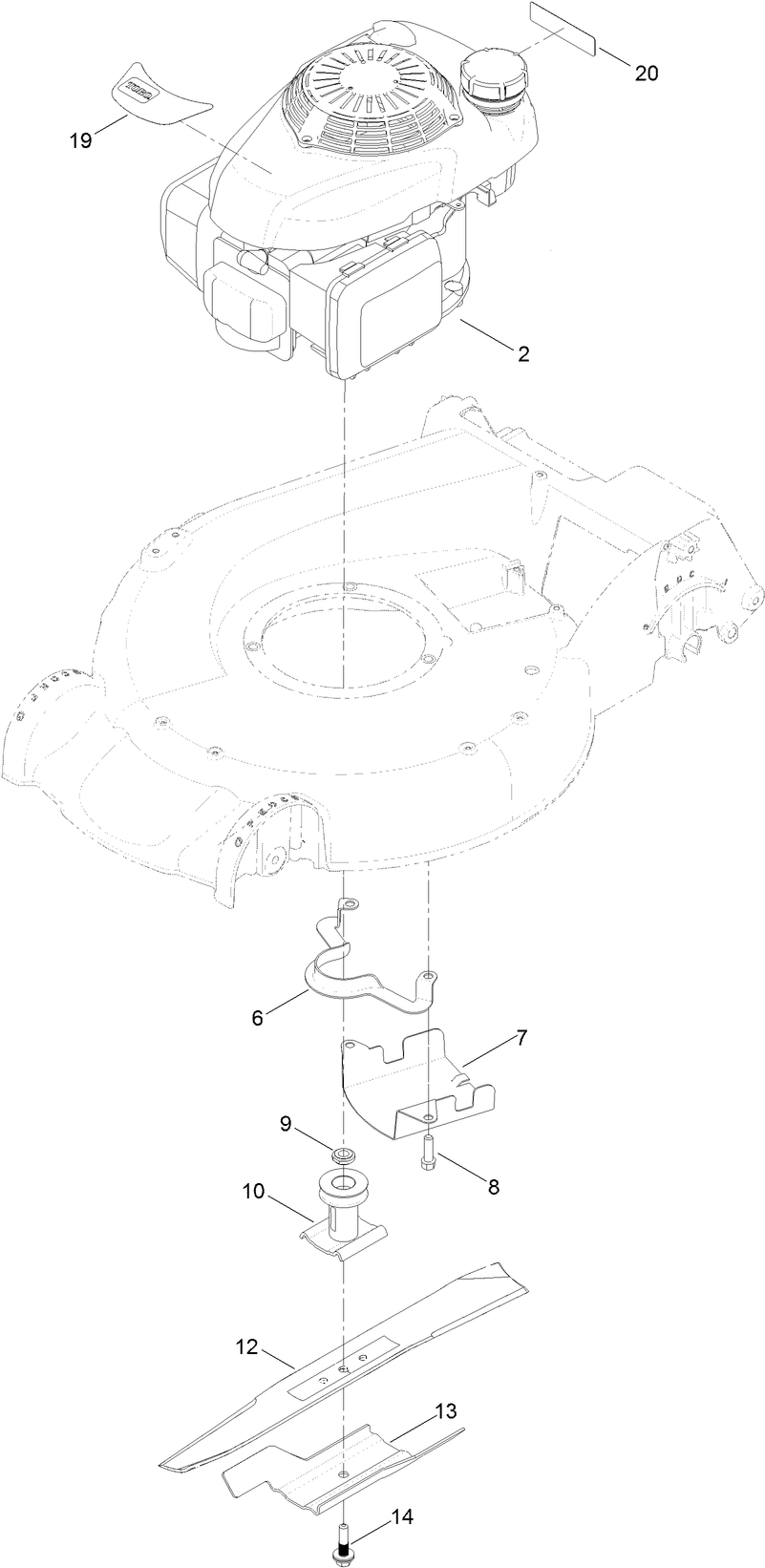

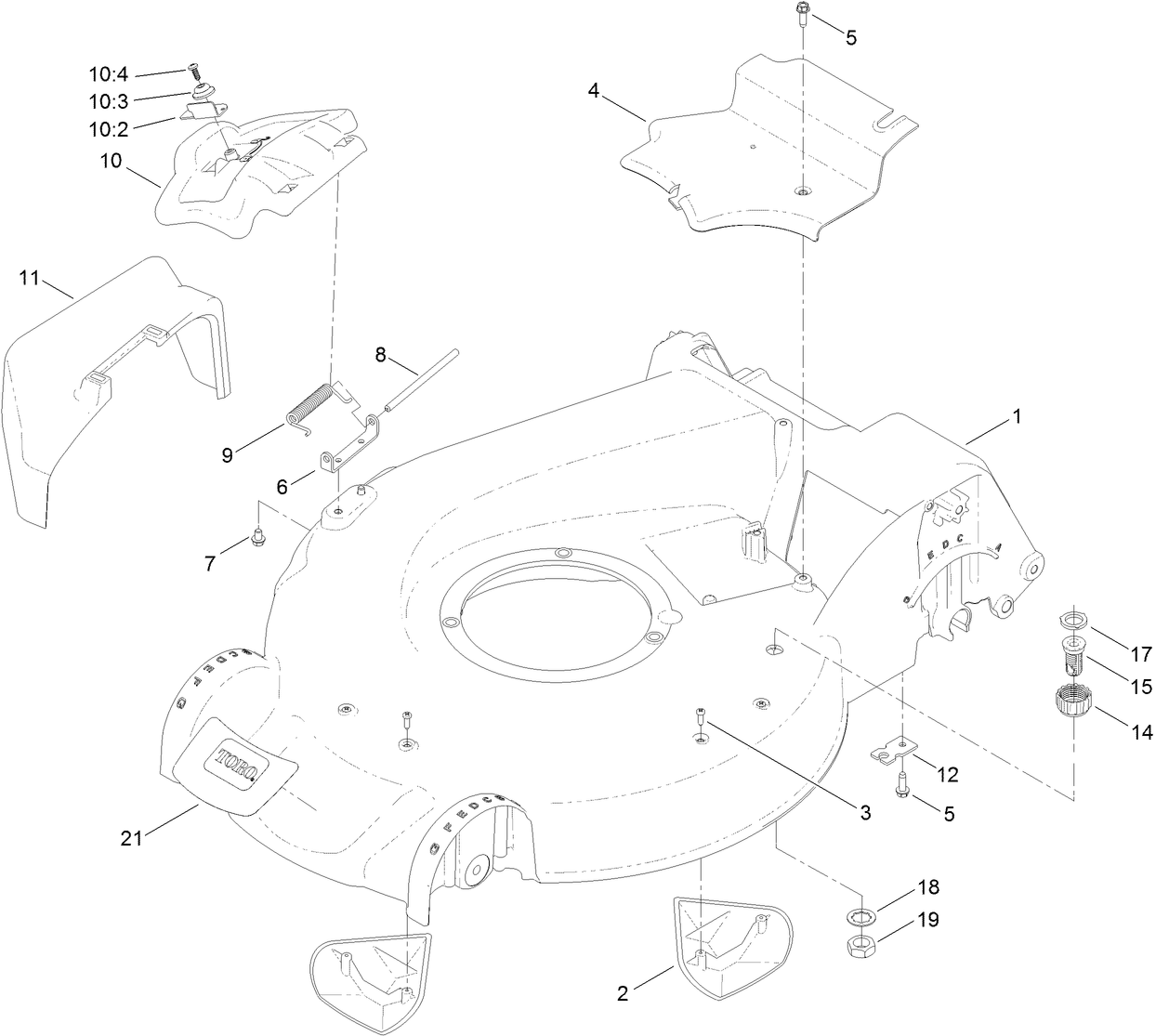

Assembly Drawings
Search for a part within assembly drawings:
-
Service Manual
-
Operator's Manual
21 Inch Standard Bagging Blade (Part # 108-3759-03)
Toro standard blade. Toro standard lawn blades have a straight and more aerodynamic body that cuts grass which then allow for either discharge or bagging of the clippings. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.
Walk-Behind Power Mower Maintenance Kit for Honda GCV 160 LA0S3B/S3H Engines (Part # 130-8134)
Keep your mower running smoothly, season after season. This kit is for Toro walk power mowers with Honda GCV 160cc engines. The easy-to-use kit includes a Toro replacement air filter, a replacement spark plug, a 18 oz. bottle of Toro SAE 30 walk-behind power mower engine oil and a packet of fuel stabilizer.
Please contact your local dealer
Cover for 20 to 22 Inch Walk-Behind Mowers (Part # 490-7462)
The Toro Walk Power Mower Cover for 20 in. to 22 in. Walk-Behind Mowers offers all-season protection. This cover is constructed from tough, waterproof, tear and abrasion resistant 600-denier polyester.
Please contact your local dealer
-
Model #
20382 -
Serial #
315000001 - 315999999 -
Product Name
Super Recycler Lawn Mower -
Product Brand
Toro -
Product Type
Walk Behind Mowers -
Product Series
21" Cast Deck -
Chassis Type
Cast Deck WPM -
Swath
21 inch -
Discharge
Recycler & Side Discharge with Rear Bag -
Engine/Motor Manufacturer
Honda -
Engine/Motor Type
4 Cycle -
Engine Starter
Recoil -
Transmission Type
Gear -
Traction Type
Rear WD
-
Engine: Spark Plug
NGK BPR5ES -
Engine: Spark Plug Gap
.030"/ .76mm -
Engine: Ignition Coil Air Gap
.008-.024" / .2-.6mm -
Chassis: Height of Cut Range
1.25-4.25", 1/2" increments -
Engine: Engine Speed
3050±150 RPM -
Engine: Engine Oil Type
18.6 oz. (0.55 L) SAE 30 or SAE 10W-30 / API SJ or higher
