Model #: 03482
Serial #: 315000001 - 315999999
Product Type: Attachments

No.	Description

Assembly Drawings

Search for a part within assembly drawings:

Showing Results

Drawing Title	Part Number	Description
Title

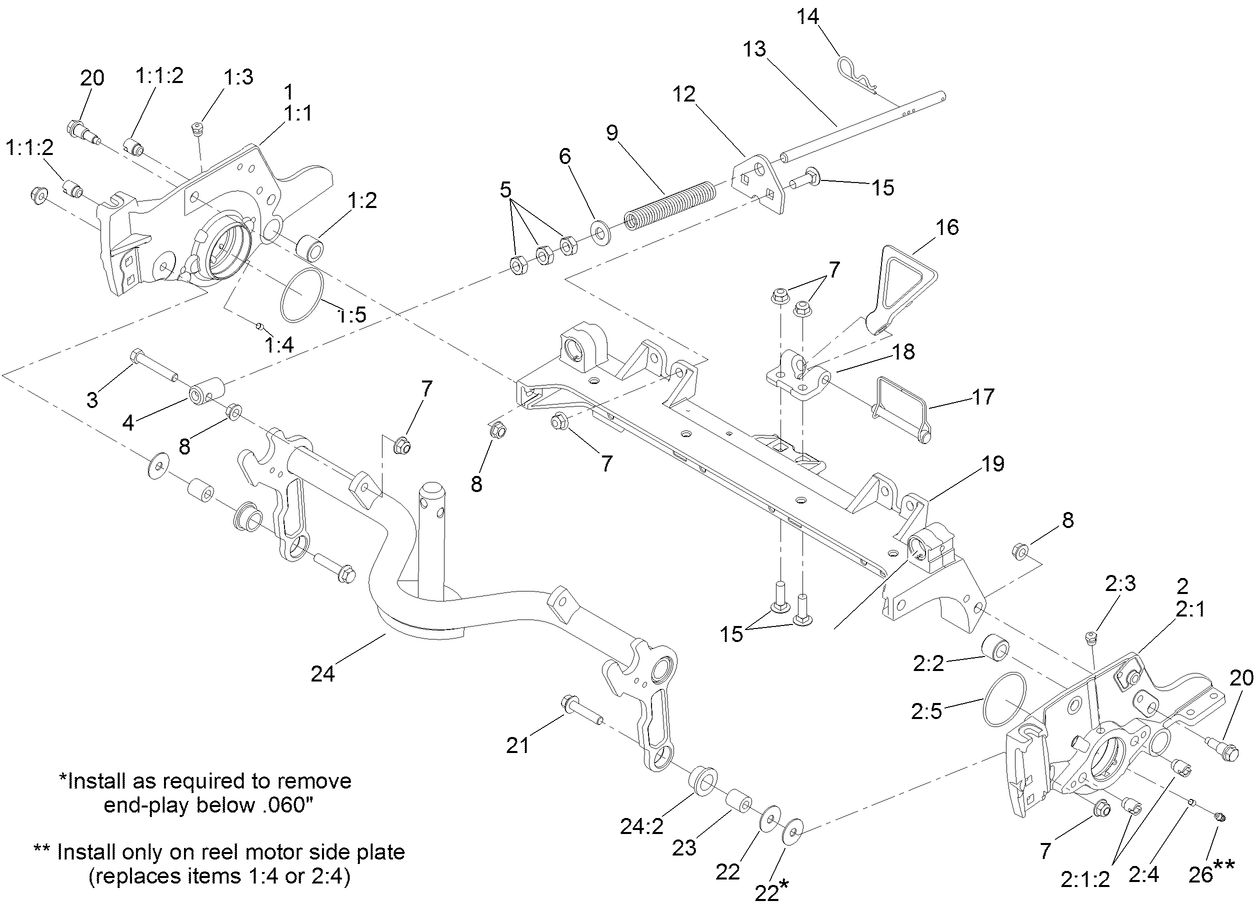

Cutting Unit Frame Assembly

Optional Full Front Roller Assembly No. 114-5412

Optional Heavy-Duty MVP Kit No. 120-7230

Optional High Height-of-Cut Assembly No. 110-9600

Optional Long Roller Assembly No. 114-5404

Optional Plastic Shoulder Roller Assembly No. 114-5421

Optional Tool Assembly

Plastic Wiehle Roller Assembly No. 114-5400

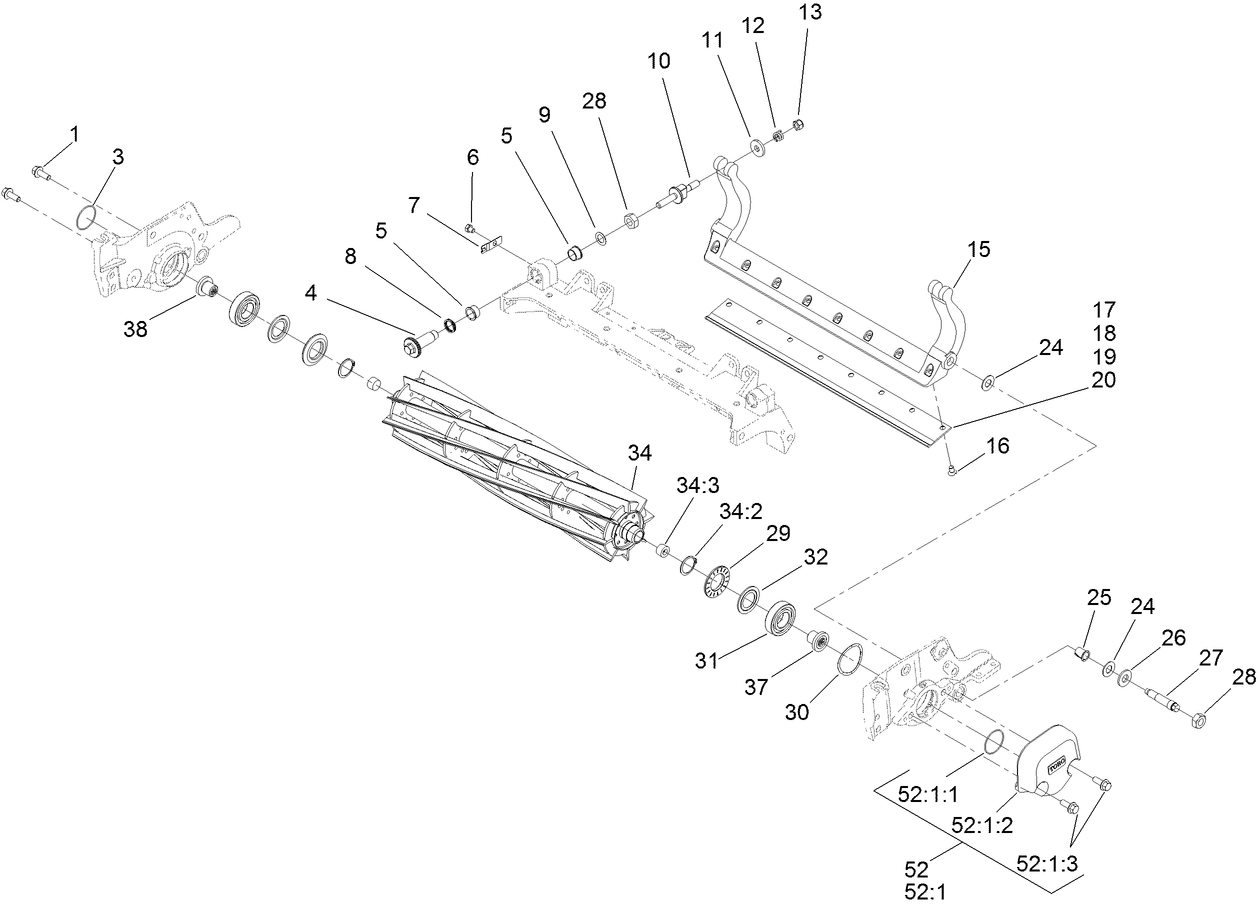

Reel and Bedbar Assembly

Roller Assembly

Shield Assembly

Short Roller Assembly No. 114-5406

Download Parts Catalog

Accessories

Weight Kit, Reelmaster 3550, 3555, or 5010, Series Cutting Units with (Part # 03417)

Weight Kit for 8-Blade or 11-Blade DPA Cutting Unit with 5in Reel, Ree (Part # 03484)

Rear Roller Brush Kit, Reelmaster 3555, 5010, and 5010-H Series 22-inc (Part # 03658)

Universal Groomer Drive Kit, Reelmaster 3550, 3555, 5010, and 5010-H S (Part # 03763)

Universal Groomer Cartridge, Reelmaster 3555, 3575, 5010, and 5010-H S (Part # 03765)

Grooming Brush, Reelmaster 3555, 5010, and 5010-H Series 22-inch Cutti (Part # 03767)

Rear Roller Brush Kit, Reelmaster 3550 Series 18-inch and 22-inch Cutt (Part # 03918)

Grass Basket Kit, Reelmaster 3550 Series 22-inch Cutting Unit (Part # 03920)

Collar Kit (Part # 104-8215)

Contains 100-4959 @ 2, 104-1835 @ 2

22 Inch Wiehle Scraper Assembly (Part # 107-2993-03)

Toro OEM 22 Inch Wiehle Scraper Assembly.

Rear Roller Scraper Kit (22.00 Inch) (Part # 107-3280)

Contains 107-2999 @ 1, 107-3279 @ 1, 107-3281 @ 1, 3290-357 @ 2, 104-8300 @ 4, 104-8301 @ 2

Gauge Bar Assembly (Part # 108-6715)

Toro OEM Gauge Bar Assembly.

Edgemax Bedknife (Part # 108-9095)

22.19 Inch Fairway Cut Standard Bedknife (Part # 108-9096)

Toro 22.19 Inch OEM Fairawy Cut Standard Bedknife. You can count on the quality and reliability of this replacement Fairway Cut bedknife. Be sure to verify the make and serial number to ensure correct part.

Comb/Scraper Kit (Part # 110-1735)

Contains 115-8298-03 @ 1, 104-1844 @ 1, 115-8299 @ 1, 110-1731-03 @ 1, 3296-16 @ 4, 3229-2 @ 4, 3256-67 @ 8

22.00 Inch Hight Height of Cut Roller Brush (Part # 110-1740)

Toro 22.00 Inch OEM High Height of Cut Roller Brush. This roller has a 3.50 inch diameter. This is a powered roller brush created to control grass build up and keep you cutting longer. To insure you are getting the correct part for your equipment, please use our model and serial number search to verify that this will fit your machine.

22.19 Inch Fairway Cut Standard Bedknife (Part # 110-4074)

22.19 Inch Low Cut Standard Bedknife (Part # 110-4084)

Toro 22.19 Inch OEM Low Cut Standard Bedknife. You can count on the quality and reliability of this replacement Low Cut bedknife. Be sure to verify the make and serial number to ensure correct part.

RM Dpa High Hoc Kit (Part # 110-9600)

Contains 120-0404 @ 1, 120-0405 @ 1, 119-0626 @ 8, 106-9758 @ 4, 3230-30 @ 4, 104-8300 @ 4, 112-7451 @ 2, 48-9220 @ 4, 104-8301 @ 4, 322-16 @ 2, 32128-20 @ 2, 32128-20 @ 2

3X22 Inch Full Front Roller Scraper (Part # 110-9602-03)

Toro OEM 3X22 Inch Full Front Roller Scraper.

Shoulder Roller Scraper (22.00 Inch) (Part # 110-9609-03)

Toro OEM Shoulder Roller Scraper (22.00 Inch).

Long Rear Roller Assembly (Part # 114-5404)

Toro OEM Long Rear Roller Assembly. This roller has a 2.50 inch diameter. This Assembly comes with the roller tube, long roller shaft, oil seals, stainless steel bearings, seals, lock nuts, grease fittings, grease & the roller rebuild kit. This roller is smooth, unlike the Wiehle roller that has groves built in. Toro OEMs are created to keep your equipment up and running with the highest quality parts. To verify that this fits your Toro equipment, please do a model & serial number search.

22.00 Inch Full Front Roller Assembly (Part # 114-5412)

Toro 22.00 Inch OEM Full Front Roller Assembly. This roller has a 3.00 inch diameter. This Assembly comes with the roller tube, roller shaft, oil seals, stainless steal bearings, seals, lock nuts, grease fittings, grease & the roller rebuild kit. This roller is smooth, unlike the Wiehle roller that has groves built in. Toro OEMs are created to keep your equipment up and running with the highest quality parts. To verify that this fits your Toro equipment, please do a model & serial number search.

22.00 Inch Plastic Shoulder Roller Assembly (Part # 114-5421)

Toro 22.00 Inch OEM Plastic Shoulder Roller Assembly. This roller has a 3.00 inch diameter. This Assembly comes with a plastic roller, roller shaft, oil seals, stainless steal bearings, seals, lock nuts, grease fittings, roller rebuild kit & grease. A Wiehle roller has groves built into the roller. This roller is molded out of an aluminum core, with a plastic molding on the outside. A shoulder roller groves get smaller closer to the edges, where as a standard Wiehle has evenly spaced from one end to the other. Toro OEMs are created to keep your equipment up and running with the highest quality parts. To verify that this fits your Toro equipment, please do a model & serial number search.

Roller Rebuild Kit (Part # 114-5430)

Contains 114-3717 @ 2, 112-5290 @ 2, 112-7494 @ 4, 114-5411 @ 2

Roller Seal Tool Kit (Part # 115-0803)

22.19 Inch Low Cut EdgeMax™ Bedknife (Part # 119-4280)

Toro 22.19 Inch OEM Low Cut EdgeMax™ Bedknife. The EdgeMax™ is a tougher medal crafted with precision to give you an amazing cut every time. You can count on the quality and reliability of this replacement Low Cut bedknife. Be sure to verify the make and serial number to ensure correct part.

Kickstand (Part # 119-8010-03)

22.19 Inch Low Cut Standard Bedknife (Part # 120-1640)
