46in Sprayer, Spray Master
Product Information
- Model #: 34233
- Serial #: 406912824 - 999999999
- Product Type: Sprayers
Loading...

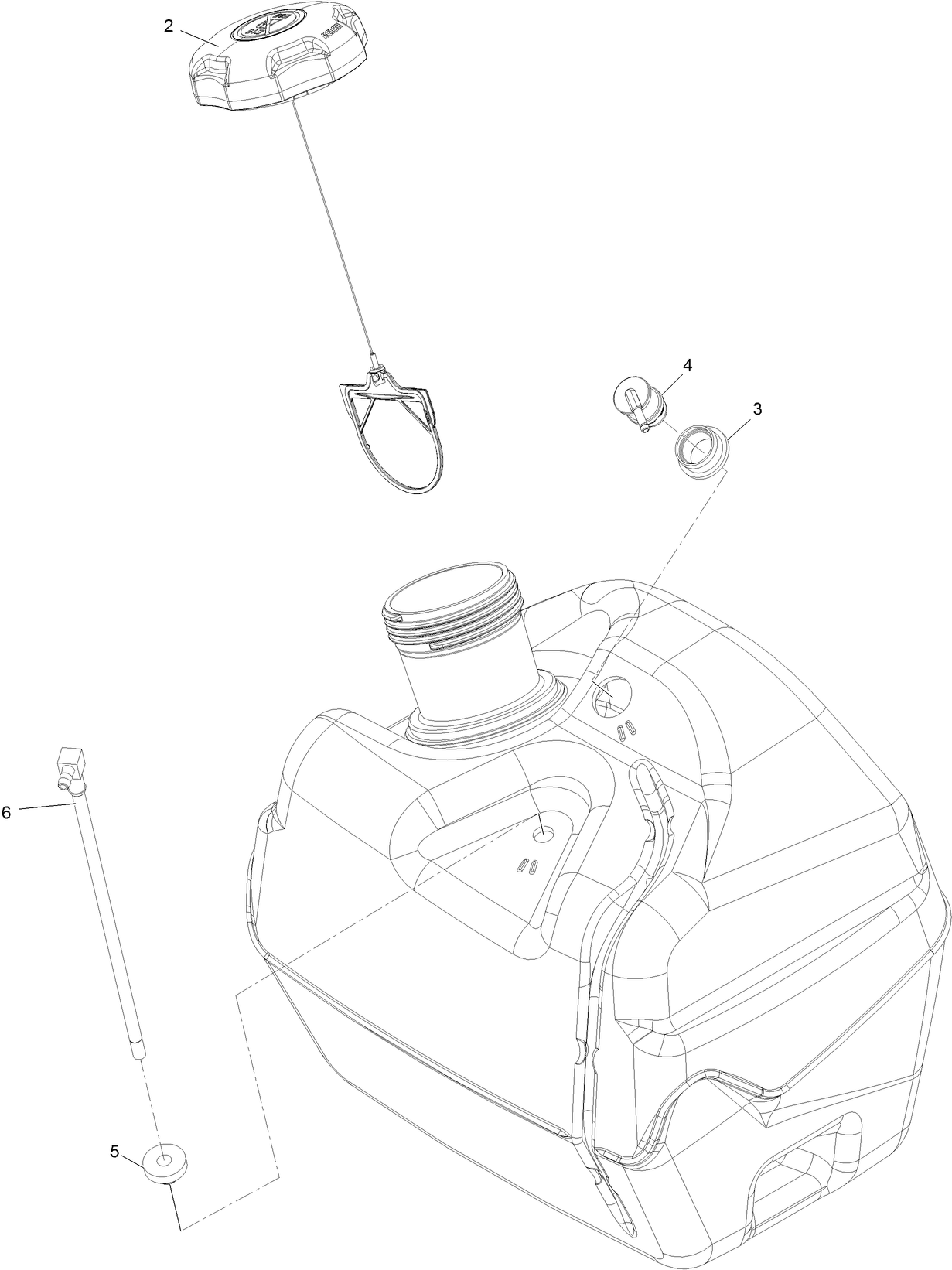

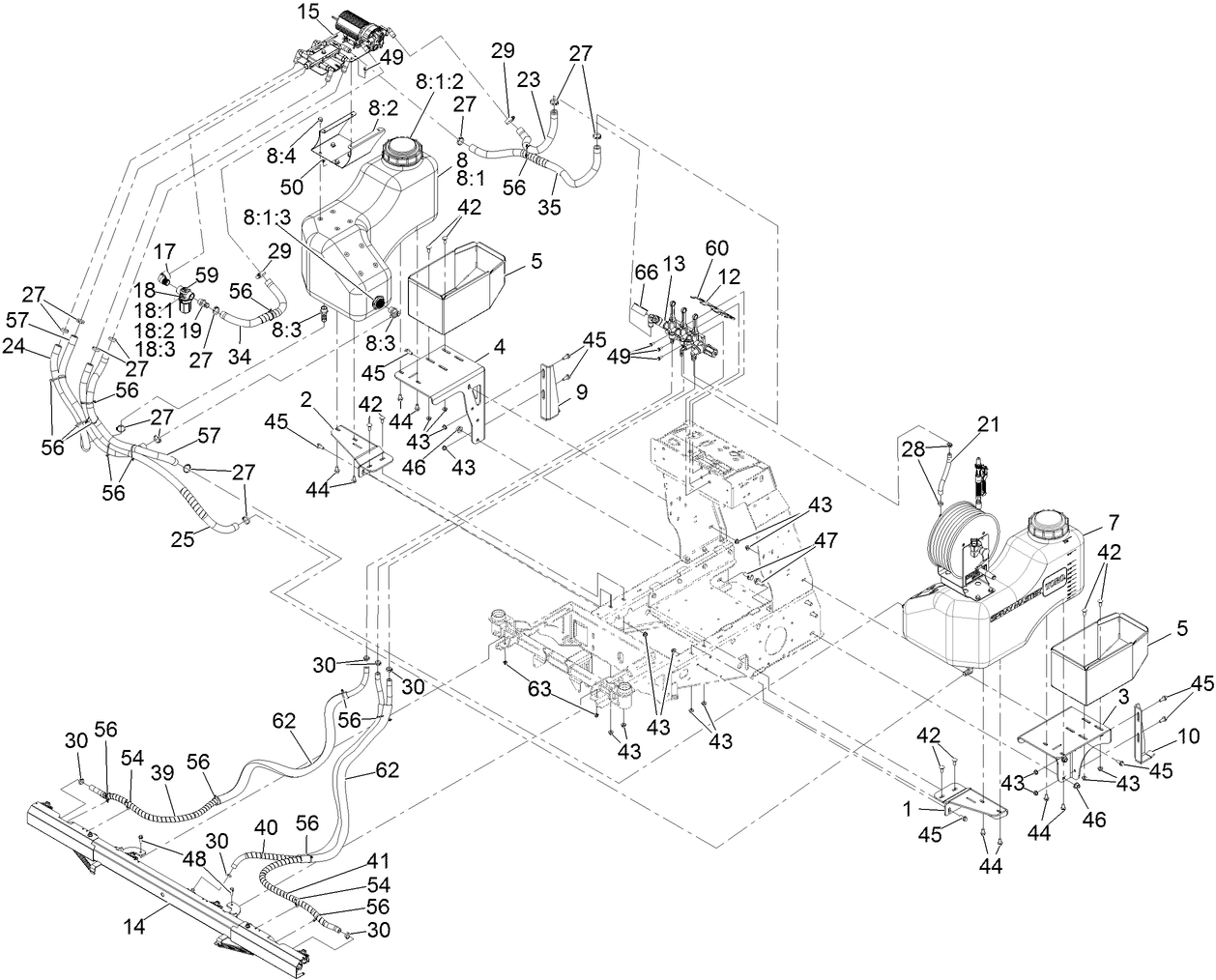

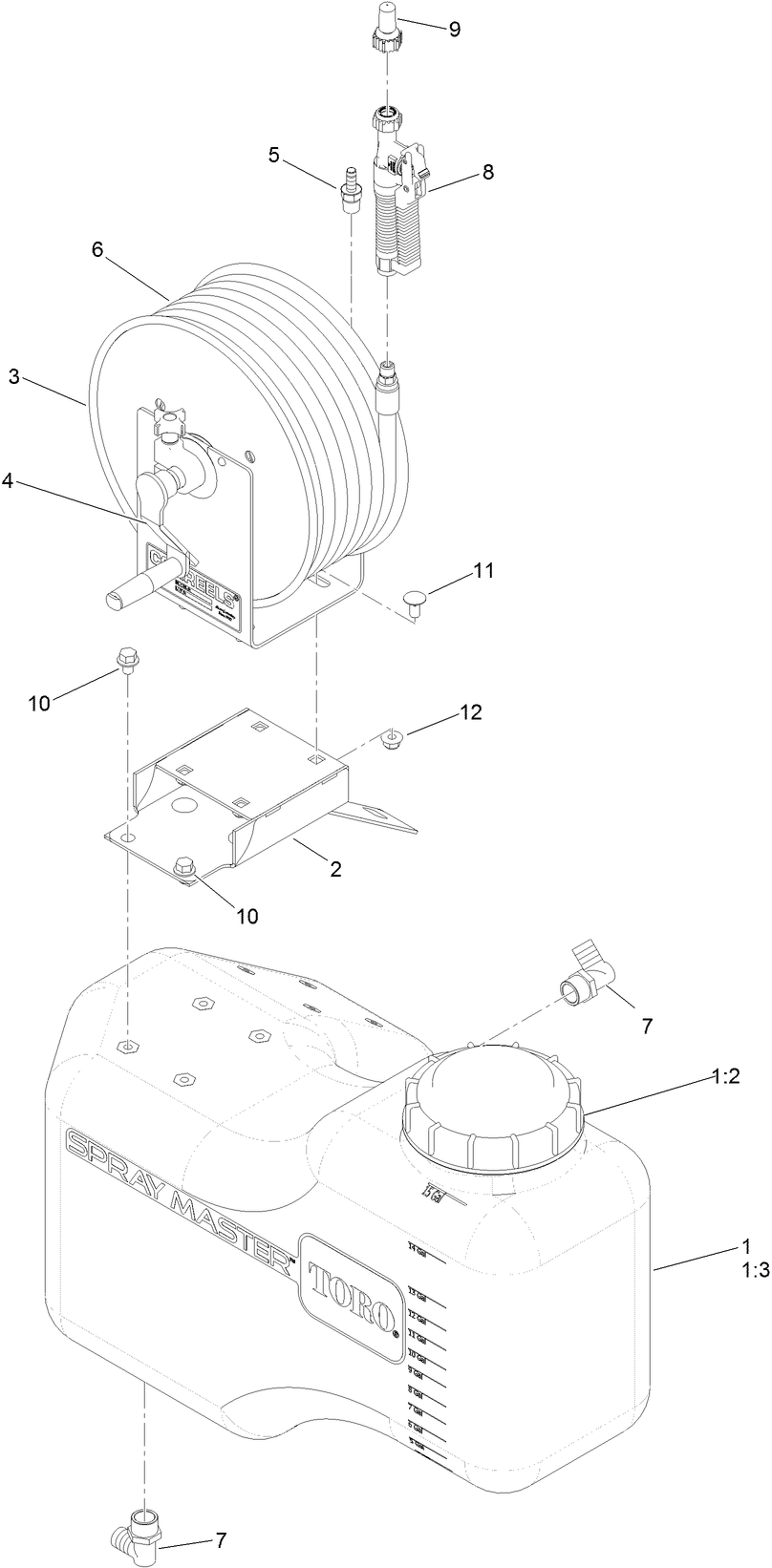

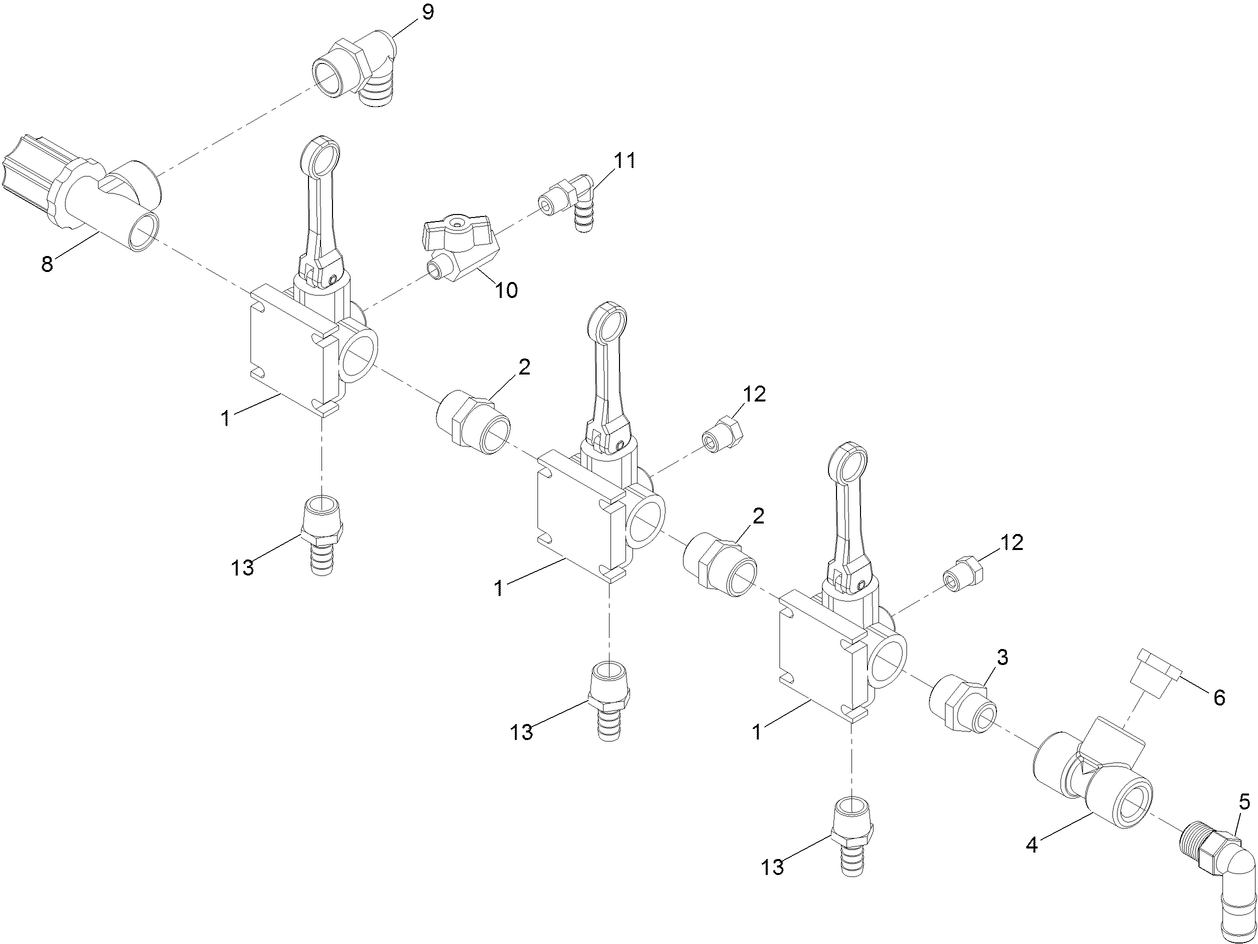

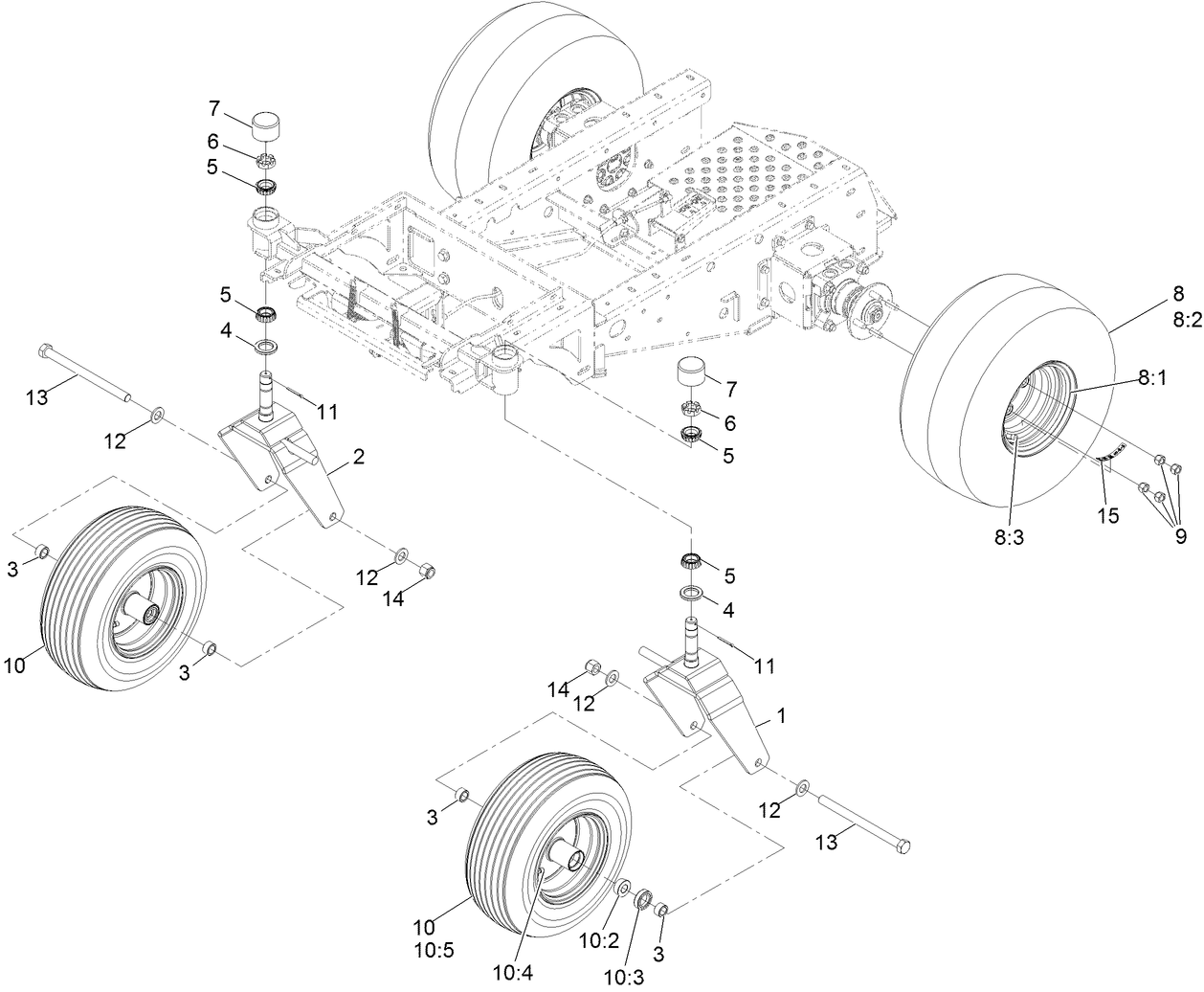

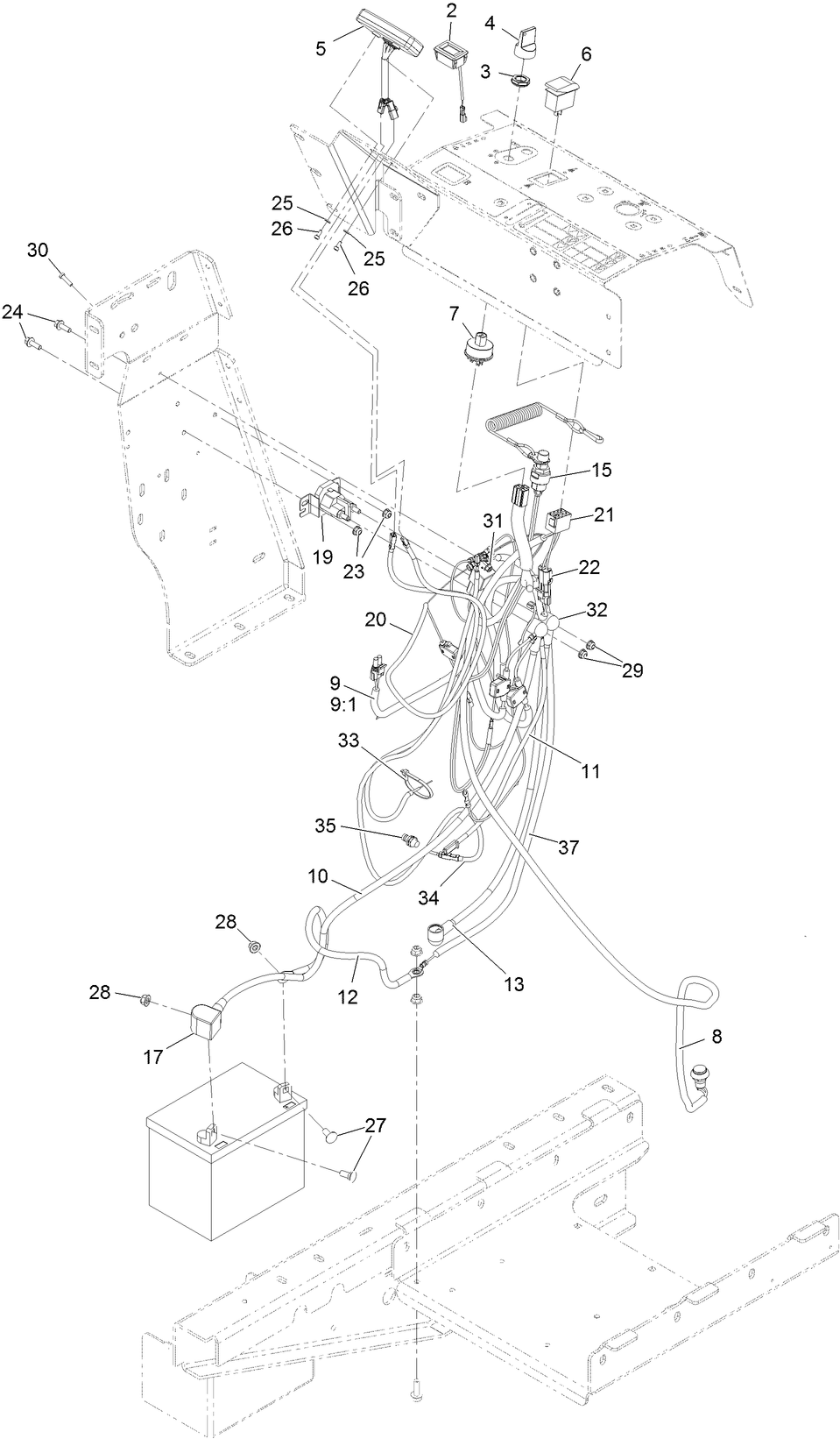

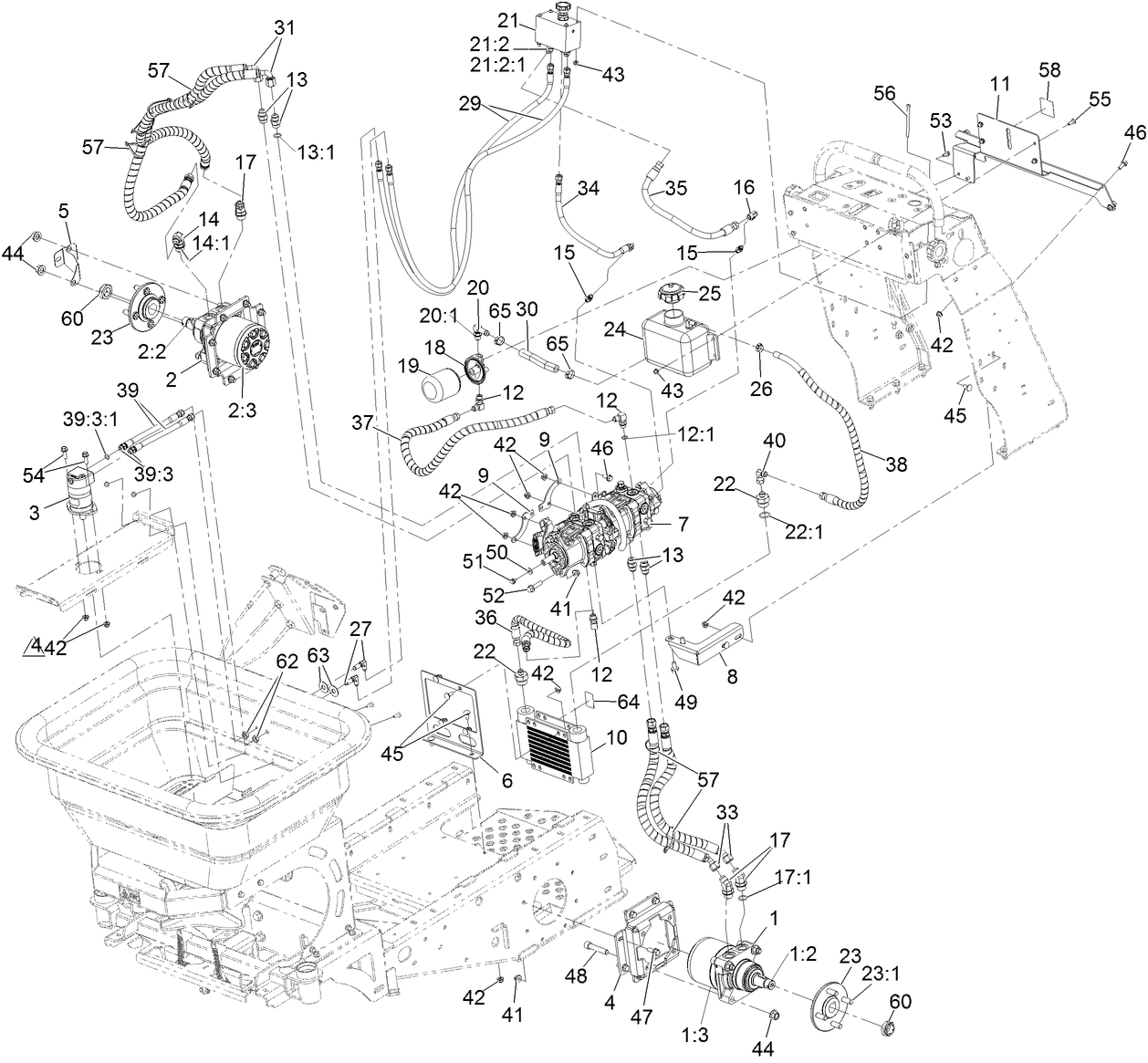

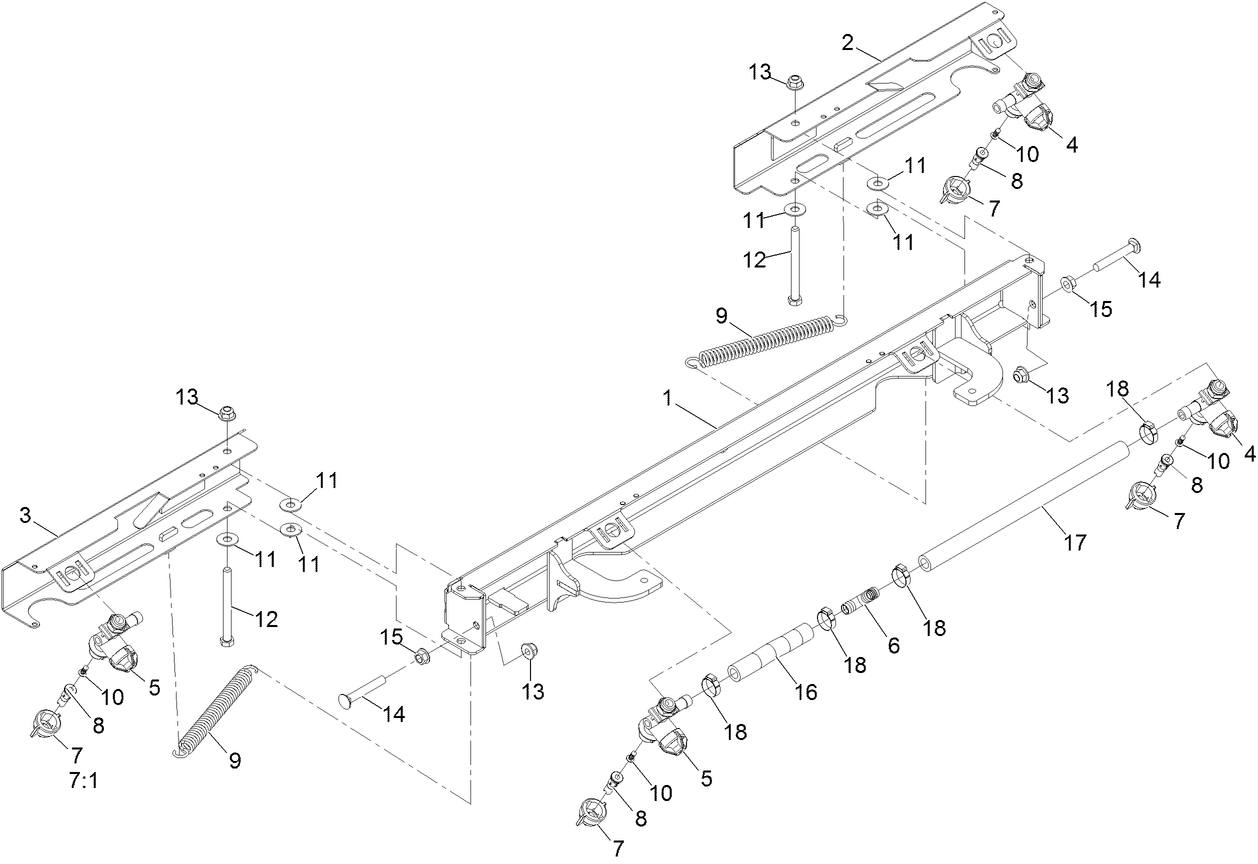

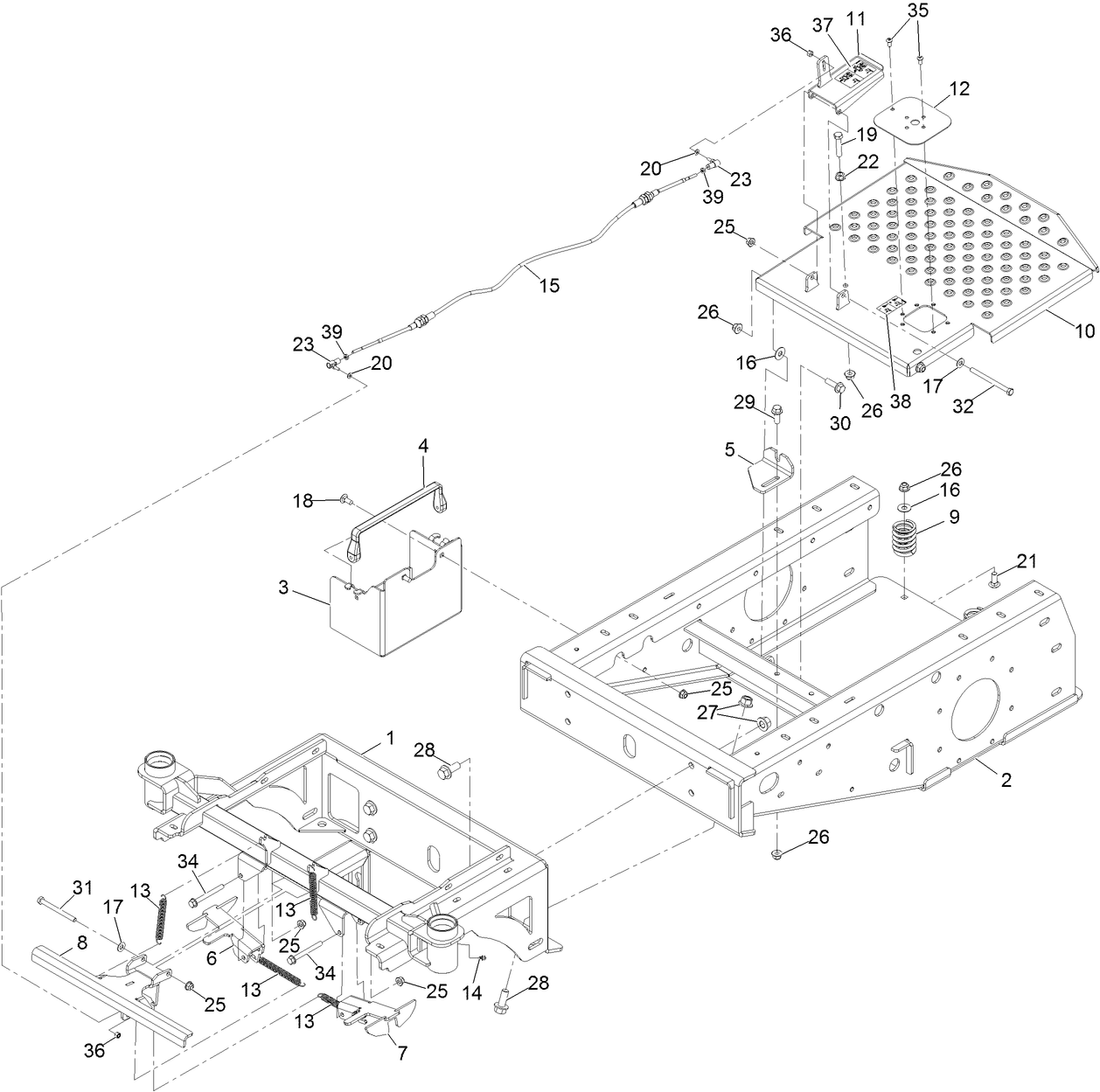

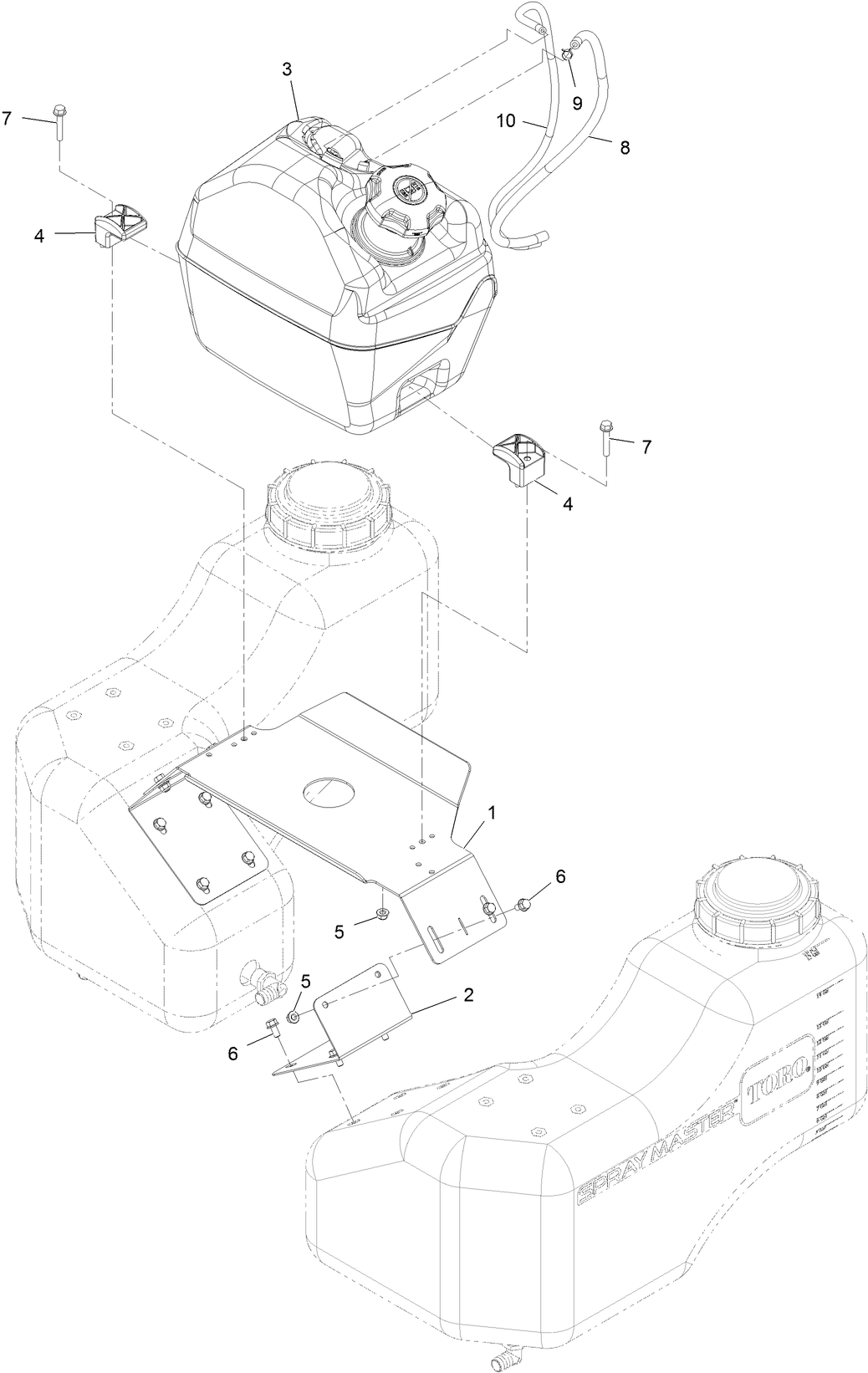

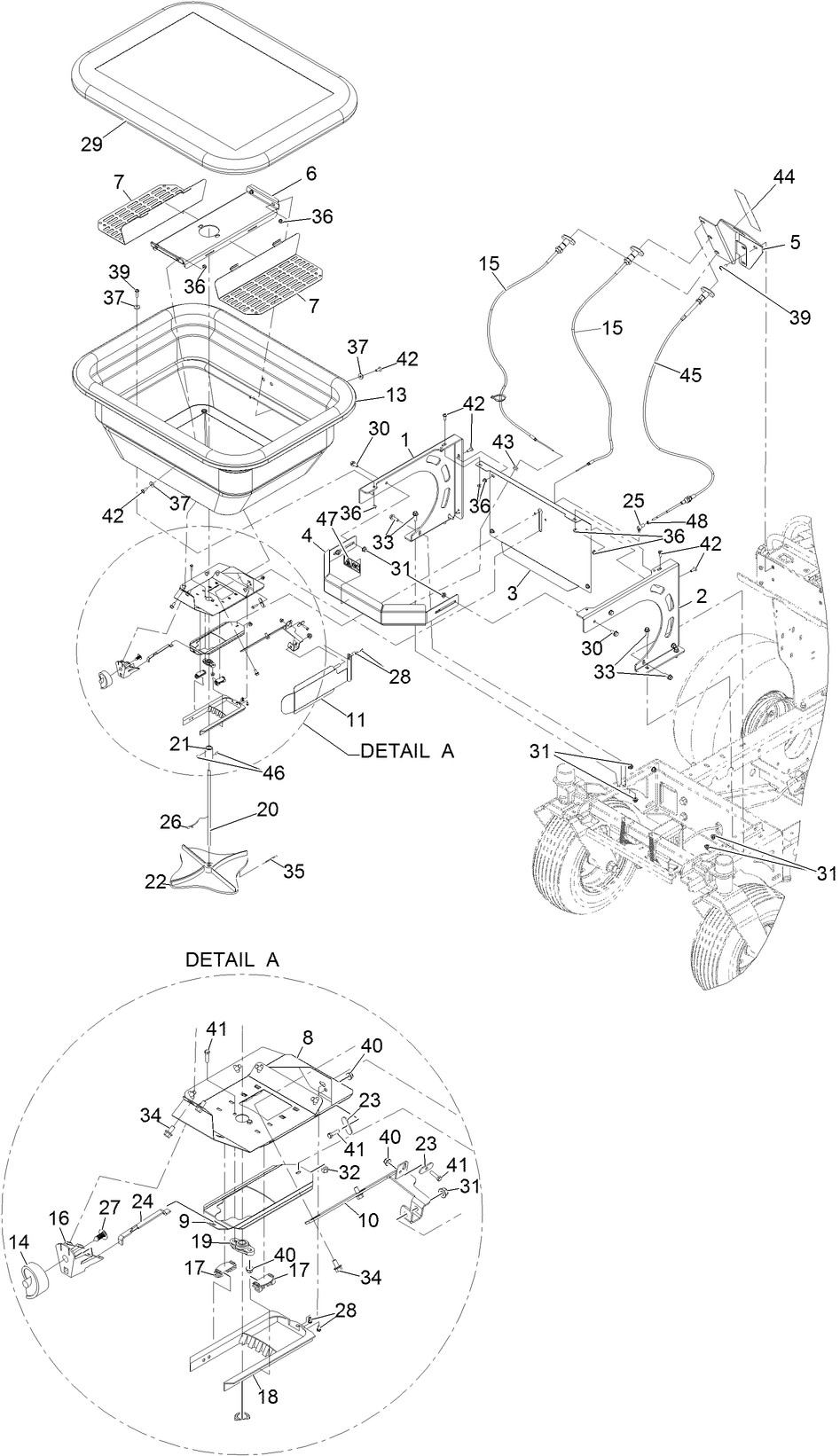

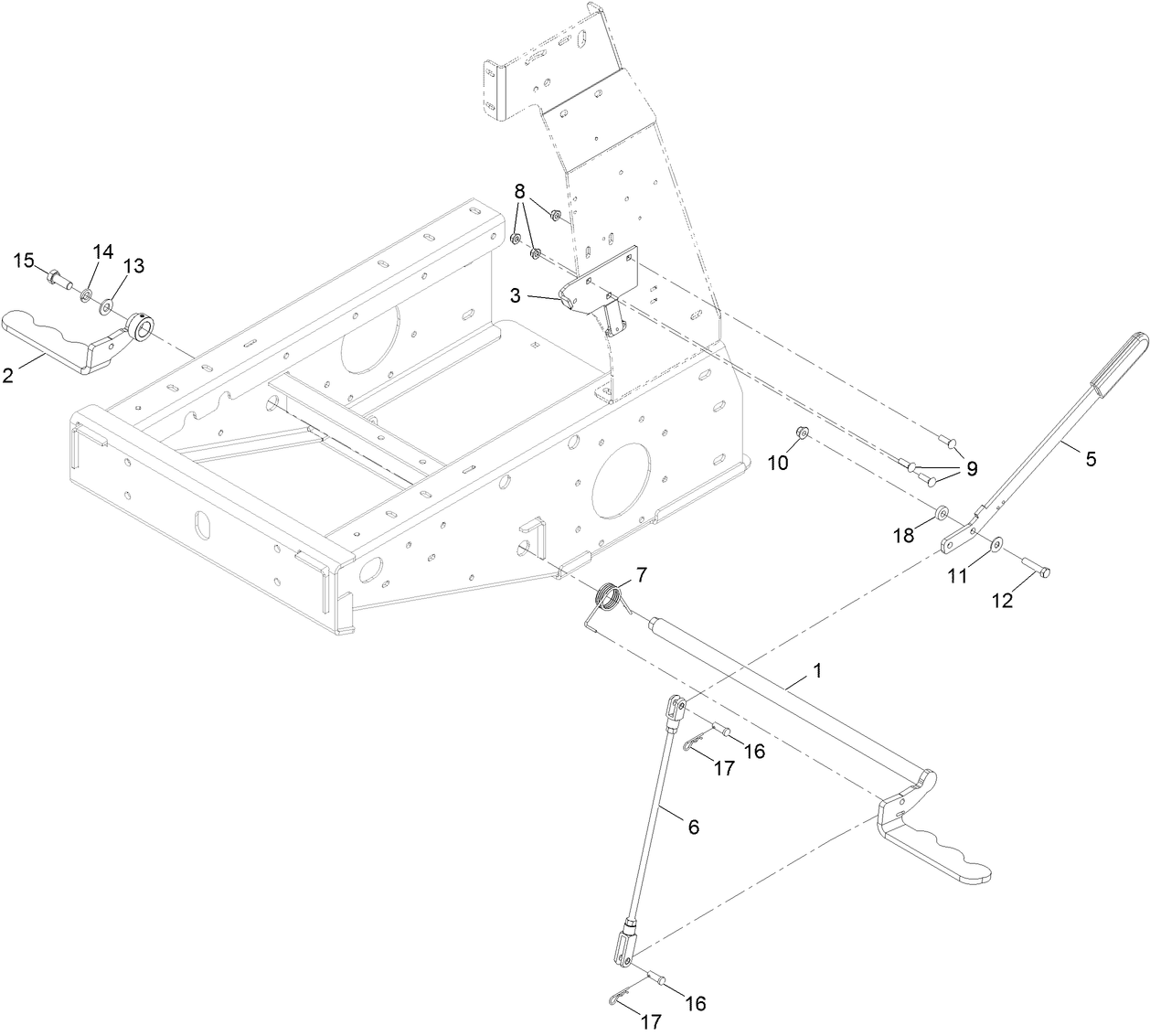

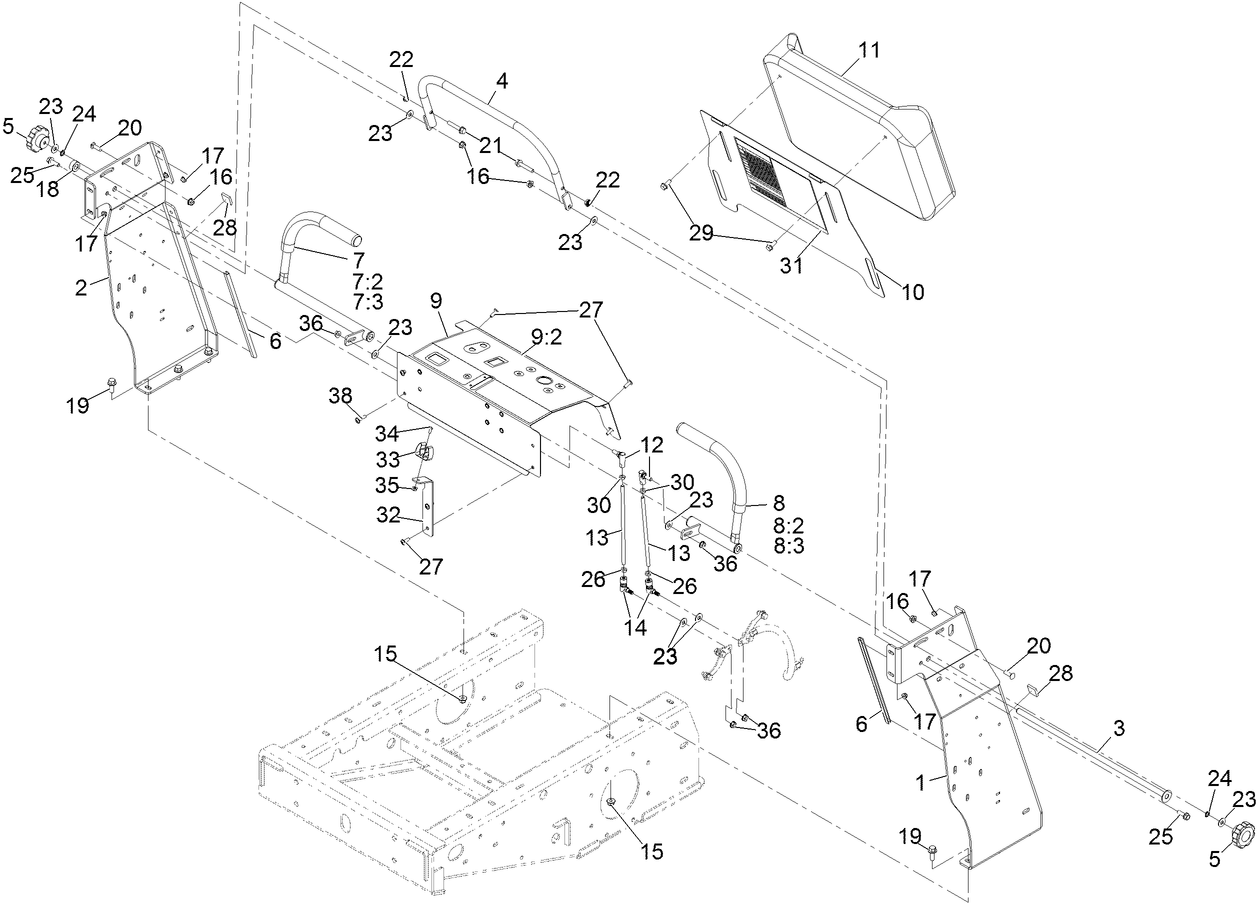

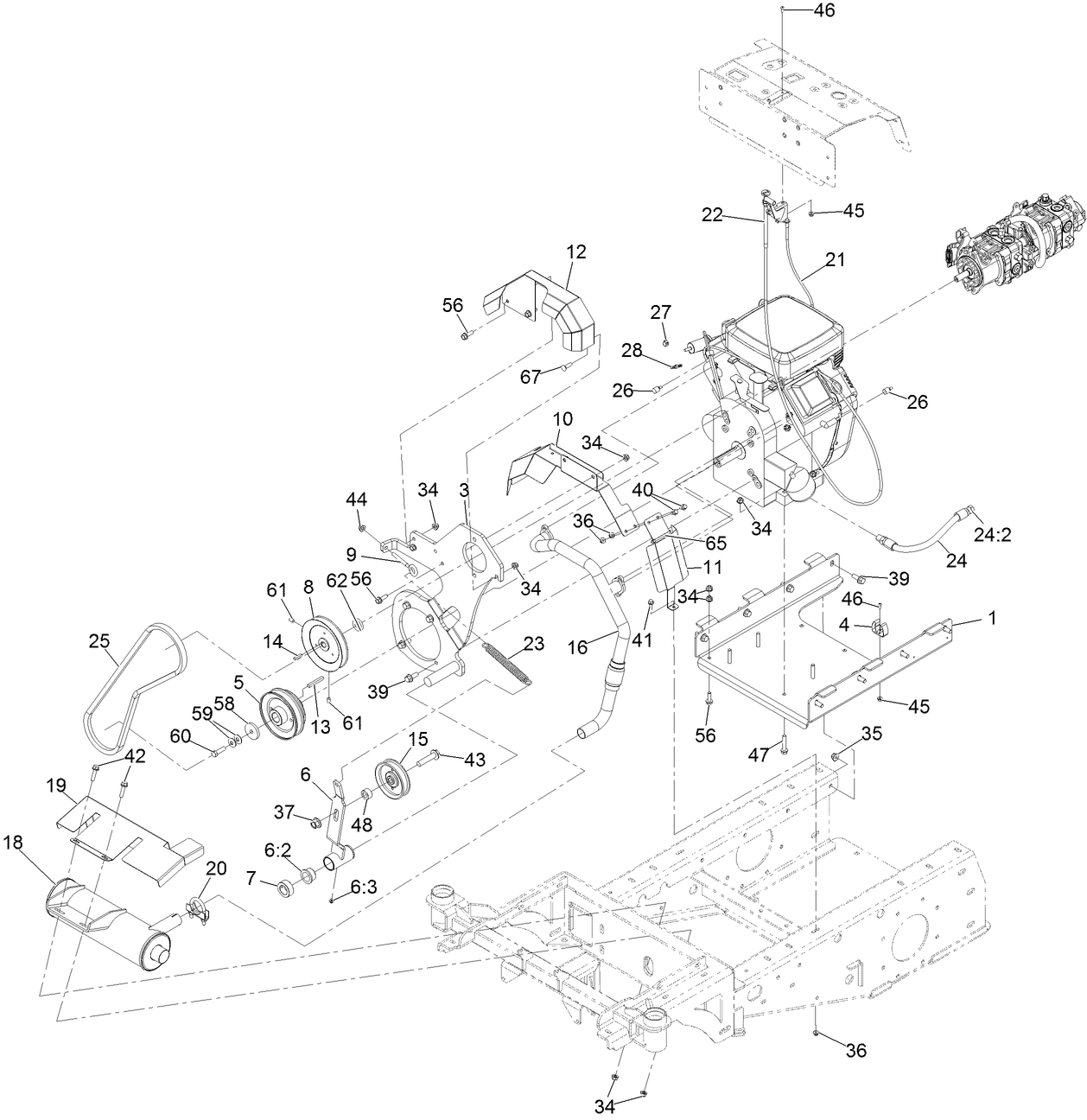

Assembly Drawings
Search for a part within assembly drawings:
-
Operator's Manual
-
Product Warranty
-
Setup Instructions
Foam Marker Kit (Part # 135-6663)

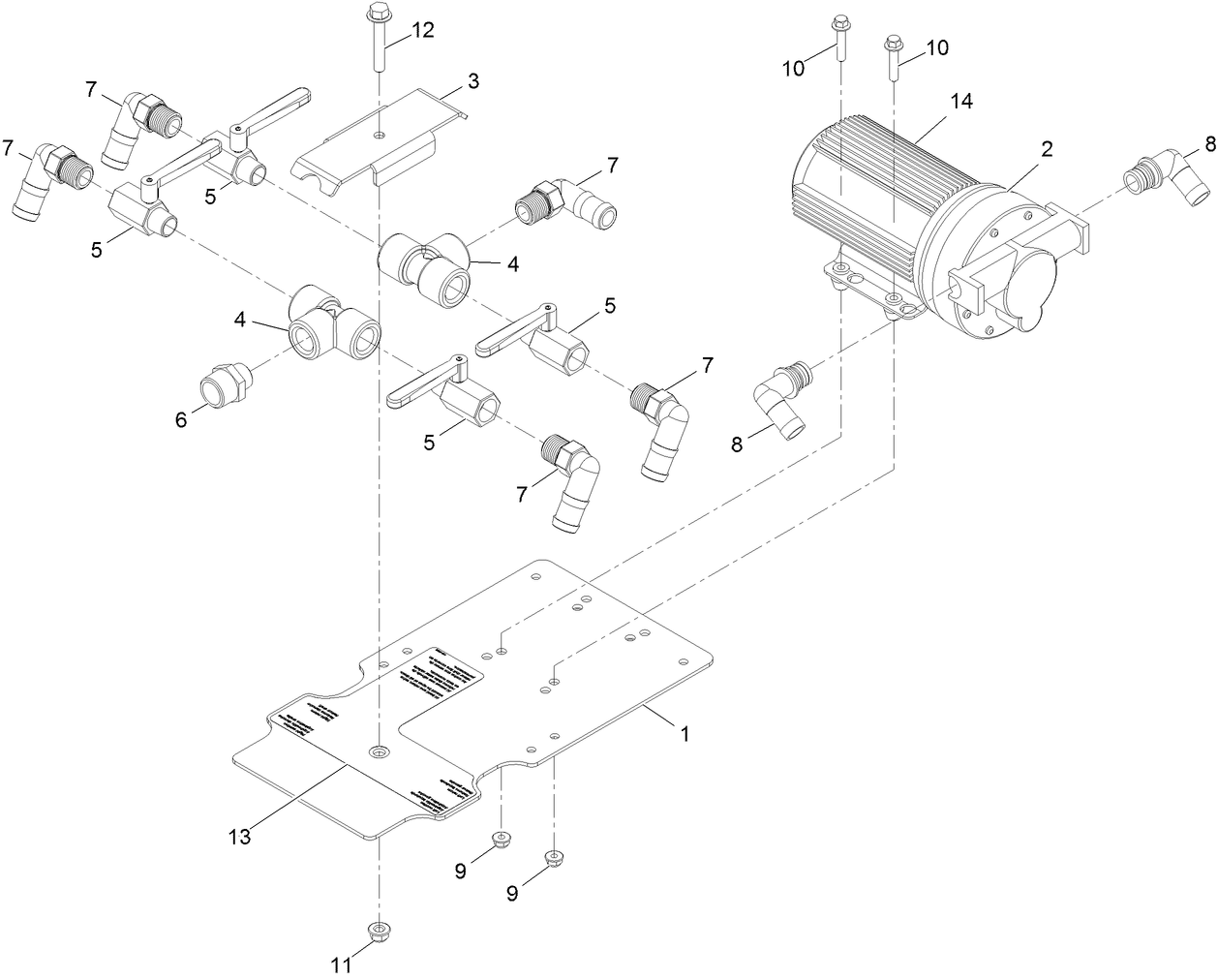

Liquid Valve and Alternator Kit (Part # 135-7916)
Alternator Kit (Part # 135-7923)
30 Gallon Auxiliary Tank Kit (Part # 142-2271)
7 Gallon Isolated Tank Kit (Part # 142-2272)
7 Gallon Auxiliary Tank Kit (Part # 142-2273)
TIP-SPRAY, 015 (Part # 142-3306)
TIP-SPRAY, 02 (Part # 142-3307)
TIP-SPRAY, 025 (Part # 142-3308)
TIP-SPRAY, 03 (Part # 142-3309)
TIP-SPRAY, 04 (Part # 142-3310)
TIP-SPRAY, 05 (Part # 142-3311)
TIP-SPRAY, 06 (Part # 142-3312)
-
Model #
34233 -
Serial #
406912824 - 999999999 -
Product Name
46in Sprayer, Spray Master -
Product Brand
Toro -
Product Type
Sprayers -
Product Series
Turf Maintenance Equipment -
Chassis Type
Stand On -
Swath
46 inch -
Engine/Motor Manufacturer
Briggs & Stratton -
Engine/Motor Size
16 hp -
Engine/Motor Type
4 Cycle -
Engine Starter
Electric -
Transmission Type
Hydrostatic -
Traction Type
Rear WD
-
Engine: Battery
12V 340CCA -
Engine: Engine Speed
3600±100 RPM -
Engine: Spark Plug
Champion RJ12 -
Engine: Spark Plug Gap
.030"/ .76mm -
Chassis: Tire Pressure
17-20 PSI / 116-137 kPa -
Engine: Engine Oil Type
56 oz. (1.65 Liter) SAE 30
