30 in. (76 cm) TurfMaster® HDX with Casters

  • Model: 22236
  • UPC/EAN: 21038222363
See All Items in 30" TurfMaster® HDX
Find a Dealer

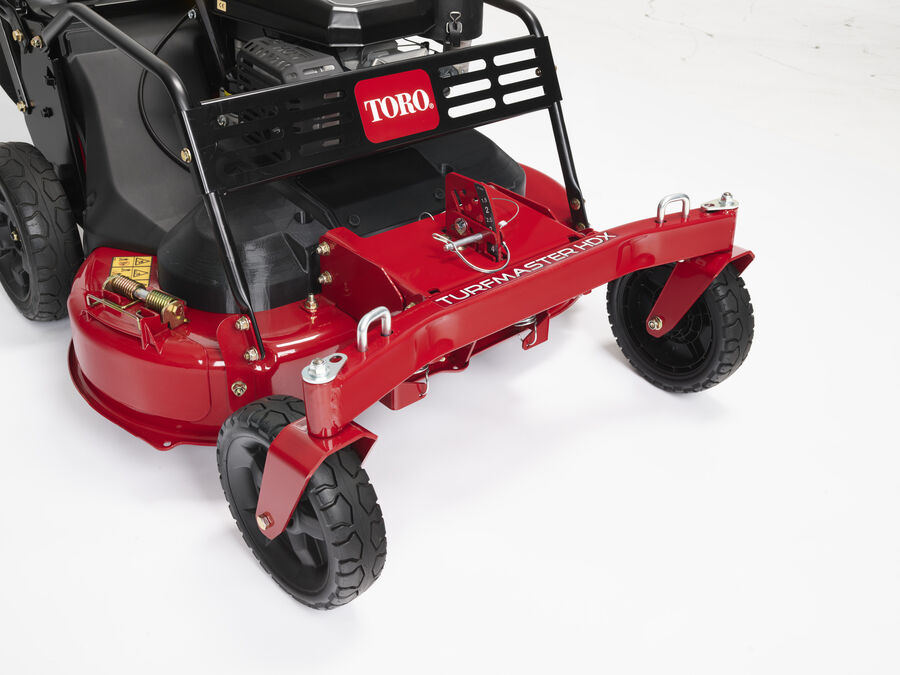

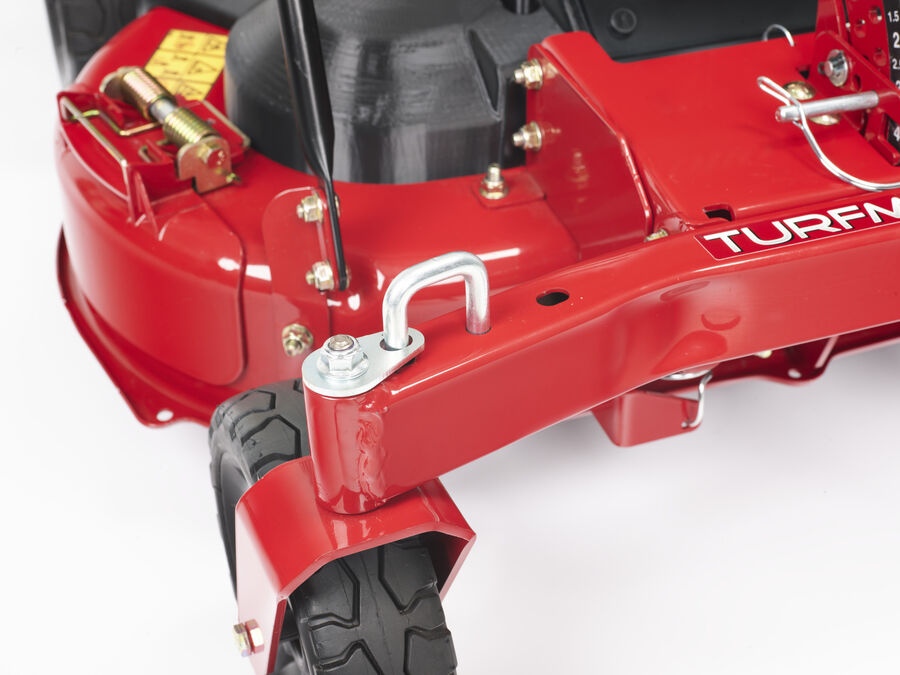

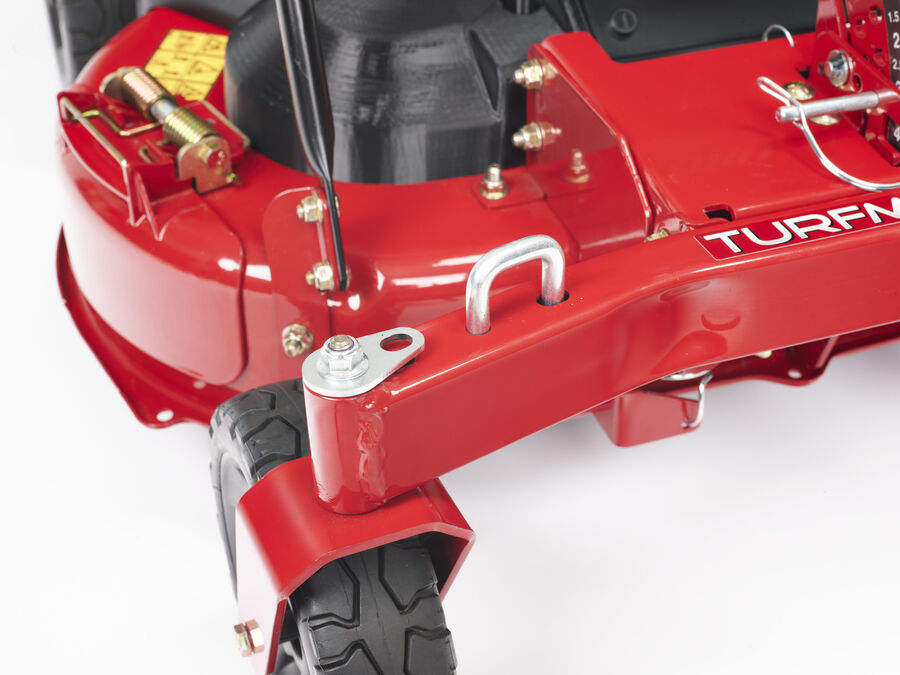

  • Caster wheel front end set up - Locking capability to aid with holding straight lines
  • Reduced Refills - Less time refueling with the 1-gallon gas tank.
  • Toro Tough - Rubber tires with co-polymer wheels and ball bearings.
  • Horizon360® Business Management Software. Work More Efficiently. Run More Profitably.

Overview

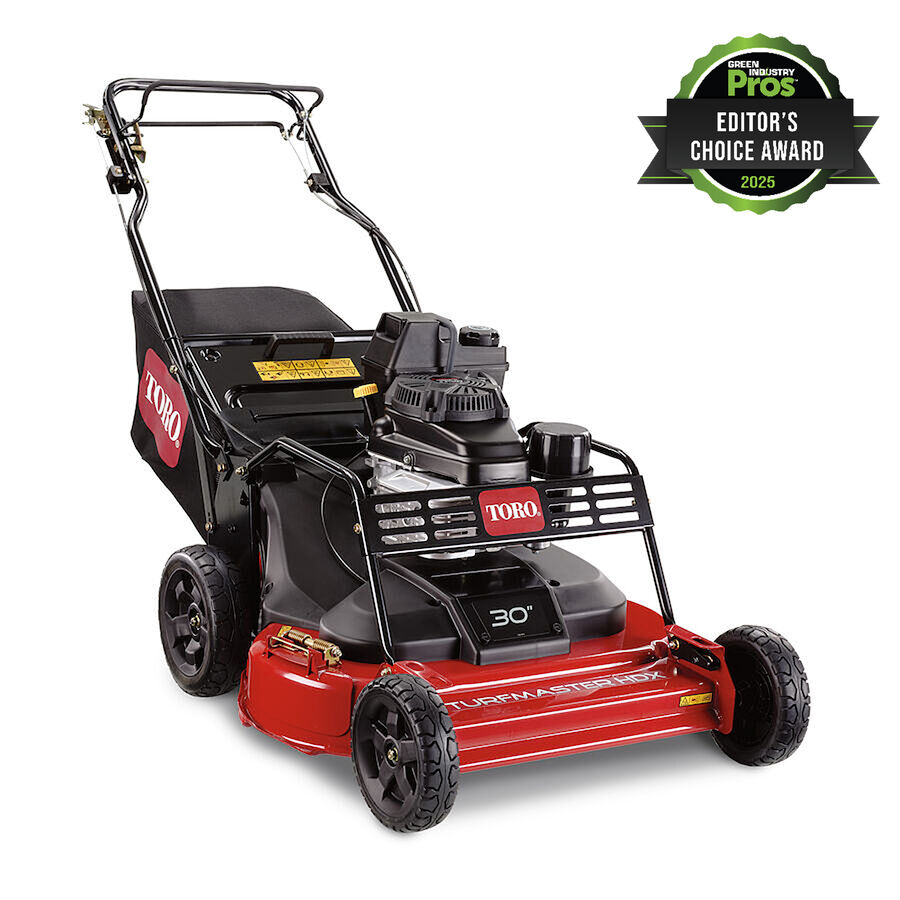

The TurfMaster® HDX 30” with casters delivers the legendary power, durability, and cut quality pros demand—now with even greater maneuverability. Its rugged 30” deck and Kohler CV224 Command Pro engine power through tough conditions, while the caster front end navigates tight spaces with ease and locks in for precision on open terrain. Built for all-day productivity, it features a two-point height of cut system for quick adjustments, a blade brake clutch for fast stops and restarts, and a large one-gallon gas tank for fewer refuels. The split deck belt cover streamlines maintenance, providing quick access for cleaning and servicing to keep the mower running at peak efficiency. As the lightest 30” caster commercial-grade mower, it’s tough, agile, and ready to tackle any job.

Features

2-Point Height of Cut
2-Point Height of Cut
Heavy-duty 2-point height of cut (HOC) system makes it easy to adjust deck height. No need to walk around the mower to adjust four different levers.
Large 1-Gallon Gas Tank
Large 1-Gallon Gas Tank
A larger gas tank means longer mowing time between refueling.
Blade Brake Clutch (BBC)
Blade Brake Clutch (BBC)
Allows the operator to disengage the blades without shutting down the engine. Saves time restarting when you have to step away momentarily to move obstacles or empty the bag.
Commercial-Grade Wheels
Commercial-Grade Wheels
Rubber tires with co-polymer wheels feature precision ball bearings for long life with less downtime and lower replacement costs.
Horizon360 system used by contractor
Horizon360® Business Management Software.
Managing and growing your business is hard work. Using a business management software system shouldn't make it harder. That is why we built Horizon360. If you can type and point/click a mouse, you have all the skills required.

For more information click here.

Specifications

Bagger Capacity 2.5 bushels
Blade Design 0.135 in. / 0.343 cm Thick Steel
Blade Engagement Blade Brake Clutch (BBC)
Blade Tip Speed 18,000 ft/min / 5,486 m/min
Box Dimensions 41.75 in x 33 in x 26 in / 106.0 cm x 83.8 cm x 66.0 cm
CARB Compliant CARB Compliant
Deck Material 13 Gauge Steel Deck / Cast Aluminum Frame
Deck Size 30 in / 76 cm
Engine Kohler CV224 Command Pro 224 cc
Engine Brand Kohler
Engine Displacement (cc) 224 cc
Forward Mowing Speed Up to 4.0 mph / 6.4 kph
Fuel Capacity 1 gal. / 3.8 L / 4 Qt.
Fuel Type Gasoline
Height of Cut 1.5 - 5.0 in. / 3.8 - 12.7 cm in 0.50 in (1.3 cm) increments
Mulch, Bag, Side Discharge Bag standard, Mulch standard, Side discharge standard
Number of Blades 2
Product Type Walk Behind Mowers
Product Use Commercial
Spindle Housing Die Cast Spindle, 17 mm Cold Formed Spindle Shafts
Start Type Pull Cord
Tires Front: 9 in. x 2 in. (22.8 cm x 5.0 cm) Rubber Tire w/Co-Polymer Caster Wheels
Rear: 10.5 in. x 3 in. (26.6 cm x 7.6 cm) Rubber Tire w/Co-Polymer Wheels
Transmission Heavy Duty Self-Propelled
Weight 195 lbs / 88.5 kg

Parts & Manuals

Select your model year from the options below to view parts & manuals.

22236 Serial #
420000000-999999999
418900000-419999999
400000000-418899999



Warranty

1-Year Limited Unit, 3-Year Limited Engine

**See dealer for Warranty details.
