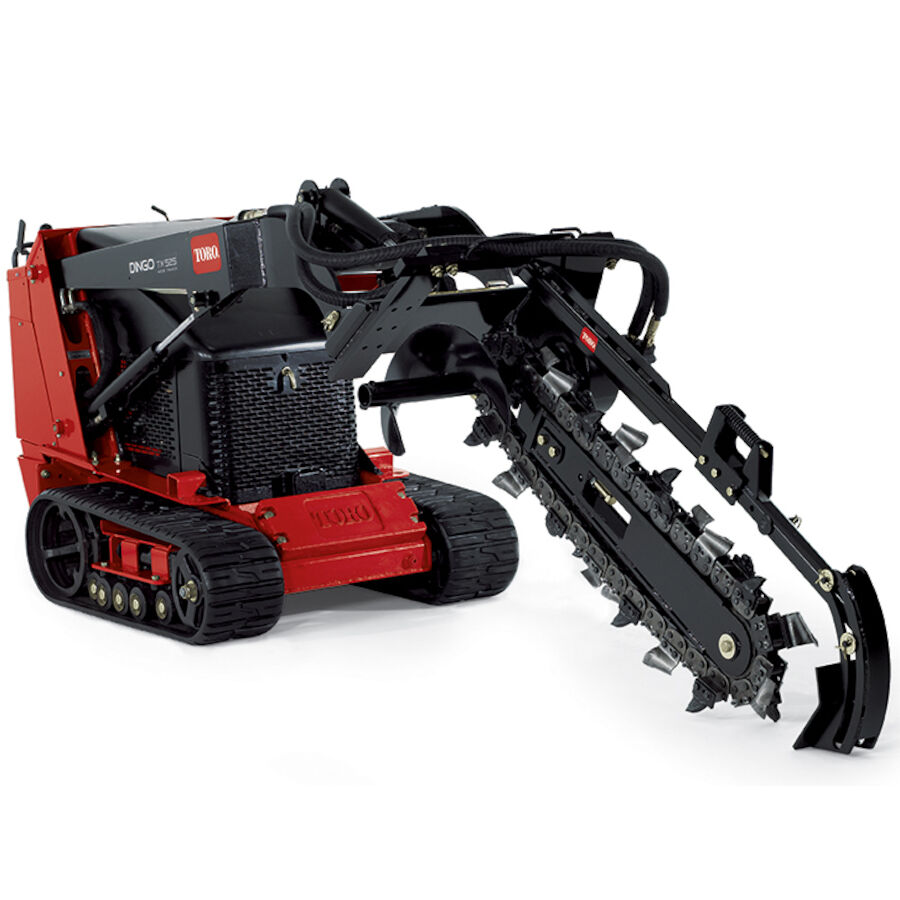

High Speed Trencher Attachment

Model: 22474

Find a Dealer

24" (61 cm), 36" (91.5 cm) or 48" (121.9 cm) booms available
4" (10.2 cm), 6" (15.2 cm), 8" (20.3 cm) or 12" (30.5 cm) chain widths available
Heavy-duty nose roller bearing lasts longer, providing less "shock" to the trencher assembly and chain.

Top

Find a Dealer

Overview

Ideal for fast, efficient trenching in most soil conditions. Great for cable, pipe or irrigation installations.

Features

Reversible Boom

Reverse the boom on the trencher to double the life! The boom is made of high abrasion resistant material to fight wear and last longer.Dimensions: 24" (61 cm), 36" (91.5 cm) or 48" (121.9 cm)

Chain Tensioner

Designed for easy access and low maintanence. Allows operator to easily adjust chain tension to fit soil conditions.

Nose Roller

Heavy-duty nose roller bearing with triple lip seal.

Dingo Hydraulic Drive

Allows trencher to be reversed in the toughest conditions to free jams.

Specifications

Auger Diameter (cm)	31.8
Auger Diameter (inches)	12.5
Auger Speed	243 rpm at 14.3 gpm
Construction	Fabricated, welded steel frame
Height (cm)	61
Height (inches)	24
Length (cm)	165
Length (inches)	65
Mounting Frame	Dingo® quick-attach mount plate, fabricated, welded base
Quick Couplers	Dripless, flush face quick couplers
Torque	442 ft/lbs at 3000 psi
Weight (kg)	177
Weight (lbs)	390
Width (cm)	89
Width (inches)	35

Accessories

Trencher Crumber (Part # 22477)

Trencher accessory to help clean out trenches.

24" x 4" Soil Chain (Part # 22480)

2-pitch chain w/4-pitch tooth spacing (24 station).

24" x 4" Combo Chain (Part # 22481)

2-pitch chain w/soil and rock teeth (24 station).

24" x 4" Rock Chain (Part # 22482)

Welded shark chain 100% rock tooth (24 station).

24" x 6" Soil Chain (Part # 22483)

2-pitch chain with 4-pitch tooth spacing (24 station).

24" x 6" Combo Chain (Part # 22484)

2-pitch chain with soil and rock teeth (24 station).

24" x 6" Rock Chain (Part # 22485)

Welded shark chain 100% rock tooth (24 station).

36" x 4" Soil Chain (Part # 22486)

2-pitch chain with 4-pitch tooth spacing (32 station).

36" x 4" Combo Chain (Part # 22487)

2-pitch chain with soil and rock teeth (32 station).

36" x 4" Rock Chain (Part # 22488)

Welded shark chain 100% rock tooth (32 station).

36" x 6" Rock Chain (Part # 22489)

Welded shark chain 100% rock tooth (32 station).

36" x 6" Soil Chain (Part # 22490)

2-pitch chain with 4-pitch tooth spacing (32 station).

36" x 6" Combo Chain (Part # 22491)

2-pitch chain with soil and rock teeth (32 station).

48" x 4" Soil Chain (Part # 22492)

4-pitch chain with 4-pitch tooth spacing (20 station).

48" x 4" Combo Chain (Part # 22493)

4-pitch chain with soil and rock teeth (20 station).

48" x 6" Soil Chain (Part # 22494)

4-pitch chain with 4-pitch tooth spacing (20 station).

48" x 6" Combo Chain (Part # 22495)

4-pitch chain with soil and rock teeth (20 station).

24" Boom (Part # 22975)

24" trencher boom.

36" Boom (Part # 22976)

36" trencher boom.

48" Boom (Part # 22977)

48" trencher boom.

Parts & Manuals

Select your model year from the options below to view parts & manuals.

22474 Serial #
404200000-999999999
402000000-404199999
400000000-401999999
316000001-316999999
315000001-315999999
314000001-314999999
313000001-313999999
312000001-312999999
311000001-311999999
310000001-310999999
290000001-290999999

Warranty

For complete product warranty information contact Toro Customer Service

**See dealer for Warranty details.
