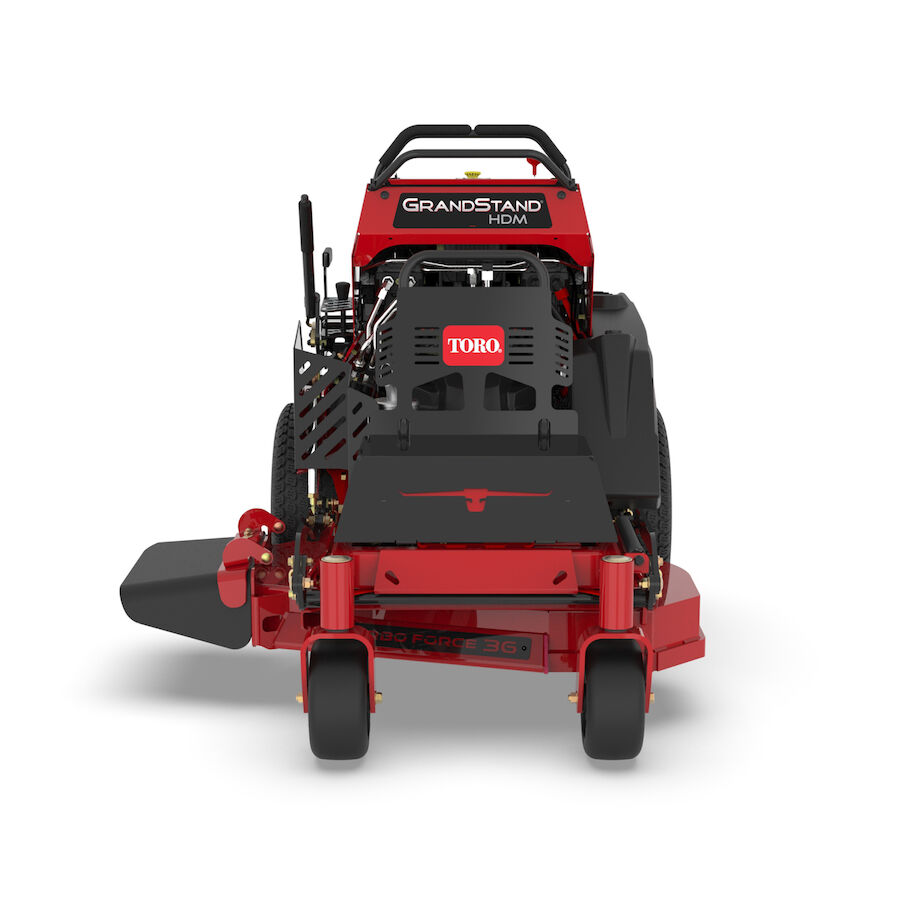

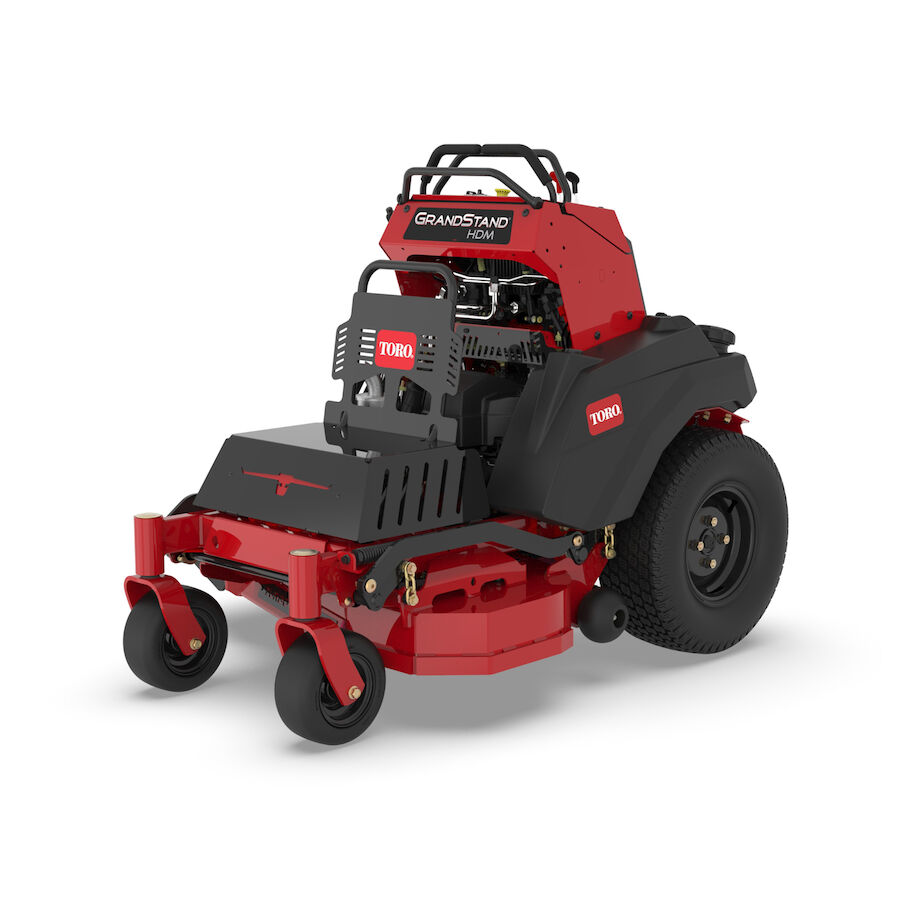

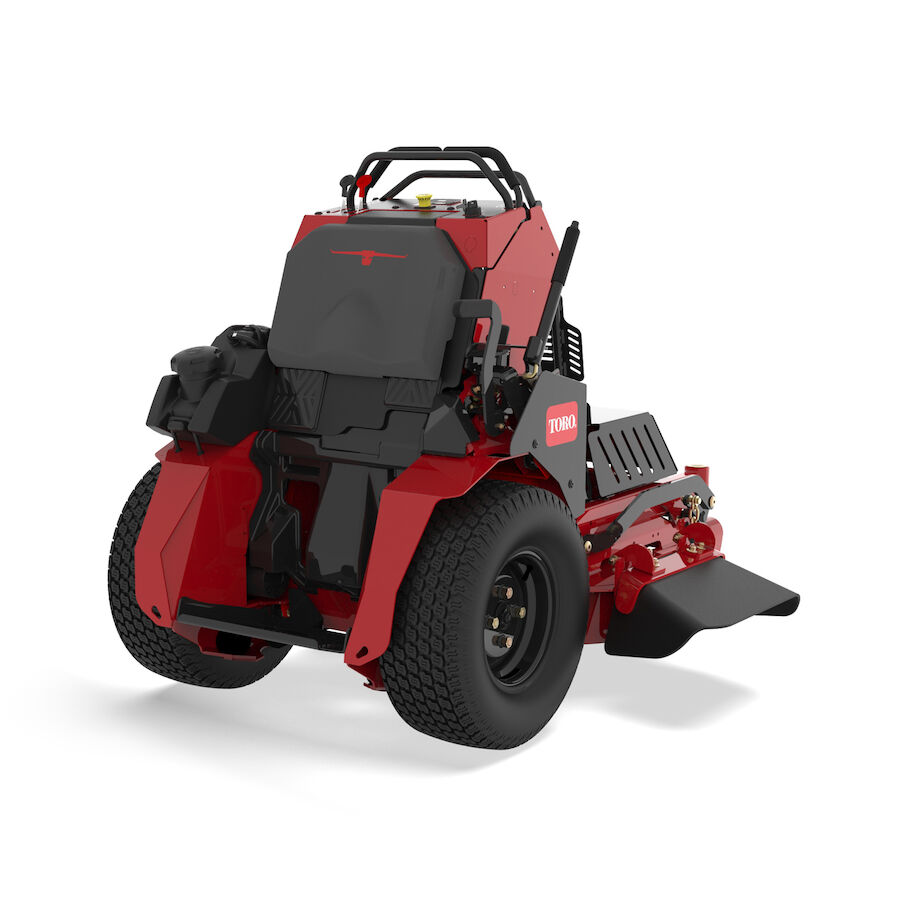

GrandStand® HDM 32 in (81.3 cm) 18.5hp (603cc)

  • Model: 74532
  • UPC/EAN: 21038745329
See All Items in GrandStand® Gas Stand-On Mowers
  • Great visibility for easy navigation around obstacles, protecting the operator, mower, and property.
  • The 7 gauge TURBO FORCE® deck with the i-beam front end is built to last and backed by our impressive warranty.
  • Horizon360® Business Management Software. Work More Efficiently. Run More Profitably.
  • Compact for access to more yards, exceptional maneuverability, and easy storage and trailering.
  • Mow more in less time without the fatigue that comes with operating a small walk-behind mower.
  • Get the job done 3x faster than a 21-inch walk behind mower.**
    **Disclaimer: Ground coverage via wider cutting path and enhanced speed of 32" GrandStand Compact vs 21" Heavy Duty mower and will vary due to mowing conditions.
  • Redesigned hood flips up for easy maintenance and cleaning.
  • Trim close without damaging landscape structures or your chute.
  • Lift and lock the rear cover into place to easily check and fill both engine oil and hydro fluid.

Overview

You asked for a compact GrandStand. We listened. We've added a 32-inch deck option to the fan-favorite stand-on lineup. Combining the speed and comfort of a zero-turn riding mower with the ease and maneuverability of a walk mower, you'll knock out more jobs, faster, without the fatigue of a small walk-behind. From mowing to maintenance, this compact machine is built for easy, fast work.

Features

Better Visibility
Better Visibility
Great visibility from the operator platform offers easy navigation around obstacles and under branches, protecting the operator, mower, and property.
Built Tough
Built Tough
Endlessly field tested 7 gauge TURBO FORCE® deck with the i-beam front end is built to last, just like the machine backed by an equally impressive warranty.
Horizon360 system used by contractor
Horizon360® Business Management Software.
Managing and growing your business is hard work. Using a business management software system shouldn't make it harder. That is why we built Horizon360. If you can type and point/click a mouse, you have all the skills required.

For more information click here.
Compact Efficiency
Compact Efficiency
Compact for access to more yards, exceptional maneuverability on tough terrain, and smaller footprint for easy storage and trailering.
Less Fatigue, Higher Productivity
Less Fatigue, Higher Productivity
The GrandStand combines the comfort and speed of a riding mower with the maneuverability of a walk-behind to mow more in less time without the fatigue that comes with operating a walk-behind mower.
More Jobs in Less Time
More Jobs in Less Time
Mow at speeds of up to 7.5 MPH to get the job done 3x faster than a 21-inch walk behind mower.**

**Disclaimer: Ground coverage via wider cutting path and enhanced speed of 32" GrandStand Compact vs 21" Heavy Duty mower and will vary due to mowing conditions.
Flip Up Utility Hood
Flip Up Utility Hood
Redesigned hood flips up for easy maintenance and cleaning.
Rubber Discharge Chute
Rubber Discharge Chute
Trim close without damaging landscape structures or your chute.
Access Behind Rear Cover
Access Behind Rear Cover
Lift and lock the rear cover into place to easily check and fill both engine oil and hydro fluid.

Specifications

Air Filter Dual Element with Reinforced Primary Filter
Blade Design 0.204 in. / 0.518 cm Thick Heat-treated Steel
Blade Tip Speed 18,500 ft/min / 5,638 m/min
Box Dimensions 45.5 in. x 70 in. x 52 in. / 115.6 cm x 117.8 cm x 132.1 cm
Brake System Lever Actuated Bar Brake (Park Brake)
CARB Compliant Not CARB Compliant
Carrier Frame Welded Heavy-Duty 1.5 in. x 3 in. Tube Steel
Caster Tires 9 in. x 4.5 in. - 5 in. (22.8 cm x 11.4 cm - 12.5 cm) Smooth Semi-Pneumatic
Clutch Electromagnetic
Cooling System Air Cooled
Deck Design Fabricated Weldment
Deck Material 7 Gauge High-Strength Steel
Deck Size 32 in / 81 cm
Discharge Chute Rubber
Drive System Rear Wheel Drive
Drive Tires 21 in. x 8.5 in. - 10 in. (53.3 cm x 21.6 cm x 25.4 cm) Turf Tires
Drive Type Rear-Wheel Drive
Engine 18.5 hp Kawasaki FS600V 603 cc
Engine Brand Kawasaki
Engine Displacement (cc) 603 cc
Engine Horsepower 18.5 hp
Forward Ground/Transport Speed Up to 7.5 mph / 12.0 kph
Forward Mowing Speed Up to 7.5 mph / 12.0 kph
Front Bumper Bull-Nose
Fuel Capacity 5 gal. / 18.9 L / 20 Qt.
Fuel Type Gasoline
Greasable Bearings Yes
Product Type Stand-On Mowers
Product Use Commercial
Start Type Electric
Steering Controls Twin Lever
Weight 775 lbs / 351.5 kg

Disclaimer

*The gross horsepower of these engines was laboratory rated at 3600 rpm by the engine manufacturer in accordance with SAE J1940 or SAEJ2723. As configured to meet safety, emission and operating requirements, the actual engine horsepower on these mowers will be significantly lower.
**Ground coverage via wider cutting path and enhanced speed of 32" GrandStand Compact vs 21" Heavy Duty mower and will vary due to mowing conditions.

Accessories

Empty Image Container
GrandStand Series Bucket Mount Kit (Part # 136-5681)
Empty Image Container
Empty Image Container
Empty Image Container
Empty Image Container
Empty Image Container
Empty Image Container
Image Not Found
Flasher Light Kit (Part # 161-6716)
Empty Image Container
Empty Image Container
Empty Image Container
Empty Image Container
Empty Image Container
Please contact your local dealer

Parts & Manuals

Select your model year from the options below to view parts & manuals.



Warranty

4-year / 750 hours; 2-Year No Hour Limit

**See dealer for Warranty details.
