Z597-D Z Master, With 72in TURBO FORCE Side Discharge Mower
Product Information
- Model #: 74269
- Serial #: 270000001 - 270000300
- Product Type: Riding Products
Loading...

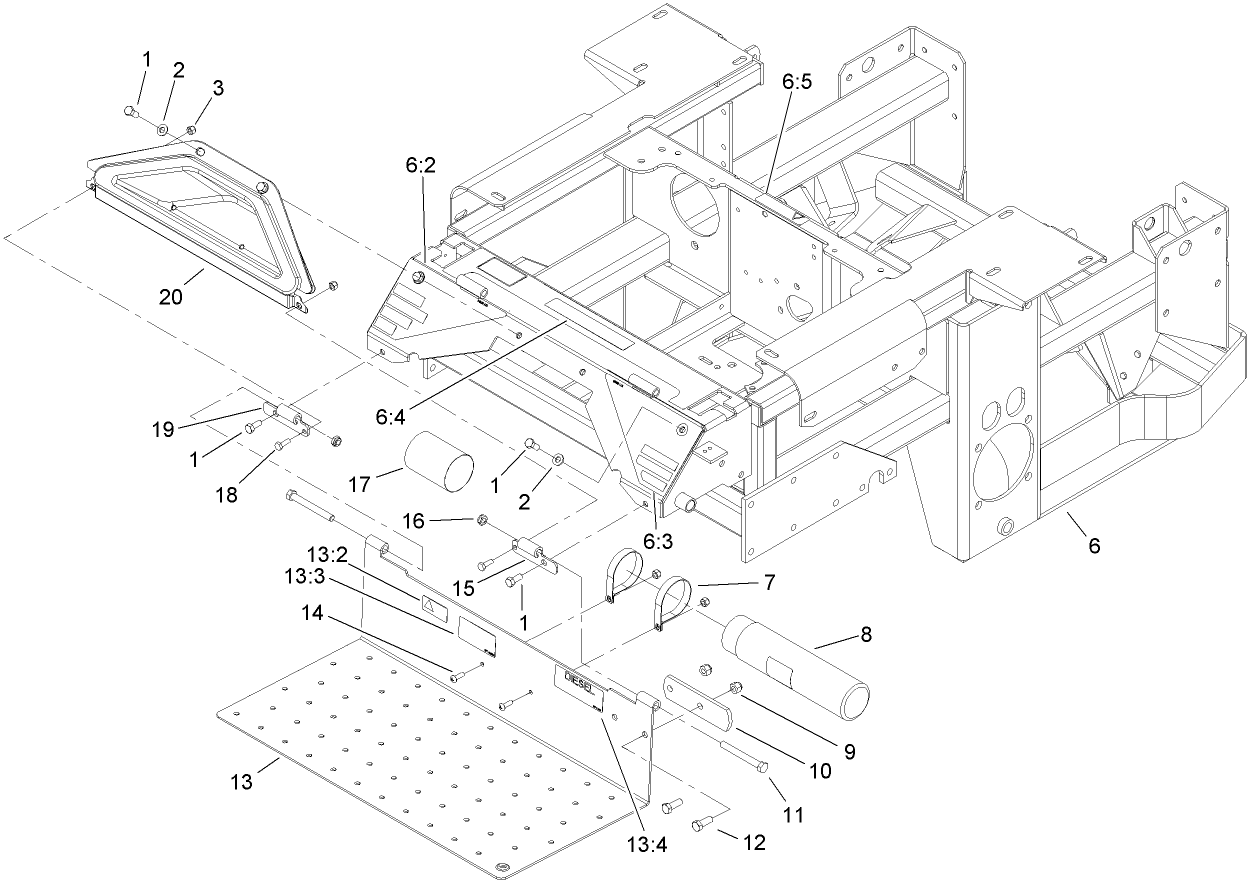

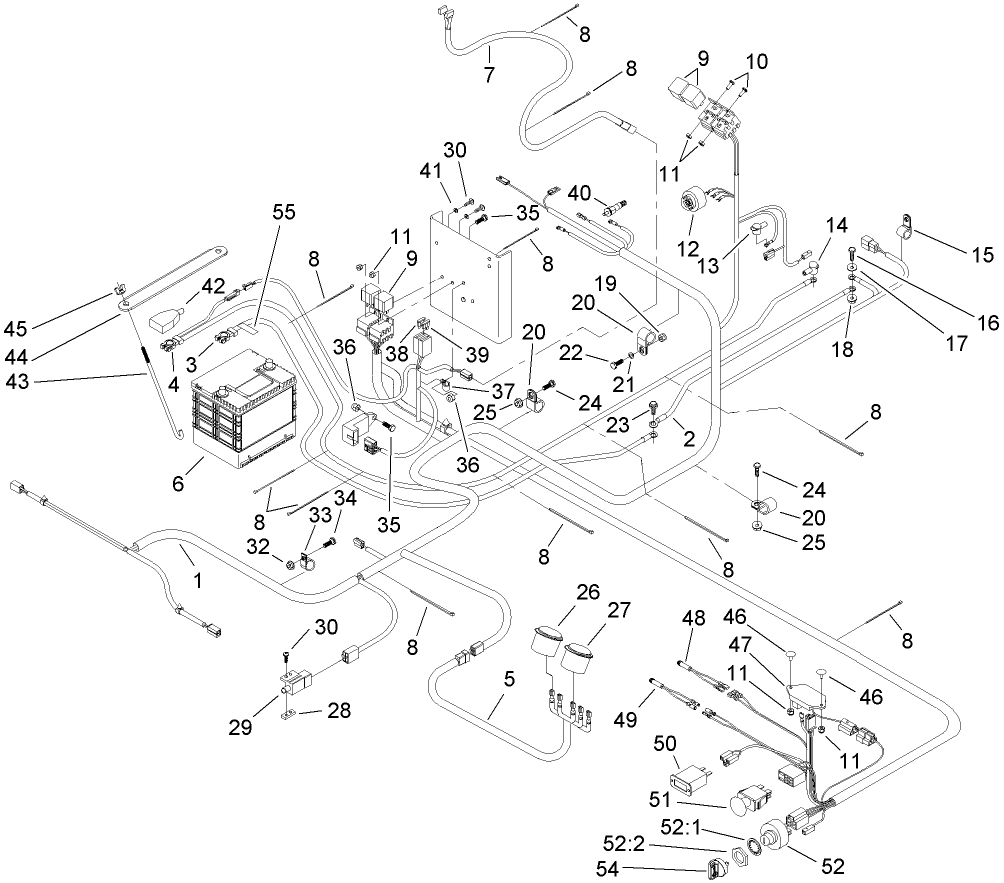

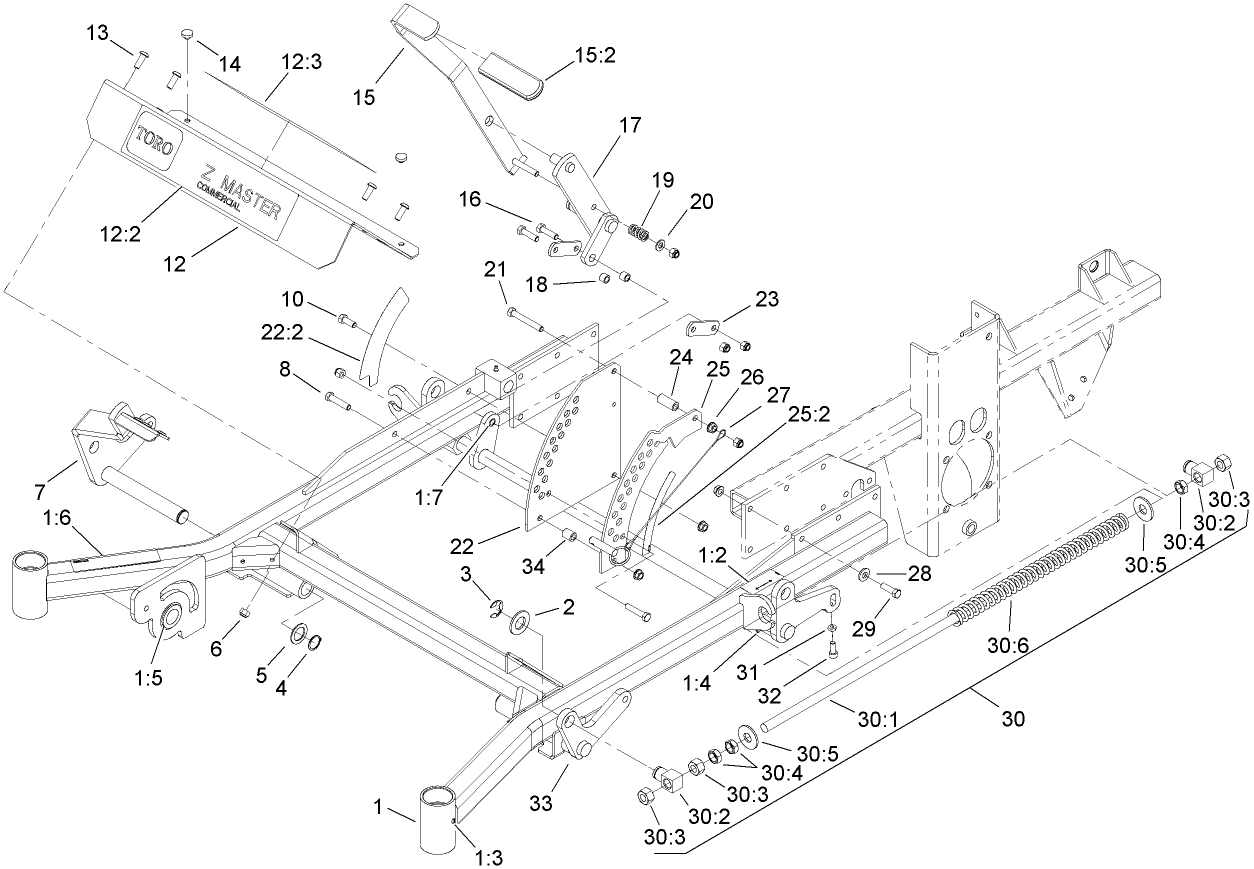

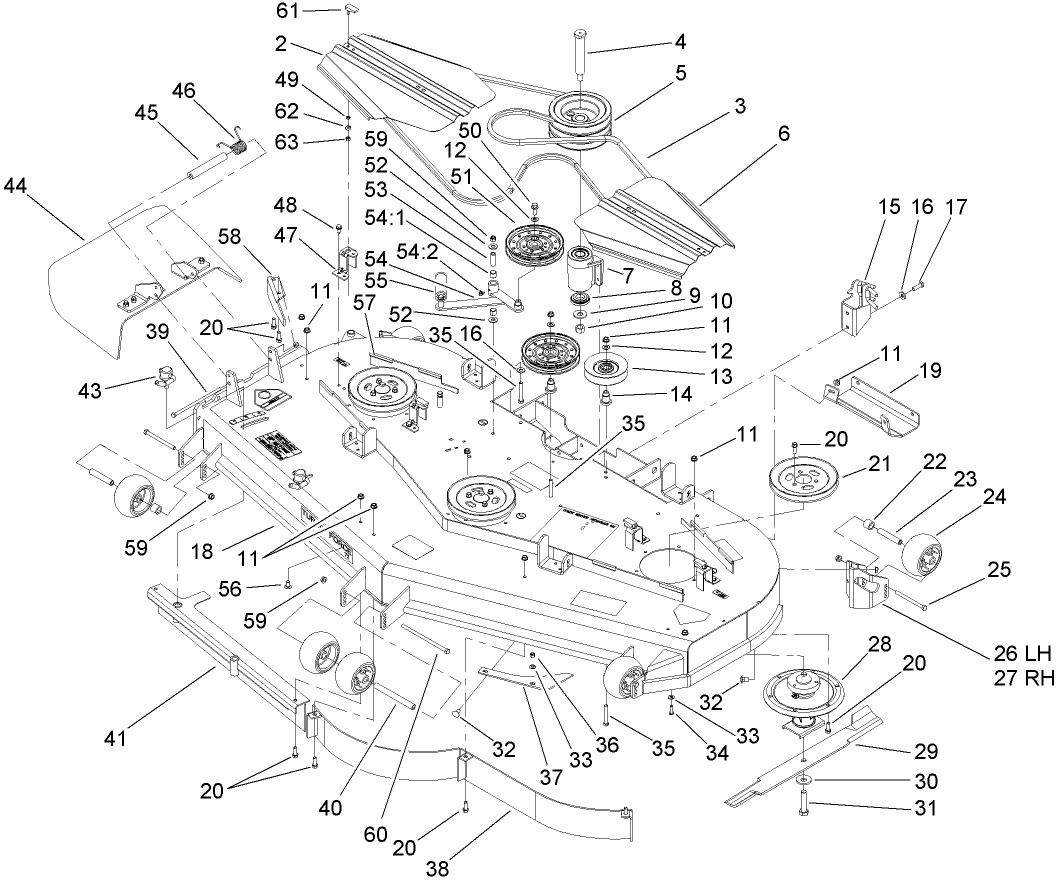

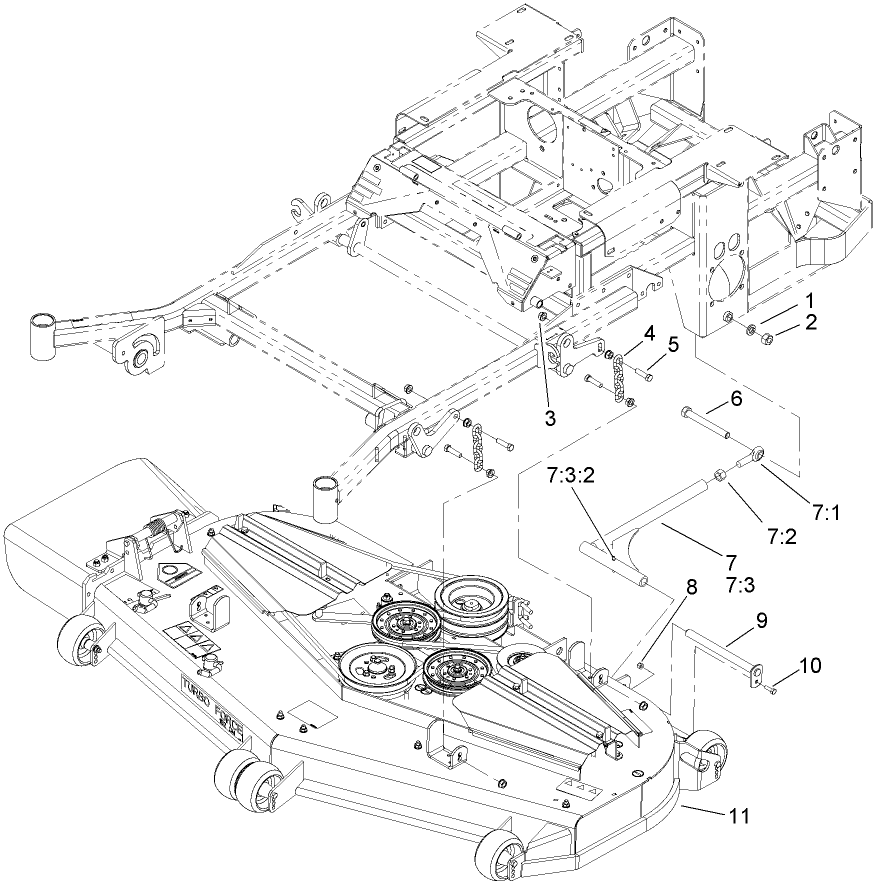

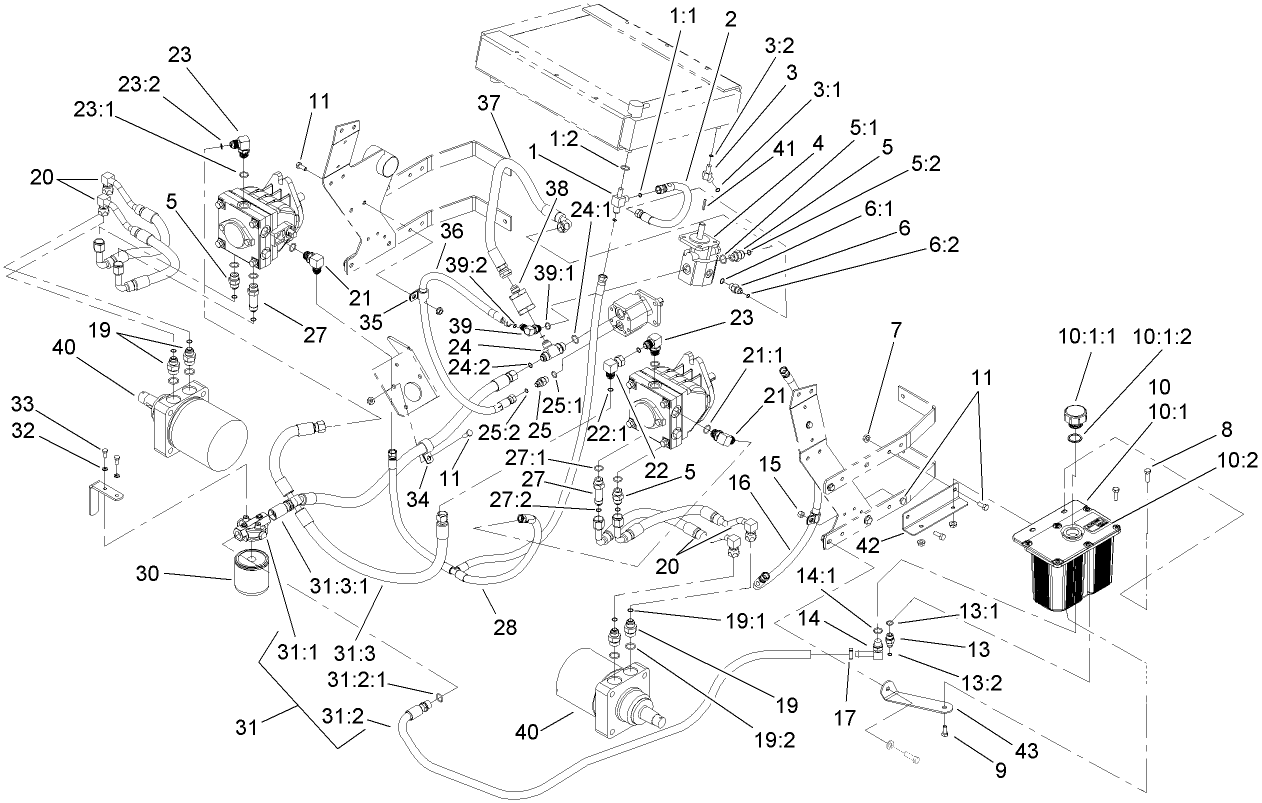

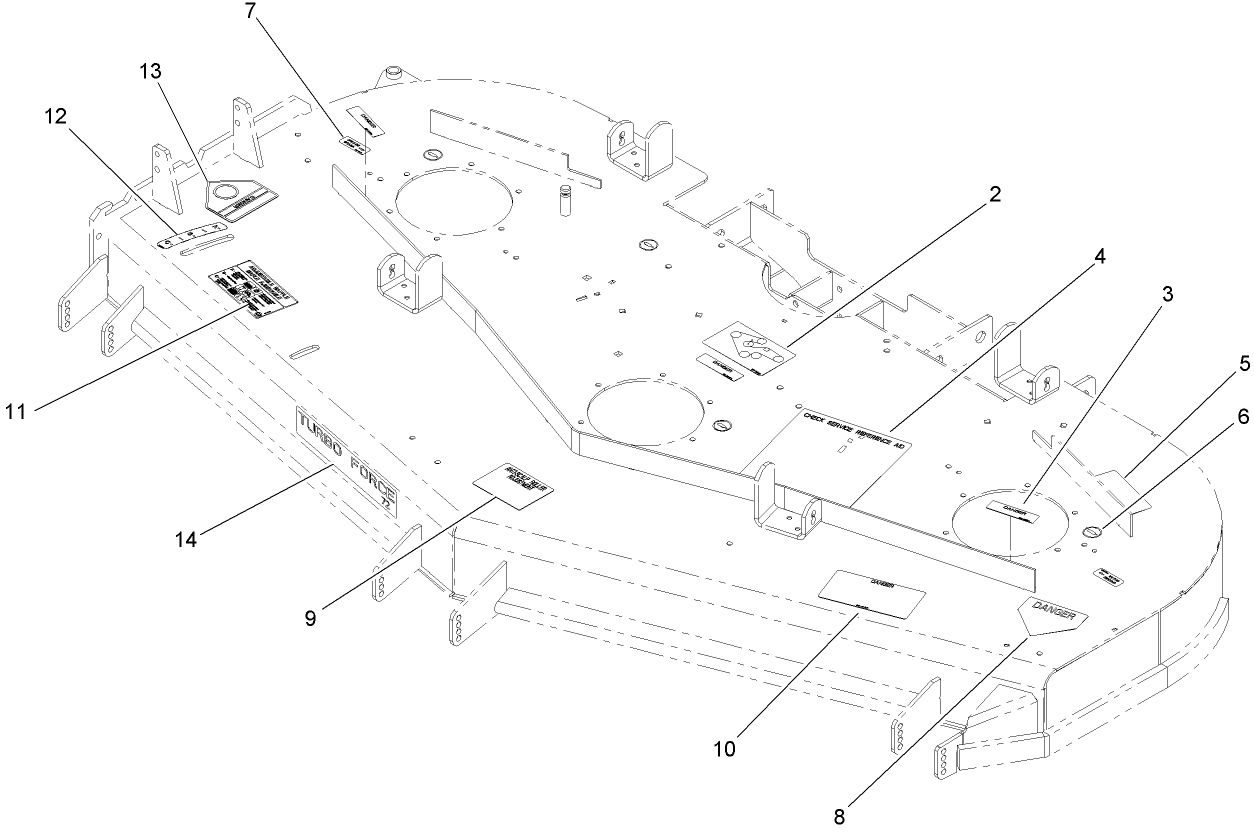

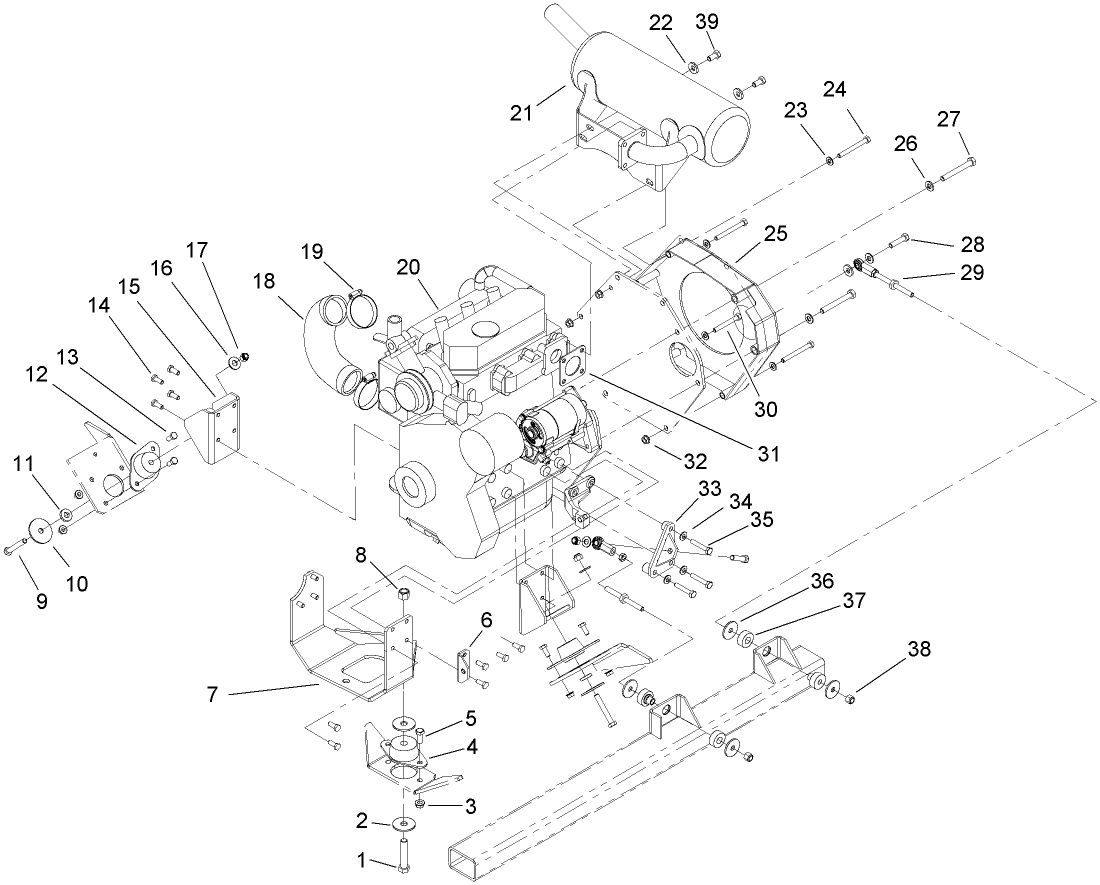

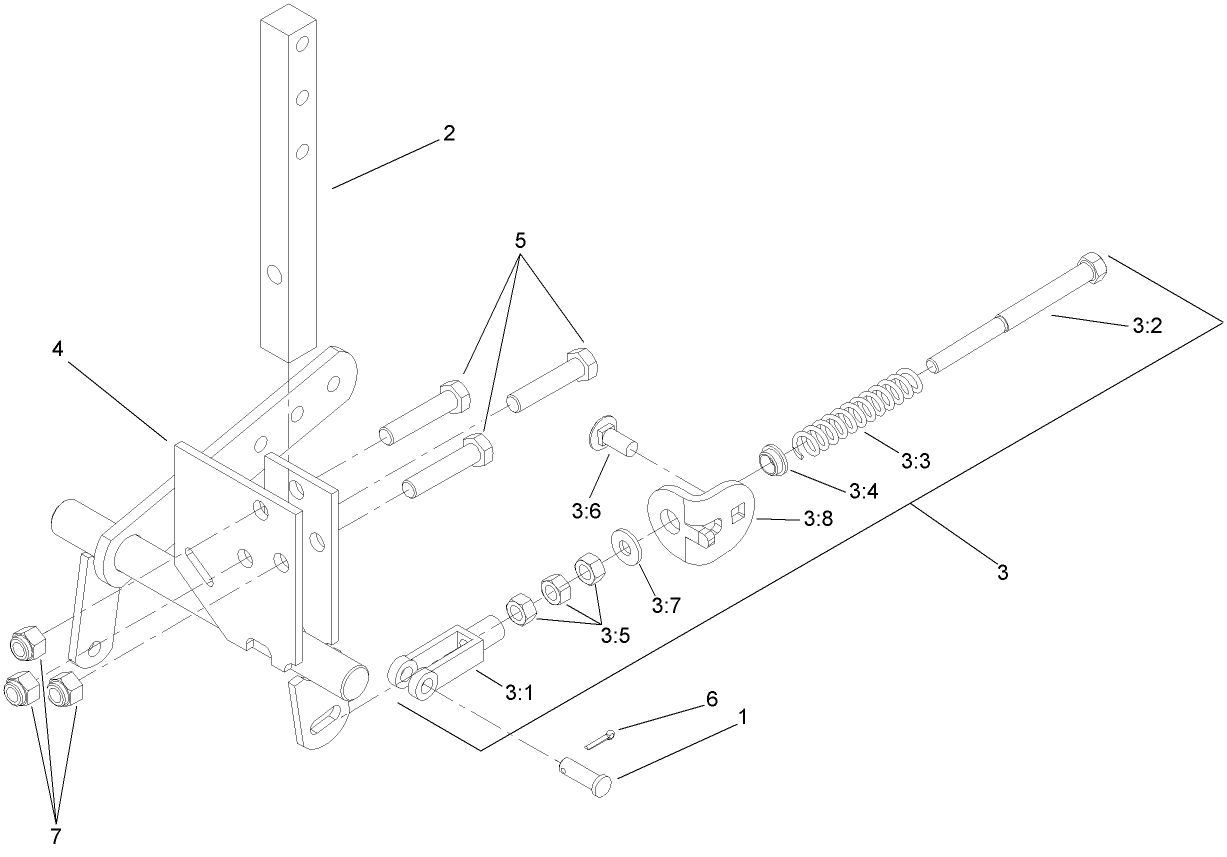

Assembly Drawings
Search for a part within assembly drawings:
-
Service Manual
-
Operator's Manual
-
Parts Catalog
-
Setup Instructions
Z Master Winter Hydraulic Oil Filter (Part # 1-633752)
Toro genuine winter hydraulic oil filter. When it comes to reliability, Toro delivers replacement parts designed to the exact engineering specifications of our equipment. For peace of mind, insist on Toro genuine parts.
24.5 Inch Medium Flow Blade (Part # 105-7711-03)
Toro 24.5 Inch OEM Medium Flow blade. Medium Flow mower straight edge, standard discharge blade. These blades have slight upward angle on the edges. Great blades for use when horsepower is a concern. Produce medium Flow but requires less horsepower than Hi-Flow blades. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.
24.5 Low Flow Blade (Part # 105-7712-03)
Toro 24.5 Inch OEM Low Flow blade. Low Flow mower blades have slightly curved ends that keep air Flow to a minimum. The lack of suction allows cut grass to exit the mower while keeping dust and debris levels down. Toro Low Flow mower blades cause less engine strain than Hi-Flow blades. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.
24.5 Inch Atomic Blade (Part # 105-7719-03)
Toro 24.5 Inch OEM Atomic blade. The Toro Atomic blade is commonly referenced as a “Gator Style” or “Gator Blade”. Provides the best quality of cut while mulching. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.
24.5 Inch Recycler Blade (Part # 105-7778-03)
Toro 24.5 Inch OEM Recycler blade. Recycler straight edge, standard discharge blade. The blade is designed for a High quality cut and long-lasting durability. These blades are designed with “wings,” called “accelerators” that kind of act like a fan — forcing the tiny bits of grass back into the earth. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.
24.5 Inch Hi-Flow Blade (Part # 105-7784-03)
Toro 24.5 Inch OEM Hi-Flow blade. This sharp replacement Hi-Flow lawn mower blade provides a crisp, clean cut time after time. You can count on the quality and reliability of this Toro replacement Hi-Flow lawn mower blade. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.
72 Inch Recycler Kit (Part # 107-1612)
Genuine OEM Part
Rubber Striping Kit (Part # 107-1630)
Toro OEM A mower striping kit. The ultimate way to enhance the striping ability of your Z-Master. When it comes to reliability, Toro delivers replacement parts designed to the exact engineering specifications of our equipment. For peace of mind, insist on Toro genuine parts.
GrandStand Turbo Baffle Kit (Part # 107-1634)
This genuine Toro OEM turbo baffle kit is designed for Toro GrandStand stand-on mowers and modifies the airflow under the cutting deck to improve clipping discharge performance in heavy, dense, or wet grass conditions. The turbo baffle redirects air movement beneath the deck to increase the velocity at which clippings are expelled through the discharge chute, reducing the tendency for clippings to clump or block in challenging mowing conditions. Verify your model and serial number before ordering.
Z-Master Light Kit (Part # 107-9880)
Extend your mowing day with these Toro genuine high-intensity, low amperage LED light kit. This lighting kit is built in durable cast aluminum alloy housing with stainless steel mounting hardware and wiring harness and lighted rocker switch. When it comes to reliability, Toro delivers replacement parts designed to the exact engineering specifications of our equipment. For peace of mind, insist on Toro genuine parts.
Hi-Flow 24.5 Inch Blade Pack (6) (Part # 108-1120)
Toro 24.5 Inch OEM Hi-Flow blade pack. (6) Hi-Flow blades. This sharp replacement Hi-Flow lawn mower blade provides a crisp, clean cut time after time. You can count on the quality and reliability of this Toro replacement Hi-Flow lawn mower blade. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part
Atomic in. 24.5 Blade Pack (6) (Part # 108-1126)
Toro OEM Atomic blade pack. (6) 24.5 Inch Atomic blades. Atomic blade is commonly referenced as a “Gator Style” or “Gator Blade”. Provides the best quality of cut while mulching. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.
Roller Striping Kit (Part # 108-2162)
Toro OEM A mower striping kit. The ultimate way to enhance the striping ability of your Z-Master. When it comes to reliability, Toro delivers replacement parts designed to the exact engineering specifications of our equipment. For peace of mind, insist on Toro genuine parts.
Mid Flow 24.5 Inch Blade Pack (6) (Part # 110-0404)
Toro 24.5 Inch OEM Medium Flow blade pack. (6) Medium Flow blades. Medium Flow mower straight edge, standard discharge blade. These blades have slight upward angle on the edges. Great blades for use when horsepower is a concern. Produce medium Flow but requires less horsepower than Hi-Flow blades. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.
Low Flow 24.5 Inch Blade Pack (6) (Part # 110-0410)
Toro 24.5 Inch OEM Low Flow blade pack. (6) Low Flow blades. Low Flow mower blades have slightly curved ends that keep air Flow to a minimum. The lack of suction allows cut grass to exit the mower while keeping dust and debris levels down. Toro Low Flow mower blades cause less engine strain than Hi-Flow blades. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.
Hitch Kit (Part # 110-0444)
Genuine OEM Part
Cool Top - ROPS Mounted Fan (Part # 110-1996)
Work in comfort with a fan that provides you with clean, cool air. This Toro OEM operator fan gives you shade on hot, sunny days. Increase productivity by keeping the dust, sun, and insects off of equipment operators. When it comes to reliability, Toro delivers replacement parts designed to the exact engineering specifications of our equipment. For peace of mind, insist on Toro genuine parts.
Please contact your local dealer
Channel Reinforcement Kit (Part # 112-8674)
Genuine OEM Part
Wheel Spacers Kit (Part # 112-8699)
Toro OEM wheel spacers ensure a perfect, tight fit with no vibration problems.
Bio-Diesel Kit (Part # 115-3550)
Genuine OEM Part
Triple Bagger (60") (Part # 78456)
72" Deck Finishing Kit (Triple Bagger) (Part # 78504)
Z-Master 52 inch Operator Chute Gate Kit (Part # 78521)
Toro OEM chute gate kit. Protect people and property from flying debris, keep grass out of flower beds and driveways, reducing raking, blowing and re-mowing.
Z-Master 72 inch Operator Chute Gate Kit (Part # 78522)
Toro OEM chute gate kit. Protect people and property from flying debris, keep grass out of flower beds and driveways, reducing raking, blowing and re-mowing.
Triple Bag Assembly, 72" Deck (Part # 78535)
Blower and Drive Kit, 72" Deck (Part # 78539)
Filter Gauge for Kohler Engines (Part # 99-4664)
Toro genuine filter gauge. Toro would like to remind you that fitment can vary by sub model, serial number, and/or production date of your equipment. Verify your model and serial number to confirm compatibility before ordering.
Cozy Cab Sun Shade (Part # A-11299)
-
Model #
74269 -
Serial #
270000001 - 270000300 -
Product Name
Z597-D Z Master, With 72in TURBO FORCE Side Discharge Mower -
Product Brand
Toro -
Product Type
Riding Products -
Product Series
Zero Radius Turn, 500 Series -
Chassis Type
ZRT - LCE -
Swath
72 inch -
Discharge
Side -
Engine/Motor Manufacturer
Briggs & Stratton -
Engine/Motor Size
27 hp -
Engine/Motor Type
4 Cycle Diesel -
Engine Starter
Electric -
Transmission Type
Hydrostatic -
Traction Type
Rear WD
-
Chassis: Height of Cut Range
1.5" - 5" (38-127mm) -
Chassis: Tire Pressure
13 psi / 90 kPa -
Engine: Battery
12V 540 CCA -
Engine: Engine Speed
3450+20/-50 RPM -
Drive System: Gearbox Lubricant
HYPR-OIL 500 / 15w-50 Synthetic Motor Oil -
Engine: Engine Oil Type
3.5 qt. (3.3L) SAE 20/ 10w-30/ 10w-40
