Multi-Pro 1200 Turf Sprayer

Image Not Found

Product Information

  • Model #: 41178
  • Serial #: 280000001 - 280000110
  • Product Type: Sprayers

Assembly Drawings

Search for a part within assembly drawings:

Air Intake / Filtration Assembly Kohler CH20S-64647
Air Intake / Filtration Assembly Kohler CH20S-64647
Blower Housing and Baffle Assembly Kohler CH20S-64647
Blower Housing and Baffle Assembly Kohler CH20S-64647
Boom Mount Assembly
Boom Mount Assembly
Boom Valve Assembly No. 106-4882
Boom Valve Assembly No. 106-4882
Brake and Accelerator Pedal Assembly
Brake and Accelerator Pedal Assembly

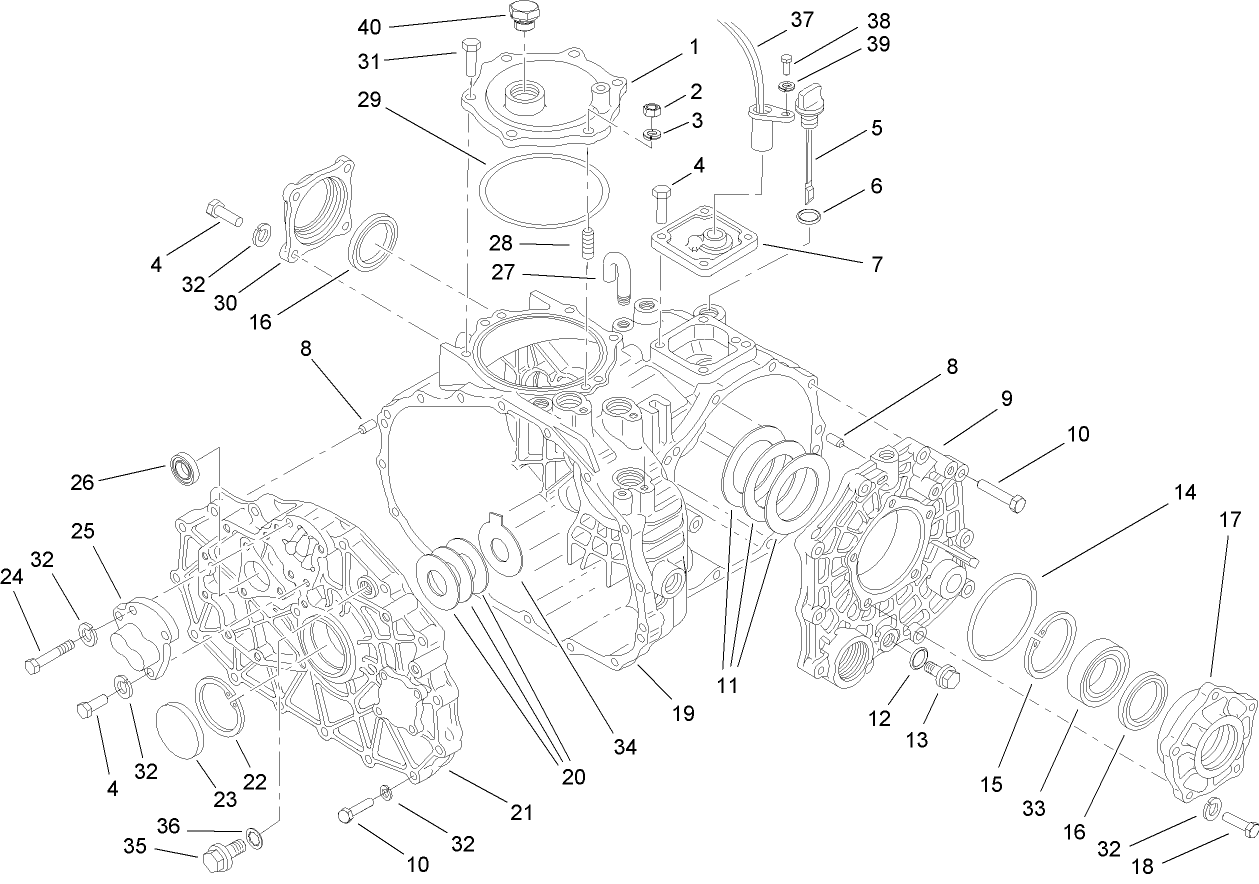

Case Assembly Transaxle Assembly No. 104-9078
Case Assembly Transaxle Assembly No. 104-9078
Center Boom Assembly
Center Boom Assembly
Countershaft Assembly Transaxle Assembly No. 104-9078
Countershaft Assembly Transaxle Assembly No. 104-9078
Crankcase Assembly Kohler CH20S-64647
Crankcase Assembly Kohler CH20S-64647
Crankshaft Assembly Kohler CH20S-64647
Crankshaft Assembly Kohler CH20S-64647
Differential Gear Assembly Transaxle Assembly No. 104-9078
Differential Gear Assembly Transaxle Assembly No. 104-9078
Drive Pulley Assembly No. 100-8289
Drive Pulley Assembly No. 100-8289
Drive Shaft Assembly No. 100-8293
Drive Shaft Assembly No. 100-8293
Driver Clutch Assembly No. 100-8288
Driver Clutch Assembly No. 100-8288
Driveshaft Assembly No. 98-2918
Driveshaft Assembly No. 98-2918

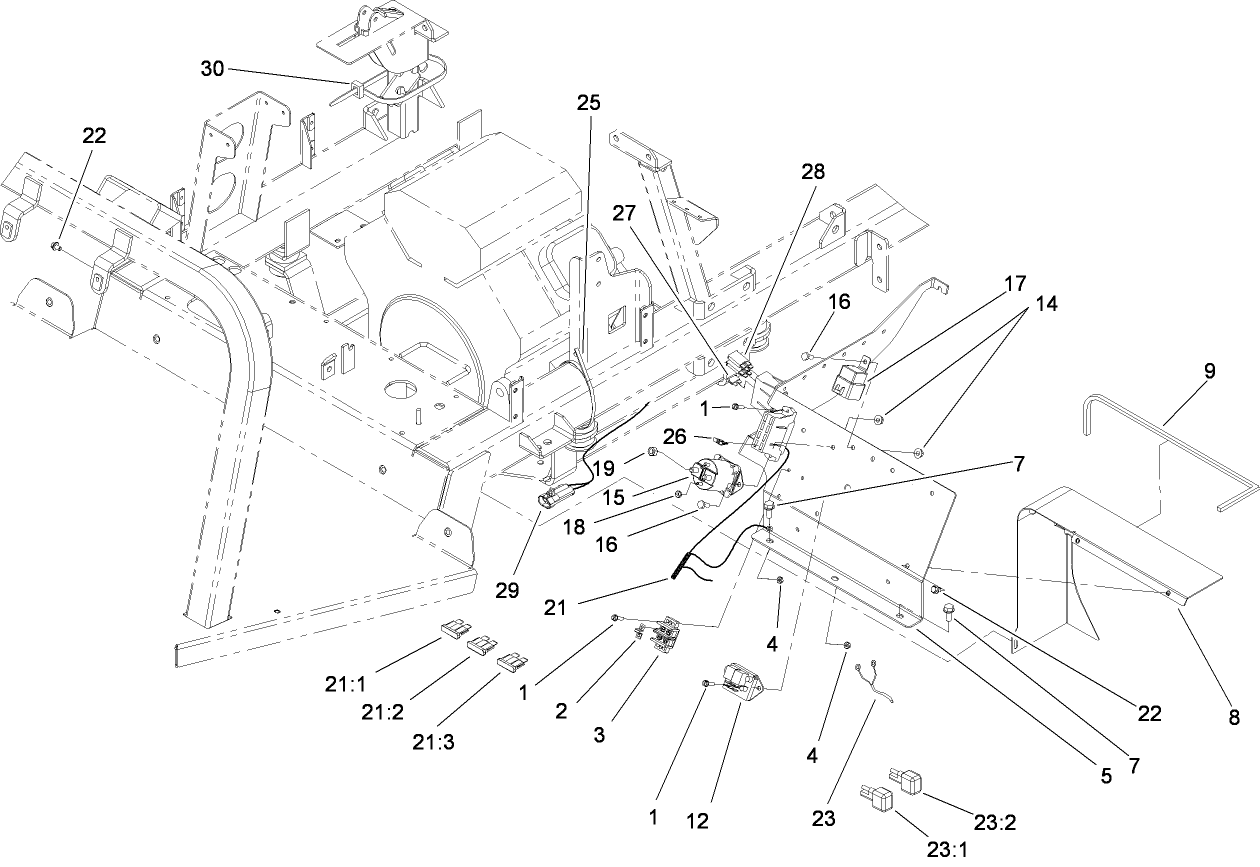

Electrical Panel Assembly
Electrical Panel Assembly

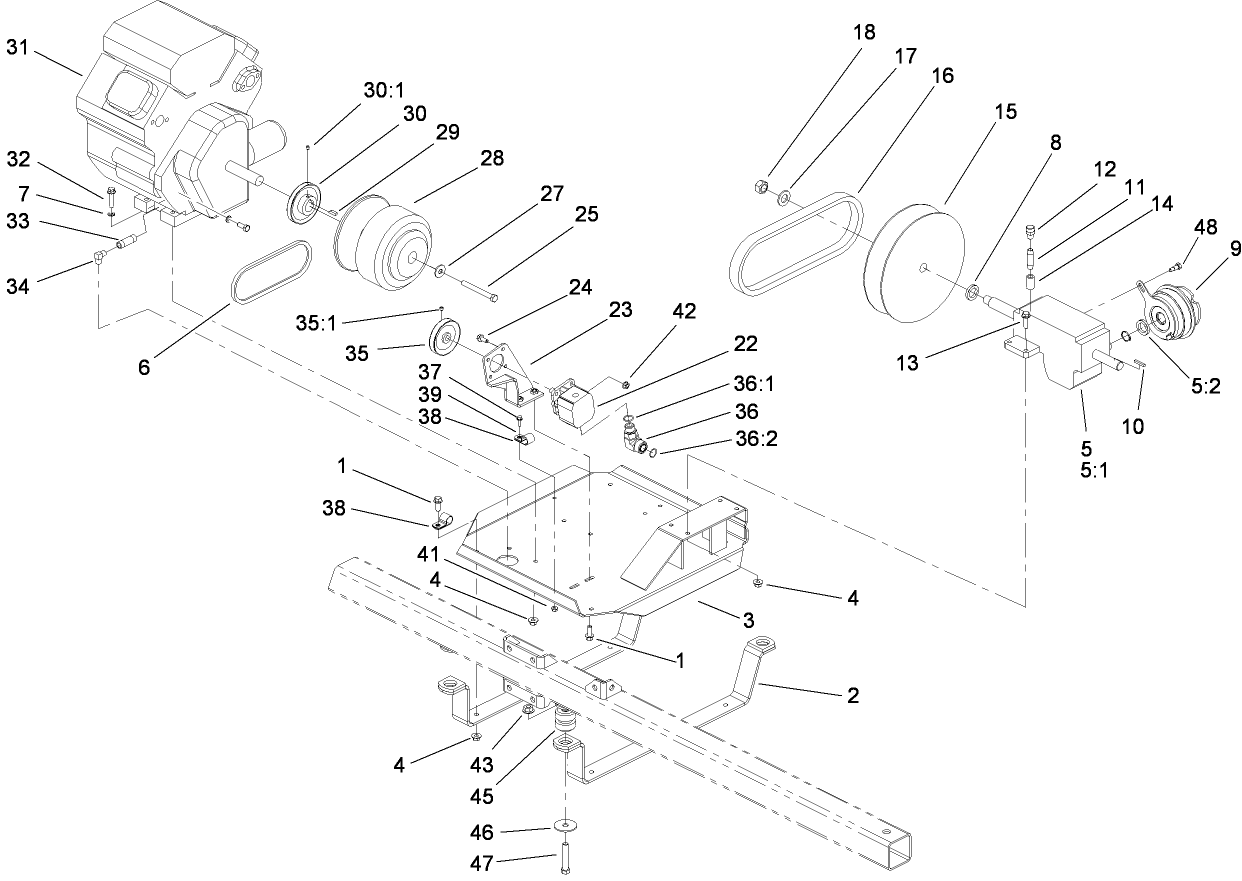

Engine and Gearbox Assembly
Engine and Gearbox Assembly
Engine Control Kohler CH20S-64647
Engine Control Kohler CH20S-64647

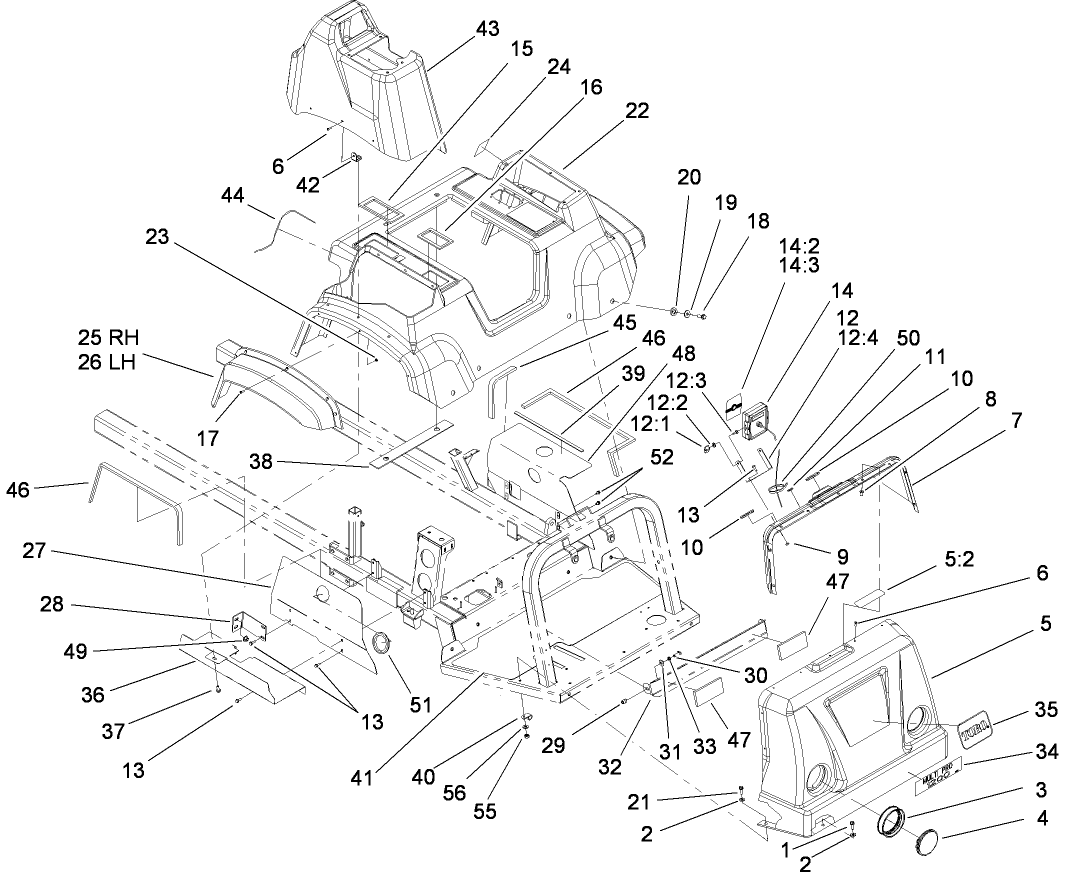

Engine Cover Assembly
Engine Cover Assembly
Exhaust Assembly
Exhaust Assembly
Exhaust Assembly Kohler CH20S-64647
Exhaust Assembly Kohler CH20S-64647
Flow Meter Assembly No. 106-4884
Flow Meter Assembly No. 106-4884
Fresh Water Tank Assembly
Fresh Water Tank Assembly
Front Brake Assembly No. 100-8285
Front Brake Assembly No. 100-8285
Front Suspension Assembly
Front Suspension Assembly
Front Wheel Assembly
Front Wheel Assembly
Fuel System Assembly Kohler CH20S-64647
Fuel System Assembly Kohler CH20S-64647
Gear Shaft Assembly Transaxle Assembly No. 104-9078
Gear Shaft Assembly Transaxle Assembly No. 104-9078
Head / Valve / Breather Assembly Kohler CH20S-64647
Head / Valve / Breather Assembly Kohler CH20S-64647
Hose Assemblies No. 1
Hose Assemblies No. 1
Hose Assemblies No. 2
Hose Assemblies No. 2
Hydraulic Brake Line Assembly
Hydraulic Brake Line Assembly
Hydraulic Cylinder Assembly No. 100-8278
Hydraulic Cylinder Assembly No. 100-8278
Hydraulic Hose Routing Assembly
Hydraulic Hose Routing Assembly
Ignition / Electrical Assembly Kohler CH20S-64647
Ignition / Electrical Assembly Kohler CH20S-64647
Left and Right Hand Boom Assembly
Left and Right Hand Boom Assembly
Left Hand Boom Mount Assembly
Left Hand Boom Mount Assembly
LH Rear Brake Assembly No. 112-7961
LH Rear Brake Assembly No. 112-7961
Lid Assembly
Lid Assembly
Main On/Off Valve Assembly No. 106-4881
Main On/Off Valve Assembly No. 106-4881
Main Tank Assembly
Main Tank Assembly
Manual Control Assembly
Manual Control Assembly
Master Cylinder Assembly No. 94-3800
Master Cylinder Assembly No. 94-3800
Oil Pan / Lubrication Assembly Kohler CH20S-64647
Oil Pan / Lubrication Assembly Kohler CH20S-64647
Parking Brake and Console Assembly
Parking Brake and Console Assembly
Pressure Control Valve Assembly
Pressure Control Valve Assembly
Pressure Damper Assembly No. 100-6662
Pressure Damper Assembly No. 100-6662
Pump Assembly
Pump Assembly
Pump Assembly No. 106-5121
Pump Assembly No. 106-5121
Pump Drive Gearbox Assembly No. 108-3352
Pump Drive Gearbox Assembly No. 108-3352
Rear Fender and Battery Mount Assembly
Rear Fender and Battery Mount Assembly
Rear Wheel and Brake Assembly
Rear Wheel and Brake Assembly
RH Rear Brake Assembly No. 112-7962
RH Rear Brake Assembly No. 112-7962
Right Hand Boom Mount Assembly
Right Hand Boom Mount Assembly
Safety Valve Assembly No. 100-6820
Safety Valve Assembly No. 100-6820
Seat Support Assembly
Seat Support Assembly
Shift Fork Assembly Transaxle Assembly No. 104-9078
Shift Fork Assembly Transaxle Assembly No. 104-9078
Shifter Assembly
Shifter Assembly
Sprayer Component Assembly No. 1
Sprayer Component Assembly No. 1
Sprayer Component Assembly No. 2
Sprayer Component Assembly No. 2
Sprayer Component Assembly No. 3
Sprayer Component Assembly No. 3
Starting System Kohler CH20S-64647
Starting System Kohler CH20S-64647
Steering Control Assembly No. 114-5076
Steering Control Assembly No. 114-5076
Steering Pump Assembly No. 100-8302
Steering Pump Assembly No. 100-8302
Tank and Saddle Assembly
Tank and Saddle Assembly
Throttle Linkage Assembly
Throttle Linkage Assembly
Top Mounted Suction Assembly
Top Mounted Suction Assembly
Transaxle Installation Assembly
Transaxle Installation Assembly
Download Parts Catalog

  • Model #
    41178
  • Serial #
    280000001 - 280000110
  • Product Name
    Multi-Pro 1200 Turf Sprayer
  • Product Brand
    Toro
  • Product Type
    Sprayers
  • Product Series
    Sprayers and Accessories
