GT2200 Garden Tractor
Product Information
- Model #: 14AQ94RP848
- Serial #: 1 - 1
- Product Type: Riding Products
Loading...

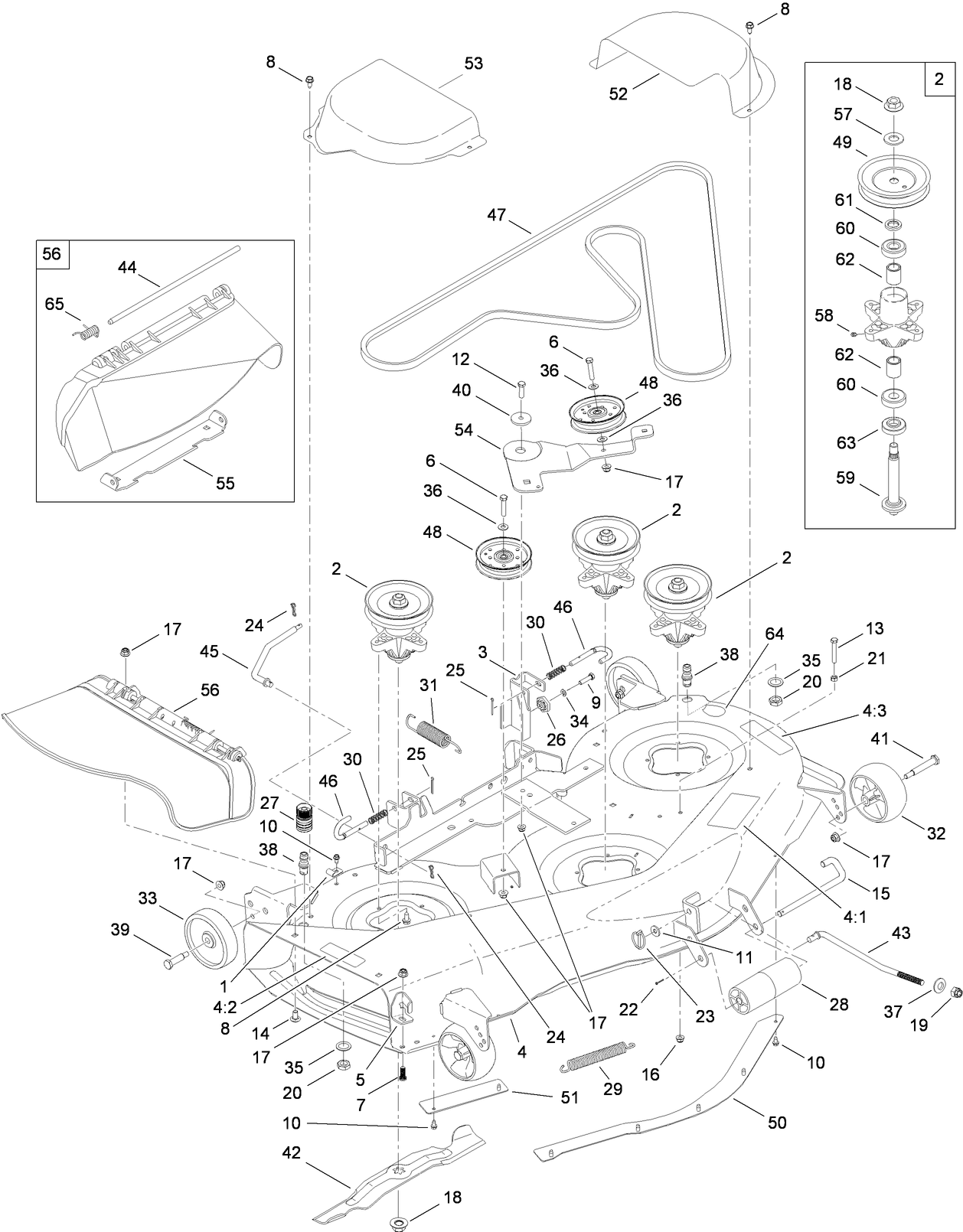

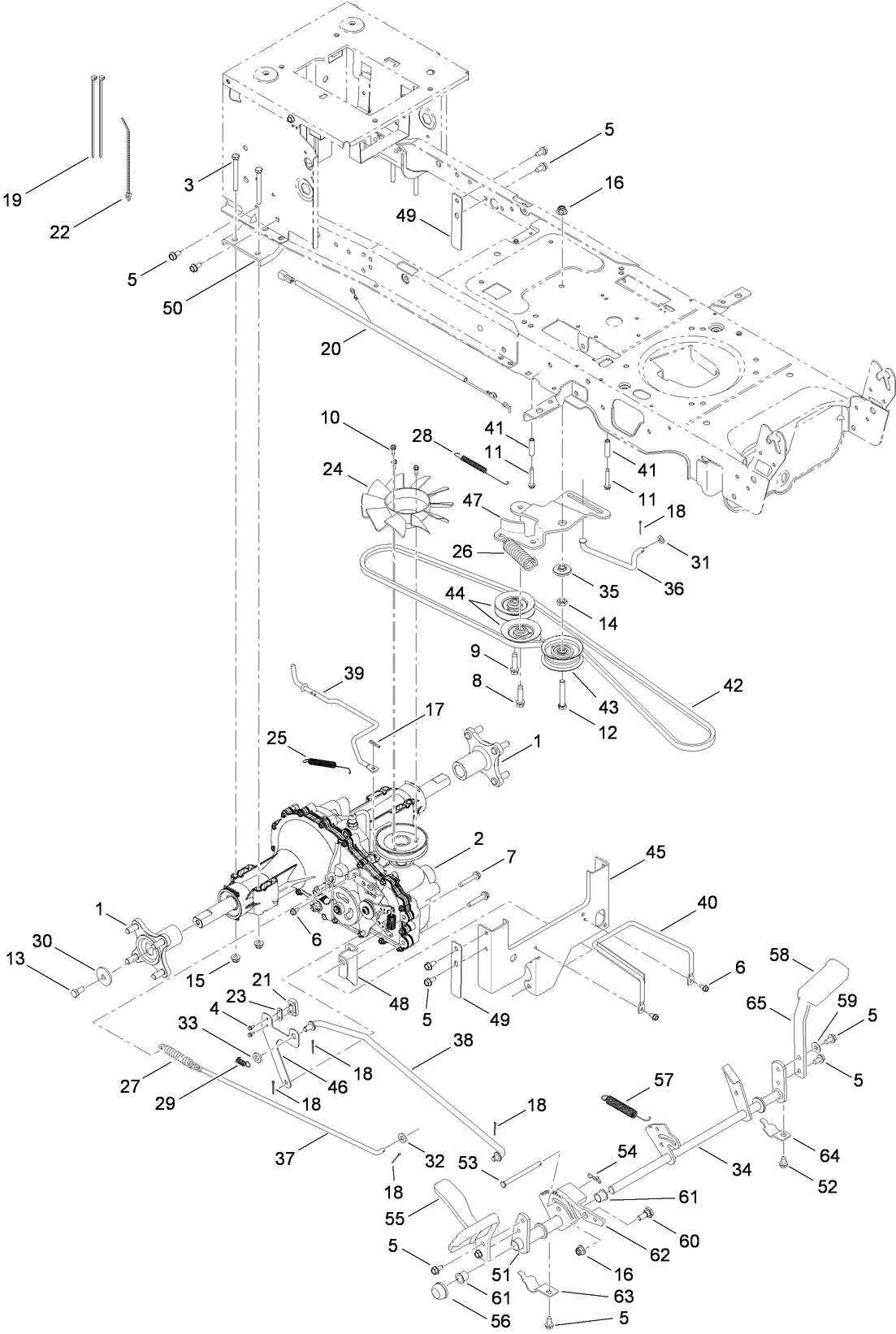

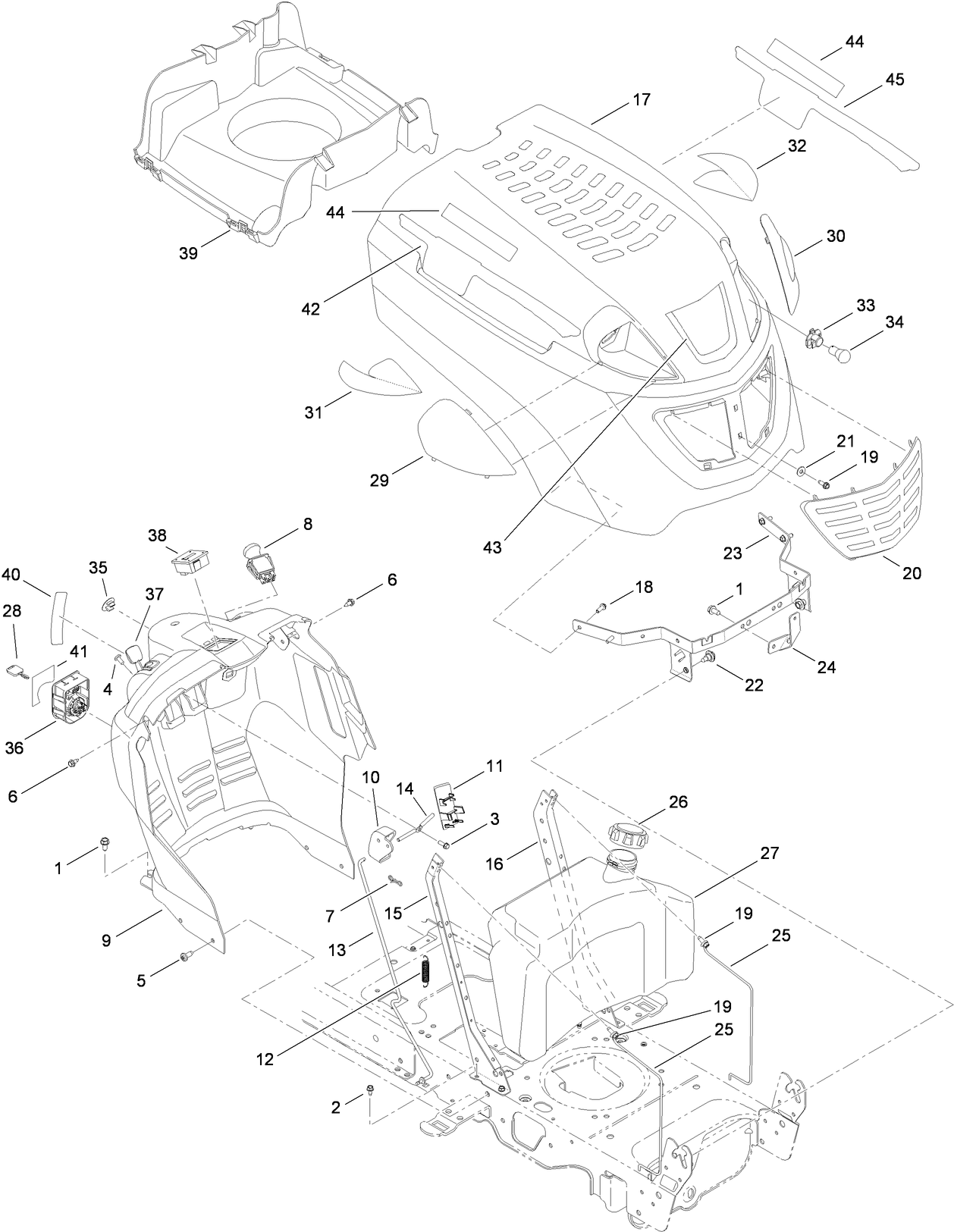

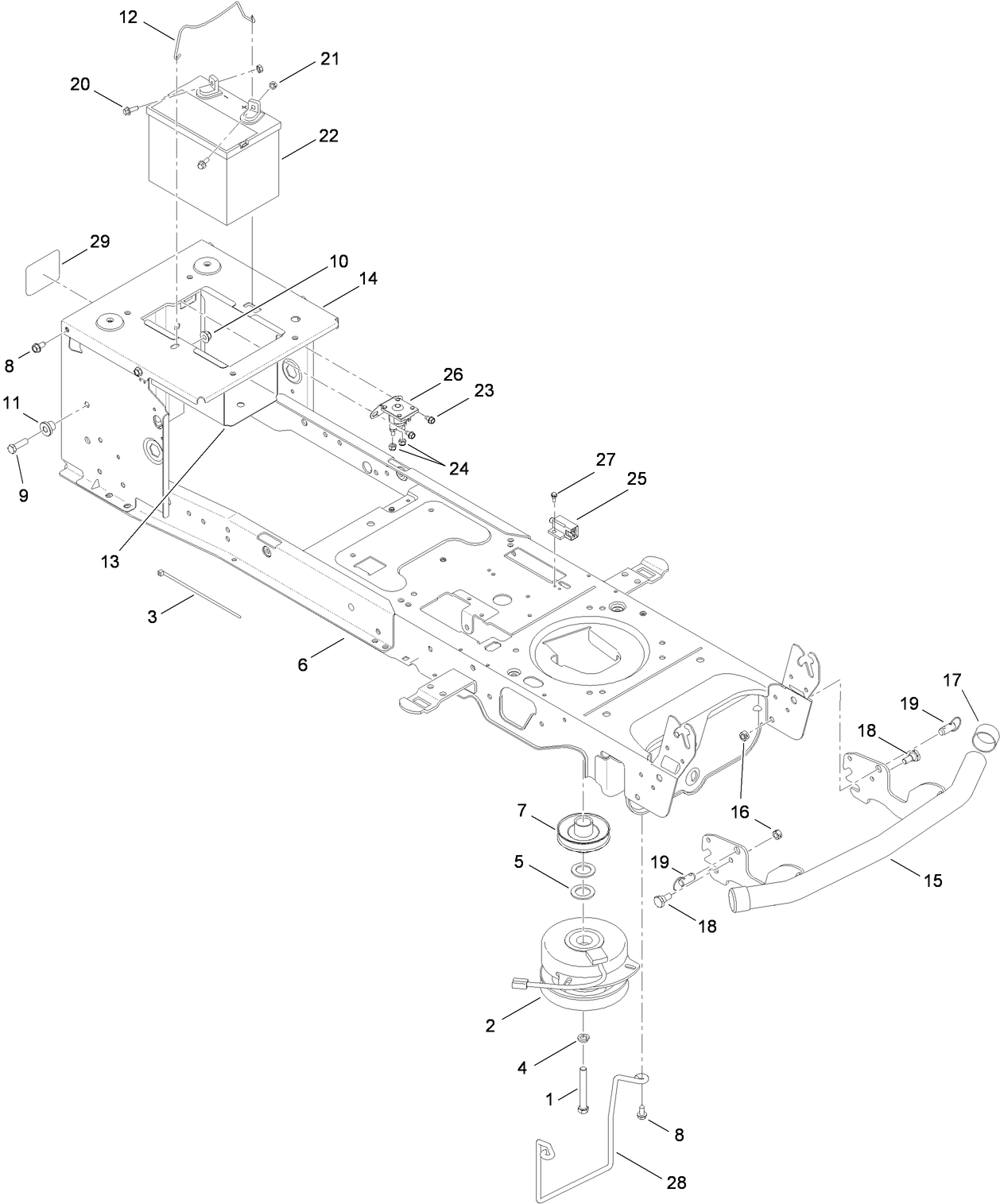

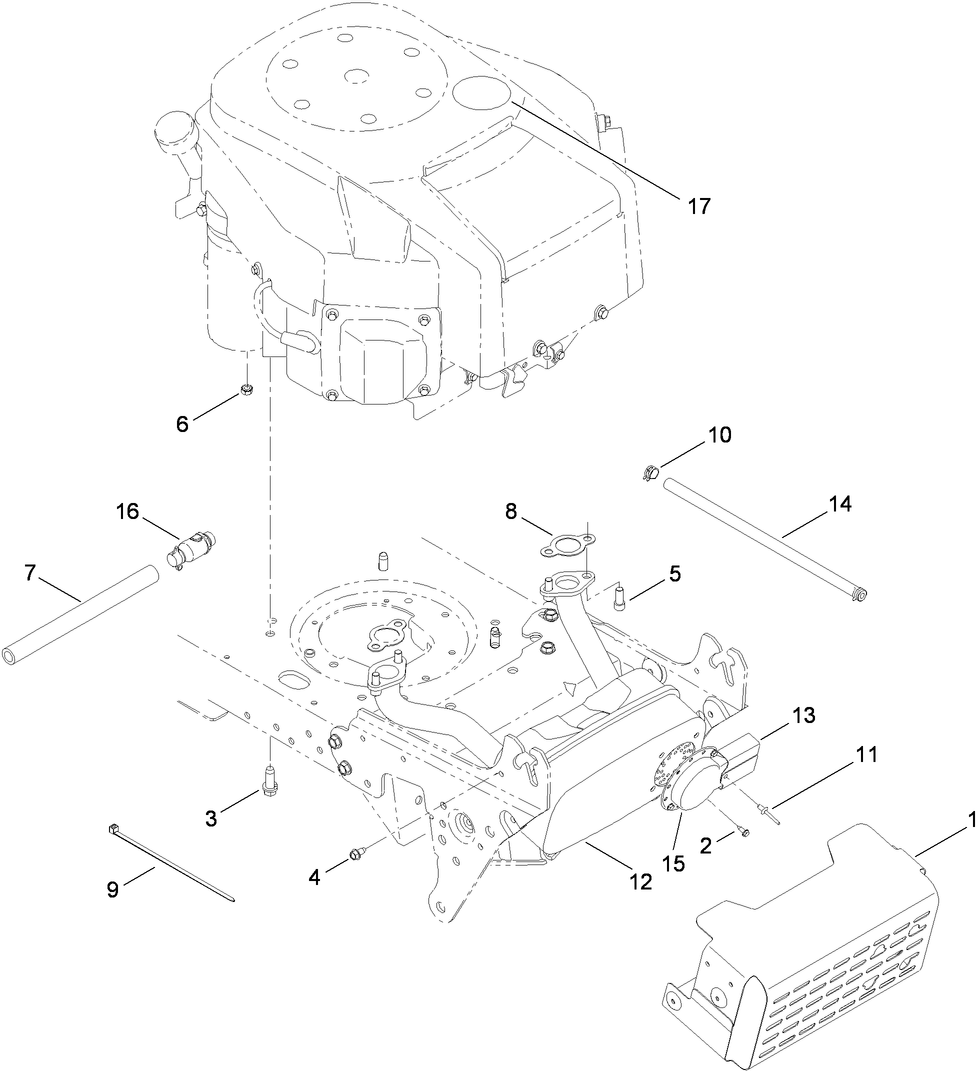

Assembly Drawings
Search for a part within assembly drawings:
-
Operator's Manual
-
Parts Catalog
42in Two-Stage Snowthrower (Part # 190-032-101)
46in Front Blade (Part # 190-833-000)
50in Triple Bagger (Part # 19A40002000)
50in/54in Triple Bagger (Part # 19A40002OEM)
10 cu. ft. Poly Dump Cart (Part # 79991)
17 cu. ft. Poly Dump Cart (Part # 79992)
125 lb. Tow Spreader (Part # 79993)
42 inch Sweeper (Part # 79994)
48in. Dethatcher (Part # 79995)
40in. Spike Aerator (Part # 79996)
Stake Side Kit (Part # 79997)
-
Model #
14AQ94RP848 -
Serial #
1 - 1 -
Product Name
GT2200 Garden Tractor -
Product Brand
Toro -
Product Type
Riding Products -
Product Series
Garden Tractor, GT Series -
Swath
50 inch -
Discharge
Side Discharge -
Engine/Motor Manufacturer
Kohler -
Engine/Motor Size
25 hp -
Engine Starter
Electric -
Transmission Type
Hydrostatic
-
Engine: Spark Plug Gap
.030"/ .76mm -
Chassis: Height of Cut Range
1.5" - 4" -
Chassis: Tire Pressure
10 psi rear / 14 psi front -
Engine: Battery
12V 235CCA -
Drive System: Ground Speed
Fwd. 0 - 6.4 Rev. 0 - 2.5 mph -
Engine: Spark Plug
Champion XC12YC -
Engine: Engine Speed
High 3375, Low 1200 RPM -
Engine: Engine Oil Type
57.5 oz. (1.7 liters) SAE 10W-30 (w/filter)
