22in Recycler Lawn Mower with SmartStow

Product Information

  • Model #: 20355
  • Serial #: 404330000 - 405599999
  • Product Type: Walk Behind Mowers

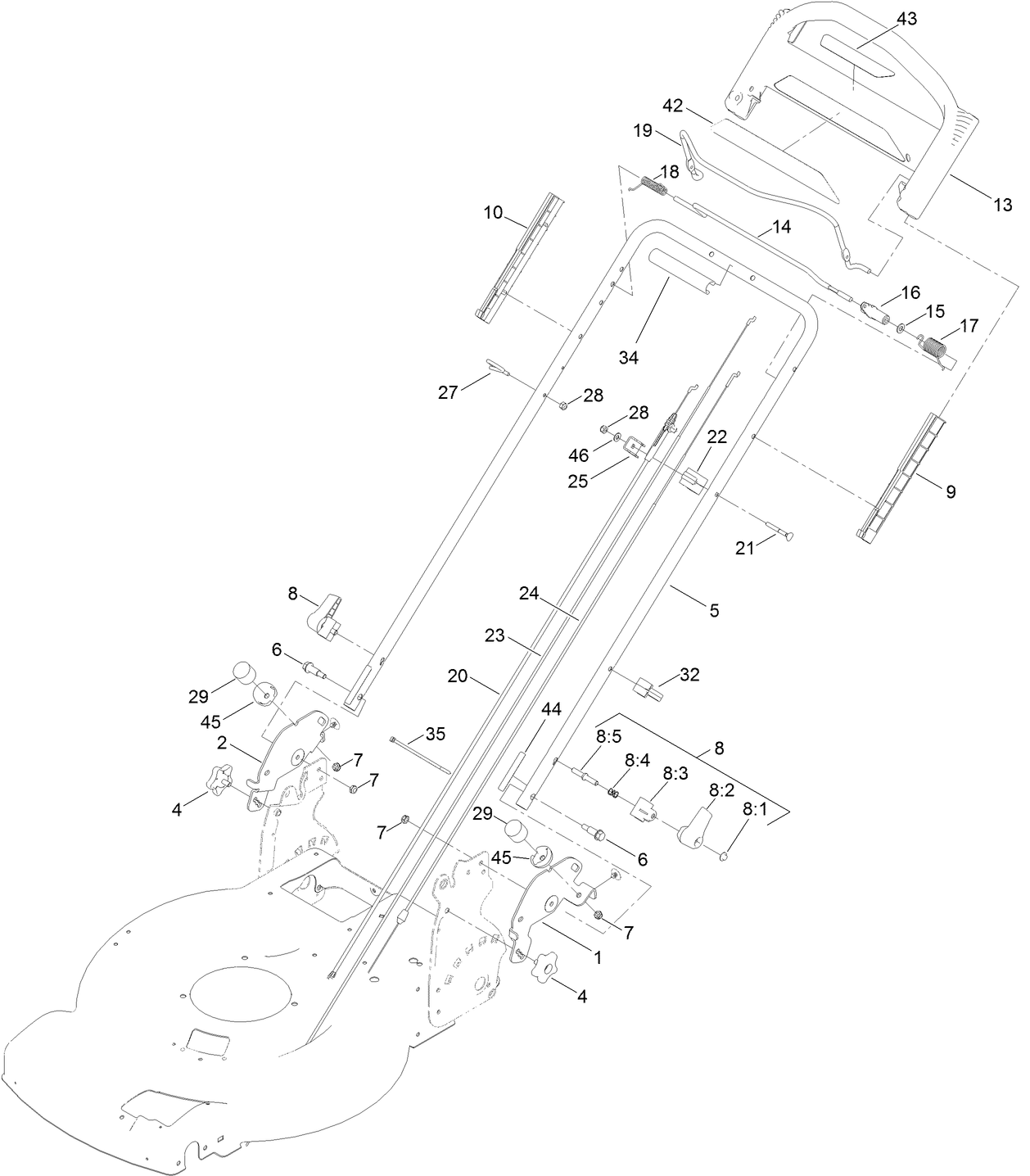

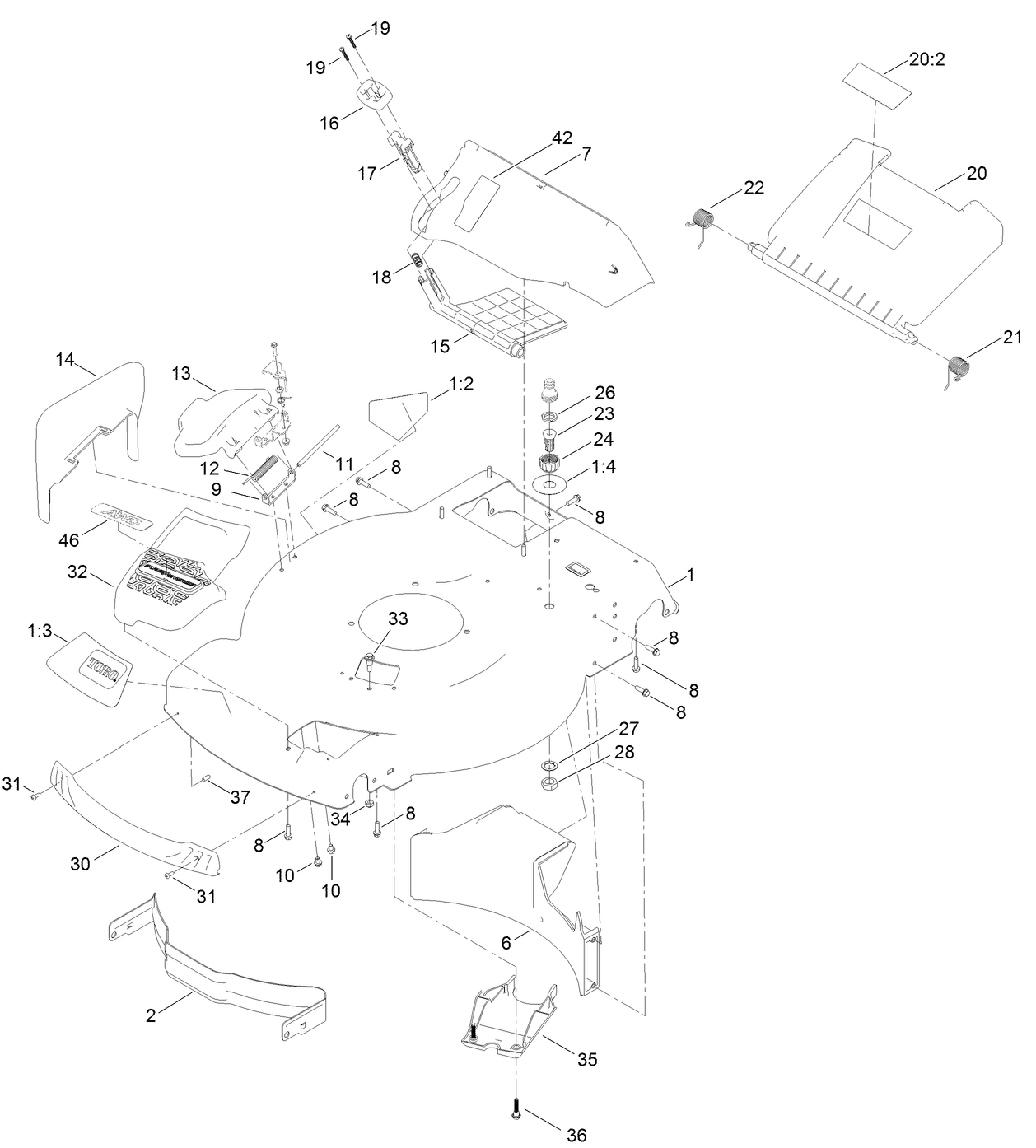

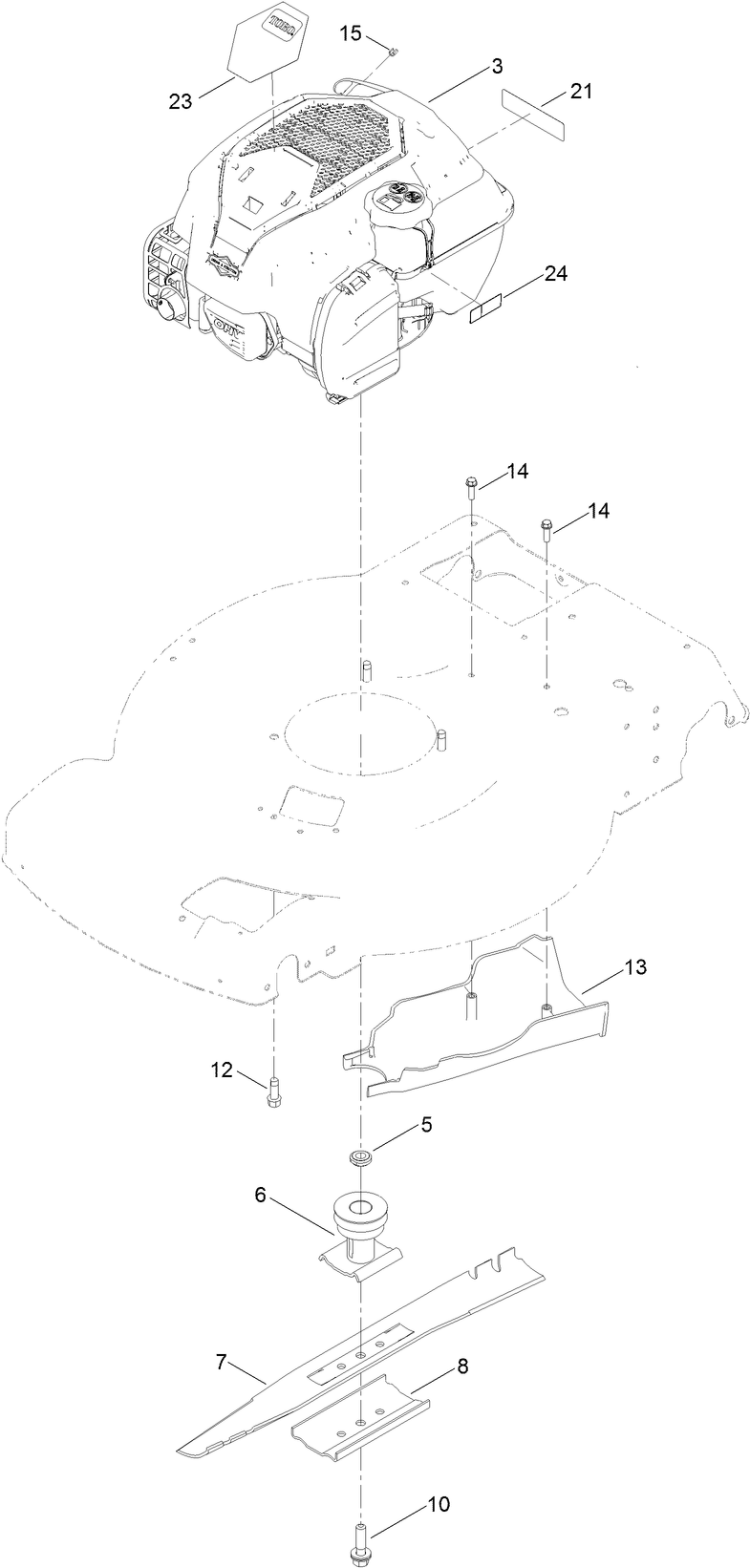

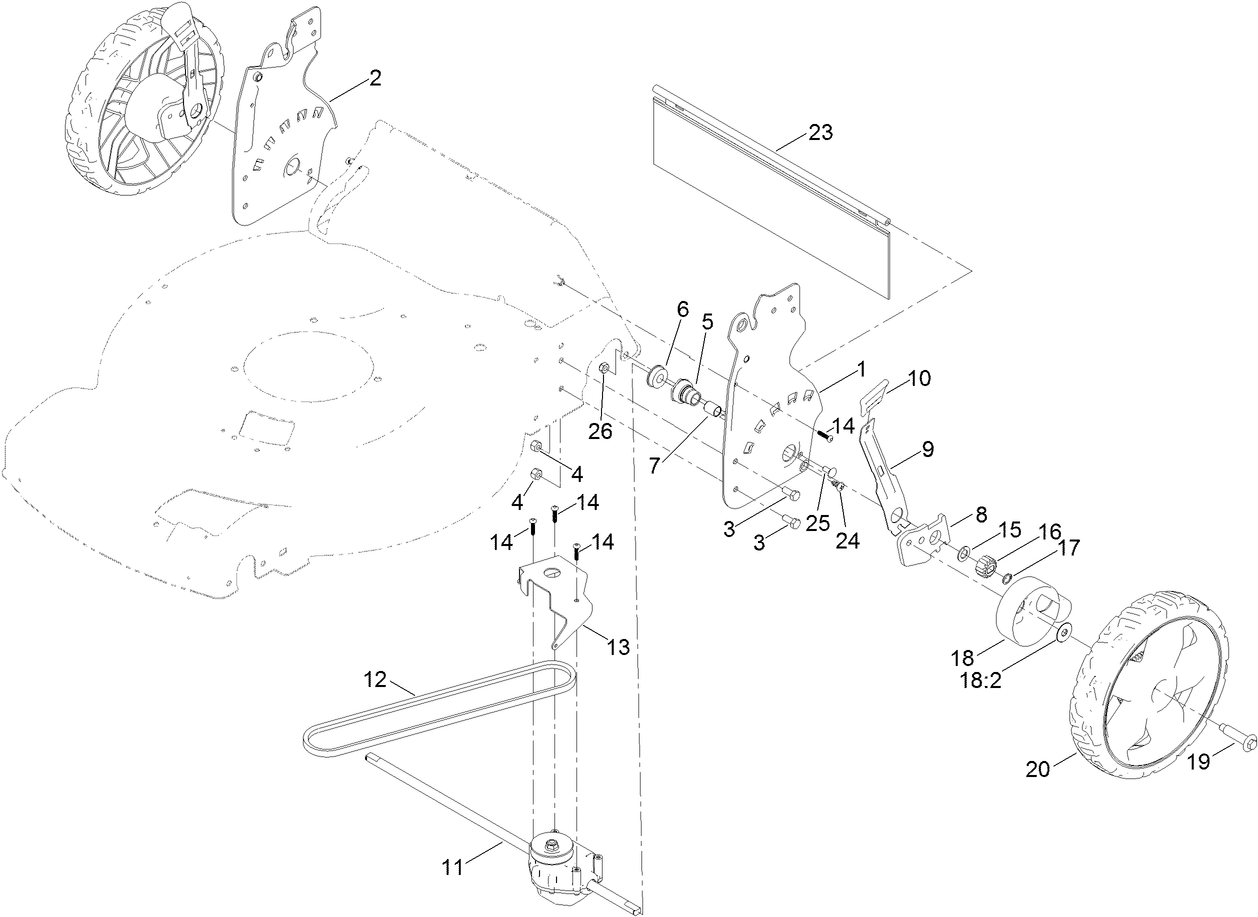

Assembly Drawings

Search for a part within assembly drawings:

  • Model #: 117-0066
    OIL - SYNTHETIC, ALL SEASON
  • Model #: 130-2393
    Fuel Stabilizer .05 oz
  • Model #: 130-8148
    BRIGGS MAINT KIT - 22IN RECYCLER
  • Model #: 131-3823
    4-CYCLE FUEL, SNOW AND LAWN, 32OZ CAN
  • Model #: 131-4556
    AWD Replacement Bag and Frame Kit
  • Model #: 131-4590
    TRACTION ASSIST HANDLE KIT
  • Model #: 131-6572
    Toro Premium Fuel Treatment
  • Model #: 20601
    Lawn Striping Kit with 22in Roller, Walk-Behind Lawn Mowers
  • Model #: 38903
    TORO 4-CYCLE SAE 30 OIL (32OZ BOTTLE)
  • Model #: 38916
    Summer Oil, Case of 24 20-Ounce Bottles
  • Model #: 490-7318
    TORO SMALL WALK BEHIND BAG
  • Model #: 59534P
    TORO ATOMIC BLADE - 22IN, PACKAGED

  • Model #
    20355
  • Serial #
    404330000 - 405599999
  • Product Name
    22in Recycler Lawn Mower with SmartStow
  • Product Brand
    Toro
  • Product Type
    Walk Behind Mowers
  • Product Series
    22" Steel Deck
  • Chassis Type
    Walk Behind
  • Swath
    22 inch
  • Discharge
    Recycler & Side Discharge with Rear Bag
  • Engine/Motor Manufacturer
    Briggs & Stratton
  • Engine/Motor Type
    4 Cycle
  • Traction Type
    4wd

  • Engine: Engine Speed
    3000±100 RPM
  • Engine: Ignition Coil Air Gap
    .010" / .25mm
  • Chassis: Height of Cut Range
    1" - 4" (2.5-10 cm)
  • Engine: Spark Plug
    Briggs & Stratton 594056 or Torch GL4RCC or Autolite 5924
  • Engine: Engine Oil Type
    15 oz. (.44 L) 10w-30 or SAE 30/ API SJ or higher
