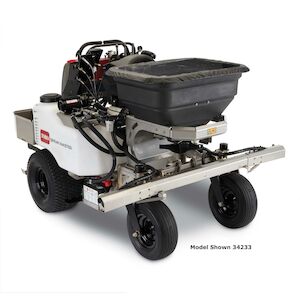

Stand-On Spray Master Max XL
Product Information
- Model #: 34237
- Serial #: 400000000 - 407088177
- Product Type: Sprayers
Loading...
Assembly Drawings
Search for a part within assembly drawings:
-
Operator's Manual
-
Parts Catalog
-
Product Warranty
-
Setup Instructions
Foam Marker Kit (Part # 135-6663)
7 Gallon Auxiliary Tank Kit (Part # 142-2269)
7 Gallon Isolated Tank Kit (Part # 142-2270)
30 Gallon Auxiliary Tank Kit (Part # 142-2271)
TIP-SPRAY, 015 (Part # 142-3306)
TIP-SPRAY, 02 (Part # 142-3307)
Toro 025 Lavender Spray Tio (Part # 142-3308)
Toro spray nozzles are the best way to outfit your Toro SprayMaster sprayer to achieve wide-angle coverage plus drift control. To best protect your investment and maintain optimal performance of your equipment, count on Toro genuine OEM parts and accessories.
TIP-SPRAY, 03 (Part # 142-3309)
TIP-SPRAY, 04 (Part # 142-3310)
TIP-SPRAY, 05 (Part # 142-3311)
TIP-SPRAY, 06 (Part # 142-3312)
-
Model #
34237 -
Serial #
400000000 - 407088177 -
Product Name
Stand-On Spray Master Max XL -
Product Brand
Toro -
Product Type
Sprayers -
Product Series
Turf Maintenance Equipment -
Chassis Type
Stand On -
Swath
52 inch -
Engine/Motor Manufacturer
Briggs & Stratton -
Engine/Motor Size
16 hp -
Engine/Motor Type
4 Cycle -
Engine Starter
Electric -
Transmission Type
Hydrostatic -
Traction Type
Rear WD
-
Engine: Battery
12V 340CCA -
Engine: Engine Speed
3600±100 RPM -
Engine: Spark Plug
Champion RJ12 -
Engine: Spark Plug Gap
.030"/ .76mm -
Chassis: Tire Pressure
17-20 PSI / 116-137 kPa -
Engine: Engine Oil Type
56 oz. (1.65 Liter) SAE 30 -
Engine: Ignition Coil Air Gap
0.011in (0.3mm) -
Drive System: Gearbox Lubricant
HYPR-OIL 500
