54" ProCore® SR54 Turf Aerator

  • Model: 09931
See All Items in ProCore® SR Series Turf Aerator
Request a Demo
  • Crankshaft, tine arms and frame are perfectly aligned for superior performance and long life.
  • We offer many coring and solid tines options for a wide variety of cultivation practices.
    View the Toro Titan Tines Guide & Catalog
  • Deep-tine models utilize a standard 3-point hitch hook-up powered from the PTO.
  • Leverage of the aerator allows lightweight units to do heavyweight jobs while reducing wear and tear on the machines.
  • Adjustable soil fracturing capabilities offer a range of positions to match your desired application.
  • Apply the ideal tine position for every soil type and condition, without leaving your seat.
  • Our heavy-duty design includes an oversized gearbox, heavy-duty bearings, crank arms and chains for the toughest conditions

Overview

The compact and heavy duty SR54 is designed for use on a variety of turf areas including fairways, greens, tees, and athletic fields. The SR54 features a working width of up to 54" (1.37 m) and depth capabilities of up to 10" (25 cm).

Features

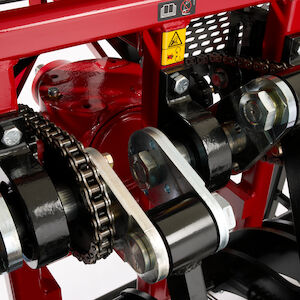

Precision Design
Precision Design
The crankshaft, tine arms and frame are perfectly aligned allowing for superior performance and long life. With its fast, efficient performance and innovative design, the deep-tine aerators are able to run smoothly at all depths, relieving pressure-packed soil with superior hole quality.

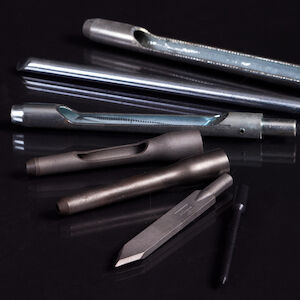

Coring & Solid Tines
Coring & Solid Tines
There are many coring and solid tines available to cover a wide variety of cultivation practices.
View the Toro Titan Tines Guide & Catalog
Easy Hook-Up & Operation
Easy Hook-Up & Operation
All of the deep-tine models utilize a standard 3-point hitch hook-up and are powered from the PTO.
Superior Punching Power
Superior Punching Power
The leverage of the aerator allows the weight to be placed directly over the point of impact, enabling lightweight units to do heavyweight jobs while reducing shock and wear and tear on the machines.

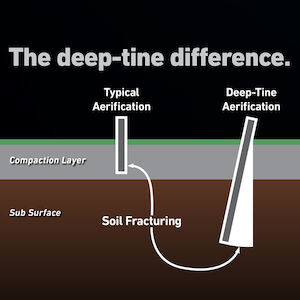

Adjustable Soil Fracturing Capabilities
Adjustable Soil Fracturing Capabilities
There are multiple positions available to adjust the soil fracturing movement of the tines. This allows you to adjust and control this motion to your desired application.
Depth Control from the Operator's Seat
Depth Control from the Operator's Seat
The distinctive frame construction incorporates perfectly aligned arcs following the movement of the crank arms and the movement of the main frame. This design allows the operator to change the tine depth without changing the angle of entry by using the hydraulic top link from the tractor while the machine is in operation. Because of this one-of-a-kind feature, you can apply the ideal tine position for every soil type and condition, without leaving your seat.

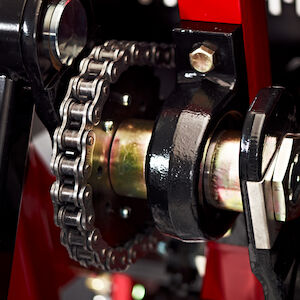

Heavy-Duty Design
Heavy-Duty Design
These robust machines are capable of withstanding extreme aeration conditions. The heavy-duty design includes an oversized gearbox, heavy-duty bearings, crank arms and chains, allowing you to operate in the toughest conditions.

Specifications

Aeration Type Deep
Forward Hole Spacing 2.5" - 4" (64 - 102 mm)
Lift System Standard 3-point.
Maximum Operating Depth (Working Depth) 1" - 10" (25 - 250 mm)
Maximum PTO Speed 400 - 500 rpm
Number of Tine Heads 6
Operating Speed 1.5 - 2.5 mph (2.41 - 4.02 kph)
Operating Width (Working Width) 54" (1.37 m)
Optional Accessories Rear Roller Kit (09952)
Productivity 36,000 sq. ft. / hour (3,345 sq. m / hour)
Recommended Tow Vehicle Requirement 16 - 18 hp (12 - 13.4 kW) with minimum 1,200 lb. (544 kg) lift capacity
Weight 1,165 lbs. (528 kg)
