Bore Drive Head Attachment

  • Model: 22420
  • UPC/EAN: 21038224206

$3,591.00 USD

Please contact your local dealer

Available at select retailers:

  • 19" working depth
  • Universal joint keeps rods horizontal
  • Accommodates pipe up to 3" diameter
  • Rod and reamer kit sold separately

Overview

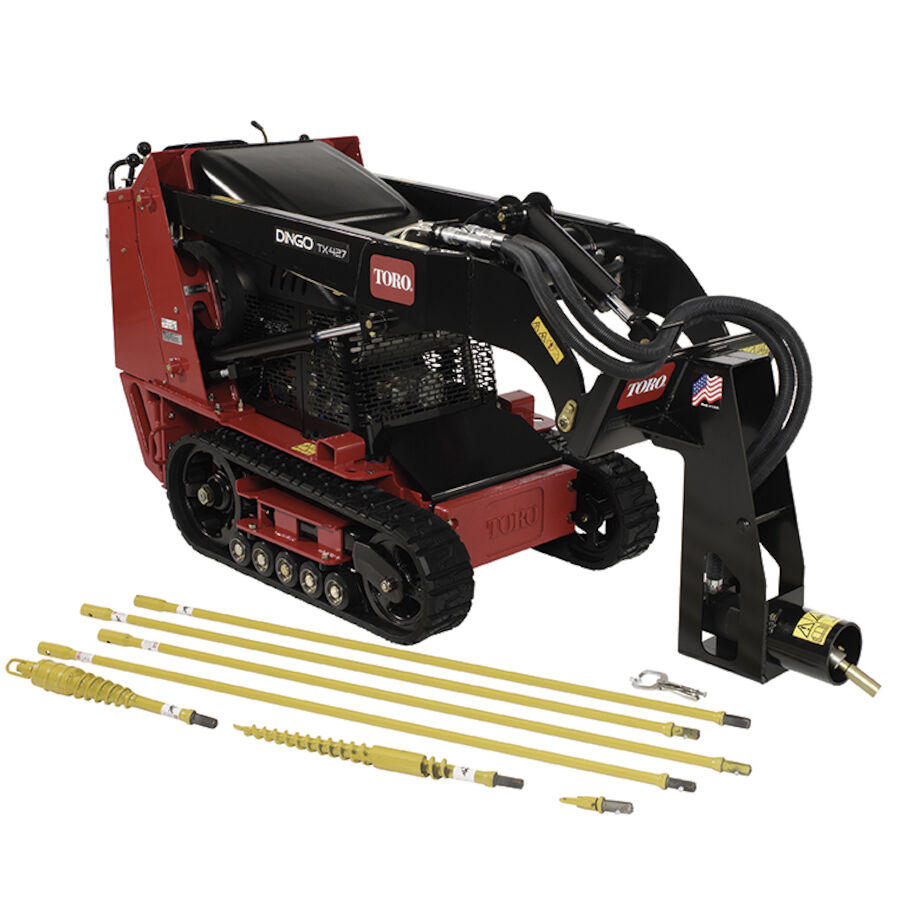

The Toro® Dingo® boring unit allows you to dig under sidewalks and driveways to simplify irrigation and cable installations. Shorter rod lengths and the ability to lower the bore head below grade allow you to work in both confined and open areas, increasing your productivity.

Features

Bore Depth
Bore Depth
Bore up to 19" below ground surface.
Universal Joint
Universal Joint
Increases productivity by allowing you to keep rods in a horizontal digging position in the toughest soil conditions.

Specifications

Construction Fabricated, welded steel frame
Height 25 in. / 63.5 cm
Length 22 in. / 55.8 cm
Models Dingo 320-D, Dingo 323, Dingo TX 1000, Dingo TX 1000 TURBO, Dingo TX 1300, Dingo TX 427, Dingo TX 525, Dingo TX 700
Mounting Frame Dingo® quick-attach mount plate, fabricated, welded base
Quick Couplers Dripless, flush face quick couplers
Rated Pressure 3,000 PSI (207 BAR)
Rod Connection Hex coupler with snap button
Torque 430 ft/lbs at 2000 psi (59 KgVm at 138 bar)
Weight 120 lbs / 54.4 kg
Width 24 in. / 60.9 cm
Working Width 6 in. / 15.2 cm

Accessories

Rod and Reamer Kit
Rod and Reamer Kit (Part # 22421)



Warranty

For complete product warranty information contact Toro Customer Service

**See dealer for Warranty details.
