Groundsmaster 120
Product Information
- Model #: 30612
- Serial #: 230000001 - 230999999
- Product Type: Riding Products
Loading...

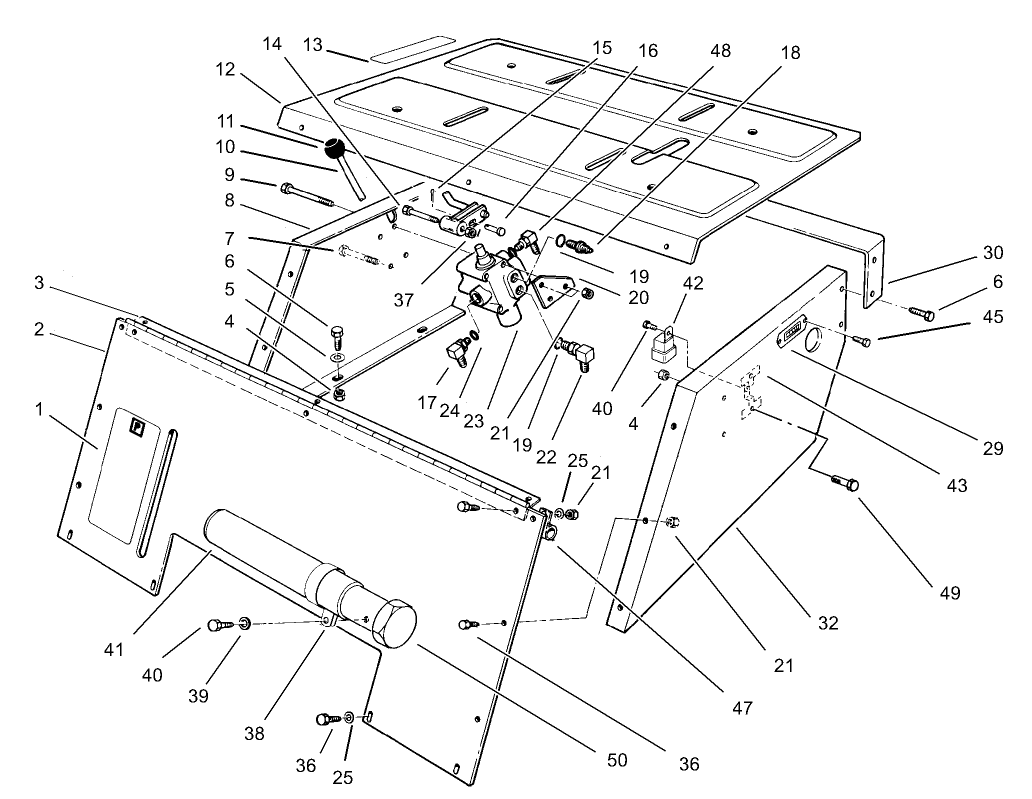

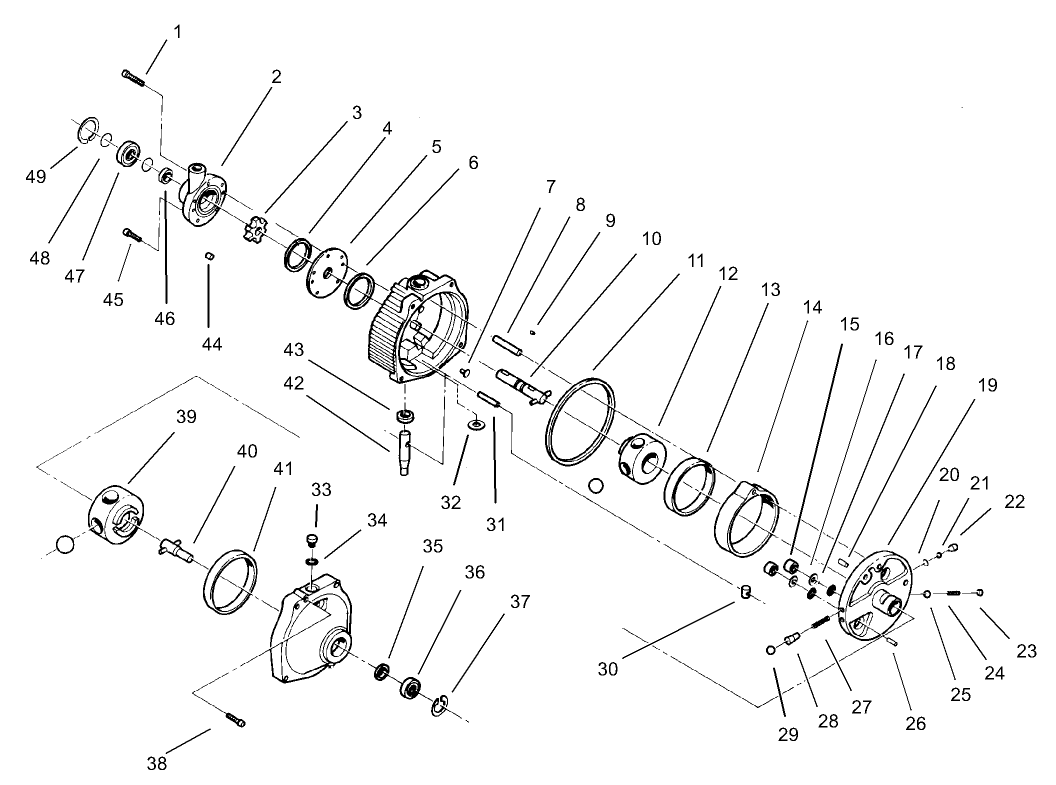

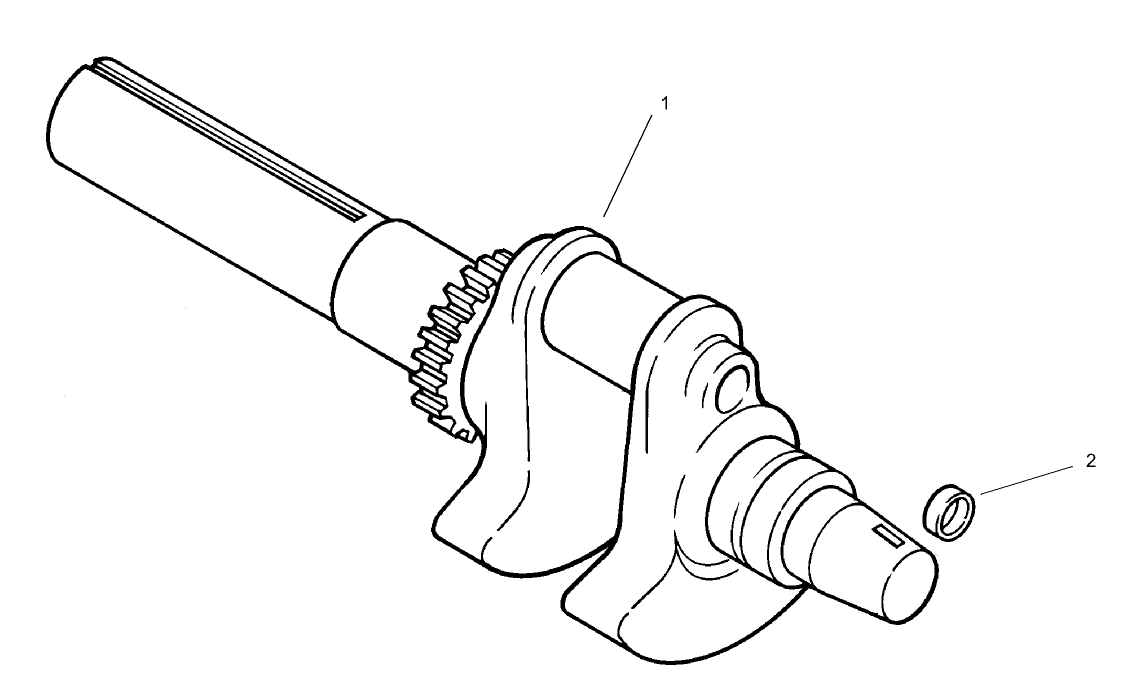

Assembly Drawings
Search for a part within assembly drawings:
-
Service Manual
-
Operator's Manual
-
Parts Catalog
15.5 Inch Atomic Blade (Part # 104-1300)
Toro OEM Atomic blade. The Toro Atomic blade is commonly referenced as a “Gator Style” or “Gator Blade”. Provides the best quality of cut while mulching. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.
18 Inch Atomic Blade (Part # 104-1301)
Toro OEM Atomic blade. The Toro Atomic blade is commonly referenced as a “Gator Style” or “Gator Blade”. Provides the best quality of cut while mulching. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.
Please contact your local dealer
Striping Kit (Part # 106-3370)
Genuine OEM Part
Mulcher Kit, 52" Mower (Part # 30700)
Grass Collection System (Part # 30751)
Mulcher Kit, 44" Mower (Part # 30752)
Deluxe Seat (Part # 30756)
Brake Kit (Part # 30758)
44" Snowthrower (Part # 30761)
15.5 Inch Hi-Flow Blade (Part # 55-4940-03)
Toro OEM Hi Flow blade. Hi-Flow are also known as basic blades, regular blades, or 2-in-1 blades, Hi-Flow mower blades are the go-to blades for mowers with a bagger. The blades are designed to cut the grass and Flow the clippings, propelling them up and out of the discharge chute. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.
Please contact your local dealer
18 Inch Mower Blade (Part # 56-2390-03)
Toro 18 Inch OEM Hi Flow blade. Hi-Flow are also known as basic blades, regular blades, or 2-in-1 blades, Hi-Flow mower blades are the go-to blades for mowers with a bagger. The blades are designed to cut the grass and Flow the clippings, propelling them up and out of the discharge chute. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.
Tire Chains (Part # 56-6630)
Genuine OEM Part
Please contact your local dealer
Please contact your local dealer
44" Recycler Kit (Part # 99-4582)
52" Recycler Kit (Part # 99-4586)
Seat Suspension Kit (Part # 99-8522)
Genuine OEM Part
-
Model #
30612 -
Serial #
230000001 - 230999999 -
Product Name
Groundsmaster 120 -
Product Brand
Toro -
Product Type
Riding Products -
Product Series
Groundsmaster 100 Series -
Swath
Deck Optional -
Discharge
Deck Optional -
Engine/Motor Manufacturer
Kohler -
Engine/Motor Size
20 hp -
Engine/Motor Type
4 Cycle CARB2, EPA2 -
Engine Starter
Electric -
Transmission Type
Hydrostatic
-
Drive System: Gearbox Lubricant
SAE 10w-30 -
Drive System: Ground Speed
Infinitely Variable -
Engine: Engine Speed
3200±100 RPM -
Engine: Ignition Coil Air Gap
015-.020"/ .38-.5mm -
Engine: Spark Plug
Champion RC12 -
Engine: Spark Plug Gap
.040"/ 1.02mm -
Chassis: Tire Pressure
10-15 psi
