Power Max 828 OE Snowthrower
Product Information
- Model #: 38639
- Serial #: 310000001 - 310999999
- Product Type: Snowthrowers
Loading...

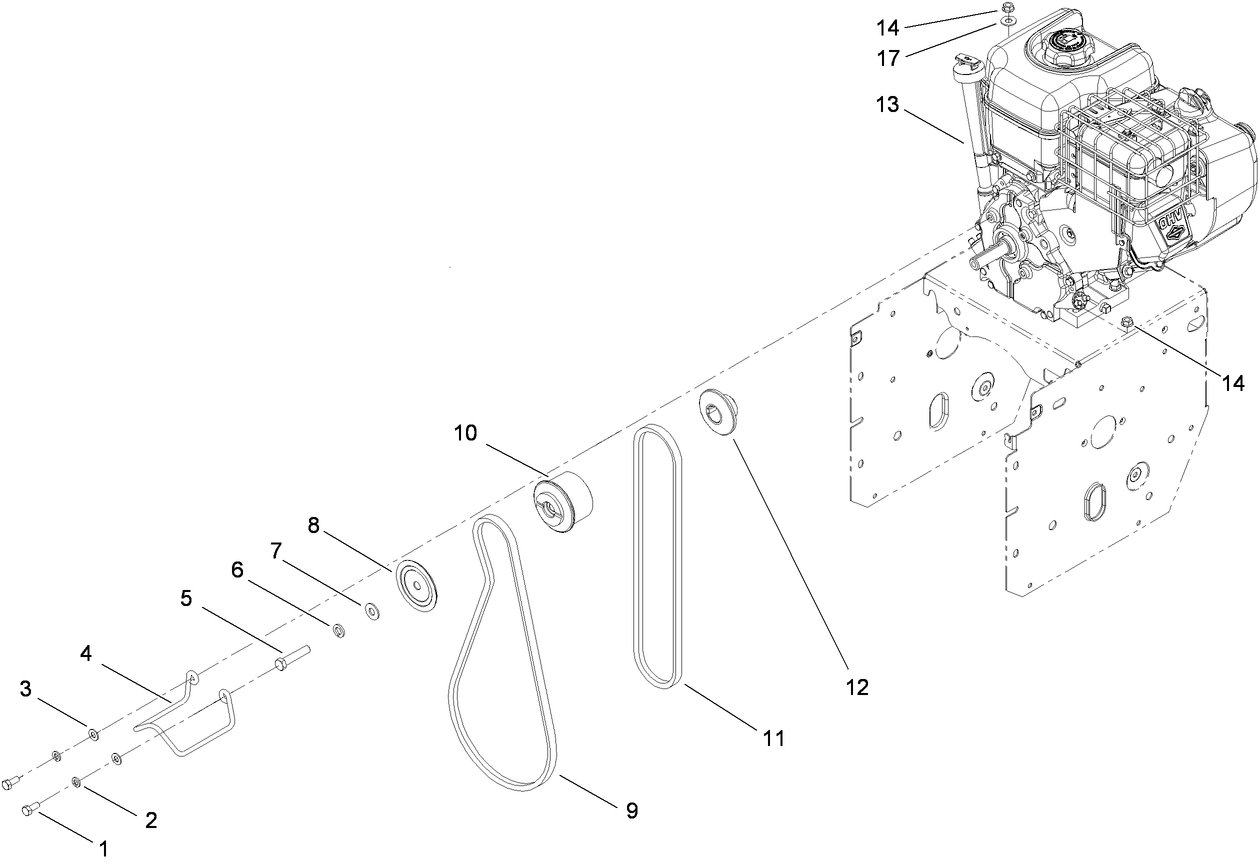

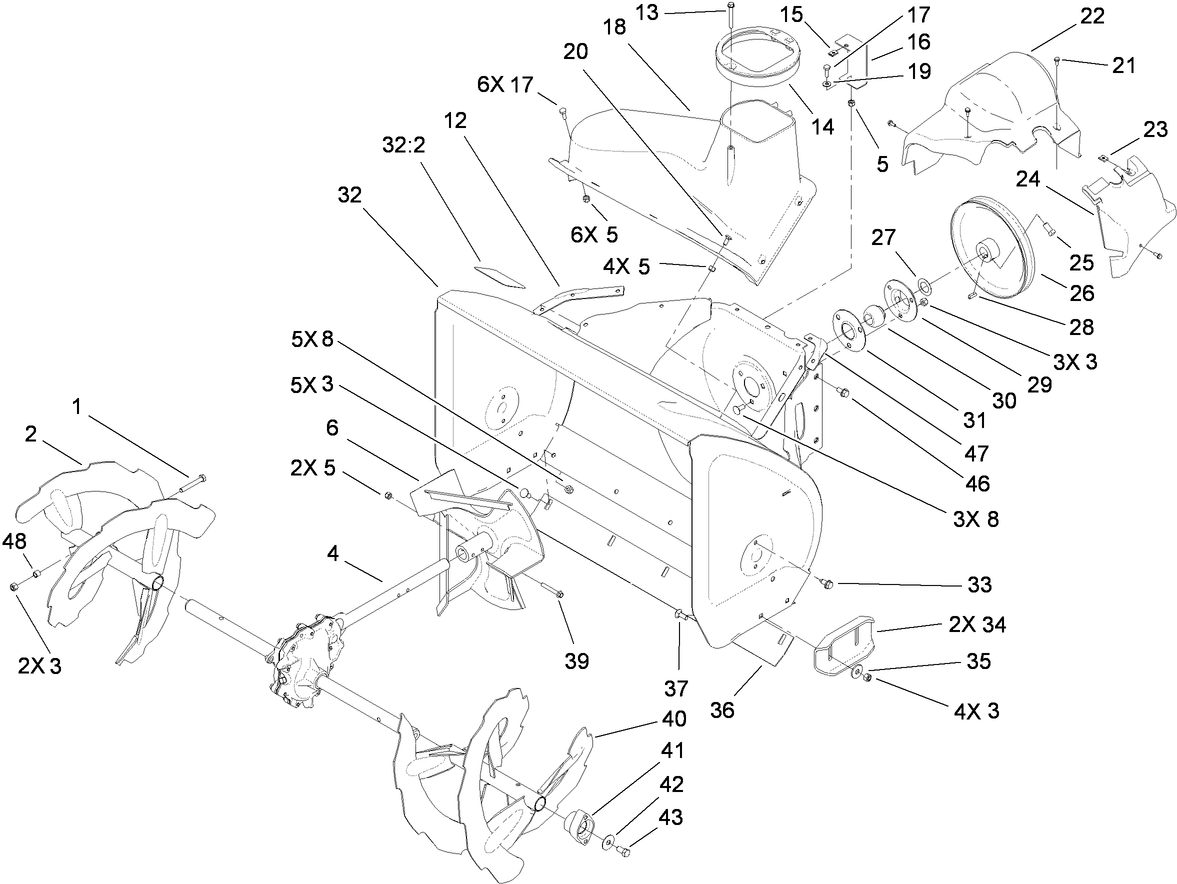

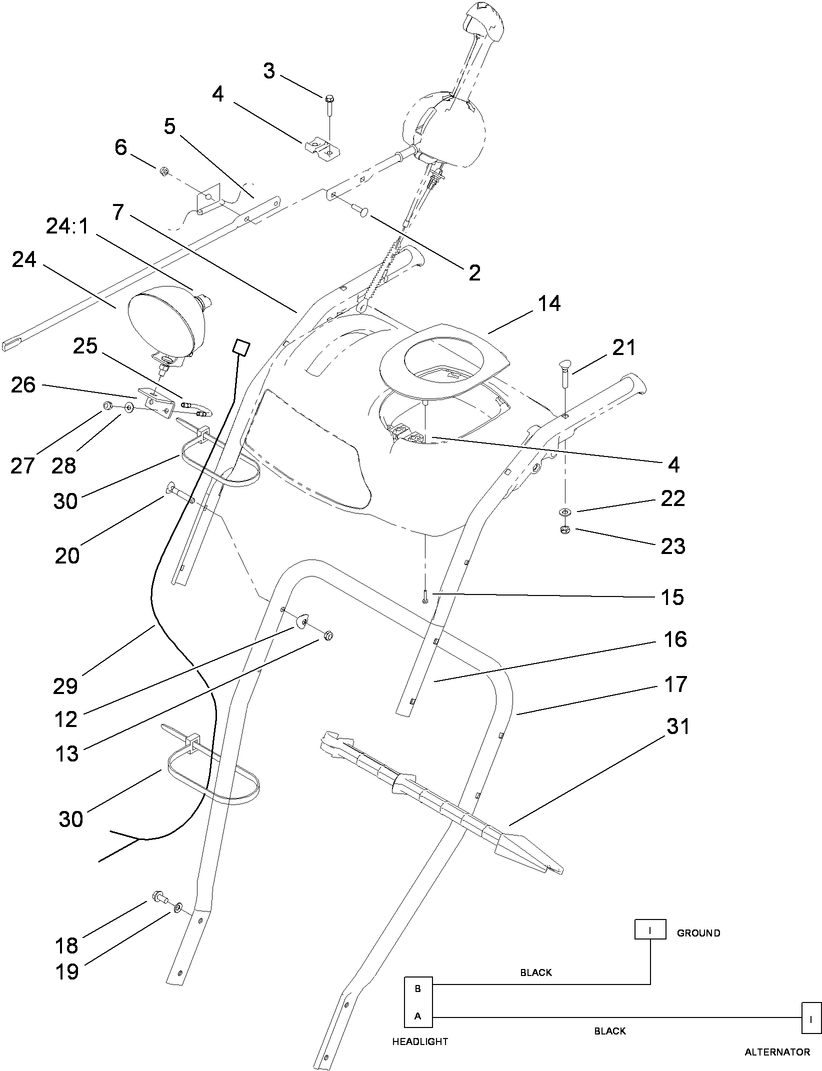

Assembly Drawings
Search for a part within assembly drawings:
-
Service Manual
-
Operator's Manual
-
Parts Catalog
-
EU Declaration of Conformity
-
Model #
38639 -
Serial #
310000001 - 310999999 -
Product Name
Power Max 828 OE Snowthrower -
Product Brand
Toro -
Product Type
Snowthrowers -
Product Series
Snowthrower, Two Stage Power Max -
Chassis Type
Two Stage -
Swath
28 inch -
Discharge
Two Stage -
Engine/Motor Manufacturer
Briggs & Stratton -
Engine/Motor Size
250cc -
Engine/Motor Type
4 Cycle CARB3, EPA3 -
Engine Starter
Electric/Recoil -
Transmission Type
Friction Disc
-
Drive System: Gearbox Lubricant
4.5 oz. (133ml) SAE 90 GL5 or higher -
Engine: Spark Plug Gap
.030"/ .76mm -
Engine: Spark Plug
Champion QC12YC -
Chassis: Tire Pressure
17-20 PSI / 116-137 kPa -
Drive System: Ground Speed
Fwd. .7 / 1.1 / 1.5 / 1.9 / 2.3 / 2.7 Rev. 1.0 / 1.6 mph -
Engine: Engine Speed
3300±100 RPM -
Engine: Engine Oil Type
20 oz. (.6l) 5w-30 or 10w-30 / API SH or higher
