Z Master Professional 6000 Series Riding Mower, with 60in TURBO FORCE Side Discharge Mower
Product Information
- Model #: 74945CP
- Serial #: 312000001 - 312999999
- Product Type: Riding Products
Loading...

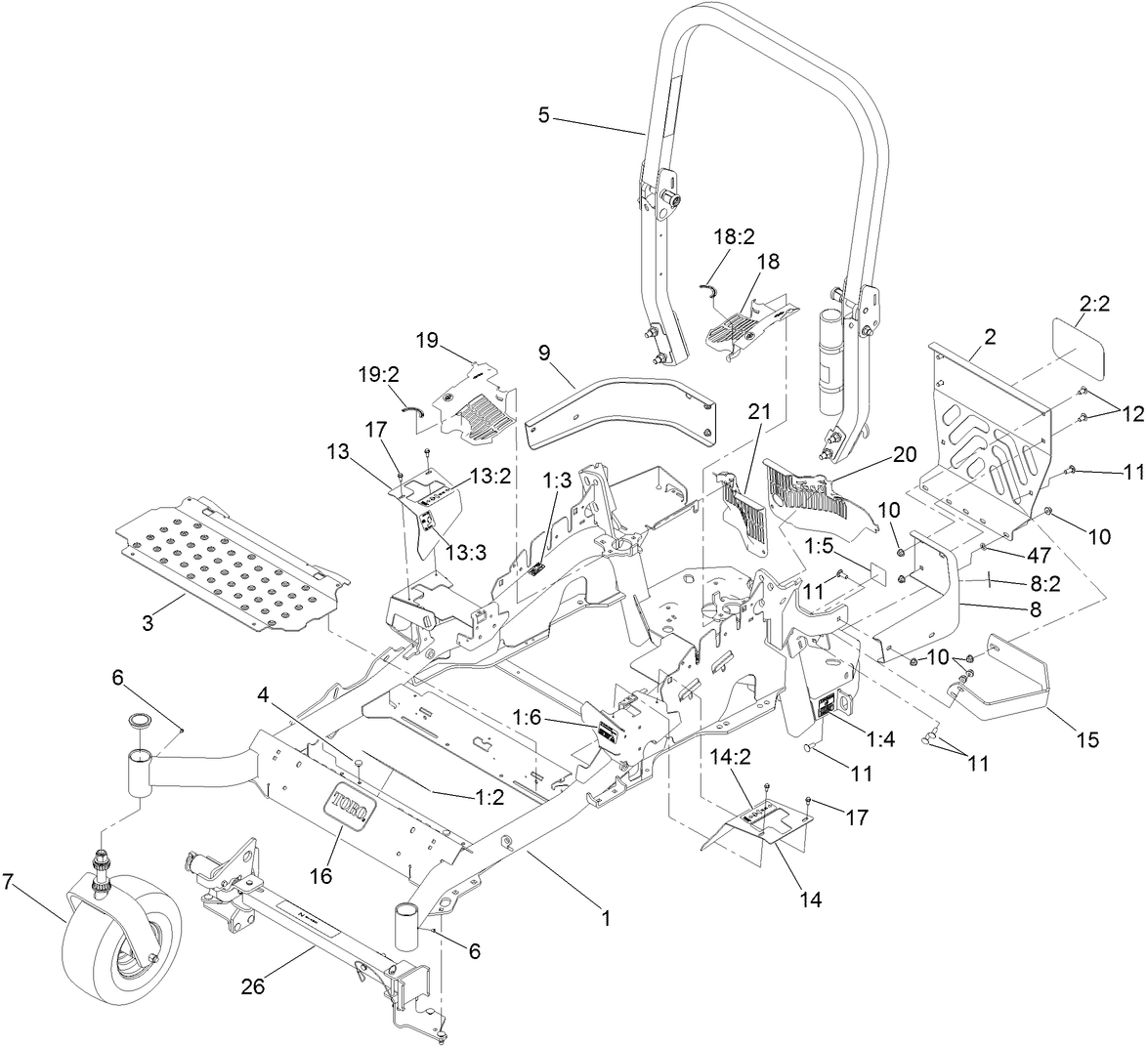

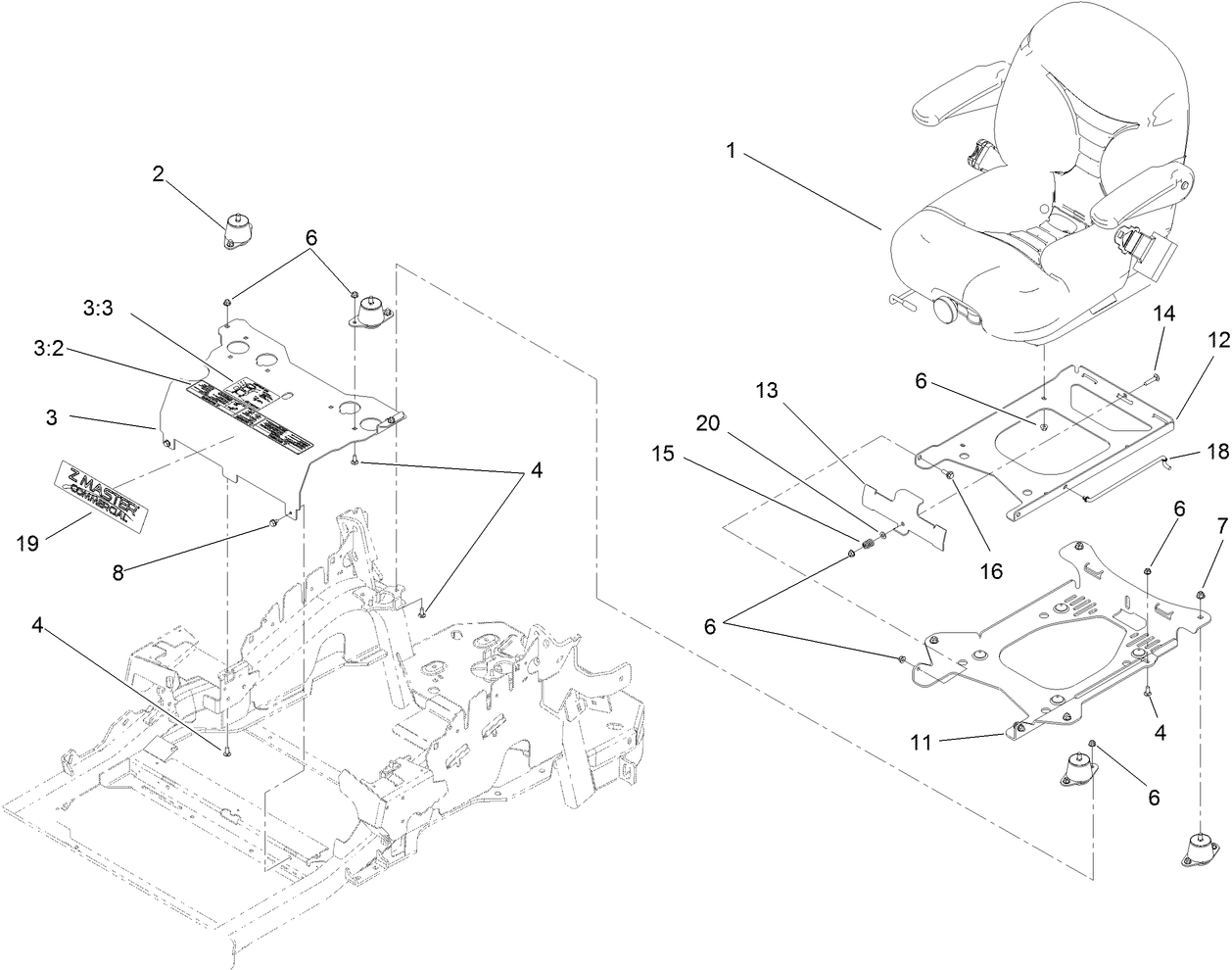

Assembly Drawings
Search for a part within assembly drawings:
-
Service Manual
-
Operator's Manual
-
Parts Catalog
-
Engine Evaporative Emission Warranty
-
Setup Instructions
-
Model #
74945CP -
Serial #
312000001 - 312999999 -
Product Name
Z Master Professional 6000 Series Riding Mower, with 60in TURBO FORCE Side Discharge Mower -
Product Brand
Toro -
Product Type
Riding Products -
Product Series
Zero Radius Turn, Professional 6000 Series -
Chassis Type
ZRT - LCE -
Swath
152cm -
Discharge
Side -
Engine/Motor Manufacturer
Kawasaki -
Engine/Motor Size
25.5 hp -
Engine/Motor Type
4 Cycle -
Engine Starter
Electric -
Transmission Type
Hydrostatic -
Traction Type
Rear WD
-
Engine: Battery
12V 260CCA -
Engine: Spark Plug
NGK BPR4ES -
Engine: Spark Plug Gap
.030"/ .76mm -
Chassis: Tire Pressure
13 psi / 90 kPa -
Chassis: Height of Cut Range
1" - 5.5" (25-140mm) -
Engine: Engine Oil Type
filter chg 77 oz.(2.3 L); no filter chg 70 oz.(2.1 L); 10W-30 above -4F(-20C) or 5W-20 below 32F(0C) -
Drive System: Ground Speed
0-10 mph / 0-16kph -
Engine: Engine Speed
3800±50 RPM -
Drive System: Gearbox Lubricant
HYPR-OIL 500 / Mobil 1 15w-50; 52oz. (1.5L) per side with filter change
