2000 Series MyRIDE® HDX 60 in. (152 cm) 23.5 hp 747cc

Price shown does not include tariff surcharge

Model: 77293

2000 Series MyRIDE® HDX 60

2000 Series MyRIDE® HDX 60 in. (152 cm) 23.5 hp 747cc

Price shown does not include tariff surcharge

Model: 77293

Model: 77293 UPC/EAN: 21038772936

Key Features

  • Get commercial-grade performance with a 23.5 hp* Kawasaki® FX engine.
  • MyRIDE® Suspension System - Save your body from the toughest terrain with the MyRIDE Suspension System featuring up to 3 inches of travel.
  • Stand up to any challenge with the 48” 7/10-Gauge High-Strength Steel TURBO FORCE® cutting deck with bullnose bumper.
  • Horizon360® Business Management Software. Work More Efficiently. Run More Profitably.
Find a Dealer

Financing Available

Free Shipping

  • Ground Shipping Only

  • Cannot ship to the following states: AK, HI

Resources

Accessory Guide All Promotions Horizon360 Software

Product Details

Take comfort to the next level with the 60 in. Z-Master 2000 HDX zero-turn mower with MyRIDE® Suspension System. Built with a power-packed 23.5 hp* Kawasaki® FX engine with heavy-duty air cleaner, commercial grade hydros, 23 in. Kenda Reaper Tires, and a 7/10-Gauge High-Strength Steel TURBO FORCE® cutting deck for commercial-grade productivity. With the customizable MyRIDE Suspension System to isolate bumps and vibrations, plus a USB port, cup holder, and storage space, you’ll stay comfortable – even on the longest days
23.5 HP* Kawasaki® Engine
23.5 HP* Kawasaki® Engine
Enjoy top-line performance from the professional-grade 23.5 HP* Kawasaki engine.
23
23" Kenda Reaper Drive Tires
23” rear-drive tires for a no-quit push to finish strong.
Commercial-Grade Hydro-Gear ZT-3800
Commercial-Grade Hydro-Gear ZT-3800
Fast, clean work with commercial-grade ZT-3800 hydros.
MyRIDE® Suspension System
MyRIDE® Suspension System
Save your body from the toughest terrain with the MyRIDE suspension system.
TURBO FORCE® Cutting Deck
TURBO FORCE® Cutting Deck
Enjoy years of reliable performance with a fully tubular frame and 7/10-gauge steel deck.
Customize Your Ride
Customize Your Ride
Customize your ride with optional lights, bucket holder, trimmer mount, baggers, mounts, and up to 20 attachments.
Horizon360 system used by contractor
Horizon360® Business Management Software.
Managing and growing your business is hard work. Using a business management software system shouldn't make it harder. That is why we built Horizon360. If you can type and point/click a mouse, you have all the skills required.

For more information click here.

Adjustment

5-Point Adjustment on Rear Shocks

Blade Tip Speed

18,500 ft/min / 5,638 m/min

Box Dimensions

91 in. x 70 in. x 52.5 in. / 231.1 cm x 177.8 cm x 133.4 cm

CARB Compliant

Not CARB Compliant

Caster Tires

13 in. x 6.5 in. - 6 in. (33 cm x 16.5 cm - 15.2 cm) Pneumatic

Clutch

Electromagnetic

Comfort Platform

MyRIDE® Suspension System

Deck Design

5” (12.7 cm) deck depth, 7/10-Gauge High-Strength Steel TURBO FORCE® w/ bull-nose bumper

Deck Material

7/10 Gauge High-Strength Steel

Deck Size

60 in / 152 cm

Discharge Chute

Rubber

Drive Tires

Kenda K3012 23 in. x 12 in. - 12 in. (58.4 cm x 30.5 cm - 30.5 cm)

Engine

23.5 hp* Kawasaki FX730V 726 cc with Heavy Duty Air Cleaner

Engine Brand

Kawasaki

Engine Displacement (cc)

726 cc

Engine Horsepower

23.5 hp

Foot Operated Height of Cut

Standard

Forward Ground/Transport Speed

Up to 11.0 mph / 17.7 kph

Front Bumper

Reinforced Bull-Nose

Fuel Capacity

7 gal. / 26.5 L / 28 Qt.

Fuel Type

Gasoline

Height of Cut

1.5 - 5.0 in. / 3.8 - 12.7 cm

Hour Meter

Standard

Lighting

LED Headlights

Platform Travel

3.0 in / 7.6 cm

Product Features

Electric Start, Gas Powered, MyRIDE Suspension System

Product Type

Zero Turn Mowers

Product Use

Commercial

Seat

High-Back Suspension Comfort with Arm Rests

Shocks

1 Front Center / 2 Rear

Spindle Bearings

Maintenance-free

Spindle Housing

8 in / 20.3 cm Diameter Aluminum

Start Type

Electric

Steering Controls

1.4" (3.6 cm) Diameter Grips; Adjustable, Dampened

Tool Mounting Capability

Side Console / Rear Guard Ready

Transmission

Hydro-Gear ZT-3800

Weight

1,052 lbs / 477.2 kg

Disclaimer

Specifications subject to change without notice and without incurring obligation. Products depicted are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments and safety features.
*The gross horsepower of these engines was laboratory rated by the engine manufacturer in accordance with SAE J1940 or SAE J2723. As configured to meet safety, emission and operating requirements, the actual engine horsepower on these mowers will be significantly lower.
**See retailer for warranty details.
Hypr-Oil™ 500 (quart)
Hypr-Oil™ 500 (quart) (Part # 114-4713)
Hypr-oil™ 500 (quart). Toro Hypr-Oil 500 is a high-performance hydraulic fluid specifically formulated and approved by Toro engineering for use in Toro commercial zero turn mowers. It provides excellent wear and corrosion protection for hydraulic systems, helping to maintain consistent performance and extend the service life of hydraulic components. Always refer to your operator manual for the correct fluid specification and service intervals.
$16.49 USD
Hypr-Oil™ 500 (gallon)
Hypr-Oil™ 500 (gallon) (Part # 114-4714)
Toro Hypr-Oil 500 is a high-performance hydraulic fluid specifically formulated and approved by Toro engineering for use in Toro commercial zero turn and stand-on mower hydraulic systems. Maintaining the correct hydraulic fluid and changing it at the manufacturer-recommended interval is critical to protecting hydraulic pumps, wheel motors, and other hydraulic components from wear and corrosion — particularly on machines operating under commercial duty cycles. Refer to your operator manual for the correct change interval and fluid capacity for your equipment.
$65.99 USD
Genuine OEM Part 114-4715
Hypr-Oil™ 500 Hydraulic Oil (5 gallon) (Part # 114-4715)
Toro Hypr-Oil 500 is a high-performance hydraulic fluid formulated and approved by Toro engineering for commercial zero turn and stand-on mower hydraulic systems. The 5-gallon commercial bulk pack is designed for fleet operators and service shops performing multiple machine hydraulic fluid changes. Maintaining the correct hydraulic fluid on schedule protects pumps, wheel motors, and other hydraulic components from accelerated wear. Refer to your operator manual for the correct change interval and capacity for each machine. Do not mix with other hydraulic fluids.
$294.79 USD
Empty Image Container
KIT, JACK W/ADAPTER (Part # 126-7282)
$262.89 USD
Empty Image Container
KIT, ADAPTER-JACK (Part # 126-7283)
$92.39 USD
Empty Image Container
COVER-HITCH (Part # 126-8299)
$8.35 USD
Genuine OEM Part 126-8379
Trash Container Kit (Part # 126-8379)
Toro genuine rider trash container kit. When it comes to reliability, Toro delivers replacement parts designed to the exact engineering specifications of our equipment. For peace of mind, insist on Toro genuine parts.
$78.09 USD
Empty Image Container
CASTER WEIGHT SET KIT 87# [SERVICE] (Part # 126-8639)
$656.69 USD
Empty Image Container
TITAN HD 1500/2000 60IN RECYCLER KIT (Part # 126-8703)
$533.49 USD
Riding Mower Jack Kit
Riding Mower Jack Kit (Part # 127-6666)
This genuine Toro OEM riding mower jack kit is designed to safely lift and support your Toro riding mower or zero turn, giving you safe, stable under-deck access for blade changes, belt replacements, and routine maintenance. It is one of the most practical purchase-stage accessories for any new mower owner — investing in a proper jack from day one avoids improvised lifting methods that risk injury and equipment damage. Verify your model and serial number before ordering.
$153.99 USD
Please contact your local dealer
Genuine OEM Part 133-1307

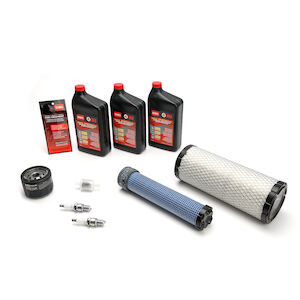

Toro Kawasaki Engine Maintenance Kit (Part # 133-1307)
