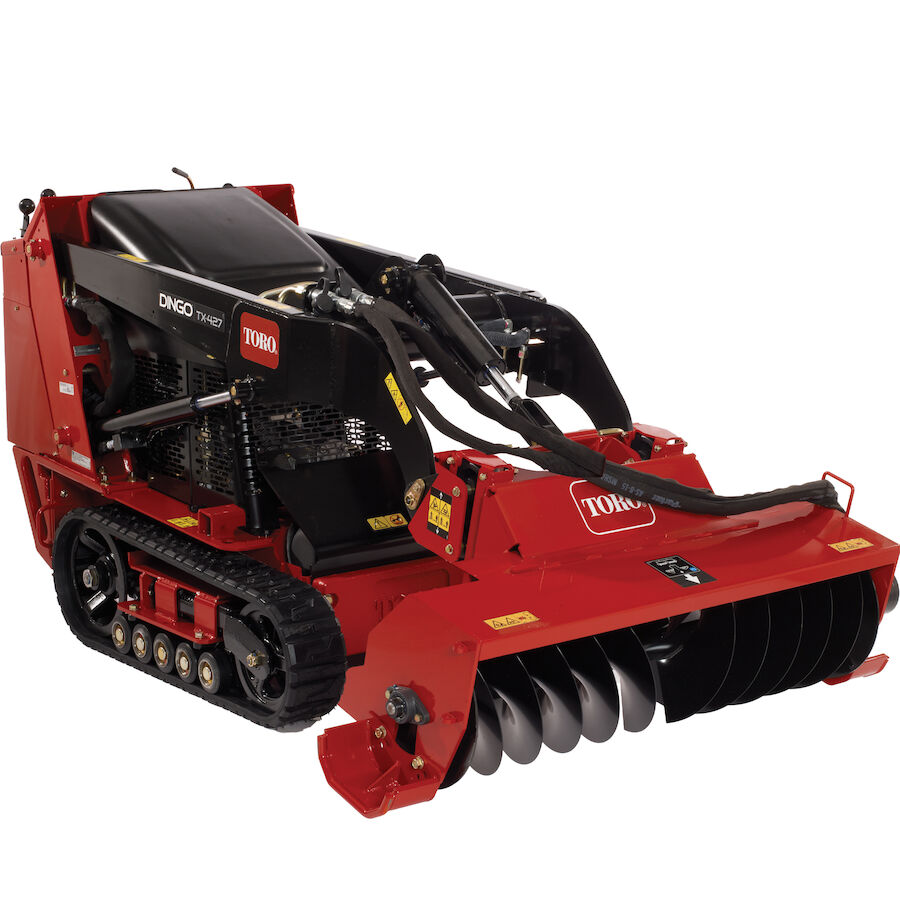

Trench Backfiller Attachment

  • Model: 22472
  • UPC/EAN: 21038224725

$4,235.00 USD

Please contact your local dealer

Available at select retailers:

  • Integrated float allows 5" of travel
  • Adjustable skids evenly disperse weight
  • 48" working width

Overview

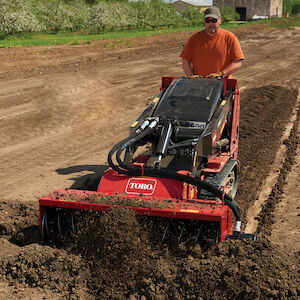

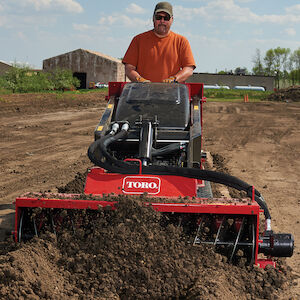

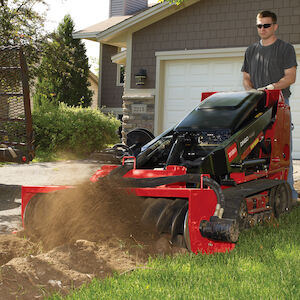

Designed for time and money-saving efficiency, this attachment lets operators fill trenches in a single pass. Two sets of opposing augers direct the spoils from the sides of the trench back into the hole, while the filler levels off the work area and fluffs the turf on each side of the trench minimizing its footprint

Features

Trencher Filler Attachment
Integrated Float
Float mechanism allows for up to 5" ground following and constant flotation, resulting in improved trench cleanup.
Trencher Filler Attachment
Adjustable Skids
Toro-exclusive adjustable skids help prevent scalping by spreading the weight of the unit over a larger surface area. Skids allow 1-1/4" (3.2 cm) vertical adjustment depending on ground conditions. Set high for existing turf conditions; set low for exposed soil conditions. The trench filler floats across the ground without digging or sinking in and disrupting turf.
Trencher Filler Attachment

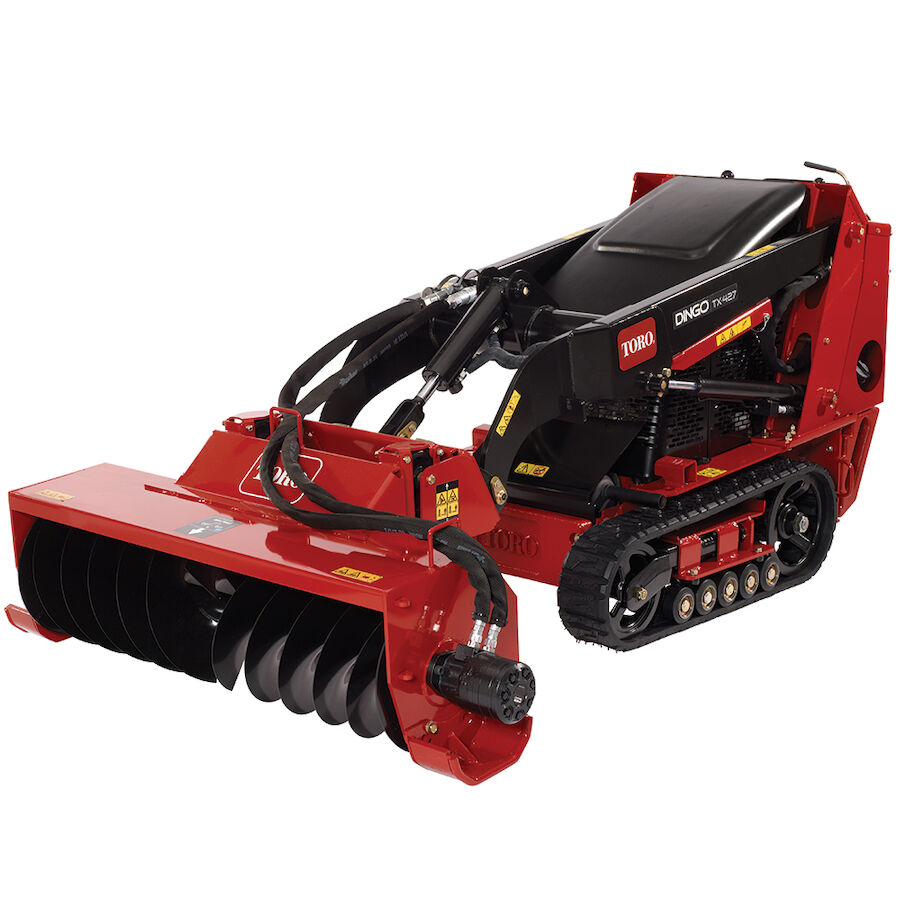

14" (36 cm) Auger Diameter
Enhances productivity with single-pass trench filling.
Trencher Filler Attachment
Notched Frame
Auger frame is notched in the middle to create mounding that will compact over time, a feature that helps avoid the need for follow-up labor after the ground has settled.

Specifications

Auger Diameter 14 in. / 35.5 cm
Construction Fabricated, welded steel frame
Float Distance 5 in. / 12.7 cm
Height 22 in. / 55.8 cm
Length 31 in. / 78.7 cm
Models Dingo 320-D, Dingo 323, Dingo TX 1000, Dingo TX 1000 TURBO, Dingo TX 1300, Dingo TX 427, Dingo TX 525, Dingo TX 700
Mounting Frame Dingo® quick-attach mount plate, fabricated, welded base
Quick Couplers Dripless, flush face quick couplers
Weight 410 lbs / 186 kg
Width 62 in. / 157.5 cm
Working Width 48 in. / 121.9 cm



Warranty

For complete product warranty information contact Toro Customer Service

**See dealer for Warranty details.
