170-DH Lawn Tractor
Product Information
- Model #: 74570
- Serial #: 230000001 - 230999999
- Product Type: Riding Products
Loading...

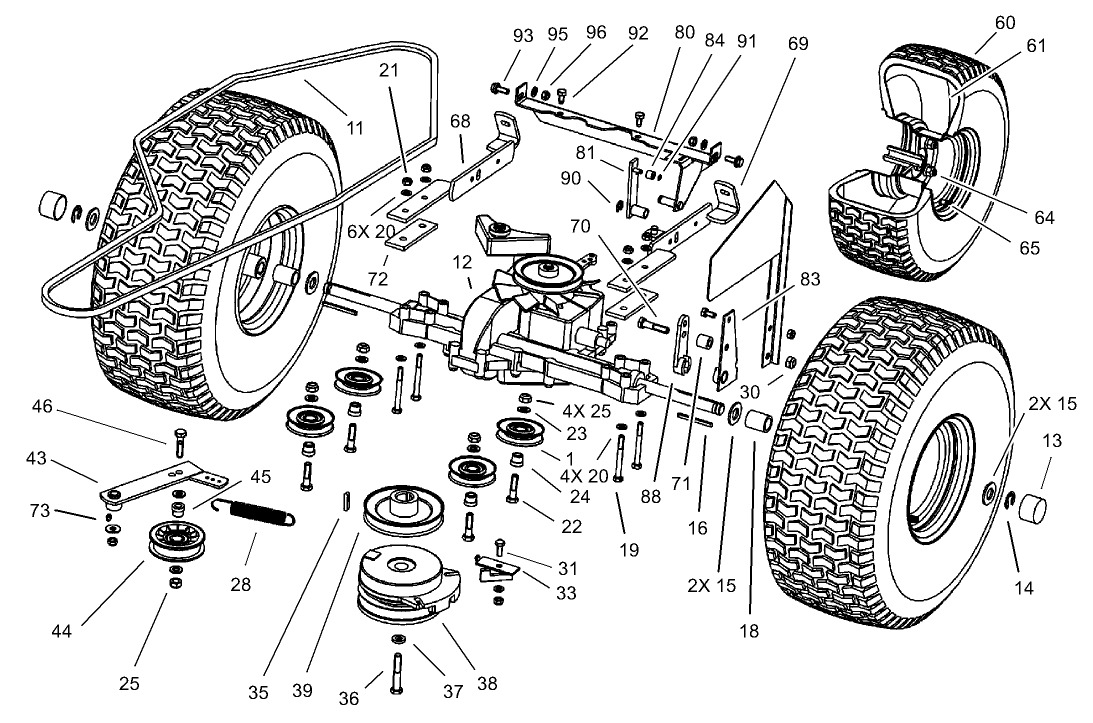

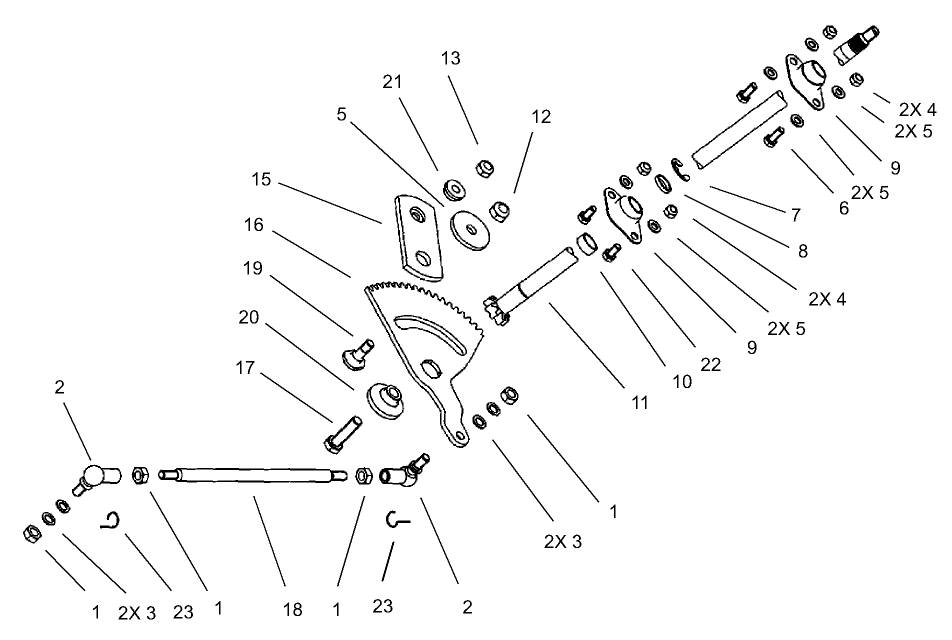

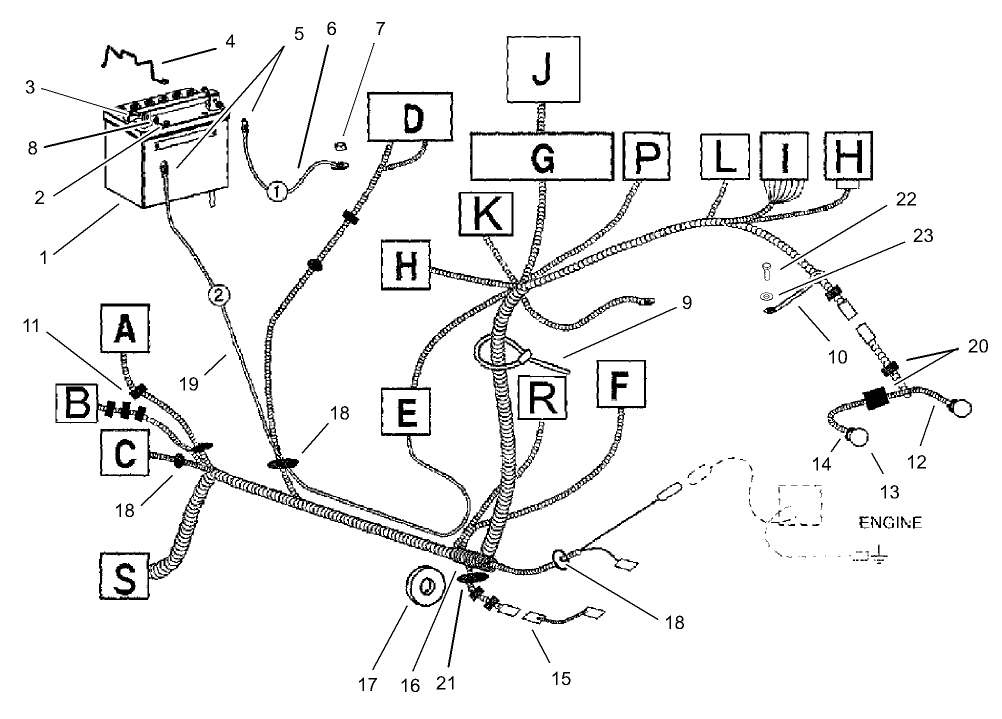

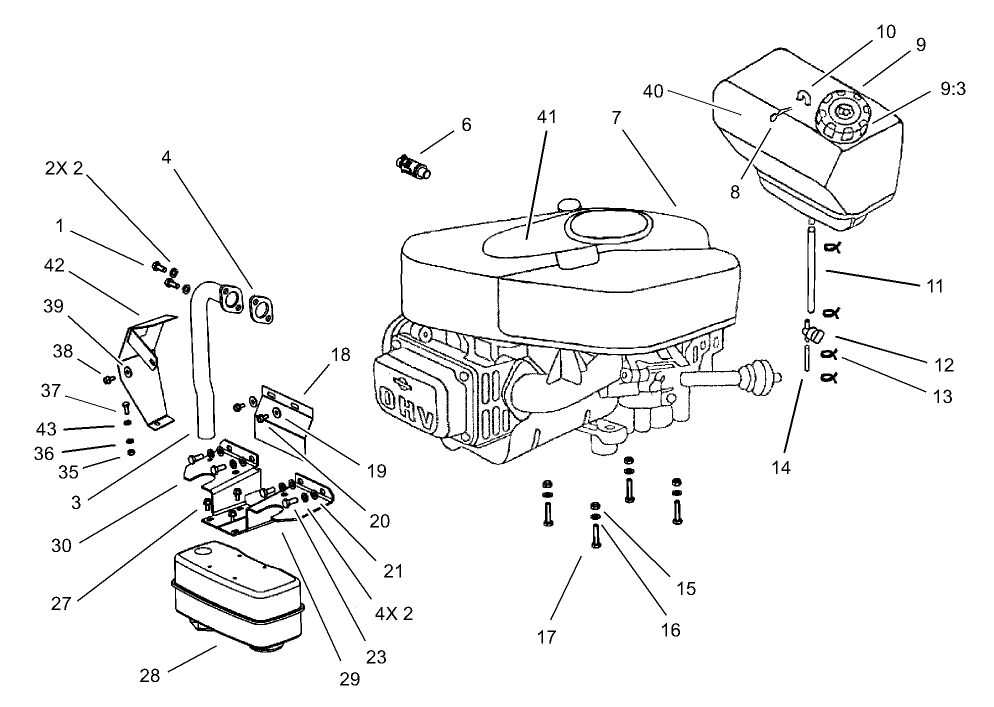

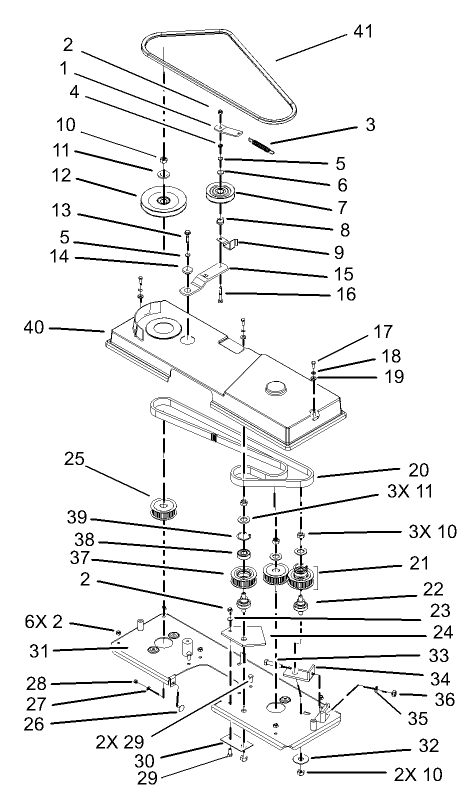

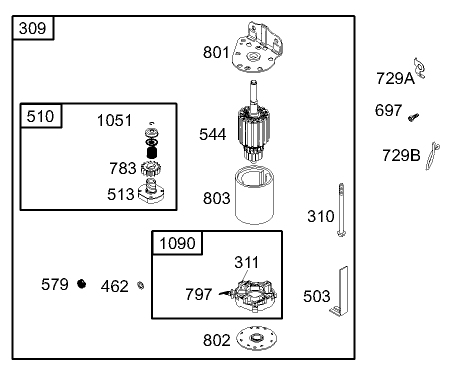

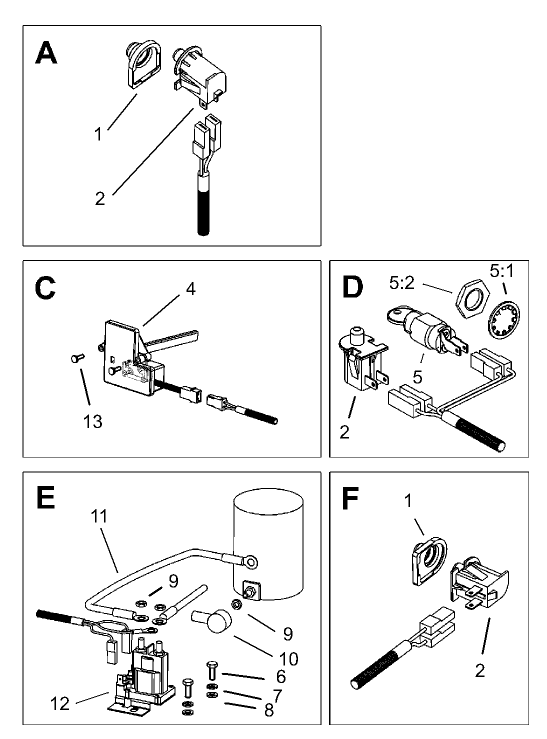

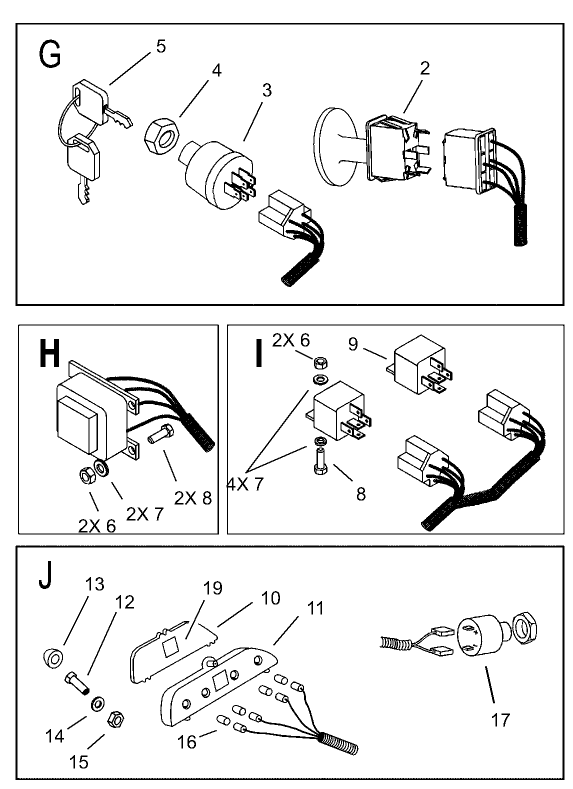

Assembly Drawings
Search for a part within assembly drawings:
-
Service Manual
-
Operator's Manual
-
Parts Catalog
-
EU Declaration of Conformity
-
Setup Instructions
Rear Discharge Kit (Part # 79471)
Tire Chains (Part # 82522)
Genuine OEM Part
-
Model #
74570 -
Serial #
230000001 - 230999999 -
Product Name
170-DH Lawn Tractor -
Product Brand
Toro -
Product Type
Riding Products -
Product Series
Lawn Tractor, DH Series -
Chassis Type
Lawn Tractor -
Swath
102cm -
Discharge
Rear Bagger -
Engine/Motor Manufacturer
Briggs & Stratton -
Engine/Motor Size
17.5 hp -
Engine/Motor Type
4 Cycle CARB2, EPA2 -
Engine Starter
Electric -
Transmission Type
Hydrostatic
-
Chassis: Tire Pressure
Front 17 PSI / 1.2kg sq. cm, Rear 15 PSI / 1kg sq. cm -
Engine: Battery
12V 190CCA -
Engine: Engine Speed
High 2600, Low 1750 RPM -
Engine: Spark Plug
Champion RC12YC -
Engine: Spark Plug Gap
.030"/ .76mm
