53cm Super Recycler Lawnmower
Product Information
- Model #: 20796
- Serial #: 260000001 - 260999999
- Product Type: Walk Behind Mowers
Loading...

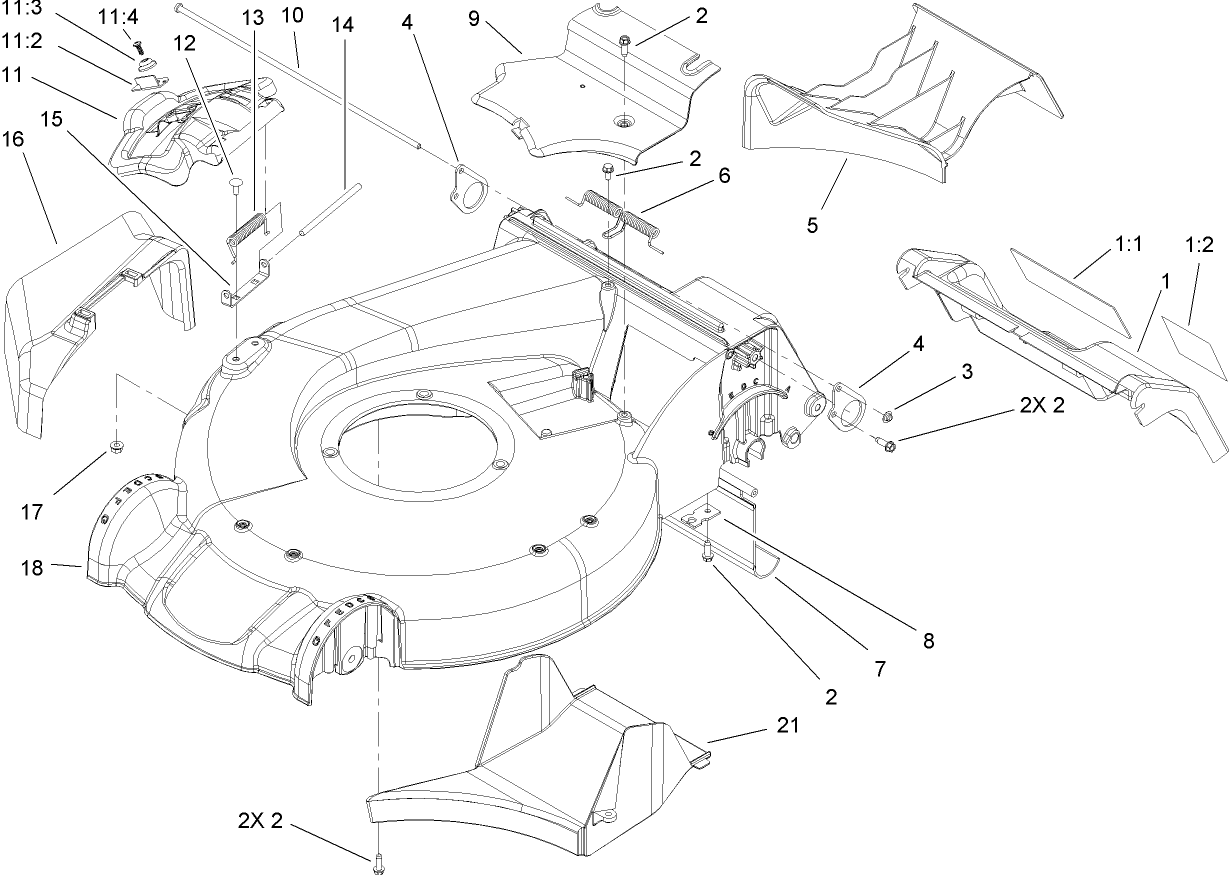

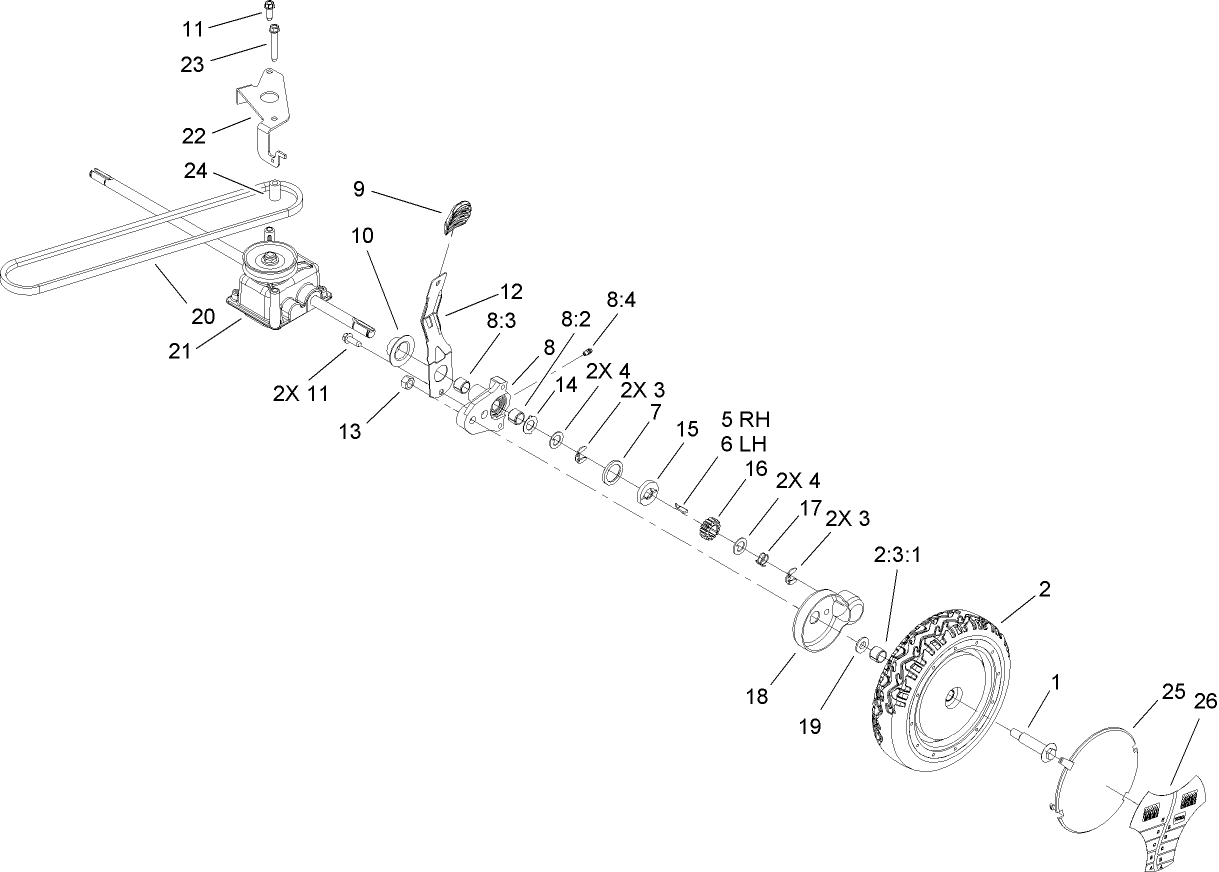

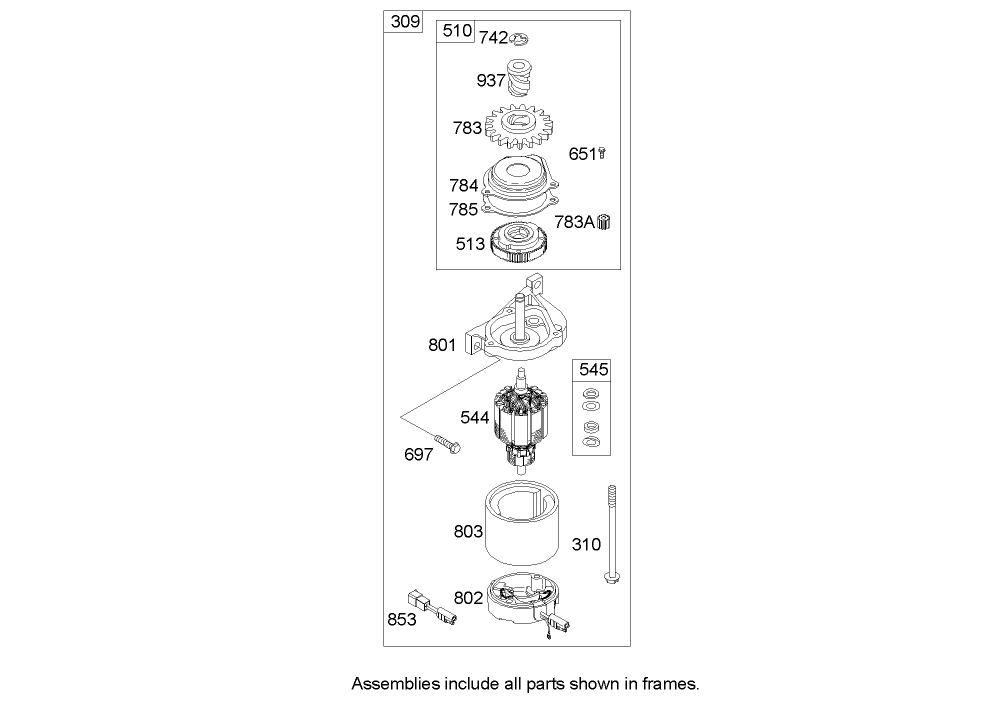

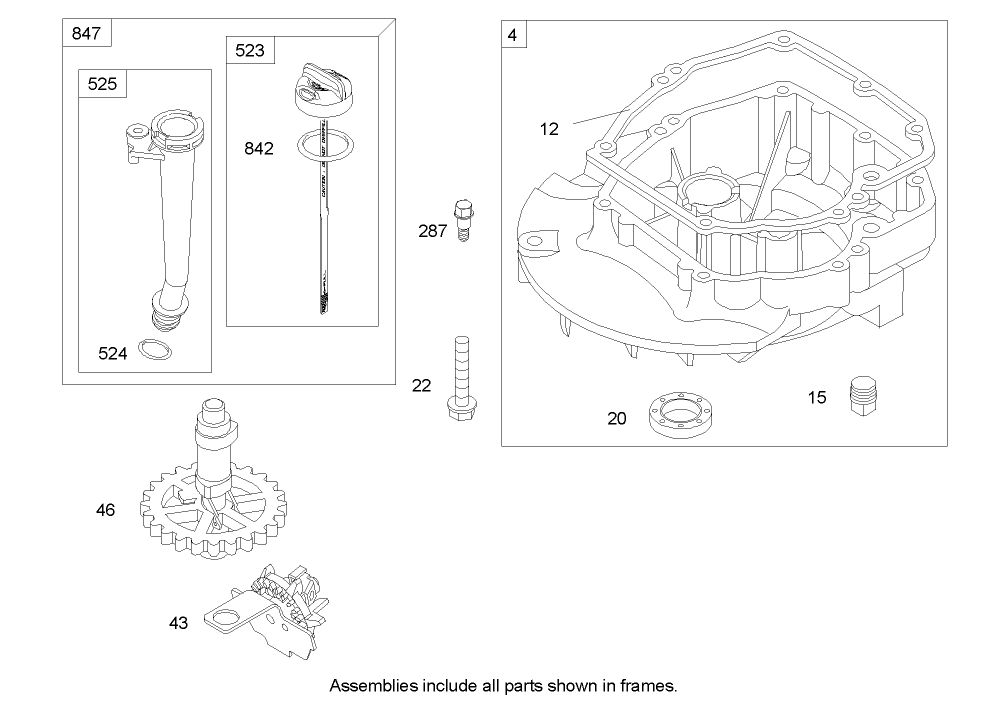

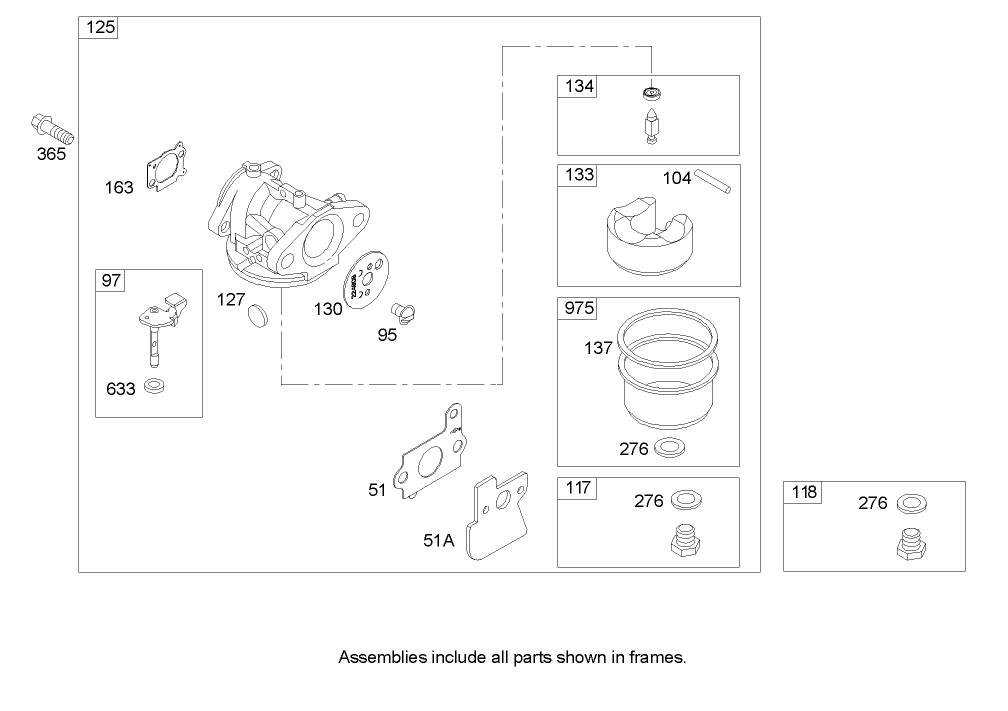

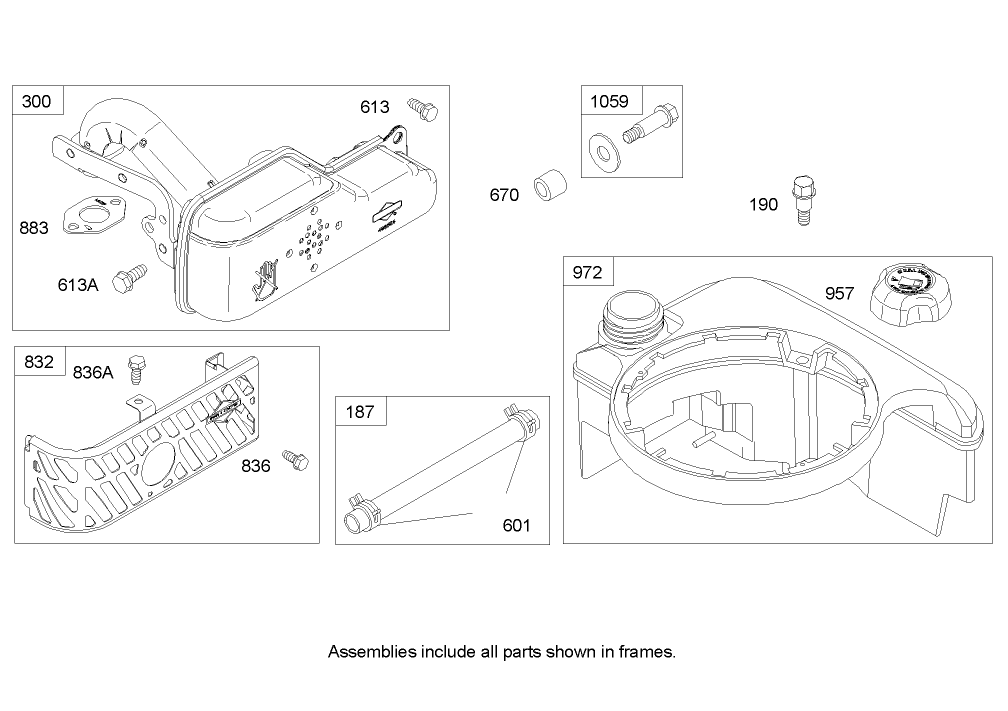

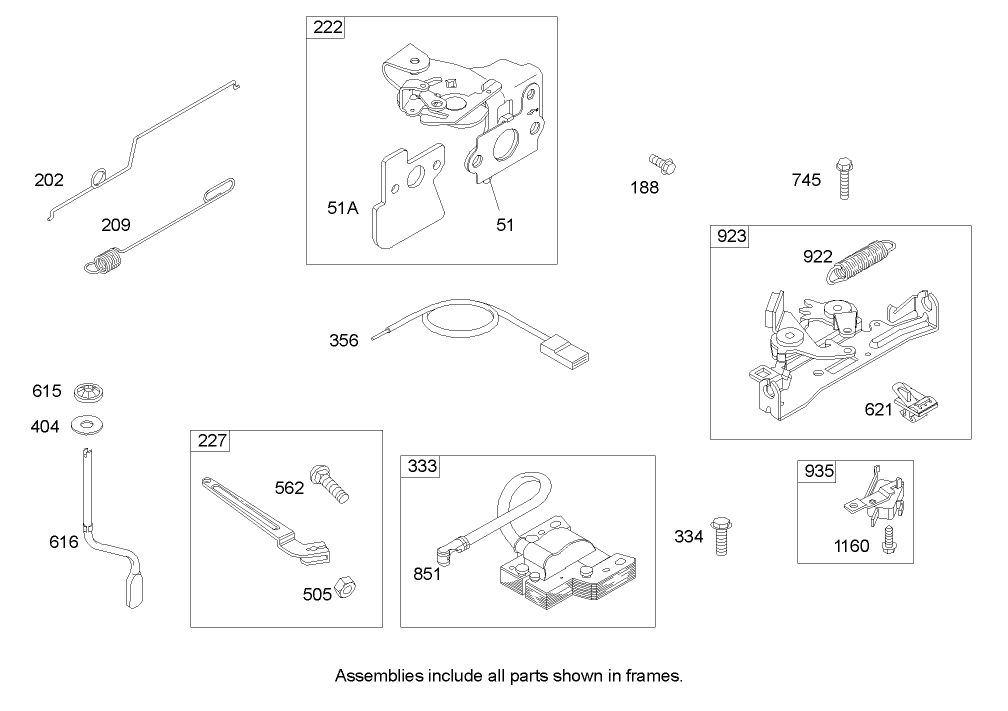

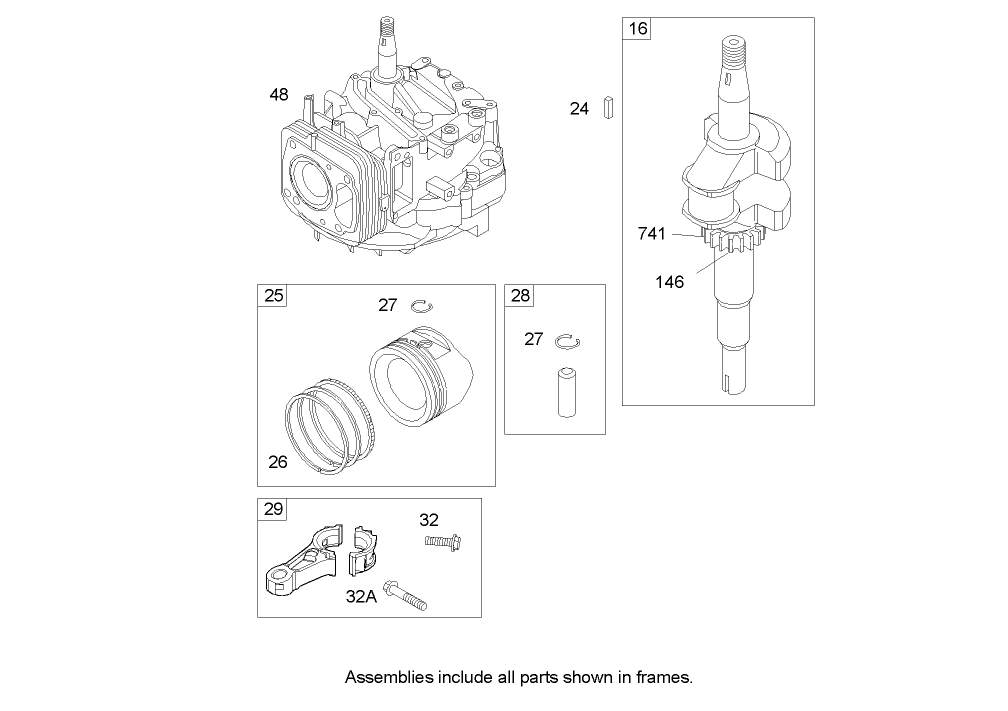

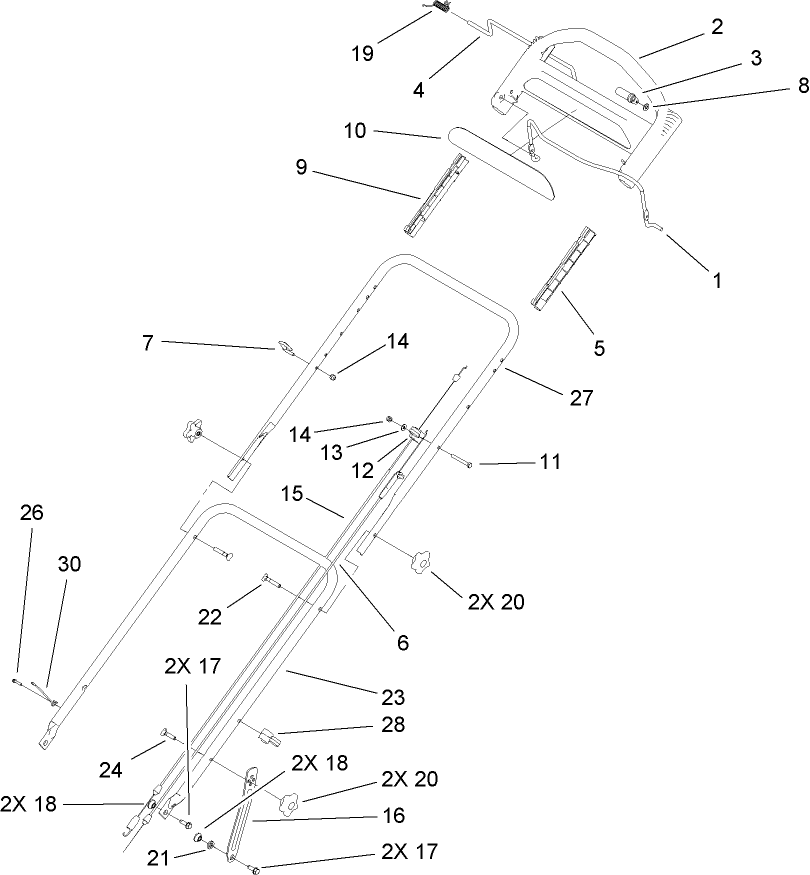

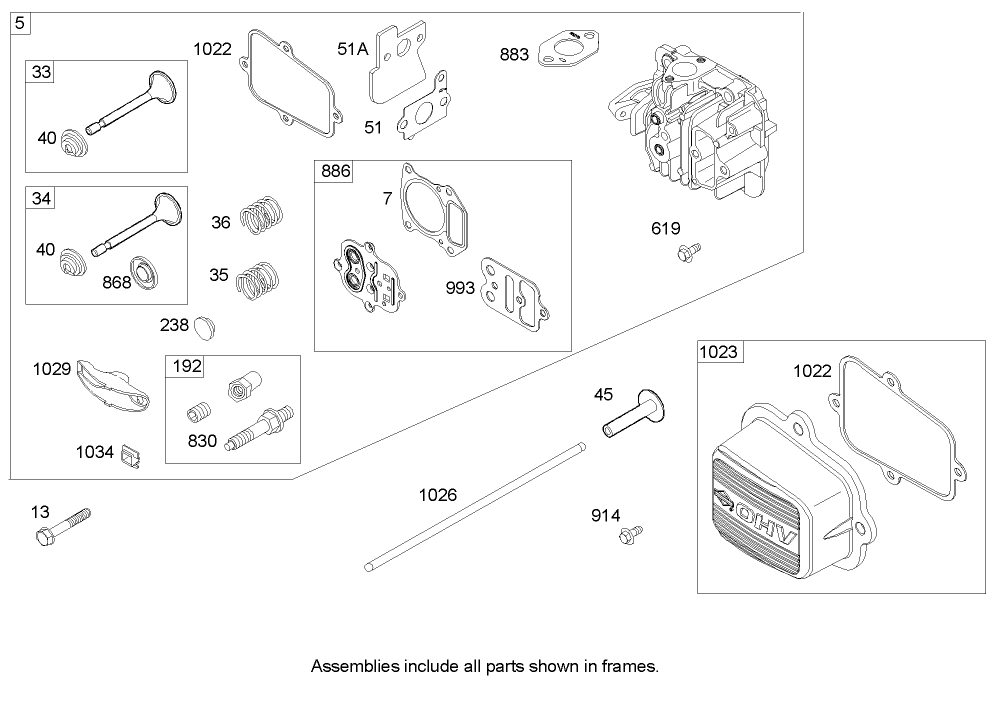

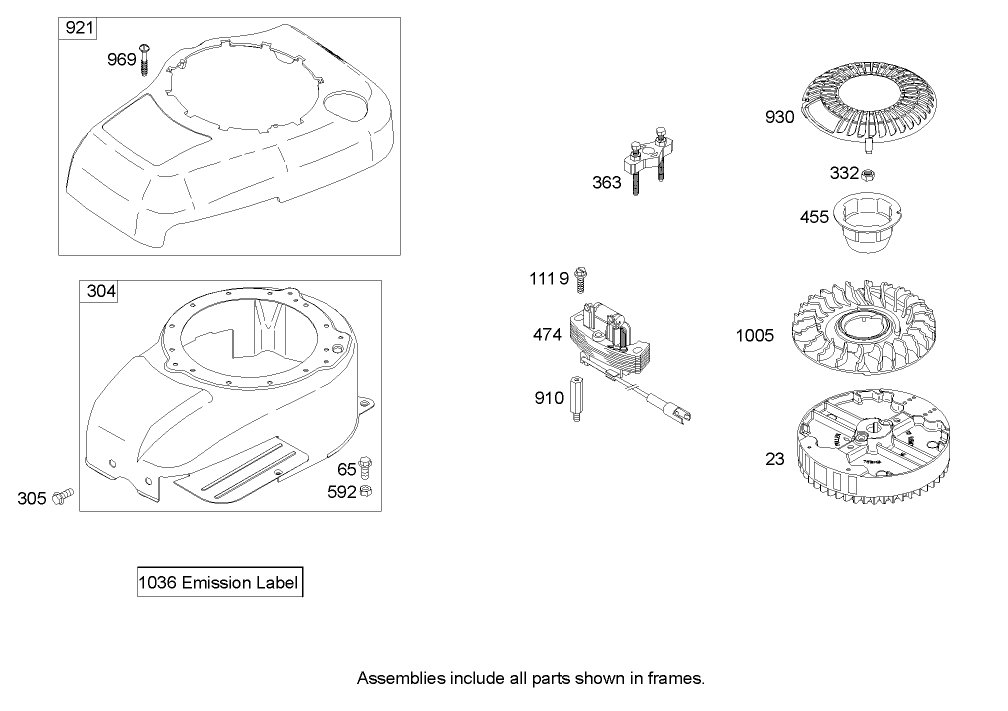

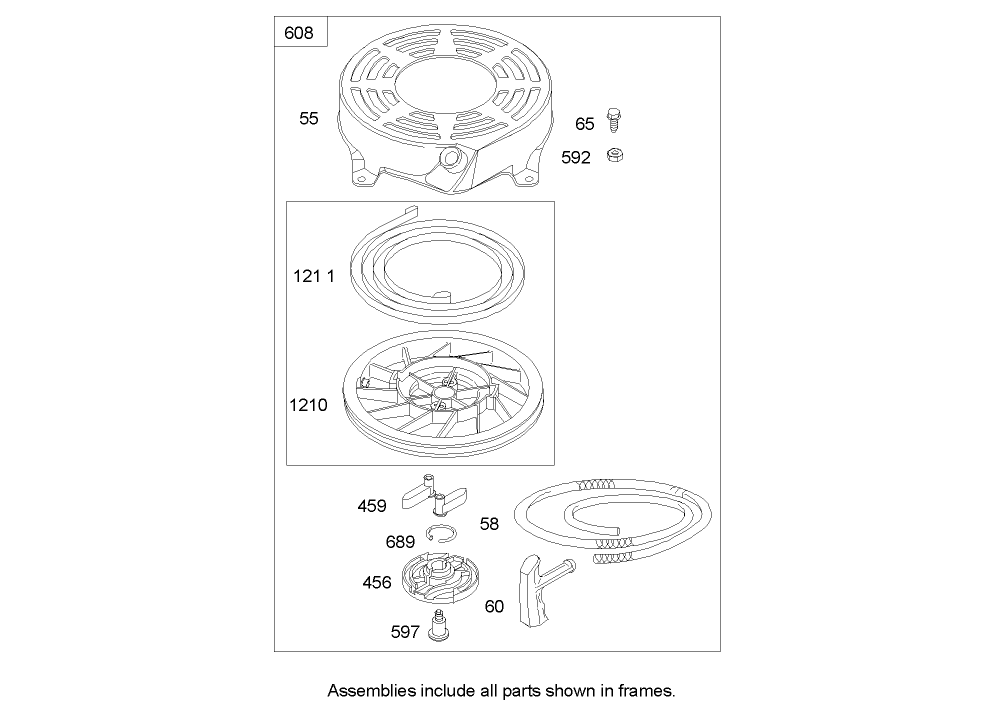

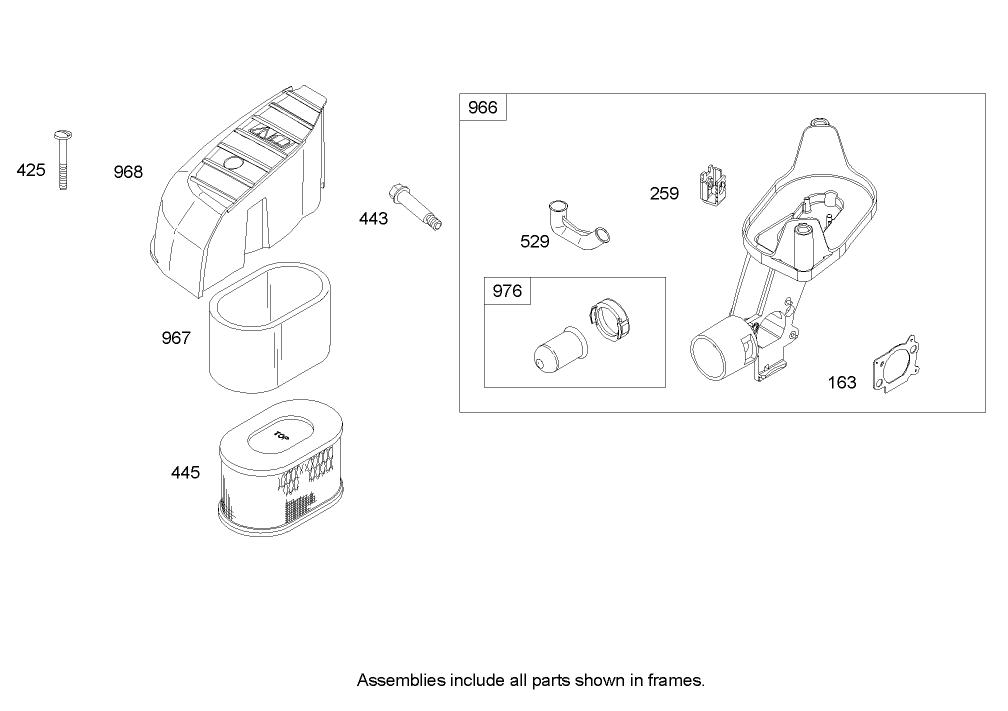

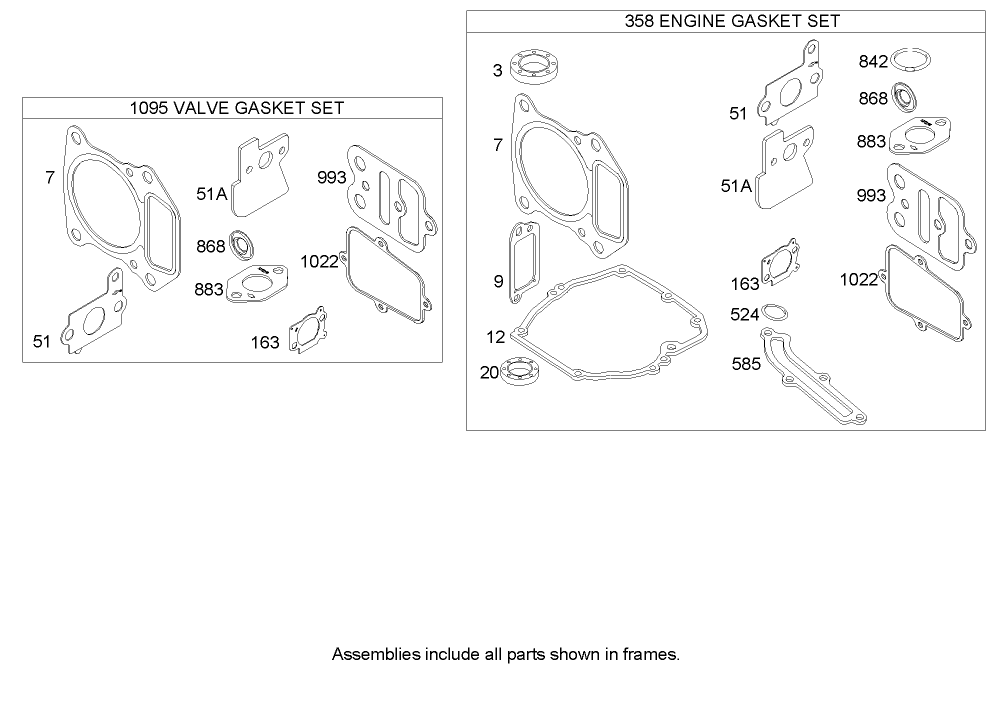

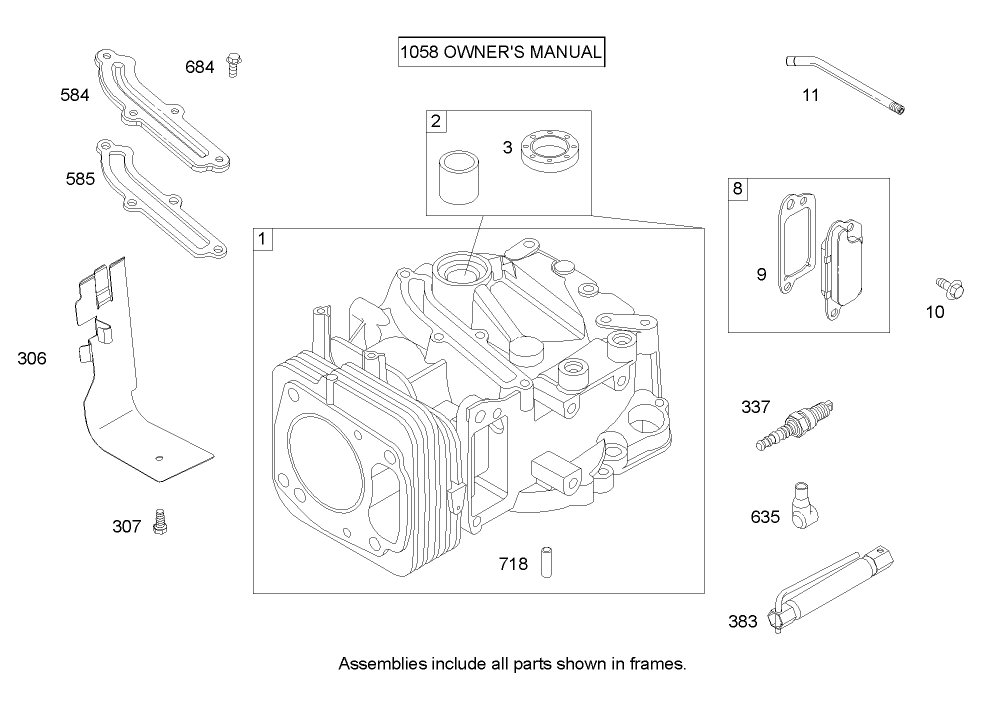

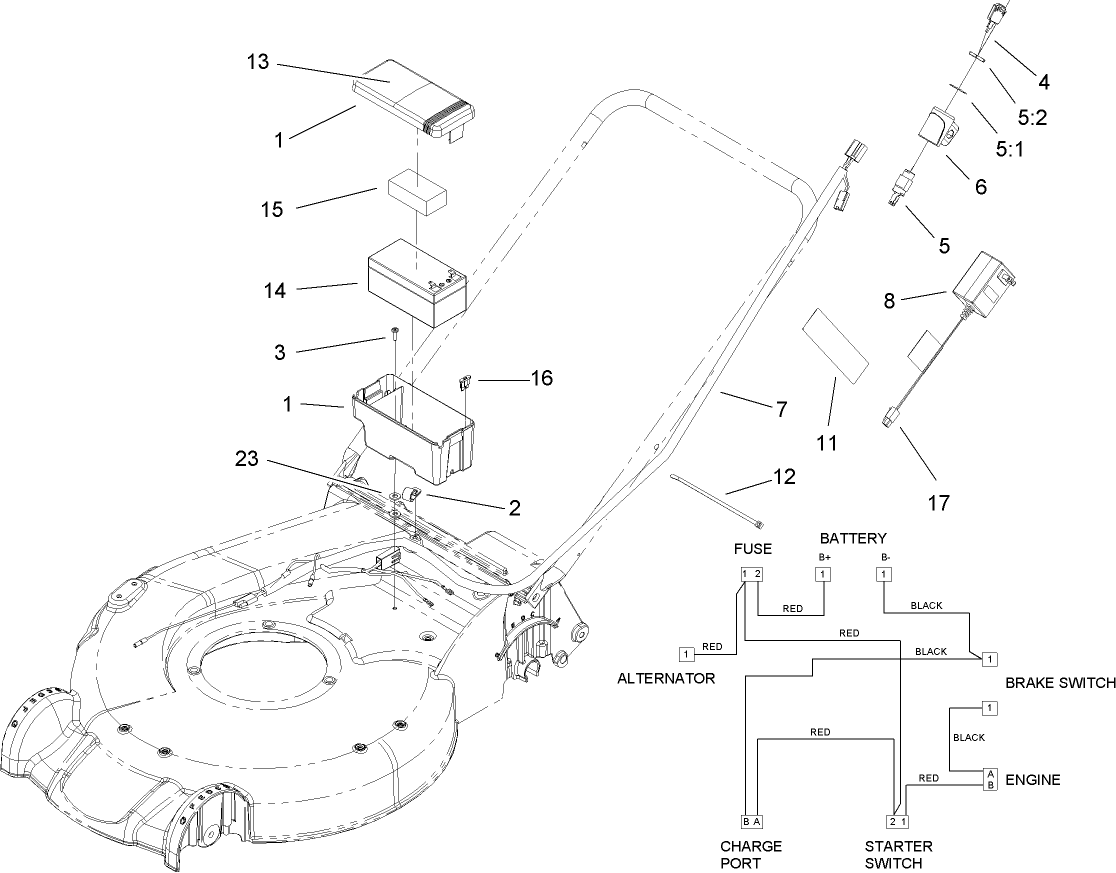

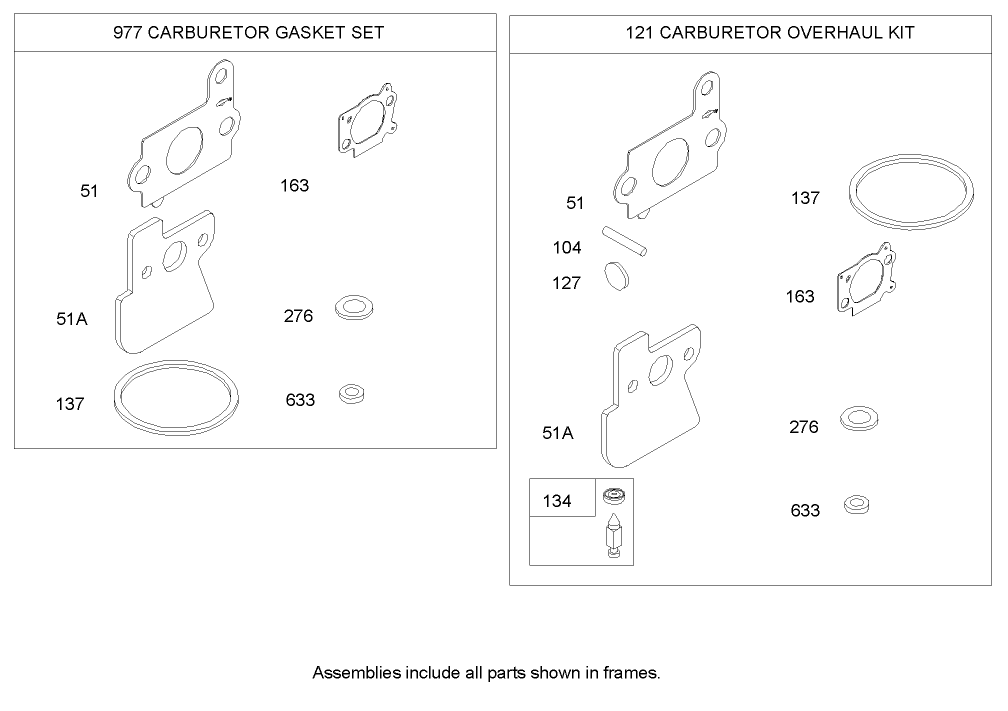

Assembly Drawings
Search for a part within assembly drawings:
-
Service Manual
-
Operator's Manual
-
Parts Catalog
-
EU Declaration of Conformity
-
Model #
20796 -
Serial #
260000001 - 260999999 -
Product Name
53cm Super Recycler Lawnmower -
Product Brand
Toro -
Product Type
Walk Behind Mowers -
Product Series
21" (53cm) 3 in 1 / Recycler -
Chassis Type
Cast Deck WPM -
Swath
53cm -
Discharge
Recycler & Side Discharge with Rear Bag -
Engine/Motor Manufacturer
Briggs & Stratton -
Engine/Motor Size
190cc -
Engine/Motor Type
4 Cycle CARB2, EPA2 -
Engine Starter
Electric/Recoil -
Transmission Type
Gear -
Traction Type
Rear WD
-
Drive System: Gearbox Lubricant
4 oz. (113gm) #2 Lithium grease -
Engine: Engine Oil Type
22 oz. (.65l) 30w or 10w-30 / API SH or higher -
Engine: Ignition Coil Air Gap
.006-.014" / .15-.36mm -
Engine: Spark Plug
Champion RC12YC -
Engine: Spark Plug Gap
.020"/ .5mm -
Drive System: Ground Speed
0-6.0km/hr / 0-3.7 mph -
Engine: Engine Speed
2800±100 RPM -
Chassis: Height of Cut Range
1.25-4.25", 1/2" increments -
Engine: Battery
12V
