Commercial Walk-Behind Mower, 15HP T-Bar Hydro Drive with 91cm TURBO FORCE Cutting Unit
Product Information
- Model #: 30032
- Serial #: 270000001 - 270999999
- Product Type: Walk Behind Mowers
Loading...

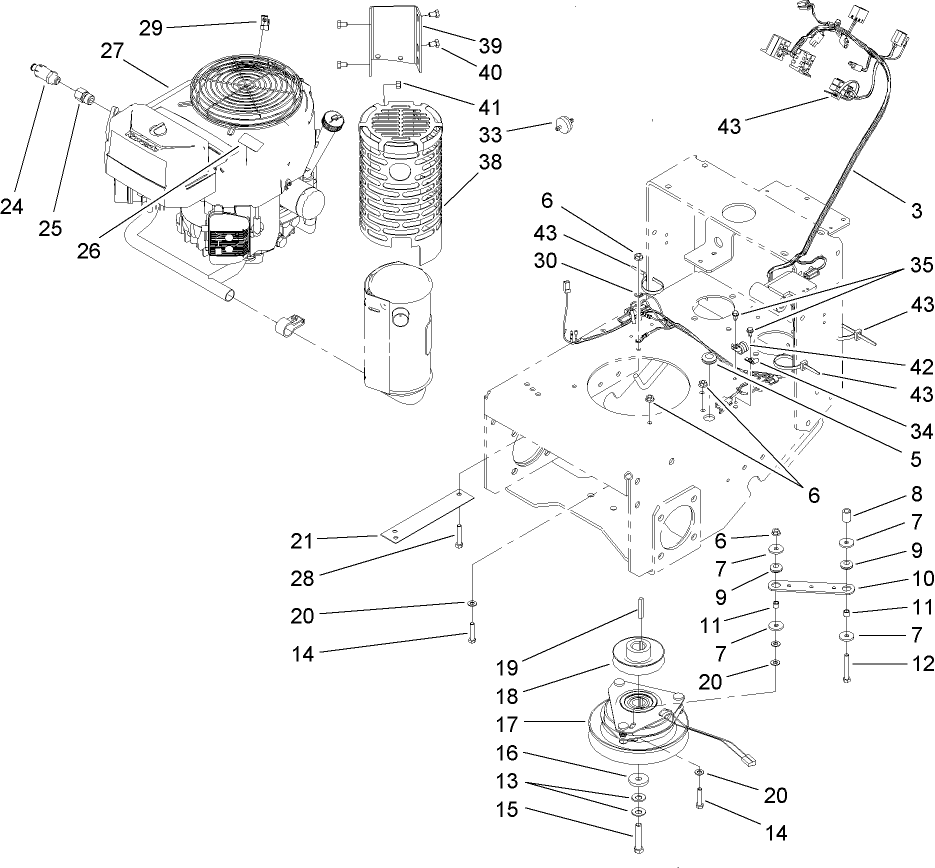

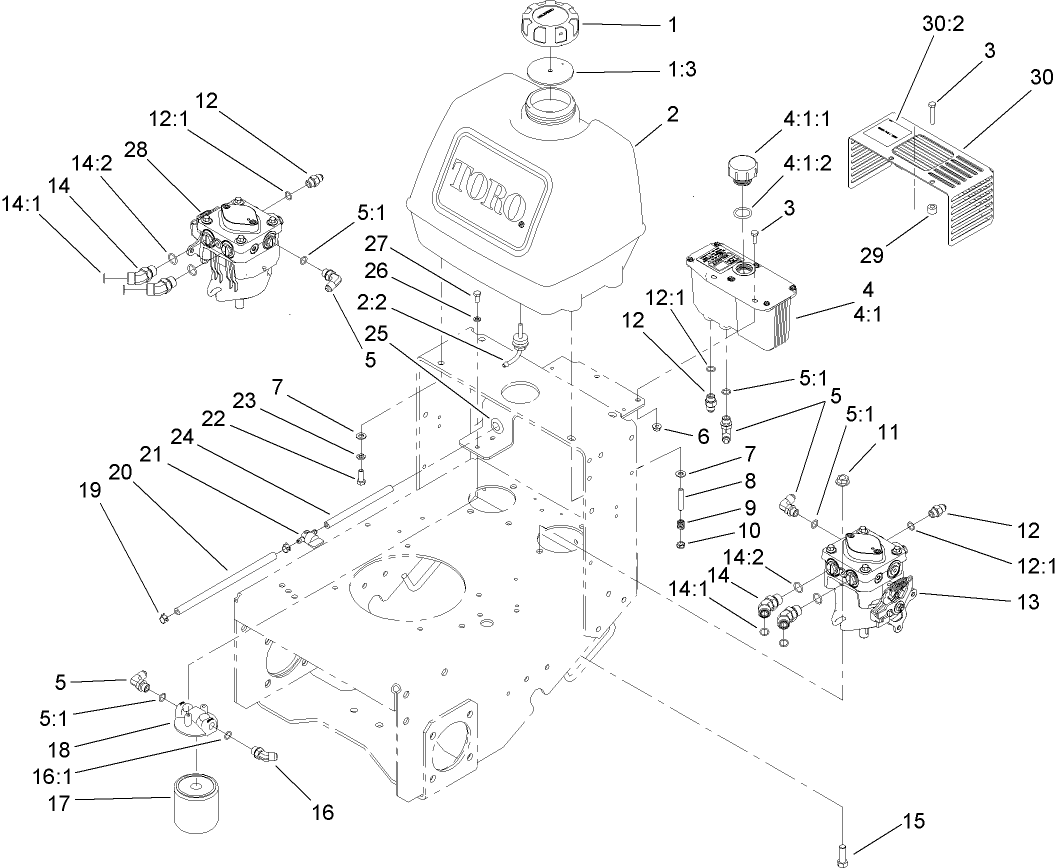

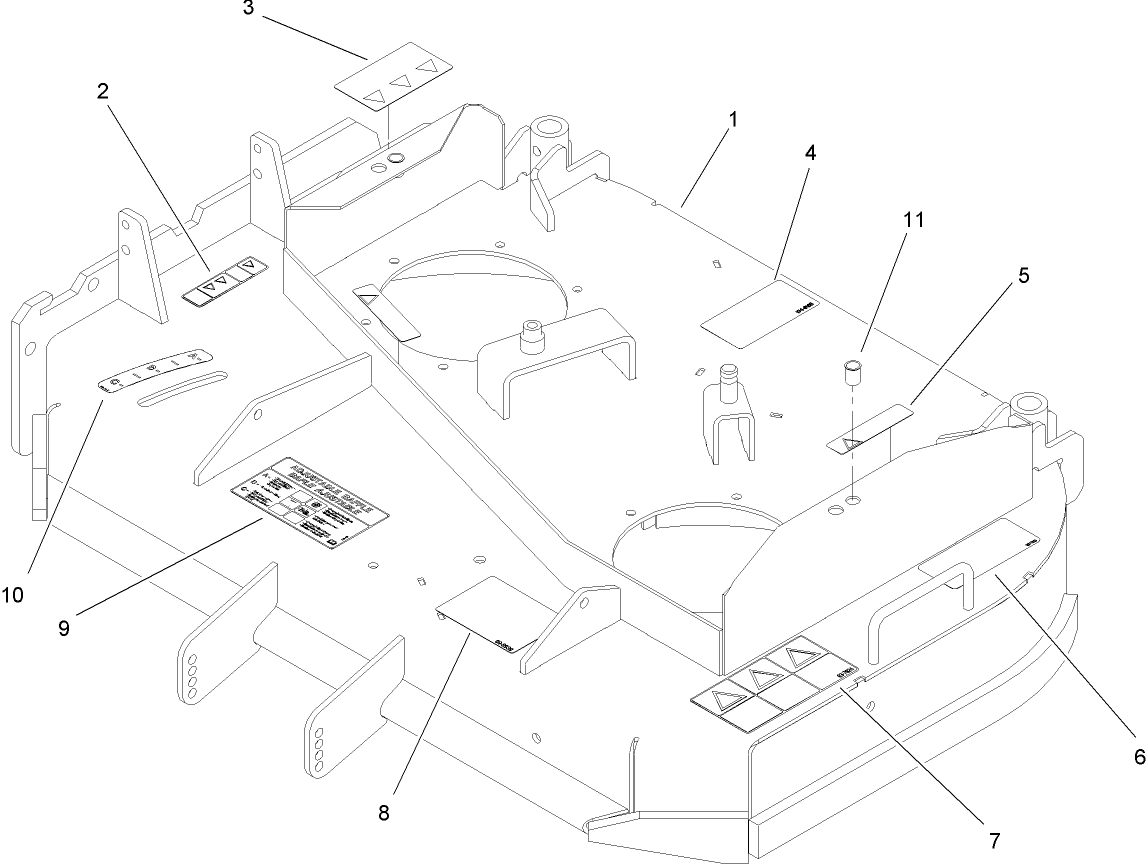

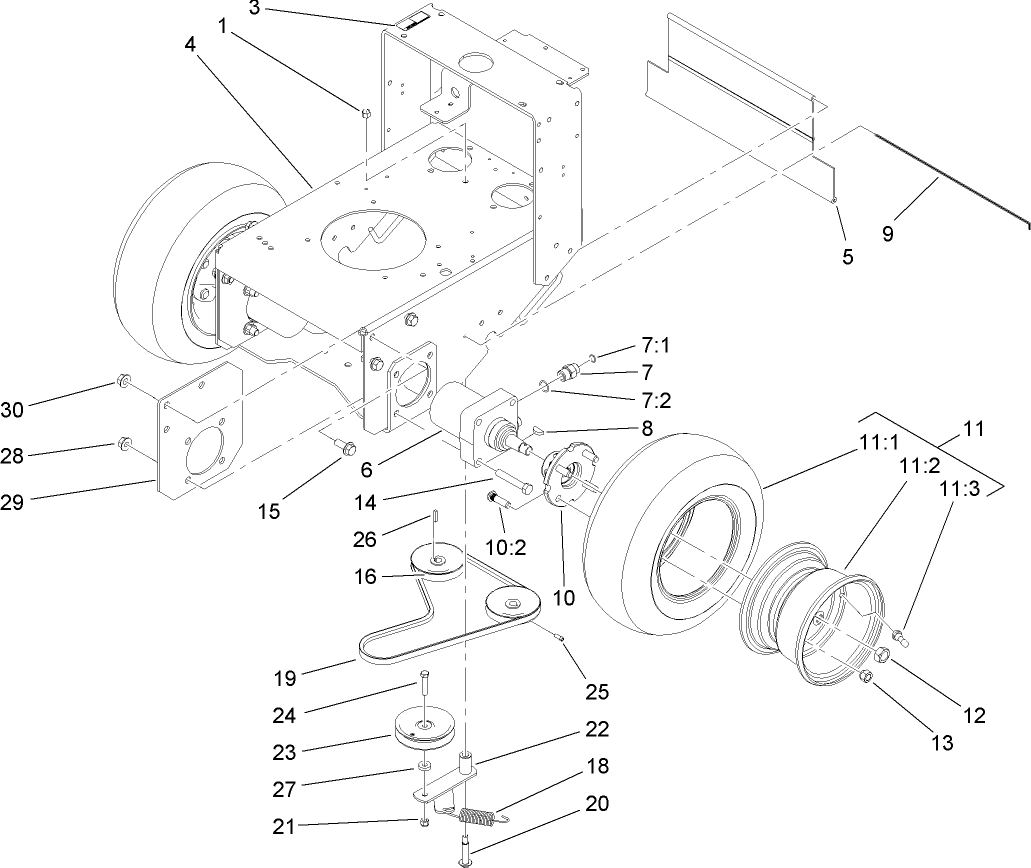

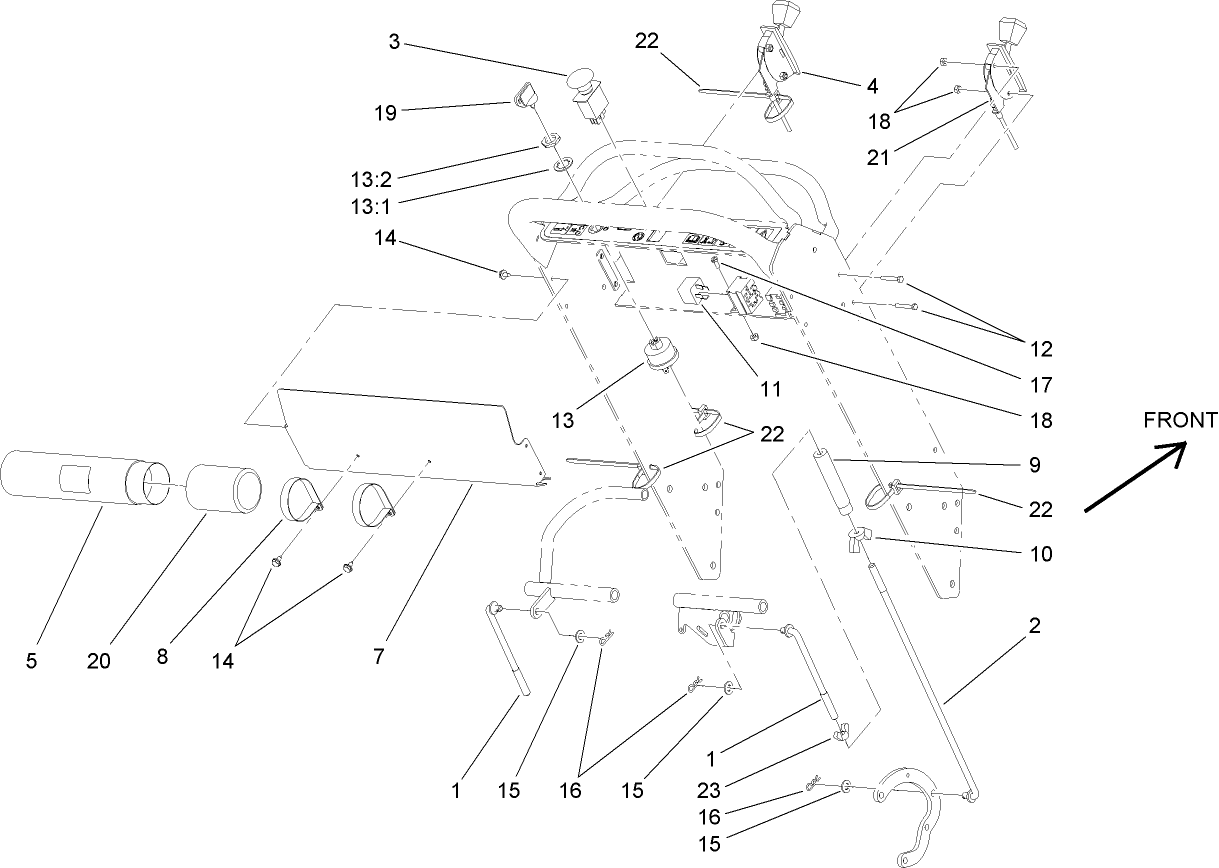

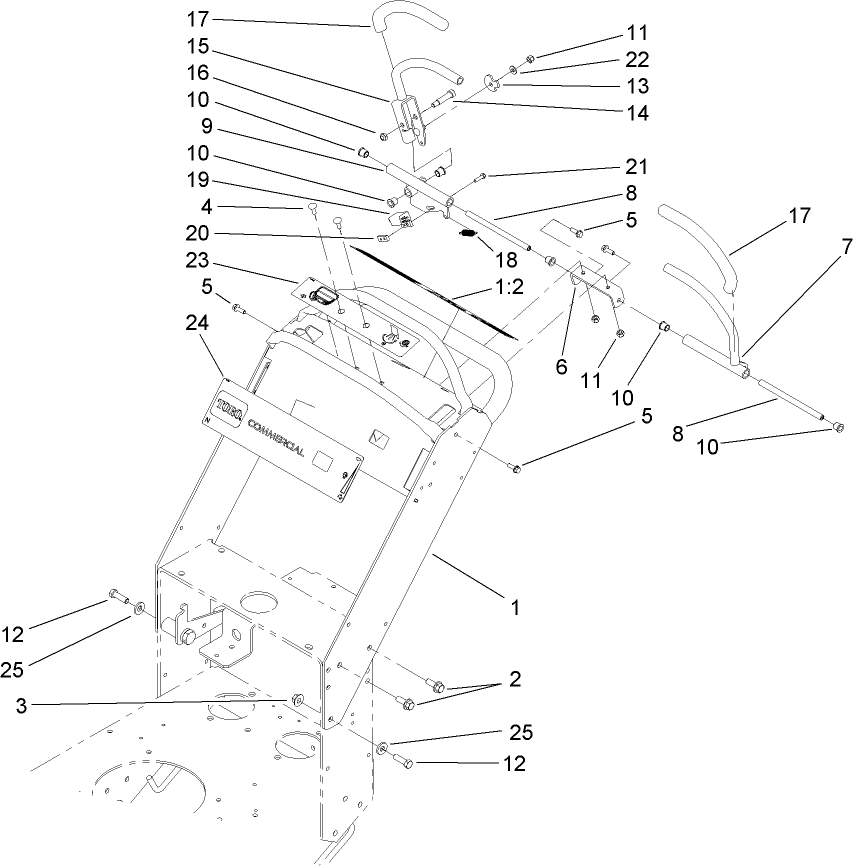

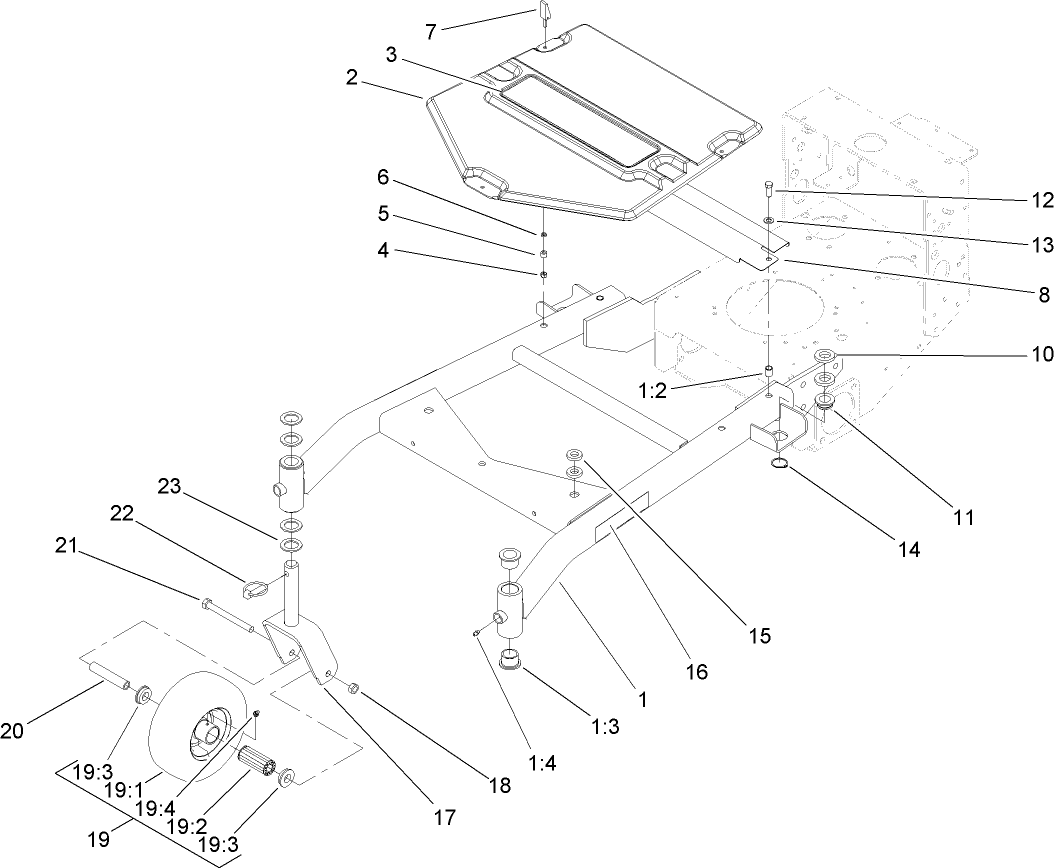

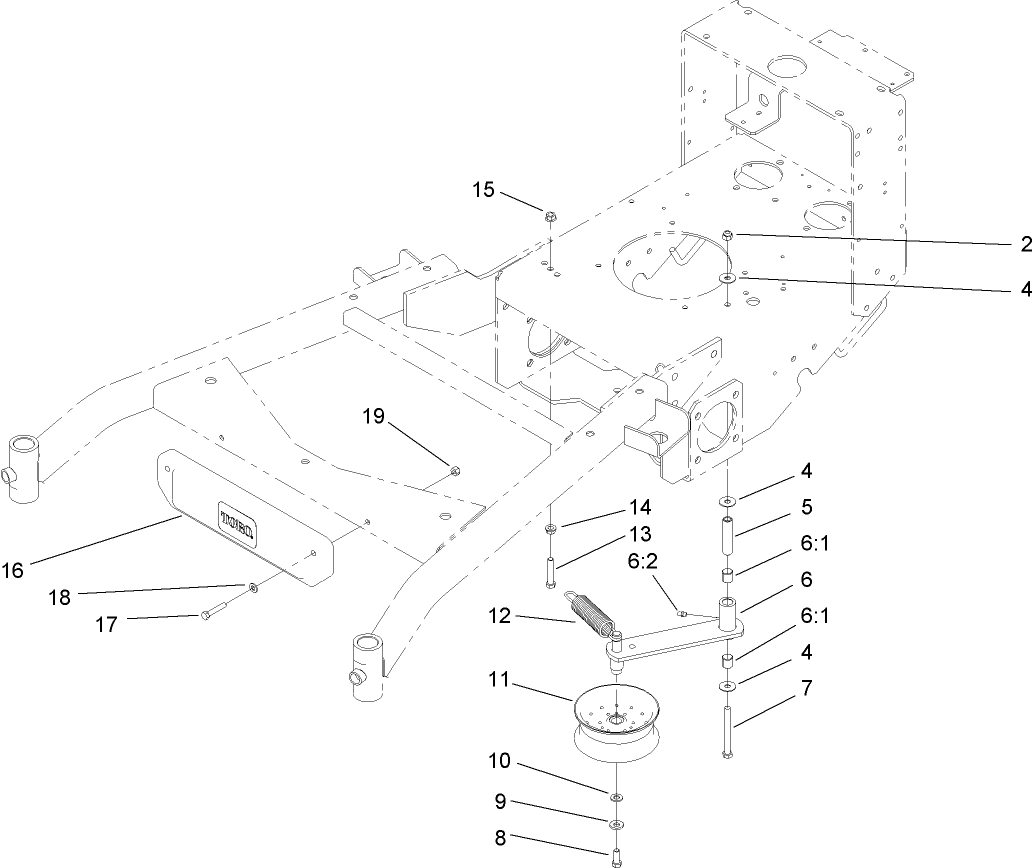

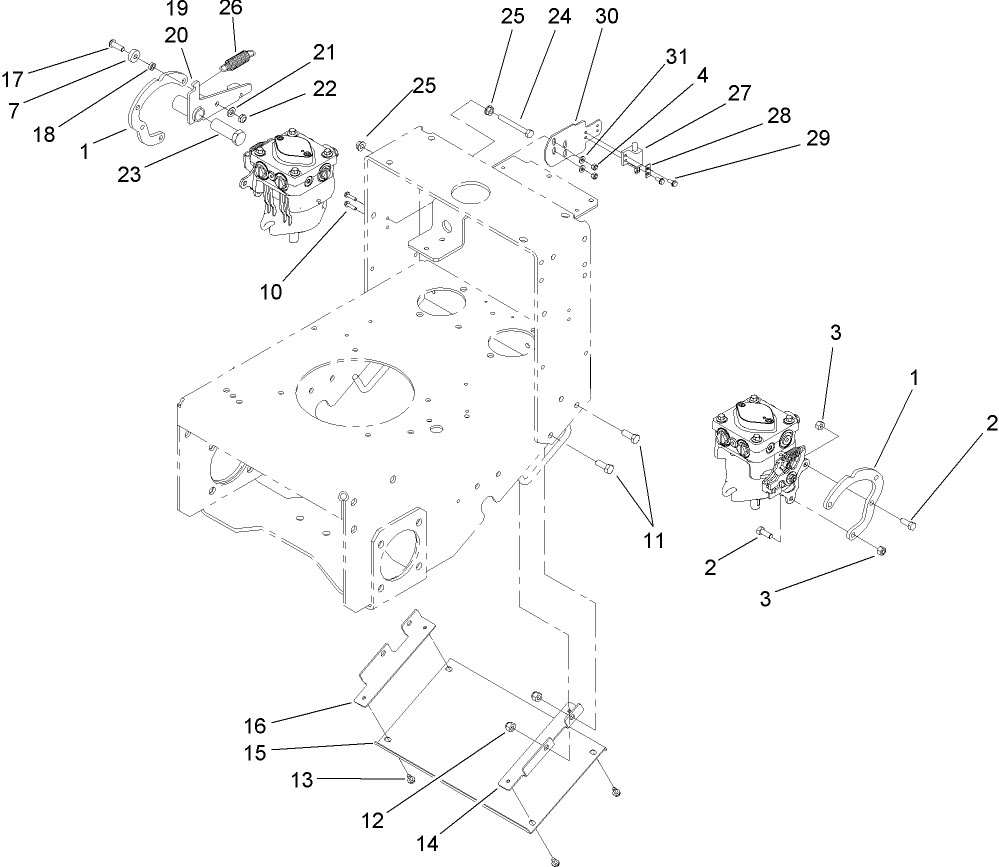

Assembly Drawings
Search for a part within assembly drawings:
-
Service Manual
-
Operator's Manual
-
Parts Catalog
-
EU Declaration of Conformity
-
Setup Instructions
18 Inch Recycler Blade (Part # 105-7779-03)
Toro OEM Recycler blade. Recycler straight edge, standard discharge blade. The blade is designed for a High quality cut and long-lasting durability. These blades are designed with “wings,” called “accelerators” that kind of act like a fan — forcing the tiny bits of grass back into the earth. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.
18 Inch Medium Flow Blade (Part # 105-7794-03)
Toro OEM Medium Flow blade. Medium Flow mower straight edge, standard discharge blade. These blades have slight upward angle on the edges. Great blades for use when horsepower is a concern. Produce medium Flow but requires less horsepower than Hi-Flow blades. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.
18 Inch Low Flow Blade (Part # 105-7795-03)
Toro OEM Low Flow blade. Low Flow mower blades have slightly curved ends that keep air Flow to a minimum. The lack of suction allows cut grass to exit the mower while keeping dust and debris levels down. Toro Low Flow mower blades cause less engine strain than Hi-Flow blades. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.
18 Inch Atomic Blade (Part # 105-7796-03)
Toro OEM Atomic blade. The Toro Atomic blade is commonly referenced as a “Gator Style” or “Gator Blade”. Provides the best quality of cut while mulching. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.
36 inch Bagger Enhancement Kit (Part # 110-2026)
Genuine OEM Part
36 Inch GrandStand Recycler Kit (Part # 110-2080)
By adding the Toro Recycler system to your Toro GrandStand riding mower, you create your own natural fertilizer. Recycler Kit, when installed on compatible 36 in. Verify your model and serial number to confirm compatibility before ordering.
Please contact your local dealer
GrandStand 15 lbs Cast Weight (Part # 112-7059-01)
This genuine Toro OEM 15 lbs cast weight kit is designed for Toro GrandStand stand-on mowers and adds ballast to improve front traction and stability when mowing slopes, hills, and uneven ground. Insufficient front weight on a stand-on mower can cause the front caster wheels to lose contact with the ground on steep terrain, reducing steering control. Adding a weight kit is one of the most practical at-purchase accessories for operators who regularly mow on sloped properties. Verify your model and serial number before ordering.
3 Bushell Soft Collection Bag for GrandStand Mowers (Part # 30104)
3 Bushell Soft Collection Bag for GrandStand Mowers. To best protect your investment and maintain optimal performance of your equipment, count on Toro genuine parts and accessories.
Please contact your local dealer
Please contact your local dealer
-
Model #
30032 -
Serial #
270000001 - 270999999 -
Product Name
Commercial Walk-Behind Mower, 15HP T-Bar Hydro Drive with 91cm TURBO FORCE Cutting Unit -
Product Brand
Toro -
Product Type
Walk Behind Mowers -
Product Series
Mid-Size ProLine Mower -
Chassis Type
Mid-size - Floating Deck -
Swath
91cm -
Discharge
Side -
Engine/Motor Manufacturer
Kawasaki -
Engine/Motor Size
15 hp -
Engine/Motor Type
4 Cycle CARB2, EPA2 -
Engine Starter
Recoil -
Transmission Type
Hydrostatic
-
Engine: Engine Speed
2900±100 RPM -
Engine: Spark Plug
Champion RCJ8Y -
Engine: Spark Plug Gap
.030"/ .76mm -
Engine: Ignition Coil Air Gap
.008-.016" / .2-.4mm -
Engine: Engine Oil Type
58 oz. (1.7 Liter) SAE 10W-30 or 10W-40 -
Drive System: Gearbox Lubricant
Mobil 1 15w-50 Synthetic Motor Oil -
Drive System: Ground Speed
Fwd. 0 - 6.2 Rev. 0 - 2.2 mph -
Chassis: Height of Cut Range
1-4.5", 1/4" increments -
Chassis: Tire Pressure
12-14 psi rear
