2000 Series MyRIDE® HDX 52 in. (132 cm) 23.5 hp 747cc

2000 Series MyRIDE® HDX 52 in. (132 cm) 23.5 hp 747cc

2000 Series MyRIDE® HDX 52 in. (132 cm) 23.5 hp 747cc

Product Information

  • Model #: 77290
  • Serial #: 410200000 - 999999999
  • Product Type: Riding Products

Search for a part within assembly drawings:

Showing Results

Drawing Title Part Number Description
Title



Caster Wheel and Fork Assembly
Caster Wheel and Fork Assembly
Control Console and Guard Assembly
Control Console and Guard Assembly
Deck Assembly
Deck Assembly
Deck Decal Assembly No. 126-8957
Deck Decal Assembly No. 126-8957
Deck Lift Assembly
Deck Lift Assembly
Deck Strut Assembly No. 126-8365
Deck Strut Assembly No. 126-8365
Deflector Assembly No. 120-2451
Deflector Assembly No. 120-2451
Electrical Assembly
Electrical Assembly
Engine, Clutch and Muffler Assembly
Engine, Clutch and Muffler Assembly
Fork and Caster Wheel Assembly
Fork and Caster Wheel Assembly

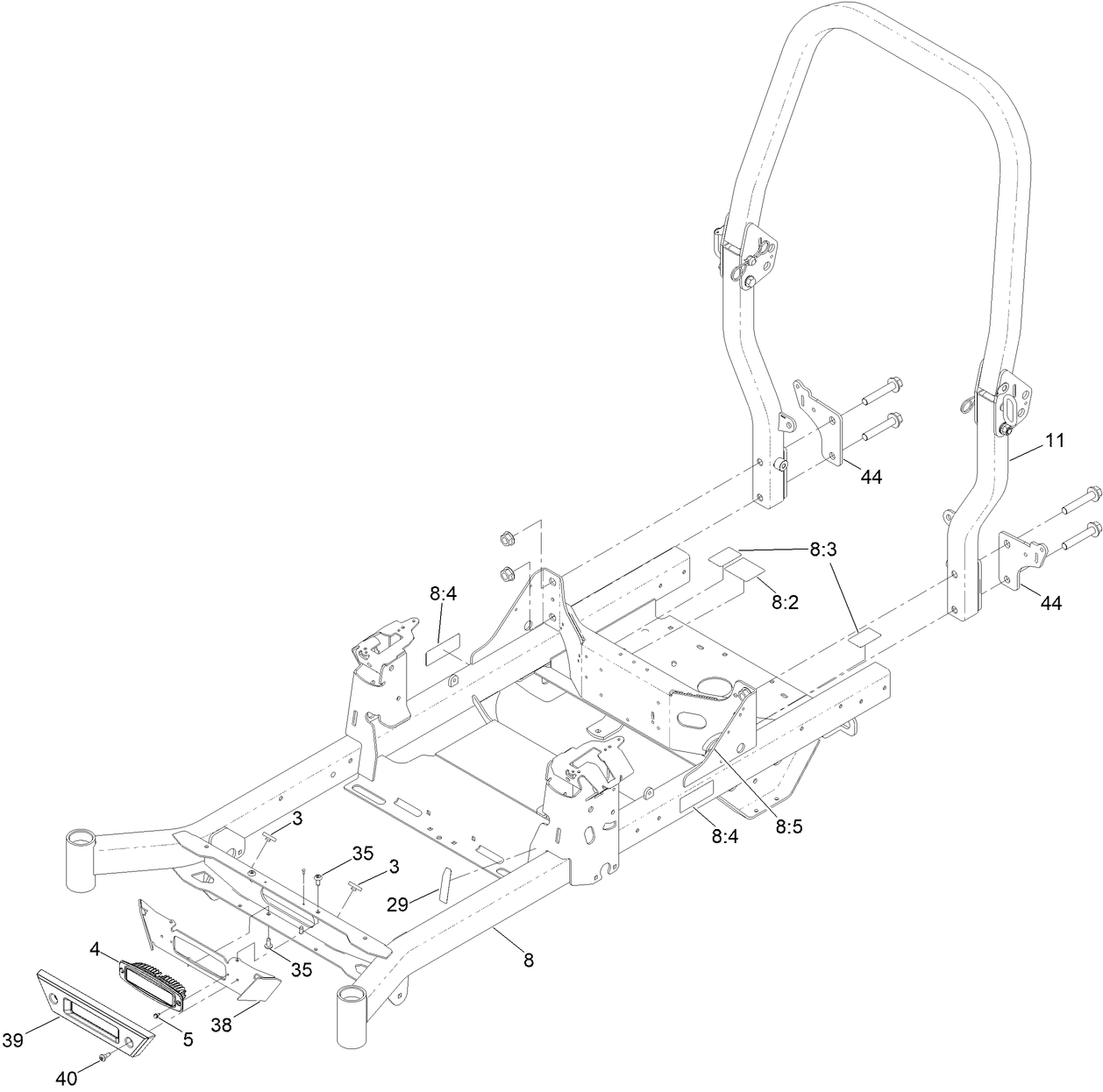

Frame Assembly
Frame Assembly
Fuel Assembly
Fuel Assembly
Fuel Tank Assembly No. 126-4724
Fuel Tank Assembly No. 126-4724
Left and Right Motion Control Assembly
Left and Right Motion Control Assembly
LH Transaxle Assembly No. 140-9489
LH Transaxle Assembly No. 140-9489
Motion Control Assembly
Motion Control Assembly
Rear Wheel Assembly
Rear Wheel Assembly
RH Transaxle Assembly No. 140-9490
RH Transaxle Assembly No. 140-9490
Roll-Over Protection System Assembly No. 144-1849
Roll-Over Protection System Assembly No. 144-1849
Seat Assembly No. 144-3771
Seat Assembly No. 144-3771
Suspension Platform and Seat Assembly
Suspension Platform and Seat Assembly
Transaxle Assembly
Transaxle Assembly
Wire Harness Assembly No. 126-5803
Wire Harness Assembly No. 126-5803
Download Parts Catalog
Operator's Manual
Service Manual
Parts Catalog
Setup Instructions
Product Warranty
ACMA Declaration of Conformity
Hypr-Oil™ 500 (quart)
Hypr-Oil™ 500 (quart) (Part # 114-4713)
Hypr-oil™ 500 (quart). Toro Hypr-Oil 500 is a high-performance hydraulic fluid specifically formulated and approved by Toro engineering for use in Toro commercial zero turn mowers. It provides excellent wear and corrosion protection for hydraulic systems, helping to maintain consistent performance and extend the service life of hydraulic components. Always refer to your operator manual for the correct fluid specification and service intervals.
$16.49 USD
Hypr-Oil™ 500 (gallon)
Hypr-Oil™ 500 (gallon) (Part # 114-4714)
Toro Hypr-Oil 500 is a high-performance hydraulic fluid specifically formulated and approved by Toro engineering for use in Toro commercial zero turn and stand-on mower hydraulic systems. Maintaining the correct hydraulic fluid and changing it at the manufacturer-recommended interval is critical to protecting hydraulic pumps, wheel motors, and other hydraulic components from wear and corrosion — particularly on machines operating under commercial duty cycles. Refer to your operator manual for the correct change interval and fluid capacity for your equipment.
$65.99 USD
Genuine OEM Part 114-4715
Hypr-Oil™ 500 Hydraulic Oil (5 gallon) (Part # 114-4715)
Toro Hypr-Oil 500 is a high-performance hydraulic fluid formulated and approved by Toro engineering for commercial zero turn and stand-on mower hydraulic systems. The 5-gallon commercial bulk pack is designed for fleet operators and service shops performing multiple machine hydraulic fluid changes. Maintaining the correct hydraulic fluid on schedule protects pumps, wheel motors, and other hydraulic components from accelerated wear. Refer to your operator manual for the correct change interval and capacity for each machine. Do not mix with other hydraulic fluids.
$294.79 USD
Empty Image Container
KIT, JACK W/ADAPTER (Part # 126-7282)
$262.89 USD
Empty Image Container
KIT, ADAPTER-JACK (Part # 126-7283)
$92.39 USD
Empty Image Container
COVER-HITCH (Part # 126-8299)
$8.35 USD
Genuine OEM Part 126-8379
Trash Container Kit (Part # 126-8379)
Toro genuine rider trash container kit. When it comes to reliability, Toro delivers replacement parts designed to the exact engineering specifications of our equipment. For peace of mind, insist on Toro genuine parts.
$78.09 USD
Empty Image Container
CASTER WEIGHT SET KIT 87# [SERVICE] (Part # 126-8639)
$656.69 USD
Empty Image Container
TITAN HD 1500/2000 52IN RECYCLER KIT (Part # 126-8702)
$534.59 USD
Riding Mower Jack Kit
Riding Mower Jack Kit (Part # 127-6666)
This genuine Toro OEM riding mower jack kit is designed to safely lift and support your Toro riding mower or zero turn, giving you safe, stable under-deck access for blade changes, belt replacements, and routine maintenance. It is one of the most practical purchase-stage accessories for any new mower owner — investing in a proper jack from day one avoids improvised lifting methods that risk injury and equipment damage. Verify your model and serial number before ordering.
$153.99 USD
Please contact your local dealer
Genuine OEM Part 127-6794
52 inch Deck MVP Kit (Titan HD 1500/2000) (Part # 127-6794)
Genuine OEM Part
$350.89 USD
Genuine OEM Part 133-1307
Toro Kawasaki Engine Maintenance Kit (Part # 133-1307)
This Kawasaki Engine maintenance kits is a genuine Toro approved kit designed to help keep your engine operating at peak efficiency. The kit has everything you need to maintain your engine. Every component is factory-specified and test-certified for optimum fit and performance. It's the easiest, most economical way to ensure fast starts, full power and torque, and maximum efficiency from your hard-working equipment. Contains: High-efficiency oil filter designed for your pressurized lubrication system, air filter designed using high-quality polyurethane, media and seals to meet OEM standards for dust-holding capacity, a spark plug matched to your engine for optimum performance, and oil designed specifically for Kawasaki engines.
Toro High Back Seat Cover
Toro High Back Seat Cover (Part # 133-1308)
Toro genuine high back seat covers will take a beating and endure the daily wear and tear you put on it. These seat covers are carefully crafted and sewn from the highest quality, waterproof material, nylon/polyester fabric that ensures that your factory seats will always be protected. When it comes to reliability, Toro delivers replacement parts designed to the exact engineering specifications of our equipment. For peace of mind, insist on Toro genuine parts.
$104.49 USD
Genuine OEM Part 133-2134
18 Inch Hi-Flow Blade (Part # 133-2134)
Toro 18 Inch OEM Hi-Flow blade. This sharp replacement Hi-Flow lawn mower blade provides a crisp, clean cut time after time. You can count on the quality and reliability of this Toro replacement Hi-Flow lawn mower blade. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.
$29.69 USD
Genuine OEM Part 133-2159
18 Inch Atomic Blade (Part # 133-2159)
Toro 18 Inch OEM Atomic blade. The Toro Atomic blade is commonly referenced as a “Gator Style” or “Gator Blade”. Provides the best quality of cut while mulching. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.
$38.84 USD
Genuine OEM Part 133-2162
18 Inch Recycler Blade (Part # 133-2162)
Toro 18 Inch OEM Recycler blade. Recycler straight edge, standard discharge blade. The blade is designed for a High quality cut and long-lasting durability. These blades are designed with “wings,” called “accelerators” that kind of act like a fan — forcing the tiny bits of grass back into the earth. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.
$36.74 USD
Genuine OEM Part 133-2134
18 Inch Hi-Flow Blade Pack - 6 Blades (Part # 133-2175)
Toro18 Inch OEM Hi-Flow blade pack. (6) Hi-Flow blades. This sharp replacement Hi-Flow lawn mower blade provides a crisp, clean cut time after time. You can count on the quality and reliability of this Toro replacement Hi-Flow lawn mower blade. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.
Empty Image Container
18 Inch Recycler Blade Pack - 6 Blades (Part # 133-2178)
Toro 18 Inch OEM Recycler blade pack. (6) Recycler blades. Recycler straight edge, standard discharge blade. The blade is designed for a High quality cut and long-lasting durability. These blades are designed with “wings,” called “accelerators” that kind of act like a fan — forcing the tiny bits of grass back into the earth. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.
Empty Image Container
18 Inch Atomic Blade Pack Back - 6 Blades (Part # 133-2181)
Toro 18 Inch OEM Atomic blade. (6) blade pack. Atomic blade is commonly referenced as a “Gator Style” or “Gator Blade”. Provides the best quality of cut while mulching. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.
Empty Image Container
Toro Genuine 5-Gallon bucket. (Part # 133-2533)
This genuine Toro OEM replacement part is manufactured to the exact engineering specifications of your Toro equipment, ensuring correct fit and reliable performance. Verify your model and serial number to confirm compatibility before ordering.
$9.99 USD
Genuine OEM Part 137-2042
Toro Heavy Duty Shock and Spring Kit (Part # 137-2042)
Toro OEM heavy duty shock and spring kit reduces the effects of uneven terrain, virtually eliminating shock to the chassis, and your body. And by allowing you to maintain speed while mowing, it increases your productivity by getting the job done faster. This lets you power through each day, knowing that you'll still feel good tomorrow.
$211.19 USD
Toro Genuine Parts Logo
Spark Arrestor (Part # 137-8098)
$70.59 USD
Genuine OEM Part 140-4896
Wheel and axle assembly (Z Master ) (Part # 140-4896)
Z Master wheel and axel assembly.
$194.69 USD
Empty Image Container
KIT-SLOPE SENSOR [RADIUS-RA] (Part # 142-2802)
$793.09 USD
Genuine OEM Part 144-1992
Toro Titan Mid Mount Light Kit (Part # 144-1992)
Extend your mowing day with these Toro genuine high-intensity, low amperage LED light kit. This lighting kit is built in durable cast aluminum alloy housing with stainless steel mounting hardware and wiring harness and lighted rocker switch. When it comes to reliability, Toro delivers replacement parts designed to the exact engineering specifications of our equipment. For peace of mind, insist on Toro genuine parts.
$413.59 USD
Please contact your local dealer
Genuine OEM Part 144-1993
Riding Mower Jack Mount Kit (Part # 144-1993)
Genuine Toro jack mount kit. Mounts to the front of the mower and allows the owner to raise the mower to gain access to the underside of the deck to check blades or wash the deck. To best protect your investment and maintain optimal performance of your turf equipment, count on Toro genuine parts. When it comes to reliability, Toro delivers replacement parts designed to the exact engineering specifications of our equipment. For peace of mind, insist on Toro genuine parts
$147.39 USD
Empty Image Container
HARDTOP SUN CANOPY (ARTICULATING) (Part # 144-3719)
$593.99 USD
Genuine OEM Part 145-3615
Handle Extension Kit (Part # 145-3615)
Genuine OEM Part
$95.69 USD
Please contact your local dealer
Empty Image Container
KIT-BUCKET MOUNT (Part # 145-3687)
$203.49 USD
Empty Image Container
KIT-UNIVERSAL MOUNT (Part # 145-3688)
$334.39 USD
Empty Image Container
KIT-TRIMMER MOUNT (Part # 145-3689)
$170.49 USD
Empty Image Container
KIT-TITAN HD TRIPLE THREAT ATTACHMENT (Part # 145-3691)
$821.69 USD
Genuine OEM Part 490-7319
Titan Deluxe Cover (Part # 490-7319)
Toro OEM deluxe rider cover keeps your Titan riding lawn mower protected from the elements when not in use. Cover is made to withstand wear and tear and features elastic cord to keep cover in place. This Toro OEM mower cover is made from durable, weather-resistant material to protect your equipment from rain, sun, dust, and debris during storage. Verify your model and serial number to confirm the correct cover for your equipment.
$159.99 USD
Empty Image Container
E-Z Vac Blower & Drive Kit for 52" Deck - 5.0" Standard Bagger (Part # 78402)
Find a Dealer
HD BAGGER KIT (Part # 78431)
Empty Image Container
E-Z Vac Blower & Drive Kit for 52" Deck - 5.0" Heavy Duty Bagger (Part # 78434)
Find a Dealer
EZ VAC BAGGER - STANDARD (Part # 78481)

Model #

77290

Serial #

410200000 - 999999999

Product Name

2000 Series MyRIDE® HDX 52 in. (132 cm) 23.5 hp 747cc

Product Brand

Toro

Product Type

Riding Products

Product Series

Zero Radius Turn, Commercial 2000 Series

Chassis Type

ZRT - LCE

Swath

52 inch / 132 cm

Discharge

Side Discharge

Engine/Motor Manufacturer

Kawasaki

Engine/Motor Size

23.5 hp

Engine/Motor Type

4 Cycle

Engine Starter

Electric

Transmission Type

Hydrostatic

Traction Type

Rear WD

Engine: Battery

12V 300CCA

Engine: Engine Speed

3800±100 RPM

Engine: Spark Plug

NGK BPR4ES

Engine: Spark Plug Gap

.030"/ .76mm

Chassis: Height of Cut Range

1.5" - 5" (38-127mm)

Chassis: Tire Pressure

13 psi / 90 kPa

Engine: Engine Oil Type

filter change 2.2 qts. (2.1 L); no filter 1.9 qts. (1.8 L) SAE 30

Drive System: Gearbox Lubricant

HYPR-OIL 500 / 20w-50 Synthetic Motor Oil

Drive System: Ground Speed

0-11 mph / 0-17.5kph
