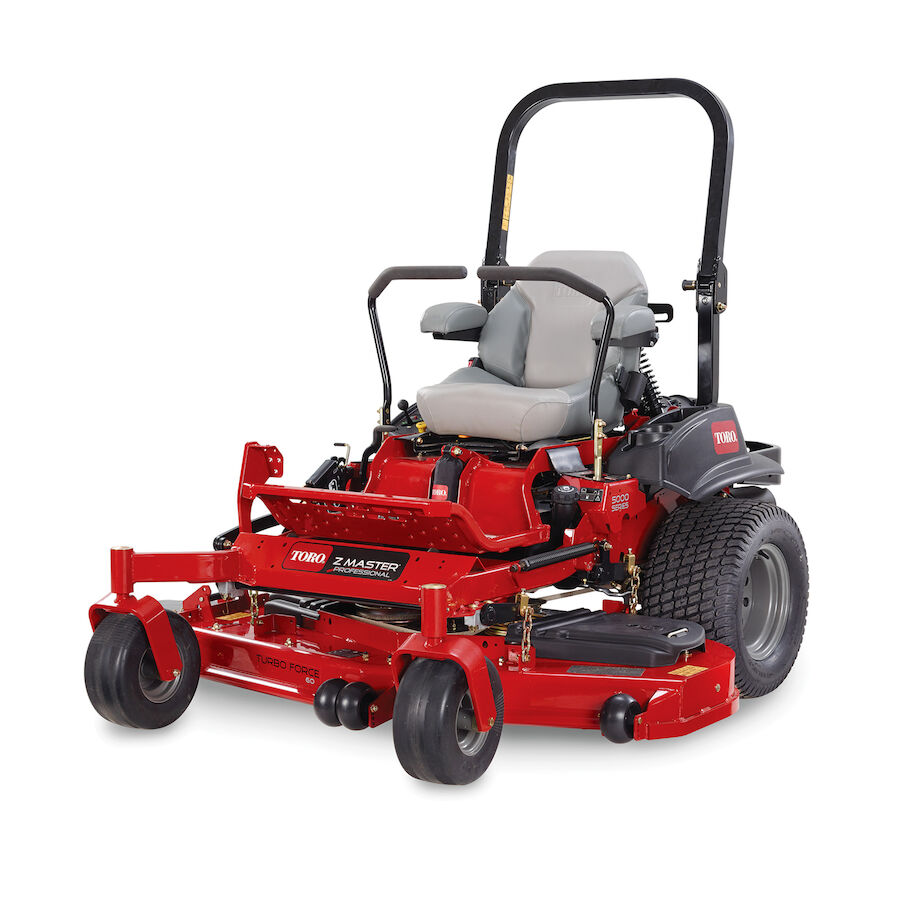

5000 Series MyRIDE® 52 in. (132 cm) 25 hp EFI 747cc

with MyRIDE® Suspension System
  • Model: 72955
  • UPC/EAN: 21038729558
See All Items in Z Master® 5000 Series
Find a Dealer
  • Redesigned MyRIDE® Suspension System features a fully suspended operator platform and adjustable rear shocks to provide a superior ride.
  • Our TURBO FORCE deck features heat-treated steel blades and our patented adjustable discharge chute, nothing cuts as fast or as well
  • Unitized pump and wheel motor uses proven commercial hydraulic components while eliminating hoses and other potential leak points
  • Horizon360® Business Management Software. Work More Efficiently. Run More Profitably.

Overview

This 5000 Series Z Master zero turn mower features the amazingly comfortable redesigned MyRIDE® Suspension System that rides like no other machine in the industry. A powerful commercial-grade 25 hp (18.4kW) Kohler® Command Pro EFI 747cc engine with 52 in. TURBO FORCE deck delivers impressive cutting results and durability at an outstanding value. The perfect zero turn for the landscape contractors and large acreage properties.

Features

MyRIDE® Suspension System
MyRIDE® Suspension System
The suspended operator platform allows up to 3.6” of travel (depending on model) and reduces impacts, bumps and vibrations. Easily and quickly adjust rear shock ride settings to personal ride preferences, without tools!
Exclusive TURBO FORCE Deck
Exclusive TURBO FORCE Deck
High-capacity TURBO FORCE decks deliver unsurpassed strength, a superior cut, and increased productivity in extreme mowing conditions. Equipped with a patented adjustable baffle, TURBO FORCE decks can be fine-tuned in order to conquer changing turf conditions.
7-Gauge, High-Strength Steel
7-Gauge, High-Strength Steel
The TURBO FORCE deck is constructed of 7-gauge, high-strength steel which is 33% thicker and 32% higher in yield strength than ordinary 10-gauge commercial steel used in 7/10 decks. The combined effect is 75% stronger, so it easily handles the most demanding conditions and resists damage from impacts and abrasion.
A Flat Crisp Cut with Precision Blades
A Flat Crisp Cut with Precision Blades
(.250) thick precision blades resist flexing to provide a flat, crisp cut. High-strength, heat-treated alloy steel survives impacts and provides resistance to the rapid wear commonly associated with abrasive conditions. Options include Recycler® and Atomic® mulching blades, medium sail Bahai blades, and low sail sand blades.
Rubber Discharge Chute
Rubber Discharge Chute
High performance rubber discharge chute allows for close trimming without damaging chute or landscape structures. Patented design provides exceptional clipping dispersion.
Smarter design in a bull-nose bumper.
Smarter design in a bull-nose bumper
7-gauge bull-nose bumper not only protects against frontal impacts, but also contains an integral underskirt to minimize blowout of debris and dust. The bottom, leading edge of the deck is raised 1/4" (6 mm), allowing grass to stand more upright when entering the cutting chamber, ensuring a level cut. Leaf "plowing" during spring and fall clean-up also is significantly reduced.
Patented Adjustable Baffle
Patented Adjustable Baffle
Allows operator to achieve maximum cutting performance by fine-tuning deck to conquer changing conditions, unique job sites or different times of the season. In extreme conditions, the baffle can be opened in order to conserve power and achieve faster mowing speeds. In less demanding conditions, the baffle can be closed to yield micro-sized particles and maximize discharge velocity.
Smooth, Powerful Response
Smooth, Powerful Response
The new unitized pump and wheel motor use proven commercial hydraulic components while eliminating hoses and other potential leak points. You'll get a smoother, faster response while enjoying an even more reliable machine.
Folding Rollover Protection System ROPS
Folding Rollover Protection System ROPS
A Rollover Protection System (ROPS), complete with seat belt, comes standard for operator protection in the case of accidental rollovers and tipovers. In situations where sufficient vertical clearance is not available, such as loading on an enclosed trailer, the ROPS can be temporarily unlocked and folded down.
Operator Information Center
Operator Information Center
The instrument panel includes a digital hour meter, fuel gauge, and voltage meter, as well as diagnostic indicators for the safety interlock system.
Cast Aluminum Spindle
Cast Aluminum Spindle
Cools quickly for enhanced durability and performance.
Horizon360 system used by contractor
Horizon360® Business Management Software.
Managing and growing your business is hard work. Using a business management software system shouldn't make it harder. That is why we built Horizon360. If you can type and point/click a mouse, you have all the skills required.

For more information click here.

Specifications

Adjustable Discharge Baffle Standard, Tools-Free
Adjustment 5 point adjustment on rear shocks
Air Filter Heavy-Duty Canister Air Cleaner
Anti Scalp Wheels 6 Standard, 1 Optional
Armrests Standard
Blade Tip Speed 18,500 ft/min / 5,638 m/min
Blades 0.204 in. (0.5 cm) heat-treated steel
Box Dimensions 91 in. x 70.5 in. x 52.5 in. / 213.1 cm x 179.1 cm x 133.4 cm
Carrier Frame 3 in. x 1.5 in. x 10 gauge (7.6 cm x 3.8 cm x 10 gauge)
Caster Tires 13 in. x 6.5 in. - 6 in. (33 cm x 16.5 cm - 15.2 cm) Flat-Free Semi-Pneumatic
Comfort Platform MyRIDE® Suspension System
Deck Design 80-grade 7-gauge 52" (132 cm) TURBO FORCE® w/bull-nose bumper
Deck Material 7 Gauge Steel
Deck Size 52 in / 132 cm
Discharge Chute Rubber
Drive System Hydraulic Unitized Pumps and Wheel Motors
Drive Tires 23 in. x 9.5 in. - 12 in. (58.4 cm x 24.1 cm - 30.5 cm)
Engine 25 hp* (18.4kW) Kohler® Command Pro EFI 747 cc
Engine Brand Kohler
Engine Displacement (cc) 747 cc
Engine Horsepower 25.0 hp
Forward Ground/Transport Speed Up to 10.0 mph / 16.0 kph
Front Bumper Reinforced Bull-Nose
Fuel Capacity 12 gal. / 45.4 L / 48 Qt.
Fuel Type Gasoline
Height of Cut 1.0 - 5.5 in. / 2.5 - 14.0 cm
Hour Meter Standard
Hydraulic Fluid Premium synthetic
ISO Mounts Qty 4, 2.5 in. 3-D isolation mounts
Platform Travel 3.6 in / 9.1 cm
Product Type Zero Turn Mowers
Product Use Commercial
Roll-Over Protection (ROPS) Folding; Standard
Seat Handcrafted Deluxe Suspension Seat with Arm Rests Featuring Bullhorn Accent
Shocks 1 Front Center / 2 Rear
Spindle Bearings Maintenance-free
Spindle Housing 9 in / 22.9 cm Diameter Cast Aluminum
Start Type Electric
Steering Controls 1-5/8" (4.1 cm) Diameter Grips; Adjustable, Dampened
Weight 1,137 lbs / 515.7 kg

Disclaimer

*The gross horsepower of this engine was laboratory rated at 3600 rpm by the engine manufacturer in accordance with SAE J1940 or SAE J2723. As configured to meet safety, emission, and operating requirements, the actual engine horsepower on this class of mower will be significantly lower.

Documents

Title Documents
Z Master 5000 Sellsheet PDF - Sellsheet-en-us

Parts & Manuals

Select your model year from the options below to view parts & manuals.

72955 Serial #
416256246-999999999
415000000-416256245
414121590-414999999
412400000-414121589
400000000-412399999



Warranty

5-Year / 1200 Hours

**See dealer for Warranty details.
