Commercial Walk-Behind Mower, 16HP, T-Bar, Gear Drive with 91cm TURBO FORCE Cutting Unit
Product Information
- Model #: 30070
- Serial #: 311000001 - 311999999
- Product Type: Walk Behind Mowers
Loading...

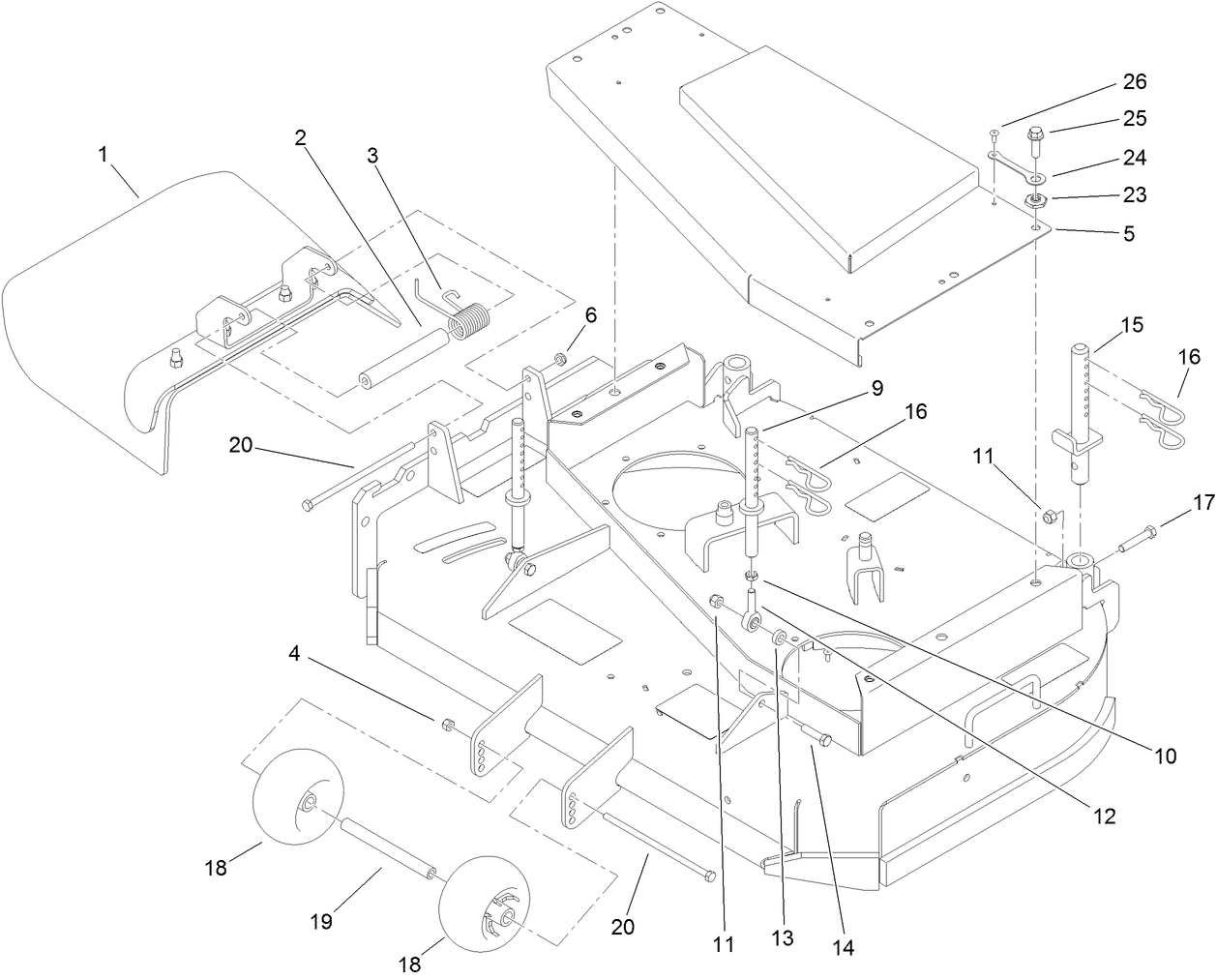

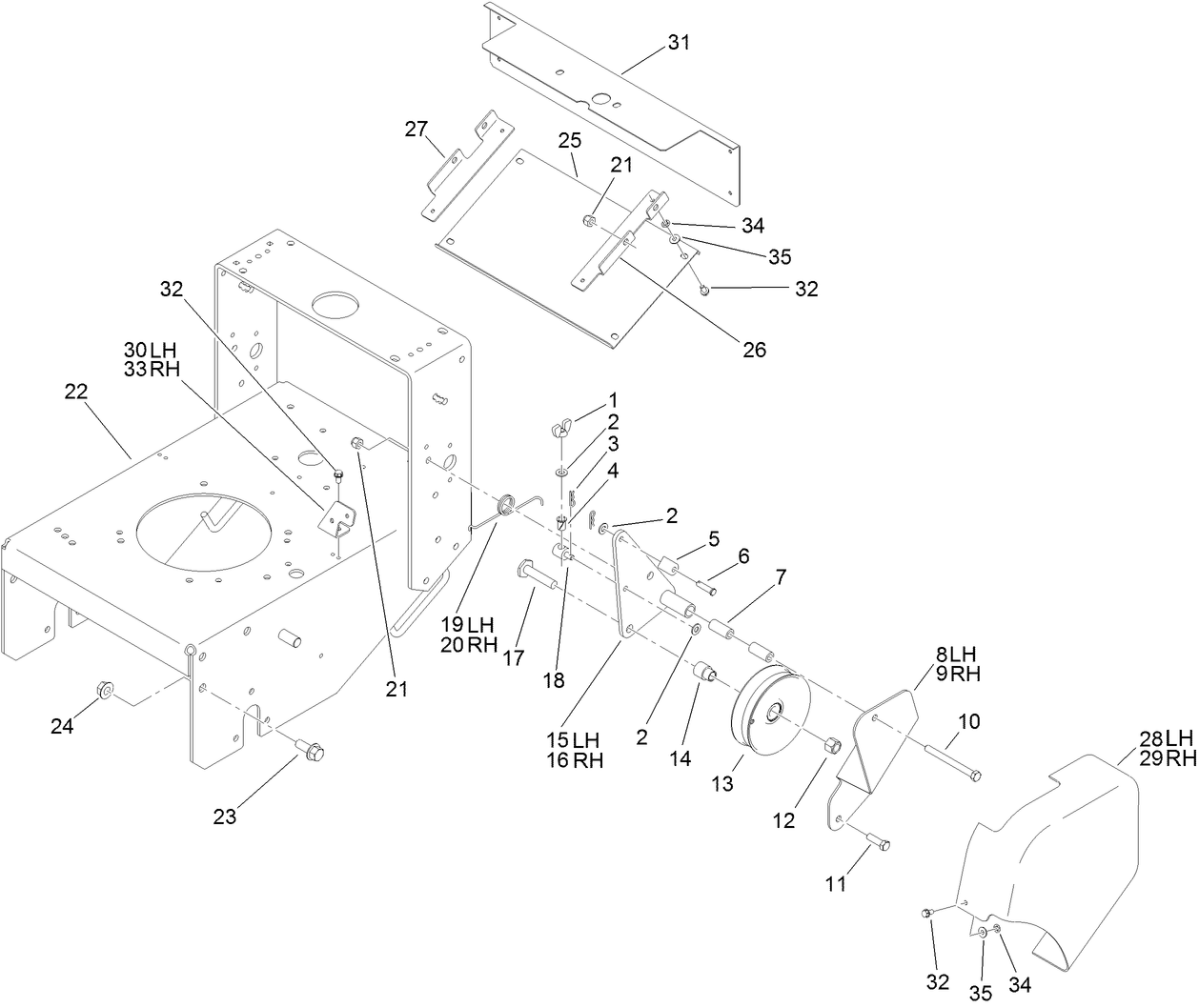

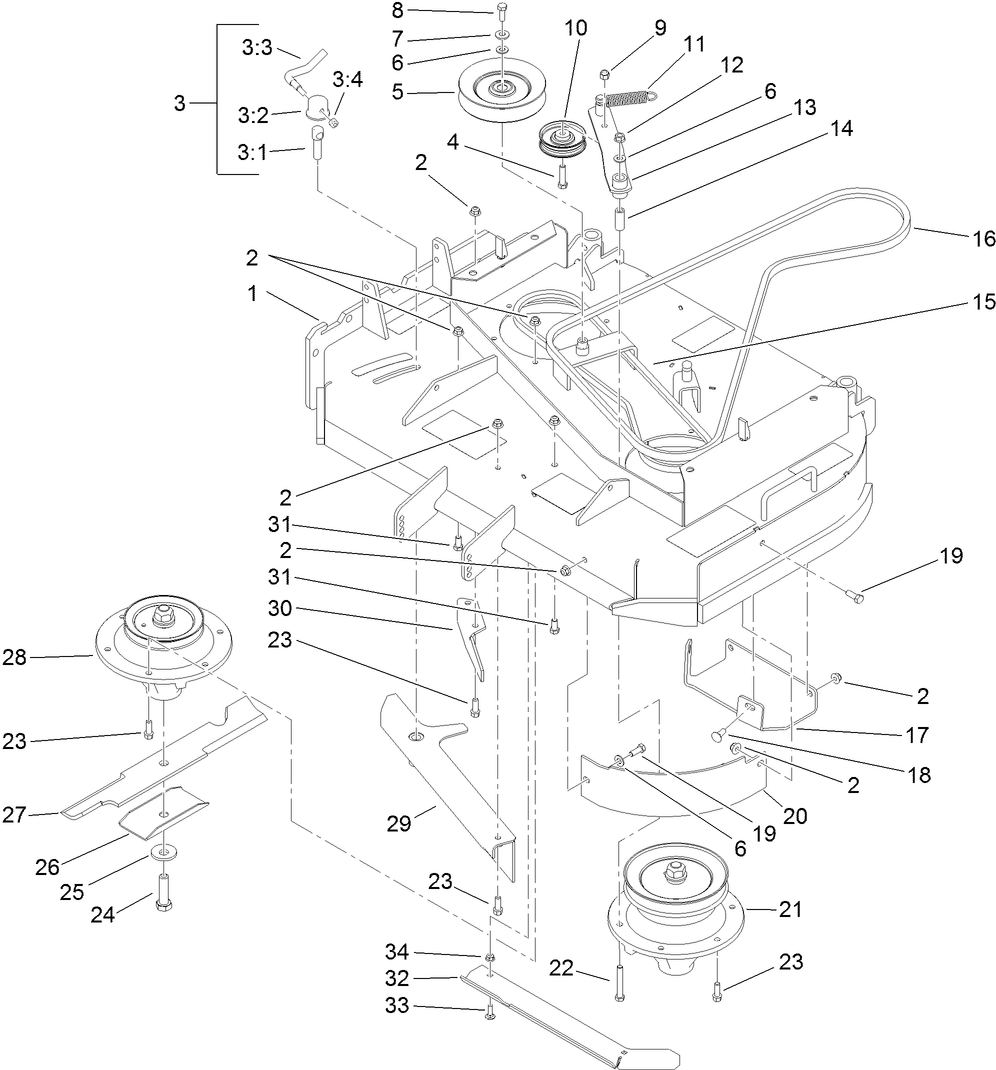

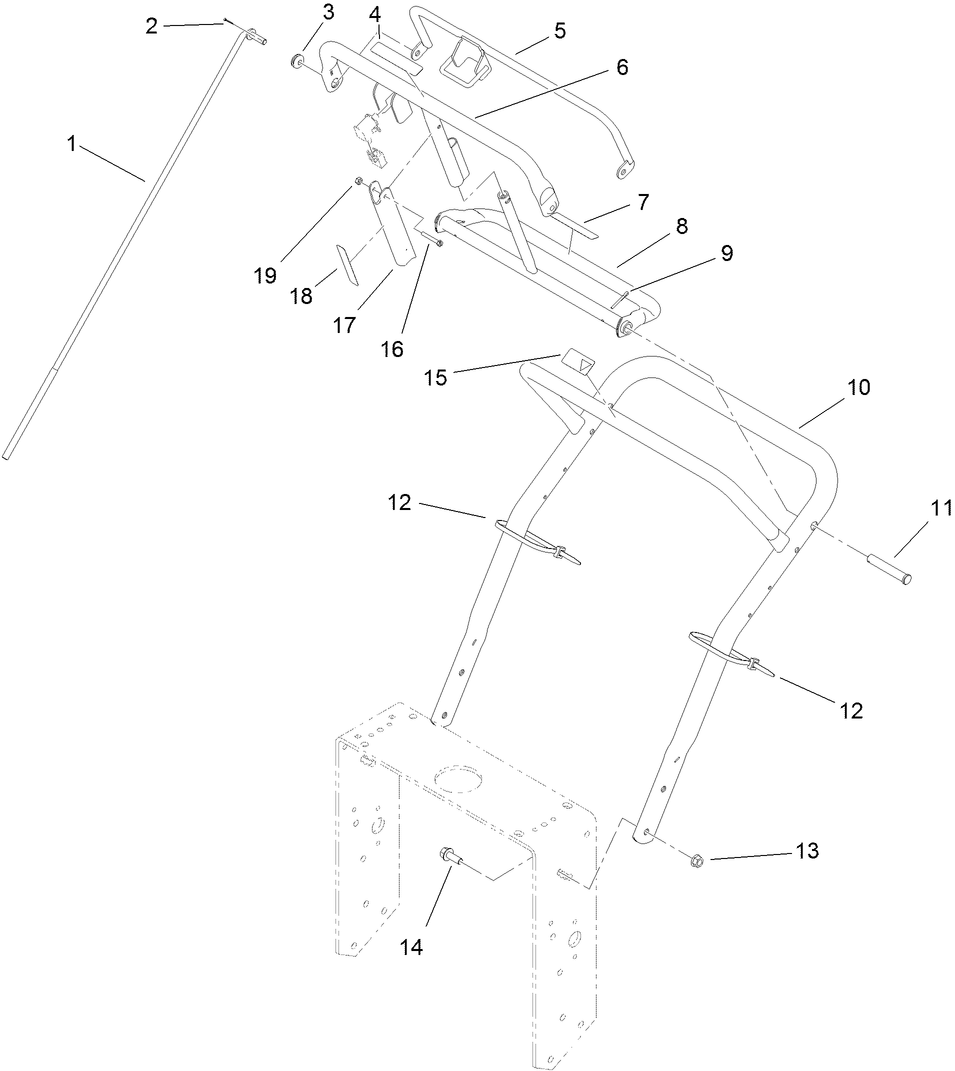

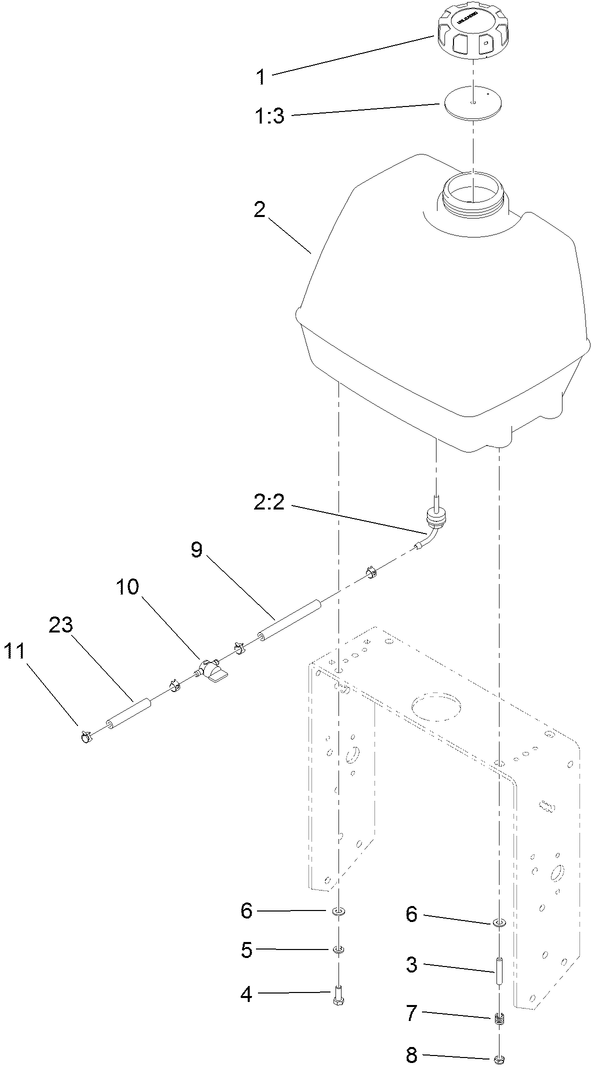

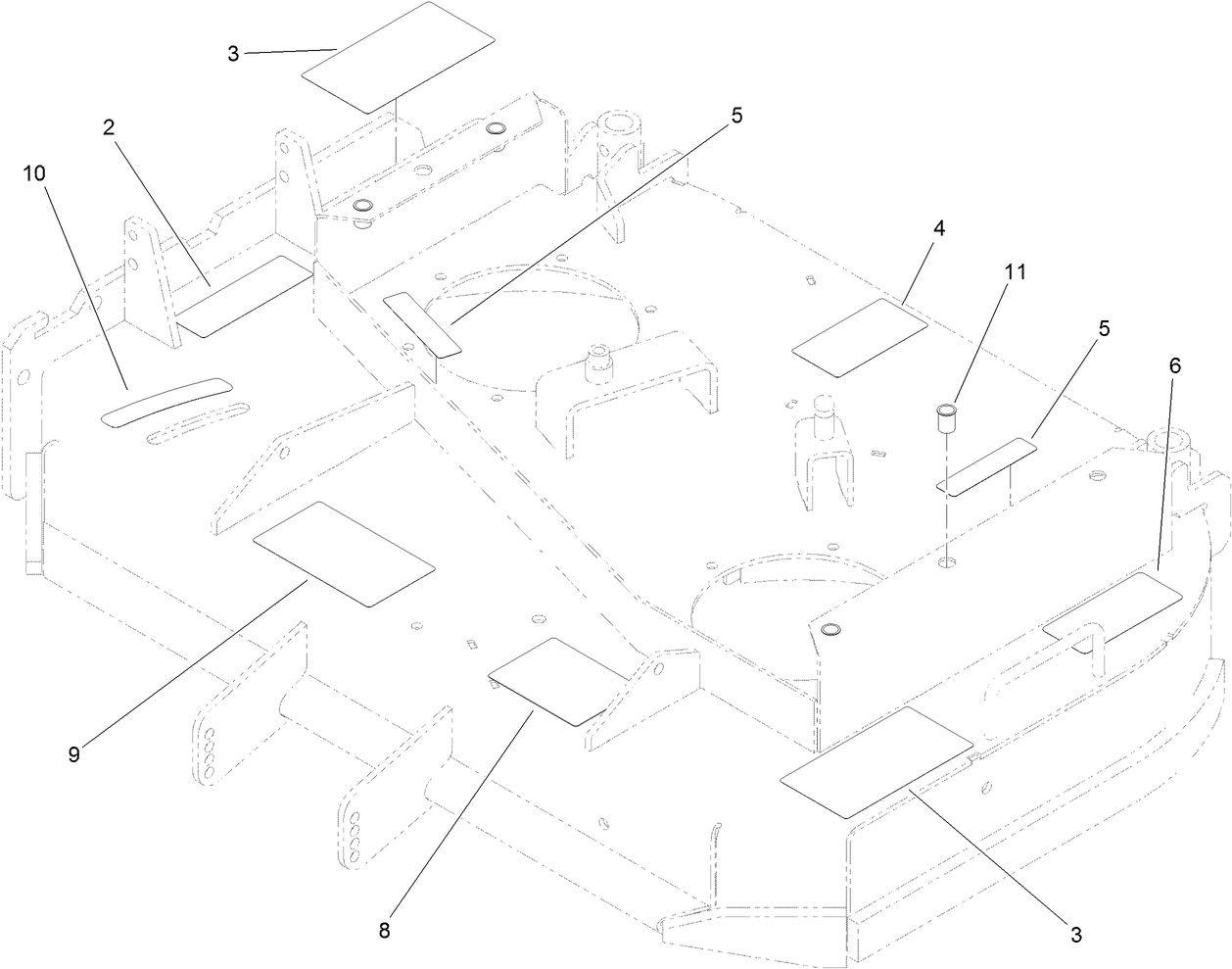

Assembly Drawings
Search for a part within assembly drawings:
-
Operator's Manual
-
Parts Catalog
-
EU Declaration of Conformity
-
Setup Instructions
18 Inch Recycler Blade (Part # 105-7779-03)
Toro OEM Recycler blade. Recycler straight edge, standard discharge blade. The blade is designed for a High quality cut and long-lasting durability. These blades are designed with “wings,” called “accelerators” that kind of act like a fan — forcing the tiny bits of grass back into the earth. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.
18 Inch Medium Flow Blade (Part # 105-7794-03)
Toro OEM Medium Flow blade. Medium Flow mower straight edge, standard discharge blade. These blades have slight upward angle on the edges. Great blades for use when horsepower is a concern. Produce medium Flow but requires less horsepower than Hi-Flow blades. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.
18 Inch Low Flow Blade (Part # 105-7795-03)
Toro OEM Low Flow blade. Low Flow mower blades have slightly curved ends that keep air Flow to a minimum. The lack of suction allows cut grass to exit the mower while keeping dust and debris levels down. Toro Low Flow mower blades cause less engine strain than Hi-Flow blades. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.
18 Inch Atomic Blade (Part # 105-7796-03)
Toro OEM Atomic blade. The Toro Atomic blade is commonly referenced as a “Gator Style” or “Gator Blade”. Provides the best quality of cut while mulching. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.
18 Inch High Flow Blade (6 Pack) (Part # 108-1117)
This sharp replacement Hi-Flow lawn mower blade provides a crisp, clean cut time after time. You can count on the quality and reliability of this Toro replacement Hi-Flow lawn mower blade. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.
Atomic Blade Pack (6) (Part # 108-1118)
Toro OEM Atomic blade pack. (6) 18 Inch Atomic blades. Atomic blade is commonly referenced as a “Gator Style” or “Gator Blade”. Provides the best quality of cut while mulching. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.
Low Flow 18 Inch Blade Pack (6) (Part # 110-0406)
This Toro OEM 18-inch Low Flow replacement mower blade — sold as a pack of 6 features a slightly curved tip design that keeps airflow to a minimum during operation. Low Flow blades are the right choice for mowing in sandy, dusty, or dry conditions where high suction would stir up excessive debris — they also cause less strain on the engine than Hi-Flow blades, making them a practical option when horsepower is a consideration. Compatible with multiple Toro riding lawn mowers models — verify your model and serial number before ordering.
Recycler 18 Inch Blade Pack (6) (Part # 110-0408)
This Toro OEM 18-inch Recycler replacement mower blade — sold as a pack of 6 is built to work within Toro's Recycler mulching system, featuring uniquely shaped 'accelerator' wings that act as a fan to keep clippings circulating beneath the deck. As clippings are forced back into the cutting zone, they are re-cut multiple times into fine pieces that fall back into the lawn and break down into natural fertilizer — feeding the grass and reducing the need to bag or rake. Compatible with multiple Toro riding lawn mowers models — verify your model and serial number before ordering.
Mid Flow 18 Inch Blade Pack (6) (Part # 110-0409)
This Toro OEM 18-inch Mid Flow replacement mower blade — sold as a pack of 6 is engineered to provide a balance between the high suction of Hi-Flow blades and the minimal airflow of Low Flow blades. Mid Flow blades have a slight upward angle on the cutting edges, producing moderate lift while requiring less horsepower than Hi-Flow blades — making them a versatile option for varied terrain and grass conditions. Compatible with multiple Toro riding lawn mowers models — verify your model and serial number before ordering.
36 inch Bagger Enhancement Kit (Part # 110-2026)
Genuine OEM Part
36 Inch GrandStand Recycler Kit (Part # 110-2080)
By adding the Toro Recycler system to your Toro GrandStand riding mower, you create your own natural fertilizer. The 36 in. Recycler Kit, when installed on compatible 36 in. deck Toro zero turn riding mowers, gives it the capability to mulch grass by cutting it multiple times turning it into fine clipping pieces. These are returned under the mower back into the soil to serve as natural fertilizer.
GrandStand 15 lbs Cast Weight (Part # 112-7059-01)
This genuine Toro OEM 15 lbs cast weight kit is designed for Toro GrandStand stand-on mowers and adds ballast to improve front traction and stability when mowing slopes, hills, and uneven ground. Insufficient front weight on a stand-on mower can cause the front caster wheels to lose contact with the ground on steep terrain, reducing steering control. Adding a weight kit is one of the most practical at-purchase accessories for operators who regularly mow on sloped properties. Verify your model and serial number before ordering.
Midsize Chute Gate Kit (Part # 115-4190)
Genuine OEM Part
3 Bushell Soft Collection Bag for GrandStand Mowers (Part # 30104)
3 Bushell Soft Collection Bag for GrandStand Mowers. To best protect your investment and maintain optimal performance of your equipment, count on Toro genuine parts and accessories.
Please contact your local dealer
-
Model #
30070 -
Serial #
311000001 - 311999999 -
Product Name
Commercial Walk-Behind Mower, 16HP, T-Bar, Gear Drive with 91cm TURBO FORCE Cutting Unit -
Product Brand
Toro -
Product Type
Walk Behind Mowers -
Product Series
Mid-Size ProLine Mower -
Chassis Type
Mid-size - Floating Deck -
Swath
91cm -
Discharge
Side -
Engine/Motor Manufacturer
Kawasaki -
Engine/Motor Size
16 hp -
Engine/Motor Type
4 Cycle -
Engine Starter
Recoil -
Transmission Type
Gear -
Traction Type
2wd
-
Engine: Spark Plug
NGK BPR4ES -
Engine: Spark Plug Gap
.030"/ .76mm -
Engine: Engine Speed
2800±100 RPM -
Drive System: Gearbox Lubricant
Peerless Bentonite Grease -
Engine: Ignition Coil Air Gap
.008-.016" / .2-.4mm -
Chassis: Height of Cut Range
1-4.5", 1/4" increments -
Chassis: Tire Pressure
12-14 psi rear -
Drive System: Ground Speed
Fwd. 2.0 / 2.6 / 3.4 / 4.1 / 6.1 Rev. 3.0 mph -
Engine: Engine Oil Type
67 oz. (2.1 Liter) SAE 10W-30 or 10W-40
