On Sale

5000 Series 72 in. (183 cm) 26.5 hp EFI 747cc

With Michelin® X® Tweel® Turf Tires
  • Model: 72912
  • UPC/EAN: 21038729121
See All Items in Z Master® 5000 Series
  • Tweel Turf Tires - No air pressure to maintain, no flat tires, no compromises. Extra long wear life two to three times that of a pneumatic tire at equal tread depth.
  • Deluxe suspension seat features thick cushions, large bolsters and 3-D isolator mounts that absorb bumps and vibrations to reduce operator fatigue, fully adjustable to match operator comfort
  • Our TURBO FORCE deck features heat-treated steel blades and our patented adjustable discharge chute, nothing cuts as fast or as well
  • Unitized pump and wheel motor uses proven commercial hydraulic components while eliminating hoses and other potential leak points
  • Horizon360® Business Management Software. Work More Efficiently. Run More Profitably.

Overview

Z Master® 5000 Series - 26.5 hp (19.5kW) Kohler® Command Pro EFI 747cc Engine with 72 in. (183 cm) TURBO FORCE® deck.

Features

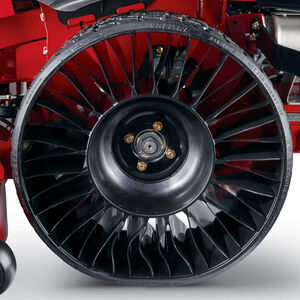

Michelin® X® Tweel® Turf Tires
Michelin® X® Tweel® Turf Tires
No air pressure to maintain, no flat tires, no compromises. Get extra long wear life two to three times that of a pneumatic tire at equal tread depth.
Deluxe Handcrafted Seat with Arm Rests
Deluxe Handcrafted Seat with Arm Rests
Ultimate padding and back support with a handcrafted seat with arm rests and bullhorn logo.
Exclusive TURBO FORCE Deck
Exclusive TURBO FORCE Deck
High-capacity TURBO FORCE decks deliver unsurpassed strength, a superior cut, and increased productivity in extreme mowing conditions. Equipped with a patented adjustable baffle, TURBO FORCE decks can be fine-tuned in order to conquer changing turf conditions.
7-Gauge, High-Strength Steel
7-Gauge, High-Strength Steel
The TURBO FORCE deck is constructed of 7-gauge, high-strength steel which is 33% thicker and 32% higher in yield strength than ordinary 10-gauge commercial steel used in 7/10 decks. The combined effect is 75% stronger, so it easily handles the most demanding conditions and resists damage from impacts and abrasion.
A Flat Crisp Cut with Precision Blades
A Flat Crisp Cut with Precision Blades
(.250) thick precision blades resist flexing to provide a flat, crisp cut. High-strength, heat-treated alloy steel survives impacts and provides resistance to the rapid wear commonly associated with abrasive conditions. Options include Recycler® and Atomic® mulching blades, medium sail Bahai blades, and low sail sand blades.
Rubber Discharge Chute
Rubber Discharge Chute
High performance rubber discharge chute allows for close trimming without damaging chute or landscape structures. Patented design provides exceptional clipping dispersion.
Smarter design in a bull-nose bumper.
Smarter design in a bull-nose bumper
7-gauge bull-nose bumper not only protects against frontal impacts, but also contains an integral underskirt to minimize blowout of debris and dust. The bottom, leading edge of the deck is raised 1/4" (6 mm), allowing grass to stand more upright when entering the cutting chamber, ensuring a level cut. Leaf "plowing" during spring and fall clean-up also is significantly reduced.
Patented Adjustable Baffle
Patented Adjustable Baffle
Allows operator to achieve maximum cutting performance by fine-tuning deck to conquer changing conditions, unique job sites or different times of the season. In extreme conditions, the baffle can be opened in order to conserve power and achieve faster mowing speeds. In less demanding conditions, the baffle can be closed to yield micro-sized particles and maximize discharge velocity.
Smooth, Powerful Response
Smooth, Powerful Response
The new unitized pump and wheel motor use proven commercial hydraulic components while eliminating hoses and other potential leak points. You'll get a smoother, faster response while enjoying an even more reliable machine.
Folding Rollover Protection System ROPS
Folding Rollover Protection System ROPS
A Rollover Protection System (ROPS), complete with seat belt, comes standard for operator protection in the case of accidental rollovers and tipovers. In situations where sufficient vertical clearance is not available, such as loading on an enclosed trailer, the ROPS can be temporarily unlocked and folded down.
Operator Information Center
Operator Information Center
The instrument panel includes a digital hour meter, fuel gauge, and voltage meter, as well as diagnostic indicators for the safety interlock system.
Cast Aluminum Spindle
Cast Aluminum Spindle
Cools quickly for enhanced durability and performance.
Horizon360 system used by contractor
Horizon360® Business Management Software.
Managing and growing your business is hard work. Using a business management software system shouldn't make it harder. That is why we built Horizon360. If you can type and point/click a mouse, you have all the skills required.

For more information click here.

Specifications

Adjustable Discharge Baffle Standard, Tools-Free
Air Filter Heavy-Duty Canister Air Cleaner
Anti Scalp Wheels 6 Standard, 1 Optional
Armrests Standard
Blade Tip Speed 18,500 ft/min / 5,638 m/min
Blades 0.204 in. (0.5 cm) heat-treated steel
Box Dimensions 91 in. x 80 in. x 52.5 in. / 231.1 cm x 203.2 cm x 133.4 cm
CARB Compliant Not CARB Compliant
Carrier Frame 3 in. x 1.5 in. x 10 gauge (7.6 cm x 3.8 cm x 10 gauge)
Caster Tires 13 in. x 6.5 in. - 6 in. (33 cm x 16.5 cm - 15.2 cm) Flat-Free Semi-Pneumatic
Comfort Platform Deluxe Suspension with 3-D Isolation Mounts
Cutting Width 72 in / 183 cm
Deck Design 80-Grade 7-Gauge 72" (183 cm) TURBO FORCE® w/bull-nose bumper
Deck Material 13 Gauge Steel
Discharge Chute Rubber
Drive System Hydraulic Unitized Pumps and Wheel Motors
Drive Tires Airless radial 24 in. x 12 in. - 12 in. Tweels (61 cm x 30.5 cm - 30.5 cm) Tweel
Engine 26.5 hp* (19.5kW) Kohler® Command Pro EFI 747 cc
Engine Brand Kohler
Engine Displacement (cc) 747 cc
Engine Horsepower 26.5 hp
Forward Ground/Transport Speed Up to 10.0 mph / 16.0 kph
Front Bumper Reinforced Bull-Nose
Fuel Capacity 12 gal. / 45.4 L / 48 Qt.
Fuel Type Gasoline
Height of Cut 1.0 - 5.5 in. / 2.5 - 14.0 cm
Hour Meter Standard Hour Meter
Hydraulic Fluid Premium synthetic
Product Features Electric Start, Gas Powered, Hour Meter
Product Type Zero Turn Mowers
Product Use Commercial
Roll-Over Protection (ROPS) Folding; Standard
Seat Handcrafted Deluxe Suspension Seat with Arm Rests Featuring Bullhorn Accent
Spindle Bearings Maintenance-free
Spindle Housing 9 in / 22.9 cm Diameter Cast Aluminum
Start Type Electric
Steering Controls 1-5/8" (4.1 cm) Diameter Grips; Adjustable, Dampened

Disclaimer

*The gross horsepower of this engine was laboratory rated at 3600 rpm by the engine manufacturer in accordance with SAE J1940 and SAE J2723. As configured to meet safety, emission, and operating requirements, the actual engine horsepower on this class of mower will be significantly lower.

Accessories

GrandStand Turbo Baffle Kit
GrandStand Turbo Baffle Kit (Part # 107-1634)
Empty Image Container
Hypr-Oil™ 500 (quart)
Hypr-Oil™ 500 (quart) (Part # 114-4713)
Hypr-Oil™ 500 (gallon)
Hypr-Oil™ 500 (gallon) (Part # 114-4714)
Genuine OEM Part 114-4715
Hypr-Oil™ 500 Hydraulic Oil (5 gallon) (Part # 114-4715)
Please contact your local dealer
Bimini Folding Sunshade Assembly
Bimini Folding Sunshade Assembly (Part # 115-4510)
Genuine OEM Part 115-7480
Roller Striping Kit (Part # 115-7480)
Empty Image Container
Toro Genuine Parts Logo
Seat Cover w/Arm Rest (Part # 117-0095)
Genuine OEM Part 117-0354
Z-Master Deck Stand Kit with 72 inch Deck (Part # 117-0354)
Genuine OEM Part 117-3600
Operator-Controlled Discharge Chute Kit (Part # 117-3600)
Genuine OEM Part 121-7596
Suspension Seat and Mount Kit (Part # 121-7596)
Empty Image Container
Genuine OEM Part 127-6665
Riding Mower Jack Mount Kit (Part # 127-6665)
Riding Mower Jack Kit
Riding Mower Jack Kit (Part # 127-6666)
Please contact your local dealer
Genuine OEM Part 132-5986
Power Deck Lift Kit (Part # 132-5986)
Empty Image Container
Empty Image Container
Titan HD Series Bucket Mount Kit (Part # 137-9216)
Empty Image Container
Trimmer Mount Kit (Part # 137-9769)
Genuine OEM Part 139-6659
72 Inch Recycler Kit (Part # 139-6659)
Genuine OEM Part 139-7891
MICHELIN® X® TWEEL® Turf Airless Radial Tires (Part # 139-7891)
Genuine OEM Part 140-1238
24.5 Inch Mulching Blade (Part # 140-1238)
Genuine OEM Part 140-1239
24.50 Inch Atomic Blade (Part # 140-1239)
Genuine OEM Part 140-4850
24.50 Inch Medium Flow Blade (Part # 140-4850)
Genuine OEM Part 140-4851
24.50 Inch Low Flow Blade (Part # 140-4851)
Genuine OEM Part 140-4852
24.50 Inch Recycler Blade (Part # 140-4852)
Genuine OEM Part 140-1238
Hi-Flow Blade Pack (6) (Part # 140-4872)
Genuine OEM Part 140-4850
Mid Flow 24.5 Inch Blade Pack (6) (Part # 140-4873)
Please contact your local dealer
Genuine OEM Part 140-4851
Low Flow 24.5 Inch Blade Pack (6) (Part # 140-4874)
Genuine OEM Part 140-1239
Atomic 24.5 Inch Blade Pack (6) (Part # 140-4875)
Genuine OEM Part 140-4852
Recycler 24.5 Inch Blade Pack (6) (Part # 140-4876)
Genuine OEM Part 140-4958
Riding Mower Toe board Weights (Part # 140-4958)
Empty Image Container
Genuine OEM Part 490-7319
Toro Titan Deluxe Cover (Part # 490-7319)
Empty Image Container
Toro Rider Arm Rest Bag (Part # 490-7320)
Empty Image Container
Toro Genuine Parts Logo
Toro Filter Gauge for Kohler Engines (Part # 99-4664)
Empty Image Container

Parts & Manuals

Select your model year from the options below to view parts & manuals.



Warranty

For complete product warranty information contact Toro Customer Service

**See dealer for Warranty details.
