TX 1000 Wide Track Compact Tool Carrier

TX 1000 Wide Track Compact Tool Carrier

TX 1000 Wide Track Compact Tool Carrier

Product Information

Model #: 22328
Serial #: 410500000 - 411839999
Product Type: Compact Utility Loaders

Parts

Search for a part within assembly drawings:

Showing Results

Drawing Title	Part Number	Description
Title

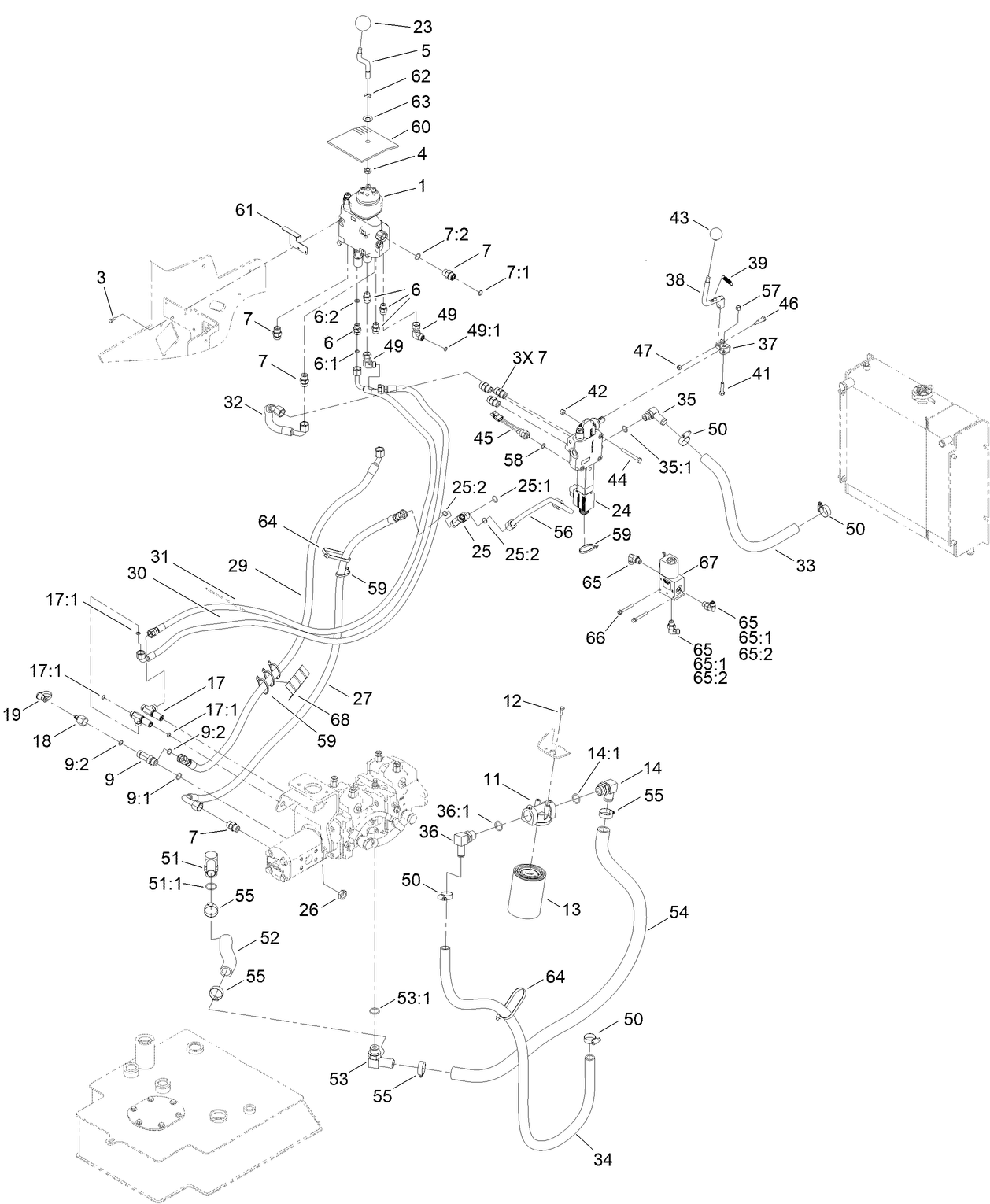

2-Spool Valve and Auxiliary Valve Assembly

2-Spool Valve and Auxiliary Valve Assembly

2-Spool Valve Assembly No. 144-7353

2-Spool Valve Assembly No. 144-7353

Accessories and Service Parts

Accessories and Service Parts

Air Cleaner Assembly No. 93-2190

Air Cleaner Assembly No. 93-2190

Alternator and Pulley Assembly

Alternator and Pulley Assembly

Alternator Components Assembly

Alternator Components Assembly

Brake Assembly

Camshaft and Idle Gear Shaft Assembly

Camshaft and Idle Gear Shaft Assembly

Control Valve and Reference Bar Assembly

Control Valve and Reference Bar Assembly

Control Valve Assembly No. 138-0827

Control Valve Assembly No. 138-0827

Crankcase Assembly

Crankcase Assembly

Cylinder Head Assembly

Cylinder Head Assembly

Cylinder Head Cover Assembly

Cylinder Head Cover Assembly

Dipstick and Guide Assembly

Dipstick and Guide Assembly

Double Detent Auxiliary Valve Assembly No. 145-4402

Double Detent Auxiliary Valve Assembly No. 145-4402

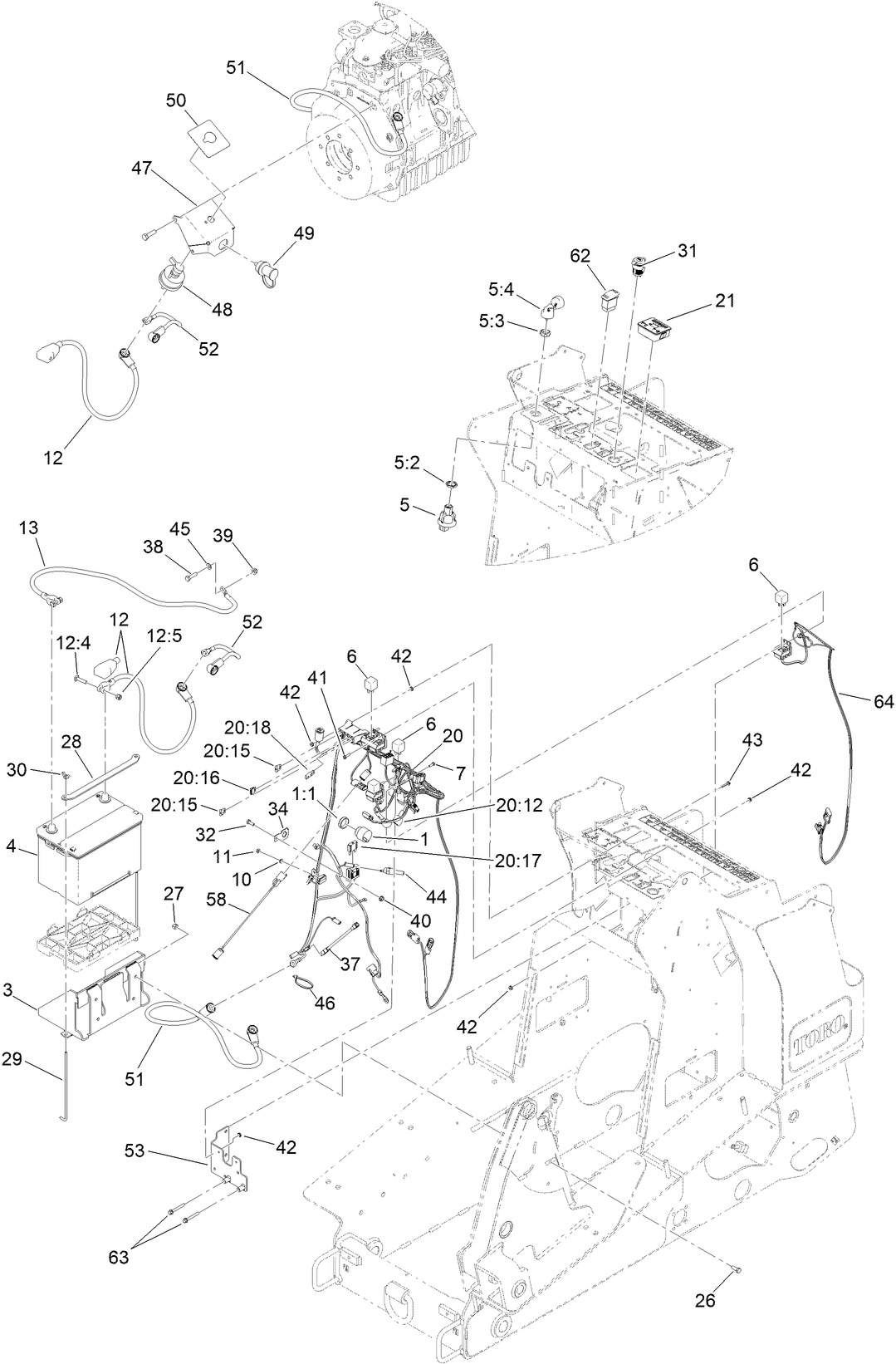

Electrical Assembly

Electrical Assembly

Engine and Muffler Assembly

Engine and Muffler Assembly

Flywheel Assembly

Flywheel Assembly

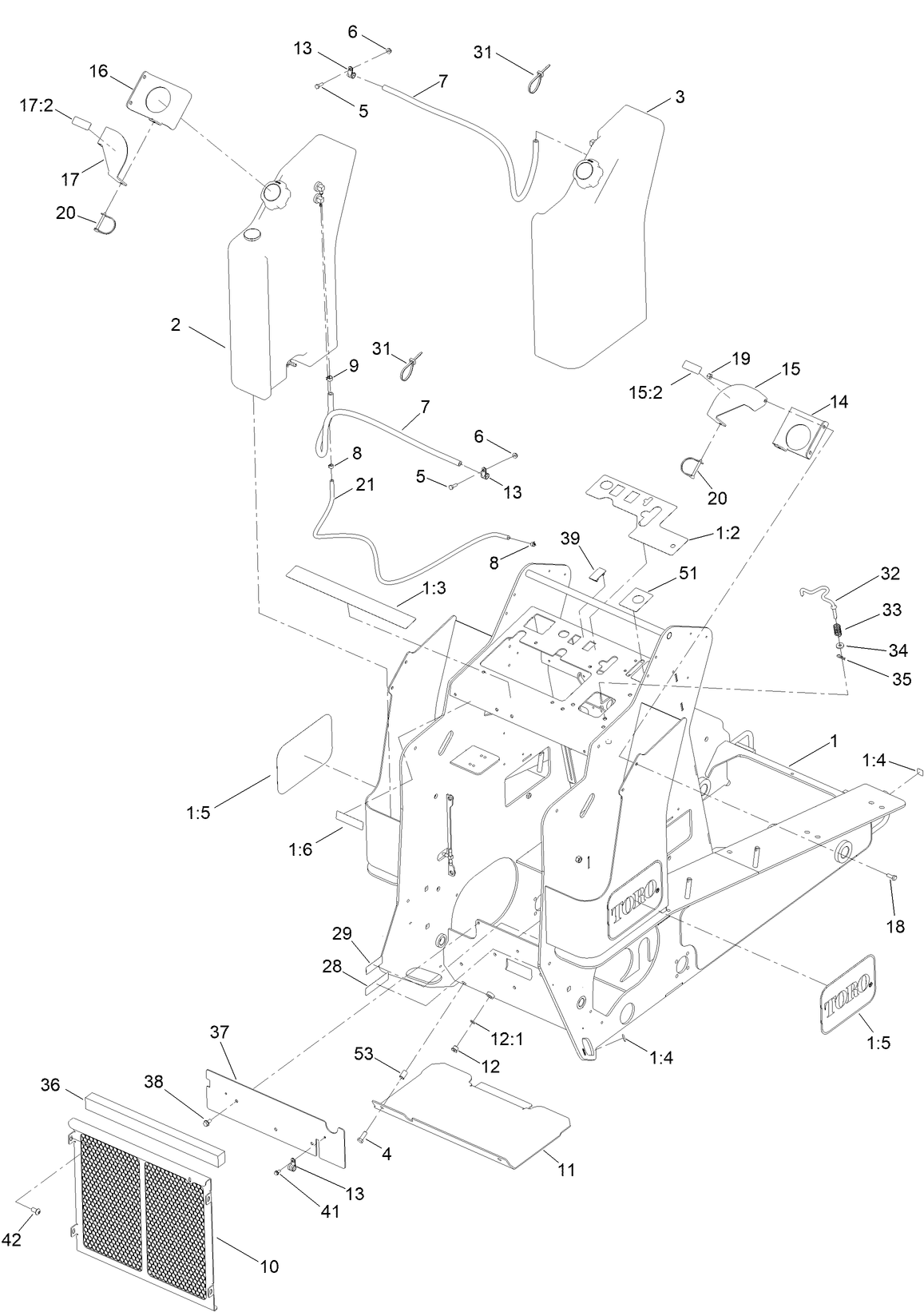

Frame Assembly

Front Cover and Side Panel Assembly

Front Cover and Side Panel Assembly

Front Tower Assembly

Front Tower Assembly

Fuel Camshaft and Governor Shaft Assembly

Fuel Camshaft and Governor Shaft Assembly

Gear Case Assembly

Gear Case Assembly

Gear Pump Assembly No. 130-7731

Gear Pump Assembly No. 130-7731

Governor Assembly

Governor Assembly

Hood Assembly

Hydraulic Cylinder Assembly No. 139-0779

Hydraulic Cylinder Assembly No. 139-0779

Hydraulic Cylinder Assembly No. 139-0780

Hydraulic Cylinder Assembly No. 139-0780

Hydraulic Cylinder Assembly No. 139-0781

Hydraulic Cylinder Assembly No. 139-0781

Hydraulic Motor and Hose Assembly

Hydraulic Motor and Hose Assembly

Hydraulic Motor Assembly No. 138-0761

Hydraulic Motor Assembly No. 138-0761

Hydraulic Motor Assembly No. 138-0778

Hydraulic Motor Assembly No. 138-0778

Hydraulic Tank and Track Shaft Assembly

Hydraulic Tank and Track Shaft Assembly

Idle Apparatus Assembly

Idle Apparatus Assembly

Injection Pump Assembly

Injection Pump Assembly

Inlet and Exhaust Manifold Assembly

Inlet and Exhaust Manifold Assembly

LH Fuel Tank Assembly No. 130-1026

LH Fuel Tank Assembly No. 130-1026

Loader Arm Assembly

Loader Arm Assembly

Loader Hydraulic Assembly

Loader Hydraulic Assembly

Lower Gasket Kit

Lower Gasket Kit

Main Bearing Case Assembly

Main Bearing Case Assembly

Manual Tube Assembly

Manual Tube Assembly

Nozzle Holder and Glow Plug Assembly

Nozzle Holder and Glow Plug Assembly

Nozzle Holder Assembly

Nozzle Holder Assembly

Oil Pan Assembly

Oil Pan Assembly

Piston and Crankshaft Assembly

Piston and Crankshaft Assembly

Platform Assembly

Platform Assembly

Quick Attach Assembly

Quick Attach Assembly

Radiator and Air Cleaner Assembly

Radiator and Air Cleaner Assembly

Radiator Support Kit Assembly No. 161-7280

Radiator Support Kit Assembly No. 161-7280

RH Fuel Tank Assembly No. 130-1027

RH Fuel Tank Assembly No. 130-1027

Speed Control Plate Assembly

Speed Control Plate Assembly

Starter Component Assembly

Starter Component Assembly

Starter Installation Assembly

Starter Installation Assembly

Stop Solenoid Assembly

Stop Solenoid Assembly

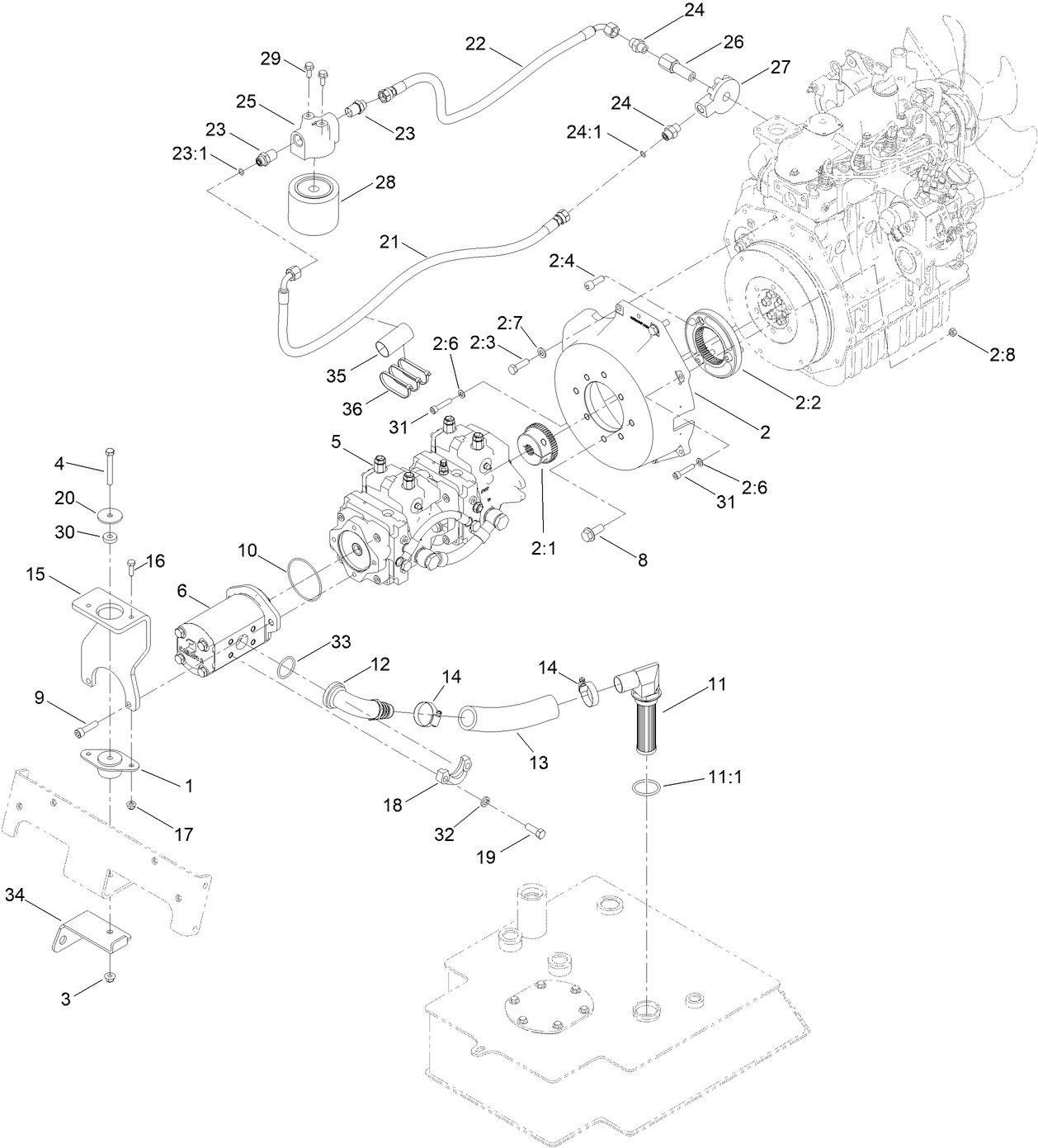

Tandem Pump and Gear Pump Assembly

Tandem Pump and Gear Pump Assembly

Tandem Pump Assembly No. 138-0767

Tandem Pump Assembly No. 138-0767

Track, Drive Wheel and Tensioner Assembly

Track, Drive Wheel and Tensioner Assembly

Upper Gasket Kit

Upper Gasket Kit

Valve and Rocker Arm Assembly

Valve and Rocker Arm Assembly

Water Flange and Thermostat Assembly

Water Flange and Thermostat Assembly

Water Pump Assembly

Water Pump Assembly

Download Parts Catalog

Manuals

Operator's Manual

Parts Catalog

Product Warranty

Schematic Drawing - Electrical

Schematic Drawing - Hydraulic

ACMA Declaration of Conformity

EU/UK Declaration of Conformity
