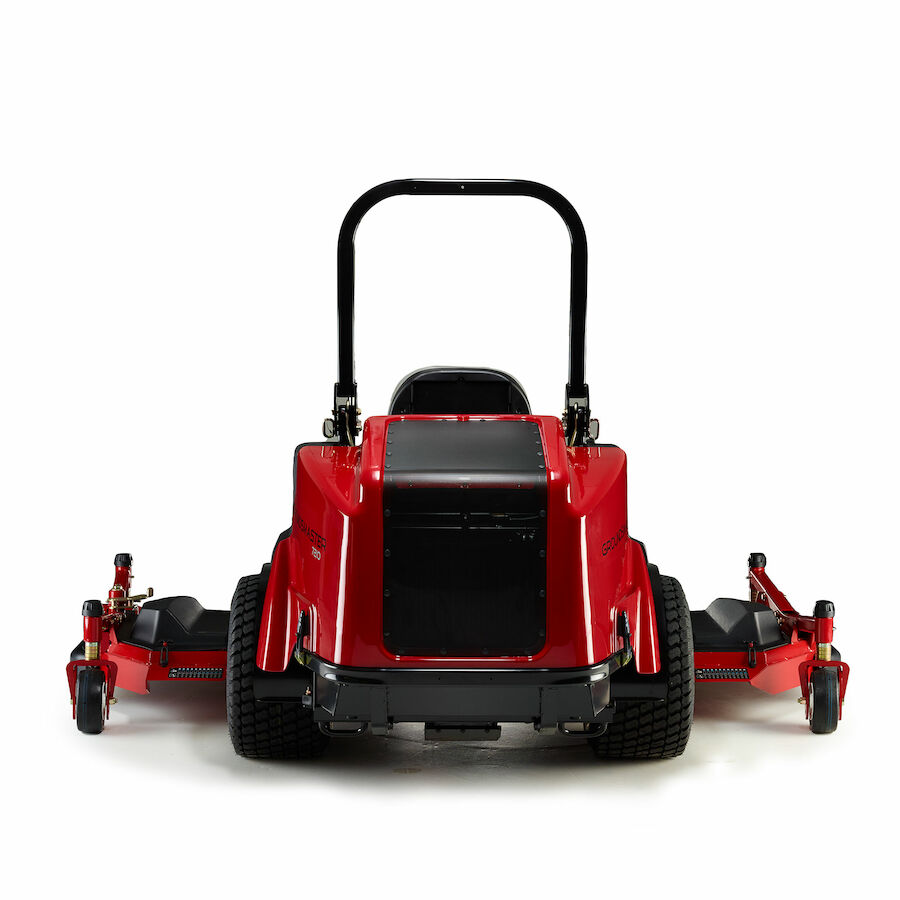

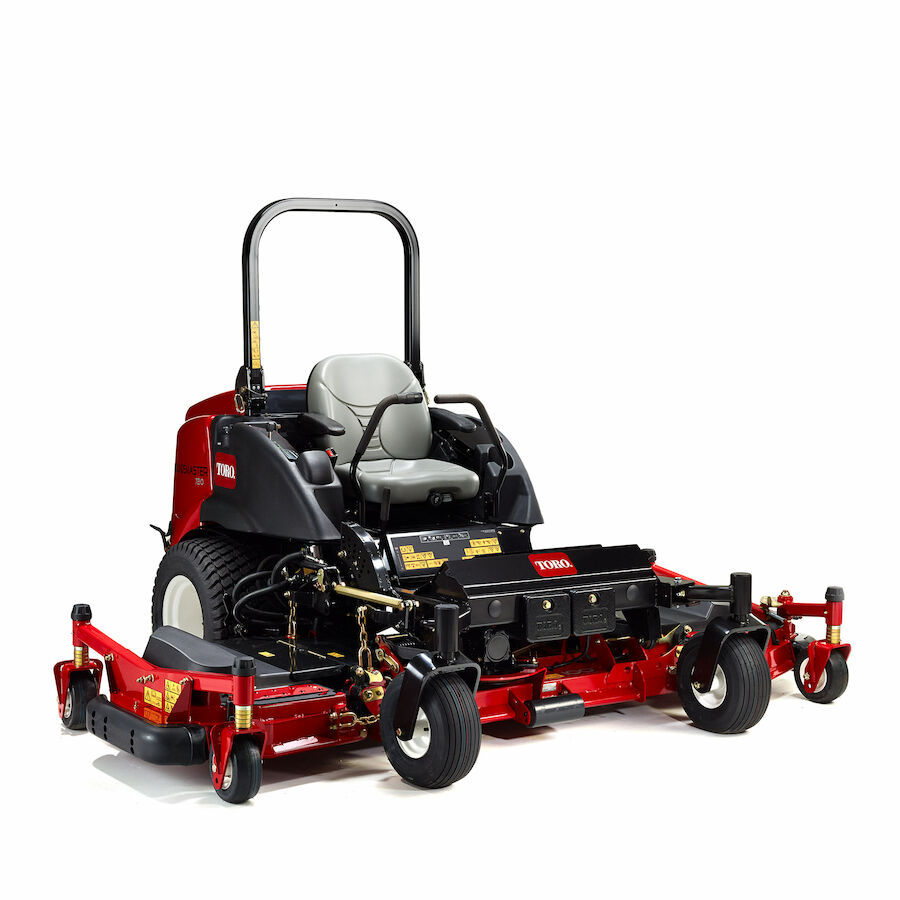

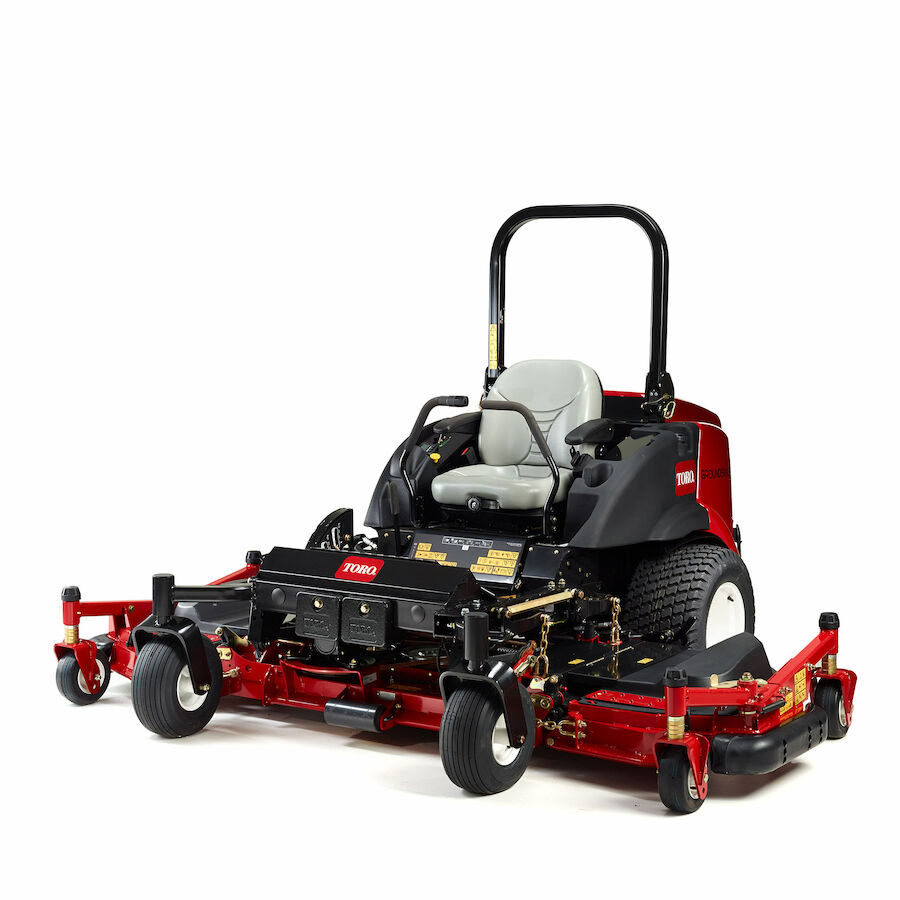

The Groundsmaster® 7210-D is a zero turn rotary mower that is rugged enough to be called a Groundsmaster. Powerful Yanmar 36.8hp (27.4kW), 3-cylinder, liquid cooled diesel engine combined with decks that use the industry's toughest spindle assembly, match power and durability for commercial operators. Convert the Groundsmaster 7210-D from mowing into a powerful snow removal machine in less than 4 hours with the PolarTrac® system.
Configuration Options:
| Air Filter | Remote-mounted 5" Donaldson® air cleaner |
|---|---|
| Armrests | Standard |
| Battery | 12V |
| Blade Style/Type | Rotary |
| Cab Unit | Polar Trac Kit |
| Cooling System Description | Rear-mount, cross-flow radiator with 6.5 fins per 1” (25 mm), 8 U.S. qt. (7.6 L) capacity |
| Cup Holder | Standard |
| Drivetrain | Diesel |
| Electrical System | 12-volt battery (BCI No. 24) 540CCA, 55 amp internal regulated alternator charging @ 3150 rpm |
| Engine Cooling | Liquid Cooled |
| Fuel / Power Source | Diesel / Biodiesel |
| Fuel Capacity | 11.5 U.S. gal. (43.5 L) |
| Fuel Economy | 1.1 gallon/hr (4.8 liter/hr) |
| Fuel Filter | Fuel filter/water separator |
| Gauges/Instrumentation | InfoCenter™: LCD display shows gauges, alerts/faults, service reminders, electrical system diagnostics. Indicates, coolant temp, intake temperature, low oil pressure, alternator, engine hours, engine rpm, hydraulic oil temperature, voltage. |
| Ground Clearance | Capable of climbing 8" (20.3 cm) curbs |
| Ground Speed - Forward | 0 - 12.5 mph (0 - 20 km/h) |
| Ground Speed - Reverse | 0 - 8.5 mph (0 - 13.7 km/h) |
| Hydraulic Fluid Capacity | 3.5 U.S. gal. (13.2 L) |
| IntelliDash™ Capable | No |
| Interlocks | Tractor neutral, operator presence, parking brake, PTO on, auxiliary hydraulics on, high temp (PTO shuts down but engine still running), over temp (engine shuts down) |
| Lighting | Optional |
| Main Frame/Chassis | Structured steel tube and high strength steel plate welded construction, with tie down loops on each corner |
| Max Slope Angle | Refer to operator's manual |
| Oil Capacity | 5.5 U.S. qt. (5.2 L) |
| Oil Cooler Description | External spin-on oil filter and high flow fixed fan |
| Optional Accessories | Road Light Kit, 12V Power Port Kit, Slope Sensor Kit, SMV Sign, Jack Stand Kit, Semi-Pneumatic Tire Assembly (front caster wheel), Lug Tire |
| Parking/Service Brakes | Service: Twin levers with dynamic braking through hydrostatic transmission. Parking: Hand actuated brake lever with two 10.25" diameter disc brakes mounted on the rear wheel motors. |
| Power Steering | Yes |
| Power Train (Engine Description) | Yanmar® 3-cylinder common-rail, liquid-cooled, diesel with EGR and diesel particulate filter (DPF), 36.8 hp (27.4 Kw) rated @ 3000 rpm, 80 ft-lbs. @ 1950 rpm, displacement 1642 cc., EPA Tier IV Final compliant |
| PTO Clutch | Hydraulically actuated wet multi-disc clutch |
| Safety/Operator Safety | Two-post foldable ROPS standard, optional ROPS certified heat-only cab available |
| Seat | Two piece, high back cushion seat with drain hole, deluxe low profile suspension, adjustable for operator weight, seat back angle, seat fore/aft position, armrest height, retractable seat belt |
| Starting | Key Start |
| Steering System Description | Adjustable twin sticks with high performance KYB® hydraulic dampers. Rev/N/Forward, located on sides of operator. |
| Tires - Front | 24" x 12" - 12", 6-ply, Turf Tire |
| Tires - Rear | 15" x 6" - 6", 4-ply |
| Tool Box | Standard |
| Traction Drive | 2WD |
| Traction Drive (System) | Two independent closed-loop circuits. One pump/motor controlling left side forward, neutral, and reverse, and one pump/motor controlling right side forward, neutral, and reverse. Pumps are variable displacement piston type with slippers and full stroke capacity of 18 cc/rev. |
