Sand Pro® 2040Z

Model: 08706

Request a Demo

The zero-turn steering design allows easy grooming that other machines cannot access. Ultimately reducing grooming time with its power steering via two independent control sticks.
This unique 84-inch (213 cm) wide flex tooth rake features three reversible rubber trowels that reduce damage to bunker liners and edges. Each of the rake's three sections moves independently to follow bunker contours. The flex tooth rake has adjustment stops for pivot, rake pitch and "lift in turn" height.
The Sand Pro 2040Z transports at 12 mph (19.3 km/h), 20% faster than other Sand Pro models.
The rear attachment is easily operated through a thumb switch on the right hand control stick. The hydraulic lift system is safe and quick, allowing the operator to enter and exit bunkers quickly.
The unitized transmission design consists of two independent unitized pump and wheel motor assemblies that minimize hydraulic lines and connections for reliable, low-maintenance performance.
This patented feature makes the inside flex tooth rake section lift in a tight turn preventing teardrop formation, leaving a uniform surface.
The Sand Pro 2040Z's twin cylinder, air-cooled Kawasaki® 12.2 hp (9.1 kW) gasoline engine is powerful enough to easily climb over tough terrain and quickly transport over hills without bogging down. The single-stage cyclonic air filter keeps the engine running cleanly in the dustiest conditions.

Top

Request a Demo

Overview

The Sand Pro® 2040Z mechanical rake is unlike anything else in the marketplace; a zero-turn mechanical groomer delivering unmatched maneuverability and productivity. This unique machine is a daily bunker rake that will reduce labor costs for both mechanical and hand raking of bunkers and infields. A brand new "flex" raking system with the patented "lift in turn" feature enables an operator to turn tightly in bunkers without leaving unraked teardrops or tire marks.

Features

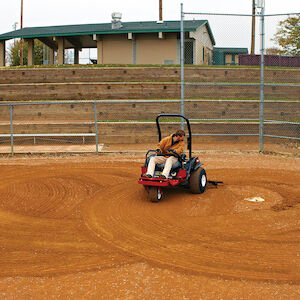

Unparalleled Maneuverability & Productivity

The zero-turn steering design allows easy grooming that other machines cannot access. Ultimately reducing grooming time with its power steering via two independent control sticks.

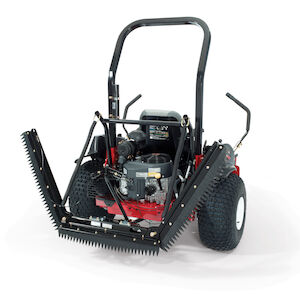

Innovative Bunker Raking System

This unique 84-inch (213 cm) wide flex tooth rake features three reversible rubber trowels that reduce damage to bunker liners and edges. Each of the rake's three sections moves independently to follow bunker contours. The flex tooth rake has adjustment stops for pivot, rake pitch and "lift in turn" height.

Fast Transport

The Sand Pro 2040Z transports at 12 mph (19.3 km/h), 20% faster than other Sand Pro models.

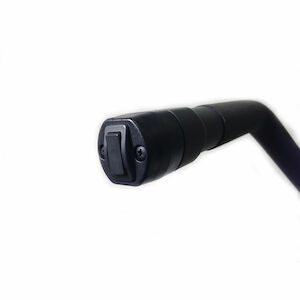

Thumb-Activated Groomer

The rear attachment is easily operated through a thumb switch on the right hand control stick. The hydraulic lift system is safe and quick, allowing the operator to enter and exit bunkers quickly.

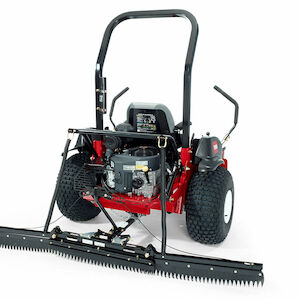

Easy Access for Maintenance

The unitized transmission design consists of two independent unitized pump and wheel motor assemblies that minimize hydraulic lines and connections for reliable, low-maintenance performance.

"Lift In Turn"

This patented feature makes the inside flex tooth rake section lift in a tight turn preventing teardrop formation, leaving a uniform surface.

Reliable Engine

The Sand Pro 2040Z's twin cylinder, air-cooled Kawasaki® 12.2 hp (9.1 kW) gasoline engine is powerful enough to easily climb over tough terrain and quickly transport over hills without bogging down. The single-stage cyclonic air filter keeps the engine running cleanly in the dustiest conditions.

Specifications

Air Filter	Heavy-duty single stage cyclonic air filter with replaceable element
Alternator	20 amps
Battery	12V
Brakes - Rear	Hydrostatic
Cab Unit	No
Controls	Ignition: Off/Run/Start; Throttle: Low - High Idle; Choke: Opens/Closes choke plate; Parking Brake: Off - On
Cooling System	Air Cooled
Displacement	603cc (36.7 ci)
Frame	Rectangular structured steel tube and high strength steel plate welded construction. Four tie down loops, one located on each corner of the machine.
Fuel / Power Source	Gasoline
Fuel Capacity	4.5 gallon (17 liter)
Gauges/Instrumentation	Hour meter, Low Battery LED will illuminate if key voltage is less than 12.3V in run position
Ground Clearance	5.5" (14 cm) at machine centerline using 24" (61 cm) tires
Ground Speed - Forward	0 - 12 mph (0 - 19.3 km/h)
Ground Speed - Reverse	0 - 4 mph (0 - 6.4 km/h)
Height	73" (185 cm)
Hydraulic Oil	Factory fill Mobil fluid 424 tractor transmission fluid; Left hand transmission section: 3.36 qt. (3.18 liters); Right hand transmission section: 3.99 qt. (3.77 liters).
Inside Turning Radius	0" (0 cm)
Interlock	Safety interlocks for operator presence, neutral and parking brake
Oil Capacity with Filter	1.7 quarts
Optional Accessories	Light Kit, Speed Limiter Kit, Transport Speed Limiter Kit, Seat Suspension Kit, Mesh Bag Kit, Turf Trac Tire, Bimini Sunshade, Rake Holder Rear Attachments: Flex Tooth Rake, Broom Finishing Kit, Nail Drag, Drag Mat Finishing Kit
Overall Width	71.5" - 84" (182 - 213 cm) with rear attachment
Power Rating	13.6 hp (10.1 kW)
Power Steering	Yes
Power Train (Engine Description)	Kawasaki® 2-cylinder, air-cooled, gas engine; Gross HP 13.6 HP (10.1 kW), Governed HP 12.2 HP (9.1 kW) @ 2400 rpm; Max torque 27.3 ft-lbs (37.0 Nm) @1800 rpm; Displacement 36.7 cu-in. (603 cc); Oil Filter External, spin-on.
Product Length	84.8" - 89" (215 - 226 cm) with rear attachment
Rear Attachment Hydraulic Lift	Standard
Roll-Over Protection (ROPS)	Standard
Sound Level	88 dBA at operator ear
Steering System Description	Controlled through two independent control sticks with integrated dampeners. Min. turning radius: 0" (0 cm).
Tires - Front	16" x 7.5" - 8", 4-ply, Turf Tire
Tires - Rear	25" x 12" - 9", 3-ply, Knobby Tread (Turf Tamer)
Traction Drive	Belt driven independent infinitely variable unitized transmission, with automatic tensioning system
Vehicle Configuration	Standard
Weight	920 - 970 lbs. (417 - 439 kg) with rear attachment
Wheelbase	58" (147 cm)

Accessories

Tooth Rake (Part # 08716)

Create a smooth surface and clear debris.

Nail Drag (Part # 08717)

Create a smooth surface and clear debris with extra strength.

Finishing Drag Mat Kit (Part # 08718)

Clear any bumps or imperfections and ensure a clean final look.

Finishing Brush Kit (Part # 08719)

Clear any bumps or imperfections and ensure a clean final look.

Speed Limiter Kit (Part # 08720)

Set a maximum speed to ensure safety.

Light Kit (Part # 08721)

Increase visibility and safety.

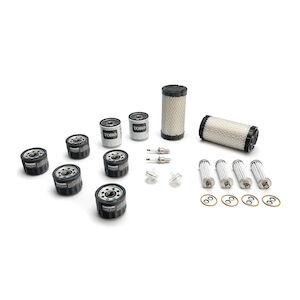

400 Hour MVP Kit Sand Pro 2040Z (Part # 08725)

Contains 114-3494 @ 2, 144-3842 @ 2, 119-5852 @ 5, 108-3811 @ 2, 115-7854 @ 2, 92-2153 @ 2

Spark Arrestor (Part # 104-6540)

Toro 55 Gallon Premium Transmission/Hydraulic Fluid (Part # 108-1183)

Toro 55 Gallon Premium Transmission/Hydraulic Fluid. Designed for use in Toro equipment created by Toro engineers. If you are unsure of your equipment needs, do a model extreme serial number search to verify that this is the correct oil type for your equipment.

Toro 5 Gallon Premium Transmission/Hydraulic Fluid (Part # 108-1184)

Toro 5 Gallon Premium Transmission/Hydraulic Fluid. Designed for use in Toro equipment created by Toro engineers. If you are unsure of your equipment needs, do a model extreme serial number search to verify that this is the correct oil type for your equipment.

Toro 14 oz. All-Purpose Grease (Part # 108-1190)

Toro 14 oz. All-Purpose Grease. Designed for use in Toro equipment created by Toro engineers. If you are unsure of your equipment needs, do a model extreme serial number search to verify that this is the correct oil type for your equipment.

Air Filter (Part # 108-3811)

Toro OEM Air Filter. Genuine Toro air filters give you consistent performance over the life of your machine.

Bimini Folding Sunshade Assembly (Part # 115-4510)

Toro genuine Optional fabric sun shade provides protection and comfort by shielding the operator from the elements.

Toro Premium Fuel Treatment - .4 oz. (Part # 117-0089)

Genuine OEM Part

Toro Premium Fuel Treatment - 16 oz. (Part # 117-0090)

Genuine OEM Part

Oil Filter (Part # 119-5852)

Your Toro engine’s oil filter removes waste, captures harmful debris, dirt, and metal fragments in your motor oil to keep the engine running smoothly. Without the oil filter, harmful particles can get into your motor oil and damage the engine. Installing genuine Toro engine oil filters on a regular service intervals keeps your Toro equipment running at its best!

Fuel Filter (Part # 121-4570)

The fuel filter prevents dust particles and fuel contaminants from entering the engine which could damage the cylinders, pistons and other components that will result in the need of costly repairs. Replacing these filters with a genuine Toro fuel filter prevents problems and ensures longer engine life.

Toro 5 Gallon Premium Engine Oil 10W-30 (Part # 121-6393)

Toro 5 Gallon Premium Engine Oil 10W-30. Designed for use in Toro equipment created by Toro engineers. If you are unsure of your equipment needs, do a model extreme serial number search to verify that this is the correct oil type for your equipment.

Tire ASM (Part # 125-6462)

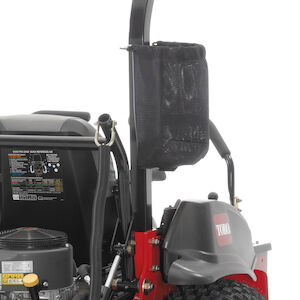

Bag Kit (Part # 127-0359)

Convenient spot for drinks or other tools.

Rubber Trowel Kit (Part # 130-2629)

Rake Holder Kit, Sand Pro 2040Z Traction Unit (Part # 130-7876)

Speed Plate Kit, Sand Pro 2040Z Traction Unit (Part # 130-7877)

Seat Isolation Kit, Sand Pro 2040Z Traction Unit (Part # 144-7065)

Red Paint (Gallon) (Part # 361-11)

Genuine OEM Part

Dark Metallic Gray Paint (Part # 361-12)

Genuine OEM Part

Semi-Gloss Black Paint (Part # 361-9)

Genuine OEM Part

Red Paint (Part # 5340)

Genuine OEM Part

Spark Plug (Part # 92-2153)

Replacement part.

Toro Filter Gauge for Kohler Engines (Part # 99-4664)

Toro genuine filter gauge. This Toro filter gauge shows when filters are nearing restriction limits, graduated indicators help you maximize filter life and effectively schedule service intervals. Toro would like to remind you that fitment can vary by sub model, serial number, and/or production date of your equipment. Please refer to the original owners manual in order to verify this is correct part for your machine.

Documents

Title	Documents
SandPro_2040Z_Sell_Sheet-1-29-2020.pdf	PDF - Sellsheet-en-us
Sand-Pro-Brochure-7-19-2019.pdf	PDF - Brochure-en-us

Parts & Manuals

Select your model year from the options below to view parts & manuals.

08706 Serial #
418200000-999999999
416500000-418199999
415200000-416499999
411920000-415199999
407000000-411919999
404475001-406999999
403300001-404475000
400800001-403300000
400000000-400800000
316000001-316999999
315000001-315999999
314000001-314999999

Warranty

2-Year Limited

08706 Product Warranty

**See dealer for Warranty details.
