SnowMax 724 QXE Snowthrower
Product Information
- Model #: 38711
- Serial #: 400000000 - 999999999
- Product Type: Snowthrowers
Loading...

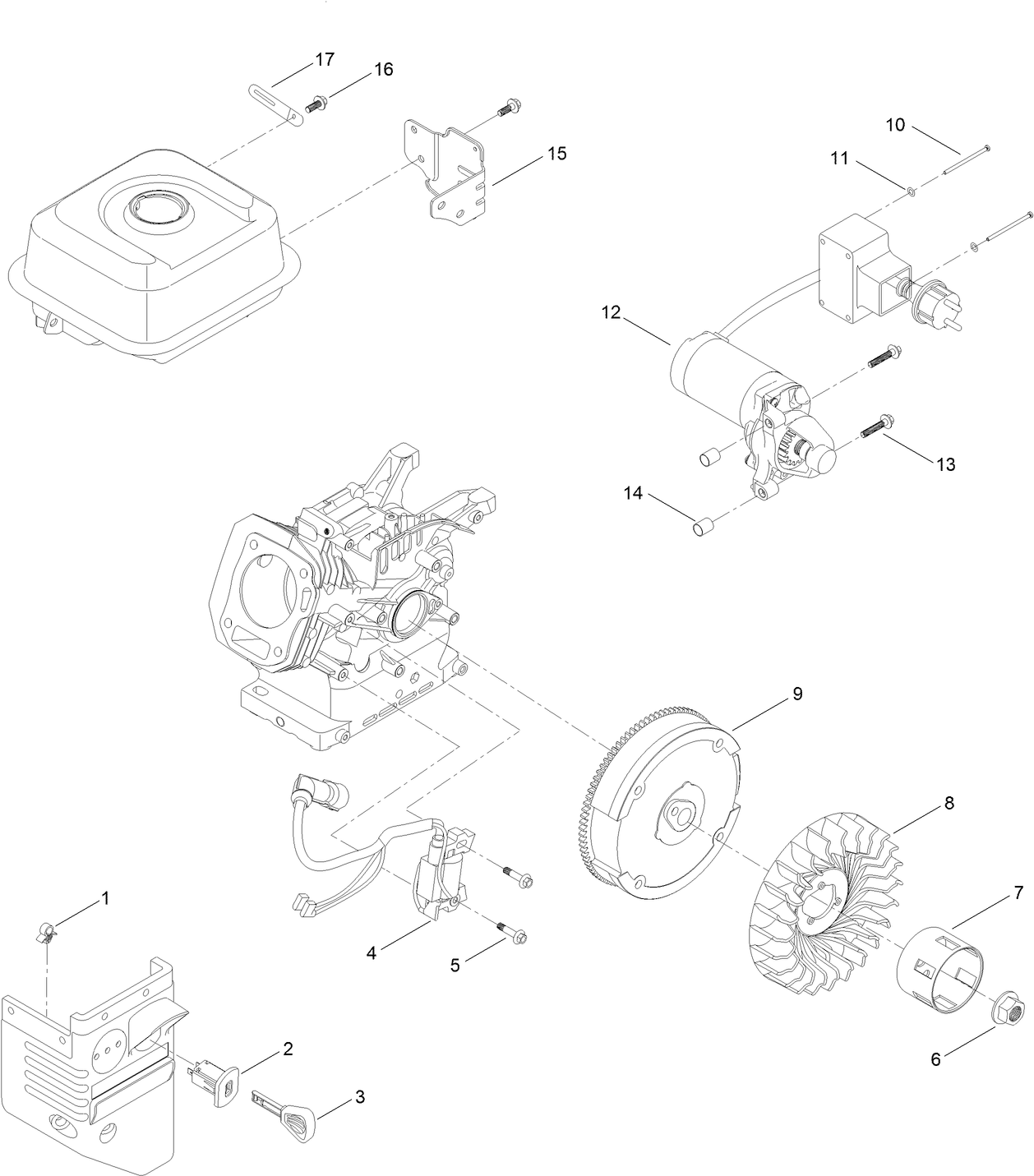

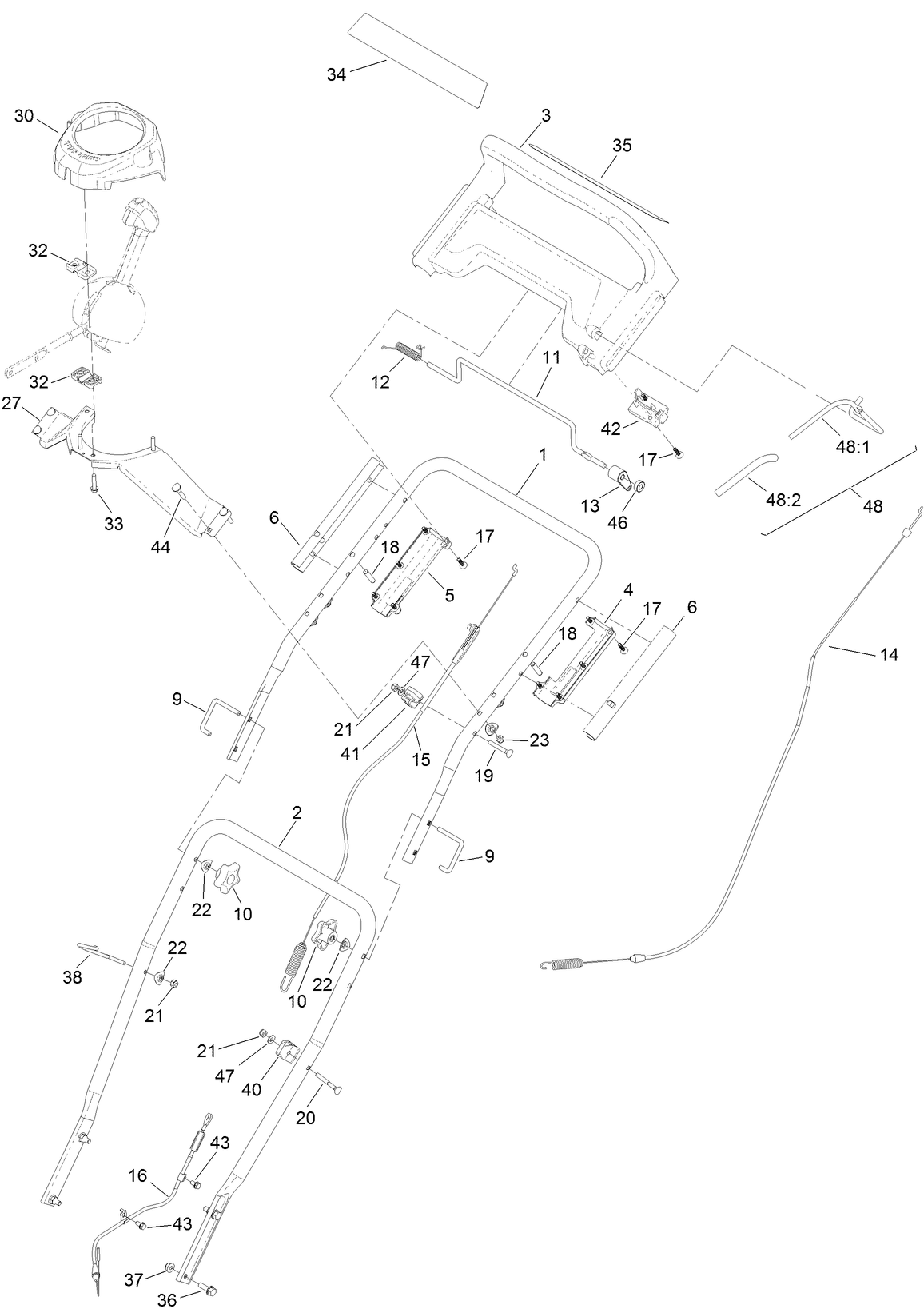

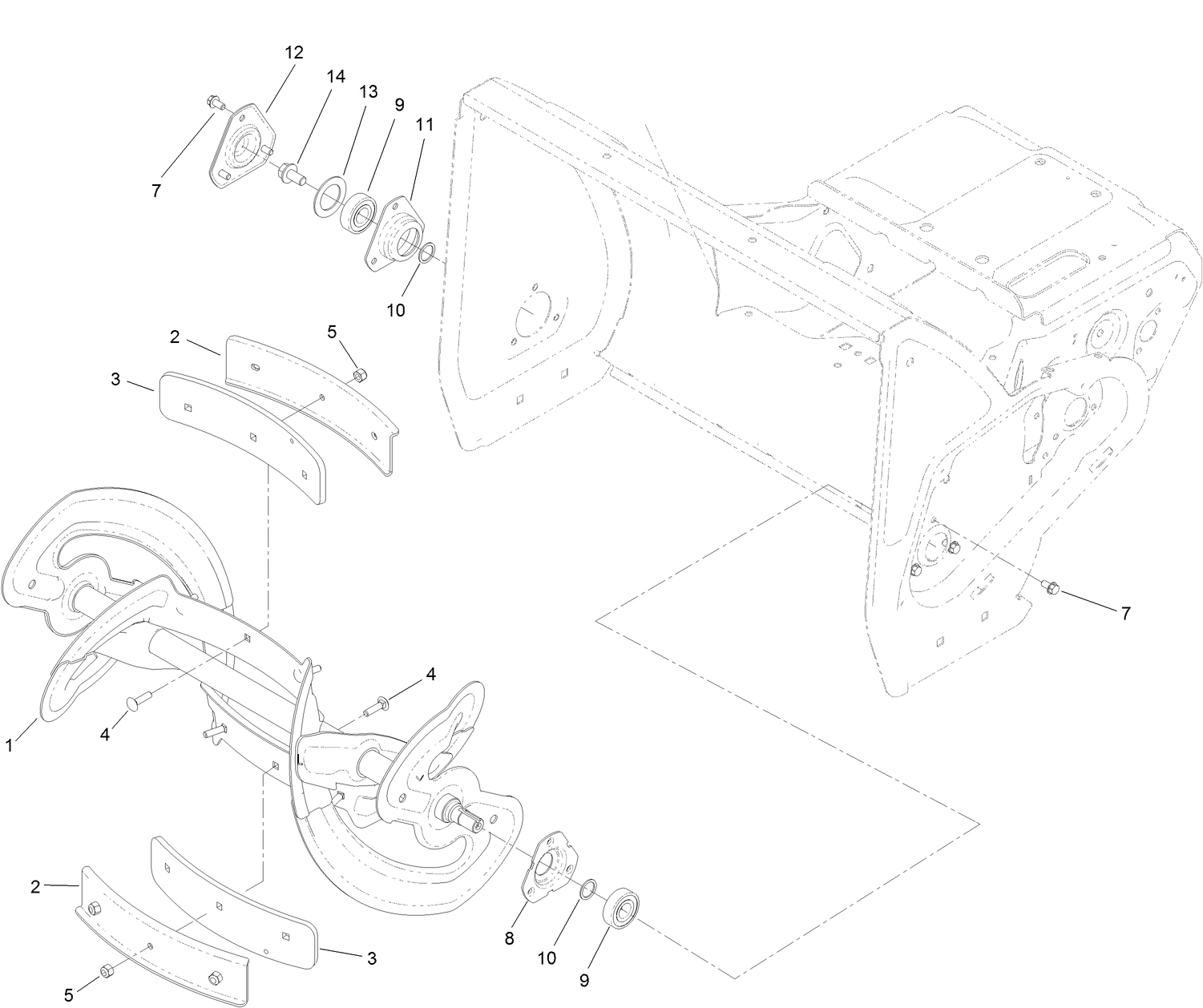

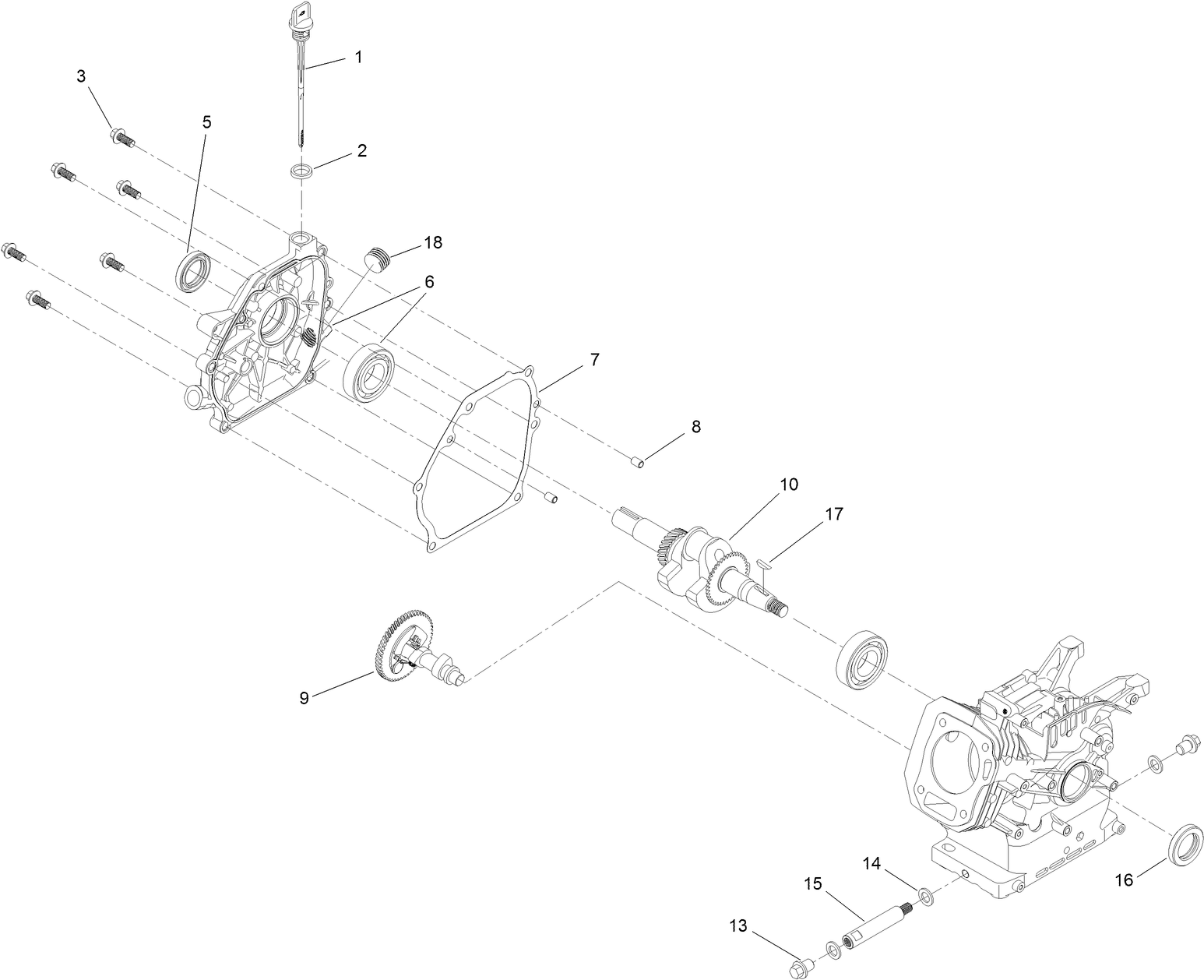

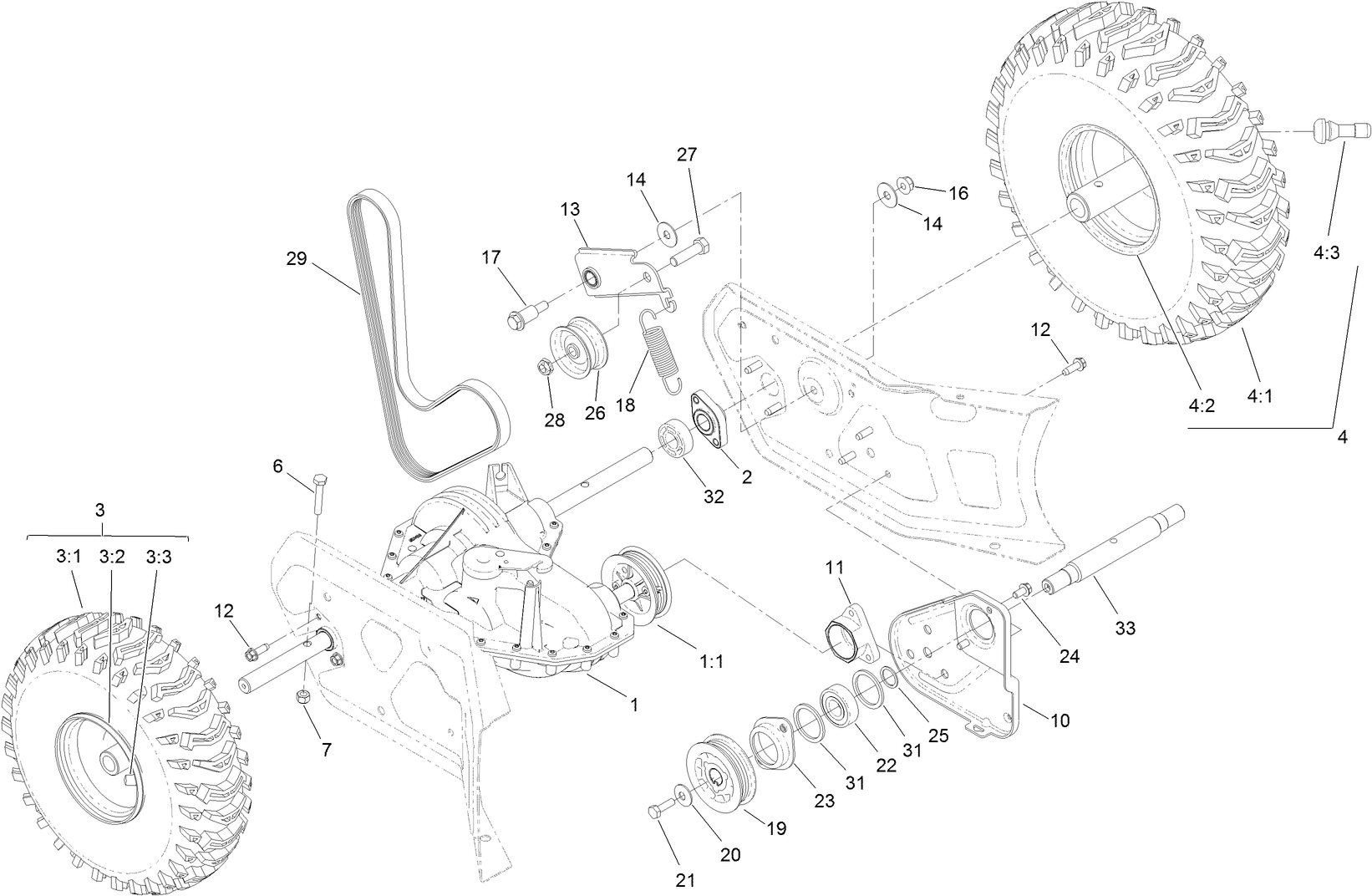

Assembly Drawings
Search for a part within assembly drawings:
-
Operator's Manual
-
Parts Catalog
-
EU Declaration of Conformity
Winter 5W-30 Synthetic Winter Engine Oil (Part # 38908)
Toro 5W-30 Synthetic Winter Engine Oil is engineered to provide superior performance and easy
starting in extreme cold temperatures. The easiest starting winter oil in extreme cold.
Winter 0W-30 Synthetic Winter Engine Oil (Part # 38913)
Toro 0W-30 Synthetic Winter Engine Oil is engineered to provide superior performance and easy
starting in extreme cold temperatures. The easiest starting winter oil in extreme cold.
Two Stage Snow Blower Cover (Part # 490-7466)
Toro genuine snow blower cover. Specifically designed for Toro 2-Stage Power Max and Power Max HD models
Water resistant backing for extra weather protection
Heavy-duty abrasion resistant 600 Denier polyester fabric
Maintains flexibility, even on the coldest days
-
Model #
38711 -
Serial #
400000000 - 999999999 -
Product Name
SnowMax 724 QXE Snowthrower -
Product Brand
Toro -
Product Type
Snowthrowers -
Product Series
Snowthrower, SnowMax -
Chassis Type
Single Stage -
Swath
24 inch -
Discharge
Single Stage -
Engine/Motor Manufacturer
Toro -
Engine/Motor Type
4 Cycle -
Engine Starter
Electric/Recoil -
Traction Type
Rear WD
-
Engine: Spark Plug Gap
.030"/ .76mm -
Engine: Engine Speed
3300±100 RPM -
Engine: Spark Plug
Champion RN9YC / NGK BPR6ES / NHPS F7RTC (OEM China) -
Engine: Engine Oil Type
17 oz. (0.5L) SAE 5W-30 or 5W-30 Synthetic / API SJ or higher -
Chassis: Tire Pressure
15-20 PSI (103-137 kPa)
