New

ProCore® 648s

  • Model: 09960
See All Items in ProCore® 648s Series Turf Aerator
Request a Demo
  • The precise configuration virtually eliminates hopping, rocking and unnecessary vibration.
  • Smart technology enhancement utilizes an electronically controlled hydrostatic 3-wheel drive which maintains more consistent hole spacing on sloping terrain.
  • Allows operators to easily target where they want the coring head to drop or raise, making starting and ending passes or jumping up and over an in-ground obstacle, like an irrigation head, much easier.
  • View the Toro Titan Tines Guide & Catalog
  • Bring a hot beverage, field notes, a sweatshirt, or carry some extra tines, the onboard storage has plenty of room.
  • All ProCore 648 accessories will work on ProCore 648s.
  • RotaLink™ geometry allows the tines to enter and exit the ground cleanly leaving a high quality result and a quick return to play.
  • The controller allows a wider range of adjustment in 0.25” (5 mm) increments, ensuring just the right amount of aeration to match the needs of the turf.
  • Redesigned operator allows simple one hand operation from either side of the machine, allowing operators to walk and keep focus forward with less fatigue.
  • TrueCore™ sensing system automatically maintains tine depth on the fly to match the ground undulations providing consistent coring depth of up to 4" (10.2 cm).
  • To get an early start or extend the work day, illuminate the path with the accessory five LED light kit.

Overview

The ProCore 648s builds on the tremendous legacy of the ProCore 648 by incorporating proven technology and even more innovative features while preserving the time tested design elements that changed the way you aerate. Revised controls improve ergonomics and allow single handed operation. Hole spacing and true tine depth are now set and saved in the InfoCenter. The onboard controller is continuously monitoring key operating parameters to improve after aeration turf condition and allow the operator to easily target coring head drop and raise. A tighter turning radius with reduced wheel scrubbing and the ability to easily increase speed during turns increases productivity. Proven reliability,improved performance and exciting innovation - that’s what makes the ProCore 648s the new superior choice.

Features

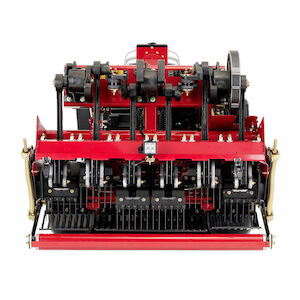

Smooth, Quiet, Powerful
Smooth, Quiet, Powerful
To give the ProCore 648s its uncommonly smooth operation, the action of the tine arms are modeled after a six-cylinder car engine. The arms work in pairs to counterbalance the coring action. This precise configuration virtually eliminates hopping, rocking and unnecessary vibration.
Electronically Controlled Drive
Electronically Controlled Drive
This smart technology enhancement utilizes an electronically controlled hydrostatic 3-wheel drive which maintains more consistent hole spacing on sloping terrain. It also essentially eliminates front wheel scrub in turns while providing a tighter turning radius. Operators can easily increase speed during turns, improving efficiency.

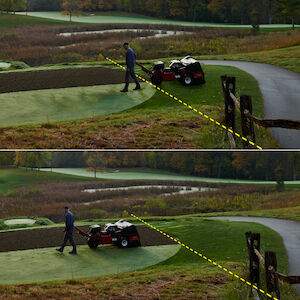

Delayed Mode
Delayed Mode
When operating in Delayed Mode, the onboard controller continuously monitors key operational parameters, reducing grass tufting when coring head drops to start a pass. It also allows operators to easily target where they want the coring head to drop or raise, making starting and ending passes or jumping up and over an in-ground obstacle, like an irrigation head, much easier.
Watch the Video

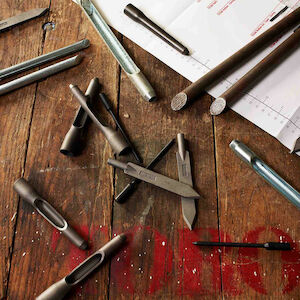

Toro Titan Tines
Toro Titan Tines

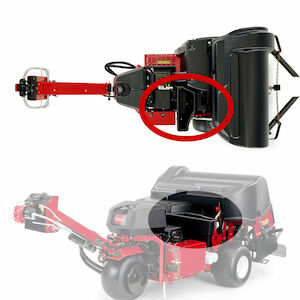

Onboard Storage
Onboard Storage
Bring a hot beverage, field notes, a sweatshirt, or carry some extra tines, the onboard storage has plenty of room.

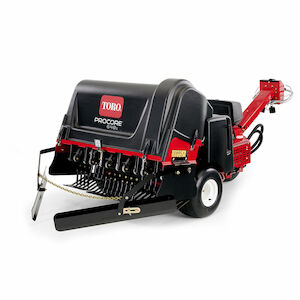

Compatibility
Compatibility
All ProCore 648 accessories will work on ProCore 648s.

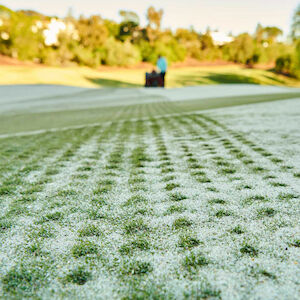

Deep, High Quality Holes
Deep, High Quality Holes
RotaLink™ geometry allows the tines to enter and exit the ground cleanly leaving a high quality result and a quick return to play.

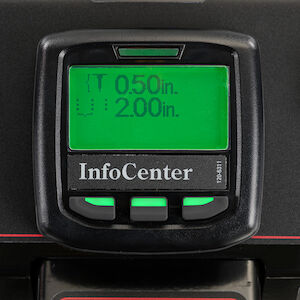

InfoCenter Smart Settings
InfoCenter Smart Settings
Set and Save precise hole depth and spacing to ensure consistent, condition-driven aerification that yields outstanding results. This controller allows much wider range of adjustment in 0.25” (5 mm) increments, ensuring just the right amount of aeration to match the needs of the turf.
Ergonomics
Ergonomics
Completely redesigned operator handle with intuitive controls that allows simple one hand operation from either side of the machine, allowing operators to walk and keep focus forward with less fatigue. The floating handle also allows any height person to operate the machine comfortably.

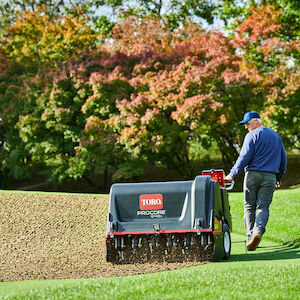

TrueCore™ Ground Following
TrueCore™ Ground Following
TrueCore™ sensing system automatically maintains tine depth on the fly to match the ground undulations providing consistent coring depth of up to 4" (10.2 cm).

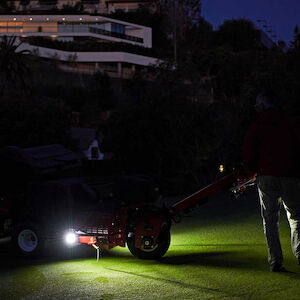

LED Light Kit
LED Light Kit
To get an early start or extend the work day, illuminate the path with the accessory five LED light kit.

Specifications

Aeration Type Shallow
Brakes Hydrostatic
Construction Welded steel frame with cast crank and arm assembly.
Controls Redundant operator presence bails, aeration start/stop bails and traction speed thumb wheels on handle. Tine length calibration, tine depth and forward hole spacing set and saved in InfoCenter. Bump stop, delayed or immediate drop switch, cruise control on/set/off switch, aerate or transport switch and optional LED light kit switch located on operator console. Ignition, tachometer on side console. Throttle and choke on engine.
Electrical System 12-volt, 15 amp regulated charging alternator/generator. BCI Group No.: U1 battery, 300 cold cranking amps @ 0°F. Micro-processor logic control.
Engine Kohler®, 2-cylinder, air-cooled, 23 hp (17.1 kW) gross, 19 hp (14.2 kW) net @ 3000 rpm, 41 cu-in. (674 cc) displacement. Dry, large capacity, replaceable element air filter. External spin-on oil filter, 2-quart (1.9-liter).
Fuel Capacity 7.5 gallons (28.4 liter), gasoline.
Gauges/Instrumentation InfoCenter™, tachometer.
Ground Clearance 4.75" (12.1 cm)
Height Head Raised: 45" (114.3 cm) Head Lowered: 36.5" (92.7 cm) Handle Raised: 60.7” (153.0 cm) Handle Lowered: 47.5” (119.7 cm
Hydraulic System Remote spin-on filter. 3.0- gallon (13.2 liter) capacity, Toro PX Extended Life hydraulic fluid.
Interlocks Operator presence, clutch latch, traction neutral, coring head raise/lower.Clutch latch, traction neutral, coring head raise/lower.
Length Handle Down: 116.3” (293.1 cm) Handle Raised: 91.8” (231.3 cm)
Number of Tine Heads 6
Operating Speed Transport Speed: Forward: 0-4.5mph (0-7.2km/h) Reverse: 0-2mph (0-3.2km/h) Aerating: Forward: 0-2.5mph (0-4km/h) Reverse: 0-2mph (0-3.2km/h)
Operating Width (Working Width) 50.12" (127.3 cm)
Optional Accessories LED Light Kit, Windrower Kit, Tire Scrapers, Rear Roller Kit, QuickChange® Tool
Tires 20" x 10" - 10", 2-ply, Smooth Tread
Track Width 38.3" (97.3 cm)
Traction Drive Series-Parallel, closed loop, hydrostatic drive. 3WD, except it automatically switches to 2WD while in aeration mode and traveling in forward direction with coring head raised allowing a tighter turning radius. Electronically controlled variable displacement piston type pump. High-torque, low-speed wheel motor drive.
Weight 1,642 lbs (744.7 kg)
Wheelbase 44.5" (113 cm)
Width 50.12" (127.3 cm)

Accessories

Windrower Kit
Windrower Kit (Part # 09220)
Tire Scraper Kit
Tire Scraper Kit (Part # 09225)
Rear Roller Kit
Rear Roller Kit (Part # 09234)
Empty Image Container
Mini Tine Head Kit (Part # 09736)
Empty Image Container
Mini Tine Head Kit (Part # 09737)
Empty Image Container
Needle Tine Head Kit (Part # 09739)
3 Tine 3/4" Head Set
3 Tine 3/4" Head Set (Part # 09794)
4 Tine 3/4" Head Set
4 Tine 3/4" Head Set (Part # 09796)
3 Tine 7/8" Head Set
3 Tine 7/8" Head Set (Part # 09797)
Empty Image Container
Light Kit (Part # 09962)
Image Not Found
Yellow Hydraulic Fluid Cap - Tethered (Part # 107-2174)
Genuine OEM Part 108-1190
Toro 14 oz. All-Purpose Grease (Part # 108-1190)
Wireless Hourmeter System
Wireless Hourmeter System (Part # 115-4754)
Toro Genuine Parts Logo
Fuel Filter (Part # 115-7854)
3-Tine Short Turf Guard
3-Tine Short Turf Guard (Part # 120-1044)
4-Tine Short Turf Guard
4-Tine Short Turf Guard (Part # 120-1045)
4-Tine Long Turf Guard
4-Tine Long Turf Guard (Part # 120-1046)
5-Tine Short Turf Guard
5-Tine Short Turf Guard (Part # 120-1047)
6-Tine Short Turf Guard
6-Tine Short Turf Guard (Part # 120-1050)
3-Tine Long Turf Guard
3-Tine Long Turf Guard (Part # 120-1051)
5-Tine Long Turf Guard
5-Tine Long Turf Guard (Part # 120-1052)
6-Tine Long Turf Guard
6-Tine Long Turf Guard (Part # 120-1053)
Toro Genuine Parts Logo
Toro 55 Gallon Premium Engine Oil 10W-30 (Part # 121-6392)
Toro Genuine Parts Logo
Toro 5 Gallon Premium Engine Oil 10W-30 (Part # 121-6393)
Genuine OEM Part 131-4876
Head Bearing Kit (Part # 131-4876)
Toro 5 Gallon PX Extended Life Hydraulic Fluid
Toro 5 Gallon PX Extended Life Hydraulic Fluid (Part # 133-8086)
Toro 55 Gallon PX Extended Life Hydraulic Fluid
Toro 55 Gallon PX Extended Life Hydraulic Fluid (Part # 133-8087)
Toro Red 12or aerosol can.
Toro Red 12or aerosol can. (Part # 361-10)
Toro Genuine Parts Logo
Red Paint (Gallon) (Part # 361-11)
Toro Genuine Parts Logo
Dark Metallic Gray Paint (Part # 361-12)
Toro Genuine Parts Logo
Semi-Gloss Black Paint (Part # 361-9)
Toro Genuine Parts Logo
Red Paint (Part # 5340)
Toro Genuine Parts Logo
Exhaust Silencer Screen (Part # 93-9911)

Documents

Title Documents
2023-24 Titan Tines Catalog_040423.pdf PDF - Product Literature-en-us
2023-24 Titan Tines Chart_040423.pdf PDF - Product Literature-en-us
ProCore_648s_Brochure_091323.pdf PDF - Brochure-en-us
ProCore_648s_Sell_Sheet_020723.pdf PDF - Sellsheet-en-us

Parts & Manuals

Select your model year from the options below to view parts & manuals.

09960 Serial #
417000000-999999999
415265130-416999999
412061295-415265129
400000000-412061294



Warranty

For complete product warranty information contact Toro Customer Service

**See dealer for Warranty details.
