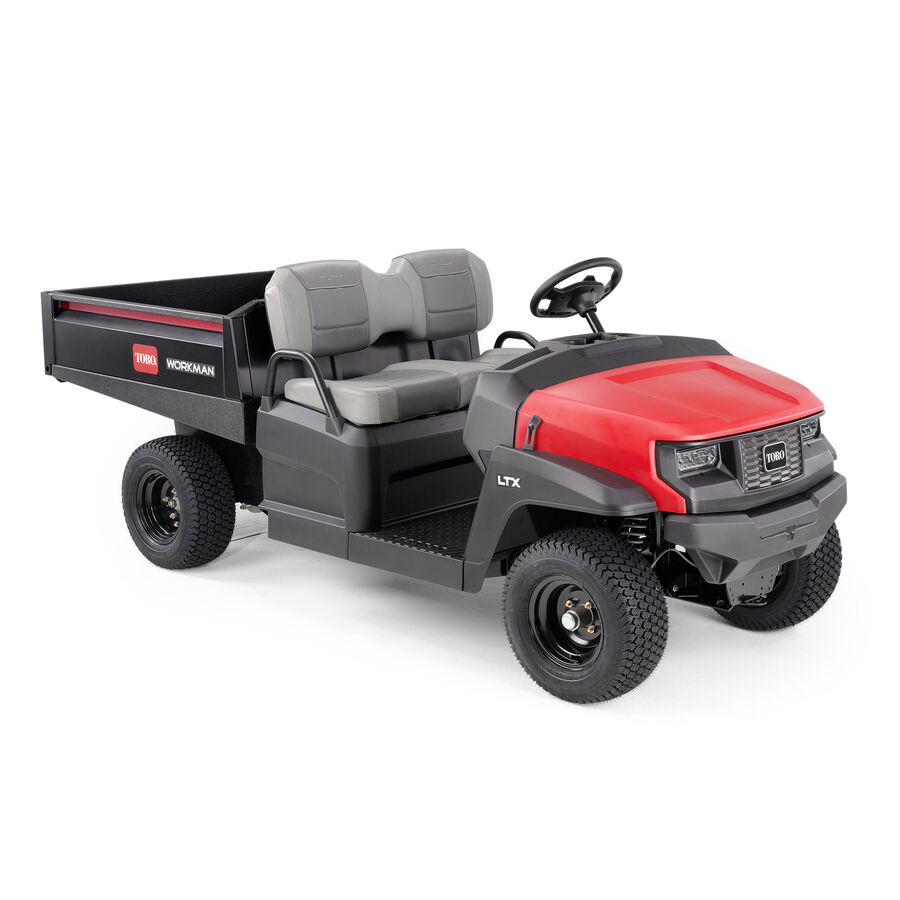

Workman LTX Series Utility Vehicle - Standard EFI Gas Frame

Coming Soon

Workman® LTX Utility Vehicle

Model: 07424

Exceptional power, reliability, and efficiency, so you can tackle every job with confidence
Choose standard height or lifted models, extend the bed for additional hauling, or add an additional row of seats for more passengers.
Stay in control with easy-to-reach controls and a clear LCD display.
Hydraulic disc brakes deliver reliable, consistent stopping power with minimal maintenance
Coil-over shocks all around the vehicle deliver greater suspension travel and adjustability
Automotive-grade rack and pinion steering system provides more control and lowers steering effort

Top

Overview

The next generation of light-duty utility vehicles is here. The new Workman LTX delivers everything you asked for - power, comfort, and elevated design. Powered by either the Briggs & Stratton Vanguard 400 EFI gasoline engine or the Toro HyperCell lithium battery system, the LTX offers standard height, lifted, or extended models to help you tackle your toughest days. With abundant storage, enhanced options, optimal design, and rugged reliability, you don’t have to choose between strength and versatility. The Toro Workman LTX provides both because your work deserves the best.

Features

Workman LTX Utility Vehicle - EFI Gas or Lithium Ion Battery

Power Your Way

Select the Briggs & Stratton® Vanguard® 440 EFI gasoline engine or the advanced Toro HyperCell® Lithium-Ion battery system. Both deliver exceptional power, reliability, and efficiency, so you can tackle every job with confidence.

Endless Ways to Customize

The Workman LTX gives you the flexibility to tackle any job with dozens of configuration options. Choose standard height or lifted models, extend the bed for additional hauling, or add an additional row of seats for more passengers. With accessories to match, you can make your office on wheels your own.

Intuitive Dashboard Layout

Oversized cup holders and ample storage for tools and gear. Stay in control with easy-to-reach controls and a clear LCD display. Plus, keep your devices powered on the go with integrated USB-A & C charging ports

Braking You Can Count On

Hydraulic disc brakes deliver reliable, consistent stopping power with minimal maintenance, no cable adjustments and less pedal force than traditional mechanical brakes.

Suspension

Coil-over shocks all around the vehicle deliver greater suspension travel and adjustability resulting in a smoother ride and minimized operator fatigue.

Steering

An automotive-grade rack and pinion steering system provides more control and lowers steering effort, while operating loaded or empty. This allows operators to focus on the task at hand and nothing else.

Specifications

Battery	One 12V starter battery
Brakes - Front	Hydraulic Disc
Brakes - Rear	Hydraulic disc
Crated Model	No
Displacement	408cc (24.9 ci)
Drivetrain	Gas
Frame	Power coated, welded steel channel and tube.
Fuel / Power Source	Gasoline
Fuel Capacity	5 gallons (18.9 liters)
Gauges/Instrumentation	Hour meter, fuel gauge, USB power port, headlight switch, on/off ignition key switch, gear selector and parking brake lever. Two cup holders, radio holder and three in-dash storage compartments.
Ground Clearance	Front: 9" (22.8 cm) Rear: 6" (15.2 cm)
Height	2-Seat with Bed: 50.2" (127 cm) 4-Seat with Bed: 50.2" (127 cm) 2-Seat with 6' Flat Bed: 50.2" (127 cm)
Horn	Standard
Inside Turning Radius	60.25" (153 cm)
Lights	Standard LED Headlights
Optional Accessories	Canopy, solid folding windshield, 4-seat configuration, flat bed, 6-foot flat bed, bed sides, storage box, trash can mount, bed racking, electric bed lift, brush guard, 12V outlet, brake/tail/signal lights, ROPS certified hard cab, back up alarm kit, parking brake alarm kit, all-terrain tire kit, 2-post ROPS kit, beverage cart, range cage, glass windshield and medical-bed.
Power Steering	No
Power Train (Engine Description)	408cc, air-cooled, single cylinder Briggs & Stratton® EFI gasoline engine.
Product Length	2-Seat with Bed: 119" (302 cm) 4-Seat with Bed: 144" (366 cm) 2-Seat with 6' Flat Bed: 156" (396 cm)
Rear Draw Bar	Standard
Roll-Over Protection (ROPS)	Optional
Starting	Pedal or Key Start
Steering System Description	Rack and pinion system with ergonomically positioned non-adjustable column. Steering wheel has 2.75 turns lock-to-lock with a 13.75" (34.93 cm) diameter wheel.
Suspension - Front	Modified MacPherson Strut. Adjustable coil over shocks at all four wheels.
Suspension - Rear	Articulating Swing Arm. Adjustable coil over shocks at all four wheels.
Suspension Travel - Front	3.5" (8.9 cm)
Suspension Travel - Rear	4" (10.2 cm)
Tires - Front	20" x 8" - 10", 4-ply. Or alternate 4-ply/6-ply
Tires - Rear	20" x 8" - 10", 4-ply. Or alternate 4-ply/6-ply
Total Vehicle Capacity	1,200 lbs. (544 kg)
Towing Capacity	1,500 lbs. (680 kg)
Traction Drive (System)	2WD
Transaxle	11.47:1 Forward, 14.35:1 Reverse.
Vehicle Configuration	Standard
Vehicle Type	Light Duty
Weight	2-Seat with Bed: 875 lbs. (397 kg) 4-Seat with Bed: 1,150 lbs. (522 kg) 2-Seat with 6' Flat Bed: 1,264 lbs. (573 kg)
Wheelbase	2-Seat with Bed: 77.8" (197 cm)

Accessories

Trash Can Mount (Part # 07028)

• Designed for 32-gallon cans• Can be mounted on front of vehicle with front receiver.

Bed Racking (Part # 07031)

Save space by securing everyday items, like rakes andshovels, to the bed-mounted racking system.
Rubber mounting clamps not included

Plastic Cargo Bed (Part # 07046)

13.3 cu. ft. (376.6 liters) storage
800 lb. (362.8 kg) capacity

Extension Kit (Part # 07049)

Create extra space to accommodate your needs with the extension kit.

ROPS Certified Cab (Part # 07142)

Door kit also available

Electric Lift Kit (Part # 07144)

Door Kit, Workman GTX Utility Vehicle with Cab (Part # 07150)

Electric Bed Lift Kit (Part # 07167)

Raises and lowers the bed efficiently within the payload capacity.

Canopy With ROPS (Part # 07169)

Protects operators and passengers from the sun and rain.

Steel Bed Rear Attachment Receiver (Part # 07186)

The rear attachment receiver allows the operator to tow equipment and helps execute a variety of jobs.

Canopy Mount Kit (Part # 07199)

Create shade and protection from natural elements.

Brake & Taillights (Rear lights, side reflectors) (Part # 07285)

Windshield and Wiper Kit, Workman GTX Utility Vehicle (Part # 07407)

Lift Kit (Part # 07414)

SEAT KIT - WORKMAN LTX (Part # 07426)

BRUSH GUARD - WORKMAN LTX (Part # 07427)

Armature Assembly-L Pin (Part # 07428)

LTX BALL CAGE ROPS CERTIFIED (Part # 07429)

WORKMAN LTX - FRONT HITCH W/BRUSH GUA (Part # 07431)

Steel Cargo Bed Base (Part # 07450)

Includes 13.3 cu. ft. (376.6 liters) of storage and 800 lb. (362.8 kg) of capacity. Standard water-resistant polyurea bed lining.

Solid Side Steel Cargo Bed (Part # 07451)

Includes 13.3 cu. ft. (376.6 liters) of storage and 800 lb. (362.8 kg) of capacity. Standard water-resistant polyurea bed lining.

2-Person Canopy (Part # 07921)

Protect your operator from the sun and natural elements with a canopy.

Windshield For Canopy (Part # 07923)

Quick and easy to fold down to allow airflow and enhance operator comfort.

CENTER BED RACKING, WM GTX (Part # 08147)

Side Bed Racking (Part # 08148)

TIRE-20 8.00-10 (Part # 116-7333)

Limiter Shim (Part # 119-0807)

Exterior Mirror Kit (Part # 130-5448)

Operator and passenger side mounted rear view mirrors for enhancing all around visibility. Externally mounted to the cab frame.

Interior Mirror Kit (Part # 130-5449)

See more and drive safer.

Beacon Kit (Part # 130-5484)

Mounts to top of cab or ROPS.

Work Lights Kit (Part # 130-5485)

Washer Fluid Kit (Part # 130-5615)

Refill your windshield wiper fluid and keep everything working.

20.5 Inch Tire & Wheel Assembly (Part # 131-8319)

Toro 20.5 Inch OEM Tire & Wheel Assembly. Toro OEM replacement wheel and pneumatic tire assembly. An ideal replacement traction tire for commercial equipment. This drive wheel and tire assembly delivers superior traction on turf, grass & Pavement.

Wide Angle Mirror Kit (Part # 133-1009)

See more and ride safer with the wide-angle mirror.

Wide Angle Mirror Kit (Part # 133-1038)

See more and ride safer with the wide-angle mirror.

CLASS 1 DRAW BAR KIT (Part # 133-3095)

Door Mount Mirror Kit (Part # 136-1997)

Operator and passenger side mounted rear view mirrors for enhancing all around visibility. Externally mounted to the cab frame.

Small Bedrack Mount Grip Kit (Part # 136-6311)

Secure all your tools and accessories while transporting.

Large Bedrack Mount Grip Kit (Part # 136-6312)

Secure more tools and accessories while transporting.

Wireless Hour Meter Kit (Part # 144-2436)

LITHIUM HOMOLOGATION KIT (Part # 163-9390)

12v Power Point Kit, Workman LTX or LTX Lithium Utility Vehicle (Part # 163-9395)

Reverse Alarm Kit, Workman GTX Utility Vehicle (Part # 163-9396)

RAM BALL MOUNT KIT (Part # 163-9494)

Brake and Signal Light Kit, Workman LTX Utility Vehicle (Part # 163-9495)

Cab Mount Kit, Workman LTX Utility Vehicle (Part # 164-4541)

SEAT CONVERSION KIT (Part # 164-4550)

20 x 10 - 10 6-Ply Multi Traction C/S Tire (Part # 94-5236)

Toro 20 x 10 - 10 6-Ply OEM Multi Traction C/S Tire. Toro OEM replacement pneumatic tire. This tire delivers superior traction on turf, grass & pavement. Ideal replacement tire for your riding equipment.
