Greensmaster® e1026

Greensmaster® e1026

Greensmaster® e1026

Product Information

Model #: 04845
Serial #: 418100000 - 999999999
Product Type: Walk Behind Mowers

Parts

Search for a part within assembly drawings:

Showing Results

Drawing Title	Part Number	Description
Title

Battery Frame Assembly

Battery Frame Assembly

Differential Assembly No. 132-4555

Differential Assembly No. 132-4555

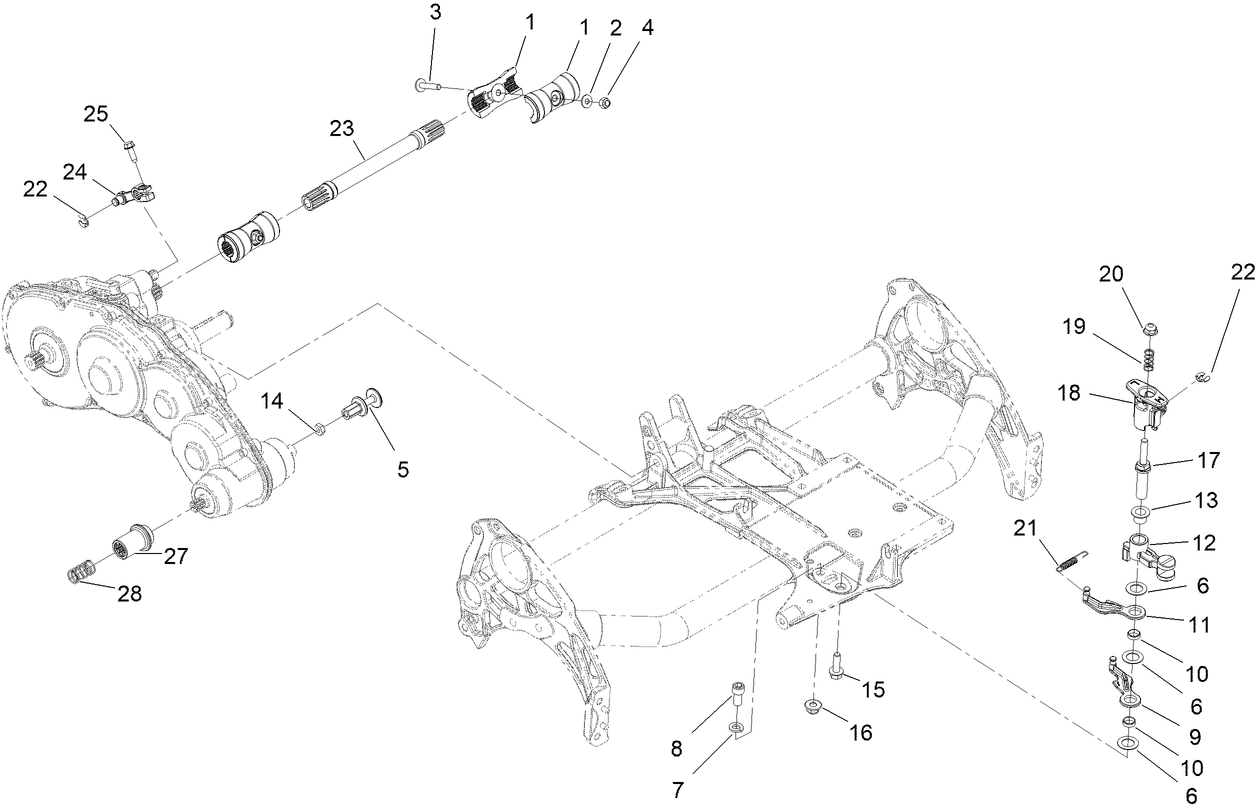

Drive Shaft and Reel Components Assembly

Drive Shaft and Reel Components Assembly

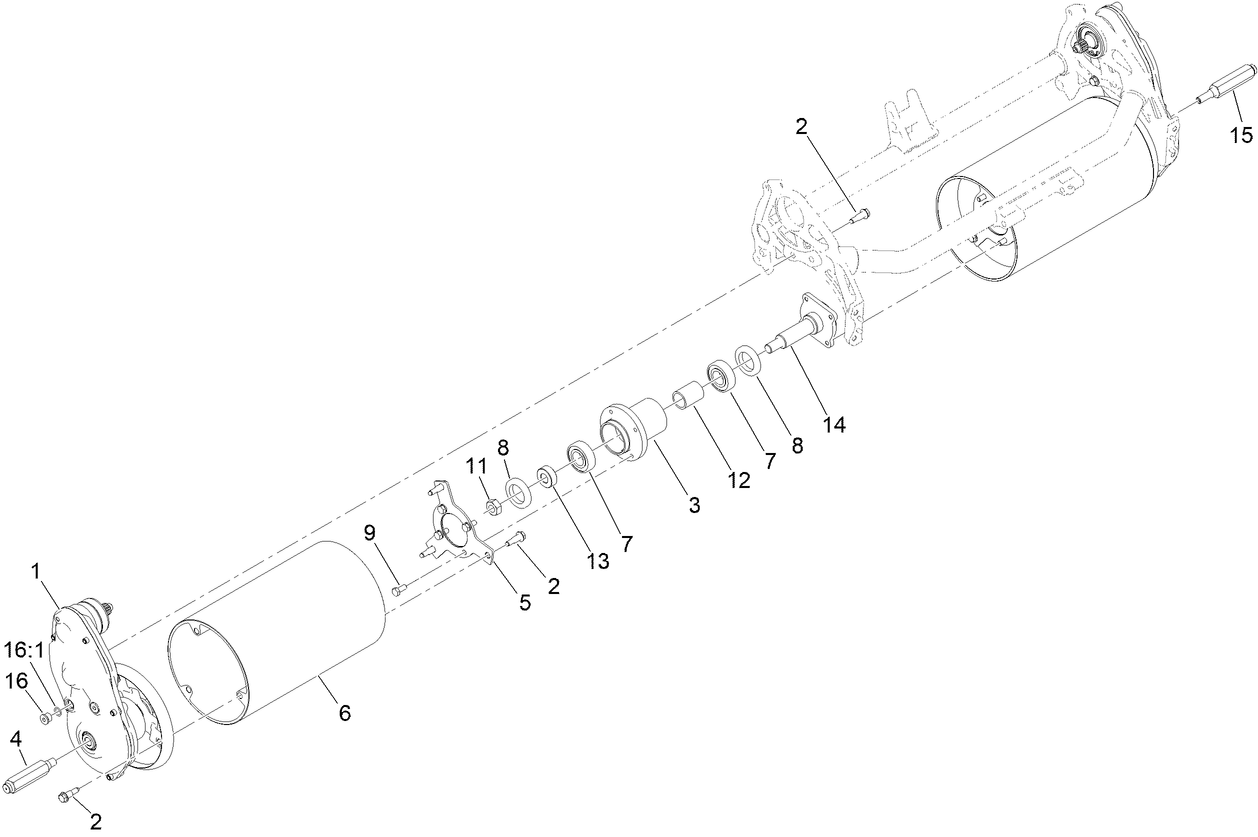

Drum Drive Assembly

Drum Drive Assembly

Drum Drive Gear Box Assembly

Drum Drive Gear Box Assembly

Drum Drive Replacement Kit Assembly No. 147-2345

Drum Drive Replacement Kit Assembly No. 147-2345

Electric Handle Components Assembly

Electric Handle Components Assembly

Electric Motor Assembly

Electric Motor Assembly

Frame and Handle Mount Assembly

Frame and Handle Mount Assembly

Inverter Controller Assembly

Inverter Controller Assembly

Miscellaneous Parts Assembly

Miscellaneous Parts Assembly

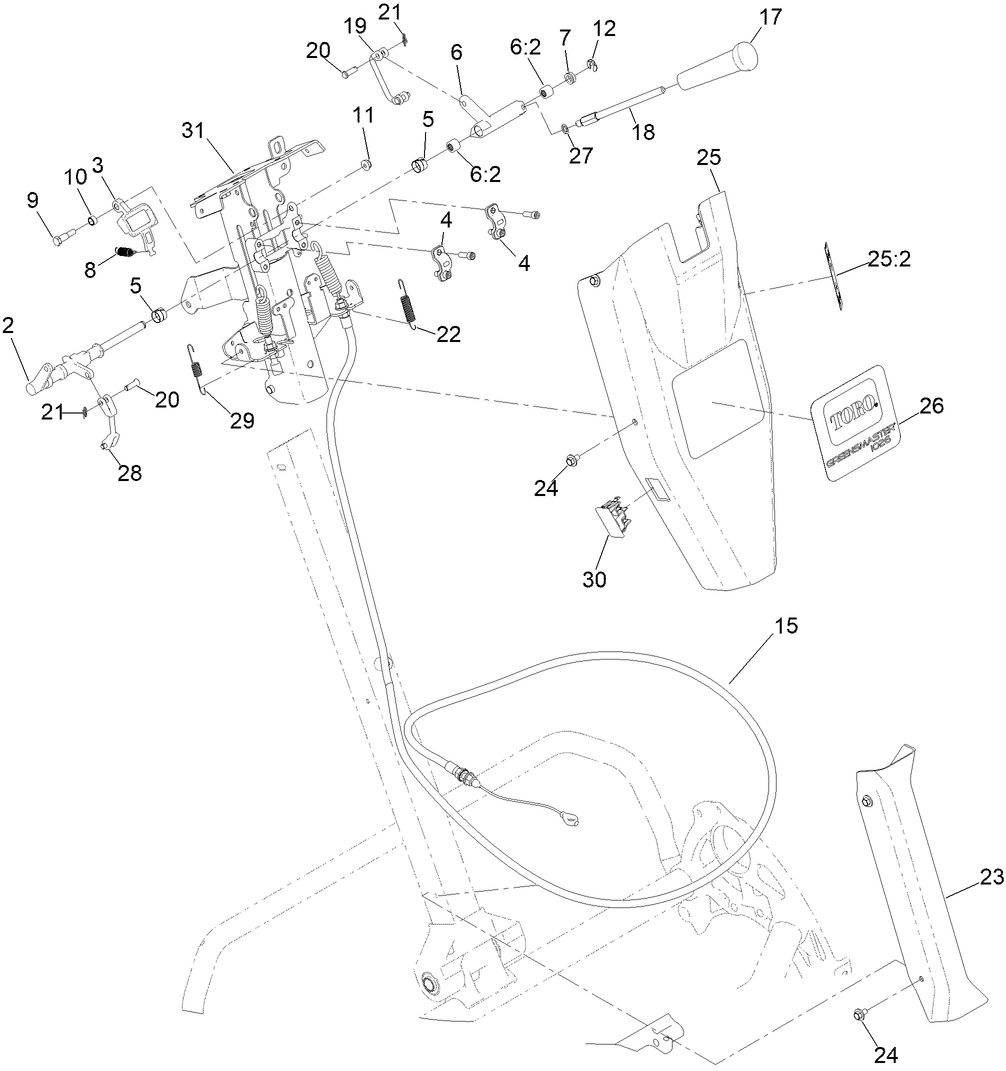

Reel Controls and Covers Assembly

Reel Controls and Covers Assembly

Traction Bail Assembly

Traction Bail Assembly

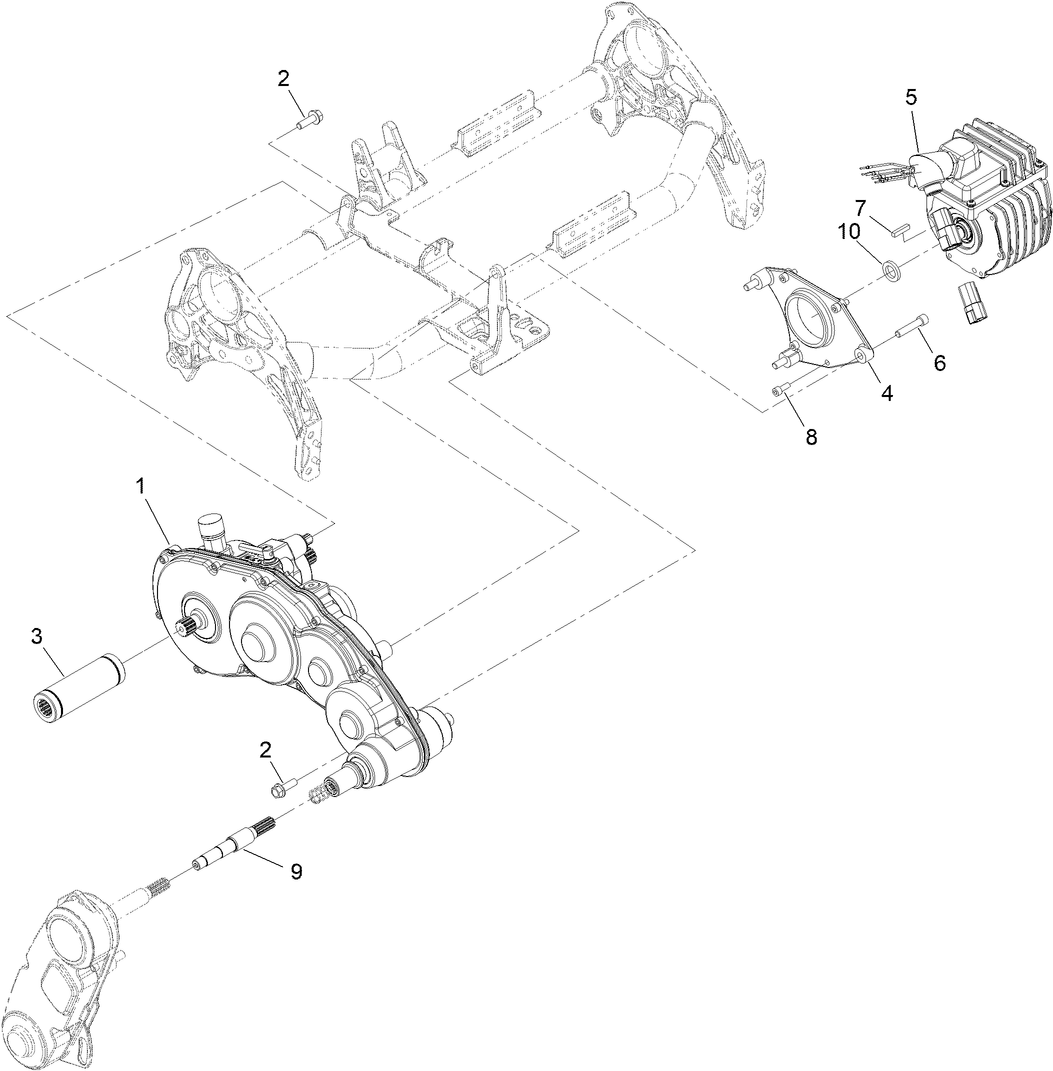

Transmission Assembly

Transmission Assembly

Transmission Assembly No. 140-9327 Reel Drive Assembly

Transmission Assembly No. 140-9327 Reel Drive Assembly

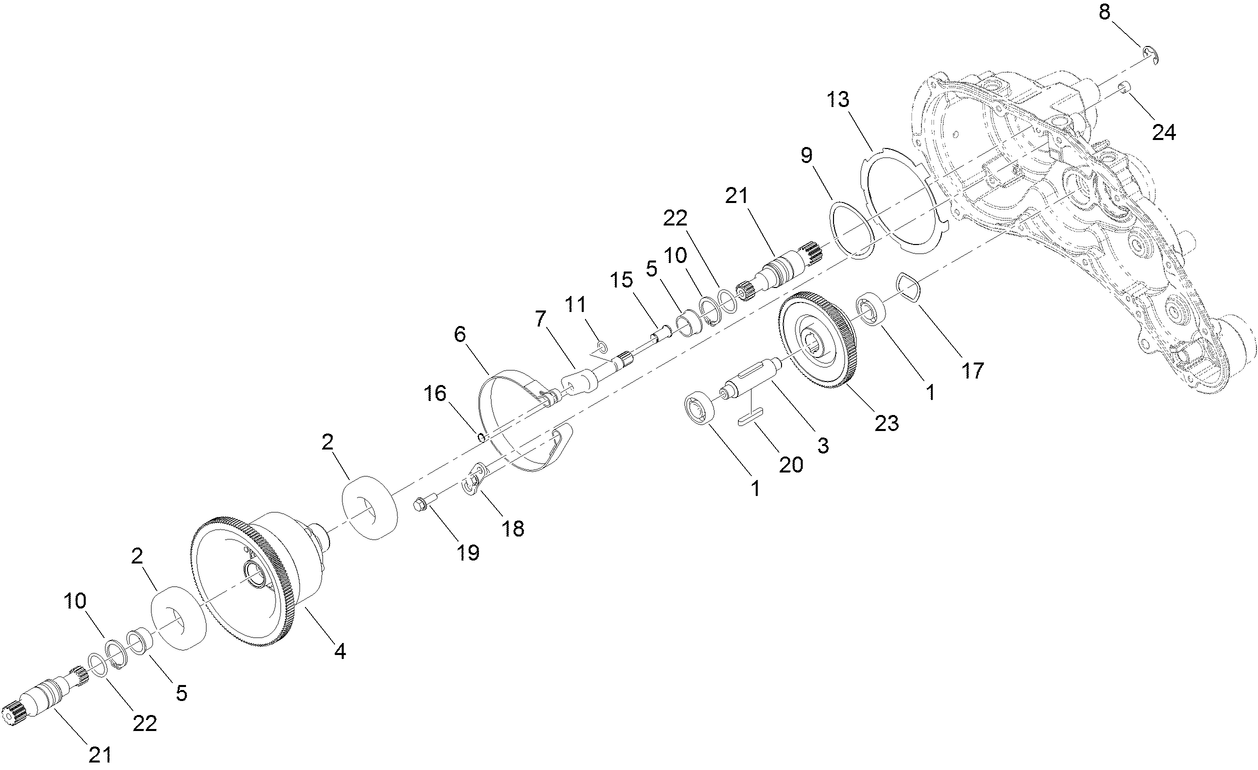

Transmission Assembly No. 140-9327 Traction Drive Assembly

Transmission Assembly No. 140-9327 Traction Drive Assembly

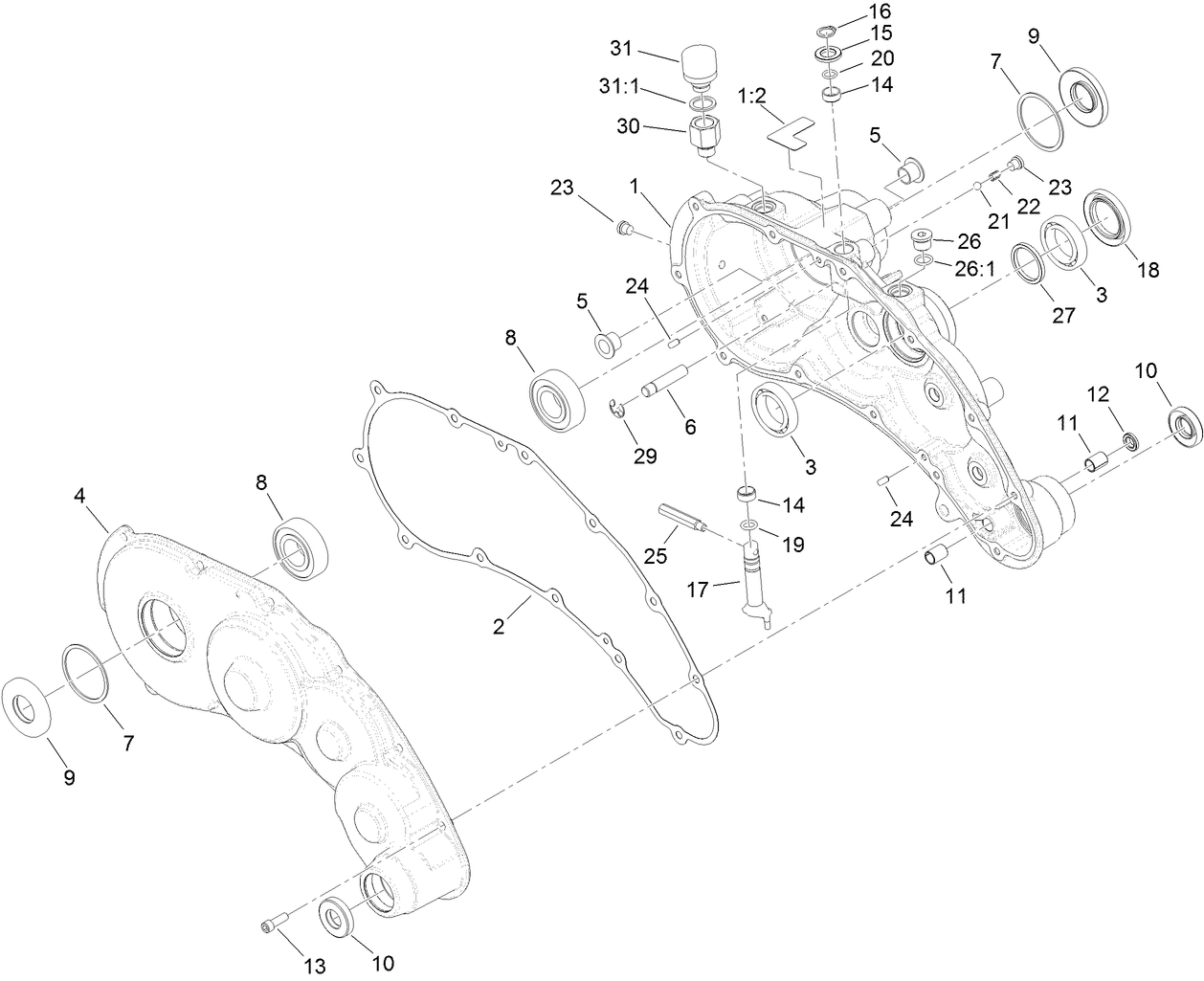

Transmission Assembly No. 140-9327 Transmission Case Assembly

Transmission Assembly No. 140-9327 Transmission Case Assembly

Upper Handle Assembly

Upper Handle Assembly

Download Parts Catalog

Manuals

Operator's Manual

Parts Catalog

Product Warranty

Schematic Drawing - Electrical

ACMA Declaration of Conformity

EU/UK Declaration of Conformity

Accessories (57)

LI-ION BATTERY CHARGER (Part # 04066)

GR26 INTERLACE NARROW WIEHLE ROLLER A (Part # 04076)

GR26 EXT LACE NARROW WIEHLE ROLLER AS (Part # 04077)

GR26 WIDE WIEHLE ROLLER ASM (Part # 04078)

GR26 FULL FRONT ROLLER ASM (2.5IN AL) (Part # 04079)

LI-ION BATTERY CHARGER (Part # 04091)

Wheel Kit

Wheel Kit (Part # 04123)

To transport mower from green to green or in the shop.

Light Kit

Light Kit (Part # 04135)

Allows operator to mow in low light conditions.

Push Broom Brush

Push Broom Brush (Part # 04136)

Conditions grass prior to cut.

Light Mount Kit (Part # 04138)

Allows user to move light mounting from the traction unit to the cutting unit.

Transport Frame, Trans Pro 80 Tow-Behind Trailer (Part # 04238)

Flat Ramp (Part # 04245)

Rail Ramp Kit

Rail Ramp Kit (Part # 04247)

Genuine OEM Part

Stiff QC Grooming Brush (Part # 04276)

Spiral rotating brush used to condition grass before cutting

Turf Evaluator

Turf Evaluator (Part # 04399)

Mirror device used to assess turf conditions

Universal Groomer Drive

Universal Groomer Drive (Part # 04707)

Groomer drive with forward, neutral and counter-rotating dial

Twin Tip Groomer Blade

Twin Tip Groomer Blade (Part # 04803)

8-Blade Cutting Unit

8-Blade Cutting Unit (Part # 04842)

Designed for mowing on higher heights of cut, such as approaches, fairways or tee boxes.

11-Blade Cutting Unit

11-Blade Cutting Unit (Part # 04843)

Designed for mowing on lower heights of cut, such as greens.

Genuine OEM Part 104-2646

26.12 Inch High Cut Standard Bedknife (Part # 104-2646)

Toro 26.12 Inch OEM High Cut Standard Bedknife. You can count on the quality and reliability of this replacement High Cut bedknife. Be sure to verify the make and serial number to ensure correct part.

Genuine OEM Part 107-8181

26.12 Inch Fairway Cut Standard Bedknife (Part # 107-8181)

Toro 26.12 Inch OEM Fairawy Cut Standard Bedknife. You can count on the quality and reliability of this replacement Fairway Cut bedknife. Be sure to verify the make and serial number to ensure correct part.

Black Bottle Paint (Part # 112-0176)

Black paint for touch ups.

Genuine OEM Part 112-0178

Red Paint Bottle (Part # 112-0178)

Genuine OEM Part 112-9275

26.12 Inch Micro Cut Standard Bedknife (Part # 112-9275)

Toro 26.12 Inch OEM Micro Cut Standard Bedknife. You can count on the quality and reliability of this replacement Micro Cut bedknife. Be sure to verify the make and serial number to ensure correct part.

Wireless Hourmeter System

Wireless Hourmeter System (Part # 115-4754)

Genuine OEM Part

1.00 Inch Auxiliary Roller Extension Kit (Part # 115-7361)

Contains 115-7362 @ 2, 108-4339 @ 2, 115-7369 @ 2, 115-7370 @ 2, 115-7371 @ 2

Genuine OEM Part 117-1548

26.12 Inch Tournament Cut EdgeMax™ Bedknife (Part # 117-1548)

Toro 26.12 Inch OEM Tournament Cut EdgeMax™ Bedknife. The EdgeMax™ is a tougher medal crafted with precision to give you an amazing cut every time. You can count on the quality and reliability of this replacement Tournament Cut bedknife. Be sure to verify the make and serial number to ensure correct part.

Dpa Rebuild Kit

Dpa Rebuild Kit (Part # 121-2637)

Contains 106-5363 @ 2, 106-5344 @ 4, 119-4164 @ 2, 32120-93 @ 2, 137-6130 @ 2, 119-4155 @ 2, 119-4156 @ 2, 119-4039 @ 2, 99-2097 @ 2, 119-4067 @ 2

Genuine OEM Part 125-5610

Paper Reel (Part # 125-5610)

Toro OEM Paper-Reel, Toro (10 Pack).

Genuine OEM Part

Stiff Grooming Brush (Part # 127-1549)

Spiral rotating brush used to condition grass before cutting

Genuine OEM Part 131-6828

Angle Indicator (Part # 131-6828)

Toro OEM Angle Indicator

Genuine OEM Part 131-6829

Angle Indicator Mount (Part # 131-6829)

Toro OEM Angle Indicator Mount

Synthetic Grease (Part # 136-8595)

Genuine OEM Part 138-1522-01

Bedbar (Part # 138-1522-01)

Genuine OEM Part 139-4322

26.12 Inch Micro Short Cut EdgeMax™ Bedknife (Part # 139-4322)

Toro 26.12 Inch OEM Micro Short Cut EdgeMax™ Bedknife. The EdgeMax™ is a tougher medal crafted with precision to give you an amazing cut every time. You can count on the quality and reliability of this replacement micro short cut bedknife. Be sure to verify the make and serial number to ensure correct part.

Genuine OEM Part 139-4323

26.12 Inch Short Tournament Cut EdgeMax™ Bedknife (Part # 139-4323)

Toro 26.12 Inch OEM Short Tournament Cut EdgeMax™ Bedknife. The EdgeMax™ is a tougher medal crafted with precision to give you an amazing cut every time. You can count on the quality and reliability of this replacement Short Tournament Cut bedknife. Be sure to verify the make and serial number to ensure correct part.

Genuine OEM Part 139-4324

26.12 Inch Micro Cut EdgeMax™ Bedknife (Part # 139-4324)

Toro 26.12 Inch OEM Micro Cut EdgeMax™ Bedknife. The EdgeMax™ is a tougher medal crafted with precision to give you an amazing cut every time. You can count on the quality and reliability of this replacement Micro Cut bedknife. Be sure to verify the make and serial number to ensure correct part.

Backlap Access Kit

Backlap Access Kit (Part # 139-4342)

Required for auxiliary electric motor backlapping and to assist with adapting to most reel grinders

Interlaced Roller Scraper (Part # 139-4394)

Full Roller Scraper (Part # 139-4398)

Smooth Roller Scraper Brush (Part # 139-5117)

Interlaced Roller Scraper Brush (Part # 139-5125)

Wide Wiehle Roller Scaper (Part # 139-7406)

Use on puffy turf to control bobbing marks. Adds weight to stabilize cutting unit over rough surfaces.

Wide Wiehle Roller Scaper Brush (Part # 139-7410)

Use on puffy turf to control bobbing marks. Adds weight to stabilize cutting unit over rough surfaces.

Toro Reel Shim (Part # 140-5531)

Check reel to bedknife contact

Genuine OEM Part 140-5580

Twin Tip Groomer Blade (Part # 140-5580)

Genuine OEM Part 140-5581

Helix Groomer Blade (Part # 140-5581)

High-strength, twin-tipped groomer blade.

Genuine OEM Part 140-5582

Helix Groomer Blade (Part # 140-5582)

High-strength, twin-tipped groomer blade.

120V AC Cord (Part # 147-6297)

Genuine OEM Part

EU To UK AC Adapter, 250V/10A (Part # 147-7791)

Genuine OEM Parts

EU To Australia AC Adapter, 250V/10A (Part # 147-7792)

Genuine OEM Parts

Toro Red 12or aerosol can.

Toro Red 12or aerosol can. (Part # 361-10)

Genuine OEM Part

Semi-Gloss Black Paint (Part # 361-9)

Genuine OEM Part

Genuine OEM Part 93-9015

26.12 Inch Low Cut Standard Bedknife (Part # 93-9015)

Toro 26.12 Inch OEM Low Cut Standard Bedknife. You can count on the quality and reliability of this replacement Low Cut bedknife. Be sure to verify the make and serial number to ensure correct part.

Genuine OEM Part 94-5885

26.12 Inch Tournament Cut Standard Bedknife (Part # 94-5885)

Toro 26.12 Inch OEM Tournament Cut Standard Bedknife. You can count on the quality and reliability of this replacement Tournament Cut bedknife. Be sure to verify the make and serial number to ensure correct part.

Genuine OEM Part

Height of Cut Kit (Part # 94-9010)

Height of cut range 0.285”– 1.00” (7.2 – 25.4 mm), set of one

Extended Height of Cut Bracket (Part # 99-4286)

Enables heights of cut up to .94” (23.8mm)

Product Details

Model #

04845

Serial #

418100000 - 999999999

Product Name

Greensmaster® e1026

Product Brand

Toro

Product Type

Walk Behind Mowers
