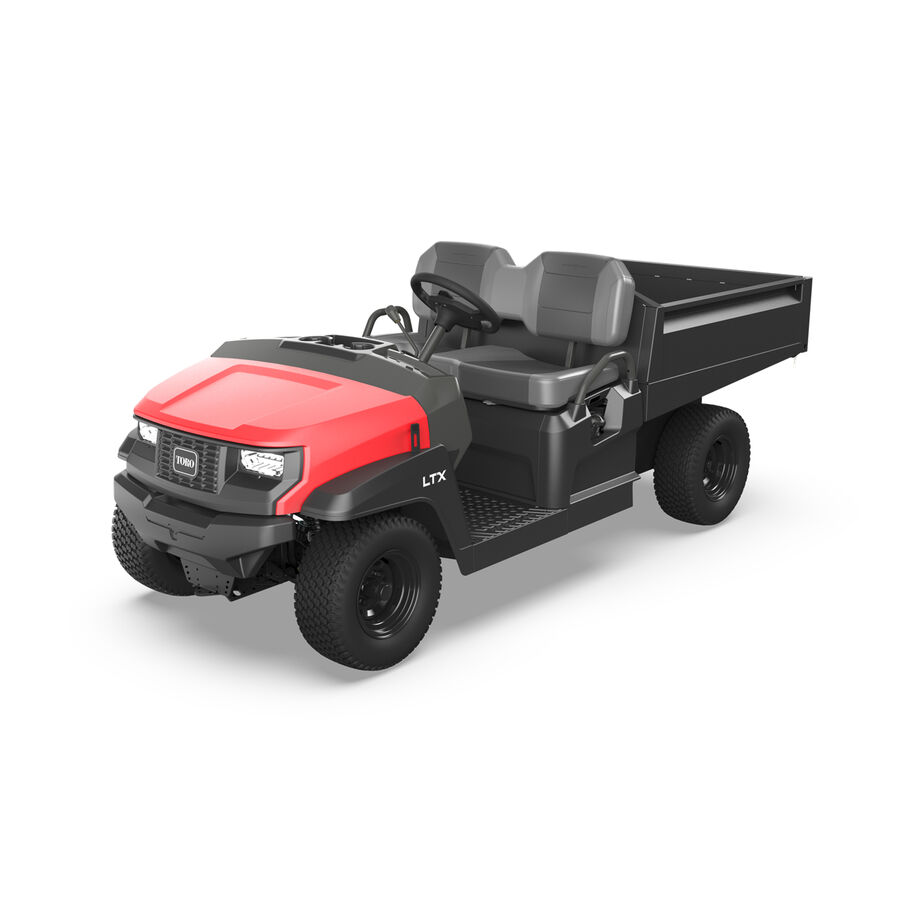

Workman® LTX Utility Vehicle

  • Model: 07424
See All Items in Workman® LTX Series
  • Exceptional power, reliability, and efficiency, so you can tackle every job with confidence
  • Choose standard height or lifted models, extend the bed for additional hauling, or add an additional row of seats for more passengers.
  • Stay in control with easy-to-reach controls and a clear LCD display.
  • Hydraulic disc brakes deliver reliable, consistent stopping power with minimal maintenance
  • Coil-over shocks all around the vehicle deliver greater suspension travel and adjustability
  • Automotive-grade rack and pinion steering system provides more control and lowers steering effort

Overview

The next generation of light-duty utility vehicles is here. The new Workman LTX delivers everything you asked for - power, comfort, and elevated design. Powered by either the Briggs & Stratton Vanguard 400 EFI gasoline engine or the Toro HyperCell lithium battery system, the LTX offers standard height, lifted, or extended models to help you tackle your toughest days. With abundant storage, enhanced options, optimal design, and rugged reliability, you don’t have to choose between strength and versatility. The Toro Workman LTX provides both because your work deserves the best.

Features

Workman LTX Utility Vehicle - EFI Gas or Lithium Ion Battery
Power Your Way
Select the Briggs & Stratton® Vanguard® 440 EFI gasoline engine or the advanced Toro HyperCell® Lithium-Ion battery system. Both deliver exceptional power, reliability, and efficiency, so you can tackle every job with confidence.
Workman LTX Utility Vehicle - Endless Ways to Customize
Endless Ways to Customize
The Workman LTX gives you the flexibility to tackle any job with dozens of configuration options. Choose standard height or lifted models, extend the bed for additional hauling, or add an additional row of seats for more passengers. With accessories to match, you can make your office on wheels your own.
Workman LTX Utility Vehicle - Intuitive Dashboard Layout
Intuitive Dashboard Layout
Oversized cup holders and ample storage for tools and gear. Stay in control with easy-to-reach controls and a clear LCD display. Plus, keep your devices powered on the go with integrated USB-A & C charging ports
Workman LTX Utility Vehicle - Braking You Can Count On
Braking You Can Count On
Hydraulic disc brakes deliver reliable, consistent stopping power with minimal maintenance, no cable adjustments and less pedal force than traditional mechanical brakes.
Workman LTX Utility Vehicle - Suspension
Suspension
Coil-over shocks all around the vehicle deliver greater suspension travel and adjustability resulting in a smoother ride and minimized operator fatigue.
Workman LTX Utility Vehicle - Steering
Steering
An automotive-grade rack and pinion steering system provides more control and lowers steering effort, while operating loaded or empty. This allows operators to focus on the task at hand and nothing else.

Specifications

Battery One 12V starter battery
Brakes - Front Hydraulic Disc
Brakes - Rear Hydraulic disc
Crated Model No
Displacement 408cc (24.9 ci)
Drivetrain Gas
Frame Power coated, welded steel channel and tube.
Fuel / Power Source Gasoline
Fuel Capacity 5 gallons (18.9 liters)
Gauges/Instrumentation Hour meter, fuel gauge, USB power port, headlight switch, on/off ignition key switch, gear selector and parking brake lever. Two cup holders, radio holder and three in-dash storage compartments.
Ground Clearance Front: 9" (22.8 cm) Rear: 6" (15.2 cm)
Height 2-Seat with Bed: 50.2" (127 cm) 4-Seat with Bed: 50.2" (127 cm) 2-Seat with 6' Flat Bed: 50.2" (127 cm)
Horn Standard
Inside Turning Radius 60.25" (153 cm)
Lights Standard LED Headlights
Optional Accessories Canopy, solid folding windshield, 4-seat configuration, flat bed, 6-foot flat bed, bed sides, storage box, trash can mount, bed racking, electric bed lift, brush guard, 12V outlet, brake/tail/signal lights, ROPS certified hard cab, back up alarm kit, parking brake alarm kit, all-terrain tire kit, 2-post ROPS kit, beverage cart, range cage, glass windshield and medical-bed.
Power Steering No
Power Train (Engine Description) 408cc, air-cooled, single cylinder Briggs & Stratton® EFI gasoline engine.
Product Length 2-Seat with Bed: 119" (302 cm) 4-Seat with Bed: 144" (366 cm) 2-Seat with 6' Flat Bed: 156" (396 cm)
Rear Draw Bar Standard
Roll-Over Protection (ROPS) Optional
Starting Pedal or Key Start
Steering System Description Rack and pinion system with ergonomically positioned non-adjustable column. Steering wheel has 2.75 turns lock-to-lock with a 13.75" (34.93 cm) diameter wheel.
Suspension - Front Modified MacPherson Strut. Adjustable coil over shocks at all four wheels.
Suspension - Rear Articulating Swing Arm. Adjustable coil over shocks at all four wheels.
Suspension Travel - Front 3.5" (8.9 cm)
Suspension Travel - Rear 4" (10.2 cm)
Tires - Front 20" x 8" - 10", 4-ply. Or alternate 4-ply/6-ply
Tires - Rear 20" x 8" - 10", 4-ply. Or alternate 4-ply/6-ply
Total Vehicle Capacity 1,200 lbs. (544 kg)
Towing Capacity 1,500 lbs. (680 kg)
Traction Drive (System) 2WD
Transaxle 11.47:1 Forward, 14.35:1 Reverse.
Vehicle Configuration Standard
Vehicle Type Light Duty
Weight 2-Seat with Bed: 875 lbs. (397 kg) 4-Seat with Bed: 1,150 lbs. (522 kg) 2-Seat with 6' Flat Bed: 1,264 lbs. (573 kg)
Wheelbase 2-Seat with Bed: 77.8" (197 cm)
