Workman® LTX Utility Vehicle

  • Model: 07425
See All Items in Workman® LTX Series
  • Exceptional power, reliability, and efficiency, so you can tackle every job with confidence
  • Choose standard height or lifted models, extend the bed for additional hauling, or add an additional row of seats for more passengers.
  • Stay in control with easy-to-reach controls and a clear LCD display.
  • Electronically controlled parking brake adds an extra layer of convenience.
  • Coil-over shocks all around the vehicle deliver greater suspension travel and adjustability
  • Automotive-grade rack and pinion steering system provides more control and lowers steering effort

Overview

The next generation of light-duty utility vehicles is here. The new Workman LTX delivers everything you asked for - power, comfort, and elevated design. Powered by either the Briggs & Stratton Vanguard 400 EFI gasoline engine or the Toro HyperCell lithium battery system, the LTX offers standard height, lifted, or extended models to help you tackle your toughest days. With abundant storage, enhanced options, optimal design, and rugged reliability, you don’t have to choose between strength and versatility. The Toro Workman LTX provides both because your work deserves the best.
Electric = Electric Model

Features

Workman LTX Utility Vehicle - EFI Gas or Lithium Ion Battery
Power Your Way
Select the Briggs & Stratton® Vanguard® 440 EFI gasoline engine or the advanced Toro HyperCell® Lithium-Ion battery system. Both deliver exceptional power, reliability, and efficiency, so you can tackle every job with confidence.

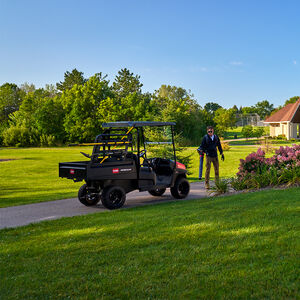

Workman LTX Utility Vehicle - Endless Ways to Customize
Endless Ways to Customize
The Workman LTX gives you the flexibility to tackle any job with dozens of configuration options. Choose standard height or lifted models, extend the bed for additional hauling, or add an additional row of seats for more passengers. With accessories to match, you can make your office on wheels your own.

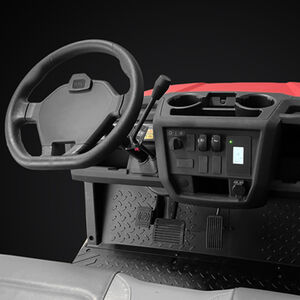

Workman LTX Utility Vehicle - Intuitive Dashboard Layout
Intuitive Dashboard Layout
Oversized cup holders and ample storage for tools and gear. Stay in control with easy-to-reach controls and a clear LCD display. Plus, keep your devices powered on the go with integrated USB-A & C charging ports

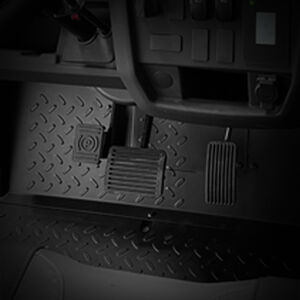

Workman LTX Utility Vehicle - Braking You Can Count On
Braking You Can Count On
An electronically controlled parking brake adds an extra layer of convenience.

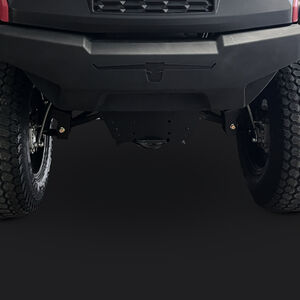

Workman LTX Utility Vehicle - Suspension
Suspension
Coil-over shocks all around the vehicle deliver greater suspension travel and adjustability resulting in a smoother ride and minimized operator fatigue.

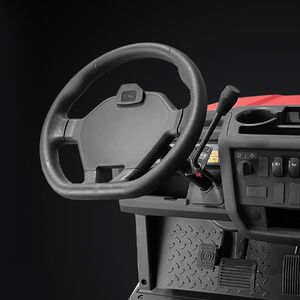

Workman LTX Utility Vehicle - Steering
Steering
An automotive-grade rack and pinion steering system provides more control and lowers steering effort, while operating loaded or empty. This allows operators to focus on the task at hand and nothing else.

Specifications

Battery Two HyperCell lithium-ion batteries standard, option to add an additional battery
Brakes - Front Hydraulic Disc
Brakes - Rear Hydraulic disc
Cargo Capacity 800 lbs. (363 kg)
Charger On-board high efficiency 900W smart charger
AC input voltage 100-240VAC
AC input Frequency 50/60 Hz
Max input Current 13.4 A
Controller 375 amps max with regenerative motor braking, roll-away protection, thermal cutback, sealed/waterproof, status light and three power modes.
Crated Model No
Drivetrain Battery
Electric Motor Brushless high-torque AC induction motor with 5.0kW continuous power
Fuel / Power Source Battery
Gauges/Instrumentation LCD display, USB A & C power ports, headlight switch, on/off ignition key switch, horn switch, cup holders, radio holder, and large storage compartments throughout dash.
Ground Clearance Front: 9" (22.8 cm) Rear: 6" (15.2 cm)
Height 2-Seat with Bed: 50.2" (127 cm)
Horn Standard
Inside Turning Radius 60.25" (153 cm)
Lights Standard LED Headlights
Optional Accessories Canopy, folding windshield, windshield w/ wiper, seat kit for EX models, steel cargo bed, plastic cargo bed, 6-foot flat bed, bed sides, electric bed lift, bed racking, brush guard, brush guard w/ front receiver, trash can mount, ROPS certified cab, cab doors, light options for cab (work lights and beacon), range cage, canopy with ROPS, mirrors, brake/tail/signal lights, back up alarm, under hood storage kit, ram mount ball, 12V power point kit, all-terrain tire kit, telematics kit. Allied accessories: drop-in beverage cart, Kimtek medical bed, Rahn Groomer
Outside Turning Radius 20.7' (6.3 m)
Power Train (Engine Description) 48V brushless AC induction drive
Product Length 2-Seat with Bed: 119" (302 cm)
Rear Draw Bar Standard
Roll-Over Protection (ROPS) Optional
Starting Pedal Start
Steering System Description Manual rack and pinion steering system with ergonomically positioned column. Steering wheel has 2.75 turns lock-to-lock with 13.75” (35 cm) diameter.
Suspension - Front Modified MacPherson Strut
Suspension - Rear Articulating Swing Arm. Adjustable coil over shocks at all four wheels.
Suspension Travel - Front 3.5” (8.9 cm)
Suspension Travel - Rear 4” (10.2 cm)
Tires - Front 20" x 8" - 10", 4-ply. Or alternate 4-ply/6-ply
Tires - Rear 20" x 8" - 10", 4-ply. Or alternate 4-ply/6-ply
Total Vehicle Capacity 1,200 lbs. (544 kg)
Towing Capacity 1,500 lbs. (680 kg)
Traction Drive (System) 2WD
Transaxle 11.47:1 Forward, 14.35:1 Reverse
Vehicle Configuration Standard
Vehicle Type Light Duty
Weight 2-Seat with Bed: 972 lbs. (441 kg)
Wheelbase 2-Seat with Bed: 77.8" (197 cm) 2-Seat with 6' Flat Bed: 114" (290 cm)

Documents

Title Documents
WorkmanLTX_Sell_Sheet_011326.pdf PDF - Sellsheet-en-us

Parts & Manuals

Select your model year from the options below to view parts & manuals.

07425 Serial #
400000000-999999999
