The Reelmaster® 3100 is a revolutionary triplex mower designed for superior traction and cutting unit performance on all types of turf. The Sidewinder® cutting unit control system can be shifted right and left, on the fly, to vary the tire tracks. A powerful Kubota® 21.5 hp (16 kW) engine and the Series/Parallel 3WD traction drive system provide the power and traction to get the mowing job done quickly. The operator area is designed for optimal operator view and all day mowing comfort. And mechanics will appreciate the fast and easy access to all service items.
| Air Filter | Heavy-duty, radial seal air cleaner. |
|---|---|
| Armrests | Standard |
| Battery | 12V |
| Bedknife Adjustment | Dual Precision Adjustment (DPA), bedknife to reel. |
| Blade Style/Type | Reel |
| Blade Type (Description) | EdgeSeries™ DPA radial reels. |
| Cab Unit | N/A |
| Clip Frequency/Backlapping | Manually controlled, variable reel speed for control of clip frequency. Standard on-board backlapping. |
| Controls | Forward and reverse traction control pedals, mow/transport lever, hand activated park brake, ignition key switch, tilt steering wheel lock, PTO switch, throttle, joystick control for cutting unit raise and lower (and for moving cutting units side-to-side on Sidewinder equipped models), cutting unit transport lock, reel speed and backlap control knob. |
| Cooling System Description | Rear mounted radiator. |
| Cup Holder | Standard |
| Cutting Unit Accessories | Rear Roller Brush Kit, Universal Groomer, Broomer, Grass Baskets |
| Cutting Unit Lift/Lower | Hydraulic - front and rear cutting unit lift/lower are sequenced for uniform starting and ending points. |
| Cutting Unit Offset | Maximum 15" (38 cm) in 72" (183 cm) width of cut. Maximum 22" (56 cm) in 85" (216 cm) width of cut. |

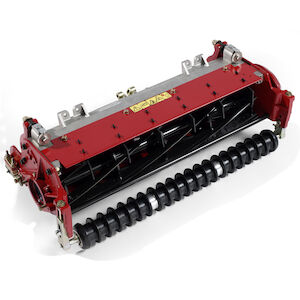

| Cutting Unit Type/Configuration | Three hydraulically-driven, balanced, 7" (17.8 cm) diameter reels. Cutting units interchangeable to all three positions. Operator controlled moveable cutting units travel ±12" (30 cm) left or right from center; total of 24" (61 cm) of infinite variability. 72" (183 cm), or 85" (216 cm) width of cut dependent on cutting unit selection. |
| Drivetrain | Diesel |
| Electrical System | 12-volt, 585 cold cranking amps at 0 deg. F (-18 deg. C), 40 amps with regulator/rectifier. |
| Engine Cooling | Liquid Cooled |
| Fuel / Power Source | Diesel / Biodiesel |
| Fuel Capacity | 7.5 U.S. gal. (28 .4 L) |
| Fuel Filter | Fuel filter with fuel/water separator with visible bowl. |
| Gauges/Instrumentation | Hour meter, fuel gauge, cluster gauge with glow plug and charge indicator lights. Low engine oil pressure and high coolant temperature warning lights (high temperature safety shut off). |
| Ground Speed - Forward | 0 - 9 mph (0 - 14 km/h) |
| Ground Speed - Reverse | 0 - 4 mph (0 - 6.4 km/h) |
| Height | 76" (193 cm) with ROPS |
| Height of Cut Range | Floating Position (Standard) 8-Blade: 0.5" - 2.0" (13 mm - 51 mm) 11-Blade: 0.25" - 0.75" (6 mm - 19 mm) Fixed Position 8-Blade: 1.25" - 2.0" (32 mm - 51 mm) |
| Hydraulic Fluid Capacity | 6 U.S. gal. (22.7 L) |
| Hydraulic Fluid Type | Toro PX™ Extended Life Hydraulic Fluid |
| IntelliDash™ Capable | No |
| Interlocks | Traction pedal, operator presence in seat, PTO engage or disengage, and cutting unit mow or transport safety interlock switches. |
| Lighting | Optional |
| Main Frame/Chassis | Formed steel, welded steel and steel tubing. |
| Max Slope Angle | Refer to operator's manual. |
| Mowing Speed | 0 - 6 mph (0 - 10 km/h) |
| Number of Blades | 11, 5, 8 |
| Oil Capacity | 3.5 U.S. qt. (3.3 L) |
| Oil Cooler Description | Pressurized lubrication system with 3.5 U.S. qt. (3.3 L) capacity. |
| Optional Accessories | Sunshade (with optional operator cooling fan, LED work lights, rotating amber beacon) |
| Parking/Service Brakes | Hydrostatic service brake, hand-operated parking brake. |
| Power Steering | Yes |
| Power Train (Engine Description) | Kubota® liquid-cooled diesel, 3-cylinder, 21.5 hp (16 kW) net @ 2500 RPM. High idle: 2,600 rpm, Low idle: 1,400 rpm (+/- 50 rpm). 68.5 cu. in. (1123 cm) displacement. Tier 4 and Stage V compliant. |
| Product Length | 93" (248 cm) |
| Reel Diameter | 7 in. (17.8cm) |
| Reel/Cylinder Drive | Hydraulic |
| Rollers | Full roller standard on rear of cutting unit and plastic front Wiehle roller. |
| Safety/Operator Safety | Two post ROPS and retractable seat belt standard. |
| Seat | Two-piece premium commercial two-tone grey vinyl with two arm rests, fore/aft adjustment. |
| Sidewinder | Yes |
| Starting | Switch |
| Steering System Description | Power steering with tilt steering wheel. |

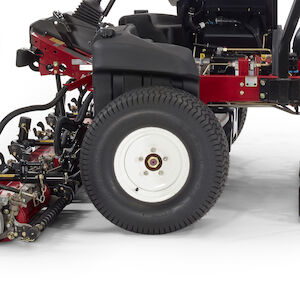

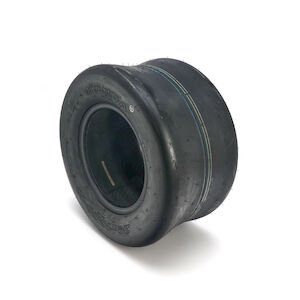

| Tires - Front | 20" x 12" - 10", 4-ply, Turf Tread |

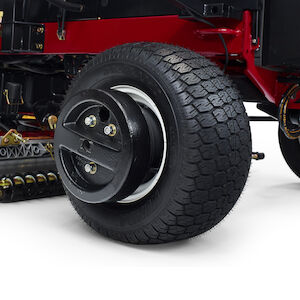

| Tires - Rear | 20" x 10" - 10", 4-ply, Turf Tread |
| Tool Box | Optional |
| Traction Drive | 3WD |
| Traction Drive (System) | Series/Parallel hydraulic traction circuit provides continuous 3-wheel drive, in mow and transport. Hydrostatic traction drive provides infinitely variable speed in forward and reverse. |
| Transport Width | 80" (203 cm) in 72" (183 cm) WOC, 92" (234 cm) in 85" (216 cm) WOC |
| Weight | with 27-inch Cutting Units: approx. 1,950 lbs. (885 kg) |
| Wheelbase | 56" (142 cm) |
| Width of Cut | 72" (183 cm) or 85" (216 cm) |
