Groundsmaster® 5910

Model: 31699

Groundsmaster® 5910

Model: 31699

See All Items in Groundsmaster® 5900 Series

Key Features

We designed this machine to be powerful, yet energy efficient
The large-diameter ductile cast iron spindle housing (9 in. / 229 mm) dissipates impact loads, while dual tapered roller bearings last up to six times longer than ball bearings
The optional factory-installed safety cab features a four-post rollover protection structure (ROPS), tempered safety glass, and climate control with air conditioning and heating
4-way adjustable seat and air-ride suspension isolate the operator platform, reducing noise and vibration
The ability to mow a 0" (0 cm) uncut circle—without wheel brakes—enables easy striping without leaving grass uncut
One Groundsmaster 5900 matches the production of two 11 ft (3.4 m) mowers or four 6 ft (1.8 m) out front rotaries
The onboard InfoCenter™ provides the operator with a quick overview of all systems and timely assistance
3.3L (202 cu. in.) Yanmar Tier 4 Final compliant turbo-diesel engine, delivering 72 HP (53.7 kW) at 2500 rpm and 206 lb-ft (279 Nm) torque at 1625 rpm; B20 diesel compatible
The Groundsmaster 5900 offers mowing widths from 57" (145 cm) to 192" (487 cm), providing the flexibility for nearly any mowing requirement
Automatically adjusts the mower’s ground speed for the cutting conditions
Belts transfer power more efficiently than hydraulic motors, providing protection against hydraulic failures. The large diameter spindle housing dissipates impact loads, and dual tapered roller bearings last up to six times longer than ball bearings
The SmartCool™ system prevents overheating with auto-reversing cooling fans
CrossTrax® all-wheel drive system offers increased cross wheel traction control

Request a Demo

Resources

Find a Distributor Sell Sheet Parts

Product Details

Overview

The Groundsmaster® 5910-D rotary mower offers an impressive 16' (4.88 meter) cutting width for making quick work of even the largest jobs. Equipped with a 72 hp (53.7 kW) diesel engine, the 5910-D is powerful and efficient. The onboard InfoCenter™ provides diagnostics to identify potential maintenance issues. These features, along with the SmartCool™ system with an auto-reversing cooling fan, ensure a long, productive life. Operators stay comfortable no matter the weather in the climate-controlled safety cab.

Features

EnergySmart Efficiency

We designed this machine to be powerful, yet energy efficient. System designs improve horsepower efficiency through: Hydraulics: (12hp savings) Cooling: (7hp savings) Cutting: (10hp savings).

Heavy Duty Spindle

Ductile cast iron spindle housing is large in diameter [9 in. (229 mm) at the base] to dissipate impact loads. Dual tapered roller bearings last up to six times longer than ball bearings.

All Season Safety Cab

The optional, factory installed, permanent safety cab protects the operator with a four-post rollover protection structure (ROPS), tempered safety glass, and climate controlled environment including both air conditioning and heater.

Reduced Operator Vibration

4-way adjustable seat and air-ride suspension isolate the operator platform to reduce noise and vibration.

0" Uncut Circle

The ability to mow a 0" (0 cm) uncut circle - without wheel brakes - allows you to easily mow striping patterns without leaving any grass uncut.

Mows 20.8 Acres/Hour

One Groundsmaster 5900 has the equivalent production of two 11 ft (3.4m) mowers or four 6 ft (1.8m) out front rotaries.

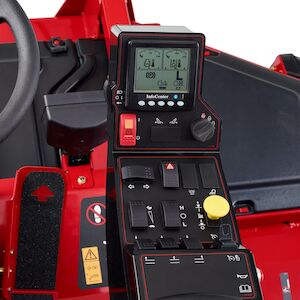

Onboard InfoCenter™

The onboard InfoCenter™ gives the operator a quick read on all systems and even provides assistance at the right moment.

Powerful Tier 4 Engine

3.3L (202cu. in.) Yanmar Tier 4 Final Compliant turbo-diesel engine, 72 HP (53.7kW) @2500 rpm, 206 lb. ft. (279 Nm) torque @1625 rpm, B20 diesel compatible.

Flexible Cutting Width

With the ability to mow widths ranging from 57" (145 cm) to 192" (487 cm) the Groundsmaster 5900 has the flexibility necessary for nearly any mowing need.

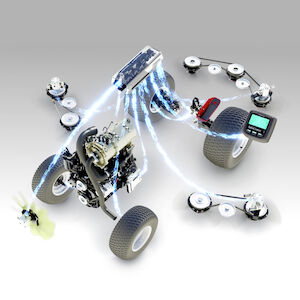

Smart Power™

Automatically adjusts the mower’s ground speed for the cutting conditions to maintain optimal power to the blades, taking the guesswork out of a consistent cut.

Groundsmaster® 5900 series feature - hybrid drive cutting deck

HybridDrive™ Cutting Deck System

Belts transfer power more efficiently than hydraulic motors while adding a layer of protection against hydraulic failures. Large diameter spindle housing dissipates impact loads, and dual tapered roller bearings last up to six times longer than ball bearings.

SmartCool™

The SmartCool™ system prevents over-heating with auto-reversing cooling fans.

All Time Traction Assist

CrossTrax® all-wheel drive system offers increased cross wheel traction control.

Specifications

Armrests

Standard

Battery

12V

Blade Style/Type

Rotary

Blade Type (Description)

20" (50.8 cm) heat-treated steel blades

Cab Unit

Heat & Air-Conditioned Safety Cab

Cab Unit Description

ROPS certified cab with heat & AC; Includes: climate system pressurized cab, windshield wiper & washer, folding exterior side mirrors, molded front fenders, right, left & rear window have tinted (50%) glass, quick release window latches, rubber sound isolator cab mounts, interior dome light.

Controls

Control arm, right armrest, travels with seat and suspension. Deck lift/lower, electrohydraulic switches. Throttle; electronic, variable. Traction pedal, electronic. Park brakes: double-motion switch. Steering; hydrostatic load sensing.

Cooling System Description

24V dual electric fan banks for separate engine radiator and hydraulic oil cooling; fan banks are variable speed and have auto-reverse, radiator is cross flow, 3 rows, 9 FPI. Hydraulic oil cooler is crossflow, 6 FPI.

Cup Holder

Standard

Cutting Unit Accessories

Atomic™ Mulching Blades, Flat Blades

Cutting Unit Type/Configuration

Three rear discharge rotary decks. All three decks: 192" (488 cm), One wing: 57" (145 cm), center deck: 92" (234 cm), center deck + one wing: 144" (366 cm)

Deck Construction

11-gauge high-strength steel. 7-gauge, reinforcements, bullnose bumpers.

Deck Wing Protection

2-way shock absorption on wing decks

Drivetrain

Diesel

Electrical System

Main: 12 volt system; Alternator: 12V, 80 amp, supplied w/ engine Battery: 1380 CCA (2x 690 CCA), Cooling Fans, Engine/Hydraulic cooling: 24 volt system; Alternator: 24V, 105 amp w/ remote sense; Battery: 350 CCA.

Engine Cooling

Liquid Cooled

Fuel / Power Source

Diesel / Biodiesel

Fuel Capacity

35 U.S. gal. (132.5 L)

Gauges/Instrumentation

InfoCenter™: Shows gauges, service reminders, advisories/faults and troubleshooting assistance. Shows fuel level, coolant temp, hydraulic oil temp, engine glow plug, low oil pressure, air cleaner restriction, 12V & 24V alternator output, engine hours, rpm and DPF regeneration.

Ground Clearance

10.3" (26.1 cm)

Ground Speed - Forward

0 - 20 mph (0 - 32.2 km/h)

Ground Speed - Reverse

0 - 10.5 mph (0 - 16.9 km/h)

Height

95" (241 cm)

Height of Cut Range

1" - 6“ (2.5 cm - 15 cm) in 0.5" (1.3 cm) increments

Hydraulic Fluid Capacity

19 U.S. gal. (71.9 L)

Hydraulic Fluid Type

Toro PX™ Extended Life Hydraulic Fluid

Implement Drive

HybridDrive™ - Hydraulic motor to spindle, remaining spindle(s), driven by “B” section v-belts with automatic, spring loaded idlers

Lighting

Standard

Main Frame/Chassis

All welded formed-steel frame with integral tie-down anchors

Max Slope Angle

Refer to operator's manual

Mowing Rate (Productivity)

Up to 20.9 acres/hr (8.5 hectacres/hr)

Mowing Speed

0 - 10.8 mph (0 - 17.4 km/h)

Number of Blades

Oil Capacity

11 U.S. qt. (10.4 L)

Oil Cooler Description

Crossflow, hydraulic oil cooler @ 6 FPI

Operator Area

Storage box, cup holder, 12-volt power outlet, double USB port

Optional Accessories

Red Sunshade, White Sunshade, Rotating Beacon Kit, Work Light Kit, Additional Turn Signals, Horn, Backup Alarm, Auxiliary Braking System

Overall Width

199" (505 cm)

Parking/Service Brakes

Parking: Electrohydraulic controlled via double-motion rocker switch. Service: Dynamic, hydrostatic 4WD in low range. Front wheel drive braking in high range.

Power Steering

Yes

Power Train (Engine Description)

3.3 L Yanmar® EPA Tier 4 Final and EU Stage IV emissions compliant turbo-diesel engine. 72 HP (53.7 kW) @ 2500 rpm, Torque: 206 ft.-lbs. (279 Nm) @ 1625 rpm Displacement: 202 cu. in. (3.3 L).

Product Length

174" (442 cm)

Safety/Operator Safety

LED headlights, brake lights, tail lights, amber turn signals and flashers

Seat

4 -way adjustable seat with cloth cushions. Air ride suspension with 3" (7.6 cm) of adjustability.

Spindle Assembly

Shaft: 1.25" (3.2 cm) hardened steel. Housing: 9” (22.9 cm) ductile iron. Bearings: Greaseable tapered roller.

Starting

Key Start

Steering System Description

Power steering with dedicated power source. Steering wheel tilts to desired operator position.
